How to Carry a Utility Knife on the Belt

Job: select, fit, wear, draw from, return to, transfer, and store a belt-carried utility knife without relying on an unproven fit or retention claim.

Time: about 15–30 minutes for the first fit and movement check; less than a minute for the start-of-shift inspection thereafter.

Difficulty: low mechanical skill, high consequence if fit, blade state, or work environment is wrong.

Both are heavy-duty top-grain leather, rivet-reinforced, with 2-1/2-inch-wide belt slots, and both are cataloged as holstering the knife with the blade exposed.

Everything else: the exact knife to be carried; its manufacturer instructions; the actual work belt and work clothing; any harness, high-visibility garment, jacket, apron, or other PPE worn on the job; a clean bench for the fit test; the employer's knife-control procedure where one applies; and a closed, puncture-resistant transport or storage container appropriate to the blade system.

Before you put the pouch on: prove the pairing

A model name is not a fit test.

The same discipline applies to the belt. “2-1/2-inch-wide belt slots” is an observed product fact, not a promise that every belt up to that nominal width will pass easily or hold the pouch stable. Belt thickness, edge binding, buckle arrangement, doubled webbing, and clothing layers all change the working fit. Do not invent one.

Make the knife safe before the first trial

Work at a clear bench, not with the pouch already on your body.

For a retractable knife, remove the blade for the first empty-fit check if the knife's instructions permit it. Otherwise retract it fully and confirm that the slider or lock holds the blade entirely in its safe state.

For a self-retracting knife, release the actuator and visually confirm retraction. Do not defeat the mechanism to make the knife easier to holster.

For a fixed-blade utility knife, stop. Neither pouch has an exact fixed-blade compatibility claim in the accepted source set. A fixed edge cannot meet the retract-before-return rule, and “holsters with blade exposed” is not an enclosing-sheath claim. Use an exact, manufacturer-authorized carry system that covers and retains that blade. Do not improvise the 42520 or 42525 as its sheath.

If the blade is chipped, loose, bent, protruding when it should be retracted, or difficult to retract, remove the knife from service before testing the pouch.

The boundary is simple: retractable means fully retracted before every return; fixed/open means this guide does not authorize the carry. A belt pouch should never become the reason a worker leaves a retractable blade out.

Inspect the pouch as a safety component

Empty the pouch and use light from both ends. Check the belt slots, leather at the mouth, rivets, stitching, seams, and the bottom or stop area that supports the knife. Flex the pouch gently enough to expose cracks, cuts, pulled holes, separating layers, loose hardware, or a path where a blade or knife nose could emerge.

Remove the pouch from service if:

a rivet moves, has pulled through, or presents a sharp edge;

a belt slot is torn, enlarged, or nearly cut through;

the leather is split, deeply scored, oil-softened, chemically attacked, or so stiff that it no longer follows its intended shape;

the pouch has been punctured, or an internal cut creates a route toward the wearer's body;

dried debris prevents the knife from seating consistently;

the shape has collapsed enough that returning the knife requires the other hand to hold the mouth open near the blade path.

Top-grain leather and rivet reinforcement are verified construction facts. They are not a lifetime guarantee. Inspection decides whether the particular pouch remains serviceable.

Match the pouch family before judging fit

Identify the knife by model, not by color.

Hyde 42525: proceed only with the #42080 angle-head pattern identified by the catalog, or pause for written manufacturer confirmation of another exact fit.

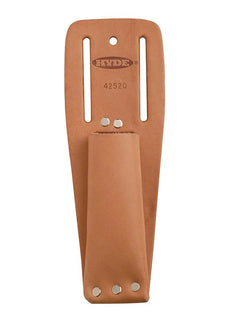

Hyde 42520: use for the general utility-knife pattern only after the complete buyer test in Step 4. Do not infer that another Hyde or third-party handle fits from shared category membership. The existing 42520 product record expressly leaves the exact compatible-handle list unresolved.

Hook, long industrial, skiver, or heritage knife: neither pouch. Those patterns have different carry systems elsewhere in the industrial-knives line.

Do not force a wide head into the mouth, pare the leather to make room, add a screw through the pouch, or trim a belt slot. A visually close fit is not an exact fit.

Run the bench fit test

Thread the empty pouch onto the actual belt. Before wearing it, close the belt around a firm padded form or hold it over the bench so a dropped knife cannot reach a person. Insert the safe-state knife in the natural orientation suggested by the pouch's shape.

A usable trial fit must pass all of these checks:

Entry: the knife enters without forcing, twisting the head through the leather, or putting a hand in front of the working end.

Seat: it reaches the same positive resting position on three consecutive insertions. If it stops at random heights, debris or mismatch is controlling the fit.

Exposure awareness: no one treats the leather as blade coverage.

Release: a normal one-hand draw removes the knife without lifting the pouch off the belt, dragging the belt upward, or requiring a violent jerk.

Return: the fully retracted knife returns without the off hand opening or guiding the pouch near the working end.

Stability: with the belt supported over the bench, light tugs in the directions produced by walking and crouching do not pull the pouch through the belt or make the knife climb out. This is a screening check, not a retention rating.

No contact damage: remove the knife and check both objects. New cuts, shaving, leather dust, metal rub that changes the mechanism, or a newly stiff slider means the pairing failed.

Do not perform an upside-down shake test with a bladed knife. Do not call a passed bench check “fall rated,” “ladder safe,” or “locked.” The source set establishes no such ratings.

Put it on and place it where the whole job works

Choose the belt position with all clothing and PPE on

Wear the same belt, trousers, jacket, apron, gloves, high-visibility garment, and harness configuration used at work. Begin with the empty pouch. A good position lets the dominant hand reach the knife without crossing the abdomen or twisting the wrist, while keeping the pouch away from:

the front of the hip where kneeling drives it into the thigh;

the spine or rear pocket where sitting loads it against the body;

loose jacket hems, apron ties, radio cords, tool lanyards, and high-visibility vest openings;

the buckle and webbing path of a vehicle restraint;

fall-arrest harness buckles, D-rings, straps, adjusters, or any load-bearing path;

scaffold rails, ladder side rails, machine guards, conveyors, doorway hardware, and stock edges likely to snag it.

There is no universal “three o'clock” answer. Body shape, dominant hand, work posture, and equipment decide placement. Mark the chosen belt location so the pouch does not migrate unnoticed during a shift.

The pouch's belt slots are attachment points for a work belt only. Do not attach the pouch to fall-protection webbing unless the harness manufacturer and employer's competent person have explicitly approved that accessory and location. Never use the pouch, its slots, or its rivets as an anchorage or tool-lanyard point.

Repeat the movement test empty, then with the safe-state knife

With the pouch empty, walk, take a full stride, climb one practice step while maintaining hand contact, crouch, kneel on each knee, bend to the work, turn through a narrow opening, sit on the intended work seat, and stand again. Stop if the pouch catches, rolls under the belt, points into the body, or interferes with PPE.

Then repeat on level ground with the knife fully retracted. Use a spotter for the first workplace check if a snag could place the worker near traffic, machinery, an edge, or a fall exposure. At every posture, the knife must remain seated and the handle must remain accessible without the wearer touching the working end.

Fall boundary: a passed floor-level movement test does not authorize elevated carry. OSHA requires employers to control fall hazards, and ladder rules emphasize maintaining safe use and keeping areas clear; an unverified knife-retention system adds a dropped-object and laceration consequence to a fall. Where the knife can fall to a lower level, snag during access, or interfere with three-point contact, retract it, remove it from the belt, and transport it in an approved closed container or by the site's controlled tool-transfer method. See OSHA's construction falls resource and the applicable employer plan.

Vehicle boundary: remove the knife and pouch from the worn belt before driving or riding whenever the seat, door, restraint, or cab entry contacts the rig. A seat belt must lie as the vehicle maker designed; never route it over, behind, or around the pouch. Store the retracted knife so braking or a collision cannot launch it, expose its blade, or trap it between occupant and structure. A quick trip across the site is still vehicle travel.

The working cycle: draw, cut, retract, return

Inspect and don at the start of the shift

Run a short repeatable sequence:

Empty pouch: inspect leather, rivets, seams, belt slots, and interior.

Knife: inspect handle, blade retention, actuator or slider, and full retract state.

Belt: inspect buckle, webbing or leather, and the chosen slot path.

Thread the empty pouch onto the belt; do not load it and then wrestle the belt through clothing.

Buckle the belt and verify the pouch cannot overlap other PPE.

Insert only the exact, previously qualified knife, fully retracted.

Take three steps, crouch once, and touch-check the handle. If its position changed, stop and correct the system before work.

Do not carry loose spare blades in the pouch. Their packaging and disposal have their own controls, and an uncontained blade can cut the leather from inside.

Draw without sweeping yourself or the next person

Stop walking. Square your footing. Keep the other hand and nearby workers out of the draw path. Grip the handle, lift along the pouch's natural exit path, and move the knife to a neutral working position before extending the blade. Do not extend while it is still beside the thigh, and do not begin the cut as part of the draw.

If the knife hangs up, release tension and reset. Do not jerk harder, rotate the edge toward the body, or use the off hand to pull the pouch mouth away. A sticky draw is a failed fit, contamination, damage, or poor placement signal.

Cut under the knife's rules, not the pouch's

The pouch supplies carry convenience only. It does not determine blade exposure, cutting direction, material suitability, or PPE. Follow the exact knife and task instructions. Keep the free hand out of the line of cut; secure the work; and never substitute belt carry for placing the work at a stable cutting station.

For occupational work, glove choice comes from the hazard assessment. OSHA requires hand protection to be selected for the task, conditions, duration, and identified cut, puncture, abrasion, chemical, and temperature hazards—not from a generic promise that one “cut-resistant” glove makes every knife operation safe. See 29 CFR 1910.138. Test draw and return while wearing the selected glove: a glove that catches the pouch, prevents full control, or cannot operate the retract mechanism requires a different system, not looser discipline. Use other PPE required by the task and site; neither leather pouch is PPE.

Retract before the knife approaches the body

Complete the cut, move the knife clear of the work, and fully retract the blade while the knife remains in view. Confirm by sight and by the mechanism's normal indication. Do not use a finger to test the edge position. If the blade will not retract cleanly because of adhesive, grit, damage, or a jam, do not return the knife to the belt. Place it in a controlled safe area, isolate it from contact, and service or replace it under the manufacturer's instructions.

For self-retracting knives, release the actuator and confirm the blade returned. Self-retracting does not mean self-checking.

Return deliberately

Keep the torso still. Guide the safe-state knife to the pouch by the handle, without the off hand near the opening. Seat it to the same proven depth. Give the handle one light upward confirmation—only enough to detect a false seat—and then release it.

drop the knife toward the pouch without watching;

return it with an extended blade “because the catalog says exposed”;

place fingers inside the pouch while the knife is present;

carry two knives or spare blades in one pouch;

leave the knife half-seated for the next cut;

rotate the pouch toward the front to make a bad fit easier to reach.

Doffing, transfer, and storage

Doff in the safe order

At a clean bench, fully retract and remove the knife first. Set it in its controlled storage location. Then unbuckle and remove the belt or slide off the empty pouch. This prevents a loaded pouch from tipping, dropping, or sweeping the body while the belt is handled.

After wet, dirty, adhesive-heavy, or dusty work, wipe loose contamination from the exterior without soaking or chemically treating the leather. Let the pouch dry at normal room conditions with air circulation. Do not heat it aggressively, leave it in a closed wet box, or apply an unverified solvent or dressing. The accepted product facts do not establish chemical resistance or prescribe a conditioner.

Transfer the knife without making another person guess

The best transfer is no hand-to-hand transfer: retract the blade, place the knife on a stable controlled surface with the handle toward the recipient, step clear, and let the recipient pick it up. If site conditions require a direct transfer, fully retract, state “blade retracted,” present the handle, and retain control until the recipient says they have it. Never transfer the loaded pouch as a substitute for communicating the knife's state.

An open, jammed, broken, or fixed-blade knife goes into an approved closed container under the site's procedure. Do not hand it over loose, hide it in the pouch, or wrap it in cloth or cardboard.

Store transport-safe, not merely holstered

For break, shift end, vehicle travel, or off-site transport:

remove the knife from the worn pouch;

retract it fully, or remove the blade if its instructions call for that storage state;

keep spare and used blades in their designed containers;

store the knife in a closed location that prevents access, movement, and contact;

store the empty pouch dry, identified as 42520 or 42525 so the fit decision is not lost;

requalify the pair after either the knife or pouch is replaced.

A knife left in a pouch hanging from a hook can fall handle-first and present an exposed edge. “Holstered” is a working state, not automatically a storage or transport state.

What goes wrong — and the fix

The knife looks right but rides high or rocks. The pair is not proven. Remove it from belt service. Verify model identity and repeat the safe bench test; do not stretch, cut, or wet-form the pouch to force compatibility.

Unless Hyde confirms the exact model, treat it as unqualified even if it seems to seat.

The 42520 product page appears to name a specific straight knife. The accepted claims do not provide an exact fit list. Keep the link at the general utility-knife level and flag the particular pairing for verification.

The knife bounces or climbs during crouching. Stop carrying it. Repositioning may solve belt swing, but no adjustment creates a retention rating. Elevated, ladder, vehicle, or high-mobility work needs a carry method approved for that condition.

The pouch shifts around the belt. Belt width, thickness, stiffness, slot condition, or placement is wrong. Test the actual combination. Do not add an improvised screw, rivet, tie, or lanyard.

The draw catches on a jacket or glove. Reconfigure placement with all PPE on, or choose another carry method. Do not leave the blade out to compensate for a difficult mechanism.

Returning requires the other hand. The mouth has collapsed, the pair is mismatched, or placement is poor. Remove the pouch from service or requalify the system; never guide a knife toward fingers.

The retractable blade will not go fully home. The knife is out of belt-carry service immediately. Isolate it and correct the knife under its instructions.

Leather is wet, oily, cut, or chemically contaminated. Empty it, clean only by a method appropriate to the material and contaminant, dry it, and inspect again. If condition or strength is uncertain, replace it.

The rig catches when entering a cab or sitting. Remove the knife and pouch before vehicle use and store them closed. Changing seat-belt routing is not the fix.

A harness strap crosses the pouch. Move or remove the pouch.

A new knife or replacement pouch arrives. Start over at Step 1. Prior success does not transfer to a changed model or a newly shaped leather pouch.

The short history footnote

Hyde's belt-carried knife story starts before the utility knife. The company records Isaac P. Hyde making knives for Southbridge shoe and textile factories in the early 1870s and Hyde Manufacturing Company incorporating in 1875. Workers used dedicated fixed industrial knives then; the replaceable-blade utility knife belongs to the later “knife you feed” wing of the same industrial line. These two leather pouches carry that shop-floor idea into modern utility work: keep the working knife at the operator, but match the carrier to the knife. Hyde does not claim to have invented the knife pattern or belt carry, so neither does this guide. Source: Hyde Tools, “150th Anniversary”.
