Spray Tip Extensions — Primary Tool
№28760

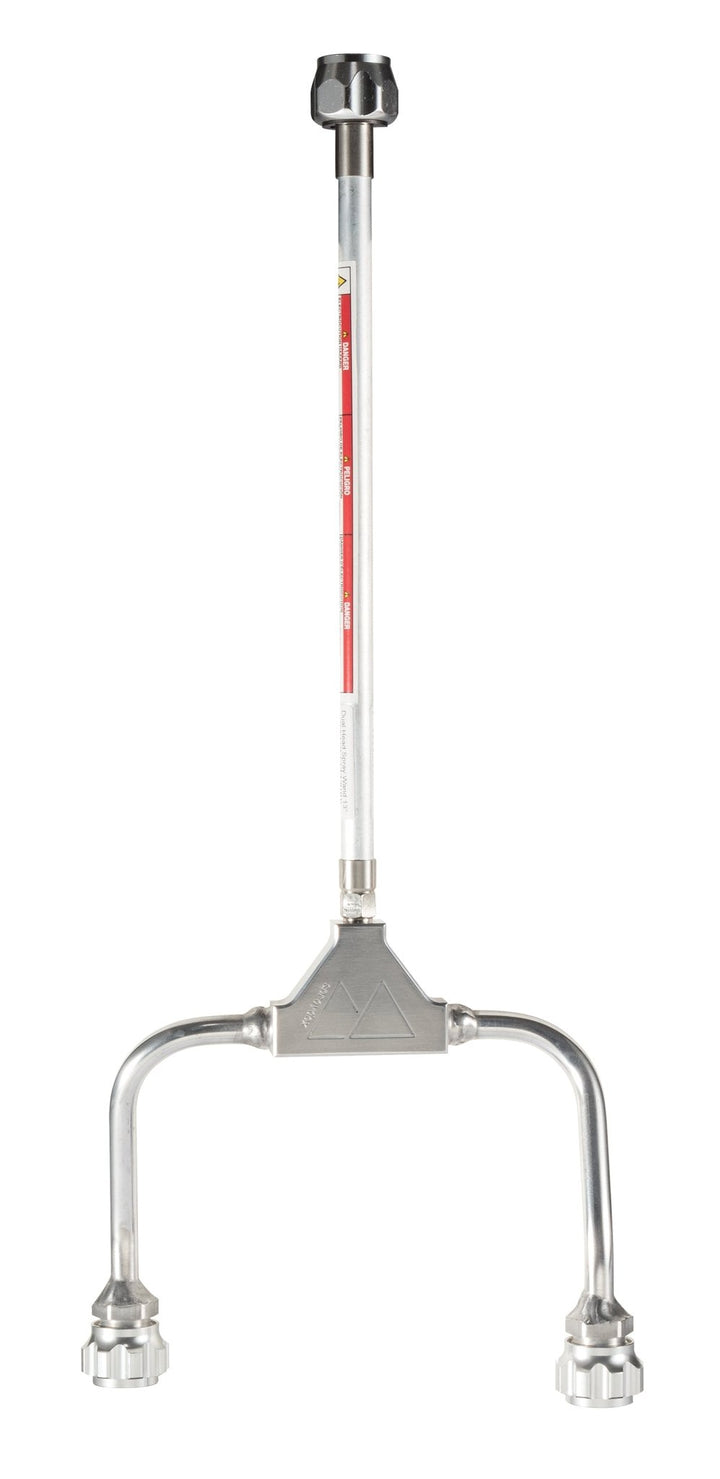

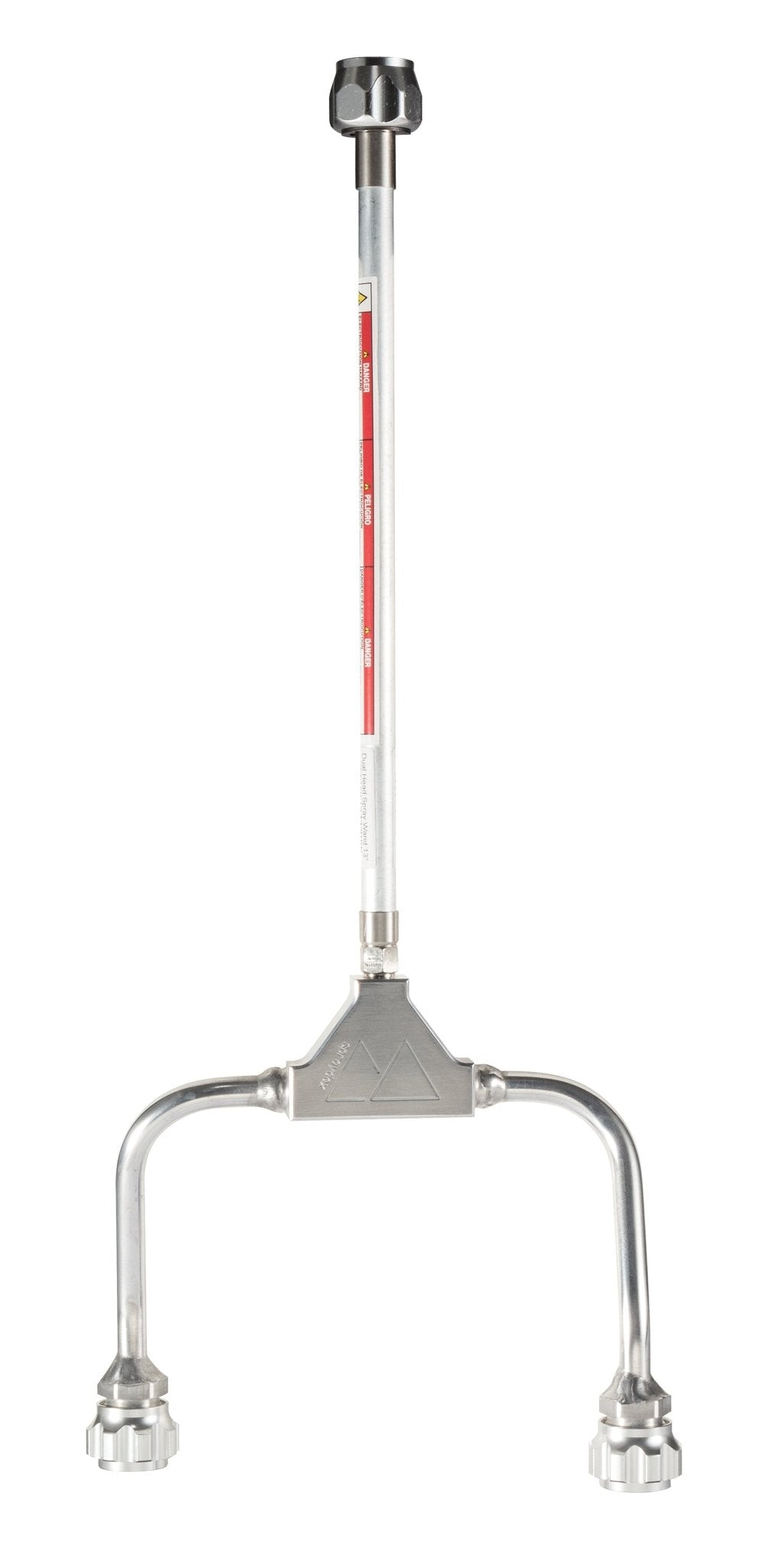

Hyde Tools 28760 Dual Head Tip Extension

BEST FOR · Jobs explicitly linked by authored Hyde application guides.
MODEL 28760 · SKU H-28760 · UPC 079423287602
CHECK THIS AGAINST MY JOB
$224.70 PER UNIT · SINGLE UNIT UNIT PRICE

Selected subtotal: $224.70. Standard US shipping is $9.99 below $15, $7.99 from $15 to below $49, and free at $49 after discounts. Freight items excluded; other rates are shown at checkout.

IN STOCK
✓ SAME-DAY DISPATCH — ELIGIBLE IN-STOCK ORDERS BY 2 PM ET
✓ STANDARD US SHIPPING — $9.99 BELOW $15 · $7.99 FROM $15 · FREE AT $49 AFTER DISCOUNTS
✓ LOCAL PICKUP — FALL RIVER
✓ NET-30 & PO — APPROVED ACCOUNTS
Documented for Run Airless Reach Work Safely — The Complete Guide.

Documented Hyde specifications

official variant identity
28760
official description
Double Your Efficiency, Perfect Your Finish In the fast-paced world of professional painting speed and quality often pull in opposite directions. Not anymore. The HYDE® 28760 Dual Head Spray Tip Extension redefines efficiency, combining rapid application with impeccable finish quality. Features & Benefits: Double the Speed: Equipped with a patented dual-tip technology, the 28760 Spray Tip Extension allows you to cover twice the area in half the time. The two tips, set 6 inches apart, deliver a combined spray fan width unmatched by traditional spray tips. Perfect Overlap: The unique offset positioning of the tips ensures a seamless overlap of the spray patterns. This "perfect pass" results in improved coverage with minimal effort, drastically reducing the need for touch-ups. Universal Compatibility: Designed to fit all "G" thread spray guns, the 28760 is a versatile addition to your toolkit. Its compatibility extends to pumps with .47GPM capacity or larger. Premium Material: Constructed from aircraft-grade aluminum, this extension is both lightweight and durable. It promises longevity and ease of handling, even in the most demanding projects. Easy Maintenance: Simplicity extends to its upkeep. The 28760 is engineered for hassle-free cleaning, ensuring it’s ready for action whenever you are.
official feature
Double the Speed: Equipped with a patented dual-tip technology, the 28760 Spray Tip Extension allows you to cover twice the area in half the time. The two tips, set 6 inches apart, deliver a combined spray fan width unmatched by traditional spray tips.
official feature
Universal Compatibility: Designed to fit all "G" thread spray guns, the 28760 is a versatile addition to your toolkit. Its compatibility extends to pumps with .47GPM capacity or larger.
official feature
Premium Material: Constructed from aircraft-grade aluminum, this extension is both lightweight and durable. It promises longevity and ease of handling, even in the most demanding projects.
official video publisher description
Spray Twice as Fast with Better Results This airless spray tip extension has two tips spaced 6 inches apart that deliver a spray fan that’s twice the width of a spray gun or single-tip extension. Because the tips are offset, the second tip follows behind the first – creating a “perfect pass” with a feathered overlap. The result is much greater speed and better first-pass coverage. Features: Spray twice as fast Superior coverage Fits all “G” thread spray guns with .47GPM or larger pumps Uses 5 & 6 series tips Aircraft aluminum construction Lightweight, durable, easy to clean SKU: 28760
PRODUCT FIT · IS THIS THE RIGHT TOOL? Straight answers. If it's the wrong tool for your job, we'll say so.

Choose this when: Jobs explicitly linked by authored Hyde application guides.

CHECK THIS AGAINST MY JOB →

Is this the right tool for your job?

✓CHOOSE THIS WHEN
  • The documented job is “Run Airless Reach Work Safely — The Complete Guide”.
  • Double the Speed: Equipped with a patented dual-tip technology, the 28760 Spray Tip Extension allows you to cover twice the area in half the time. The two tips, set 6 inches apart, deliver a combined spray fan width unmatched by traditional spray tips.
  • Universal Compatibility: Designed to fit all "G" thread spray guns, the 28760 is a versatile addition to your toolkit. Its compatibility extends to pumps with .47GPM capacity or larger.
  • Premium Material: Constructed from aircraft-grade aluminum, this extension is both lightweight and durable. It promises longevity and ease of handling, even in the most demanding projects.
✕CHOOSE A DIFFERENT TOOL WHEN
  • Not a detail, trim, or cut-in instrument in any circumstance — the doubled fan's width is the whole point and the whole disqualification.
  • Not for textured, profiled, or recessed surfaces: fixed twin tips cannot follow relief.
  • Not for small or light-duty rigs — under .47 GPM the tool is worse than a single tip, by the physics in its own spec.
  • Not a corner-and-obstruction navigator: fields with constant interruptions surrender the production advantage to setup and masking.
  • And not a substitute for pattern fundamentals — it is a multiplier, and it multiplies whatever it is given, including error.

Jobs this tool does

EXACT JOB METHODS FOR HYDE №28760
Job guide Double Your Production Rate on Big Open WallsOPEN JOB GUIDE Job guide Run Airless Reach Work SafelyOPEN JOB GUIDE

How the pros run it

01

Perpendicularity is doubly binding

Two tips share one head: square to the surface means both tips at working distance, and every degree of tilt splits the difference badly — near fan heavy, far fan dry. If your pattern reads uneven side-to-side, check the head's facing before blaming a tip.
02

Space passes by the combined width

The lap between passes is still yours to make — half over the previous pass, walked at constant speed. What the hardware already owns is the seam inside each pass. Two different laps, one machine-made, one man-made; keep them straight and the wall reads as one coat.
03

Tune tips per coating, as always

The 5 and 6 series stock gives orifice and fan-angle latitude per material — run the combination the coating's data sheet and your pump's capacity support, remembering the pump is feeding two of whatever you choose.
04

Watch pressure like a gauge-reader

The .47 GPM floor is a minimum, not a target; heavy coatings through two orifices work a pump hard. Tails appearing on both fans simultaneously is the starved-pump signature — stop and resolve rather than chasing it with speed.
05

Cleaning is the longevity story

Hyde engineered the head for hassle-free cleaning and built it in aircraft-grade aluminum; repay it by flushing both fluid branches at every washout and never letting either tip sleep wet. Every tip service happens on a locked, depressurized system (section 2).

Asked before buying

BUYER QUESTIONS, ANSWERED BEFORE YOU ORDER
Will it fit my gun?
If your gun is "G" thread, yes by Hyde's claim — that is the stated standard, and the only one. The physical thread dimension is unstated , so verify against your gun's designation, not a chart.
Why does my pump size matter?
Two orifices draw roughly double the fluid. Below the stated .47 GPM floor the pump cannot hold pressure, atomization collapses, and both fans tail. The floor is a hard spec — check your pump's rating first.
What tips does it take?
5 and 6 series, per Hyde — fan width and orifice stay tunable per coating, times two.
Is the pattern really twice as wide?
Per Hyde: two tips 6 inches apart, offset, delivering a combined fan twice the width of a single tip, with the trailing pattern feathered half over the leading one — the "perfect pass."
Can I cut in with it, carefully?
No. The doubled fan has no narrow mode; margins and corners are handheld work with a shield. Bring the field to the margin, not the tool to the casing.
How long is it, and what's the PSI rating?
Both unstated in the claims — obtain from Hyde before relying on either number.
One tip clogged but the other still sprays — keep going?
No. Lock the trigger, relieve pressure, service the tip (section 2). A half-live head near a working hand is the injection scenario with extra steps.

Crew & facility ordering

Model & SKUModel 28760 · SKU H-28760 · UPC 079423287602
Product-specific quantity pricingSee this product’s published tiers above. Eligible discounts apply automatically at checkout.
PO & NET-30Approved contractors, facilities, schools and government buyers can route through Hyde Pro.
BUY FOR A CREW OR FACILITY →

Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specs & documentation

Full specification details
official product name
Dual Head Tip Extension
official variant identity
28760
official description
Double Your Efficiency, Perfect Your Finish In the fast-paced world of professional painting speed and quality often pull in opposite directions. Not anymore. The HYDE® 28760 Dual Head Spray Tip Extension redefines efficiency, combining rapid application with impeccable finish quality. Features & Benefits: Double the Speed: Equipped with a patented dual-tip technology, the 28760 Spray Tip Extension allows you to cover twice the area in half the time. The two tips, set 6 inches apart, deliver a combined spray fan width unmatched by traditional spray tips. Perfect Overlap: The unique offset positioning of the tips ensures a seamless overlap of the spray patterns. This "perfect pass" results in improved coverage with minimal effort, drastically reducing the need for touch-ups. Universal Compatibility: Designed to fit all "G" thread spray guns, the 28760 is a versatile addition to your toolkit. Its compatibility extends to pumps with .47GPM capacity or larger. Premium Material: Constructed from aircraft-grade aluminum, this extension is both lightweight and durable. It promises longevity and ease of handling, even in the most demanding projects. Easy Maintenance: Simplicity extends to its upkeep. The 28760 is engineered for hassle-free cleaning, ensuring it’s ready for action whenever you are.
official feature
Double the Speed: Equipped with a patented dual-tip technology, the 28760 Spray Tip Extension allows you to cover twice the area in half the time. The two tips, set 6 inches apart, deliver a combined spray fan width unmatched by traditional spray tips.
official feature
Universal Compatibility: Designed to fit all "G" thread spray guns, the 28760 is a versatile addition to your toolkit. Its compatibility extends to pumps with .47GPM capacity or larger.
official feature
Premium Material: Constructed from aircraft-grade aluminum, this extension is both lightweight and durable. It promises longevity and ease of handling, even in the most demanding projects.
official video publisher description
Spray Twice as Fast with Better Results This airless spray tip extension has two tips spaced 6 inches apart that deliver a spray fan that’s twice the width of a spray gun or single-tip extension. Because the tips are offset, the second tip follows behind the first – creating a “perfect pass” with a feathered overlap. The result is much greater speed and better first-pass coverage. Features: Spray twice as fast Superior coverage Fits all “G” thread spray guns with .47GPM or larger pumps Uses 5 & 6 series tips Aircraft aluminum construction Lightweight, durable, easy to clean SKU: 28760
