Run Airless Reach Work Safely

Difficulty: advanced. The operator must manage a live high-pressure fluid system while the discharge point, hose load, and reaction forces may be farther from the hands than in ordinary gun work.

Time: plan by hazard controls and stop points, not by a production-rate promise. Setup includes identity and fit verification, access and exclusion planning, ventilation and ignition control, hose routing, communication, inspection, an authorized startup, and a witnessed test. Shutdown includes the exact manufacturer pressure-relief procedure, cleanup, inspection, isolation of defects, and handoff.

These are distinct reach systems, not a compatible set by default.

Bind the exact equipment before planning the work

| 28260 | AnglePRO tip extension, 3-foot variant | It places the tip on a shorter extension and belongs to the AnglePRO family, documented as adjustable up to 145 degrees and rated to a 4,000 PSI maximum. The record does not establish a universal thread, gun, guard, tip, coating, or sprayer fit.

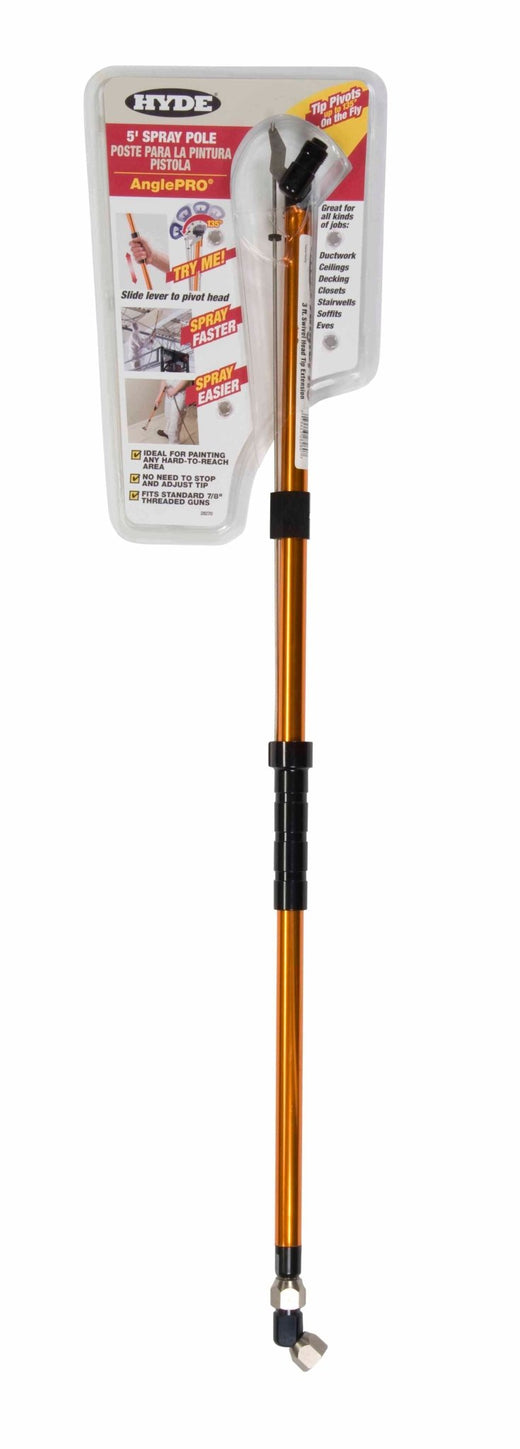

| 28270 | AnglePRO tip extension, 5-foot variant | It is the longer cataloged AnglePRO variant, with the same documented family angle claim and maximum rating. The same fit boundary applies: family marketing is not proof that the actual gun, tip, guard, hose, coating, and sprayer constitute an approved system. |

| 28670 | QuickReach telescoping spray pole, catalog range 4.5–6.5 feet | The worklist key 79423286704 is an alias derived from the UPC for the same 28670 product. It is one graph node, not a seventh product and not a duplicate. No universal working-height, pressure, gun, tip, or locking procedure is established by that alias. |

| 28680 | QuickReach telescoping spray pole, catalog range 5.5–8.5 feet | Hyde’s material says it can paint heights up to 16 feet. That marketing claim is not permission to spray from every floor position and is not a substitute for an access, visibility, balance, electrical, and exclusion assessment. |

| 28690 | QuickReach telescoping spray pole, catalog range 7.5–12 feet | Hyde describes work in areas normally reached by ladder. It does not say the pole replaces every ladder, lift, scaffold, or fall-control requirement, nor does it make an obstructed or electrically exposed position safe. |

| 28760 | Dual-tip airless spray head, two offset tips spaced six inches apart | Hyde specifies G-thread guns, a pump rated at 0.47 GPM or larger, and 5- or 6-series tips for this product. Those are documented product qualifications, not a universal compatibility or setup instruction.

The exact canonical product links appear in the graph at the end of this guide.

Before assembly, record the identity of every pressure-bearing and spray-control component actually present: sprayer, hose and any whip, gun, trigger safety, tip guard, tip, seals, fittings, extension or pole, remote-actuation parts, and any dual-head hardware. Verify that the proposed combination, materials, ratings, connection type, and intended coating are expressly allowed. A statement such as “standard guns and tips” is not enough to prove an exact connection. Appearance, thread engagement, a successful dry fit, or prior use is not compatibility evidence.

Never use a higher-rated component to rationalize an unknown or lower-rated component. Do not improvise adapters, omit a specified guard, substitute seals, defeat a trigger safety, or infer that a pole’s mechanical fit proves its fluid-system fit. If a current document does not answer the question, isolate the equipment and obtain an authorized answer before pressurization.

Make a dry access plan before connecting pressure

Walk the entire route with the system unpressurized and the work area free of spraying. Map the operator’s feet, body, hands, pole or extension envelope, tip path, hose path, hose tender’s position, emergency exit, and the places where the equipment will be lowered for adjustment. Include the start, every change of direction, every transition around a corner or opening, and the shutdown position.

Identify overhead lines, temporary power, fixtures, exposed conductors, powered equipment, wet locations, and conductive obstructions. Do not invent a clearance. OSHA’s ladder rule likewise distinguishes nonconductive equipment where contact with exposed energized equipment is possible; a spray pole should never be treated as electrical protection (OSHA 1926.1053).

Do not combine reach equipment with an unplanned ladder stance. Holding a long, pressurized assembly changes balance, reaction, and line-of-sight. If work at elevation is authorized, its platform, fall protection, material handling, and tool-control plan must be designed for the actual task. The operator must not lean, climb, walk backward into an opening, or stand on makeshift elevation to preserve a spray pass.

Establish the people, atmosphere, and ignition controls

Airless reach work needs a named operator and, whenever the route or visibility warrants it, a hose tender or spotter. Define one unmistakable stop word or signal before startup. Anyone may call the stop. The operator then releases the trigger and follows the exact controlled stop procedure; no one assumes that silence means safe. The spotter watches the hose, exclusion boundary, approaching people, changing airflow, overspray escape, and hazards outside the operator’s view. The spotter does not touch a pressurized leak or enter the discharge envelope to solve a problem.

Build an exclusion zone around the whole possible tip path, not just the intended fan. Include the space below and beyond the target, doors and windows, adjacent trades, lift or vehicle routes, and the lowering/service area. Keep people and animals out. Prevent another worker from energizing, moving, or disconnecting related equipment without the operator’s knowledge. Where the boundary cannot be held, spraying stops.

Identify the coating and every cleaning or flushing material from its exact container, technical data, and current safety data sheet. Use the employer’s hazard assessment and respiratory-protection program to determine exposure controls and PPE. NIOSH emphasizes that respirator selection must follow the actual hazard and be part of a complete workplace program; a generic product-family guide cannot make that selection (NIOSH respirator selection). Do not proceed with an unknown material, an unreadable label, a missing SDS, or a control plan copied from a different coating.

Ventilation is an engineered exposure and fire control, not a vague instruction to “open a window.” Determine the required method from the coating and solvent information, equipment instructions, site conditions, and applicable spray-finishing rules. Confirm that airflow captures or removes mist and vapor without carrying contamination into occupied or ignition-sensitive areas. Continue required ventilation through spraying and the prescribed post-work period. Do not invent an airflow rate or declare a space safe by smell. NIOSH’s overspray guidance treats ventilation and hazard-selected protective measures as coordinated controls (NIOSH paint overspray control).

Verify the prescribed grounding and bonding of the sprayer, fluid containers, conductive objects, and transfer or flushing arrangement. Preserve grounding continuity during operation and cleanup. Never improvise a ground path or assume that an extension cord, metal structure, damp floor, or contact between parts supplies one. Inspect electrical cords, plugs, connections, and grounding features under the equipment manual. Airless spray operations involving flammable or combustible materials have specific ventilation, grounding, and electrical controls under OSHA’s spray-finishing standard (OSHA 1910.107). If the required fire, ventilation, or electrical control cannot be confirmed, the work remains off.

Route and inspect the hose as a safety system

Lay out the hose while it is unpressurized. Use an approved length and configuration for the exact sprayer and gun system. Keep it out of vehicle lanes, door pinch points, sharp edges, hot surfaces, electrical hazards, standing liquid, and the operator’s footwork. Protect crossings through the site’s authorized method. Provide enough controlled movement for the planned pass without creating coils that tighten, snap, snag, or pull the operator off balance. Never use the hose to lift, lower, drag, or restrain a gun, pole, extension, sprayer, or container.

Inspect the full hose and every connection under the manufacturer’s criteria. Look for cuts, abrasion, blistering, exposed reinforcement, kinks, crushing, chemical damage, heat damage, loose or distorted fittings, unauthorized repair, and evidence of leakage. Check the gun, trigger safety, guard, tip, extension, pole, remote actuation, adjustment points, and head for damage or incomplete assembly. A wrapped, patched, clamped, or “temporarily repaired” pressure hose is not returned to use unless the manufacturer’s authorized procedure explicitly permits that exact repair.

Never test leaks with a hand. Never use a finger, glove, rag, cardboard held in the hand, or another body part to find, block, wipe, deflect, or confirm a pressurized leak. A pinhole stream can inject coating or solvent through skin, and a leak may be nearly invisible. Do not tighten a fitting, adjust a seal, or place a tool on the fluid path while the system is pressurized. If mist, wetness, odor, pulsing, unexplained pressure loss, or a suspected leak appears, stop, keep everyone away, perform the exact pressure-relief procedure, isolate energy as instructed, and have authorized personnel inspect the depressurized system.

Start only through the exact equipment procedure

The controlling sprayer and gun manuals own startup. Before beginning that procedure, conduct a verbal gate:

Exact equipment identities and documented fit are present.

Guards, trigger safety, hose, connections, reach hardware, and controls passed inspection.

The coating and any process fluids are identified; SDS, exposure controls, ventilation, ignition controls, grounding, and PPE decisions are in force.

The dry access path, lowering point, hose route, exclusion zone, and emergency exit remain clear.

Operator and spotter understand the stop signal and their roles.

The emergency information and communication method are immediately available.

Follow the manufacturer’s startup sequence without substituting this guide for a step. Graco’s current contractor guidance, for example, directs users to the exact manual and calls for the manufacturer pressure-relief procedure before startup work (Graco startup guidance). That principle does not authorize copying a Graco sequence to another system.

Make any required test in the designated safe test area, with the guard installed, the discharge pointed only at the authorized target, the exclusion boundary active, and the operator in the planned stance. Use only settings established by the controlling manuals and coating documents. Confirm control response, hose behavior, connection integrity, pattern suitability, and whether the assembly can be held without excessive deflection or loss of control. This guide supplies no pressure, tip, fan, or coating setting. If safe control depends on guessing one, stop.

Keep injection discipline during every pass

Treat the gun outlet, extension head, and every tip on a dual head as capable of injection whenever the system may retain pressure. Never point them at yourself or anyone else, even when the trigger safety is engaged, the sprayer is off, or no visible spray appears. Never place a hand in front of the guard or tip. The guard reduces inadvertent contact risk; it does not make contact safe and must not be removed for spraying.

The trigger safety is a control, not proof of depressurization. Apply it exactly when the gun manufacturer requires, including during pauses and movement, but never rely on it for clearing, disassembly, leak work, or service. OSHA construction rules require specified trigger safety or guarding protections for covered airless guns; compliance details depend on the equipment and use (OSHA 1926.302).

Operate only from the dry-planned stance. Maintain positive control of the assembly and keep the hose load from steering the tip. Move deliberately; do not whip, jab, or use momentum to extend reach. Do not spray blindly over an edge, behind a surface, through an opening, around occupied corners, or where the discharge path and rebound cannot be seen and controlled. Stop before repositioning around an obstacle. The hose tender manages slack from outside the hazard envelope and never pulls against the operator without a call.

Longer reach magnifies small movements. If the head oscillates, the pole slips or rotates, a section moves unexpectedly, the trigger response changes, the hose snags, the guard contacts the surface, visibility is lost, airflow changes, another person enters the boundary, or the operator’s footing degrades, release the trigger and call the stop. Do not “finish the pass.” Return the system to the authorized safe state before diagnosing.

The 28760 dual head creates two discharge paths. Both remain controlled at all times. Its documented product qualifications do not authorize selecting tips, balancing patterns, or running an unverified pump and gun combination. If both tips cannot be observed and kept inside the safe target zone, it is the wrong plan for that position.

Lower, depressurize, and clear only by authorized procedure

Every adjustment and service action begins by moving to the preplanned safe lowering position. Never reach toward a remote tip while the assembly is overhead or extended. Do not use the pole as a prop against a wall, ceiling, scaffold, lift, or energized structure. Establish control of the equipment, keep the discharge pointed into its authorized safe direction, and follow the complete pressure-relief procedure in the exact sprayer and gun manuals.

“Off,” trigger safety engaged, motor stopped, valve moved, power disconnected, or gauge at zero is not by itself a complete pressure-relief procedure. The exact sequence may include multiple energy-control and pressure-verification actions. Perform all of them in their specified order.

This guide intentionally does not prescribe a tip-reversal, clearing, probing, removal, or flushing sequence. Use only the procedure authorized for the exact gun, guard, tip, extension, coating, and sprayer, after the complete pressure-relief procedure. Never put a finger, wire, nail, brush, or improvised tool into a tip. Never remove a guard or fitting to “see whether pressure is gone.” Never trigger into the air to test whether a blockage has cleared.

Only trained and authorized personnel service pressure-containing, trigger-control, extension-actuation, locking, or adjustment components. Lock or loading methods for the QuickReach products are not established here. A damaged or uncertain mechanism is tagged out rather than guessed back into service. Any field condition not covered there is referred to authorized service.

What goes wrong (and the fix)

High-pressure fluid injection can leave a small puncture or little initial pain while causing severe internal damage. Medical literature treats it as a time-critical surgical emergency, not an ordinary cut (systematic review; clinical review). Do not wait for swelling, discoloration, numbness, or pain, and do not give jobsite treatment instructions beyond activating emergency care.

If injection is known or suspected:

Stop the operation and prevent further exposure without touching the pressurized source.

Activate emergency medical services and obtain immediate emergency-department evaluation under the site plan.

State clearly: “This is a suspected high-pressure injection injury.”

Identify the injected coating, solvent, or other fluid if known. Send the container identity, SDS, and relevant equipment information with the injured person.

Tell medical personnel the approximate time, body location, and known substance. Do not let a small-looking wound be triaged as a routine puncture.

Preserve the scene and equipment for authorized investigation after life safety is addressed. No one repressurizes it.

For a hose rupture or uncontrolled leak, keep clear of the jet and mist, stop through the authorized remote control if it can be done without entering the hazard, evacuate the exclusion area, and isolate energy through the emergency procedure. For a fall or struck-by event, summon emergency assistance and do not move the person except under the emergency plan.

Shut down, inspect, and hand off a known state

Use the exact manufacturer shutdown, pressure-relief, cleaning, storage, and waste procedures and the exact coating or solvent documents. Maintain required grounding, ventilation, exclusion, and hazard-selected PPE throughout relief and cleanup. Never leave a connected system assumed safe merely because spraying has ended.

After the authorized safe state is established, inspect for damage, loosening, wear, leaks, coating buildup, impaired trigger or guard action, pole movement, hose abrasion, and anything that changed during use. Remove uncertain equipment from service. Do not conceal a defect with cleanup or leave the next operator to rediscover it under pressure.

The handoff record should identify:

sprayer, hose, gun, guard, tip, extension or pole, head, and relevant component identifiers;

the documents used to establish exact fit and allowable configuration;

coating and process-fluid identities, SDS revision, and any unresolved material question;

access method, exclusion boundary, hose route, grounding, ventilation, ignition, and communication controls;

inspection results, damage, leakage, blockage, abnormal behavior, replacement, cleaning, and tagged-out components;

exposure, near miss, emergency response, or work stoppage, including time and who received the escalation;

residual work and the conditions that must be met before the system may be used again.

Do not write “all good” where the evidence is unknown. A useful handoff tells the next authorized person exactly what is safe, what is isolated, what remains unverified, and who owns the next decision.

What this guide owns—and what nearby guides own

This guide owns the common high-consequence controls for the entire six-node airless-reach graph: equipment identity and fit, injection, guards and trigger discipline, leaks and hoses, grounding and electrical exposure, ventilation and fire, access and exclusion, authorized operation and service, emergency response, and handoff.

Nearby application guides remain job-specific. The stairwell guide owns stair geometry and floor-position viability. The high- and standard-ceiling guides own their respective reach and pass-planning problems. The soffit, eave, porch, deck-ceiling, deck, fence, and floor guides own surface-specific access and angle control. Exposed structure, dormer and gable, and large-surface guides own their distinct production geometries. None may relax this safety spine, and this guide does not duplicate their finish technique or invent a model-specific setup.

The history footnote

Historically, separating the spray point from the operator’s hand made airless extensions and poles useful production tools. The same separation also moves the injection source, changes leverage, and can hide a problem farther away. The enduring operating principle is simple: remote reach increases the need for exact system identity, a dry plan, controlled pressure, and an immediate stop—not the operator’s permission to improvise.

Canonical six-node product graph

No seventh product is implied.

These sources do not convert this guide into the manual for an unknown assembled system.

Offline residual: this is authored, local guidance only. It does not prove that any configuration has been assembled, inspected, authorized, trained, used, shut down, or read back in production.
