Tile Spacers — Consumable Or Replacement Component
№19640

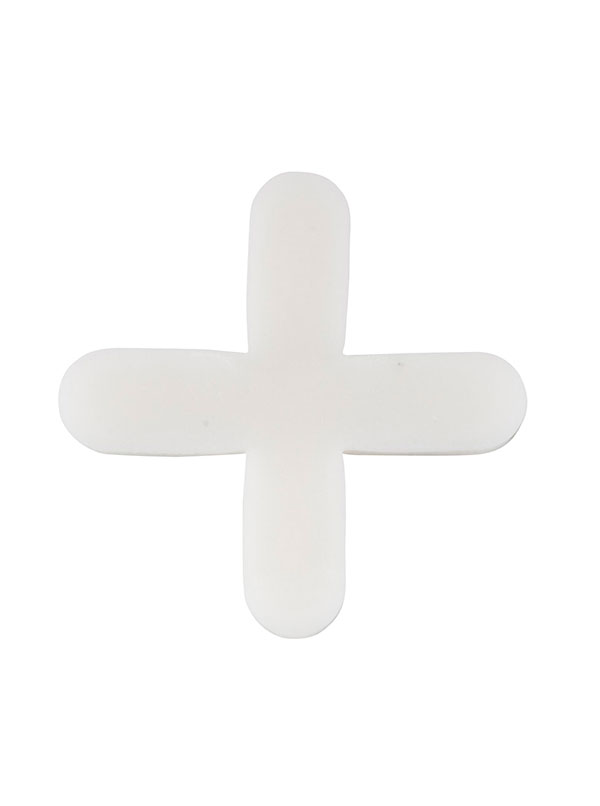

Hyde Tools 19640 3/16” Tile Spacers

MODEL 19640 · SKU H-19640 · UPC 079423196409
CHECK THIS AGAINST MY JOB
$8.95 PER UNIT · SINGLE UNIT UNIT PRICE

IN STOCK
SAME-DAY DISPATCH — ELIGIBLE IN-STOCK ORDERS BY 2 PM ET
FREE SHIPPING — ORDERS OVER $30
LOCAL PICKUP — FALL RIVER
NET-30 & PO — APPROVED ACCOUNTS
Hyde 19640
PRODUCT FIT · IS THIS THE RIGHT TOOL? Straight answers. If it's the wrong tool for your job, we'll say so.

The guidance below describes applications and limitations. For a match to your particular job or an existing tool, ask us to confirm fit.

CHECK THIS AGAINST MY JOB →

Is this the right tool for your job?

CHOOSE A DIFFERENT TOOL WHEN
  • Not for calibrated contemporary ceramic on a flat floor — that field earns the quieter default, and the width here would be all cost, no benefit.
  • Not a lippage cure: width softens the read of small height error; it lifts nothing — flat substrates and proper bedding are the controls, per the setting side's doctrine.
  • Not for lugged tile or sheet-mounted mosaic, which space themselves — the line's two standing no-sales apply at every width.
  • Not a movement joint: the perimeter and every change of plane get flexible sealant, not a wide grout line — grout in a corner between independently moving planes cracks on schedule regardless of width.
  • And never a leave-in component: 3/16" of joint depth makes burying plastic easy and the resulting ghost cross unmissable — out before grout, all of them.

Jobs this tool does

EXACT JOB METHODS FOR HYDE №19640

How the pros run it

01

Blend boxes from the first tile

batch variation is real in exactly the tile this width serves, and discovering it at the grout stage is discovering it forever. Sight lines low and often: crouch and sight down each course against the chalk — at 3/16" a straight line beside charming irregular edges is the whole aesthetic, and the eye at floor level catches drift the standing eye misses. Meter, then trust the line: place the spacer, let the joint breathe around it, land the course on chalk — the datum-not-dictator habit in one motion. Load the wall spacers honestly: heavy rustic wall tile at wide joints is the line's hardest slump case; two tombstones per joint side, snug, and re-check the bottom course before the mortar's open time ends. Wide joints telegraph sloppy pulls: a spacer dragged sideways out of a deep 3/16" joint furrows the bed's edge — pull straight up, needle-nose for the stubborn ones.

Asked before buying

BUYER QUESTIONS, ANSWERED BEFORE YOU ORDER
When do I actually need 3/16" instead of 1/8"?
When the tile's piece-to-piece variation approaches a sixteenth — handmade, pressed, quarry-class, anything sold on character. The wide joint eats the variation; the lines stay straight. Calibrated tile doesn't need it.
Does the wide joint fix an uneven floor?
It softens how small lippage reads; it fixes nothing. Flatness and bedding are the real controls — treat the width as sympathy, not a cure.
Can I use unsanded grout for a smoother look at 3/16"?
No — at this width unsanded shrinkage-cracks down the joint's own centerline. Sanded is structural here, not stylistic. No exceptions.
How much more grout will I need?
Consumption scales with joint cross-section — roughly half again the default size's volume for the same floor, before waste. Buy by the bag math, not the habit.
Flat or standing spacers with irregular tile?
Standing tombstones are the working default in a generous joint — easy in, easy out (cross form assumed). Flat crosses hold the control intersections. Either way the snapped line, not the spacer, carries the layout with tile like this.
The joints won't all be exactly 3/16" — is that failure?
No — it's the design. With irregular tile the spacer meters a minimum and each joint breathes a hair around it; success is measured at the lines, which is where the eye looks.
Can I leave spacers in and grout — the joint's deep enough?
Deepest temptation, worst outcome: a wide joint displays its ghost crosses like a catalog. Every spacer out before the float.
