Lay Out and Space a Tile Installation

Job: Convert an approved tile, pattern, and joint width into a balanced dry layout, transfer it to durable control lines, and set tile without losing module, plane, movement accommodation, or grout depth

Time: Half a day for a small backsplash; several days to weeks for a room or multi-surface installation across substrate preparation, layout, setting, cure, spacer removal, and grout

Difficulty: Advanced — a spacer repeats a local gap, but only layout and control lines keep the complete field square, balanced, and aligned with the room

Everything else: approved tile and attic stock; current tile, setting-material, grout, waterproofing, and movement-joint documents; representative pieces from multiple cartons; tape, straightedge, square, laser or chalk line; story pole; dry-layout floor or mockup; substrate-correction tools; specified trowel; mixing and cleaning equipment; margin tool; rubber grout float; raking light; level/plane checks; wall-course support or ledger where permitted; leveling system only if separately specified

A spacer has no knowledge of the room. Put identical spacers between every tile and the field can still drift out of square, finish with a sliver, miss a doorway, bury a movement joint, and carry lippage from one course to the next.

The working hierarchy is:

documents → substrate → dry module → focal layout → control lines → setting bed → spacers → repeated checks.

Bring an approved joint width into this guide

This page begins after that decision. The Hyde ladder is:

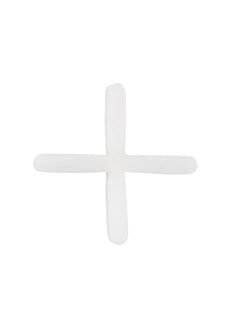

19660: 1/16 inch, title-grade identity only;

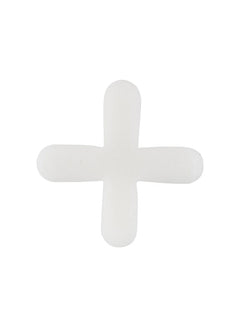

19620: 1/8 inch, title-grade identity only;

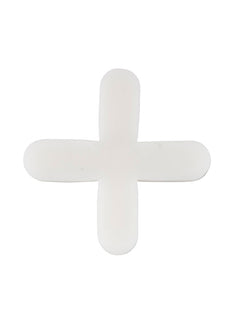

19640: 3/16 inch, title-grade identity only.

Inspect the physical package. If its geometry or instructions do not support the placement method below, follow the package or use a verified spacing system.

tile collection sheet and carton markings;

approved pattern and orientation;

minimum joint and offset limits;

substrate/assembly method;

mortar and trowel requirements;

grout width/surface compatibility;

waterproofing, slope, drainage, and penetration details;

access, cure, and environmental limits.

Do not begin with the room center until the assembly is known. A focal wall, drain, tub, doorway, cabinet run, stair, control joint, or change of plane may be the real organizing element.

Audit the actual tile

Open representative cartons from the approved shade/caliber lot. Pull pieces from different positions.

facial dimensions at the tile body;

pattern variation and direction;

chips, glaze defects, and dimensional outliers.

TCNA’s grout-joint guidance identifies tile variation, edge character, tile size, use, and substrate plane as joint considerations and states that spacing is measured between tile edges, not the top of a bevel.

Sort only within the project rules. Do not “calibrate” the entire installation by hiding every large tile on one wall and every small tile on another; that creates a visible module change.

Release the substrate before layout becomes camouflage

Inspect plane, level/plumb where specified, soundness, cleanliness, moisture, seams, cracks, slope, and required movement accommodations.

Use a straightedge in multiple directions and raking light. Mark corrections before mortar is mixed.

TCNA’s lippage guidance explains that perceived and actual edge-height variation interact with tile warpage, joint separation, substrate plane, lighting, and reflectivity. A wider spacer can soften a visual ramp; it cannot flatten the base.

Do not consume joint width to walk over a hump. Correct the assembly through its approved method.

Calculate the true module

The module is:

actual tile body dimension + approved joint width

It is not the nominal carton dimension plus a guess.

Build a dry run of several representative tiles and the actual spacing method. Measure the complete run from the first tile edge to the last, then divide by the number of modules as a field check. Repeated measurement averages tiny handling errors better than measuring one spacer with a tape.

For irregular tile, track joint centerlines. The visible edge opening may vary while the grid remains straight.

Build a story pole or marked straightedge for the final dry run. Carry tile-and-joint modules, focal lines, movement joints, openings, and cut-row limits.

Establish focal priorities

Rank what the eye and assembly care about:

movement and structural joints that must be honored;

drains, slopes, and waterproofing geometry;

main sightline or focal center;

doorway and room-to-room alignment;

large fixtures and cabinetry;

opposing border cuts;

hidden/service cuts.

When priorities conflict, decide visibly. “Centered in the room” is not automatically best if it creates a sliver at the tub or misses the hall grid by half a joint.

Mark a no-sliver threshold through the project and material, not a universal number from this guide. Fragile, patterned, profiled, or difficult-to-cut tile may require larger borders.

Dry-lay both axes

Dry-lay representative modules from the focal control in both directions.

actual joint spacing;

changes in tile size or format.

Do not dry-lay only perfect pieces. Mix representative actual tile so variation enters the decision before mortar.

At each boundary, calculate the cut from the actual opening and joint positions. Shift the whole grid by a half module or other deliberate amount when that improves both borders without violating a focal line or movement detail.

Photograph and mark the accepted dry layout.

Test the pattern for warpage and lippage

Plank and other offset patterns can place the highest part of one tile beside the lowest part of its neighbor. Dry-lay representative pieces on the released plane and inspect with raking light and a straightedge.

Follow the tile maker’s offset limits. Do not use a leveling clip or wider spacer to force warped tile into an unsupported plane.

If the pattern fails:

change offset where permitted;

improve substrate plane;

widen the joint only if documents and appearance support it;

change tile/lot;

reject the layout.

Do not discover the warpage interaction in the third set course.

Transfer the approved grid to control lines

Create one primary axis tied to the most important feature, then a truly square perpendicular axis. Verify with a reliable square/laser or diagonal check.

Add parallel control lines at a frequency that the installer can actually see while setting. Do not rely on the last tile edge as the next line; that compounds small errors.

On walls, create level course controls from the approved datum. Floors and ceilings may be out of level; decide which line must read level and which cut row will absorb building variation.

Protect chalk lines from being buried or washed away. Snap/reference beyond the mortar spread area so every batch can return to a visible datum.

Plan movement joints as empty geometry

Movement accommodation is not a wide grout joint. It is a designed interruption with specified location, width, backing, sealant, and connection to the assembly.

TCNA’s placement guidance states that all tile installations need movement accommodation and that exact placement depends on site conditions; moisture, sun, exterior exposure, and temperature range affect the design.

Mark movement joints on the layout and story pole. Carry them through the setting operation. Keep mortar, grout, spacers, and debris out of the reserved space.

Do not bridge a substrate/control joint with tile because it interferes with the visual grid.

Stage cuts before setting traps the crew

Identify which tiles need:

straight score-and-snap cuts;

nipped hidden curves/notches;

polished or finished exposed edges.

This store does not sell a wet saw or rail cutter. Porcelain, stone, glass, large format, and complex visible cuts may require rented or specialist equipment.

Precut the first boundary where dimensions are proven. Leave final cuts that depend on actual set position until the nearby field establishes them.

Maintain orientation and sequence marks without staining the tile or entering the bond surface.

Verify spacer geometry on a mockup

Common loose spacers may be used flat at intersections, stood between two edges, or placed in another manufacturer-defined orientation. Those are class methods—not verified Hyde geometry.

On a mockup:

place the actual Hyde spacer only as its package permits;

confirm the resulting gap at tile bodies;

verify it can be inserted without rotating tile;

verify it can be removed without levering against the arris;

determine how many placements hold a piece without drift;

confirm mortar does not bury it during normal setting.

If the spacer is documented as leave-in, follow the complete system.

Establish wall-course support

On a wall, determine how the first course is held while mortar advances. Use an approved ledger/support system where permitted and protect waterproofing.

Spacers control separation; they are not automatically structural shelves. A small loose spacer may squeeze, rotate, or fall under a heavy course.

Build the first course to the control line, verify level and plane, and allow support/cure as the system requires before loading it. Do not puncture waterproofing casually for a ledger.

At a tub, counter, or floor, preserve the specified flexible perimeter joint rather than setting tile hard onto the surface.

Spread only what can be controlled

Mix and apply mortar through the exact manufacturer instructions. Key/combine and trowel as the assembly specifies.

Limit spread to an area that can be:

covered inside open time;

aligned to visible controls;

checked for coverage;

cleaned at joints;

corrected before mortar skins.

Do not cover all control lines. Maintain a clean reference edge.

If a line is buried, project it with the laser or stop and establish another verified reference; do not continue by eye.

Set the first control field

Place the first tile at the axis/focal control. Seat it through the specified motion without collapsing mortar coverage or starving the bed.

Place the next tile to the module:

align to the control line;

insert verified spacers at enough locations to prevent rotation;

measure gap at tile bodies;

compare plane with fingertips/straightedge and raking light;

clean squeeze-out from future grout space;

lift an early tile to verify mortar contact through the assembly requirements.

The spacer holds a local dimension. The line decides whether that dimension is in the right place.

Run the setter’s control loop

At each tile/course:

line: is the joint centerline still parallel/perpendicular to control?

module: is cumulative distance returning to the story pole?

width: is spacing read at bodies, not bevel tops?

plane: is lippage stable under the actual light?

pattern: are offsets and orientation correct?

bed: is coverage and transfer maintained?

joint depth: is squeeze-out removed while workable?

movement: are reserved joints clean/open?

spacer: is every piece accounted for and removable?

Distribute permissible tile variation over several joints. Do not make one correction joint absorb a course’s entire drift.

Stop at wet work when the grid begins to walk. That is the cheapest correction point.

Manage corners, openings, and transitions

At inside corners and changes of plane, preserve the specified movement/sealant joint. Do not jam one field into another.

At doorways, check the grid from both rooms before crossing. At drains, maintain slope and approved cut geometry. At cabinets and fixtures, confirm finish clearances.

For mosaics, sheet spacing may already establish local joints. Dry-lay sheets and compare the sheet-to-sheet joint with internal mesh joints; do not force every opening to a loose-spacer dimension if it distorts the sheet.

For rustic tile, hold the centerline while allowing intentional edge variation. A spacer is a gauge, not an instruction to grind handmade edges into calibration.

Control spacers during cure

Follow mortar and spacer instructions for disturbance and removal. There is no universal clock.

Use a mapped removal plan:

divide the field into zones;

test a non-focal spacer;

stabilize neighboring tile;

pull without levering on glaze;

stop if tile moves;

clear trapped mortar while the approved method permits;

count or visually sweep every joint.

Standing placement, where verified, can make removal accessible. Flat intersection placement can control multiple tiles but may be easier to bury. The physical geometry and package decide.

Never grout over an unverified loose spacer. It reduces grout cross-section and can telegraph as a crack or shallow spot.

Inspect before grout

confirm all temporary spacers are removed;

check joint depth and cleanliness;

verify no movement joint is bridged;

inspect lippage and alignment under normal/raking light;

tap/inspect only through the project’s accepted method;

correct chips, loose pieces, voids, or contamination;

protect tile surface for the selected grout.

Do not use grout to lock a moving tile in place or hide layout error.

A rubber float—not a spacer—packs an ordinary field joint.

Preserve the layout record

Record tile/lot, actual measured variation, approved width, exact spacer SKU, package geometry, focal priorities, module, control lines, movement joints, pattern/offset, mockup, mortar/grout systems, setter checks, spacer removal, defects, and corrections.

Keep job-specific observations local.

What goes wrong (and the fix)

Both walls finish with slivers. The dry module was skipped or centered on the wrong priority.

Every joint is the same locally, but the field runs crooked. Re-establish control lines; spacers do not square a room.

Joint openings vary at beveled tile. Measure at the tile bodies and track centerlines.

A plank pattern shows repeating high corners. Respect tile warpage and manufacturer offset limits; do not rely on a wider gap alone.

Wall courses slump after spacer placement. Restore approved course support and mortar control; spacers are not assumed load-bearing.

Mortar fills half the grout joint. Clean while workable and reduce over-spread/squeeze-out.

A spacer will not pull without moving tile. Wait to the system’s removal condition and use verified geometry; never lever on the arris.

Spacers are found under grout. Open and repair affected joints through the grout/system method; map removal on the remaining field.

The grid crosses a control joint. Stop and redesign/carry the movement detail; tile cannot bridge it for appearance.

A leveling clip is treated as a spacer and substrate correction. Restore separate spacing, plane, coverage, and system controls.

The history footnote

Tile was aligned with cords and repeated gauges before the familiar loose spacer. Fred H. Berger’s 1932 filing, granted as U.S. Patent 2,031,684 in 1936, documented a cross-shaped rubber spacer intended to align four tiles while accommodating small irregularities. That patent is tool-class history only: it does not prove the material or geometry of Hyde 19620, 19640, or 19660.

Exact tools, verification, and backlink footer

Only the three nominal joint sizes are store-title identities.
