How to Strip Paint from Window Muntins, Sash, and Channels

Difficulty: high restraint.

The exact Hyde working set:

No generic cleaner, solvent, heat, chemical, abrasive, primer, glazing compound, PPE, or disposal method is invented.

The hard boundary: scrape only authorized coating from sound wood—never glass, glazing, weatherstrip, caulk, balances, hardware, seals, wires, joints, or rot. Bare wood is allowed only when the verified system requires it; otherwise stop at sound coating.

Read the window as an assembly before reading the paint

A window is an assembly. On a traditional double-hung unit, rails and stiles form each sash; muntins divide lights; putty or beads retain glass in rabbets; stops and a parting bead guide travel; cords or chains connect sash to weights; and the sill drains water. Other types use hinges, operators, springs, shoes, rollers, gaskets, insulating-glass seals, applied grilles, or fixed members.

Identify the window type and mark what is:

structural wood: rails, stiles, true muntins, frame, sill, and sound stops;

glazing: pane, rabbet, putty, bead, point, gasket, tape, seal, and film edge;

operating system: channel, stop, parting bead, hinge, roller, weatherstrip, balance, cord, chain, weight, shoe, operator, and drainage opening;

finish system: failed coating, sound coating to retain, primer, repair, and intentional paint lap at traditional putty glazing;

historic evidence: original or early glass, profile edges, tool marks, joinery, hardware, and paint layers that may matter to a conservation or color investigation.

Do not call a surface muntin from appearance alone. A removable grille, applied bar, snap-in trim, or insulated-unit divider is not authorized scraper work. If records, edge construction, or a conservation professional cannot identify it, mark it unknown and keep steel away.

Operate only an already-safe window. Record travel, balance, closure, lock alignment, weatherstrip, and drainage. Dropping, racking, binding, or one-sided travel is a mechanical/structural branch.

Diagnose why the paint failed

Inspect in raking light and map lifting, blistering, worn contacts, water staining, open joints, and patch edges. The National Park Service identifies moisture as the primary contributor to wood-window decay and calls for inspection of frame edges, glazing, sill drainage, bottom rails, and muntin joints. Failed paint can mark water entry while sound wood remains below.

Separate four conditions:

Loose coating over sound, dry wood. This can enter bounded hand removal after the hazard and system gates.

Sound coating beside a local failure. Retain it unless the verified finish specification requires total removal. The scraper finds the stable boundary; it does not erase sound history for visual uniformity.

Soft, split, checked, or moving wood. Stop scraping that member. A blade cannot distinguish a thin sound skin over hidden decay by feel alone, and continued removal can erase the profile. Route it to a qualified window-restoration assessment.

Record suspect wood, joint movement, and moisture; use the approved assessment method. Rot treatment, consolidation, parts repair/replacement, and stabilization are separate scopes.

Window replacement, demolition, and prohibited practices have special treatment; a repair must be classified by actual scope and method. A window in a pre-1978 unit is not presumed lead-free without an accepted determination; see EPA’s window-component guidance.

OSHA’s construction lead standard names manual scraping of lead coating. The employer’s exposure assessment/program selects controls, PPE, training, hygiene, and medical provisions. DIY work still needs the current EPA plan.

Age does not prove asbestos, but EPA treats window caulk and glazing compound as assessment categories in its specific guidance. Stop before unknown putty, caulk, bedding, or backing; obtain the building-specific determination and method.

Gate result

Proceed only when all three statements are true:

the person and site are authorized for the chosen work;

containment, access, protective equipment, cleaning, and waste paths are specified before the first chip.

Establish one coating-removal system

Decide what “done” means before choosing an edge.

Localized scrape-back: remove loose and failing coating to the stable boundary while retaining sound paint.

Operability clearance: remove only verified excess coating from an operating wood contact or channel after the sash/hardware diagnosis is complete.

Conservation strip: remove a specified coating layer or buildup while retaining historic glass, profiles, joinery, tool marks, and any samples required for paint analysis.

Manual, chemical, and heat removal are separate systems. No chemical recipe or heat setting, distance, or dwell is supplied here.

Map the work and prove a representative test area

Photograph and label the window. On divided lights, give each pane and surrounding muntin run an identifier.

sound coating to retain;

failed coating eligible for the selected system;

glass and every glazing boundary;

true profile zones—flat, arris, channel floor, channel side, corner, and junction;

joints between muntins, rails, and stiles;

stops, parting beads, weatherstrip, hardware, cords/chains, balance paths, weight-pocket access, seals, sensors, and drainage openings;

rot, moisture, broken glass, loose putty, and access holds.

Choose a representative area with the expected coating and geometry, away from fragile joints, glass edges, hardware, and historic samples. Use the full job’s support and shielding.

the selected edge removes the authorized coating rather than wood;

retained coating remains stable at the stop boundary;

the profile remains crisp;

the glass and glazing remain untouched and stable;

chips and residue stay inside the approved control system;

the exposed condition does not reveal moisture, rot, open joinery, incompatible underlayers, or another stop.

Inspect in raking light against the before photo. Chatter, skating, torn fiber, joint movement, glass approach, or rising force fails the test. Change systems or hand off; do not enlarge it.

Select the narrow scraper by geometry and maintenance system

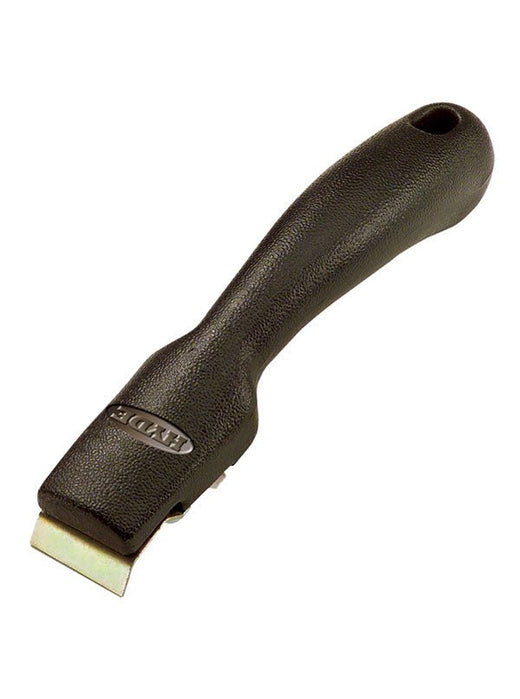

Use 10500 where a narrow straight edge stays supported on a flat muntin, rail/stile margin, or channel zone. Its steel edge can be resharpened or replaced, but only under the exact Hyde/blade instruction; no sharpening procedure appears here.

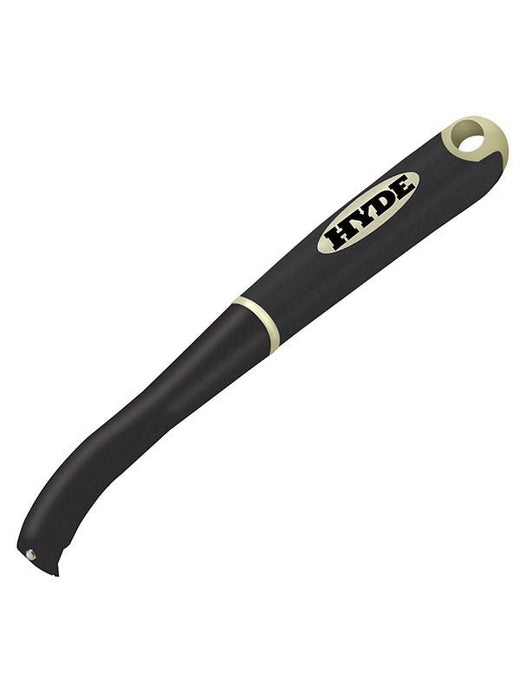

Use 10600 for a verified tight corner, channel end, or junction needing triangular carbide point-and-corner geometry. Keep it within wood. Its supported maintenance model is rotate, then replace; never file, pry, strike, side-load, or continue with a chipped corner.

Difficulty alone does not choose carbide; it may reveal the wrong system, moisture, incompatible coating, or retained boundary. Geometry and maintenance path decide.

The 13000 does not participate in wood stripping. Keep it retracted and outside the work zone until the wood operation is closed and the separate glass guide admits the face.

Protected scraping technique — narrow wood, retained glass

This is the required doer method after every prior gate passes.

Stabilize the sash and the work. A removable sash belongs on stable, padded support that does not twist rails, load a pane, or leave the member bouncing under the edge. An installed sash must be positively controlled within its operating system and reached from an authorized stable position. Do not brace against glass, a loose stop, a parting bead, or a moving sash.

Shield what stays. Place removable protection between the working path and the glass or retained adjacent profile. The shield must leave the coating boundary visible and must not press on the pane, conceal loose glazing, or become a blade guide against glass. Move it as the working zone moves.

Set grip, hands, and body. Keep the working grip controlled and the bracing hand on sound supported wood, outside the edge and release path. Keep the body out of the projected exit path. Orient the sash or your stance so each stroke terminates in clear space away from glass, joints, hardware, the bracing hand, and the body.

Present a conservative blade attitude. Engage only enough edge to shear the admitted coating. A blade that stands up, dives, chatters, or needs leverage is not under control.

Use cut-away controlled short strokes. For these pull scrapers, arrange the work so the short controlled pull exits the protected profile zone into clear space rather than running toward glass or across a joint. Do not make a long blind pass, saw back and forth, twist a loaded edge, or use a corner as a pry.

Follow one profile zone at a time. Clear a flat as a flat, a channel floor as a channel floor, a side as a side, and a verified corner as a corner. Do not drag one straight edge across multiple heights. The 10500 stays supported on the straight zone; the 10600 point enters only the verified corner or junction it fits.

Clear residue safely under the approved plan. Stop before accumulated residue hides the edge or profile.

Inspect frequently. After every short run, withdraw the tool, protect the edge, and inspect the wood, retained coating, glass, glazing, and joint in raking light. Compare with the test. Stop on the first new scratch, rounded arris, wood-fiber lift, joint movement, glazing movement, edge chip, or loss of containment.

On a muntin grid, work from mapped light to mapped light so no junction is crossed casually. At a rail/stile or muntin junction, finish the current member before reorienting for the next; never carry momentum through the joint. In an operating channel, stop before every cord, chain, weatherstrip, balance element, fastener, sensor, seal, and drainage feature. “Channel” describes geometry, not permission to clear everything inside it.

Branch on what the first passes reveal

Coating releases cleanly and wood stays sound: continue in short mapped zones to the specified stop boundary.

The edge reaches sound retained coating: stop removal there. Feathering belongs to the verified preparation system, not extra scraper force.

Wood fibers lift or a groove appears: stop.

A muntin, rail, stile, stop, or parting bead moves: stop and support the assembly. A joint failure is carpentry, not stubborn paint.

Glazing putty cracks, lifts, or separates: stop before the rabbet. Route to the putty-removal and reglazing guides.

The pane moves, rattles, chips, or cracks: stop all scraping and sash movement; isolate the area and route to a qualified glazier/restorer.

The tool meets metal, cord, chain, spring, balance tape, weatherstrip, gasket, seal, wire, or sensor: withdraw. Identify and protect the operating system; never scrape through it.

Moisture, staining, soft wood, fungal decay, insect damage, or open end grain appears: stop the finish sequence and diagnose the source and repair class.

The coating will not release without more force: do not escalate automatically. Reassess whether sound paint should remain or whether an authorized chemical, heat, or specialist system owns the layer.

Close the wood operation and hand off

Removal is complete only when the specified coating boundary is reached without damaging the assembly. Under the selected preparation system:

remove controlled residue and inspect every profile and joint;

verify that exposed wood is sound and dry enough for the next authorized operation;

preserve any required historic paint samples and records;

route open joints, loss, rot, or profile damage to repair before finish;

route failed putty/rabbets to glazing repair;

route feathering, filling, priming, and recoating to their exact compatible systems;

keep operating contacts, balance paths, weatherstrip, hardware, seals, and drainage openings free of unintended coating.

Do not name a primer, cleaner, filler, glazing compound, or cure interval generically. The substrate repair, glazing, primer, and finish manufacturers—and the conservation specification—must agree.

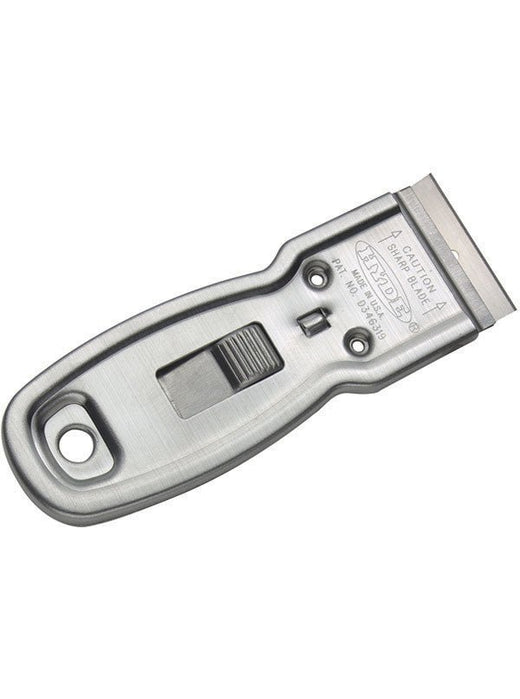

Use the 13000 only through the qualified glass handoff

Paint remaining on the exposed pane is not permission to scrape glass.

That guide excludes coated faces, films, plastics, and unknown layers; treats heat-treated, laminated, insulating, historic, and specialty glazing as conditional; and owns the test, cleaner, blade handling, glass motion, and disposal. The 13000 enters only if it admits the exact face. This page supplies no glass-contact instruction.

Preserve any intentional cured paint lap that seals traditional glazing. Remove only unintended glass-side excess after the coating and glazing systems permit cleanup. Rabbet residue, failed putty, and glass-face paint are three different jobs.

Cleanup, waste, operability, and closeout

Execute cleanup and waste handling under the selected hazard, coating, workplace, and local plan. Do not dry sweep, use unapproved equipment, wash residue into channels/soil, mix waste systems, or classify suspect material by its small quantity. No container, label, transport, or destination is invented.

Then prove the complete window:

Profile: muntin, rail, stile, and channel geometry matches the accepted test; no rounded arris, tooth track, gouge, or erased detail appears.

Glass/glazing: panes remain intact and stable; putty, beads, gaskets, seals, films, and intended paint laps remain sound.

Joinery: no muntin, rail, stile, stop, or frame joint opened or shifted.

Movement: each intended moving sash follows its designed path without racking, falling, or unexplained hard stops.

Control: cords, chains, weights, balances, hinges, rollers, operators, locks, and child/security devices work as designed.

Closure: the sash closes and locks without being levered into position.

Water management: sill path, weeps, glazing seal, weatherstrip, and drainage openings remain present and unobstructed.

Finish handoff: sound retained coating, exposed wood, repairs, glazing work, primer/recoat system, and cure/return-to-service holds are each documented.

Both sides: interior and exterior faces, inaccessible areas, and unresolved components are explicitly dispositioned.

A clean-looking muntin is not proof that the window still works.

What goes wrong — symptom, cause, recovery

The blade skates and leaves a bright line. The edge is unsupported, damaged, contaminated, or on the wrong profile. Stop; protect the work; inspect the edge and test area. Do not add force.

A corner digs into the wood. The blade attitude, edge choice, or zone transition is wrong. Stop and document the cut.

Paint comes off with long wood fibers. The coating bond is exceeding the surface strength or decay is present. This is a wood-repair branch, not evidence that the scraper is working.

A channel is clean but the sash still binds. Paint was not the only cause. Diagnose swelling, debris, weatherstrip, racking, balances, rollers, or hardware; do not enlarge the channel blindly.

The glass-side edge remains dirty. Do not tilt a wood scraper toward the pane. Close the wood phase and use the separate qualified glass or glazing handoff.

A joint line opens. Stop immediately. Stabilize the sash under a qualified restoration plan; scraping cannot repair joinery.

Steel stops cutting. Do not invent sharpening or increase force. Service or replace the 10500 edge only through its exact supported procedure, then re-prove the test area.

Cleanup exposes more loose coating. Re-open the mapped removal zone under the same controls; do not let cleanup become an uncontrolled second stripping system.

The sash works before recoating but sticks afterward. The finish entered an operating contact or returned to service too early. Follow the coating and sash-painting system; do not scrape uncured coating under this guide.

Should every old wood sash be stripped to bare wood?

Stop local failure at sound coating unless the verified conservation/coating system requires more. Total stripping can erase paint history and increases assembly/hazard exposure.

Which Hyde scraper leads on muntins?

Use 10500 on a supported narrow straight wood zone; 10600 only in a verified tight corner, channel end, or junction. Neither touches glass or replaces a curved-profile tool.

Can I scrape the pane while I am working beside it?

Close the wood phase; the separate glass guide must qualify the face and method. The 13000 is conditional, not permission.

What about paint packed in a sash channel?

Identify the operating system first. Remove authorized coating from sound wood; stop at weatherstrip, balances, cords/chains, weights, hardware, seals, wires, drainage, and unknown inserts.

Can I use chemical stripper or heat to speed the job?

This page gives no chemical or heat procedure.

What if the glazing putty is loose?

Stop at the glazing boundary and route the failed retention/weather seal to the putty-removal and reglazing guides.

How do I know whether the wood is ready for primer or paint?

The exact repair/coating system decides. Wood and joints must be sound, moisture resolved, glazing stable, residue controlled, and the specified boundary accepted.

Does a small window job avoid lead rules?

No visual shortcut decides it. Classify building, scope, area, method, and worker relationship under current EPA/state rules.

History — why preservation starts with operability

The National Park Service’s Preservation Brief 9, *The Repair of Historic Wooden Windows* describes early American casements and the rise of single- and double-hung sash in the eighteenth century, then treats the historic window as a repairable assembly. Its enduring sequence is evaluation first, followed by appropriate paint removal, sash/glazing repair, frame repair, weatherstripping, reinstallation, and repainting. It also notes that excess paint can obstruct operation and blur original detail while moisture commonly drives decay.

The narrow edge exists to reveal and retain joinery, glass, and profile—not make old work look machined. The 10500 carries the resharpenable-steel tradition, 10600 a triangular-carbide system, and 13000 the disposable single-edge glass-cleanup tradition. No invention claim is made.

No accepted 10600 exact web page exists in its packet; the exact catalog row controls.

This guide alone owns narrow window wood plus assembly preservation.

No blade thickness, load, force, numeric angle, service life, cutting rate, sharpening, cleaner, PPE, or disposal procedure is claimed.

Window technique is authored trade/conservation procedure.

No unregistered product is added.
