How to Spray Exposed Structure — Ductwork, Steel Beams, and Truss Work

The first filename uses the UPC-derived worklist key 79423286704; it resolves to model 28670, not a fourth product.

Job: diagnose, isolate, protect, test, and airless-coat admitted faces of exposed ductwork, steel beams, and truss members while controlling the fan, hose, wet edge, overspray, and every reposition.

Difficulty: qualified Tier-1 airless and industrial-coating work.

Time: no universal duration. Survey, service isolation, cleaning, corrosion or fireproofing handoff, access, containment, witness testing, coating states, inspection, cleanup, and release own the schedule. Trigger time is only one part of the work.

Everything else: the exact airless pump, hose, gun, guard, and tip system; current equipment instructions; the approved coating specification, label, technical data, and safety data; substrate and building records; authorized access and exclusion controls; lighting; containment and masking; service lockout or isolation records; and the ventilation, ignition, exposure, protective-equipment, waste, emergency, and release controls selected by the responsible parties. This row supplies none of those as catalog nodes.

Admit the job surface by surface

“Exposed structure” is a visual description, not a coating substrate. One open ceiling can contain galvanized duct, factory-coated spiral duct, carbon-steel beams, primed joists, painted wood trusses, sprinkler pipe, cable tray, conduit, insulated piping, flexible connectors, fireproofed columns, acoustical material, sealants, labels, sensors, and moving service parts. A single-color appearance does not make them one paint system.

Build a surface-and-service register before masking:

Ductwork: identify base metal, galvanizing or other treatment, factory finish, insulation or jacket, seam and joint materials, mastic, gasketed connections, access doors, dampers, flexible connectors, labels, sensors, actuators, diffusers, and air path.

Structural steel: use drawings, records, specifications, and qualified inspection to identify carbon steel, galvanized steel, stainless, shop primer, old coating, corrosion products, mill scale, welds, bolts, base connections, and any protected contact or inspection surface. Appearance or a magnet alone is not enough to establish alloy, treatment, or coating readiness.

Do not treat a truss chord, open-web joist, or connector plate as decorative trim.

Adjacent systems: record electrical equipment, sprinklers, alarms, detectors, fire/smoke dampers, signage, identification bands, controls, bearings, moving linkages, access panels, vents, drains, louvers, light fixtures, and every item whose operation, listing, inspection, heat transfer, or identification could be changed by coating.

The register assigns each item one disposition: admitted coating face, protected exclusion, qualified repair/handoff, or unresolved stop. “Paint everything black” is not a disposition.

Corrosion, galvanizing, grease, and condensation

Map loose coating, under-film corrosion, rust staining, pitting, scale, damaged edges, and section loss. Paint does not restore a thinned member, failed weld, loose connection, crushed duct, or damaged truss plate. Structural or mechanical damage stops the coating lane for qualified repair.

Hot-dip or sheet galvanizing is zinc protection, not bare steel. Do not transfer a carbon-steel cleaning, abrasion, etch, or primer sequence to galvanized duct or steel by habit. Stainless and aluminum likewise require their own contamination and preparation controls.

Grease is common above kitchens, production equipment, loading areas, and occupied commercial spaces. So are silicone, oil mist, smoke residue, release agents, wax, salts, dust, and prior cleaner residue. Identify the contamination and the approved removal and verification method. A generic solvent wipe can spread grease, attack an existing film, create an ignition or exposure problem, and leave the interface unfit for coating.

Condensation is a cause, not a cosmetic defect. If a duct sweats, a cold-water line drips, a roof leaks, or the substrate is below the coating system’s permitted condition, stop. Resolve insulation, vapor, temperature, humidity, leakage, or building-operation causes through the responsible discipline. Do not trap active moisture under a coating or use spray fog to hide the evidence.

Fireproofing and fire-resistive coatings

Identify spray-applied fire-resistive material, board systems, wraps, intumescent or other fire-protective coatings, and suspect legacy surfacing before preparation or spray. Crumbling, missing, wet, delaminated, or impact-damaged fireproofing is not an ordinary patch. Do not scrape, abrade, clean aggressively, encapsulate, overspray, bridge, or repair it from this guide.

Protect intact fireproofing from coating and mechanical contact. They decide investigation, sampling, repair, compatibility, thickness, inspection, and release. This guide invents no fireproofing repair or coating schedule.

Open the service, electrical, coating, and access gates

Service and ventilation gate

A live air handler can distribute overspray beyond the work zone; an unplanned shutdown can compromise occupancy, process control, temperature, pressure relationships, or life safety. Do not operate dampers, fans, smoke controls, valves, or building automation merely to make painting easier.

The coating safety data, site hazard assessment, building conditions, and applicable requirements determine ventilation and exposure controls. Containment must work with that authorized ventilation plan rather than defeating it. This guide gives no universal air-change rate, fan arrangement, respirator, filter, or occupancy interval.

Electrical gate

QuickReach poles are documented as anodized aluminum and carry no electrical-insulation or voltage rating. Inventory lights, conduit, cable trays, junction boxes, temporary power, busways, energized machinery, damaged covers, exposed conductors, and overhead lines in the raise, work, turn, lower, and fall envelopes.

A wall switch, plastic grip, dry glove, painted tube, or spotter does not rate the assembly. If the complete pole, mounted gun, hose, operator, or wet material can enter an unresolved electrical zone, the pole does not go up.

Coating gate

Bind one complete system to each admitted substrate and service. The current project and manufacturer documents must resolve cleaning, preparation endpoint, primer, topcoat, application method, equipment compatibility, environmental window, film requirements, working state, recoat or repair state, cure, cleanup, waste, and return to service.

No value is supplied here for pressure, tip, fan width, distance, thinning, strain, coverage, film thickness, coat count, dry time, recoat time, or cure. No universal coating is assigned to duct, steel, truss, galvanizing, or old paint.

Create an authorized representative witness that includes the real substrate or retained coating, a typical edge or junction, the selected preparation, the exact coating system, and the proposed airless setup. Carry it through the specified evaluation state. Reject lifting, wrinkling, beading, bleed, poor adhesion, contamination, unacceptable texture, or loss of functional detail before production.

Height and access gate

Measure every target elevation and every legitimate standing plane. Then dry-map the complete assembly; do not convert pole length plus operator height into a promised reach.

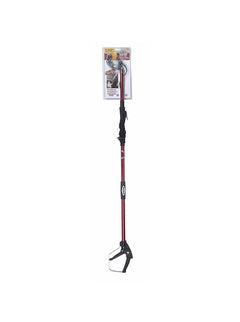

28670: the shortest-control role, officially 4.5'–6.5'. Choose it for the low band that it closes with reserve: back-of-house rooms, corridors, low open ceilings, and structure where surplus pole would reduce control. Its record gives no paintable-height figure.

28680: the middle role, officially 5.5'–8.5'. Hyde alone gives this model a total-height claim: paint heights up to 16'. That statement is a selection ceiling, not permission to stretch, work blind, or ignore the stopped map.

28690: the longest role, officially 7.5'–12', described by Hyde for areas normally reached on a ladder. No official total paintable-height figure exists. It serves only zones the shorter poles cannot close and the dry test still proves controllable.

Use the shortest pole that proves the entire zone. The three poles are alternatives by measured requirement, not a kit and not a progression that must all be used. A lift, scaffold, or other authorized platform wins when work is sustained at one elevation, inspection must be close, backsides cannot be seen, fine detail dominates, or the floor route cannot preserve control. A pole wins only where mixed-height work can be reached, coated, and inspected from legitimate footing without repeated machine moves.

Build exclusion, protection, and the hose route

Close the work volume to occupants and unrelated trades. Include the pole’s full sweep and lowering envelope, the hose path, atomized-fog path, gravity fallout, wet coating, and dropped-object zone. No one works or passes below a live or freshly coated overhead zone.

Protect every non-target surface and service: floors, racks, stock, machinery, vehicles, controls, labels, sprinklers, detectors, lights, access panels, flexible joints, bearings, electrical equipment, and adjacent finishes. Masking cannot obstruct required egress, service cooling, drainage, ventilation, inspection, identification, alarms, or fire protection. If an item cannot be safely protected while preserving its function, the zone is not ready.

Stage the pump and coating on a level, authorized surface outside the walking and lowering lanes. Route the hose so it:

approaches from behind or beside the operator rather than through the feet;

does not cross egress, doorways, vehicle routes, sharp edges, hot work, moving equipment, wet coating, or unprotected finished surfaces;

cannot snag a rack, truss web, beam end, duct hanger, ladder, or masked service;

has enough controlled slack for the complete planned pass without pulling the head off square; and

can be tended from outside the fan, pole sweep, and fallout zone.

Plan a protected location for lowering, locking, pressure relief, inspection, and any configuration change. Uncontrolled hose coils beneath overhead work are not reserve; they are a trip and pull source.

Prove the stopped setup and low pattern

With the actual system stopped and fully depressurized by its procedure, positively identify the pole, gun, hose, guard, tip system, coating, and every connection. Hyde says the QuickReach family suits “standard guns and tips,” but that phrase is not a gun envelope, thread specification, pressure rating, or proof of this exact join.

Mount and adjust only as documented. Reject forced fit, cross-threading, improvised tape, added clamps, altered guards, field-made locks, or an unidentified adapter. At low height, dry-prove retention, trigger control, pole-length stability, head-angle stability, hose behavior, raise, translate, stop, lower, and turn. Any creep, rotation, bind, release, bounce, excessive lag, or hose-driven movement removes the setup from service.

Now walk the structure with the dry assembly:

Divide it into bounded zones whose admitted faces can be completed and inspected coherently.

At every operator station, keep both feet on clear, level, authorized footing and the pole under two-hand control.

Trace the intended face, web, flange, joint, backside, and obstruction routes while keeping the head, target, hose, next step, and exclusion boundary visible.

Rehearse every swing and lowering path around services and masking.

Reject any zone requiring a lean, blind reach, improvised platform, one-hand reach, uncontrolled full extension, or contact with the structure.

Mark what is pole-complete, field-complete but detail/access incomplete, or access required.

Only after the dry map closes may the qualified operator start and prime the equipment by its instructions. On a secured disposable target at ordinary visible height, establish the coating-authorized setup and read the complete fan. Tails, fingers, split, pulsing, spit, leakage, irregular distribution, mount motion, or hose recoil stop the move overhead.

Plan faces, webs, flanges, joints, and backsides

Exposed structure is a collection of intersecting planes. Plan each plane rather than waving one fan across the silhouette.

Ductwork: divide each run into broad panels, returns, transitions, seams, joints, hangers, and authorized detail zones. Keep access doors, labels, controls, flexible connectors, gaskets, dampers, sensors, and excluded sealants readable and operable. A round duct is a changing tangent: the fan must be reset or the operating station changed as the visible face turns away. If the backside cannot be seen and the film cannot be read, it is not pole work.

Beams and joists: treat each flange face, flange edge, web face, connection, bolt group, weld zone, and permitted backside as a separate surface. Do not sweep across the underside, web, and flange edge in one arc; each plane requires a square fan and a controlled pass. Tight re-entrant corners, top surfaces hidden above a flange, and crowded connections may require a separately approved detail method or closer access.

Trusses: map chords, webs, diagonals, gussets or plates, intersections, and protected connectors. Complete only the faces the structural and coating plan admits. Do not bury identification, inspection evidence, movement interfaces, or connection details. A complicated node that cannot be illuminated and read from the floor is an access handoff, not an invitation to fog it from several directions.

Where the coating’s working rules permit, plan concealed or hard-to-access admitted faces before surrounding broad faces close the visual path. That is sequencing logic, not a universal coating order. The approved specification and witness own edge treatment, stripe coating, coat order, and repair.

Spray the admitted zones — qualified Tier-1 sequence

Read back the zone before raising. Confirm service state, exclusion, ventilation state, lighting, dry footing, hose slack, protected lowering path, masking, and that no person or moving equipment has entered.

Plant, raise, and set square. Establish the dry-proved stance. Raise with two-hand control. Align the fan perpendicular to the actual target plane so both sides of the fan travel the same path. A raking fan loads the near side differently from the far side.

Move before triggering. Establish straight controlled travel, trigger only while the fan is on an admitted target, and release before motion stops or the fan leaves that target. Prove remote-trigger response low; do not guess its delay, travel, or feathering at height.

Translate instead of arcing. Carry the pole in a stable relationship to the body and move through the dry-proved lane. A pendulum sweep changes fan angle and tip-to-surface relationship. This guide gives no distance: preserve the relationship established by the equipment instructions and accepted low test.

Coat one plane at a time. Run a duct panel along its bounded face; a beam web along the web; a flange face along that face; a truss member along one visible plane. Stop, lock, lower or reposition, and reset for the adjoining plane. Do not twist through an intersection with the trigger held.

Overlap from the observed fan. Use the tested fan and wet-film response to keep adjacent passes continuous. No universal percentage belongs here. If the fan or geometry changes, the established spacing is no longer valid; stop and retest.

Keep a legitimate wet edge. Complete a planned bounded zone while the coating remains workable under its instructions. Use member ends, corners, connections, transitions, or other defensible boundaries. Do not abandon an open broad face to untangle hose or correct masking.

Handle joints and obstructions deliberately. Approach each permitted connection from a position that exposes its target face. Never blind-fire behind conduit, pipe, hangers, flanges, or cable tray. If the fan cannot be seen landing, use another station, approved detail method, or authorized access.

Read back continuously. After the witness pass, each plane change, every reposition, any interruption, and any change in light or pattern, inspect broad faces, edges, webs, flange returns, joints, backsides, masking, overspray, mount, and hose. Use more than one authorized viewing position when glare hides film.

Controlled repositioning

At the end of a pass, release while moving, engage the trigger lock, bring the pole to the rehearsed carry position, look down, confirm the hose and next step, then move within the cleared lane. Re-establish stance, visibility, slack, target, and square-fan geometry before unlocking.

Lower the pole before crossing a boundary, turning through a crowded volume, changing elevation, adjusting length or head angle, changing configuration, clearing a tip, correcting a hose route, or approaching the fluid path. Execute the exact system’s complete pressure-relief procedure whenever its instructions require and whenever the setup, connection, control, or safe state is in doubt. “Pump off” alone is not a pressure-relief procedure.

What goes wrong (and the fix)

| Observation | Likely decision path | Controlled response |

| Tails, fingers, split, pulsing, or spit | Tip, blockage, filtration, coating condition, pump delivery, setup, or equipment fault | Release, lock, lower, and diagnose by the exact instructions. Relieve pressure before fluid-path work; retest low before returning overhead. |

| Heavy center, dry ends, or diagonal wet/dry fan | Arc motion, changing relationship, fan not square, or hose pull | Stop at a safe boundary. Rehearse the translation, shorten the pole or zone, correct hose routing, and retest. |

| Sag, run, heavy start/stop bar, or pooled joint | Excess placement, slow travel, doubled pass, geometry, or late correction | Stop adding material. Correct only in the coating’s permitted state; otherwise use its named repair gate. |

| Holiday, starved edge, missed backside, or bare re-entrant corner | Visibility, access, edge behavior, or applicator reach failed | Do not fog blindly or flood the neighbor. Move to an admitted station, approved detail method, or access lane. |

| Rust bleed, lifting, wrinkling, beading, or loss of adhesion | Moisture, grease, salts, corrosion, incompatible layers, failed preparation, or wrong system | Quarantine the zone and return to substrate/coating diagnosis. Another pass is not repair. |

| Condensation or a service-state change | Environmental or building-operation gate has failed | Stop, isolate the evidence, and restore the admitted condition through the responsible discipline. |

| Mount creep, head rotation, pole slip, bounce, hose tug, connection movement, or leak | Mechanical or compatibility proof failed | Release, lock, control and lower without approaching a leak, fully depressurize, and remove the setup from service. Never feel for or block a leak. |

Any suspected high-pressure fluid penetration is an immediate medical emergency even if the mark looks like a pinhole. Stop the job, seek emergency treatment, say “high-pressure injection injury,” identify the injected material, and provide its safety data. Never wait for pain or swelling.

Depressurize, clean, inspect, and release

Finish at the planned boundary. Lock the trigger and execute the equipment manufacturer’s full shutdown and pressure-relief procedure. Verify the required safe state before removing the gun, opening a connection, touching a fluid-path component, clearing a tip, or beginning hand cleanup.

Injection controls remain in force during flushing. Hyde states that paint does not pass through the anodized QuickReach pole; that does not excuse cleaning coating from exposed mount and pole surfaces before it cures. Do not flood telescoping joints or invent lubrication, lock adjustment, trigger repair, or internal service.

Inspect the dry or otherwise specified result under the release lighting and at the coating’s named inspection state. Check each admitted face, web, flange, edge, joint, backside, and transition; verify excluded services remain clean, visible, movable, inspectable, and correctly masked or restored. Route defects through the approved repair schedule rather than spot-spraying a closed film.

Authorized personnel remove containment without distributing residue; restore duct, HVAC, electrical, alarm, sprinkler, detector, damper, machinery, and other services under their own procedures; test where required; and document unresolved damage or contamination. “Dry to the touch” and absence of odor are not universal release criteria.

The history footnote

Graco traces its first commercial airless sprayer, the Hydra-Spray, to 1958. Moving atomization to a pressure-driven tip eventually made remote gun mounts practical; the same architecture also put an injection-capable discharge at the far end of the pole. That is why reach and pressure discipline cannot be separated. See Graco’s company history.

Product differentiation and exact graph close

| Product node | Exact role here | Refusal |

Graph accounting: registered nodes 3 · linked and dispositioned 3 · omitted 0 · added catalog nodes 0. Pump, gun, hose, tip, access equipment, masking, and detail applicators are operational requirements, not imported Hyde Store product nodes.

None substitutes for this guide’s intersecting-plane, service, fireproofing, backside, and overhead-structure workflow.
