How to Set and Dimple Drywall Nails

This is a true singleton. No other Hyde model is added below.

Confirm the actual 09068 against Hyde's current build sheet before relying on a pattern feature.

The current gypsum-panel instructions, approved fastener instructions, framing requirements, project specification, code, and any tested fire, sound, impact, moisture, shaft-wall, ceiling, or other assembly listing control fastener type, material/coating, head and shank form, length, placement, spacing, count, penetration, edge/end distance, field/perimeter sequence, permitted correction, and inspection. Those documents outrank this page.

Job: support gypsum panel tight to its approved backing, drive each authorized drywall nail without shifting or crushing the panel, form a finishable dimple without breaking the face paper, read the result, and correct any rejected condition before joint compound hides it.

This guide states no universal production rate, dwell, recheck interval, or finishing schedule.

Difficulty: the swing is simple. The judgment is not. A nail can look recessed and still be a failed attachment because it missed support, the board moved, the paper fractured, the core crushed, the nail bent, or the assembly never permitted that fastener.

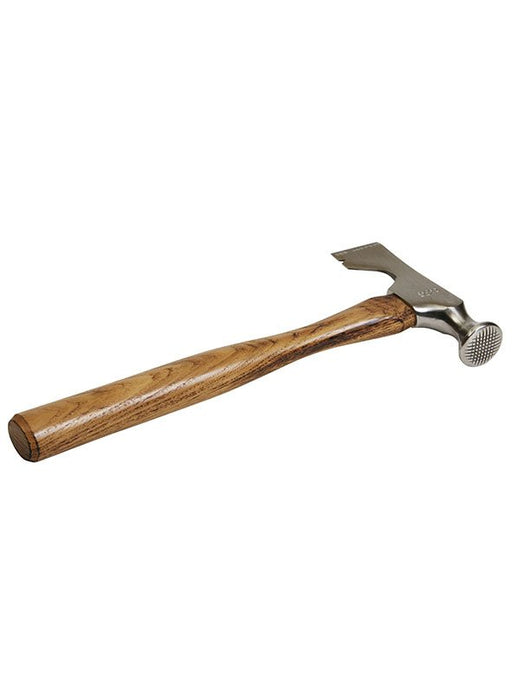

The exact Hyde tool linked to this job:

The store identity is established; its construction and pattern features are not.

Everything else: the exact gypsum panels, framing/backing, approved drywall nails, adhesives if the approved system uses them, panel lift/support equipment, temporary supports permitted by the installation plan, layout and marking tools, a clean straight joint knife or other accepted flat-edge gauge for readback, raking work light, pencil, nail-removal/correction tools, joint compound and finishing tools specified for the panel system, stable access equipment, drop control where overhead work requires it, and the protective equipment required by the site, tool, fastener, panel, and finishing-material instructions.

The decision before the hammer: is a nailed system actually authorized?

A drywall hammer does not create permission to nail. It executes one attachment method after the wall system has already selected it.

Standard interior board, abuse-resistant board, moisture/mold-resistant board, glass-mat panel, shaft liner, backing panel, exterior gypsum product, tile backer, and specialty board are not interchangeable fastening substrates.

A listed assembly can bind panel orientation, layer count, fastener identity, substrate, fastening pattern, joints, adhesives, and correction. A locally reasonable substitution can invalidate the assembly.

Do not infer suitability from “drywall nail” printed on an open bin, from appearance, or from a fastener recovered from demolition.

Compound is not permission to bury an installation before its required inspection.

A nail hammer is not an alternate driver for a screw system.

What this guide deliberately does not import

No wall schedule is copied from a ceiling detail. No nonrated instruction is copied into a rated assembly. No board thickness is turned into an assumed nail. No nail schedule is inferred from a familiar stud layout. No exact recess is invented. The approved documents decide what and where; this guide teaches how to execute, read, and correct the authorized strike.

The fastening physics — four conditions must be true at once

A finished nail is not merely a head hidden under compound. It is the meeting of four conditions:

Support: the panel is held in firm contact with the approved framing or backing at the fastening point.

Set: the authorized nail reaches and holds the support as the system requires; it is not bent, loose, misdirected, or driven into empty space.

Dimple: the head sits below the finished panel plane in a smooth, coat-receiving depression while the face paper remains continuous.

Readback: the head, paper, core, panel contact, and surrounding field all pass visual, blade, and movement checks before finishing.

Losing any one defeats the loop. A perfect-looking dimple over a missed stud is decoration. A nail with good support but a proud head is not finish-ready. A deep crater with torn paper is not “extra secure”; it is damaged board around a fastener. A nail set while the panel floats away from framing can clamp the wrong geometry or simply pull through the weakened face.

The paper matters because paper-faced gypsum board is a composite. The gypsum core supplies body and fire-related mass; the paper skins carry surface integrity and help the panel bridge local loads. The head must draw the face into a controlled depression, not cut through the skin and rely on pulverized gypsum alone.

Decide whether this is installation, service, or repair

The same round metal head can arrive in three different jobs.

New authorized nail attachment

The panel is open, the framing/support is known, the nail system is approved, and the installation sequence is still underway. This guide owns that work.

Temporary tack in a system finished with another fastener

Some project methods may use nails only as temporary or initial support before an approved final fastening operation. Never assume a tack counts toward the permanent schedule, never leave it as permanent attachment unless permitted, and never invent a mixed nail/screw pattern from site habit.

Existing wall with a proud or popped nail

That is a diagnosis-and-repair job. Movement, framing shrinkage, missed support, seasonal truss behavior, moisture, or a loose panel may be responsible. Do not treat an old pop as if it were a fresh installation nail waiting for its final tap.

Set up the board, tool, work zone, and body

Confirm the panel is ready to fasten

Inspect the support while it is visible. Confirm framing/backing location, condition, alignment, and any required protection plates or services mapping. Resolve missing backing, damaged framing, protrusions, wet material, and conflicting work before covering them.

Map concealed services. Use the project information and site controls to understand wiring, plumbing, ducts, membranes, and other hidden systems. A fastening schedule does not authorize blind striking into a location whose backing or service condition is unresolved.

Fit without force. A panel should reach its intended position without crushed corners, buckled edges, or leverage that stores stress in the sheet. Correct the cut or obstruction; do not use nails to drag a badly fitted sheet into place.

Support the load independently. The person driving nails should not also be the only thing preventing a large panel from falling or sliding. Use the crew, lift, brace, ledge, or temporary support authorized for the operation. Set access so the worker can face the nail with a controlled swing.

Seat the panel at the fastening point. Hold the board firmly against support before and during the strike. A nail is a clamp after it penetrates; it is not a panel jack.

Confirm the nails

Keep the nails in their identified package until use. Quarantine mixed, rusty beyond permitted condition, oil-contaminated, bent, blunt, damaged, or unidentified fasteners. Do not combine leftovers whose labels are gone.

Confirm the hammer

At minimum, the chosen tool must have:

a securely attached head and sound handle;

an undamaged striking face suited to the approved drywall-nail method;

no mushrooming, cracks, chips, loose wedges, sharp burrs, or contamination that can mark the board or throw fragments;

balance and grip that allow controlled square contact;

any blade/hatchet or nail-pulling end protected and managed so it cannot cut the user, the panel, a cable, or a nearby worker.

If the 09068 does not physically match the required drywall-hammer pattern, or its condition is uncertain, do not “test” it on installed board. Resolve the build sheet or select a verified system-appropriate tool.

Set the work zone and PPE

Eye protection is load-bearing. A glancing blow, damaged face, bent nail, or fractured fastener can throw metal or gypsum directly toward the face.

Control the swing zone. Keep helpers' heads, hands, leads, hoses, and tools outside the arc and rebound path. Announce overhead or back-side work where another trade could be on the opposite face.

Protect the support hand. Start with a method that keeps fingers clear as soon as the nail can stand. Gloves can reduce abrasion and incidental cuts, but they do not make a finger safe under a hammer.

Use hearing protection when the task, enclosure, duration, and site assessment require it. Repeated steel strikes in a finished shell can be a meaningful impulse-noise exposure.

Use stable access. Do not side-reach from a ladder, balance a panel with one hand while swinging with the other, or work beneath an unsupported ceiling panel.

Control the utility end. If the verified hammer has a blade or hatchet end, treat it as an exposed edge. Carry, stage, hand off, and store it so the blade cannot contact a body or finished surface.

Use the panel and site hazard plan. Cutting or correcting board can create dust; renovation of older coatings or textures can add lead or asbestos assessment boundaries. This new-installation guide does not turn those hazards into generic boilerplate, but it also does not waive them when the actual site contains them.

The complete closed loop: support → start → set → dimple → read back → correct

Phase A — support

Bring the panel into full contact at the fastening point. Press or hold at the support, not in the middle of a span. Look along the sheet for a gap, bow, trapped debris, or an edge riding another element.

Stabilize before starting. The panel and worker must both remain steady through the strike. If the panel shifts when the hammer hand leaves it, add authorized support or a helper before continuing.

This page supplies no substitute order.

Support readback

Before each nail becomes irreversible, ask:

Is approved support actually behind this point?

Is the board touching it?

Is the sheet carrying no uncontrolled load through my hammer hand?

Can the hammer reach the head squarely without an overreach?

Is the nail location already authorized by the layout?

Any “no” stops the strike.

Phase B — start the nail

Place only at the authorized mark. Do not “hunt” for support by tapping holes through face paper.

Present the nail to the support without side load. The intended line of drive comes from the approved fastening method and the actual support. A cocked nail tends to bend, skid, enlarge the paper opening, or finish with one head edge proud.

Use controlled starting taps. Establish the point and let the nail stand before increasing force. The objective is a stable fastener, not speed on the first blow.

Remove the support hand from danger. Once the nail stands, move fingers outside the strike and rebound zone while preserving panel contact by an independent safe method.

Start readback

Stop immediately if the nail skates, bends, turns away from support, strikes an unexpected hard object, drives with no resistance where support should be, or causes the panel to jump away from framing. Diagnose; do not swing harder.

Phase C — set the nail while preserving support

Strike the center of the head squarely. A square blow sends energy along the fastener. An edge hit folds the nail, mushrooms or scars the head, and can drive one rim through the paper before the rest is seated.

Use repeatable, controlled blows. Let the changing response tell you where the nail is. Do not commit to a blind full-force last swing.

Keep the panel seated. Watch the board around the head. If it rebounds, chatters, opens from support, or crushes locally, stop. More impact will not repair missing contact.

Separate driving from dimpling. First establish that the nail is holding the panel at the authorized support. The final finish-forming action is a separate judgment. Treating the whole operation as one uninterrupted swing is how a sound set becomes torn paper.

Set readback

At the end of the driving phase, the nail should be stable, aligned as required, and holding board that remains tight to support. The head may not yet be finish-ready; that is what the dimple phase resolves. If the head is already surrounded by torn or crushed paper, skip the dimple attempt and go directly to correction.

Phase D — form the dimple without breaking the face

Verify the face before relying on it. A drywall-hammer pattern uses a shaped face to create a shallow depression around the nail head. Do not infer it from the product name alone.

Change from drive force to finish control. The dimple action is the last controlled seating action, not another framing blow. Keep the face centered on the nail head.

Watch the paper, not only the metal. The goal is continuous paper drawn into a smooth depression around a recessed head. Stop the moment the head clears the panel plane and the system's acceptable condition is reached.

Never chase a deeper crater. A larger depression is not stronger and is not necessarily easier to finish. Depth acceptance belongs to the board/fastener/assembly instructions. If you are unsure whether the result is acceptable, inspect it; do not add impact as a guess.

The three visual states

Proud: metal interrupts the plane or the blade clicks. Not finish-ready.

Controlled dimple: head below the surrounding plane, paper continuous, depression smooth enough for the specified spotting system, board tight to support. Candidate for acceptance.

Fracture/overdrive: torn paper, crushed or blown core, ragged crater, head materially lost beneath a damaged face, or panel movement.

Phase E — read back every fastener

Rake with light. Light close to the panel reveals proud rims, ragged paper, tilted heads, fractures, and local crushing that front light hides.

Bridge with a clean straight blade. Lay the blade across the head from more than one direction without cutting the paper.

A metallic click or rocking edge reports a proud or tilted head.

A blade crossing cleanly reports only plane; it does not prove support or paper integrity.

Read the paper ring. It must remain continuous around the head. Fuzz, radial splits, loose flaps, a punched circle, or exposed gypsum are not a successful dimple.

Press-test the panel beside the fastener. Use controlled hand pressure appropriate to the board and site. Movement, clicking, rebound, or a changing crater indicates loss of contact or fastening.

Read the nail itself. Bent, loose, spinning, springy, visibly damaged, or unexpectedly deep conditions fail.

Mark, do not bury, every reject. Pencil-code the condition and keep compound away until fastening correction and any required inspection are complete.

Re-run the test after correction. Correction is not complete because a replacement was installed. The replacement must pass the same light, blade, paper, nail, and movement readback.

This is the minimum production loop:

support confirmed → nail started → holding set achieved → finish dimple formed → light/blade/paper/movement readback → accepted or corrected → corrected work re-read

Skipping the final arrow turns defects into the finisher's discovery.

Correction matrix — fix the condition, not its appearance

The table below supplies diagnosis and safe routing, not a replacement schedule.

Proud head, paper intact, board tight

What it means: the nail may be holding but is not finish-ready.

Correction: if the authorized method permits, re-center the verified drywall-hammer face and use a controlled seating action. Re-run blade, paper, and movement checks. If the head will not seat normally, stop; do not escalate force into a possible obstruction, wrong fastener, or missed support.

Head tilted or one rim proud

What it means: the nail may have started off-line, received glancing blows, bent below the surface, or met inconsistent support.

Correction: do not pound the high rim sideways. Determine whether the system permits removal and replacement.

Nail bends, folds, or rebounds

What it means: off-center striking, damaged fastener, unsuitable support, an obstruction, or wrong nail may be present.

Correction: stop swinging. Eye protection stays on. Remove or isolate the fastener under the approved method, inspect the support and concealed-condition information, and replace only after the cause is resolved. Never straighten and re-drive a bent drywall nail.

Nail drives with no expected resistance or remains loose

What it means: possible missed framing/backing, void, damaged support, wrong fastener, or enlarged hole.

Correction: treat the location as nonholding. Do not fill the dimple. Locate approved support by the project method, resolve the miss, and apply the authorized replacement/correction rule. The abandoned hole receives its board-repair treatment only after fastening is sound.

Paper torn, punched through, or separated

What it means: the load-distributing face around the head is compromised. The fastener cannot be accepted merely because the head is deep.

Correction: stop impact. Do not “heal” it with compound and count it as holding. Follow the panel/assembly rule for a replacement or supplemental fastener, evaluate the damaged core and facing, remove loose paper only as the repair system allows, and hand the cosmetic repair to the specified finishing method after the structural attachment passes.

Deep crater or crushed gypsum, even if paper appears present

What it means: possible overdrive or core fracture. An intact-looking paper bridge can hide pulverized gypsum beneath it.

Correction: do not add another blow. Correct fastening as required and repair the board under the panel/compound instructions. A deep fill is not proof of restored holding.

Board moves after the nail is set

What it means: the nail did not clamp approved support, the support is absent/damaged, the fastener is wrong, the board was never seated, or broader assembly movement exists.

Correction: stop the run and diagnose the backing. One more nail chosen by instinct can multiply damage without fixing the cause. Use the project correction detail; then re-test the entire affected area, not just the last head.

Paper puckers or tears before the head reaches finish plane

What it means: the fastener/head may be unsuitable, the nail may be tilted, the paper may be damaged or damp, or the board may not be supported.

Correction: do not trade paper integrity for recess. Stop, inspect materials and support, and route the fastener to the approved correction.

Nail or hammer contacts an unexpected hard object

What it means: protection plate, hidden service, nonwood support, foreign object, or framing detail may be present.

Correction: stop work at that location. Do not move a little and try again blindly. Consult service mapping and the responsible trade/supervisor. If a service strike is suspected, follow the site's electrical, plumbing, gas, or other emergency isolation procedure.

Wrong nail, wrong location, or wrong assembly method discovered after setting

Correction: quarantine the run, identify its bounds, and apply the designer/manufacturer/project correction rather than improvising. Do not cover any affected work until disposition and required inspection are complete.

Those jobs explain why a drywall-hammer pattern can remain useful even on a screw-driven site, but they are separate operations with separate acceptance.

Persuasion: move the sheet without crushing its edge

When an otherwise correctly cut panel needs controlled lateral adjustment, place a broad sacrificial block against the edge and act on the block—not on bare gypsum. The block spreads the impulse so the edge moves instead of crumbling. Before the tap:

confirm the sheet is free to move and not trapped on a box, pipe, fastener, adhesive, or another worker's hands;

protect factory edges intended to make a joint;

keep the tap out of an opening corner or unsupported tongue;

stop if movement requires escalating force; correct the fit.

No persuasion tap creates support, changes an attachment pattern, or excuses a damaged edge. Re-inspect fit, contact, openings, and prior fasteners after the panel moves.

Pry and lift: use a real bearing point

Do not lever from the middle of gypsum board, finished trim, glass, a cable, a pipe, or an unknown membrane. Protect the board with a block where appropriate. Keep the body out of the release path and never put fingers under a panel held only by the lever.

For planned floor-level lifting, use the proper panel-lifting system; 09081 is the line's registered floor-lift tool, though its own build sheet is also unresolved. For overhead support, this line's ceiling guide recommends the appropriate panel-hoist/access solution rather than pretending a hand lever substitutes.

Rough scoring, notching, and edge shaving

The drywall-hammer pattern historically carries a blade for rough board utility work. If verified and used:

reserve it for coarse work the tool maker permits;

map hidden services before chopping into installed board;

keep the cut path away from the support hand;

do not use a rough hatchet cut where a utility knife, T-square, jab saw, circle cutter, or rasp gives controlled geometry;

inspect the edge after the cut and route finish-critical work to the correct cutting guide.

The boundary that keeps utility honest

After any pry, persuasion, score, notch, or shave operation, re-check:

board contact with support;

edge and face condition;

all fasteners already installed nearby.

Adjustment can loosen or tilt work that passed five minutes earlier. The old acceptance does not survive movement automatically.

The finishing handoff — fastening first, concealment second

Joint compound conceals an accepted dimple. It does not:

pull board against framing;

restore torn paper's load path;

repair pulverized core under an overdriven head;

straighten a bent nail;

move a nail into support;

change a wrong fastener into an approved one;

certify a rated assembly.

Complete the whole fastening readback and required inspection.

Pencil-mark and correct every rejected head.

Re-read corrected locations.

Remove only approved loose face material and board debris.

Use the compound, surface preparation, coat sequence, environmental condition, PPE, and schedule in the current joint-treatment system.

That guide begins with the same blade-click audit because the finisher is the installation's last independent witness before metal disappears.

Buyer tests — when 09068 is the right registered route, and when it is not

Buyer test 1: “My approved panel system specifies drywall nails into known wood backing.”

Route: a verified drywall-hammer pattern is the relevant hand tool. Use this guide's support/set/dimple/readback/correction loop.

Buyer test 2: “The plans, tested assembly, panel guide, or inspector requires screws.”

Route: not 09068 for fastening. The hammer may still be useful for separately permitted board adjustment, but it does not become part of the screw schedule.

Buyer test 3: “I found one proud round head in an existing painted wall.”

Route: diagnose it as a pop or service condition, not new installation. The finishing line's Hammer Head® tools may set an appropriate nail during a repair round; they are not substitutes for a hanging hammer across a new nailed installation.

Buyer test 4: “I need a stated head weight, verified crowned/waffled face, handle construction, or nail slot before ordering.”

Route: the local record cannot answer. Do not infer the feature from the 09068 title or from other brands.

Buyer test 5: “The panel is tight and I only need a little movement before fastening.”

Route: use an authorized panel-adjustment method. If exact lever/blade suitability is material to the job, resolve it before selecting the tool.

Buyer test 6: “I want one tool to nail, score, chop, pry, and finish every drywall operation.”

Route: no. The pattern concentrates rough hanging utilities, not the whole trade. Controlled long scores belong to the knife/T-square system; box cutouts to the jab saw; round penetrations to the circle cutter; edge truing to the rasp; screw fastening to the screw system; compound work to finishing knives. The buyer advantage is carrying one hanging hammer for its authorized nail and adjustment lane—not pretending every neighboring tool is redundant.

Buyer test 7: “The nail is deep, so can I just fill it?”

Route: depth alone does not pass. Run the paper, core, support, blade, and movement checks. Broken paper or crushed core routes to correction before compound.

What goes wrong — and the exact operational response

The head remains visible through the blade plane. Proud. If the authorized method allows, re-center and set with controlled force, then re-read. Do not build a mound of compound over metal.

The last swing tears a neat circle through the paper. Overdrive/paper fracture. Do not count the nail. Apply the panel/assembly correction and repair the face only after attachment passes.

The crater becomes larger every time you check it. You are using impact as measurement. Stop swinging; inspect support, nail, paper, and tool face. Acceptance is a condition, not a target crater size.

The panel chatters against the stud. It was not supported tight, support is uneven, or the nail is not clamping. Re-establish contact and use the authorized correction. Hammering a floating sheet damages the face and core.

Never hammer the bend flat into the board.

The nail vanishes with almost no resistance. Suspect missed or unsuitable support. Treat it as nonholding; do not spot it.

The blade is quiet but the board clicks when pressed. Plane passed; attachment failed. Diagnose support and correction before finishing.

A line of nails is good until the sheet is persuaded sideways. Movement invalidated the earlier readback. Re-test the entire affected area.

The hammer marks or tears paper beside every nail. Stop the run. Possible damaged/incorrect face, off-center technique, contamination, unsuitable pattern, or unresolved 09068 build. Quarantine the tool and inspect it before creating a wall-wide defect.

The nail heads tilt in one direction. Check worker position, access, support, and strike alignment. Do not correct a process drift with harder blows.

The same nail keeps rising during later strikes nearby. Possible panel movement, weak/missed support, or fastening sequence problem.

A helper's hand keeps entering the strike zone to hold the sheet. The support method is unsafe and inadequate. Add proper support or change the crew/access plan before continuing.

The nail is acceptable, but the dimple chips during finishing. Stop cosmetic work and re-inspect paper/core and movement. A hidden fastening defect can first report under the knife.

An old painted wall releases dust or unknown texture during service. Stop treating it as clean new construction. Apply the renovation hazard assessment before more disturbance.

A hard strike produces a spark, odor, leak, breaker trip, or other service signal. Stop work, keep people clear, and invoke the site's service-strike/emergency procedure. Do not pull the nail or touch the area until the responsible system is made safe.

Production readback — how a crew prevents one bad stroke from becoming a wall

Quality control works best as a short loop, not an end-of-day autopsy.

At the first accepted sample

Before production, the responsible installer/supervisor should compare a small initial run against the exact board, nail, framing, assembly, and finish requirements.

tool face and condition;

worker access and support method;

nail response in the actual backing;

acceptable head/paper/core condition;

blade and movement readback;

authorized correction method;

required inspection and finishing handoff.

This is not a substitute for a formal mock-up or inspection where one is required.

During the run

Keep identified nails and the inspected hammer together; do not let open fastener bins or damaged tools drift into the lane.

Read heads continuously under raking light rather than waiting until the wall is complete.

Stop at the first repeated defect. A pattern of torn paper, tilted heads, misses, or movement is a process failure.

Mark corrections in pencil with a code the crew understands.

Keep rejected work visible and compound-free.

Reinspect any area that moved during fit correction or utility work.

At handoff

The finite result is not “nails driven.” It is:

authorized nail locations completed;

accepted locations passed;

rejected locations identified;

corrected locations re-read;

unresolved locations open and uncoated;

required inspection complete;

finisher given a clean, stable, traceable surface.

That denominator is what the next trade can trust.

Limitations and handoffs

This guide does not:

select or approve a fastener;

state a universal nail length, coating, shank, head, placement, spacing, count, penetration, edge/end distance, dimple depth, or schedule;

authorize nails in a screw-only, adhesive-specific, clip, proprietary, or tested assembly;

approve a fastener substitution or mixed fastening pattern;

provide a structural, fire, sound, impact, moisture, wind, seismic, or code certification;

locate concealed framing or services by trial holes;

approve repairs to broken framing, missing backing, wet/damaged board, widespread core fracture, or a service strike;

turn the 09068 drywall-hammer class identity into verified face, head, handle, blade, or nail-slot specifications;

replace the panel, fastener, tool, compound, or PPE manufacturer's current instructions;

reset existing nail pops without diagnosing movement;

specify joint compound, coat thickness, dry/recoat time, sanding, primer, or paint.

What does “dimple” mean?

A dimple is the controlled depression around a set fastener that lets the specified finishing compound conceal the head without leaving a proud mound. It is successful only when the head condition is acceptable, the face paper remains continuous, the core is not rejected, and the panel is tight to approved support.

How deep should the nail be?

This guide supplies no universal depth. The correct result is the acceptable condition defined by the exact panel, fastener, assembly, and project documents: recessed enough for the specified finish, not overdriven, paper intact, attachment sound. Use their acceptance language and the blade/paper/movement readback here.

How far apart should drywall nails be?

There is no schedule on this page. Wall versus ceiling, panel type and thickness, orientation, framing, layer count, adhesive use, rated versus nonrated construction, and the tested assembly can change the requirement.

Can I substitute any common nail?

Use the fastener approved for the exact panel/support/assembly. Head, shank, length, coating, material, and listing can all matter. Appearance is not approval.

Why not drive the head extra deep so compound covers it?

Because additional impact can tear face paper and crush the core. A deeper crater is not more holding and can be less. Stop at the system's accepted condition and read the fastener.

Can joint compound repair an overdriven nail?

Compound can restore appearance after an approved board repair; it cannot restore the fastener's holding value or validate a damaged assembly. Correct attachment first.

Do I need a special drywall hammer?

The drywall-hammer pattern is designed to set the nail and form a finishable depression without the flat, uncontrolled imprint of a general hammer.

Is the 09068 face crowned or waffled?

Those are documented features of some drywall-hammer patterns, not accepted facts for this SKU. The page does not migrate them.

Can I use 09068 to set a screw?

A screw is driven by its approved driver and depth-control method. Hammering a screw damages the head, facing, or attachment and does not create a conforming drive.

Can I use the hammer to move a panel?

A verified drywall-hammer pattern may support controlled persuasion through a sacrificial block or limited lever work from a sound bearing point. Adjustment never substitutes for fit, support, or the fastening schedule, and all nearby work must be re-read afterward.

What if I hear the knife click after compound starts?

Do not scrape harder over metal.

What if the wall is old and the nail has popped?

Use the popped-nail repair guide. Existing walls add movement diagnosis, coating hazards, and a different correction decision. This new-installation loop is not enough.

Is a nail faster than a screw?

Production speed does not choose the system. The assembly and project do. Compare only authorized methods, including support, inspection, correction, and expected performance—not the seconds in the driving stroke.

The history footnote — the lather's hatchet meets paper-faced board

The drywall hammer is a younger specialization of an older two-ended trade tool. Before gypsum panels, plaster walls were built over wood or metal lath. The lather's hatchet combined a striking face for fasteners with a small blade for cutting and adjusting lath. Its form was not an ornamental hybrid; it let one hand alternate between fastening and rough fitting without returning to the bench.

Paper-faced gypsum board changed the fastening problem. Augustine Sackett patented an early layered gypsum board in 1894 (National Inventors Hall of Fame — Augustine Sackett), and USG's history traces later wallboard development into the twentieth century (USG — evolution from plaster to wallboard). Board still welcomed a nail, but the visible paper face created a new finish boundary: the head had to sit below plane for spotting while the skin remained intact.

The drywall-hatchet patent record makes that problem unusually legible. U.S. Patent 4,433,709, issued in 1984, describes a drywall hatchet face shaped and textured to engage the nailhead and form a depression for filler (USPTO PDF — Drywall hatchet). The patent proves that this face problem was developed and claimed; it does not prove that the patent invented the drywall hammer, that every drywall hammer uses its geometry, or that Hyde 09068 embodies it. Those stronger claims remain outside the evidence.

The honest lineage is therefore a tool-pattern arc, not a single-inventor story: lath fastening and rough trimming produced the hammer-and-hatchet silhouette; paper-faced board demanded a controlled dimple; screw guns later took most production fastening while the hammer retained nail service, persuasion, pry, and rough utility work.

External system and history anchors

USG Sheetrock® Installation and Finishing Guide: manufacturer system example identifying wallboard nails, wallboard hammer, support/installation tools, and panel-attachment instructions. Its numeric instructions are intentionally not copied into this cross-system guide.

[U.S. Patent 5,890,860 — Drywall screw]( background discussion of the paper-fracture problem, convex drywall-hammer face, nail dimple, and finish handoff. Used as patent background, not as a 09068 specification.

[U.S. Patent 4,433,709 — Drywall hatchet]( shaped/textured drywall-hatchet face and dimple-for-filler history. Used as pattern history, not proof of Hyde product construction.

National Inventors Hall of Fame — Augustine Sackett and USG — wallboard evolution: paper-faced gypsum-board history.

Bidirectional graph edges

Downstream wiring should resolve that product → application edge to this file. Application → product remains the exact singleton 09068.

Related but not member edges: 09039 is the screw-system handoff; Hammer Head® finishing tools belong to the existing popped-nail repair lane; 09081 is a floor-lift/board-support neighbor.

09068 entire build sheet — zero accepted product claims.

09068 face pattern — crowned, convex, milled, waffled, smooth, magnetic, or other: unresolved. Patent and trade descriptions establish class possibilities only; no class feature migrates to this SKU.

09068 utility geometry — whether and how its non-face end is intended to score, notch, shave, pry, lift, pull nails, or hold nails: unresolved. Utility sections remain conditional pattern technique.

09068 reported overall length — a single MRO distributor title reports a length, but it is retailer-tier context and uncorroborated. It is deliberately omitted from this guide.

Fastener system — no nail type, material/coating, head/shank, length, placement, spacing, count, penetration, edge/end distance, correction offset, dimple depth, or field/perimeter sequence is supplied here.

History scope — Patent 4,433,709 documents a particular drywall-hatchet development, not the first drywall hammer and not the 09068. The lath-hatchet-to-drywall-hatchet arc remains pattern history; do not add an inventor claim.

Hyde founding wording — local source conflict remains; retain “early-to-mid 1870s” until primary corporate records resolve the exact year.

Physical-unit inspection — a photographed, measured, labeled 09068 unit plus current Hyde instructions could resolve much of items 1–3. Until then, buyer questions requiring those facts remain unanswered, not guessed.

Independent editorial and production review — local authoring and gate checks are evidence inputs only.
