Scrape Interior Paint with Dust Capture

Interior paint scraping is a small motion inside a much larger control problem. The blade has to remove paint that has genuinely failed while leaving sound paint and the substrate behind. The shroud has to stay at the fracture point. The vacuum has to remain an effective, authorized collection system. The room has to keep released debris away from occupants and clean areas. The operator has to notice when the material, surface, or capture behavior stops matching the approved plan.

That combination is what scraping with dust capture means here. It does not mean dust elimination. It does not turn a general wet/dry vacuum into a vacuum with a particular filtration rating. It does not establish compliance with EPA’s Renovation, Repair and Painting Rule. It does not clear lead, asbestos, silica, mold, or another hazardous material. It does not replace ordinary housekeeping after the tool is put down. The 09190’s product name contains “Dust-Free”; this guide does not convert that name into a promise that every particle, chip, or exposure is eliminated.

The method below is therefore conditional. The actual substrate and coating must be identified well enough to choose scraping. Required hazardous-material decisions must be complete. The physical host, hose, adapter, blade, and shroud must pass the manufacturer-controlled setup and service instructions. Only then does the guide reach the scraping stroke.

Define the defect before choosing the tool

Start by marking what is failing and what must remain. A few lifted edges around an old patch are not the same job as widespread intercoat separation. A brittle coating releasing from sound plaster is not the same job as drywall face paper delaminating under intact paint. Paint blistering below a window may be reporting active water entry; paint releasing across a cold exterior wall may be reporting condensation; a chalky or soft base layer may be a coating-system problem rather than an isolated loose edge.

Inspect under direct and raking light.

the substrate: sound plaster, gypsum board and face paper, wood trim, masonry, a repair compound, or unknown;

the apparent failure plane: within the topcoat, between coating layers, at primer, or between the whole coating stack and substrate;

whether the boundary is localized, repeated, or effectively continuous;

signs of moisture, softness, staining, movement, powdering, biological growth, heat, or chemical contamination;

nearby penetrations, energized devices, HVAC openings, returns, furnishings, and traffic paths;

the building age, occupancy, work purpose, and any applicable facility or regulatory program;

any texture, skim, patch, adhesive, resilient layer, fireproofing, or other material that the scraper could reach after paint releases.

Do not make the scraper prove the diagnosis. If the wall flexes, plaster keys are failing, face paper is lifting, a patch is soft, or the failure keeps traveling under apparently sound paint, stop and repair or re-scope the assembly. If moisture is active, correct and verify the source before cosmetic preparation. If the coating is sound but merely glossy, scraping is the wrong mechanism; route the surface to the coating manufacturer’s preparation system. This guide begins only when controlled removal with local capture is an admitted method.

Dust capture is a tool behavior

The shroud and connected vacuum are intended to collect released dirt and debris at the blade while work proceeds. Capture depends on the entire live path: contact at the work, an intact shroud, an authorized hose and adapter arrangement, a suitable operating vacuum, maintained flow, a managed collection vessel, and technique that keeps the release point inside the capture zone. Escaped chips and settled residue remain possible. No field observation in this guide establishes a capture percentage.

A filtration rating belongs to the exact collection system

The words “wet/dry vac” describe the host class named in the exact 09190 evidence; they do not state the vacuum’s filter, sealed-system performance, material approval, exhaust behavior, or service method. This guide supplies no substitute filter class, airflow target, bag type, or field-built acceptance test.

For covered renovation work that disturbs lead-based paint, EPA’s RRP program addresses firm and renovator status, education, training, containment, prohibited practices, cleanup, verification, and records. EPA’s current RRP work-practices page makes those duties explicit. A hand scraper connected to a vacuum can participate in an approved lead-safe method; it cannot certify the firm, define the work area, select the vacuum, perform cleaning verification, or close the record. “Captured while scraping” is not the same claim as “RRP compliant.”

Hazardous-material clearance is a precondition

Lead is not the only possible boundary. EPA advises that suspect asbestos-containing material generally cannot be identified by sight and should not be disturbed; planned disturbance calls for the appropriate trained and accredited professional decision. See EPA’s current asbestos exposure guidance. Old texture, patching compound, resilient material, adhesive, or an unknown layer exposed behind the paint can change an ordinary scraping job into a hard stop.

Painted gypsum, plaster, masonry, and repair compounds are not interchangeable.

Housekeeping follows source capture

The tool may reduce the debris that reaches the room, but it does not clean floors, ledges, trim, containment, hoses, clothing, or routes out of the work area. A visually quiet wall can coexist with settled fine residue. Final cleaning must follow the material-specific plan, and a regulated verification or clearance procedure cannot be replaced by ordinary visual inspection.

Admit the exact host and blade evidence—nothing broader

The registered graph contains three Hyde records, but it does not mean all three are equally proven or that both blade packs are interchangeable by assumption.

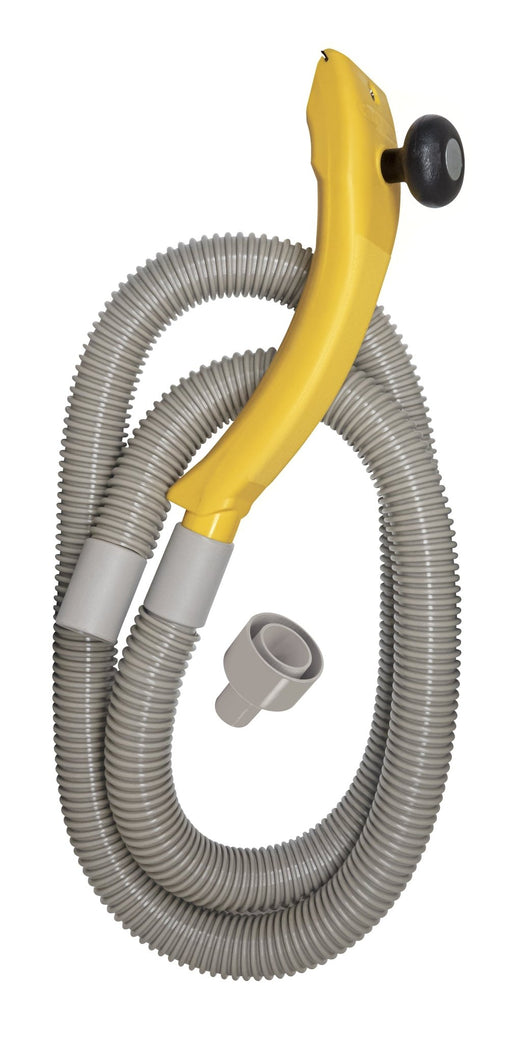

09190 is the host. Exact-model Hyde video metadata supports a vacuum scraper that attaches to a wet/dry vacuum, collects dirt and debris while working, uses a removable two-sided carbide blade, includes a hose and adapter, and provides a textured primary handle plus a pull knob. That evidence supports the application architecture: a carbide scraping edge sits at a shrouded collection point and is pulled while a connected vacuum collects released material.

That makes 11171 the evidence-supported replacement candidate for this guide.

11172 is a registered alternate package with an unresolved evidence boundary. Its current record carries the identity “2" Scraper Blades, 2-Edge 5-Pack,” but its packet supplied no accepted exact product-scoped fit claim. Similar naming, apparent width, edge count, or proximity in the scraper line cannot prove host fit. Do not use 11172 in 09190 until current manufacturer-controlled documentation or the exact package establishes that exact pairing.

Before setup, reconcile the tool body, product marking, shroud, hose, adapter, blade package, blade condition, vacuum identity, and current instructions. A visual check can reject a cracked shroud, damaged hose, missing component, chipped carbide edge, distorted mounting area, unreadable identity, or obvious mismatch. It cannot prove an undocumented fit or certify an assembled collection system. This guide does not reconstruct those procedures from a photograph or a neighboring scraper.

Build the work boundary before connecting the tool

Establish who controls the work, who may enter, and what rule set applies. Resolve occupants, children, pets, customers, patients, tenants, food, sensitive equipment, adjacent trades, and shared-air pathways. The authorized work plan—not the scraper—sets relocation, exclusion, warning, containment, ventilation, HVAC, protective-equipment, hygiene, and waste requirements.

Remove movable contents or protect them as the plan requires. Isolate the work from clean zones. Protect floors and fixed surfaces against chips, the tool, and the hose. Keep containment from becoming a trip hazard or a surface the hose tears during a pull. For RRP work, the certified renovator’s work-area decision and current rule requirements control; ordinary painter’s drop protection is not an equivalent.

Route the hose so it can follow the tool without pulling the shroud off the wall, catching a ladder or containment edge, crossing the operator’s feet, or forcing an overreach. Position the vacuum where its instructions and the work plan permit, with its exhaust, power, collection vessel, and service access controlled. Keep cords and hoses out of the blade path and the operator’s intended retreat. Work from a sound floor or authorized access system that permits a balanced stance. If the target cannot be reached without leaning, twisting, or dragging the hose across the body, change the access plan rather than extending the stroke.

Complete assembly and pre-use checks exactly as the current tool and vacuum instructions require. Do not improvise tape, reducers, seals, filter substitutions, or homemade fit tests to convert an uncertain connection into an accepted one.

Qualify the method on a representative test area

Choose a small test area that genuinely represents the coating, substrate, defect, orientation, access, and collection geometry of the proposed work. A convenient patch on different paint or a sound corner does not qualify a failing field. If the room contains materially different substrates or failure patterns, each condition needs its own disposition.

Complete all clearances and controls before the test. Under stable light, record the starting boundary. Confirm stable footing, an unforced reach, a clear hose route, a sound admitted blade, an intact shroud, and the authorized live-vacuum state. Keep the free hand away from the edge, the area ahead of the blade, and the expected chip path. Never brace fingers on the wall where a release or slip can carry the scraper into them.

Set the shroud against the surface in the orientation admitted by the exact instructions. Establish a light-start, progressive pull: begin with only enough controlled work to learn where the coating releases, then progress through the loose boundary without levering under sound material. Maintain shroud contact around the active fracture point. Use the primary handle for control; use the pull knob only in the manner the manufacturer permits and only when the second hand can remain outside the edge, pinch, travel, and release zones. Keep the body behind a controlled endpoint rather than pulling toward the face, torso, knee, or free hand.

The evidence is qualitative and immediate:

Coating readback: failed material releases along the diagnosed plane instead of tearing sound paint unpredictably.

Substrate readback: plaster stays sound, wood is not furrowed, repair compound does not crumble, and drywall face paper does not fuzz, peel, or expose damaged fibers.

Edge readback: the blade tracks controllably without chatter, corner strike, prying, or a sudden uncontrolled run.

Shroud readback: contact remains stable at the release point instead of rocking open or riding on debris.

Capture readback: released material is being carried into the collection path; chips, a visible plume, or residue escaping at the work are warning evidence, not an acceptable percentage.

System readback: suction behavior, tool sound, hose position, exhaust, and vacuum condition remain consistent with the accepted start state.

Stop after enough work to inspect the exposed surface and nearby protected area. Do not enlarge a bad test to “see whether it improves.” More force is not a remedy for a coating that will not release cleanly. If the method gouges, breaks the substrate, repeatedly loses shroud contact, releases uncontrolled debris, or requires an unstable posture, reject or redesign the method. Record the accepted sample as the production reference: what came off, what remained, how the surface looked and felt, how capture behaved, and what downstream repair it requires.

Run the qualified Tier-1 scraping loop

Select a bounded patch. Work from a known failed edge toward a defined stop. Keep sound coating as the limit, not as material to remove “for consistency.”

Plant a stable stance. Face the work without crossing feet or rotating through a hose. Reset access before the hands reach the end of their controlled range.

Place the shroud. Bring the capture opening into full, maintainable contact around the intended release point before progressing the edge.

Exclude the hands. Grip the primary handle securely. If the authorized technique uses the pull knob, place the other hand only in its designed control position and keep both hands out of the blade, substrate-ahead, pinch, and release paths.

Make a light-start progressive pull. Let the existing failure boundary admit the edge. Increase the work only qualitatively as the accepted test supports; never invent a universal angle, pressure, or pull length.

Read the fracture while moving. A cleanly releasing failed layer is the target. A change in sound, resistance, depth, or direction means pause, not push harder.

Preserve shroud contact. If the hose snags, debris props the shroud open, or the wrist can no longer hold the collection point to the surface, end the stroke and reset.

Inspect frequently. Check substrate, sound-paint boundary, blade, shroud, escaped residue, hose, suction behavior, vacuum condition, stance, and containment. Compare them with the accepted test.

Do not flick material from the edge, tap the tool against the wall, blow dust away, or dry-sweep debris.

Close the patch deliberately. Feather removal only to a sound boundary the downstream coating system can accept. Mark repairs and unresolved transitions rather than erasing them with progressively harder scraping.

The shroud changes how carefully the scraper must be steered. It cannot be treated as a loose accessory that happens to trail the blade. If the operator tips or twists the host to chase a stubborn island, contact may open exactly where the coating fractures. Reposition the body and tool; do not sacrifice capture geometry for reach.

Carbide is a cutting edge, not a pry bar. Avoid corner strikes, levering, lateral twisting, and using the blade or shroud to reset protrusions. When the edge stops producing the qualified result, pause and inspect. Reverse, replace, or service a blade only when the exact instructions authorize the action, with the system in the manufacturer-required safe state and released residue controlled.

Stop conditions are part of the method

Stop immediately and preserve the area when any of these appears:

Substrate damage: gouging, deep scoring, torn or fuzzy drywall paper, crumbling compound, moving plaster, splintering wood, or a fracture plane moving into the substrate.

Uncontrolled debris: visible dust or chips repeatedly leaving the shroud, material crossing containment, residue reaching an occupied or clean area, or the work plan’s capture acceptance no longer being met.

Blade or fit concern: a chipped edge, crack, distortion, looseness, unreadable product identity, contact between blade and shroud, or any reason to doubt that the blade is the authorized part.

Hidden material: unexpected texture, backing, patch, adhesive, resilient layer, fiber, aggregate, corrosion, biological growth, odor, staining, heat, or another condition not covered by the clearance.

Diagnosis failure: paint continues releasing beyond the mapped defect, moisture appears active, the substrate is unsound, or additional force is becoming the only way to proceed.

Do not resume merely because suction seems to return or the next patch looks easier. If escaped material may be hazardous, hold the area under that material’s response plan; ordinary cleanup is not an automatic recovery.

Clean the system and hand off a real substrate

Finish scraping at a controlled boundary. Follow the exact scraper and vacuum shutdown sequence; this guide does not invent a waiting period, hose-clearing maneuver, filter service action, or collection-vessel procedure. Keep the tool and hose inside the work boundary until they are cleaned, contained, or transferred as the plan permits. Service the blade only under its instructions. Dispose of coatings, chips, filters, liners, wipes, protective materials, and wastewater only under the material determination, product documents, facility plan, and applicable law—never from a generic statement on this page.

Work systematically so ledges, trim, penetrations, floor protection, equipment, hose routes, and containment are not skipped. Do not use compressed air, casual brushing, or dry sweeping to make residue disappear into the room. In regulated lead work, complete the required cleaning and verification under the certified process. In other work, distinguish a housekeeping acceptance from any industrial-hygiene clearance or hazardous-material release criterion.

After cleaning, inspect the wall again under direct and raking light:

all remaining coating at the boundary is sound under the approved inspection;

bare substrate is stable rather than polished, gouged, torn, or powdered;

edges do not hide lifted pockets that will fail under filler or primer;

chips and visible residue are absent from the surface, joints, trim, and work area;

moisture, movement, contamination, and material questions have a recorded disposition;

repair locations, exposed paper, cracks, holes, and transitions are marked;

the next coating system has named surface, cleanliness, dryness, repair, primer, and profile requirements.

The scraper does not deliver a paint-ready wall by itself. It delivers a diagnosed, bounded removal surface to the next operation.

A photograph can support the record; it cannot prove invisible contamination, adhesion, filtration, or regulatory compliance.

Failure patterns and corrective decisions

| Observed result | Likely control question | Correct disposition |

| Loose paint remains while the substrate becomes scratched | Is the failure plane different from the test, or is the edge being forced under sound material? | Stop, inspect the coating stack and blade condition, and requalify the method. |

| Drywall paper fuzzes or peels | Has the blade crossed from failed coating into the face paper? | Stop scraping that plane; stabilize and repair under the downstream system. |

| Chips collect outside the shroud | Is contact opening, the path obstructed, the hose steering the tool, or the vacuum configuration no longer accepted? | Stop production, contain residue, diagnose the full capture path, and repeat the representative test. |

| Suction sounds normal but residue escapes | Is the release point outside the shroud, is an unseen leak present, or was sound used as a substitute for inspection? | Treat capture as failed until the whole path and technique are inspected. |

| The scraper needs progressively harder pulling | Is the remaining coating actually failed, or has the edge dulled or chipped? | Do not escalate force; inspect and re-scope or service under exact instructions. |

| A blade pack looks equivalent | Does current manufacturer-controlled evidence name the exact host? | Accept 11171 only through its exact evidence and physical controls; hold 11172 until its fit is proven. |

| The room looks clean after scraping | Has required housekeeping, regulated verification, or hazardous clearance actually been completed? | Perform the applicable closeout; appearance alone does not release the room. |

Sources, exact graph, and proof boundary

Exact Hyde evidence used: the 09190 research packet’s official exact-model video metadata for wet/dry-vac attachment, on-the-fly dirt-and-debris collection, removable two-sided carbide blade, supplied hose and adapter, textured handle, and pull knob; the 11171 packet’s accepted exact Hyde listing for a two-edge tungsten-carbide replacement blade explicitly fitting 09190; and the 11172 packet’s absence of accepted exact product-scoped fit claims. The corresponding authored product guides preserve the wider line context and the unresolved 11172 boundary. No product photograph, retailer wording, sibling scraper, or shared dimension has been promoted into a fit or operating procedure.

No vacuum, filter, hose substitute, PPE item, containment material, coating, abrasive, cleaner, waste container, or neighboring scraper is silently added as a Hyde product node.

Offline production residual: local authorship can establish substantive method, source boundaries, exact registered links, word counts, and file integrity. Those remain open until the appropriate field, ingest, deployment, and production readbacks identify the environment, revision, action, response, observed time, and post-action result.
