How to Scrape a Subfloor Flat for New Flooring

No other Hyde model belongs to this application edge.

What “flat” means here: not visually smooth, not level, and not “good enough under a light.” Flat means the prepared subfloor passes the selected new-flooring system’s current measured flatness requirement, using that system’s stated witness length, maximum permitted gap, measurement method, and treatment of joints or transitions. This guide supplies no universal tolerance. If the flooring, underlayment, adhesive, patch, or leveler documents do not resolve the acceptance condition, obtain a written system ruling before scraping.

Its current family page and catalog support a stiff, electrocoated, heavy-duty high-carbon-steel blade fixed at 20° for push-scraping, a 55-inch hardwood handle, standing use, and a handle shield. The 19200 is the exact 3-inch variant; the 19205 is the exact 6-inch variant. The qualitative technique below is Tier-1 expert practice bounded by those gaps.

Job: turn a diagnosed, sound subfloor into a measured and documented flooring substrate by removing only authorized proud residue and deposits, routing damage and low areas to the right repair system, and proving the finished surface against the selected flooring system.

Time: no universal duration is honest. Residue, substrate condition, hazards, moisture, and repairs control the schedule; diagnosis can correctly end scraping before the first stroke.

Difficulty: judgment first, controlled physical work second—especially distinguishing a removable high from damage, a low, a service hazard, or another process’s material.

The exact Hyde tools linked to this job:

Both are fixed-blade push scrapers. Width changes concentration versus coverage; it does not change the acceptance standard. Neither tool fills a low, cures moisture, stabilizes a loose panel, repairs a gouge, flattens a structural hump, removes an unidentified adhesive, or makes an asbestos-, lead-, or silica-bearing task safe.

Everything else: current instructions for the complete flooring and subfloor system; its specified measuring witness and moisture method; a floor map; material, building, and service records; the actual hazard plan; and repair equipment named by the responsible system. This guide does not invent any of them.

Freeze the new-flooring acceptance contract

Do this before deciding what to scrape.

Name the complete new-flooring system. Record the finish flooring, installation method, underlayment or membrane, adhesive, and proposed patch, skim, primer, or leveler. “Vinyl,” “wood,” or “tile” is not a system.

Copy the flatness requirement exactly. Record the required witness type and length, allowable gap or deviation, measurement direction, treatment of seams and transitions, and any separate requirement at panel joints. Do not substitute a remembered trade number.

Separate flat from level. A floor can satisfy a flatness rule while sloping, and can be level while containing local humps. This job changes proud local geometry only where removal is authorized. A required level or drainage plane is a design, patch, leveler, carpentry, or structural assignment.

Copy the surface condition requirements. Record soundness, porosity, residue, bond breakers, dust, paint, old adhesive, fasteners, joints, cracks, moisture, cure, and cleanliness. “Clean” inherits its meaning from those instructions.

Set the witness plan. Map repeatable references, measurement paths, highs, lows, residue, substrate, damage, moisture locations, service exclusions, and photographs. Record each failed witness’s exact position and orientation.

If the exact flooring has not been selected, this guide can support investigation and residue triage, but it cannot release the substrate as flat. The controlling tolerance does not exist until the system does.

Diagnose the substrate before diagnosing the high spots

Map changes in material; do not assume the whole room is one substrate.

Concrete and cementitious surfaces

Distinguish material standing on the slab from the slab itself. Dried drywall compound, isolated mortar splash, cured residue, and thinset stubble may be scraper candidates after identity and hazard gates close. An integral ridge, curled joint, spall, crack displacement, soft surface, exposed aggregate, or broad bonded mortar field is not.

A proud deposit can route to a Hyde witness. An integral high routes to the specified grinding or repair process. Crack displacement, recurring movement, or related building distortion routes to structural review. Craters, spalls, and gouges route to compatible repair.

Wood panels, boards, and underlayment

Identify plywood, oriented-strand board, board subfloor, and separate underlayment. Map loose panels, unsupported edges, raised seams, swelling, delamination, damaged faces, fasteners, water staining, softness, and movement.

Residue on a sound panel may qualify for a witness. Swelling, delamination, loose seams, flexing bays, framing crowns, and damaged underlayment require carpentry or assembly repair. Do not scrape panel structure to chase a reading.

Existing fills, patches, coatings, and unknown layers

Identify every layer before disturbance. A hard gray ridge may be mortar; a soft smear may be adhesive; a painted field may bring a regulated-paint decision; a brittle skim may be an old patch; a black or concealed layer may require asbestos sampling. Color and hardness are clues for mapping, never final identification.

This guide may receive the floor back after that process, but it does not prescribe solvent, heat, water, detergent, chemical remover, or cleaner.

This guide owns measured finish preparation after demolition, not tile break-out.

A low area belongs to the flooring system’s approved patch or leveler sequence. Scraping the surrounding floor down to meet the low is not an automatic repair.

Close the hazard, moisture, service, and fastener gates

EPA says asbestos cannot be identified by sight and recommends that suspect material which a renovation will disturb be sampled by a properly trained and accredited asbestos professional, with analysis by a qualified laboratory. Flooring, backing, adhesive, patch, or another concealed layer can be in scope. If the layer is suspect or its sampling scope did not include what has just appeared, stop before scraping. A positive or unresolved result routes to the qualified asbestos process; a Hyde scraper is not an abatement control.

Where scraping will disturb paint or another painted surface in pre-1978 housing or a child-occupied facility, determine EPA Renovation, Repair and Painting applicability before work. Paid renovation work can require a certified firm, a certified renovator, and prescribed lead-safe practices. Do not decide that a floor coating is lead-free by color, wear, or location. The exact testing and work-practice route controls.

Silica and dust

Concrete, mortar, thinset, and some cementitious repair materials can contain crystalline silica. Stop at that handoff and execute the exact exposure assessment, engineering controls, work practices, respiratory-protection decision, and cleanup required for the chosen process.

There is no universal PPE or dust-control list here. The hazard assessment, OSHA requirements where applicable, product instructions, safety data, site rules, and law control.

Map moisture indicators, but do not treat them as a test or proof of correction. Use only the method, conditioning, locations, units, timing, and limits accepted by the selected flooring, adhesive, and substrate system.

An active leak, vapor condition outside system limits, wet panel, or unexplained result is a stop. Route the source to the responsible plumbing, envelope, HVAC, drainage, or concrete professional; then repeat the specified test after the system’s required conditions are met. Scraping cannot dry or certify a floor.

Concealed and exposed services

Resolve radiant heating, floor outlets, conduit, plumbing, sensors, access covers, and other services from records, locating work, and qualified trade input. Mark exclusions. Isolation, testing, repair, and recommissioning stay with the responsible trade.

If a service is exposed, damaged, unexpectedly warm, energized, leaking, or not where the record says it is, stop and protect the area from further contact. A successful scrape elsewhere does not authorize exploration near a service.

Fasteners and joints

Map staples, nails, screws, plates, anchors, panel seams, control joints, expansion joints, and transitions before making lanes. Isolate it, use the subfloor assembly’s approved removal or resetting procedure, inspect the resulting hole or damage, and remeasure.

Do not bridge a movement joint with scraping, patch, or leveler unless the complete flooring system expressly details that assembly. Keep blade corners out of joints and off panel edges.

Build the measured high-spot map

Use the exact witness from Section 1 on a surface clear enough to measure without loose debris corrupting the result.

Run the specified witness in every required direction and location.

Mark contact points and gaps separately. Contact under the witness identifies a candidate high region; a gap identifies a low or a bridge between highs. Do not scrape a contact point until the surrounding geometry proves it is actually proud.

Rotate or relocate the witness as specified and repeat. A single rocking reading can be two highs with a low between them, not one hump.

Label each failed area by cause: removable deposit, integral substrate high, panel movement, panel damage, joint displacement, fastener, adhesive, unknown layer, or unresolved.

Photograph each exception and record its result in the system’s units. A circle without a number and orientation is not readback.

Select a representative, low-consequence witness area among the removable-deposit marks. Keep repair, unknown, hazard, service, fastener, and structural marks outside scraper production.

This map is the control surface for the job. The scraper follows the map; it does not wander until the floor looks uniform.

Qualify the exact two-tool system

Inspect the physical tools against current Hyde instructions and packaging. Confirm identity, fixed head, handle, shield, and edge.

Start with the tool whose role matches the mapped deposit:

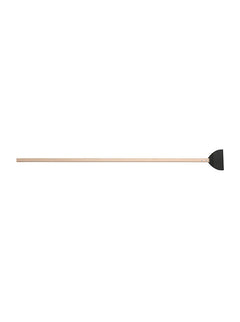

Choose 19205 when the witness area is broad, open, and uniform enough for its 6-inch coverage edge to remain fully supported.

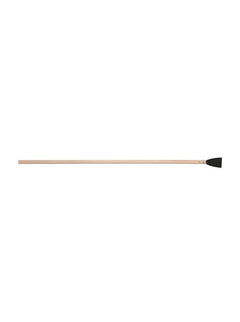

Choose 19200 when the deposit is localized, hard, narrow, near a protected boundary, or when the 19205 rides without controlled release. The 3-inch width concentrates the input across a smaller edge.

Never turn the 19200 into a demolition chisel or the 19205 into a substitute grinder. If neither releases the identified deposit under controlled qualitative technique, the method has failed qualification.

Make the witness scrape

The manufacturer fixes the blade at 20° for push-scraping. Do not add an invented operator angle or try to defeat the head geometry.

Set stable support and stance. Clear the travel path. Stand where a stopped push leaves you balanced, with no need to lunge, twist, overreach, or step into debris. Reposition your feet and the tool for each short area.

Secure the grip and exclude hands. Use a secure two-hand grip on the handle, with both hands behind the working head and outside every possible blade path. No hand, knee, foot, helper, cord, hose, or loose object belongs ahead of or beside the edge.

Present the fixed head to the deposit boundary. Begin from a known sound, measured area and approach the identified proud material. Keep the full working edge supported; do not lead with a corner or aim into a seam, fastener, service mark, crack, or damaged face.

Start light and short. Make a deliberately short push with light input—enough to learn whether the edge tracks and the target deposit releases. Do not use momentum, impact, bouncing, or a levering motion.

Read the result immediately. Clear the view only by the approved method. Expected target debris and unchanged substrate are required; fresh substrate, mixed debris, a gouge, smear, delamination, or changed dust is a stop.

Progress only while control holds. Repeat in short areas, increasing input only gradually and qualitatively while the edge remains stable, target material alone releases, the substrate remains intact, and the mapped high decreases. There is no authorized pressure or pass count.

Remeasure. Use the same witness, position, and orientation. Stop at the exact requirement—not shine, uniform color, bareness, or feel.

If the 19205 rides over a localized deposit, move to the 19200 and repeat qualification. If the 19200 still requires impact, prying, corner loading, or uncontrolled force, stop and route the material. Tool width is a decision aid, not permission to overpower the substrate.

Run production as a map–scrape–measure loop

Once the witness passes, extend only to areas with the same substrate, deposit, access, hazard disposition, and support.

Divide the accepted field into short visible work areas. Carry forward the high-spot marks and protect every exclusion.

Use 19205 for accepted coverage and 19200 for accepted concentration. Requalify at every material, support, edge, joint, service, fastener, or residue change.

Maintain stable stance, secure grip, hand exclusion, full-edge support, and a clear endpoint. Start each new area lightly; the last area’s success is not proof for the next.

Clear residue often enough to see the bond line and working edge, using only the authorized control method. Packed residue changes contact and can produce smearing or corner load.

Inspect after each short area. Mark substrate damage, changed debris, smear, dust, or loss of support immediately rather than scraping through it.

Rerun the witness across the work and its untouched boundary. Record pass or exception.

Work the map to closure: passed highs, repair handoffs, low-area handoffs, unresolved material, moisture hold, service hold, and structural hold. Nothing disappears from the record because it was inconvenient.

Failure branches and recovery

The blade gouges concrete or cuts the wood face. Stop. Preserve and map the damage. Do not soften the edges with more scraping. Route the gouge to the compatible repair system, then cure, prepare, and remeasure exactly as that system requires.

A wood face splinters or delaminates. Stop at once. Loose veneer and separated plies are panel damage, not residue. Route to panel or underlayment repair or replacement.

The blade smears material instead of lifting it. Stop and identify the material. Do not add force, heat, water, solvent, chemical, or cleaner. Adhesive routes to the adhesive guide and exact new-system requirements.

Dust appears or changes character. Stop and keep the area under the existing hazard plan. Visible dust is not a cue to prescribe a universal vacuum, mist, respirator, or cleanup recipe.

A panel moves, squeaks, rocks, or shows a loose edge. Stop. Route to the assembly’s fastening, blocking, replacement, or structural procedure. After repair, repeat moisture and flatness readback where required.

A proud fastener appears. Stop before contact. Mark and route it under the subfloor assembly procedure; inspect the repair and remeasure afterward.

A high remains but the substrate is now exposed. The remaining high is substrate geometry. Route to the specified grind, plane, patch, leveler, carpentry, or structural method; do not keep scraping.

Re-diagnose whether the failure is a removable high, a low, movement, or structural shape.

The floor passes the witness but carries loose residue or dust. Flatness is only one gate. Execute the selected flooring system’s exact surface-preparation and cleanliness requirement before release.

A crack, joint, or transition keeps reopening the reading. Stop treating it as a surface deposit. Route movement and geometry to the responsible repair designer or trade.

An unexpected black, painted, fibrous, or concealed layer appears. Stop and return to the asbestos, lead, and identity gates. The previous determination covered only what it actually assessed.

Patch, leveler, grind, and repair handoffs

Patch: for localized damage, holes, gouges, spalls, and compatible repairs. Its manufacturer and the flooring system control preparation, primer, mixing, placement, thickness, cure, moisture, and acceptance.

Leveler: for lows or a designed plane beyond spot repair. The system controls admission and installation; leveler is not a cure for movement or contamination.

Grind or mechanically prepare: for integral concrete highs, broad bonded cementitious residue, or a required profile. This is a new silica-generating task with its own equipment, controls, service-location, and profile requirements.

Carpentry or structural repair: for damaged panels, unsupported edges, framing crowns, movement, displacement, or recurring cracks. Repair, then repeat all affected system checks.

Record every handoff’s method, location, responsible party, cure or commissioning evidence, and final readback.

Cleanliness and flooring release

Use no universal cleaner or cleanup method. The identified debris, hazard plan, substrate, patch or leveler, adhesive, and flooring instructions control what may contact the surface and how residue is verified absent.

Release the floor only when the record proves all of the following:

the exact flooring system and its current flatness requirement are identified;

every required witness path passes with the specified witness, units, and orientation;

all mapped highs, lows, damage, joints, fasteners, and transitions have an accepted disposition;

the substrate is sound and stable under the assembly requirement;

moisture testing uses the accepted method and passes the exact system limits;

patches, levelers, grinds, panel repairs, and structural work have completed their own acceptance loops;

the surface meets the system’s exact cleanliness, residue, porosity, and bond requirements;

regulated-material, dust, waste, and PPE obligations are closed; and

photographs, measurements, exceptions, dates, and responsible parties are attached to the floor map.

The release statement should name the system and evidence.

A short history of the long-handle floor scraper

An 1893 U.S. patent for a “scraper or shovel” described a handled tool for removing snow or scraping floors. Later designs kept returning to the same problems: holding an edge, controlling its angle, and working from standing height.

Hyde did not claim that invention. Its documented story begins with Isaac P. Hyde making industrial knives in Southbridge in the early 1870s and incorporation in 1875. Today’s exact contribution is modest and measurable: a blade fixed at 20° for push-scraping in concentration and coverage widths.

Frequently asked questions

What flatness tolerance should I use?

Use the exact current requirement for the selected flooring system, including its witness length, allowable gap, directions, and treatment of joints. This guide intentionally supplies no universal number.

Is “flat” the same as “level”?

Flatness limits local deviation under a specified witness. Level describes relationship to gravity. Do not turn a slope or drainage-plane decision into scraping unless the system expressly requires it.

Which scraper starts the job?

Use the 19205 on a broad, open, uniform, qualified deposit; use the 19200 on a localized or tight qualified high spot or where the wide edge rides. Both must pass the same short witness and measured readback.

What if a low spot causes the failed reading?

Do not scrape by reflex. Route the low to the selected patch, leveler, underlayment, carpentry, or structural method. The complete system decides.

When is the floor ready for flooring?

When every flatness path passes the selected system’s measured requirement and all soundness, movement, fastener, joint, repair, moisture, service, cleanliness, residue, hazard, and documentation gates are closed. A visual promise is not release.
