Score Laminated Fiberglass

Job: Establish a controlled straight groove in manufacturer-approved laminated fiberglass with the 45730, either for an explicitly permitted score-and-separate method or as a face-protecting line ahead of another qualified cut

Time: Thirty minutes to several hours for identification, scrap proof, layout, scoring, separation, edge finishing, cleanup, and inspection

Difficulty: Advanced — “fiberglass” covers very different glass/resin/skin constructions, and a clean-looking score does not prove that snapping, sawing, dust control, or structural reuse is acceptable

Everything else: Exact panel identification and technical sheet; panel-compatible marker; nonmetal straightedge or compatible rigid guide; full-sheet support; clamps and sacrificial pads; matching offcut; method-specific breaker, saw, shear, router, or other separation equipment when required; local extraction/containment and cleanup equipment selected from the SDS and exposure assessment; eye, hand, skin, hearing, and respiratory protection selected for the actual hazards; inspection light; approved edge-sealing/finishing system where specified; covered waste container

Define what “score” must accomplish

Do not start with the assumption that the groove itself separates the panel.

For this job, scoring can serve two distinct methods:

score and separate: the verified panel system permits a straight break along a prepared groove; or

score before another cut: the groove establishes the visible edge and reduces face damage while a different tool makes the through-cut.

Those methods are not interchangeable.

The accepted Hyde record names laminated fiberglass but does not say that every laminated fiberglass sheet snaps. It also does not say the 45730 makes a through-cut.

Write the required outcome before touching the panel:

keep-side face and edge;

exposed or concealed edge;

structural, electrical, hygienic, weather, fire, or cosmetic function;

required separation equipment;

permitted edge finish/seal;

inspection and rejection rules.

Identify the laminate, not merely the appearance

“Fiberglass panel” can mean a solid glass-fiber-reinforced resin sheet, a decorative laminate over a core, a sandwich panel, a pultruded profile, a liner panel, or another composite system.

manufacturer/product/system;

resin or matrix if documented;

reinforcement form if documented;

face film, veil, coating, gel surface, or decorative layer;

glass content/orientation when relevant;

installed versus loose state;

temperature/moisture/cure condition;

surface that must remain presentable;

SDS and current fabrication instructions.

Do not infer resin chemistry, reinforcement, coating, fire rating, food-contact status, or structural performance from color or texture.

If the sheet is unidentified, stop before creating dust or committing an installed surface. Obtain the project record or have the material owner identify it.

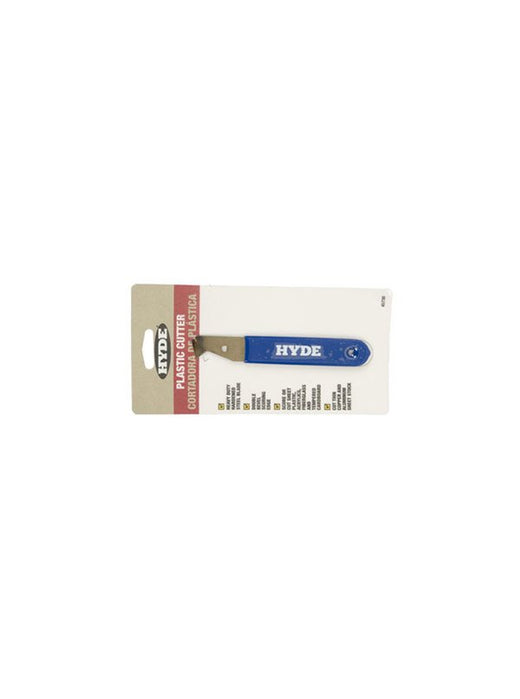

Read the 45730 record narrowly

The accepted facts establish:

model key 45730;

product identity Plastic Cutter / scoring tool;

laminated fiberglass among the named scoring applications;

a double-bevel-ground scoring edge;

a plastic handle grip.

They do not establish:

edge material, hardness, width, angle, or replacement part;

a pass count;

groove width/depth;

allowable panel thickness or laminate family;

whether a given panel can be snapped;

which face to score;

feed force, speed, guide offset, or minimum cut length;

blade life or sharpening method;

dust, chip-out, delamination, edge-quality, or structural result;

compatibility with resins, coatings, solvents, or cleaners.

This application therefore qualifies the groove from the exact panel and method rather than inheriting a universal number.

Decide whether hand scoring belongs in the method

Use the panel manufacturer’s current fabrication instructions first.

Is scoring permitted on this construction?

Is the score itself intended to guide a break, or only prepare a face before cutting?

Which face is worked?

Must both faces be prepared?

What tool completes the separation?

Is an edge seal, coating repair, or post-cut treatment mandatory?

Does cutting change structural, fire, moisture, electrical, or sanitary certification?

Reject hand scoring as the principal method when:

the panel instruction requires a saw/router/shear or factory fabrication;

the construction has a core or opposite skin that cannot follow a score;

the cut is curved, internal, pierced, or tightly radiused;

a narrow strip lacks safe support;

the panel is installed over hidden services;

the edge is structural or qualification-critical without an approved procedure;

trial behavior shows splitting, fiber pull, whitening, delamination, or wandering fracture.

This store does not supply a complete fiberglass cutting or dust-control system. Obtain the equipment the approved method requires.

Review glass/resin exposure before setup

Scoring and especially later cutting, sanding, routing, or edge dressing can release glass/resin fragments or dust.

Read the exact SDS and task exposure assessment. NIOSH lists inhalation plus skin and eye contact as exposure routes for fibrous glass dust, with eyes, skin, and the respiratory system among the target organs.

Use elimination, method selection, enclosure, local extraction, and compatible capture/cleanup before relying on PPE.

Where workplace respiratory protection is required, selection, fit, medical evaluation, training, and program administration belong under OSHA’s respiratory-protection standard; “wear a dust mask” is not an exposure-control plan.

Select eye protection under OSHA’s eye and face standard and hand protection under its hand-protection standard, based on sharp edges, splinters, resin, cleanup chemistry, and the need to control the tool.

Avoid dry sweeping or compressed-air cleanup when it redistributes debris. Use the SDS/exposure plan’s compatible capture and disposal method.

Inspect and stage the panel

Under raking light, examine both faces and the intended edge zone for:

cracks, star fractures, crushed corners;

bubbles, voids, print-through, exposed fibers;

face lifting or delamination;

prior fastener stress;

hidden inserts, cores, backing, seams, or services;

damage that could be mistaken for scoring damage.

Mark and photograph pre-existing conditions where traceability matters.

Bring a matching offcut from the same product and condition whenever possible. Similar-looking scrap from another laminate is not a faithful qualification piece.

Support the trial the same way the work will be supported. Temperature, span, face direction, edge distance, and backing can change the result.

Inspect the tool

Clean the 45730 through a material-compatible method and inspect:

double-bevel scoring edge;

tip and both bevels;

secure working element;

contamination or cured resin;

damage that could make the tool steer, chatter, or shed fragments.

Do not use an edge with chips, rollover, one-sided wear, looseness, or an uncertain repair.

Do not improvise a grinder angle or install a guessed part.

Guard the edge during staging and transport.

Build a stable scoring station

Lay the panel on a clean, flat, continuous support that does not scratch either face.

Arrange the work so:

the full intended line is supported during scoring;

both future pieces can be controlled during separation;

clamps cannot crush the laminate;

the guide cannot slide;

the scoring path cannot enter a hand or body;

the pull can finish without the elbow striking an obstruction;

chips/debris are captured without being brushed across the face;

the waste can move without peeling the keep-side skin;

no cord, hose, tool, or offcut crosses the path.

For a large sheet, use a second trained handler or lifting equipment. The assistant controls the panel, not the knife or the waste near the active edge.

Do not score a flexing sheet across sawhorses and call the groove straight.

Lay out from the keeper

score/cut line;

features that prohibit fracture or overrun.

Determine guide offset by physical trial, not by assuming the scoring edge is centered in the handle.

Use a marker/film method compatible with the face. Do not use an unverified solvent to erase layout.

Clamp the guide on the safe side with sacrificial pads where required. Confirm that the guide remains straight and that clamp pressure does not bow the panel.

Prove the complete method on matching scrap

A scratch that looks neat is not a method proof.

On the matching offcut:

reproduce face direction, support, guide, temperature, and edge distance;

establish a light controlled groove;

repeat full-length passes only as needed for a consistent groove;

clear debris through the approved capture method;

complete the planned separation method;

finish/seal the edge if required;

inspect both faces, core, reinforcement, and fracture/cut edge.

Accept only when the sample meets the actual job criteria.

Reject and change method if the result shows:

wandering or ragged groove;

whitening or stress cracking;

lifted face/veil/coating;

glass-fiber pull or fuzzing beyond the finishing allowance;

chipped keep-side edge;

loss of required edge properties.

Record the proven setup. Never convert it into a general thickness or pass-count claim for 45730.

Establish the production groove

Place the tool against the guide with a balanced grip and the free hand outside the projected path.

Make the first pass light enough to establish tracking. Pull through the full line without rocking the handle, twisting the double bevel, or digging at the start.

whether the groove follows the guide;

whether both sides are clean;

whether the face lifts;

whether the edge produces controlled debris rather than tearing fibers;

whether the guide moved.

If sound, deepen through consistent end-to-end passes using the witnessed method.

bear down to reach an invented depth;

make short corrective scratches across the groove;

saw back and forth;

extend beyond the stop into finished work;

sweep debris with a bare hand;

use the tool as a pry bar;

score both faces unless the approved method calls for it.

Stop at the qualified process condition—not at a universal number.

Keep the groove clean and observable

Captured debris must leave the working line without scratching the face or becoming airborne.

Pause as needed to inspect under directed light.

A good groove is:

free of large wall chips;

free of face lifting;

consistent with the approved witness;

If the tool begins to chatter, require more force, steer, or leave a different debris pattern, stop. Inspect tool, guide, support, and panel rather than forcing the cut.

Do not touch the groove to judge depth; exposed glass and fresh composite edges can injure.

Separate through the approved route

If the panel manufacturer and scrap proof authorize score and separate, place the groove at the qualified support/break geometry. Control both pieces, apply the approved loading direction, and make the separation without twisting the keep side.

If the score is a pre-cut, leave the panel fully supported and use the specified through-cut equipment. The score does not waive guards, extraction, feed control, PPE, or the equipment manufacturer’s instructions.

fracture leaves the groove;

the opposite skin stretches or tears;

the panel hinges on reinforcement;

the face splinters;

hidden construction appears;

either piece becomes uncontrolled.

Do not pull connected fibers apart by hand or use the 45730 to lever the final bridge. Re-support and complete through the approved method.

Inspect the edge before finishing

With the panel stable and debris controlled, inspect:

line and dimension;

resin fracture/whitening;

localized heat damage from any later process;

required edge-seal condition.

Quarantine structural, electrical, sanitary, fire-rated, weather-exposed, or other qualification-critical work when the edge violates its system instruction.

Do not sand a failed edge until the responsible person has seen the failure; finishing can erase diagnostic evidence.

The 45730 record establishes no sanding grit, abrasive, deburring route, sealant, coating, resin, cleaner, or cure schedule.

Use only the panel system’s specified edge treatment.

If powered abrasion is required, reopen the exposure and machine-control plan. A respirator chosen casually after dust appears is not a substitute for controlled fabrication.

remove captured debris through the approved method;

inspect the face and edge again;

verify any required seal coverage/cure;

protect the finished edge during handling;

Close the job without redistributing fibers

Guard and clean the 45730 through the qualified tool/material method.

Do not scrape cured laminate residue from its edge with another blade or immerse the unknown assembly in an unverified solvent.

Contain offcuts and sharp fragments. Clean support, clamps, clothing, and nearby surfaces through the exposure plan. Do not take contaminated debris into clean areas.

panel identity and lot if used;

face direction and score purpose;

support/guide method;

separation and finishing method;

Requalify after panel, thickness, face, cure state, support, tool condition, or separation-method change.

What goes wrong (and the fix)

Every “fiberglass” panel is treated as score-and-snap stock. Identify the construction and follow its fabrication instruction.

The numeric acrylic recipe is copied into laminate work. Remove the invented pass/depth target; qualify the actual panel.

A pretty score is accepted without separating scrap. Prove the whole method through edge inspection.

The guide slides after debris collects. Stop, capture debris, reset, and reprove alignment.

One heavy pass lifts the face. Hold the work; requalify with controlled passes or another method.

Connected fibers are torn apart. Re-support and complete with approved separation equipment.

The score is expected to replace a through-cut. Restore the two-method distinction.

Dust is dry-swept. Stop and use the SDS/exposure plan’s capture method.

Gloves are chosen so bulky that the tool twists. Reassess the method and select task-suitable protection/control.

The history footnote

Composite laminates join reinforcement and matrix so the assembled sheet behaves differently from either constituent alone. That is why a surface groove may control a face yet fail to dictate the whole separation. The accepted Hyde record supplies no inventor, date, laminate construction, or proprietary origin for 45730, so this guide makes none.
