Score and Cut Cement Backer Board

Job: Cut manufacturer-approved cement backer board to the project layout using a controlled score-and-snap method, with silica control and without inventing fastening, joint, waterproofing, or blade-life requirements

Time: Ten to thirty minutes per straight panel cut after layout; half a day or more to stage, cut, dry-fit, and label a room’s panels

Difficulty: Intermediate — straight cuts are simple when the board, support, score face, reinforcement, and snap method follow the board instructions

Everything else: exact board installation guide and SDS; stable cutting table/supports; tape, square, straightedge, marker; eye/hand protection; silica-control equipment; manufacturer-approved back-mesh or finishing tool; rasp only where the board maker permits; drill/hole-saw or power-saw/dust-collection system for shapes outside score-and-snap; labels; specified fasteners, tape, mortar, waterproofing, and sealant for later installation

Cement backer board is not drywall with a tougher face. Its cementitious core and reinforcement make it durable under tile—and abrasive to ordinary steel blades.

The score-and-snap sequence avoids turning the entire cut into a powered dust plume:

mark → support → score the correct face → weaken the reinforcement → snap deliberately → sever the back → control the edge.

Identify the exact board and application

manufacturer and product;

cement board, fiber-cement board, foam board, gypsum-based tile backer, or another panel class;

thickness and sheet size;

wall, floor, ceiling, countertop, exterior, or other approved use;

required orientation/face;

framing/subfloor requirements;

joint and fastener method;

waterproofing/moisture-management detail;

cutting instructions and SDS.

Do not use the 19408 on foam backer or gypsum panel merely because “score” is a familiar verb. Use the panel’s specified tool.

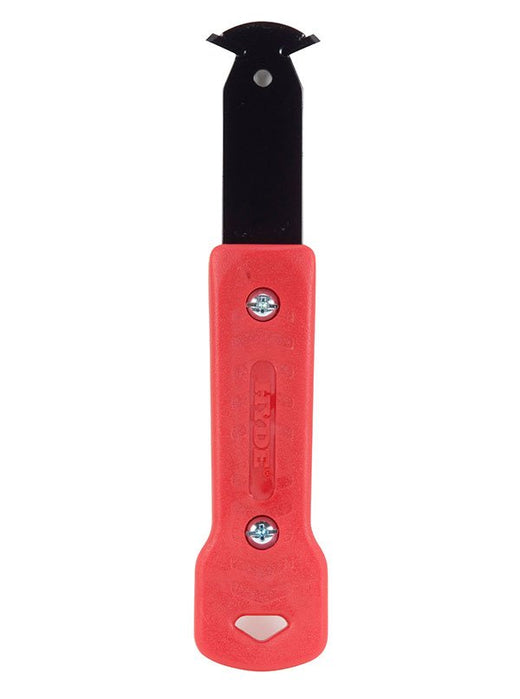

Read what the 19408 actually establishes

Accepted Hyde evidence supports:

official name Heavy Duty Carbide Cutter plus 3 Blades;

tungsten-carbide cutting edges;

Durock and WonderBoard scoring;

scoring cement board, drywall, fiberglass roofing, flooring, and laminate.

The official web description includes “asbestos flooring” in a longer material list. EPA’s current Protect Your Family from Exposures to Asbestos guidance says not to cut, sand, drill, or otherwise disturb suspect asbestos flooring or backing. Do not score suspect legacy flooring; obtain qualified assessment first.

Freeze the panel layout before cutting

Lay out the complete surface according to the board/system guide.

framing or subfloor supports;

joint placement and staggering where specified;

perimeter/field movement;

tub, drain, niche, valve, and penetration details;

transitions to drywall or other backers;

waterproofing laps and terminations;

Do not create a narrow strip at a framing bay because the tile grid was considered separately from the backer grid.

Label each panel location and face before cuts begin.

Decide which cuts belong to score-and-snap

full straight crosscuts;

straight rips with enough width to snap/support;

edge notches that the exact board maker permits through scoring;

simple panel reductions before installation.

Escalate to another approved method for:

small or delicate cutouts;

narrow strips that cannot snap cleanly;

thick/multi-layer assemblies;

board whose manual specifies shears, saw, or another tool;

cuts where backside access is impossible.

The 19408 is a drag scorer, not a saw, drill, chisel, pry bar, or powered cutter.

Build the silica and debris plan

Cement board contains cementitious/mineral material. Cutting can create respirable crystalline silica exposure.

Occupational construction work must follow OSHA’s respirable crystalline silica standard. Score-and-snap is a lower-energy method than power sawing, but that observation does not prove an exposure result.

Use the board SDS and task plan. Cut outdoors or in controlled isolation where practical. Use appropriate capture/cleanup; do not dry sweep or blow debris.

The current USG Durock installation guidance calls for straightedge score-and-snap and limits power-saw use to equipment with dust collection. That is product-specific evidence for that board, not a universal specification transferred to every panel.

Wear eye protection; cement grit and reinforcement fragments can fly during snap and edge cleanup. Select hand protection for the cutter’s cut and puncture exposure without losing control.

Stage stable support

Use a flat, clean table or supports large enough for the sheet. Remove screws, grit, and offcuts that could point-load the panel.

Support the keep-side and control the waste. Leave room for the planned snap direction without letting a panel fall.

For long rips, add helpers or support extensions. Do not kneel on an unsupported panel to force the break.

Orient the exact face upward as the board maker specifies. Some systems distinguish rough/smooth faces or mesh treatment; do not guess from appearance.

Transfer the cut from fixed datums

Measure from the panel’s installed control:

supported framing line;

approved joint gap;

Mark both ends, connect with a straightedge, and label waste/keep.

Check squareness when the piece must bridge framing or align at a transition. A crooked score can create an unsupported edge even if tile later hides it.

Measure twice before consuming a carbide edge and a panel.

Inspect the 19408

verify the physical blade is correctly installed under package instructions;

inspect for cracks, looseness, heavy rounding, chips, or contamination;

confirm the handle/control surface is sound;

clean the cutting path;

stage the straightedge so it will not move.

The name “plus 3 blades” establishes the included blade count, not when or how to change them.

Do not increase force to compensate for a loose or spent blade. Stop and use the verified change procedure; none is invented here.

Score the face under the board instructions

Place the straightedge on the keep-side so a wandering cutter enters waste.

Pull the 19408 along the line in a controlled stroke. Keep the cutting edge engaged and the handle aligned without levering sideways.

Cement board scoring generally trenches the face/reinforcement rather than making one glass-like scratch. The exact board determines:

number/depth of passes;

whether reinforcement must be visibly severed;

Repeat only as the board instructions and observed groove require.

Keep hands ahead/away from the cutter path. Do not freehand the final pass after removing the straightedge.

Read the groove before snapping

The score should be:

continuous edge to edge;

on the correct line;

deep enough for the board’s specified method;

free of major skips;

not widened by wandering;

clear of loose debris.

If the groove fades, correct it through the same guided path. Do not start a second parallel fault line.

If the cutter skates despite proper alignment, inspect blade and surface. Do not solve it with uncontrolled body weight.

Snap in the planned direction

Move the board to the approved support position. Keep the score aligned with the break.

Apply even, decisive force through the board maker’s method so the panel bends at the weakened line. Control the waste as it releases.

Do not twist one corner first. Torsion can run the fracture beyond the score.

If the board will not snap, stop and diagnose:

incomplete face/reinforcement score;

wrong face/direction;

wrong panel/tool method;

damaged/warped board.

Do not jump on the panel.

Sever the back reinforcement

After the core breaks, fold only as far as the board instruction permits. Support both pieces.

Cut the backside mesh/reinforcement with the manufacturer-approved tool and direction. Do not tear the halves apart; tearing can delaminate or rag the edge.

The 19408 claim supports scoring; it does not explicitly establish a universal back-mesh cutting method. Follow the board and physical tool instructions.

Keep the back cut on waste side where possible.

Finish the edge without thinning it away

Remove only protrusions that interfere with fit or the specified joint. Use a rasp or other tool only where the board maker permits.

intact reinforcement/core;

no deep edge fracture;

support at installation;

specified joint gap;

fastener edge distance;

waterproofing/tape compatibility.

Do not grind an oversized error into a taper that cannot support tile.

Reject a piece with a broken corner or edge damage that violates the board system. Do not repair structural panel damage with thinset by habit.

Cut a narrow rip with restraint

A narrow waste strip has less bending leverage and can crumble.

see whether layout can enlarge the strip;

verify the board maker allows score-and-snap at that width;

support both sides continuously;

use the specified alternative tool if snap control is inadequate.

Do not clamp a narrow strip and wrench the panel sideways. The fracture can enter the keep-side.

Make cutouts through the board method

For pipe, valve, box, or drain openings, use the exact board’s approved route. It may specify scoring mesh on both faces and controlled punch-out, drilling/hole-sawing, or a dust-controlled power tool.

USG’s Durock guidance, for example, describes cutting mesh on both sides and punching from the back for certain fixture cutouts, or using a drill/hole-saw. Do not transfer that sequence to another board without its documentation.

Protect waterproofing components and plumbing/electrical systems. Make cutouts before installing panels where practical.

Do not use the 19408 as a punch.

Dry-fit the cut panel

Place the panel in its intended position without forcing.

correct face/orientation;

joint and perimeter gaps;

tile/final-finish relationship;

Remove and correct at the cutting station. Do not score an installed panel over concealed wires, pipes, membrane, or framing without a controlled method.

Keep cutting separate from installation claims

The 19408 makes the panel piece. It does not establish:

fastener type/spacing;

mortar beneath floor board;

tape/joint treatment;

All come from the board and assembly.

Water-durable cement board is not automatically the waterproofing layer. The USG guide expressly points to separate membranes where waterproofing is desired. Use the selected assembly’s membrane/detail and testing.

Manage blade condition across a batch

reduced groove depth at unchanged stroke;

broad polishing rather than trenching;

edge chips/cracks;

rust/contamination affecting seating.

Compare performance on the same board/face. A denser board or changed reinforcement can feel different without proving the blade is spent.

When change is required, use the physical package procedure. Record which of the three included blades is installed; do not invent a sheets-per-blade rate.

Control offcuts and cleanup

Stack reusable offcuts by board identity/thickness. Label them; do not mix products whose installation rules differ.

Collect cement grit, mesh fibers, and fragments through the silica plan. Keep debris out of drains and HVAC.

Wrap or contain spent carbide blades through the site sharps/waste route. A dull edge can still puncture.

Clean the 19408 without unverified solvents or aggressive grinding. Inspect and store dry as its instructions require.

Stage and transport cut panels without undoing the edge

Carry panels on edge or with full support as the board manufacturer directs. Do not lift a large sheet by a narrow cutout bridge or let an offcut corner become a handle.

At the staging rack:

separate rooms/surfaces;

preserve face orientation;

protect newly cut edges from impact;

keep panels dry/conditioned as required;

avoid leaning stacks where the bottom sheet bows;

keep fasteners and mortar away until dry fit is accepted;

preserve labels through installation.

A clean score can still become a broken field joint if the panel is flexed through a doorway or dropped onto a corner. Reinspect after transport and before fastening. Reject damage through the board system rather than hiding it under tape, mortar, or waterproofing.

Record the panel-cutting evidence

Do not convert local observations into Hyde claims for pass count, thickness, blade life, replacement identity, or other materials.

What goes wrong (and the fix)

The break wanders off the score. Check continuity/depth, support, snap direction, and board method; replace the damaged piece.

The face tears instead of breaking cleanly. The reinforcement was not scored as required or the snap twisted.

The back mesh rips out of the keep-side. Support the halves and cut the back through the approved method.

A narrow rip crumbles. Redesign for a wider piece or use the board-approved alternate cutting method.

Dust spreads indoors. Stop and restore the silica/source-capture/cleanup plan.

The cutter requires rising force. Inspect blade/mount and board face; do not lean harder.

A power saw is used without dust collection. Stop and apply the exact board and OSHA control requirements.

The cut panel rocks at a seam. Correct support/plane and recut; fasteners do not substitute for full support.

The board is assumed waterproof. Restore the specified membrane/assembly detail.

The 19408 is taken to suspect legacy flooring. Stop for asbestos assessment; the official legacy wording is not permission.

The history footnote

Score-and-snap is a controlled-fracture method shared with drywall and brittle sheet goods, adapted here to a cementitious core reinforced with mesh. The tungsten-carbide drag edge exists because cement and aggregate consume ordinary steel quickly.

Exact tools, verification, and backlink footer

The three included carbide blades are accepted; their service interval is not.
