Scrape Heavy Paint Build with a 4-Edge Blade

Exact graph provenance: this is a single queue-row job, not a footer merge.

It does not establish a universal blade orientation, retention mechanism, service tool, fastener procedure, torque, working angle, pressure, pass count, sharpening procedure, PPE specification, or disposal route. This guide therefore qualifies the trade sequence around those facts and sends every physical edge change through the current instruction for the exact 10540 in hand.

Job: reduce heavy, alligatored or layered failed paint with a rough edge, stop the rough stage at a readable boundary, change to an authorized smooth edge, and feather the remaining paint profile without gouging the substrate or chasing sound coating.

Result: loose heavy build is gone; remaining coating is bonded; abrupt ridges are reduced; the substrate is intact; and the field is ready for separately specified cleaning, sanding, repair, and coating preparation. A scraper produces a stable, sandable field, not a paint-ready surface.

Time: condition-driven. No square-foot, stroke, or edge-life forecast is valid across coatings and substrates.

Difficulty: moderate trade judgment. Pulling the scraper is simple. Correctly distinguishing loose build from sound paint, rough-stage completion from over-scraping, and a dull edge from a substrate or holder defect is the skilled work.

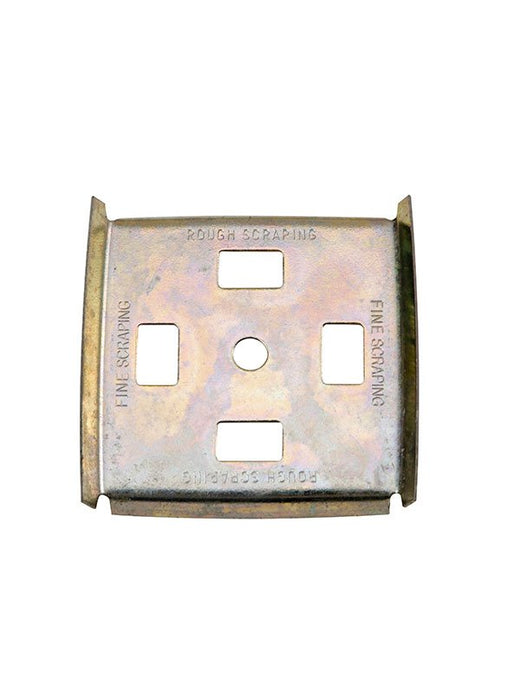

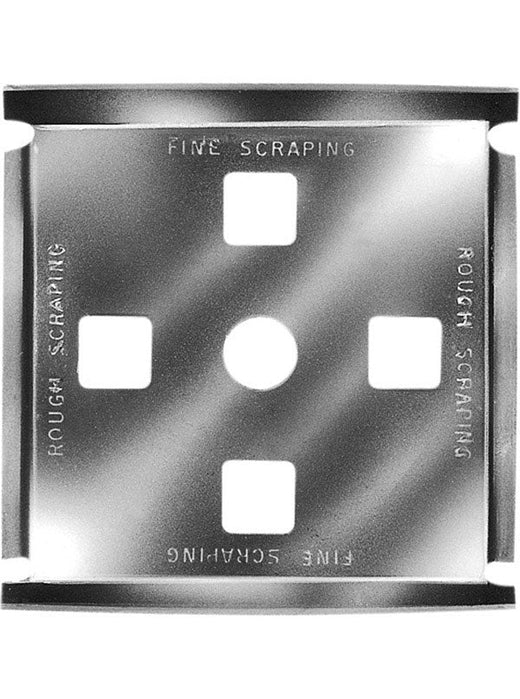

Package count is the only supported difference between 11130 and 11135. This guide does not assert the title-only 10280 fitment, any cross-fit to a 2-edge scraper, or any additional host.

Everything else: the current instruction for the exact 10540; stable access and support; raking light; controls from the coating and site hazard assessment; a clean service bench; controlled blade storage; approved cleaning materials; and a low-consequence witness area.

Before scraping: diagnose the system, not just the paint

Close the coating-hazard gate

Treat coating identity as a stop gate, not a footnote. Heavy build means old layers, and old layers can carry hazards that the newest visible coat does not advertise.

For a pre-1978 home or child-occupied facility, paid work that disturbs painted surfaces may fall under the EPA Renovation, Repair and Painting rule. Establish the building date, work classification, firm and renovator requirements, containment plan, prohibited practices, and cleaning-verification method before disturbing the coating. A homeowner exemption from certification is not proof that the dust and chips are harmless. Use the EPA RRP program, EPA contractor guidance, and EPA lead-safe work-practice guidance for the applicable boundary.

Do not probe an unidentified textured coating, resilient-floor layer, black adhesive, fireproofing, or other suspect material merely because a scraper can reach it. Where asbestos or another regulated material may be present, stop for the required survey or sampling route.

Before the first test pull, establish containment, isolation, cleanup, and the authorized waste route. Do not infer disposal classification from the blade, paint color, or topcoat age.

Decide whether the failure is heavy build or a different problem

Alligatoring describes a pattern, not a cause. A field of islands and cracks may be a stack of aged coats moving at different rates, but it can also be the visible result of moisture, heat, incompatible coatings, contamination, or a substrate moving underneath. Scraping removes failed material; it does not repair the cause.

Use raking light and a small, contained probe inside an already failed area. Read the fracture:

Loose layers separate within the coating stack. This is the natural rough-then-smooth case. The rough stage reduces the high, broken build; the smooth stage controls the transition to what remains.

The coating releases cleanly from the substrate across a widening field. The bond may have failed wall-wide. Stop and decide whether the work is a qualified full strip, an adhesion-repair system, or a substrate repair. Do not drift into a full strip one scraper width at a time.

The substrate is damp, stained, soft, swollen, crumbling, rusting, or moving. Stop and correct the water, corrosion, or assembly defect. A dry-looking topcoat does not clear a wet wall.

The surface powders but remains bonded. Chalking is primarily a cleaning and coating-selection problem. Scrape only coating that is actually loose.

The failure follows fasteners, joints, end grain, seams, or a repeated water path. Mark the pattern and resolve the construction defect. The scraper is reporting the cause.

Make the job boundary visible before production scraping. Mark the failed field, the suspected sound-paint perimeter, transitions between substrates, trim edges, joints, fasteners, glass, sealants, and other surfaces the blade must not enter. A boundary drawn now prevents the rough stage from growing simply because the tool is already in hand.

Qualify the substrate

The same coating can release differently over wood, metal, masonry, plaster, and paper-faced board.

On wood, identify grain, weathered fibers, checks, raised fasteners, and profiles a flat blade can bridge. Proceed only when the witness removes paint without lifting fibers, crushing a profile, or catching a joint. Work with the grain where one exists.

On metal, distinguish failed paint from rust scale and sound metal; seams and hardware can damage the edge. A masonry or plaster chip containing substrate signals surface failure or excess aggression. On paper-faced board, a rough edge can turn a coating defect into a repair. Use a less aggressive method whenever the witness cannot preserve the face.

Do not scrape glass, soft metal trim, sealant, roofing, electrical components, or an unidentified adjacent finish as part of the paint field. Masking a boundary does not make blade contact safe; the stroke must end before the blade reaches it.

Define the two endpoints before work begins

The rough-stage endpoint is not “all old paint gone.” Thick loose relief is removed; a light controlled pull no longer releases a heavy ridge; the rough edge rides rather than lifts bonded material; the substrate remains intact; and the field can accept a smooth-edge witness.

The smooth-stage endpoint has no loose boundary, repeating blade track, or newly damaged substrate. The transition is ready for the specified sanding and coating-preparation system, and the failure cause is corrected or explicitly held open.

Record both endpoints so “rough” does not become demolition and “smooth” does not promise finish readiness.

Set up the exact host and a stable working position

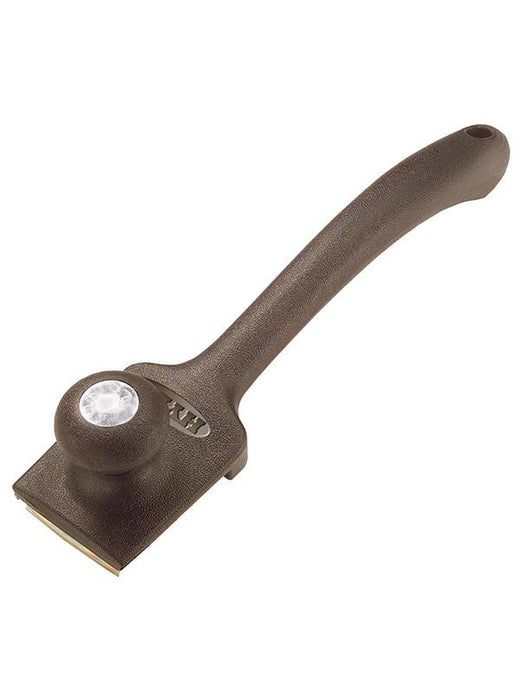

Prove the 10540 system

Read the host model from the tool or its controlled record. Confirm that the blade package is 11130 or 11135.

Inspect the complete host before work. Stop for an unreadable identity, damaged or distorted holder, blade movement, missing or altered retention parts, contamination that prevents inspection, a blade that does not sit evenly, or a working edge with a chip, bend, crack-like line, or repeated defect. A new blade does not repair a failed holder.

Do not use nominal width, Black & Silver® branding, blade appearance, or a blade found already installed as substitute fitment proof. Do not alter, shim, bend, drill, grind, stack, or force a blade to make the physical parts agree with an assumption.

Establish support, stance, grip, and stroke path

Set the work so the operator can maintain balance, keep the host under control, and stop the pull without stepping, reaching, or twisting into the blade path. Move the platform or staging instead of stretching the last section. Secure or support movable work so it cannot jump toward the edge.

Keep both hands on those intended control surfaces during the working pull, clear of the blade and of any projected path if the tool releases. Keep the pull path out of the body, out of the supporting hand, and away from people, hoses, drop edges, and adjacent finishes. This guide specifies no numerical working angle or pressure. Begin light, keep the head stable, and increase effort only within the qualified response of the coating and substrate.

Make a short witness pull inside the failed field. Admission requires coating removal without holder movement, repeated scratching, gouging, substrate tear-out, or unexpected resistance. It qualifies only that local combination.

Rough stage: remove build without consuming the substrate

Start light and let the rough edge declare the boundary

Select a documented rough edge only through the current 10540 instruction and the edge-use record. Begin inside material already proved loose, not on the suspected sound-paint perimeter. Draw the scraper in a controlled line that keeps the head supported. On grained wood, follow the grain unless the actual construction requires a separately qualified approach.

The rough edge’s job is to break down thickness and relief. It is not permission to lever under sound coating, pry at joints, dig with a corner, or force a flat blade through a profile. Let the edge shear what has failed. If the coating will not release under a light controlled start, stop and ask whether the edge is dull, the build is still bonded, the substrate changed, or the rough stage is already complete.

Work outward from known failure toward the mapped perimeter. Keep adjacent pulls close enough that the field remains readable, but do not chase every color change or historical coat line. Color is not adhesion. A lower coat that remains bonded stays unless the qualified project is a full strip.

Check defects frequently enough to catch a bad line early

Pause whenever the feel, sound, chip form, resistance, or surface response changes. Clean enough of the immediate field to read it under raking light.

the working line for a chip, roll, bright damaged section, or packed coating;

the holder for movement, skew, a proud side, or altered retention;

the substrate for a repeating groove, lifted grain, torn facing, spall, dent, or crushed profile;

the field for one deep line that follows the same blade location;

fasteners and hard inclusions before the next pull; and

the operator’s support and stroke path before moving into a new position.

A repeated line is a stop, not a feature to blend out later. If the defect follows the blade, remove the host from service and route the edge through the authorized edge-management decision. Do not answer chatter, skating, or dullness by adding uncontrolled force.

Call the rough-stage endpoint

Stop the rough stage when thick loose build has been reduced and the edge is no longer finding heavy material to shear. Confirm the endpoint by cleaning the area enough to see the coating boundary and making a light witness at the most doubtful remaining ridge. Bonded paint that stays under that controlled witness remains.

The rough surface may look coarse and unfinished. That is expected. Do not keep rough-scraping merely to make it look uniform; appearance belongs to the smooth stage and later sanding. Also do not require both rough edges to be used as a ritual. A second documented rough edge is available when the work still requires rough removal and the first edge no longer performs, but edge inventory is managed by the separate rotation guide.

Record the rough edge, its condition, completed area, defects, substrate response, remaining high spots, and endpoint basis. That is the smooth-phase handoff.

Clean for evidence before changing anything

End the scraping stroke and remove the host from the work. Clean the worked field by the method authorized for the coating and hazard plan so loose chips cannot masquerade as attached ridges. Under raking light, read the entire rough field from multiple directions. Mark any localized heavy build that still meets the rough-stage definition; do not discover it by randomly returning to the rough edge after the smooth stage starts.

Clean the blade and host only by methods permitted for those components. Preserve any witness mark that may explain movement or uneven cutting. If the blade is damaged, the holder shifted, or a fragment is missing, stop and account for the condition before service.

Make only an authorized edge change

Move to the stable service bench. Keep the exact host instruction in view. Record the blade and active edge as found; control the blade before retention releases; operate only the service feature and method specified for the 10540; handle the blade by safe non-edge surfaces allowed by that instruction; inspect the seating and retention surfaces; and reinstall the qualified smooth edge in the exact authorized arrangement.

This paragraph is deliberately not a fastener or orientation recipe. If the current 10540 instruction does not resolve removal, orientation, seating, retention, and return-to-service checks for the tool in hand, stop. Do not borrow a mechanism, direction, tool, torque, or orientation from a similar scraper.

After reassembly, perform the exact host’s safe static check. Then make a light witness pull on low-consequence material or inside the already qualified field. Return to the bench and confirm that blade position and retention are unchanged. Any shift, click, chatter, proud corner, repeated line, or abnormal drag is a failed readback.

Smooth stage: plane the transition without erasing the boundary

Start inside the rough-cleared field

Begin the smooth-edge witness inside the area already admitted by the rough stage. Use the same stable stance and intended control surfaces. Start light. The smooth edge should take down coarse ridges and leave a more even transition without digging into the substrate.

Work from the reduced field toward the sound-paint boundary. Let the edge ride the high paint, not a corner cut underneath it. Shorten the pull near trim, joints, substrate changes, and other stop lines. If the blade starts lifting broad sheets of what was judged sound, stop and reopen the adhesion diagnosis; do not call an expanding failure “feathering.”

Feathering means reducing the abrupt profile between retained coating and the cleared area while preserving the bonded film and substrate. It does not mean scraping every step invisible. The specified abrasive and primer system owns the final profile. A transition that cannot be reduced without cutting the substrate is a handoff, not a reason for more scraper force.

Keep the defect checks active

The smooth stage can hide an installation or edge defect by making the whole surface look generally finer. Continue to inspect in raking light and by clean readback. Stop for:

a parallel scratch or groove repeating with each pull;

one corner removing more than the rest of the edge;

chatter that begins after the edge change;

coating packed along part of the edge;

blade or retention movement;

polished sound paint with no useful removal;

substrate fibers, facing, metal, or mineral material appearing in the debris; or

a transition that grows instead of stabilizing.

Clean the immediate area before deciding. Packed residue may imitate a bad edge; a changed substrate may imitate dullness; a proud fastener may damage a fresh edge. Separate those causes rather than applying more effort.

Call the smooth-stage endpoint and perform final readback

Stop when the loose coating is gone, the heavy topography has been reduced, the sound-paint boundary remains bonded, and the field no longer shows a defect that follows the blade. Read the surface under raking light from more than one direction. Use a clean, non-damaging touch readback permitted by the coating and hazard plan to locate abrupt edges that light misses. Mark repairs, fasteners, moisture damage, corrosion, and transitions that belong to the next operation.

Record the 10540 host; 11130 or 11135 blade identity; rough and smooth edge records without inventing orientation; coating, substrate, and hazard admission; both endpoints; defects and recovery; post-work condition; and the next handoff.

The next handoff may include cause repair, cleaning, sanding, patching, spot priming, or a full coating-system specification. Do not release the field as “ready to paint” solely because the smooth edge stopped producing chips.

What goes wrong — stop and recovery

| Observation | Likely decision | Recovery |

| The rough edge skates from the first light pull. | The coating may be bonded, the edge may be spent or packed, the substrate may have changed, or the rough stage may not be required. | Stop, clean, inspect, and repeat only a controlled witness. Route an edge question to the edge-management guide; do not add uncontrolled force. |

| The rough edge lifts wood fibers, paper facing, metal, or mineral substrate. | The method is damaging the substrate. | Stop immediately. Preserve the witness, reassess the substrate, and select a less aggressive qualified method. |

Do not blend the line by continuing. |

| The tool chatters after the edge change. | Seating, retention, edge identity, packed residue, or substrate response is unproved. | Fail the witness, return to the bench, preserve the state, and re-establish installation proof. |

| The smooth edge keeps lifting sound-looking paint. | The original adhesion boundary was wrong or the coating is failing more broadly. | Stop and re-diagnose. Do not convert a smooth stage into an accidental full strip. |

| The smooth edge polishes but does not reduce the ridge. | The remaining transition may belong to sanding, or the edge may not be serviceable. | Clean and inspect. Hand a stable ridge to the specified abrasive system rather than increasing force. |

| A raised fastener or hard inclusion is found. | Continuing can damage the edge and surface. | Stop before contact.

| Moisture, corrosion, softness, or movement appears under the paint. | The substrate or assembly is the open defect. | Stop scraping, document the condition, and repair the cause before coating preparation resumes. |

Similarity, memory, and “as found” are not substitutes when the arrangement is uncertain. |

It does not absorb:

This page names no sharpening action. A rough edge does not become a smooth edge because someone files it, and a file-versus-replace decision is not part of the rough-to-smooth coating sequence.

History footnote

The replaceable 4-edge pull scraper puts coarse removal and controlled finishing on one host, turning a tool change into a managed edge change. Hyde’s official demonstration presents the rough/smooth blade as an exterior-prep system but establishes neither a first inventor nor a first production date.

The application method above is qualified Tier-1 trade knowledge and does not promote contextual retailer or video language into unsupported exact-product facts.

Blade thickness is unstated. No universal orientation, retention sequence, fastener, torque, pressure, angle, pass count, sharpening method, PPE specification, disposal classification, or service-life number is supplied. A physical 10540/11130/11135 service action still requires current exact-host instructions.

Local authorship can prove the file’s content, registered link union, source traceability, word counts, and check-only ingest behavior.
