How to Run Drywall Tape from a Belt Dispenser

Job: keep a roll of drywall tape clean, presented, and within one-handed reach while hand-taping flat joints, inside corners, or a run of self-adhesive mesh repairs.

Time: loading and threading are a short setup at the start of the session. The payoff is not a promised feet-per-hour figure; it is removing the repeated bend, search, unroll, and re-roll interruption from every length of tape.

Difficulty: easy after one dry test. The dispenser has no taping skill to substitute for. Paper still needs a continuous compound bed and a knife embed; mesh still needs a clean, dry substrate and its compatible compound system.

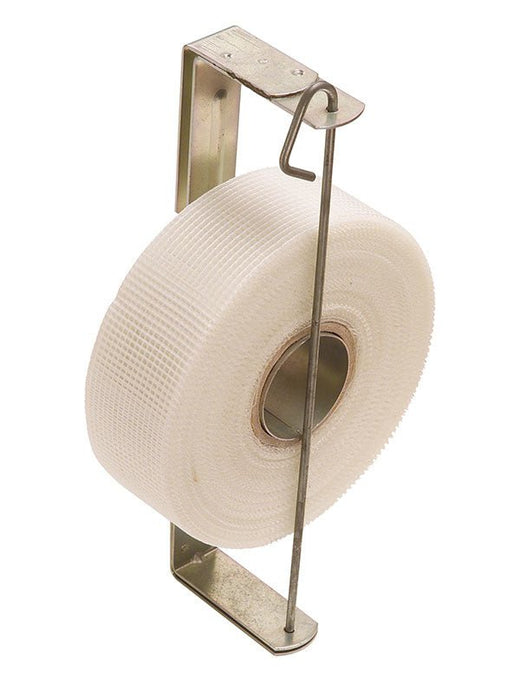

Hyde says it holds all paper and fiberglass drywall tape rolls up to 2-1/4 inches wide and 500 feet long, and that tape—not included—threads through its dispensing slot for quick feed and clean tear-off. Those are the accepted boundaries.

Their lengths are inventory decisions, not strength grades.

They are linked as workflow companions, not bundled endorsements.

First decision: paper and mesh can ride in the same tool, but they leave it for different jobs

Paper tape — the dispenser feeds it; mud and a knife make the joint

Paper comes out of the 09090 dry. For a flat joint, compound is applied to the wall first, paper is centered into that wet bed, and a joint knife wipes out the excess while leaving a continuous bond film beneath the tape. For an inside corner, the dispensed length is cut, folded on its factory crease, placed into compound on both faces, and embedded. The dispenser performs none of those acts. It only keeps the roll at the worker's hip and gives the dry strip a controlled feed and tear.

Paper is the general-joint route because it reinforces movement without stretching like open fiberglass mesh, and it is the only one of these two tape classes that holds a true inside-corner crease. The full structural and compound decision belongs to the linked taping guides. The operational consequence here is simple: paper workflow is bed → pull/tear → place → embed.

Self-adhesive fiberglass mesh — pull, tear, stick dry, then fill through it

Mesh also leaves the dispenser dry, but it goes directly onto clean, dry, stable board before compound. Its pressure-sensitive adhesive eliminates the paper bedding operation. After placement, the first compatible compound coat must be forced through the openings so the joint beneath is actually filled. For the Hyde white mesh rolls linked above, Hyde specifies quick-setting compound. Do not silently substitute ready-mixed air-dry compound for that first coat.

The dispenser's official claim expressly includes fiberglass drywall tape. What that carriage claim does not do is turn mesh into corner tape, make the adhesive work on dust or damp board, or embed compound through the weave. The operational sequence is pull/tear → stick → press flat → force setting compound through.

What 09090 can and cannot carry

paper drywall tape rolls;

fiberglass drywall tape rolls;

rolls up to 2-1/4" wide and 500' long;

tape threaded through the dispensing slot;

the roll hung from a belt in the dispenser.

masking, packing, flooring, sheathing, seam, or other non-drywall tapes;

The flags above keep that statement from expanding into unclaimed roll geometry or other tape classes.

Before loading: prepare the wall, tape, tool, and belt as one system

Prove the joint is ready before making the roll convenient

A dispenser can make the wrong operation faster. Do not load the session until the substrate decision is made:

Board edges are supported, fixed in one plane, and do not pump under hand pressure.

Proud screws are corrected with the proper driver; broken-paper or missed-support fasteners are corrected rather than buried.

Gaps and damaged core are prefilled as the selected panel/compound system requires.

Old loose tape, compound, paper, paint, moisture damage, and the cause of a recurring crack have been addressed.

If old painted or patched layers will be cut, scraped, or sanded, the applicable lead/asbestos assessment and controlled work method are set first.

Paper or mesh has been chosen for the actual joint rather than whichever roll happens to be loaded.

Inspect the 09090 without inventing its mechanism

Start empty. Check that the belt-hanging portion is not bent or cracked, the roll-holding parts retain the roll, and the dispensing slot is clean, smooth enough to feed, and free of dried compound. Run a scrap through the slot by hand before putting the tool on your body.

A specialist retailer describes a retaining pin, but that field remains contextual rather than an accepted product claim. Use the mechanism visible on the physical tool; do not force a part because an unverified description suggests it should lift.

Inspect the roll

Reject or trim back:

paper with crushed, wet, swollen, delaminated, grit-embedded, or compound-stiffened edges;

mesh whose adhesive face has collected drywall dust, hair, fibers, oil, or dried compound;

a roll that has telescoped sideways so far that its edges rub the dispenser;

a loose roll that springs into loops as soon as its wrapper comes off;

any roll that exceeds the stated width/length ceiling or cannot turn freely in the loaded tool.

Do not “save” contaminated tape inside a joint. A hard crumb under paper becomes a bump and a scratch under the embedding knife; contaminated mesh adhesive produces a lifted edge that compound cannot retroactively bond to the board.

Set up a belt that carries the tool, not your trousers

Use a sound work belt that holds its position with the roll aboard. Confirm the hook seats fully on the actual belt and cannot fall free during a dry draw.

Trade setup puts the roll on the hip opposite the primary knife hand so the tape can be drawn across the body while the knife and pan side remains clear. That is a starting point, not a Hyde claim. Reverse it if the physical tool, dominant hand, pouch layout, or injury history makes the other side cleaner. The correct location has four properties:

the roll clears the forearm and the pan;

the slot can be seen or found by touch without twisting the trunk;

the bottom of the tool does not strike the thigh or knee while walking;

the tape draws away from the body, not toward skin, clothing, pouches, or a ladder rail.

Load the belt conservatively. If the full roll drags the belt down, changes gait, or makes the back/hip compensate, use a smaller roll or redistribute the belt rather than accepting the strain as the price of “professional” capacity.

Load, orient, and route the roll

Load the roll with the dispenser off your body

Loading at a bench or over a clean drop cloth keeps a dropped roll out of floor dust and keeps both hands available. Open or release the physical fast-load mechanism, seat the roll fully in the holder, and close/resecure it. Rotate the roll by hand before threading.

The pass test is mechanical and observable: the roll is retained, centered enough not to rub, and turns without catching through a full rotation.

Choose the unwind direction by the slot, not by habit

Orient the roll so the tape takes the shortest untwisted path into the dispensing slot and leaves with the working face presented correctly:

Paper: either face may appear similar, but the strip must remain flat and untwisted from roll to slot.

Self-adhesive mesh: keep the adhesive face from touching dirty metal, clothing, or fingers more than necessary; the face that will bond to the board must arrive exposed and uncontaminated.

Thread it, draw several feet, and read the result. If the tape scrapes a side, curls into the body, twists, or tries to pull the dispenser off the belt, remove the roll and reverse the unwind.

Thread a usable leader through the dispensing slot

Square the free end first; a tapered ragged end is harder to route and more likely to split. Feed it through the slot in the direction the physical tool permits. Pull enough leader to grip without reaching fingers into the tear area. Keep the strip centered and flat.

If the leader will not pass with light pressure, stop. Look for a folded edge, wrong route, dried compound, a roll seated off-center, or a tape class the tool does not claim. Pushing fingers or a metal pick blindly into the slot trades a feed problem for a cut or damaged tool.

Dry-test feed and tear before the joint is wet

Hang the loaded dispenser on the belt, stand over a clean drop cloth, and draw a short test length. The roll should turn, the tape should stay flat, and the tool should remain seated. Then make a test tear using the physical slot's tear-off surface.

On the tool in hand, establish the safe motion before mud is open: keep the non-pulling hand away from the slot, draw the tape taut, and move it firmly against the tear surface in the direction that severs it without pulling the dispenser off the belt. If a slow peel makes a long tail, reset and use a decisive snap. If the tool has no obvious safe tear action, cut the tape with an appropriate separate tool away from the body rather than improvising against an unknown edge.

Measure and stage without turning the roll into a tangle

Plan the room before pulling lengths

List the tape runs in the order they will be worked:

flat ceiling and wall joints that take paper;

butt joints and short stubs;

inside corners, measured and folded as separate paper pieces;

repair seams that will take self-adhesive mesh;

outside corners, which receive the specified bead system—not tape from this dispenser.

Paper and mesh should not be switched casually mid-run. They use different first-coat sequences and may use different compound systems. If both are in the same job, stage and label the work before loading one roll after the other.

Measure from the actual joint, not from memory

For a short seam or corner, measure the actual run with a tape measure or present the dry tape along the path without sticking it, mark the required length, then tear. For a long flat paper joint, the worker may pull as the joint is worked, but should know the end point and obstruction plan before the bed coat begins to skin.

Cut paper to terminate cleanly at the joint's actual boundaries rather than forcing extra tape into an inside corner or leaving it bunched at trim. No universal “leave exactly X inches” rule is stated here; junction details and tape-system instructions control overlaps and terminations. A belt dispenser reduces retrieval time, not the need to measure.

Keep only one live leader

After every tear, leave enough leader presented for the next clean grip. Do not pull multiple loose lengths and drape them over ladders, shoulders, or dusty floors. Pre-cut only when the pieces can be laid flat on a clean protected surface in sequence.

For mesh, fold a small non-working tab onto itself only if the tape maker permits and only outside the installed length; otherwise preserve the adhesive and keep the live end parked in the slot. For paper, do not tuck the free end under a wet belt hook or into a muddy pocket.

Method A — paper tape on flat joints

Apply the bedding coat before drawing tape

Load the joint with the tape-compatible compound and knife specified by the full taping system. The bed must be continuous, a little wider than the tape, and free of dry skips and cured crumbs. Work a length that can be taped and embedded before the compound skins.

The 09090 does not carry mud. It cannot rescue a dry or starved bed. If the compound has begun to skin while the roll is being sorted, scrape and renew the bed rather than pressing tape into it.

Pull and tear while keeping the pan under control

Park the pan securely. Reach to the belt, pull the required length with the free hand, and tear against the dispenser's established tear-off surface. Do not perform the tear over an open pan, where a paper tail or metal burr can drag crumbs into the mud.

If solo, the practical rhythm is:

bed one manageable run;

pull and tear the paper;

place it immediately;

embed it before bedding another run.

Convenient tape can tempt a worker to butter several seams, then return with paper. Resist that temptation. The dispenser has removed the roll delay; it has not extended compound open time.

Center and place by hand

Touch the tape into the wet bed along the seam, straight and relaxed. Correct line while the tape is merely parked. Do not stretch paper from the dispenser to make a short piece reach; damp paper relaxes and can wrinkle. If the piece is short, remove it while wet and cut the right one.

The dispenser remains at the hip. It does not track the joint, press the strip, or keep the centerline for you.

Embed with the joint knife

Wipe from the middle toward the ends with firm, continuous pressure. Remove excess while leaving a thin uninterrupted bond line under the paper. Lift and re-bed any dry edge or bubble immediately.

Whole-room finishing still hands off to the full width progression in the method spine.

Method B — paper tape at inside corners

Pull and tear the corner length before wet compound controls the clock

Measure the corner, pull a separate paper length from the belt dispenser, and tear it cleanly. Set the loaded dispenser where its live end remains clean while the corner is bedded.

Do not assume 09090 creases paper. A 1963 drywall-tape-dispenser patent documented a body-worn device with a separate creasing passage, but no accepted 09090 claim names a creaser or comparable feature.

Fold the paper on its factory crease

Crease the dispensed strip sharply and evenly. Paper is the corner material because it holds this fold; self-adhesive fiberglass mesh does not own this geometry.

Bed, place, and embed with the corner method

Apply compound to both faces, place the folded paper into the angle, and embed it with the specified corner tool or with a joint knife one face at a time. Keep a continuous bond film under both wings.

The belt dispenser's contribution to this corner is exactly one clean, measured, dry strip. Calling it an applicator, corner tool, or embedder would inflate the product beyond its claims and beyond the work it performs.

Method C — self-adhesive fiberglass mesh on flat repairs

Keep the board dry and the adhesive clean

Vacuum or brush the stable repair seam clean using the applicable dust-control method. The board must be dry. Do not butter the joint before mesh: the pressure-sensitive adhesive needs direct contact with the substrate, and the compatible first coat comes afterward.

Start the mesh without touching the whole adhesive face

Pull a short leader from the dispenser, align it over the seam, and press only the starting end. Keep light tension between wall and hip so the tape stays straight, but do not stretch the mesh. Walk or reach along the seam, pressing progressively rather than releasing a loose loop that can fold adhesive-to-adhesive.

The 09090 carries the roll; the worker's hand controls alignment and contact. If the tape wanders, lift only as the mesh maker permits. A contaminated or distorted run is cheaper to replace now than to bury.

Tear at the end, then seat the whole run

At the seam's end, hold the installed run flat with one hand clear of the tear path, tension the free tape, and use the tested slot tear. Press the entire run with a clean standard-flex knife or hand pressure so both edges contact continuously and no slack bridge remains.

If the mesh edge curls or the adhesive releases, remove the run, clean and dry the surface, and use fresh tape. Compound over a loose edge does not transform it into a bonded edge.

Force the specified compound through the weave

For Hyde 09062/09004/09065, use quick-setting compound as Hyde specifies. Apply and pressure-pass the material through the mesh so the seam beneath is filled and the weave is fully buried. Do not merely frost the top.

Mesh is not used for the inside-corner method in this guide. The dispenser's ability to carry fiberglass does not change that refusal.

Solo and crew rhythm

Solo paper work

Wear the dispenser opposite the knife side, keep the pan on the working side, and limit the open work to what one person can bed, tape, and embed while wet. The efficient loop is bed → draw → tear → place → wipe → advance. The fixed roll address removes the search and bend from the loop. It does not justify batching all the bedding or all the embedding separately.

Two-person paper work

The clean division is:

worker one beds the next manageable seam;

worker two draws, tears, and places the paper;

the knife hand embeds directly behind while the bed is live.

Depending on crew skill, bedding and wiping may remain with one person while the second handles tape. What matters is not title but distance: the tape placer never outruns the wet bed, and the bedder never opens more seam than the placer and wiper can close.

Unlike a banjo, the belt dispenser does not collapse buttering and placement into one pass.

Solo mesh repair work

Move repair to repair with the roll on the belt and no compound open yet. Clean and stabilize all repair seams, then apply and seat the mesh. Mix only the setting compound that can be worked inside its labeled window and return to fill the taped repairs in a planned order.

Crew mesh work

One worker can prepare and place mesh while the compound worker follows only if substrate cleanliness and the compound's clock remain controlled. The dispenser is useful because the tape worker's hands return free after each pull; it is not permission to cover uncertain cracks faster than they can be diagnosed.

Jams, tangles, tears, and feed faults

The tape becomes hard to pull

Stop rather than yanking the belt. Remove the dispenser from the body and check, in order:

Is the roll rubbing a side or retaining part?

Has the tape twisted between roll and slot?

Is a paper edge crushed or swollen?

Has mesh adhesive transferred to a dirty slot?

Is dried compound narrowing or roughening the feed path?

Has the roll telescoped sideways?

Correct the cause, re-thread, and dry-test. A harder pull is not “more control”; it is stored energy that ends as a sudden tear, a tool pulled off the belt, or a twisted back.

The roll bird-nests or unspools around the leg

The roll has too little restraint, the free end was left too long, or movement pulled tape without the worker noticing. Stop walking. Do not step through the loops. Remove the tool, rewind clean tape with dry hands, trim contaminated or creased material, and leave a shorter presented leader.

Do not invent one in instructions. If the physical tool has an adjustment, use its actual maker directions; otherwise manage leader length, roll orientation, and belt position.

Paper tears before the intended point

Look for a nicked edge, wet/swollen paper, a damaged roll rim, a burr or cured compound at the slot, a twist, or a snatched draw. Cut back to full-width sound tape, clean the path, and pull smoothly. Do not bury a tapered half-width tail at the end of a joint.

Mesh sticks to itself

Do not pull the folded adhesive faces apart and install a stretched, distorted strip. Cut away the fold, preserve the remaining roll from dust, and restart with light tension and progressive placement. Mesh handling is about keeping the adhesive face clean and the strip relaxed.

The tear is ragged every time

Confirm the tape is taut, square to the tear surface, and being moved in the safe direction established during the dry test. Clean the slot. Try sound tape from deeper in the roll.

The dispenser lifts off the belt during a draw

Stop using it on that belt position. The hook may be incompletely seated, the belt may be too soft/narrow for the unverified hook geometry, the roll may be binding, or the pull direction may be prying the tool upward. Resolve the physical fit and feed drag before resuming.

Cleanup, dry storage, and roll protection

Remove compound before it becomes a feed feature

At breaks and day's end, wipe fingerprints, splatter, and crumbs from the dispensing slot, roll-contact surfaces, and belt-hanging portion. Use the least moisture needed, then dry the tool fully. Do not let joint compound cure in the slot; a tiny hard ridge can abrade paper, collect mesh adhesive, and turn every later tear ragged.

Hyde's accepted construction fact is plated steel. Do not promise rust immunity, solvent resistance, or safe immersion. Keep the tool clean and dry because that protects both the unknown finish and the next roll of tape.

Store tape as a consumable, not as a permanent part of the tool

For overnight or longer storage, remove the roll unless the physical maker instructions expressly say otherwise. Return paper to dry packaging or a clean sealed container where edges cannot crush or absorb humidity. Protect mesh from dust and keep its live adhesive end from bonding to dirty steel, cardboard fibers, or itself.

Never store a damp paper roll hoping it will dry round. Water changes the paper, can delaminate edges, and brings compound contamination into the next joint. Cut back or discard compromised material.

Store the dispenser unloaded and unbent

Dry it, keep the slot clear, and hang or shelf it where the belt hook and roll-holding parts cannot be crushed.

Before the next use, repeat the empty inspection and scrap-feed test. Storage is complete when the next roll can enter clean metal, not when today's roll is merely off the belt.

Buyer and doer comparisons

09090 vs a bare roll

Choose 09090 when hand taping is the right method and the recurring problem is roll location, floor contamination, tangling, and two-handed retrieval. Keep the bare roll when the work is one isolated length and adding a belt tool creates more setup than it removes. The dispenser's case is continuity and cleanliness, not a stronger joint.

09090 vs 09077 banjo

Choose 09090 when the tape should remain dry until it reaches the wall: patches, short runs, inside-corner lengths, mesh repairs, and hand-taping work where control matters more than mechanizing the bed coat. It has no compound chamber to fill, tune, or wash.

Choose 09077 when a room's paper-tape footage makes buttering every seam the bottleneck. The banjo delivers tape already carrying compound, then still hands the joint to a knife for embedding. It is a method change with load/tune/wash overhead. The 09090 is an accessory inside the hand method.

Paper in 09090 vs mesh in 09090

Choose paper for general flat joints and every inside corner; plan a bedding coat and embedding wipe. Choose Hyde self-adhesive mesh for suitable clean, dry, stable flat repairs when using Hyde's specified quick-setting compound; place it directly, then force compound through the weave. The dispenser carries both. It does not decide between them.

09062 vs 09004 vs 09065 in this dispenser

a few short repair seams → 09062, 50';

repeated repair seams through one renovation → 09004, 150';

continuing repair/remodel consumption → 09065, 300'.

All three are the same white 1-7/8" self-adhesive mesh family. Longer is not stronger, and 09090's ability to carry a 500' roll is not a reason to buy more consumable than the work will use.

09090 plus 02870 and 09012

This is a coherent hand-taping work cell, not a mandatory bundle: 09090 feeds dry tape; 09012 holds working compound and wipes blades; 02870 can bed/embed a repair-scale paper seam or force the first compatible coat through mesh. A whole room still needs the wider knife progression and coat sequence in the full taping guide.

Safety boundaries that actually matter

Keep fingers, clothing, and the non-pulling hand out of the slot path.

Never pull tape while climbing a ladder, stepping over debris, or walking backward. Stop, establish balance, then draw. A belt-hung roll can catch a rail, stud, pouch, cord, or door handle.

Keep the tool from changing gait. If a large roll drags the belt or strikes the thigh, reduce the roll or change the belt setup.

Do not yank a jam. Remove the tool from the body and diagnose it. A binding roll can pull the dispenser off the belt or twist the worker.

Use the tape and compound system's protective controls. Setting compound mixing and sanding create dust; follow the current SDS, ventilation, eye, skin, and respiratory directions. Do not sand exposed fiberglass mesh.

Old-layer hazards are conditional, not boilerplate. If this job cuts, scrapes, or sands pre-1978 paint or plausibly asbestos-containing old joint/patching compound, use the applicable assessment and controlled process. Fresh board does not acquire an old-building hazard because a dispenser is present.

Keep paper and electrical wet work separate. The dispenser remains dry, but paper hand taping uses wet compound. Protect circuits and work areas as the actual room requires.

What goes wrong — cause first, then correction

Paper bubbles after embedding. The dispenser did not cause or prevent this. The bed was dry, skipped, contaminated, or wiped starved. Lift and re-bed while wet; cut out and re-tape an unattached dry section.

Mesh re-cracks. Check active movement, backing, first-coat chemistry, and whether compound was forced through the weave. Belt delivery changes none of those structural conditions.

Tape carries grit into the joint. The roll, leader, hand, or slot was contaminated. Stop, cut back to clean tape, clean the dispenser, and protect the roll. Do not press the grit in and plan to sand the bump away.

Every paper piece is too long or too short. The worker is using body movement as a ruler. Measure the joint or present the dry tape before tearing; the slot gives a clean end, not an accurate length by itself.

Inside-corner paper will not sit in the crease. The strip was not sharply folded, was cut long, or the compound bed/placement is wrong. 09090 is not a creaser. Hand the strip to the inside-corner method.

Mesh falls off before compound. Dust, dampness, handled adhesive, old tape, or stretching defeated the bond. Remove it, clean/dry the board, and apply fresh tape.

The dispenser feels slower than a floor roll. Belt position, unwind direction, slot cleanliness, or roll geometry is wrong—or the job is only one piece of tape and did not need the accessory. Correct the setup or use the bare roll honestly.

The crew still makes two trips down every paper seam. Correct: the dispenser never promised otherwise. It fixes where the roll lives. A banjo is the rung that combines compound and tape delivery.

History — the belt dispenser is an old drywall problem with no safe single-inventor story

Wallboard created the tape problem. Augustine Sackett's [U.S. Once walls arrived as panels and tape arrived as a roll, the finisher had a new logistics problem: hold, measure, sever, and keep that roll beside a moving body.

The patent record proves that body-worn drywall-tape dispensing was already an explicit tool class by the early 1960s. Austin L. Meeks's [U.S. Patent 3,086,723]( filed in 1962 and issued in 1963, described a drywall tape dispenser hooked over the worker's belt and tied at the thigh, with adjustable hip placement, a replaceable roll, flat feed, and a separate path able to crease tape for corners. The patent itself says it improved on Meeks's 1960 co-pending application. That makes Meeks a documented patentee of one early body-worn form—not “the inventor of the belt tape dispenser.” Earlier tape holders existed, trade-built devices often evade the record, and no source reviewed here establishes a first.

A parallel branch was already developing: tools that sent tape through compound while dispensing it. Luther Bennett Jr.'s [U.S. Patent 3,496,909]( filed in 1966 and issued in 1970, describes a hopper that coated wall-joint tape with paste and varied the applied thickness. It documents the wet-delivery branch that also includes banjos and automatic tapers; it does not prove ancestry for any particular later tool. The belt dispenser stayed on the dry branch: no compound chamber, no metering, no cleanup ritual, because it preserved hand taping rather than mechanizing it.

The 09090 is a modern expression of that dry branch: plated steel, belt hung, a dispensing slot, paper-and-fiberglass capacity, clean tear-off. The defensible history is better than a false origin story: for at least six decades, finishers and toolmakers have kept returning to the same small problem—the tape roll must move with the worker without becoming the work.

Manufacturer and primary historical sources

Hyde — Drywall Tape Dispenser: exact variant 09090; fast-loading design; all paper and fiberglass drywall tape rolls to 2-1/4" wide and 500' long.

Hyde — Self-Adhesive Mesh Drywall Joint Tape, White and Hyde 2024 catalog: 09062/09004/09065 identities, lengths, 1-7/8" family width, self-adhesive construction, and quick-setting-compound requirement.

[U.S. Patent 3,086,723]( filed 1962, body-worn drywall tape dispenser with belt/thigh attachment, adjustable hip placement, flat feed, and an optional creasing path; evidence of the class, not a first-inventor ruling.

[U.S. Patent 3,496,909]( filed 1966, wall-joint tape dispenser that coated tape in a paste hopper; evidence of the wet-delivery branch, not ancestry claimed for 09090.

Loading construction: fast-loading is accepted; exact opening, retaining pin/gate/spring/clip, moving parts, service method, and load direction are unstated. Retailer “lift retaining pin” language is contextual only.

Tape path and tear construction: slot feed and clean tear-off are accepted; slot dimensions, exact routing, over/under unwind, tear direction, cutting-edge material, cutter/serration/blade presence, finger clearance, replaceable parts, and creasing function are unstated.

Roll fit beyond the accepted ceiling: paper and fiberglass drywall rolls to 2-1/4" × 500' are accepted; maximum outer diameter, core inside diameter/width, hub/side-clearance geometry, roll weight, and nonstandard reinforced/composite corner-roll fit are unstated.

Body and belt fit: plated steel and belt hanging are accepted; plating chemistry/thickness/finish, steel grade/gauge, body dimensions, empty/loaded weight, hook dimensions, compatible belt width/thickness, secondary retention, side orientation, and ergonomic load limit are unstated.

Care and environment: no accepted corrosion rating, immersion/solvent tolerance, wet-use rating, cleaning chemical, or storage instruction exists. Clean-and-dry guidance is trade care.

No method inflation: 09090 does not claim to wet, mud, place, press, crease, align, embed, or coat tape; it does not change compound compatibility or make mesh suitable for corners.

History: no verified first inventor of the drywall belt dispenser; no verified Hyde launch date, designer, patent, or descent from the cited patents. The patents document forms and dates only.
