How to Roll from a Bucket and Grid

Result: an evenly charged roller, a uniform working reservoir, controlled pauses and moves, and every component and waste stream closed out under the coating maker's instructions.

Time: several minutes to inspect and dry-fit, then normal rolling time; cleanup starts while the coating is wet. The coating label controls pause, cleanup, and reuse intervals.

Difficulty: easy mechanics, disciplined rhythm. The grid cannot correct a wrong container, cover, coating, or dirty setup.

Everything else: a clean, sound, coating-compatible bucket that securely accepts the physical grid; exact label, TDS, and SDS; compatible roller frame and cover; authorized mixing equipment; fitting temporary cover; drop protection; rags; a separate edge-work setup; and the named cleanup, storage, and disposal equipment. None is a registered product backlink.

Before you start: decide whether the station earns its setup

Choose bucket-and-grid for production, not ceremony

A grid pays for itself when repeated tray refills would interrupt the work: several connected walls, a large ceiling, an open commercial field, or another continuous surface consuming a meaningful share of a bulk batch. The method keeps a deeper supply beneath the loading face, returns excess directly to that supply, and shortens the reload cycle.

A tray remains better for a small room, accent wall, touch-up, mini roller, frequent color changes, or a coating that demands a small controlled batch. Two-part and time-limited systems are not automatically bucket jobs; their ratio, mixed quantity, induction period, pot life, and disposal rules come from the manufacturer. Job size does not overrule coating chemistry.

Surface preparation, nap selection, wet-edge control, backrolling, and recoat time belong to the coating maker and surface guide. This job begins when a verified coating and applicator reach the station.

Read the coating before choosing the container

Confirm product, batch or lot, substrate, environmental limits, agitation, applicator, cleanup, and waste route from the exact label/TDS/SDS. Do not use a generic “latex” or “oil” rule to select container, grid contact, cleaner, or disposal.

Hold if the coating maker prohibits open-container application, requires absent controls or proprietary equipment, or does not establish compatibility with the system.

If several cans feed one continuous surface, reconcile them before installing the grid. This guide assumes one correct, uniform batch.

Inspect every physical component

The bucket must be clean, dry where required, sound, stable, and equipped with a reliable moving method. Reject softenable residue, cured chips, cracks, distorted rims, handle damage, or a rocking bottom. An empty vessel with unknown prior contents is not a clean paint bucket.

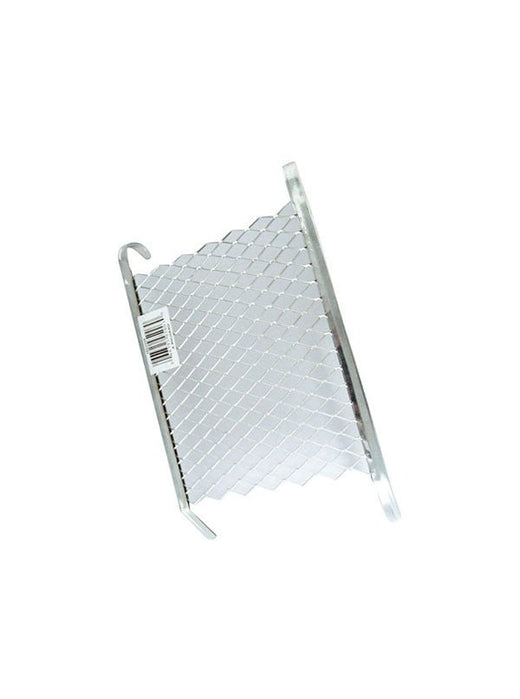

Inspect 95003 as the metal grid it is documented to be. Hold it for sharp damage, loose joints, bending, flaking residue, corrosion, contamination, or anything that could shed, cut the cover, or defeat mounting. This condition screen makes no construction claim.

The cover must rotate freely, stay seated during a dry roll, match the coating and surface, and be free of old paint, lint, grit, and flat spots.

Dry-fit the exact 95003, bucket, frame, and cover

Before filling, place the empty bucket on protected level floor and position the grid as exact instructions show. At class grain, the wiping face stands above the reservoir so excess passes through and returns; patents document several retained forms but do not prove 95003's mounting geometry.

The physical fit must answer four questions:

Does the grid seat without forcing, bending, filing, cutting, or modifying either part?

Does it remain positively located when the dry roller travels over the full intended wiping path with normal contact?

Does the frame and cover clear the bucket rim, grid edges, and bucket wall through loading and withdrawal?

Can the roller width use the working face without striking an edge or escaping the grid?

Any “no,” interference, rocking, jump, scrape, or need to hand-hold the grid is a fit hold. Do not bend the grid, modify the rim, or infer width compatibility.

Set the station where the work can actually use it

Put the bucket on full drop protection, on level floor, outside the walking line but close enough that reloading does not require carrying a wet roller across the room. Keep it away from stairs, door swings, cords, heaters, floor openings, and the arc of ladders or lifts.

Plan a clear approach with drips over protection and tools outside the walking line. Keep the brush-and-pail edge station separate so its debris does not return to the roller reservoir.

Build and charge the station

Condition the coating before the grid goes in

Open, stir, mix, strain, combine, and rest the coating exactly as its instructions require. Work the vessel floor and perimeter rather than merely spinning the surface. Remove skin intact; do not beat it into flakes. If the supply contains cured crumbs, unidentified lumps, or debris, stop and use the coating maker's approved filtration route into a clean vessel. The grid is not a strainer. Its openings return excess coating; without a separate verified filter, they also return contamination.

Withdraw any pristine touch-up reserve before the grid, roller, or working tools contact the supply. Label it from the finished batch. Once the roller has visited the wall and returned, the working reservoir is exposed to dust, fibers, and debris from the job.

Add a workable charge, not a brim-full burden

Transfer only the quantity that leaves safe headroom for the grid, roller dip, circulation, and movement. The correct level is a functional relationship, not a universal number: deep enough for repeatable contact with the cover's nap, low enough that the cover's core and frame ends need not be submerged, and low enough that a normal roll-down cannot send coating over the rim.

If the bucket must be filled near the top to make the cover reach, the station geometry is wrong or the working charge is being chased beyond its useful depth. Stop and choose a compatible station. This guide does not claim a capacity for the 95003, a bucket, or a cover, and does not convert the store title into a fill line.

Install the verified-dry-fit grid without dropping dried residue into the batch. Confirm it is still positively located. If adding liquid changes the fit, exposes a coating incompatibility, or makes the grid float, pivot, or release, remove it under the coating's handling instructions and hold the setup.

Prime a clean cover deliberately

Follow the cover and coating makers' preparation instructions. Some waterborne workflows call for a compatible preconditioning step; other materials do not. No universal dampening rule crosses coating systems.

For the first load, introduce coating around the nap in several light dip-and-meter cycles instead of drowning a dry cover at once. Rotate the cover by rolling it on the grid, not by dragging it sideways. The goal is an evenly wetted circumference with dry frame hardware and core openings, no dry bands, and no streams falling from the ends.

Run the production rhythm

Dip the nap, then let the grid meter

Lower the cover until the nap contacts the coating. Avoid submerging the cylinder, frame ends, or core. Bring the roller onto the lower working portion of the grid without striking the bucket rim. Roll upward and back down with moderate, even contact so the grid spreads the charge around the cover and excess passes through to the reservoir.

The exact number of passes is whatever produces an even, controlled load with the actual cover and coating. “Two or three” is common class technique, not an exact 95003 performance specification. Watch and listen:

an evenly charged cover has the same wet appearance around its circumference;

heavy ropes from the ends, drops from the frame, or a roller that slides instead of turns mean overload or a binding core;

dry bands mean incomplete wetting, poor rotation, or too little contact;

a grid that flexes, walks, lifts, or rattles out of position means the fit or pressure is wrong.

Do not mash the cover into the metal. Pressure does not force more useful coating into the nap; it wrings the load out, can deform components, and encourages the roller to skid. The grid is a metering face, not a washboard.

Read the wall's return signal

Carry the charged roller to the work without pointing a loaded end at finished surfaces. Apply under the surface guide's rolling method. Return before the cover runs dry enough to hiss, skip, or require pressure. A production station becomes efficient when the roller is reloaded at a consistent state—not when every last trace is squeezed onto the wall.

On return, keep the sequence identical: controlled dip, full rotation on the grid, visual load check, back to the work. Change only one variable at a time when tuning the rhythm. If the first load drips, reduce dip depth or add a metering pass. If it starves early, make sure the entire circumference is charged before increasing the working amount. If one end carries more, inspect frame alignment, cover seating, grid contact, and operator angle before blaming the coating.

Keep the reservoir one batch

Check the coating at the interval its manufacturer requires and after any meaningful pause. If settlement appears, remove the grid and condition the batch with the authorized tool; do not use the roller or grid as a mixer. Scraping the bucket floor with the cover loads sediment into one part of the nap and can damage both the finish and the cover.

Top up before the level becomes awkward, using already reconciled coating. Do not pour an unstirred new can into the station halfway across a wall. Either the can belonged in the boxed batch at the beginning, or the surface stops at a natural break while the larger supply is reconciled and proved.

Keep the grid openings free enough to return excess. If wet buildup begins bridging them, stop rolling and clear the working face only by a method compatible with the coating and grid. Never strike the grid against a full bucket or scrape it with an unverified tool over the supply; either act can release cured debris or upset the station.

Pauses, moves, and end of application

Pause without drowning the cover

For a brief interruption, keep the cover out of the liquid and over the reservoir only if the physical station securely supports it and the component makers permit that parking position. If secure parking is not established, place the roller in the coating maker's approved temporary hold.

For a longer pause, remove or protect the roller and reduce the coating's air exposure with a compatible cover. A lid set loosely around a protruding frame is not a sealed storage method. Pause duration, cover method, agitation on return, and whether material may remain in the working bucket come from the exact coating instructions.

Move the station as a container job

Stop rolling. Remove or secure the roller by an authorized method; do not carry the bucket with a frame projecting into the path. Clear the route and confirm the destination is protected and level. Move only a quantity and configuration the bucket maker permits and the worker can control without twisting, spilling, or losing the bail. Split the working charge or obtain help when needed.

Carry the bucket by its designated handle, not by the grid. The 95003 is the metering tool and has no accepted lifting, restraint, or load-bearing claim. At the new station, set the bucket down before reinstalling or checking the grid, then repeat the stability check.

Return usable coating without returning contamination

At the end of application, decide the coating's next state before dismantling. If the material remains usable and the manufacturer permits storage, remove the grid and roller without shaking debris into it. Inspect the working batch. Paint that has hosted a roller is working material, not pristine reserve. Do not pour it into the clean touch-up reserve.

Whether working paint can return to its source container depends on cleanliness, chemistry, storage plan, and manufacturer instructions. When the risk is uncertain, preserve the clean source and segregate the smaller working quantity for its authorized reuse or disposal route. Never mix unlike products or unidentified leftovers to save a container.

Cleanup and closeout

Recover wet coating, then clean by exact chemistry

Hold the grid over the working vessel and allow freely draining coating to return without banging or whipping the part. Remove remaining wet coating only with a tool and motion that cannot damage the grid or introduce foreign material.

Clean the roller, frame, grid, and bucket using the exact coating label/TDS/SDS and each component maker's instructions. “Metal” does not authorize a solvent; “waterborne” does not automatically authorize a sink; and the ability to scrape a generic metal grid does not prove that 95003's finish can tolerate wire brushing. If component instructions conflict with coating cleanup, quarantine the component and obtain a ruling rather than improvising.

Collect rinse water, solvent, coating solids, filters, rags, and residue under the local waste route. The U.S. EPA warns that paints and other household products can require special disposal and that pouring household hazardous waste down drains, on the ground, or into storm sewers can cause harm; it directs users to product labels and local environmental or solid-waste agencies (EPA — Household Hazardous Waste). That is a routing rule, not a universal declaration that every leftover coating is hazardous waste.

Dry or protect components in the position their makers require. Store the grid so its working face is not bent and any unresolved corrosion or flaking is visible at the next inspection. Keep its identity with it. Do not return a dirty or damaged grid to the clean-tool rack.

Record the finish state

For a homeowner, use a label and photograph. A crew's station card records:

date, job, room or surface, coat, color, sheen, and coating lot/batch;

bucket identity and condition;

grid model 95003, pre-use condition, dry-fit result, and any unresolved fit note;

roller frame and cover identity, width, nap, and coating approval from their own sources;

pauses, reconditioning, additions, contamination events, and holds;

The application result is separate from the tool result. “Wall complete” does not prove the grid is clean and reusable; “grid clean” does not prove the coating film passed cure or finish inspection.

What goes wrong — and the fix

History footnote: the roller grid has no single hero in this record

The patent trail shows evolution, not a clean invention date. Padco's 1994 Universal Paint Grid patent describes the familiar class as a porous plate held in a paint container so a roller can shed excess, and its prior-art review points to earlier woven, ribbed, hooked, and bucket-mounted loading devices. A 2006 Wooster Paint Roller Grid patent treats grids as already well known and describes the enduring physics: the wiping surface distributes coating around the cover while openings let excess drain back into the container.

Will it fit a 9-inch roller? Unverified. Dry-fit the exact frame and cover; this guide establishes no width.

An 18-inch roller? No compatibility is established; treat that tier as a separate system unless the manufacturer proves fit.

How much paint? Enough for nap contact with safe headroom. Keep core and frame out; no component capacity is claimed.

How many grid passes? Enough moderate passes to wet the circumference and remove streams. “Two or three” is class technique, not a performance promise.

Submerge the roller? No. The nap carries coating; a drowned core causes end drips.

Does it strain paint? No. It returns coating and debris alike; use specified filtration.

Can the roller park on it? Only with an authorized stable position and permitted pause.

Carry it assembled? Remove or secure the roller and follow bucket instructions. Never lift by the grid.

Stain, sealer, epoxy, or solvent coating? No compatibility list is accepted. The exact manufacturers must admit contact.

Scrape dried paint off? “Metal” proves no scrape or wire-brush tolerance. Clean wet as authorized; get guidance for cured residue.

When is a tray better? Small quantities, short sessions, mini rollers, color changes, and time-limited batches. Use the grid when continuous reloads justify it.
