How to Replace the Blade on a Pull Scraper

The exact reciprocal-link denominator is four Hyde replacement-blade products: 11100, 11130, 11135, and 11170.

Job: remove a spent, damaged, loose, or mismatched blade from an identified manual pull scraper; inspect the holder and seat; install the claims-backed replacement without forcing or altering it; prove retention and alignment with a controlled witness pull; and return the scraper to work only when the whole assembly reads correctly.

Difficulty: mechanically modest, consequence-sensitive. A blade that enters a holder can still be wrong, uneven, loose, or misaligned. “It went in” is not a release test.

| Replacement blade | Claims-backed host | Exact role in this guide |

Pack count changes supply, not fit, installation, grind, or performance. |

This guide invents no driver, replacement fastener, lubricant, adhesive, cleaning chemical, PPE specification, or torque.

First decision: does the blade need changing?

A slow scraper is not automatically asking for a new blade. Stop the pull and read the symptom before opening a replacement.

Normal edge exhaustion

The working edge needs noticeably more downforce than it did on the same material, skates over failure it previously lifted, makes dust where it made shavings, or leaves an inconsistent strip despite a straight pull. That can be ordinary wear. Whether another documented edge may be brought into service belongs to the blade’s edge-management procedure, not to improvisation during this job. This page owns the replacement event; the neighboring edge-rotation guide owns getting every edge out of a blade.

Sharpening is a separate operation with a separate material boundary.

Assembly failure, not edge wear

Stop the scraper as an assembly if the blade shifts, rocks, sits proud on one side, changes position between strokes, produces sudden chatter after previously cutting cleanly, or leaves a repeated corner track. Also stop for a loose or damaged retainer, cracked or distorted holder, missing component, stripped or deformed service feature, unexplained shim, adhesive, substituted part, packed seat, or evidence that the blade has been moving against the holder.

Do not tighten first and inspect later. Movement leaves witness marks that help distinguish contamination, damage, wrong fit, incomplete seating, or a failed retention component. Preserve those marks until the cause is understood.

A mismatch

Stop when the blade identity does not agree with the host: 11100 belongs to 10520; 11130 or 11135 belongs to 10540; 11170 belongs to 10610 under the exact held claims. A shared width is not compatibility. Do not cross them, shim them, alter them, or treat a blade already found in a holder as proof that it belongs there.

If the host model cannot be established, the job stops at identification. A replacement blade is cheaper than a damaged surface, but neither is cheaper than releasing an unknown assembly.

Compatibility proof — close this before the package opens

Compatibility proof asks whether the exact replacement is claims-backed for the host. Installation proof asks whether the physical blade is correctly seated, retained, aligned, and serviceable under the host’s actual instruction. A correct model can be installed badly; a wrong one can appear to install correctly. Close both proofs.

Capture the host identity

Clean only enough exterior dirt to read the tool without disturbing the blade seat or retainer. Record the host’s exact model from a durable mark, controlled purchase or tool record, original packaging, or another reliable identity source. Do not identify it solely by handle color, apparent width, grip shape, length, or resemblance to a product photograph.

Use physical features only as a cross-check, not as the source of fitment. If the recorded model and the observed system disagree, preserve the contradiction and stop. Do not choose whichever identity makes the replacement in hand convenient.

Capture the incoming blade identity

Keep the blade in its package or edge-safe carrier while recording the exact product number and description. For 11130 and 11135, note the only supported product difference: 11130 is the Individual variant and 11135 is the 2-Pack. The blade itself is the same. Do not infer a different mounting procedure from the package count.

Inspect the incoming blade without tracing a finger along any edge. Reject or quarantine a blade with a chip, bend, crack-like line, corrosion or contamination at the seating area, damaged locating or retained surface, or identity that cannot be reconciled with the package. New means unissued; it does not mean automatically undamaged or compatible.

Make the exact claims-backed match

Use the four-row table above as the admission gate. It permits:

10520 with 11100;

10540 with 11130;

10540 with 11135;

10610 with 11170.

It does not permit 11100 and 11130/11135 to cross between the 10520 and 10540. It does not promote the 11130 store-title mention of 10280 into an accepted fitment. It does not promote the 11171-family statement about 09190 into an unqualified 11170 claim.

Before loosening anything, have the current instruction that matches the exact host and the mechanism actually observed. It must provide enough information to recognize the service feature, preserve or establish the correct blade arrangement, operate the retainer, and judge the final state.

If the physical job requires one of those facts and the exact instruction does not provide it, stop. Do not copy a method from a neighboring scraper or from a video about a family member and call it universal.

Bench setup — isolate the job and control the edge

Stop, isolate, and secure the manual tool

End the scraping stroke, clear the work surface, and carry the complete scraper to the bench with the working edge controlled and pointed away from incidental contact. This is a manual hand-tool service event; do not invent a machine lockout ritual for it. Isolation here means no active scraping, no person holding the work, no loose blade at height, and no possibility that the tool can slide, fall, or be grabbed as ready for use.

Lay the scraper in a stable orientation that the exact service instruction permits. Secure the handle or body against movement without clamping across an unsupported blade, distorting the holder, or loading the working edge. The bench should let both hands work outside the edge path and should catch the blade and retained parts if they release sooner than expected.

Establish one-part control

Clear unrelated blades and hardware from the bench. Work on one scraper and one replacement at a time.

Set a deliberate route for the outgoing blade: holder to controlled hand or carrier to rigid container. Never lay it loose on the bench, slide it into a pocket, leave it on a ladder, wrap it in a rag that someone may unfold, or drop it into a flexible trash bag.

Preserve the as-found arrangement

Before removal, record which face is presented, which working edge is active, how the blade sits relative to the holder, whether it is centered or registered to an observed datum, and the condition and position of every visible retention component. A quick photograph or clear bench note is useful when the arrangement is known to have been working correctly.

Preservation is not proof. If the as-found blade was loose, mismatched, forced, altered, or already tracking a gouge, do not reproduce that fault.

Controlled removal

Protect the hand and contain the edge before release

Use the edge-control method required for the task and workplace. Hold only the non-working faces or the designated carrier area; keep fingertips and the other hand out of the edge line and out of the path the blade could take when retention releases. Do not test whether the old edge is still sharp.

Support the blade before changing retainer load. The aim is that the blade remains controlled if it becomes free, not that a hand catches it after it falls. If the host instruction calls for a cover, fixture, or specific hand position, that exact direction controls.

Operate only the observed, authorized retainer

Follow the exact host instruction to unload, loosen, open, or remove the retainer. Use only the service tool it names. Keep components in order in the tray and preserve their observed orientation.

Do not assume that every pull scraper uses the same fastener or that a knob, screw, nut, clip, plate, or other visible part should be turned, removed, or substituted. Do not add leverage, strike the service feature, apply heat, oil it, grip it with an improvised tool, or defeat a damaged head. When the specified method does not release the blade normally, stop and diagnose the holder rather than escalating force near an exposed edge.

Withdraw the blade without prying

Once the exact instruction’s release condition is reached, remove the blade along the permitted path while supporting its faces. Do not twist it against the seat, lever it on the holder, bend it to clear a component, or drag a working edge across a locating surface.

If the blade will not leave through the authorized motion, stop. Packed residue, deformation, corrosion, a wrong blade, an unrecognized retainer, or a damaged seat can all produce resistance. Prying erases evidence and can spring the holder. Contain the assembly and resolve the cause.

Move the outgoing blade immediately to the rigid container unless the workplace requires it to be retained for failure analysis. If it is held for analysis, use a separate labeled edge-safe quarantine route. Account for any missing fragment before continuing.

Clean and inspect the seat

Read the holder before cleaning

Look first for witness marks, fretting, asymmetric polishing, packed coating, metal displacement, corrosion, a corner that sat proud, or residue indicating the blade never reached its seat. Record anything that explains looseness, chatter, or misalignment.

Then clean only by the method permitted for the host. Remove loose residue from the seating and contact surfaces without grinding, filing, scraping away holder material, rounding a datum, enlarging an opening, or introducing a chemical the tool maker has not approved. A clean seat is the goal; a re-machined seat is not maintenance.

Inspect every part of the load path

Under the exact instruction’s criteria, inspect the holder body, blade seat, contact surfaces, retainer, and required retained parts. Stop for:

a crack, bend, spread, burr, dent, or distortion that changes seating;

stripped, crossed, damaged, deformed, missing, or substituted retention parts;

a service feature that the correct tool can no longer operate normally;

unexplained adhesive, shim, tape, wire, peening, grinding, or field alteration;

contact wear or movement marks inconsistent with a fully seated blade;

contamination that cannot be removed by the authorized method;

any condition for which the instruction supplies no acceptance limit.

This guide does not authorize holder repair, thread repair, replacement hardware, adhesive, shimming, peening, or added tightening force.

Controlled installation

Reconfirm identity at the open holder

Read the host model, incoming blade number, and claims-backed match again. Compare the incoming blade’s seating features and overall physical pattern with the exact instruction and the accepted removed blade when the removed arrangement was valid.

A blade that shares nominal width but presents a different retained shape, contact pattern, edge system, or required arrangement is a mismatch. Never file, grind, bend, drill, shim, stack, or force a blade so it resembles the old one.

Establish orientation without inventing it

Use the host instruction’s orientation. Do not infer the active face from model number, printed packaging direction, rough-versus-smooth appearance, edge count, or how another scraper is assembled.

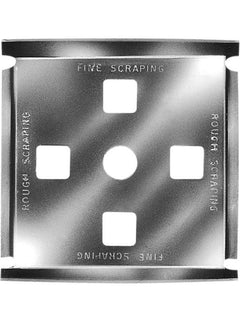

The 11130/11135’s two rough and two smooth edges describe blade roles, not a universal mounting diagram. Edge selection and rotation are neighboring jobs; this job installs the blade in the exact authorized arrangement.

If correct orientation cannot be proved, contain the blade and stop. “Try it and see” is not a safe orientation method because a wrong presentation can gouge the test surface or release under load.

Place and seat without force

Protect the edge, align the blade with the observed interface, and place it along the path permitted by the exact instruction.

The blade should not need hammering, prying, bowing, twisting, or retainer force to pull a mismatch into place. If it will not sit flat, evenly, and without unexplained resistance, withdraw it through the controlled path and compare identities, cleanliness, geometry, and part completeness. Do not use the retainer as a press.

Reinstall every required component in its authorized order and observed valid orientation. Use the exact service tool and tightening or closing criterion given for the host. If the instruction specifies a measured value, use that value and the required controlled tool; if it does not, this guide supplies none.

Do not substitute a generic “hand tight,” “snug,” turn count, torque, threadlocker, washer, nut, screw, clip, or other hardware. Do not copy a value from the 10520, 10540, or 10610 to another host. When a component does not return normally, bottoms unexpectedly, spins, binds, sits crooked, or no longer presents the same complete assembly, stop and quarantine the host.

Retention, alignment, and the witness pull

Inspect before any scrape

With the edge still controlled, compare the finished assembly with the exact instruction and the preserved valid arrangement:

blade identity matches the host;

the blade is fully seated at the required or observed valid datum;

both sides present evenly, with no proud corner or visible skew;

every required retention component is present and correctly positioned;

no gap, trapped debris, forced bend, or unexplained projection remains;

the holder and retainer show no new damage;

the blade does not move under the instruction’s safe non-cutting retention check.

Do not grab, wiggle, or pull on an exposed edge to invent a retention test. If none is supplied, visual and assembly readback do not become permission for an aggressive hand test.

Make one safe witness pull

After the assembly passes its non-cutting checks, make one light, straight pull on appropriate scrap or an inconspicuous area using the host’s normal controlled scraping direction. Keep the test deliberately below production force. Its purpose is to witness even contact and retained position, not to prove maximum strength.

Stop immediately for movement, a click at the holder, sudden looseness, chatter, a repeating corner line, skewed shaving, gouging, or force inconsistent with a fresh correctly seated edge. Return the complete tool to the bench without adjusting it in the field. Preserve the post-test state.

After a clean witness pull, inspect the blade position and retainer again. Only an unchanged, even, quiet assembly returns to ordinary work.

What goes wrong — and the recovery

| What you find | What it means | Correct response |

| The replacement number does not match the host | Compatibility proof failed before installation. | Keep the blade contained. Obtain the claims-backed product; do not cross-fit by width or appearance. |

| The host has no reliable model identity | There is no basis for choosing among the four blade products. | Stop and resolve identity through authoritative records or Hyde. Do not use the old blade as the sole template. |

| The blade looks right but will not seat without force | Wrong product, wrong orientation, contamination, damaged seat, incomplete release, or altered holder can look alike. | Withdraw safely; inspect and reconcile. Never hammer, pry, grind, bend, shim, or let the retainer pull it home. |

| The old blade moved or chattered | This may be a retention or seat failure, not ordinary dullness. | Record witness marks before cleaning; inspect the entire load path. A fresh blade alone does not cure a failed holder. |

| The new blade loosens during the witness pull | Retention verification failed. | Stop, return to the bench, preserve the as-found state, and quarantine blade and host together. Do not add unspecified force and retry. |

| The witness pull chatters but the blade did not visibly move | Misalignment, proud corner, damaged edge, contaminated seat, wrong blade, surface condition, or stroke can produce the same symptom. | Stop and separate assembly diagnosis from scraping technique. Recheck identity, seating, alignment, edge condition, and the test surface before any second pull. |

| The pull leaves one deep line | A corner may be proud, the blade may be skewed, or the edge may be chipped. | Stop at once.

| A carbide edge is chipped | The 11170 working line is damaged and can scratch-track the work.

| A 11130 and 11135 seem different at the bench | The products contain the same blade; only package count is supported as different. | Resolve packaging or identity error. Do not invent a fit or procedure difference. |

| Someone wants to sharpen before reinstalling | Sharpening has different material, geometry, and control boundaries. | Finish or stop this job. Use the separate sharpening procedure only for a blade it expressly covers; this guide authorizes no sharpening. |

| The assembly passes visually but exact orientation remains unknown | Installation proof is incomplete. | Hold the tool. Obtain the exact host instruction rather than using the workpiece as an experiment. |

Keep this job distinct from its neighbors

It does not absorb:

It does not teach sharpening, forecast service life, decide how to rotate rough and smooth edges, or widen compatibility.

A short history footnote

The replaceable-blade pull scraper separates a long-lived holder from a wearing edge. No inventor, first-use, or service-life claim is made here.
