Repair Hairline Masonry Cracks

Job: Prepare, fill, and finish a localized stable nonstructural hairline crack in a sound masonry or cementitious surface

Time: Several hours to multiple days across investigation, drying, preparation, material cure, texture, and coating

Difficulty: Advanced — a hairline can be cosmetic shrinkage, designed movement, water evidence, corrosion, or structural distress, and the wrong diagnosis fails more seriously than a rough finish

Everything else: inspection and crack-monitoring equipment chosen by the responsible professional; substrate- and exposure-qualified repair material; appropriate masonry crack-routing tools where required; brushes and vacuum/extraction; moisture investigation; access equipment; eye, hand, hearing, and respiratory protection; silica controls; texture/finish tools; primer/coating compatible with the repair; lead/asbestos controls for old coatings

A hairline is a description of appearance, not cause. It can be a quiet drying crack in one finish coat, the first visible edge of delamination, a moving control detail somebody previously filled rigid, or water’s path through an assembly.

This job begins with a route decision. When the line is stable, localized, dry, nonstructural, and surrounded by sound material, opening and packing can create a repair with real depth. When the crack is moving or the assembly is failing, two small hand tools must not be used to erase the evidence.

Identify the masonry assembly

Determine whether the visible material is:

concrete block and mortar;

brick and mortar;

cement plaster or stucco;

stone and mortar;

a thin decorative cementitious coating;

synthetic finish or another non-masonry system;

painted material whose base is uncertain.

Record layer, location, exposure, thickness where legitimately known, reinforcement, joints, drainage, and coating. Use drawings, records, exposed edges, testing, or responsible expert findings.

Do not choose filler or opening method from color alone. Lime mortar, dense concrete, stucco finish, block, and synthetic cladding can all present a gray hairline and demand different repairs.

Map the crack before changing it

Photograph the line with scale and location. Record length, direction, apparent width, displacement, branching, and relationship to:

corners of openings;

control or expansion joints;

foundations and roof lines;

penetrations and flashings;

reinforcement or fasteners;

staining, rust, or efflorescence;

interior cracks on the opposite face.

Mark ends through an approved reversible method. Compare prior records and ask when it appeared. A crack that lengthens, widens, closes, or shifts plane is not a stable cosmetic line.

Route structural and active movement out

Stop surface repair and obtain appropriate assessment when the crack is displaced, stair-stepped through units and mortar, widening, recurrent after repair, associated with settlement or impact, accompanied by binding openings, or linked to movement in other materials.

Do not bridge or rigidly fill a designed control, expansion, isolation, or sealant joint. Restore the specified movement system.

If monitoring is required, preserve the crack until the responsible professional has recorded it. Cutting it open early destroys evidence.

Investigate water and salts

Look for active dampness, darkening, efflorescence, rust, biological growth, freeze-thaw scaling, failed sealant, roof or sill leakage, irrigation, grade splash, and interior condensation.

Repair the water source and let the assembly reach the repair material’s moisture condition. Filling a wet crack can trap water, block a drainage path, or push the symptom to a neighboring location.

Efflorescence is evidence of soluble salts moving with water. Do not simply brush it off and coat. Determine why water is moving through the masonry.

Establish coating and dust hazards

Old masonry paint can contain lead, and old surfacing or patching layers can contain other regulated materials. Assess coatings before scraping or cutting.

Mechanical work on concrete, mortar, brick, and similar materials can create respirable crystalline silica. OSHA’s construction silica standard requires exposure controls where it applies. Select wet methods, extraction, restricted access, PPE, and cleanup through the actual task and standard.

Do not dry sweep mineral dust or blow it through occupied space.

Decide whether the crack should be opened

Smearing repair material across a tight line often creates a thin surface skin with little bond area. A stable hairline may need a controlled groove so the specified material can enter and key.

But opening is not automatic. Some injection, penetrating, mineral, or coating systems require the crack to remain in a particular condition. Historic masonry can be damaged by aggressive routing. Thin finishes can delaminate beyond the line.

Read the repair-material and assembly specification first. Establish target geometry from that system, not from the tool’s shape or a generic rule.

Inspect 45400

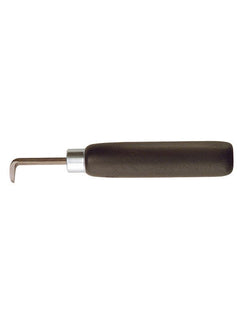

The 45400 is a 6-inch-overall crack opener with a carbon steel blade, hardwood handle, and plated ferrule. Hyde claims it to clean and open cracks for patching.

secure handle and ferrule;

cracks, looseness, mushrooming, bends, or corrosion;

a clean working edge;

control on a representative witness.

Blade-point geometry and grind are unverified. No prying, striking, hammering, or load rating is claimed. Do not sharpen or reshape it by assumption.

Keep the 45400 masonry boundary visible

The 45400’s exact claim does not name masonry, concrete, brick, or stucco. Use it only where the assessed material yields safely to a controlled drawn opening action within the manufacturer’s instructions—for example, loose or soft repair material at the surface.

Do not force it into sound hard concrete, fired brick, stone, or dense mortar. Hard-mineral crack chasing belongs to an appropriate masonry router, grinder, chisel, or other specified method with its own guards and silica controls.

If the edge skates, chatters, dulls rapidly, or requires leverage, stop. That is a scope signal, not a request for more force.

Inspect 45450

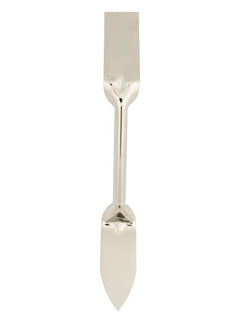

The 45450 is a plated-steel crack patcher claimed for drywall, masonry, and plaster. It has a pointed end and a flat bell-shaped end.

Inspect the tool for:

bends, cracks, sharp burrs, corrosion, or looseness;

smooth surfaces that will not contaminate repair material;

ends appropriate to the prepared groove;

control on a witness.

No dimensions are verified.

The tool places and shapes material. It does not choose the material or establish structural capacity.

Build a small repair witness

Where appearance or material interaction matters, prepare a representative test. Reproduce the substrate, crack geometry, conditioning, filler, finish, cure, and coating as closely as practical.

wetting and bond;

color and texture;

A witness cannot prove a moving wall is stable, but it can prevent a visibly or chemically incompatible repair across a larger field.

Protect adjacent work

Mask or shield only through a method compatible with the substrate. Protect plants, soil, windows, metal, roofing, floor, and drainage.

Establish exclusion around access and dust controls. Keep rinse water, slurry, and mineral debris out of storm drains and soil except through an authorized route.

For exterior work, choose a weather window that satisfies the complete repair system. Wind, rain, direct sun, temperature, dew, and freezing can all change cure and contamination.

Remove unsound surface material

Work from the crack outward only far enough to reach attached material. Use the approved brush, scraper, masonry tool, or 45400 assist chosen in the assessment.

Do not undercut a thin finish until it detaches in sheets. If tapping or light preparation reveals hollow, drummy, spalled, or loose material, stop and enlarge the repair scope through the assembly method.

Preserve adjacent brick arrises, mortar faces, historic tool marks, and intentional texture.

Open the line to the specified geometry

Where the 45400 is honestly suitable, hold it securely and make controlled drawn passes along the crack. Keep the force directed into the planned groove rather than sideways against the finish.

Work in short sections. Remove dust and inspect frequently. The finished groove should match the repair material’s requirements with sound sides and base; it should not simply be “V-shaped” because that is a familiar phrase.

Where hard masonry requires another tool, follow that tool’s guard, extraction/water, access, and exposure controls. The 45400 stays out of that operation.

Clean without saturating

Vacuum under the exposure plan or use the cleaning method specified by the repair material. Remove loose particles from the full depth.

Do not blow dust deeper into the line or into occupied space. Do not flood a wall cavity, drive water behind cladding, or begin filling while free water remains unless the repair system specifically requires saturation.

Condition absorptive masonry only as directed. Too dry can rob water from some materials; too wet can prevent others from bonding. There is no universal dampening rule.

Mix or prepare the repair material

Use a material qualified for the substrate, crack type, movement, exposure, temperature, moisture, alkalinity, and finish. Follow its water ratio, mixing energy, induction, working time, lift depth, cure, and coating rules.

Do not infer exterior, waterproof, flexible, structural, injection, or freeze-thaw performance from a generic “masonry patch” label. Those are product-level properties needing evidence.

Prepare only what can be placed inside the working time. Keep tools and batch clean.

Pack with the pointed end

Use the 45450 pointed end where its shape gives controlled access. Press repair material into the groove in short increments, displacing trapped air and filling from the base outward.

Do not merely draw material across the mouth. A full-looking surface can bridge an empty channel.

Follow depth and lift limits. Deep or wide areas may require layers or another delivery method. If material slumps, pulls away, or cannot wet the sides, stop and correct the material/conditioning problem.

Iron with the flat bell

Turn to the 45450 flat bell-shaped end to consolidate and strike the surface to the required profile. Keep pressure controlled so material remains in the groove.

For flush painted work, leave the repair at the state required for later feathering. For mortar or textured finishes, reproduce the adjacent profile without smearing a wide hard ribbon over porous masonry.

Clean the tool between passes. Dried crumbs dragged over the finish create scratches and weak inclusions.

Respect joints and edges

Stop the repair at functional joints. Do not let rigid filler cross a sealant line, flashing termination, weep, or drainage opening.

At brick-and-mortar interfaces, identify whether the crack belongs in the unit, the joint, or the bond between them. Repointing, unit repair, and surface filling are different operations.

A hairline on the finish can be the surface expression of a deeper base-coat crack.

Cure under the complete system

Protect the repair from rain, freezing, rapid sun/wind drying, impact, and premature coating as the material requires. Do not mist, cover, heat, or accelerate unless authorized.

Record placement conditions and cure. A repair that changes color or hardness during cure may not be ready merely because the surface feels dry.

Keep people and equipment away from the line until the material has reached its required state.

Match texture and coating

Recreate the adjacent finish using compatible material and tools. Prepare a second witness if the cured repair changed color or texture from the initial trial.

Prime only when and with what the system requires. Masonry moisture and alkalinity can affect coatings. Do not trap a damp repair under a low-permeability film by habit.

For visual continuity, coating a larger architectural field may be necessary. That does not change whether the crack repair itself is sound.

Inspect after cure and weather

View the line close, at normal distance, and in raking light. Check for:

shrinkage or debonding;

efflorescence or moisture;

texture and color mismatch;

cracking beyond the repaired ends.

For exterior work, inspect after representative weather when the project allows. A repair that looked sound on a dry installation day can expose unresolved water after rain or freeze.

Record and route recurrence

Record substrate, diagnosis, crack map, movement findings, water findings, preparation tool, groove as job data, repair material, cure, finish, and inspection conditions.

If the crack returns, do not simply cut it wider and repeat. Compare the new line with the original map and route movement, water, corrosion, or assembly failure to the responsible scope.

Clean and dry 45400/45450 through their material and manufacturer guidance. Do not leave cementitious material to harden on plated or carbon steel.

Retain the before-and-after crack map with the building’s maintenance record for comparison.

What goes wrong (and the fix)

The crack is filled without diagnosing movement. Preserve evidence and obtain assessment before cosmetic closure.

45400 skates on hard concrete. It is outside its honest assist scope. Use the specified masonry-routing tool with silica controls.

The groove keeps widening into loose finish. The surrounding material is delaminated. Reclassify the repair.

Filler bridges the mouth but leaves a void. Reopen under the material method and pack from the base with 45450.

A repaired control joint cracks again. Rigid material defeated designed movement. Restore the joint system.

Efflorescence returns. Water remains in motion. Diagnose the source before coating.

The repair powder-dries or debonds. Conditioning, mix, cure, or material compatibility failed. Follow the material system, not a generic patch routine.

Mineral dust escapes containment. Stop work and restore the silica/exposure controls.

The surface matches but displacement appears. The problem is not cosmetic. Escalate immediately.

The history footnote

Masons have long widened failing edges back to sound material and packed repair mortar into a key. None is invented.
