How to Prepare a Cemented Leather Lap Joint — Complete Bench Guide

The raw industrial-knives queue assigns the same two tools. No third tool is a member of this row.

What this job is—and what it is not

A cemented leather lap joint overlaps two prepared leather fields and transfers load through an adhesive film. The bench work is successful only when four things agree:

The leather remains sound. Skiving creates the required transition without cutting the grain, over-thinning a strength-bearing field, stretching the part, or opening a coating or laminate beyond its approved limit.

The bond faces match the chemistry. Abrasion, cleaning, drying, primer, and adhesive application follow the selected system's instructions for the exact leather construction and finish.

The assembled joint passes its specified inspection. Flat appearance alone is not bond proof. A destructive coupon, peel or shear test, witnessed process check, or other release criterion belongs to the project and adhesive system.

This guide covers preparation and knife work: identify and quarantine unsuitable material; mark and dry-fit the lap; prove a skive on matching coupons; skive the running fields with 55170; use 50100 only where its shorter geometry is needed; perform only the authorized abrasion and cleaning; preserve the prepared surface; and, when the adhesive instructions explicitly permit knife cleanup, trim cured or otherwise release-ready residue without cutting the leather.

It does not formulate cement, choose a substitute chemistry, convert volume to mass, set a coat count, prescribe a film thickness, repeat a universal open time, tell the operator when a solvent has flashed, set clamp pressure, define cure, or certify a production bond. It also does not authorize cementing dissimilar materials merely because both can be made to overlap.

Exact-union division of labor

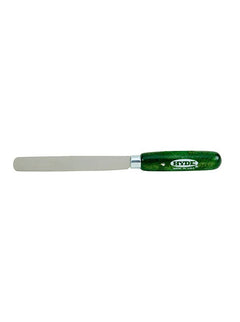

55170 — the running skive

Hyde's accepted exact-model name is Thin Skiver Round Point Knife. Its accepted blade dimensions are 5-1/8" × 5/8" × .042". In this row it performs the long, progressive flesh-side shaving that creates a controlled transition across an accessible bond field.

The .042-inch figure is a documented dimension, not a permission to flex, pry, or force the knife.

50100 — the short correction and permitted trim knife

Hyde's accepted exact-model name is Square Point Knife #2. Its accepted dimensions are 3" × 11/16" × .058". Its narrow, short geometry makes it the row member for a tight corner, the short end of a taper, a local high spot, or a transition where the longer 55170 cannot lie and leave the leather safely.

The 50100 is not a scraper, pry tool, punch, bond separator, or substitute for the running skiver. After assembly, it may trim adhesive residue or a proud feather only when the adhesive maker and article specification permit knife trimming at the named release state. It must not be inserted between bonded layers to “clean” the seam or used to test whether the bond holds.

Exact-union limit

Both members are maintained-edge, exposed-blade hand knives. Neither provides:

a cleaning cloth or approved cleaner;

primer or adhesive;

metering or mixing;

a pressure roller, press, platen, clamp, or fixture;

a thickness gauge;

a bond-strength test;

guarding for a production process.

Those are selected non-union systems. Name them honestly; do not imply that two knives form a complete cementing kit.

The job starts with documents, not with a blade. Put the current controlling material at the bench or in the traveler:

the article drawing, pattern, repair standard, or approved sample;

leather identification for both pieces, including supplier, lot, tannage or construction, thickness class, finish or coating, and any backing or laminate;

the adhesive maker's current technical data sheet and safety data sheet for the exact product;

any required primer, activator, cleaner, or surface-treatment instructions;

the substrate compatibility and joint-design statement that actually covers leather, the particular finish, and any dissimilar mating material;

the inspection and release criterion;

the employer's hazard assessment and applicable ventilation, fire, waste, and exposure controls.

Resolve revisions and contradictions before work. A general leather-craft article does not override a product-specific technical sheet. A reseller page does not extend an adhesive maker's substrate list. A historic shop method does not waive a current SDS. A successful bond on vegetable-tanned tooling leather does not prove fit on chrome-tanned upper leather, oil-rich harness leather, coated automotive hide, suede, bonded leather, or a laminated synthetic.

Stop before preparation when any of these is missing:

positive identification of either mating surface;

an approved adhesive for the exact substrate pair and service condition;

instructions for a finish, coating, oil, wax, release agent, or backing that occupies the bond face;

a lawful ventilation and ignition-control plan for the named chemistry;

an inspection and release decision;

representative scrap or process coupons when qualification is required.

“Contact cement,” “leather glue,” “rubber cement,” “PU,” “neoprene,” “water-based,” and “solvent-based” are chemistry classes, not complete operating specifications. Similar labels can have different substrate limits, preparation methods, hazards, assembly windows, pressure requirements, and cure conditions.

Define the joint geometry before skiving

Identify the load path

Mark how the article will load the lap: pull along it, peel it open, bend it repeatedly, twist it, expose one edge to snagging, or combine those demands. A lap that looks flat can still place the adhesive in an unapproved peel condition. The adhesive maker's joint-design guidance and the article's responsible designer decide whether a simple lap is acceptable or whether stitching, folding, backing, edge sealing, mechanical retention, or a different joint is required.

Do not infer structural capacity from contact area alone. Leather can fail within its fiber layer, a coating can release from the grain, a split can delaminate, or an adhesive can peel at an exposed feather even when the central film remains intact.

Mark four boundaries

On the permitted face, use a marking method proven not to bleed, stain, migrate into the bond, or show through.

The overlap boundary — the approved extent of the lap.

The skive transition boundary — where full thickness must begin changing, if the design calls for skiving.

The full-thickness keep-out field — stitch line, hole field, reinforcement, edge, or load-bearing area that must not be thinned.

The abrasion and adhesive boundary — only if the system requires and separately defines it.

These lines need not coincide. Do not assume the whole overlap must be skived or that the whole skive must be abraded. Do not extend roughing past the future covered area merely to make application easier.

Decide which faces may be altered

The ordinary leather-skiving model removes material from a flesh side while preserving the grain. A lap may instead present flesh to grain, flesh to flesh, coated face to backing, split to split, or leather to another substrate. The adhesive system must authorize what happens to each exact mating face.

Do not remove grain by default. Scuffing a finished grain surface may be required for one approved construction and destructive for another.

Do not expose a laminate or split layer by accident. The first change in texture may be an interface, not “more leather.”

Do not assume mirrored preparation. Two different faces may require different treatment.

Do not use skiving as chemistry preparation unless the design says so. Thickness reduction and adhesion preparation are separate decisions even when they occupy the same field.

Before any abrasion or chemistry, place the marked pieces in their intended orientation and read:

direction and amount of overlap;

whether the seam edge faces the expected load;

whether the full-thickness bodies lie in the same plane required by the article;

whether bends, folds, curves, and neighboring parts force the lap to lift;

whether the planned taper creates an abrupt hinge or weak feather;

whether alignment references remain visible after adhesive is applied;

whether the fixture or pressure system can reach the complete bond field without shifting the pieces.

The often-repeated objective that two skived layers “equal one original thickness” is not a universal specification.

Read and qualify the leather

Sort the material

Separate pieces by lot, region of hide, thickness, stretch direction, tannage or construction, finish, backing, and condition. A coupon from a firm shoulder is not representative of loose belly. A coupon with no coating does not qualify a coated production face.

Hold for disposition when the bond field contains:

oil, wax bloom, silicone, dressing, conditioner, release agent, dye transfer, unknown polish, or workshop contamination;

loose flesh, delamination, cracked grain, flaking finish, weak split, mold, water damage, or heat damage;

scars, holes, severe thickness change, or stretch that crosses a critical lap;

an unidentified repair coating or prior adhesive;

finish softening, color lift, swelling, or tack after a proposed cleaner trial;

material too small or flexible to prepare while every hand remains outside the blade path.

Cleaning cannot turn degraded leather into qualified substrate. Roughing cannot strengthen a loose layer. A bond to contamination is not a bond to the leather.

Use representative process coupons

Prepare coupons from matching material and in the same orientation as the parts. Include every materially different substrate pair.

Coupons serve distinct questions:

knife coupon: can the geometry be skived without cut-through, grain damage, or uncontrolled stretch?

surface-treatment coupon: does the approved abrasion and cleaner/primer sequence leave a stable, bondable face without damage?

assembly coupon: can the actual fixture, pressure method, alignment method, and adhesive process be executed reproducibly?

Do not let one good-looking dry fit stand in for all four.

Bench, blade-path, and contamination setup

Use a stable, clean, non-yielding support that keeps the leather continuously supported through the skive. The work surface must not rock, deflect, contain a seam under the stroke, or allow the blade to strike glass, stone, metal, a clamp, or bench hardware.

Arrange the raw or sacrificial edge so the knife can leave the material into a clear stop zone. Keep the support hand, clamps, weights, cords, and every body part outside the complete projected stroke and exit. For a small part, use a fixture or expendable handling tab that neither mars the show face nor contaminates the bond field.

Divide the bench into clean states:

layout/skiving area;

abrasion area with required dust control;

clean chemistry area;

adhesive/assembly area;

quarantine area for contaminated tools, failed coupons, and rejected parts.

Do not carry leather dust, honing compound, blade oil, corrosion residue, used abrasive, dirty rags, or an unapproved glove from one state into the prepared bond field.

Knife inspection

Before each setup:

Inspect 55170 and 50100 for a loose handle, loose ferrule, damaged or rolled edge, corrosion, contamination, bent steel, or an altered profile.

Quarantine a defective knife.

Confirm the active edge is keen enough to shave the representative coupon without added body force.

Trace the intended stroke with the knife clear of the leather.

Establish the exit and the safe stop if the edge slips or exits early.

Expose only the active knife; protect the other edge in storage.

Hyde's accepted evidence supplies no bevel angle, stropping count, or sharpening schedule for either model. Preserve the established edge under the shop's approved maintenance process and re-prove it on matching scrap.

PPE, ventilation, fire, and waste gate

PPE is selected from the task hazard assessment, the SDS for every adhesive-system component, abrasion exposure, and knife handling. This guide does not reduce that assessment to a generic kit.

Cutting and abrasion

cut-resistant protection for the non-knife hand and body areas that could enter a deflected path;

a cut-resistant apron, fixture, or guard where a dropped or exited blade could reach the body;

eye protection for abrasion, sharpening, or particle release;

respiratory protection only through the employer's applicable program when dust or vapor assessment requires it;

hearing protection if powered extraction or separately authorized preparation equipment creates the need.

A glove is not cut-proof. It must not bunch near the edge, reduce control, or become the reason a hand is allowed inside the stroke.

Adhesive-system chemistry

Read the exact SDS and technical sheet before opening any container. Establish the required local exhaust, room ventilation, ignition controls, grounding or static controls where applicable, chemical-resistant gloves, eye/face protection, protective clothing, spill response, container handling, and waste route.

“Low odor” does not mean nonhazardous.

A water carrier does not prove harmless skin contact or unrestricted disposal.

A solvent smell is not a concentration meter.

An open door is not automatically adequate ventilation.

A household glove material is not automatically compatible with the cleaner, primer, adhesive, or activator.

A dust mask is not vapor protection.

No flame, spark, hot work, smoking, non-rated equipment, or improvised heat source enters a flammable-material control zone. The SDS and facility rules decide the boundary.

Used rags, abrasive, wipes, mixing waste, residue, and rejected adhesive are handled by the product instructions and applicable rules. Do not leave solvent-wet waste in an open pile or put reactive components together because they came from the same joint.

Prove the skive geometry on matching scrap

Establish the reference

Transfer the approved boundaries and orientation to the knife coupon. Preserve the same full-thickness keep-out fields. Support it as the part will be supported.

Use the 55170 on the accessible running field:

Present the blade low enough to take a restrained shaving rather than wedge into the leather.

Use a slicing advance toward a clear exit. Do not pull toward the torso or support hand.

Remove one controlled shaving, set the knife down safely, and inspect the complete field.

Adjust support, pass direction, edge condition, or presentation one variable at a time.

Build the transition with ordered, overlapping passes instead of attacking isolated spots.

Reduce the bite approaching the full-thickness boundary.

No numeric working angle, pass count, shaving thickness, skive ratio, or remaining thickness is authorized here.

Use 50100 only where the long blade cannot work cleanly

Reposition the coupon so the 50100 can sit safely at a short transition or corner and still leave the material into a clear zone. Use the same restrained shaving logic. Never plant the square end and rotate it, pry out a chip, or drive it into an inside corner.

The short knife corrects high material. It does not fill a hollow, restore a severed grain, or repair an over-thinned feather.

Inspect the coupon

Under raking light and with the knives secured:

sight from full thickness through the transition;

feel for abrupt ridges, hollows, washboarding, and steps;

compare paired tapers;

flex only as the material and design permit;

inspect the show face for cut, craze, color change, print-through, or fixture marks;

measure only with the method and acceptance values the project specifies;

dry-stack the actual mating orientation.

Retain or identify the accepted coupon. A remembered hand feel is not enough when the job must be repeated across operators, lots, or shifts.

Production preparation workflow

Verify identity and condition

Match both pieces to the traveler and qualified coupon. Confirm orientation, mating face, stretch direction, lot, finish, and absence of disqualifying contamination or damage.

Lay out and protect the fields

Mark the overlap, transition, keep-out, and surface-treatment boundaries with the approved method. Mask only if the adhesive system permits the masking material and its removal cannot contaminate or lift the leather finish.

Dry-fit before subtraction

Assemble the full-thickness parts in the fixture or alignment method. Confirm that the pattern, load orientation, bend, neighboring parts, pressure access, and registration references are workable. If they are not, resolve the design before removing leather.

Run the 55170 skive

Work from the flesh side or other explicitly approved face. Take controlled, overlapping shavings through the accessible transition. Keep the blade path clear; inspect between passes; compare against the retained coupon. Do not answer a dull edge, dense patch, unsupported field, or unfavorable material direction with force.

Resolve corners with 50100

Refixture the part. Blend short transitions and local high spots only where the 50100's geometry is safer and more controllable than the long skiver. Keep the full-thickness field and grain intact.

Re-read the whole geometry

Check both pieces together. An apparently correct single taper can produce a bad stack when its mate is reversed, over-skived, or differently oriented. Confirm that the transition is gradual under the article's specified check and that neither bond field has been contaminated by hands, blade maintenance, layout material, or bench debris.

Dry-fit the final skived lap

Use the real alignment and pressure arrangement without adhesive.

the pieces register without forcing or stretching;

the completed stack has the approved profile;

there is no hard edge, void, curl, or uncontrolled hinge;

the fixture reaches the entire bond area;

the parts can be brought together in the required manner without sliding beyond the permitted repositioning behavior of the adhesive system;

no hand must enter a pinch point or touch a prepared surface during assembly.

If dry fit requires improvised stretching, freehand alignment, or a different pressure path than the qualified process, the setup is not ready.

Abrasion: create only the surface the adhesive maker specifies

Abrasion is not automatic.

leave a flesh face as prepared;

remove loose fiber without cutting sound structure;

scuff a grain, coating, backing, or previous approved layer;

use a named abrasive type or grit class;

abrade in a stated direction or to a stated visual condition;

forbid abrasion entirely;

replace abrasion with another documented treatment.

When abrasion is required:

Use clean, identified media reserved for the exact process.

Stay inside the authorized boundary.

Support the piece so abrasion does not round the overlap edge or stretch the leather.

Apply only the documented endpoint; do not chase a color change or fuzzy appearance that the system never named.

Capture or control dust by the approved method.

Remove loose debris without polishing it back into the surface.

Inspect for finish breakthrough, exposed weak split, glazing, heat, fiber balling, contamination, or a changed geometry.

Do not use the 50100 or 55170 as roughing scrapers. Knife cuts create grooves and weak fibers rather than a qualified abrasion profile, expose the body to an uncontrolled edge path, and contaminate the knife with chemistry-stage debris.

If the instruction says “roughen,” that word still needs an operational endpoint from the maker or qualified process.

Cleaning, conditioning, and surface preservation

Dry removal first—when authorized

Remove loose leather fibers and abrasion dust using the system-approved method. Avoid unverified compressed air, which can drive contamination into the surface, aerosolize dust, add oil or water from a line, and contaminate neighboring work.

Chemistry only by exact authorization

Use only the cleaner, primer, activator, conditioner, or surface treatment named for the adhesive and exact substrate. Follow its application, ventilation, incompatibility, storage, and disposal instructions. Do not substitute denatured alcohol, acetone, mineral spirits, naphtha, water, detergent, citrus cleaner, leather deglazer, or another familiar shop product because it “usually works.”

A cleaner must be compatible with all of these:

leather fibers and tannage;

dye and finish;

backing, laminate, foam, thread, or reinforcement it may reach;

the adhesive and primer;

the knife, fixture, roller, masking, and wipe materials it contacts;

the permitted waste route.

Keep both out of the chemistry stage.

Dryness is a documented condition

Do not judge readiness by clock, odor, color, or touch unless the adhesive maker explicitly makes that observation the criterion. “Flashed,” “dry,” “tacky,” “open,” and “ready” are product-defined states. Ambient temperature, substrate temperature, humidity, airflow, porosity, film amount, and contamination can change what the operator observes.

This guide gives no waiting period. Use the maker's current state definition and any required process record. If the condition cannot be verified, hold the parts.

Protect the prepared face

handle outside the bond field with clean, compatible gloves or fixtures;

keep the faces covered or segregated as the process permits;

prevent dust, oil mist, silicone, overspray, skin contact, moisture, dye transfer, and bench contact;

respect any maximum interval or re-preparation rule in the system documents without inventing one here;

Do not repeatedly clean a contaminated field without knowing whether each cycle extracts oils, lifts finish, weakens fibers, or leaves residue.

Adhesive application and assembly gate—no recipe here

Before adhesive application, the operator must be able to answer from the controlling documents:

Is the adhesive approved for this exact substrate pair, finish, service environment, and load mode?

Does either face require a primer, activator, separate treatment, or prohibited treatment?

Is application one-sided or two-sided?

What applicator and material are approved?

What coverage, film state, and edge treatment define a conforming application?

What mixing, induction, pot-life, open/assembly/working-state controls apply?

Is repositioning permitted, limited, or forbidden?

What pressure method, contact sequence, fixture, and complete-area verification are required?

What cure and conditioning state must be reached before trim, test, flex, stitch, load, package, or release?

What cleanup and waste method is permitted?

The answers stay in the maker's documents and the job traveler. They are deliberately not copied here as a generic formula. A changed adhesive, primer, lot, substrate, temperature band, applicator, or assembly method may invalidate the qualified process.

If the maker's required application cannot be completed with the actual part geometry and available pressure system, stop. Do not thin the adhesive, extend an assembly state, add a coat, warm the part, increase pressure, or substitute a tool to make the process fit.

Post-assembly knife work and inspection

Do not use a knife as a cure test

No member of the exact union establishes adhesive readiness. Do not probe the seam, flex the lap, lift an edge, slice squeeze-out, or scrape the surface to decide whether it has “grabbed.” Use the adhesive maker's release state and the job's inspection plan.

Permitted flush trimming

Support the joint without peeling or bending it outside the permitted condition.

Protect the show face and the bonded overlap.

Use 50100 only for accessible, controlled residue or a proud leather feather that the drawing permits to be trimmed.

Cut away from the seam and body with a clear exit.

Take residue flush; do not undercut the leather, enter the bond line, or open the overlap.

Stop if the adhesive smears, strings, lifts, whitens, crumbles, pulls a leather fiber layer, or transfers to the knife in a way the cleanup instruction does not cover.

The 55170 is not a squeeze-out scraper. Its running-skive role ends before chemistry. Both knives must be protected from adhesive contamination unless a written tool-cleaning path covers the complete knife.

Final inspection

Inspect against the specified acceptance criteria, which may include:

correct overlap, alignment, edge direction, and finished profile;

full contact without trapped debris, voids, wrinkles, lifted feathers, or unapproved squeeze-out;

intact show face, finish, backing, stitch field, and neighboring features;

recorded material and adhesive identity and process observations;

passed process coupon or specified destructive/nondestructive test;

completion of the maker's cure and conditioning state;

release by the responsible person.

A neat seam, aggressive finger pull, lack of odor, or absence of visible squeeze-out is not universal bond proof.

| 55170 skates or polishes without shaving | Edge condition, contamination, presentation, or material outside the qualified setup | Stop; inspect and service the knife under the approved edge process, then re-prove on matching scrap. Do not add body force. |

| Blade dives, cuts grain, or creates a hole | Excess bite, changed presentation, poor support, obstructed exit, dull edge, or unsuitable leather | Quarantine the part. Restore the setup and qualify a new coupon. Subtractive damage is not repaired by adhesive. |

| Chatter or washboard taper | Damaged/dull edge, inconsistent support, overlong pass, or force | Stop; restore the edge and support, shorten the controlled field, and prove a blended pass on scrap. |

| Leather stretches, gathers, or curls | Soft/elastic stock, unfavorable direction, too much bite, or insufficient support | Reorient and support a matching coupon; reduce the controlled bite; move to another qualified process if distortion remains. |

| Abrupt ridge at transition | Skive geometry ends suddenly or paired tapers do not agree | Correct only high material within the permitted field. Recheck the dry stack; do not invade the keep-out zone. |

| Hollow or weak feather | Local overwork, hidden thickness variation, or unsupported pass | Stop removing material. Apply the project's reject/remake criterion; no filler or extra adhesive is an automatic repair. |

| Abrasion makes fuzzy balls, glaze, heat, or finish flakes | Wrong media, wrong endpoint, contaminated face, weak layer, or incompatible construction | Stop and quarantine. Do not clean away evidence and continue.

| Cleaner lifts color, swells leather, leaves a tide line, softens finish, or creates tack | Cleaner/substrate incompatibility, excess treatment, or unqualified wipe material | Stop; segregate the part and coupon. Do not wait and hope the effect disappears. Obtain disposition and correct the system. |

| Surface is touched, dropped, dusty, or exposed | Prepared-face control failed | Hold the part. Follow only the maker's documented re-preparation path; otherwise reject or obtain written disposition. |

| Adhesive beads, crawls, fisheyes, or leaves bare islands | Contamination, incompatible surface energy, wrong application state, or application failure | Stop before assembly when possible. Preserve evidence; follow the maker's rework decision. Do not spread harder or add unapproved chemistry. |

| Parts will not align inside the permitted assembly behavior | Dry-fit/fixture failure, changed geometry, or wrong process for the article | Do not force, stretch, peel apart, or add cleaner. Stop and resolve the fixture or qualified process. |

| Lap shifts under pressure | Fixture, registration, pressure sequence, or adhesive-state failure | Keep the assembly within the maker's safe recovery instructions. Do not slide it back unless repositioning is expressly permitted. |

| Edge lifts or a void appears | Incomplete contact, contamination, geometry, insufficient permitted pressure, or substrate/coating failure | Quarantine. Do not inject adhesive or probe with 50100. Determine failure mode through the specified test and maker-approved rework route. |

| Leather splits while adhesive remains on both faces | Cohesive leather failure, over-skiving, weak split/coating, or unsuitable load geometry | This is not proof the joint is acceptable.

| Adhesive cleanly releases from one face | Preparation, compatibility, application, or cure boundary | Preserve the failed surfaces for diagnosis. Do not rough and re-stick the production part without an approved rework procedure. |

| Squeeze-out smears or strings during trim | Release state not reached, trim prohibited, excessive residue, or incompatible blade cleanup | Stop trimming. Protect the seam and use the maker's disposition; do not use the knife as a readiness probe. |

| Blade carries adhesive, solvent damage, rust, or dark transfer | Knife entered chemistry, was cleaned incompatibly, or remained wet | Quarantine the knife. Prevent transfer to leather; use an approved complete-tool maintenance path or qualified service. |

| Coupon passes but production part fails | Coupon not representative, uncontrolled lot/finish/environment/geometry change, or process drift | Stop the batch. Freeze evidence and compare every controlled variable before requalification. |

Rework rule

A cemented lap is not automatically reworkable. Peeling it apart can tear the leather, leave adhesive within the fiber layer, stretch the feather, or create a surface no longer covered by the original instructions.

When no approved rework path exists, quarantine and remake.

Knife cleanup and storage

Keep cement, primer, cleaner, and abrasion dust off both knives during the controlled process.

If contamination occurs, stop and consult a cleanup instruction that covers the entire knife—not only “steel”—including the high-carbon blade, edge, ferrule, rivets, hardwood handle, and any finish or maintenance compound.

Never soak the handle or leave a solvent-wet knife on the bench.

Do not scrape cured adhesive from the blade with another exposed knife.

After any authorized damp cleanup, dry and protect the high-carbon steel under the approved maintenance process.

Store each edge covered and separated from chemical waste, prepared leather, and other tools.

Record damage or edge-service needs before the next job.

No accepted Hyde claim supplies a solvent-compatibility chart or adhesive-removal procedure for 50100 or 55170.

Buyer and process decision tests

Choose 55170 when the approved joint requires an accessible running taper that can be made safely in controlled flesh-side shaving passes on qualified leather.

Choose 50100 when a short corner, local transition, or permitted post-release flush trim cannot be reached safely and cleanly by the long skiver.

Use both only because the geometry genuinely requires both roles. Exact-union membership does not require every joint to expose both blades.

Choose neither when:

the leather is sole-grade, exceptionally dense, highly elastic, loose, degraded, laminated, coated, or too small for the qualified hand process;

the design requires a controlled thickness tolerance or production repeatability beyond hand skiving;

the adhesive system is unidentified, unsupported, or incompatible with either mating face;

the work would place a hand, body part, clamp, or finished component inside the blade path;

A bell skiver, splitter, guarded production fixture, abrasive machine, press, roller, test machine, or specialist service may be the correct process.

History — the lap is older than the branded chemistry

Leatherworkers were thinning overlapping edges long before modern packaged cements. A skived lap solves a geometric problem: two full-thickness layers create a ridge, while tapered mating fields can make an overlap lie more nearly within the article's surrounding profile. Stitching, paste, animal glue, rubber-based cements, synthetic polymers, primers, and engineered surface treatments have occupied different eras and trades, but the need to control the transition remained.

The knife patterns here are anonymous trade forms, not named inventions. Army saddler's chest inventory.

Hyde's defensible role is manufacturing history. Hyde-controlled sources place Isaac P. Hyde's Southbridge, Massachusetts knife work in the early-to-mid 1870s, with conflicting 1870 and 1875 founding references. The line document describes a maker working inside New England's shoe and leather factory economy, asking factories what knife their work required and producing trade patterns to suit.

The historical lesson is a boundary, not a recipe: the hand-knife geometry has persisted, while adhesive chemistry and its safety controls are product-specific and revision-controlled. Heritage can explain why 55170 and 50100 share a leather bench. It cannot override a current technical data sheet or SDS.

Both receive backlinks; no abrasion, pressure, chemistry, fixture, or testing tool is added as a row member.

Exact-model evidence: 50100 is Square Point Knife #2, accepted dimensions 3" × 11/16" × .058". 55170 is Thin Skiver Round Point Knife, accepted dimensions 5-1/8" × 5/8" × .042".

Role attribution: 55170 as running skiver and 50100 as short-corner/correction/conditional-trim knife are authored trade-role interpretations supported by the row assignment, line document, queue, product guides, and geometry.

No universal chemistry: no adhesive class, brand, primer, cleaner, conditioner, solvent, abrasion media, applicator, coat count, coverage, film thickness, mixing formula, or substitution is endorsed here.

No recipe or timing: no working angle, pass count, grit, cleaner quantity, waiting period, open/assembly/working time, pressure, cure time, temperature, humidity, or trim time is invented. Use the current product-specific values and states.

Roughing is not automatic.

Dryness: odor, color, clock time, and finger tack are not universal readiness tests. The adhesive maker's documented state controls.

Bond proof: appearance, finger pulling, and clean squeeze-out do not certify the joint. Acceptance and failure mode require the project's specified coupon or production test.

PPE and fire controls: final controls follow the exact SDS, employer hazard assessment, facility rules, and applicable law. No generic glove, mask, ventilation claim, or ignition distance is supplied.

Sharpening: no Hyde bevel angle, stropping count, or service interval is accepted for either knife. Preserve the established edge through the approved maintenance process.

Hyde founding remains “early-to-mid 1870s” because Hyde-controlled sources conflict.

Graph closure: this guide links back to exactly 50100 and 55170 as row members. All chemistry, abrasion, fixture, pressure, PPE, and testing references remain explicitly non-union systems.
