How to Patch Concrete Steps, Spalls, and Sills

Job: repair a localized, nonstructural loss in known concrete — a chipped step edge, a shallow spall in a tread or landing, a broken sill corner, or a small flat patch — after the cause has been identified and the remaining concrete has been accepted as sound.

Time: assessment, removal, preparation, placement, and finishing may fit into one working session on a small repair. Protection, curing, coating, and return to foot traffic do not run on a universal clock; the selected repair material’s current technical data sheet (TDS), the actual site conditions, and any required inspection own those release points.

Difficulty: moderate hand skill and high admission discipline. Packing and shaping material is learnable. Deciding whether a damaged step is a cosmetic patch or evidence of movement, corrosion, water entry, or structural loss is the consequential part.

It gives up some tight-corner access to the 18050.

Use no per-SKU specification from this guide.

Everything else — and an honest repair needs all of it: the exact repair material, with its current TDS, label, and SDS open at the work; every manufacturer-required companion component; approved sounding, removal, preparation, dust-control, measuring, mixing, forming, cleaning, containment, and barricading equipment; and PPE selected from the SDS, tool instructions, and job hazard assessment. Hyde’s five trowels mix, place, shape, and finish. They do not diagnose a structure, remove concrete, treat reinforcing steel, stop water, design a form, approve an egress stair, or choose repair chemistry.

Before you start: admit the patch, or stop

Decide whether this is actually a hand patch. A localized chip or spall can enter this guide only when the remaining concrete is known, the defect is bounded, the cause is understood, and the repair does not restore a structural section or alter a required walking geometry.

a step, landing, sill, balcony edge, or supported element whose damaged section carries load;

a railing, guard, handrail, post, anchor, bearing point, or connection in or near the loss;

a crack that is widening, offset, repeating after prior repair, stair-stepping through adjacent construction, or otherwise showing active movement;

widespread hollow or delaminated concrete rather than one bounded surface loss;

exposed reinforcing steel, rust staining, corrosion products, section loss, or a spall whose shape suggests reinforcement below it;

persistent dampness, leakage, failed drainage, deicing-salt exposure, chemical attack, fire damage, or another cause that has not been corrected;

unknown substrate, unknown reinforcement, precast or prestressed construction, post-tensioning, concealed services, or uncertainty about what the “concrete” actually is;

historic concrete whose aggregate, color, finish, permeability, or original construction must be conserved; or

a stair or landing where the repair could change a tread, riser, nosing, slope, slip condition, accessible route, or means of egress.

This is not caution for caution’s sake. The current ACI CODE-562-25 covers assessment and design of repairs to structural concrete, and ACI’s own repair guidance begins with evaluation of the deterioration and development of a repair plan. The U.S. Access Board likewise treats altered stairs on required egress routes as regulated elements. A pointing trowel cannot answer those questions (ACI 562 repair-code portal · ACI RAP-7 — Spall Repair of Horizontal Concrete Surfaces · [U.S. Access Board — Stairways](

Find the cause before selecting a bag. “Spall” names the missing concrete, not why it went missing. Impact, freezing while saturated, poor original consolidation, corrosion, chemical exposure, movement, and a prior incompatible patch can look similar at arm’s length and demand different repairs. Trace staining and dampness uphill. Look for failed sealant, a leaking sill joint, a roof or threshold discharge, water trapped at a step, or repeated damage along one edge. If the source is still active or unknown, isolate the area and stop. Covering the symptom only hides the evidence and gives the next failure a sharper edge.

Mark the accepted boundary. If the hollow or weak area runs under a railing, into a support, across most of a tread, behind a sill, or beyond the local patch you planned, return to Step 1. ACI RAP-7 starts horizontal spall repair by locating delaminated areas and evaluating the deterioration; the National Park Service makes the same cause-first point for historic concrete (ACI RAP-7 · NPS Preservation Brief 15 — Preservation of Historic Concrete).

Select a repair system, not an anonymous “cement patch.” Bring the known substrate, defect orientation, exposure, intended finish, traffic, and accepted repair geometry to the repair-material manufacturer or qualified specifier.

Preserve the existing geometry; do not redesign it with patch material. Photograph and measure the sound neighboring faces before removal so the form and finish can return to what was there. On a stair, the existing approved tread, riser, nose, and landing are the reference — not the sharpest line you can sculpt. This guide restores an admitted local loss; it does not authorize an alteration.

Isolate the work and write the safety plan around the actual method. Barricade the whole approach to a damaged stair or landing, not just the crater. Stage chip and slurry containment below the work. Removing, grinding, drilling, or abrading cured concrete can create respirable crystalline silica. In employment, OSHA’s construction silica standard requires the specified controls for covered equipment/tasks or an exposure-assessment route; visible-dust improvisation is not a plan (OSHA 29 CFR 1926.1153). Wet cementitious material can cause caustic skin burns and dermatitis; use the selected product’s SDS and the site hazard assessment to choose gloves, eye/face protection, clothing, footwear, respiratory protection, and wash provisions rather than copying a generic PPE list (OSHA — Concrete and Concrete Products: Controlling Hazards).

Remove, prepare, and form

Remove all unsound material — under an approved removal method. Work from the mapped defect toward sound concrete, using the removal equipment and control method accepted for this element. The goal is not to make a larger hole; it is to leave no weak, loose, delaminated, bruised, or contaminated material inside the admitted repair boundary and to produce the edge and surface profile the selected repair system requires. Protect adjacent sound concrete and existing geometry. Do not use the 18100 or 18110 as chisels, and do not use the margin trowels as pry bars: their edges and tips belong to placement. Corrosion and reinforcement repair are separate designed work, not a paragraph omitted from this guide.

Clean and condition exactly for the selected system. Remove chips, dust, slurry, oil, paint, curing compound, algae, laitance, loose aggregate, and any other bond breaker by a method that the substrate and repair-material maker permit. Inspect under strong light and re-sound the boundary after removal. Then establish only the substrate condition the TDS names: dry, damp, saturated-surface-dry, primed, scrub-coated, or another documented state. There is no universal “wet it first” rule and no universal bonding-agent rule. Standing water, a drying primer, or a contaminated pore structure can each ruin a different system; follow the one in front of you.

Build and prove the form before mixing. A missing outside corner or step nose needs a form that carries the fresh material and reproduces the recorded neighboring geometry. Make it rigid, clean, sealed against loss of paste as the chosen system requires, and removable without prying against a young patch. Dry-fit it, sight it from both directions, and verify that it restores rather than alters the step or sill. If the form carries a large mass, supports an overhead placement, or affects a load or egress dimension, the repair has left this guide.

Mix, place, consolidate, shape, and finish

Mix one controllable batch by the current TDS. Measure the maker’s components with the required containers; do not judge liquid by eye, add “a little extra” for workability, or borrow a ratio from another product. Put the 18050 to work where a narrow blade must chase a pail’s wall-to-bottom corner; choose the 18060 when the container admits the wider blade and faster material movement matters. Cut and fold from the bottom, scrape the corners, and bring every dry pocket into the batch. Observe any mandated mixing sequence, rest, remix, aggregate addition, or equipment requirement. Do not retemper, extend, remix, or use a batch outside its documented working condition unless the current TDS expressly permits it. If a drill or paddle is required, the margin trowels become corner scrapers and transfer tools, not substitutes for the specified mixer.

Place into the prepared break; press out voids rather than smearing over them. Transfer material with the 18050 or 18060 and work from the deepest admitted part of the repair toward the face. Use the 18100 in tight inside corners and close returns, where its short blade can turn and its tip can press material into the geometry. Use the 18110 for larger open portions and broader corners, where its longer blade carries more material per trip. Pack with deliberate strokes so the material contacts the prepared substrate and form without hidden air pockets. Follow the system’s allowed depth, lift, waiting, and consolidation method exactly; this guide supplies no universal lift thickness. If the material slumps, tears away, traps water, or will not remain in the approved orientation, stop instead of thickening, watering, or “saving” the batch by feel.

Shape the corner or nose against the reference, not freehand fantasy. Let the form establish the unsupported outer line. Use the 18100 for the tight return where the patch meets an existing face and for fine control at a small radius or corner; use the 18110 to carry and press material along a larger reconstructed edge. The pointing trowels sculpt and compact; they do not establish code geometry. Keep checking the sound neighboring surfaces and the pre-work record. Remove squeeze-out while it is workable under the product’s method, without dragging paste across the surrounding concrete.

Strike off, consolidate the surface, and match the existing finish. On narrow bands, ride both square corners of the 18050 or 18060 on sound surrounding concrete and draw the excess off. If the actual tool cannot be verified as fit and true, do not use its listing as proof.

Match the neighboring finish — smooth, lightly textured, formed, or otherwise — within the repair system’s documented finishing window. Do not add water to the surface, overwork it, or chase a burnish merely because the tool can make one. A glossy island in textured concrete is still a failed match, and an overworked skin can conceal a poorly packed repair.

Cure and protect by system, not folklore. Install the exact curing and weather protection the repair material requires, at the time and for the duration it specifies. Shield the area from people, impact, vibration, runoff, precipitation, sun, wind, freezing, overheating, and coating only to the extent and by the method the current documents direct. No universal temperature, cure duration, or traffic-release time belongs here.

Inspect, hand off, and clean up

Inspect the repair as a system. Before reopening the area, check that the repair boundary remains tight; the surface has no new cracking, hollow response, edge tear, sag, washout, or exposed void; the original step or sill geometry has been restored; the finish does not create an obvious trip or slip discontinuity; water is not entering from the unresolved cause; and all product-specific cure and release conditions have been met. Any new crack, movement, rust stain, damp line, or spreading hollow area returns the job to assessment — not to another skim.

That record distinguishes a one-time impact from the first patch in a repeating deterioration cycle.

Collect chips, dust, slurry, disposable PPE, and leftover product under the SDS and local waste rules. Do not wash cementitious slurry into a storm drain, onto soil, or across a walking surface. Remove the barricade only after the documented release.

What goes wrong (and the fix)

“The patch popped loose as one piece.” Treat that as a bond-system failure: unsound substrate remained, contamination survived, the surface condition or bonding step was wrong, the product was incompatible, or placement missed its working window. Remove the failed repair under an approved method and reassess. Do not glue or skim the loose piece back.

“The crack came back through the patch.” The patch covered movement without resolving it. Isolate the area and route active or uncertain movement to the appropriate design professional; a stronger patch is not a movement joint or structural repair.

“Rust appeared, or steel showed during removal.” Stop. Keep it exposed for qualified assessment rather than burying it. Corrosion extent, steel condition, removal around reinforcement, supplemental reinforcement, corrosion protection, and structural restoration are designed repair questions (ACI 562 repair-code portal).

“The material slumped off the sill or blew past the form.” Wrong orientation, batch condition, placement depth, form, or working window. Do not add dry powder or extra liquid at the wall.

“The surface is dusty, crazed, scaled, or a different sheen.” Mixing, finishing, weather exposure, cure, or finish matching went wrong. Protect the area and ask the material maker or repair professional for the system-specific disposition; rubbing another thin coat over a weak surface hides rather than repairs it.

“The repaired step feels different underfoot.” Keep it closed. A changed edge, tread, riser, slope, or finish can be an egress or accessibility problem even when the patch is hard.

“The spall returned after rain or winter.” The water or exposure mechanism survived the repair. Reopen the cause investigation before touching the trowels again.

“The color or aggregate is conspicuously wrong on historic concrete.” Stop enlarging the repair. NPS guidance calls for compatible, visually matched repairs and trial work; historic matching may require analysis, trial mixes, mockups, and formed rather than trowel-applied methods (NPS Preservation Brief 15).

Product fit — why all five links belong

18050: tight mixing, confined breaks, narrow strike-off.

18060: faster mixing, broader transfer and strike-off.

18100: tight returns and fine shaping control.

18110: larger open repairs and capacity shaping.

Rectangle mixes, transfers, and strikes square work. Point carries, packs, and shapes. Flat steel bridges and closes.

Can I patch any crumbling concrete step with this method? No. Admit only a localized, nonstructural defect in known concrete after its cause and boundary are established. Every Step 1 stop condition leaves this guide.

Which repair product should I use? This row registers tools, not chemistry. Select a system whose current TDS expressly covers the known substrate, orientation, exposure, and repair geometry; bind the current SDS as well. The manufacturer or qualified specifier owns the choice.

How much water, how thick a lift, and how long before traffic? Only the chosen system’s current documents can answer; this guide supplies no transferable number.

Why both margin trowels? The 18050 favors access; the 18060 favors volume. Width is the choice.

Why both pointing trowels? The 18100 favors close control; the 18110 favors capacity. Length is the choice.

Can I cover exposed rebar and keep going? No.

Can I work in cold, heat, rain, wind, or direct sun? Only inside the selected system’s documented environmental limits and protection method. There is no universal weather permission.

The history footnote

Concrete patching became a discipline when failures proved that replacing missing volume was not enough. The durable sequence — diagnose deterioration, remove unsound material, prepare, select a compatible replacement, place, consolidate, and cure — is now formalized in ACI repair procedures. Historic preservation adds a useful correction to “stronger is better”: NPS guidance calls for retaining sound original concrete and matching the old material’s appearance and relevant behavior, often through trials. The trowel still carries, presses, shapes, and finishes; the modern craft is knowing whether that hand work completes a valid repair plan or hides a condition that needs an engineer.

Every linked PDP lists this guide under its applications — the graph runs both directions. No other Hyde model is linked or implied.

Access Board — Stairways]( (regulated stair/egress alteration context). The selected repair material’s current manufacturer TDS, label, and SDS remain mandatory execution sources and cannot be pre-filled generically.

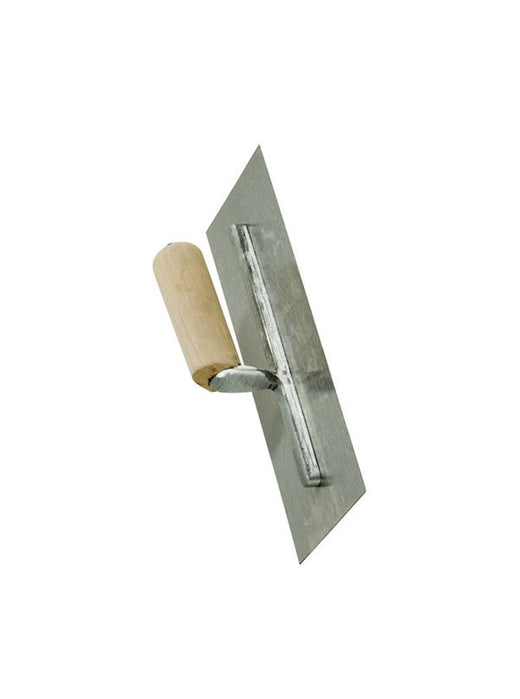

18520 zero-claims gate: no accepted model-level claims; its store-title size and “Flat Finishing Trowel” designation remain unverified, and steel, handle, mountings, thickness, and performance are unpublished. All guide language is flat-trowel class grain only.
