How to Paint Tight Verticals and Narrow Stiles — Place the Roller Without Marking the Neighboring Face

Time: the coating system controls preparation, open time, dry time, and recoat time. No universal duration is claimed. Budget enough uninterrupted working time to finish one visually continuous member or strip while its edge remains workable under the product instructions.

Difficulty: moderate placement work. The area is small, but the consequences of a misplaced shoulder, overloaded edge, or late correction are immediately visible.

The exact product leads from this catalog:

Everything else: a roller cover whose maker explicitly documents fit to the exact frame, confirmed by a dry mount · the coating system specified for the exact surface and existing condition · the current label and safety data sheet · the brush or other applicator specified for corners and targets too narrow to roll honestly · a clean tray or loading surface sized to the selected cover · stir and transfer tools permitted by the coating instructions · clean rags · lighting that reveals both shoulders of the pass · protection for adjacent faces, floors, hardware, and openings · the ventilation, containment, and personal protective equipment required by the product instructions and the actual preparation work.

No cover SKU, nap, fabric, substrate, primer, thinning method, film thickness, finish quality, personal protective equipment, or production rate is universal to this job. None is invented here.

Diagnose the constraint before choosing the frame

“The roller will not fit” can describe two different failures. Separate them before buying or loading anything.

The target is too narrow

The face to be painted is narrower than the working footprint of the roller assembly, so a broader cover overhangs an edge or touches the neighboring plane. Common examples include a vertical stile beside a panel, a wall ribbon beside casing, a face-frame member, or a bay between fixed objects.

That fact does not prove that a particular cover fits or clears the work. The cover can extend beyond nominal frame width, and its shoulders are part of the footprint. Prove the complete dry assembly on the exact target.

The approach is too tight

The target may be broad enough for a 4-inch pass, but a pipe, fixed cabinet, adjacent return, or shallow gap blocks the body of an ordinary cage assembly before the cover reaches the surface squarely.

That makes it an honest restricted-approach candidate; it does not create guaranteed clearance, cover fit, or performance. Dry-fit the assembled tool through the real path.

Both dimensions fail

Do not force a diagonal pass or let the cover ride an adjacent face. Route the work to a brush or another applicator documented for the coating and target.

The dry placement test

Test with no coating on the tool:

Identify the entire face that must receive coating and every neighboring face that must remain clean.

Measure or physically compare the assembled cover, not the frame label alone, against the narrowest clear part of the target.

Trace the entry and withdrawal path. Include the frame arm, cage or rod, handle, knuckles, fixed hardware, and any change in direction needed to land the cover.

Place the dry cover squarely on the target. Both cover shoulders must remain visible or otherwise positively controlled.

Make a slow mock pass through the full working length. Reverse once. Withdraw without scraping an adjacent plane.

Reject the setup if the cover overhangs, the frame strikes, the assembly must be forced, the cover cannot remain square, or the operator cannot see and control the critical edge.

Passing proves only physical placement for that dry assembly and target—not coating compatibility, preparation, film build, finish, or loaded retention.

Resolve the coating and surface system without guessing

This guide owns placement mechanics.

Before preparation, identify:

the surface material and whether it is bare, previously coated, repaired, contaminated, deteriorated, or moving;

the existing coating when that identity matters to adhesion or compatibility;

the new coating’s permitted substrates, required preparation, primer or sealer, application tools, environmental limits, ventilation, PPE, film-build instructions, dry and recoat conditions, and cleanup method;

whether sanding, scraping, solvent use, or other disturbance introduces a separate hazard or containment requirement.

Do not infer those items from a frame. Frame width does not make a coating suitable; a cage-less build does not make it safe in a confined slot; a smooth existing film does not prove adhesion.

If the work may disturb paint in pre-1978 housing or a child-occupied facility, stop ordinary preparation and use the applicable lead-safe process. The US EPA Renovation, Repair and Painting program explains the regulated boundary and lead-safe work-practice route. This guide does not improvise a lead-control procedure.

Where the substrate, existing coating, or product requirements cannot be established, the honest state is UNKNOWN.

Prove cover-to-frame fit while everything is dry

Width alone is not fitment.

Use only a cover whose maker states compatibility with the exact frame or the applicable 3-inch cage-frame class, then confirm the physical mount:

Inspect the cage and cover bore for damage, dried material, deformation, or foreign matter.

Push the cover on straight, using the cover maker’s direction. Do not hammer or twist an unwilling part into place.

Seat it fully at the frame’s intended stop.

Spin it by hand. The cover must turn as one assembly without scraping, orbiting, or wobbling.

Pull in the removal direction. There must be a defined seated resistance rather than an effortless slip.

For the Hyde 47400

Use only a cover whose maker states compatibility with the exact frame or applicable 4-inch wire-frame class, then run the same seat-and-spin test:

Inspect the frame and cover’s internal mounting hardware.

Slide the cover on without force.

Confirm that it reaches its intended seated position.

Spin it slowly and then briskly by hand.

Reject binding, wobble, scraping, or a cover that will not remain seated through the dry trial.

Do not cure a mismatch with tape, shims, bending, impact, or extra force. A bad dry fit becomes a loaded failure next to a surface that was supposed to remain clean.

Map the job and establish a clean working order

Narrow work is easiest when each member becomes one controlled operation rather than a collection of touch-ups.

Define the natural units. Treat one stile, one casing-side strip, or one bay between fixed obstructions as a unit. Note where a unit begins and ends at a joint, corner, rail, or other natural break.

Do not claim a universal pass direction for every product or finish.

Identify brush-only zones. Inside corners, profiles, joints, and any face narrower than the proven roller footprint route to the specified brush or other suitable applicator. The roller should meet that work while it remains in the state required by the coating instructions.

Protect the neighbors. Move removable hardware when authorized. Protect fixed objects and adjacent faces from loading, withdrawal, and accidental shoulder contact. Tape is protection, not proof that an oversized roller is acceptable.

Light both edges. Position the work light so both shoulders, the target face, and the neighboring planes can be checked during the pass. If an obstruction hides one edge, establish a second sightline or shorten the working increment.

Stage a test area. Use an inconspicuous but representative location to prove placement and the specified coating system before committing to the most visible member.

With several verticals, preserve workable edges and keep the loaded frame off finished work. Sequence is object- and product-dependent; inspect the geometry.

Prepare only by the specified process

Follow the substrate and coating instructions for cleaning, soundness, repair, deglossing, priming, dust removal, and environmental conditions. This guide adds only placement controls:

make the target face continuous and stable enough for a square pass;

remove or protect projections that would catch the cover or frame;

clear debris from narrow gaps so it cannot be picked up and rolled into the film;

keep preparation residue out of the cage, rod, cover bore, and handle-to-frame area;

complete any required test for adhesion or compatibility before the finish pass;

re-run the dry placement test after protection, repairs, or masking change the clearance.

Do not assume sanding is required. Do not assume cleaning alone is sufficient. Do not prescribe a primer by generic substrate name. Do not create a film specification from the size of the roller. Each of those decisions belongs to the actual system documents.

Load for edge control

Condition or mix the coating only as its current instructions allow.

Transfer a manageable working quantity to a clean loading station if the product permits it.

Load the cover evenly across its working face.

Roll off excess on the tray or grid until the cover is evenly charged without a visible heavy shoulder.

Inspect both ends before approaching the work. Remove a shoulder bead at the loading station, not on the stile.

Keep coating out of the cover bore, cage or mounting rod, handle, and any pole thread.

A narrow cover does not justify a heavy load. Surplus collects at an edge, transfers to the neighboring plane, or leaves a ridge. The correct load is product- and cover-specific; no universal quantity or spread rate is assigned.

Roll the target without borrowing the neighboring face

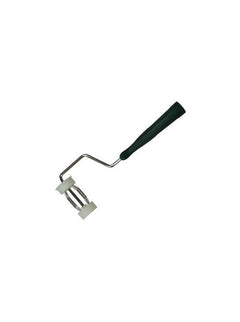

With the 92012: target-width placement

Bring the loaded cover to the target squarely. Do not angle it to make the nominal width seem smaller.

Land the whole working face gently inside the protected boundaries.

Establish rotation before advancing through the pass.

Distribute coating through short, controlled increments that keep both shoulders inside the target.

Check the neighboring planes after the first increment. A clean dry trial does not guarantee a loaded shoulder remains clean.

Complete the target according to the coating’s edge and reworking limits.

Make the specified finishing pass in the member’s long direction when that method is compatible with the coating system.

Lift straight off while the cover is still turning slowly; do not roll around an outside edge unless that adjacent face is intentionally part of the same operation.

The 92012’s documented value is its 3-inch frame identity—not a target-width, film, texture-match, or productivity promise.

With the 47400: restricted-approach placement

Align the frame with the dry-proven entry path.

Insert the assembly without dragging the loaded shoulder across the obstruction.

Land the cover on the target and bring it square before beginning the working pass.

Start slowly enough to confirm that the cover is rotating rather than sliding.

Use only the pressure needed to maintain the contact called for by the cover and coating system.

Work an inspectable increment, then withdraw along the same protected path.

Check the target, the obstruction, and both cover shoulders before re-entering.

If the cover repeatedly stalls, wobbles, displaces, or requires added force, stop. The cage-less candidate has failed the working trial for this assembly or condition; do not convert the failure into a performance claim or force-based technique.

The 47400’s documented value is its 4-inch cage-less identity—not a gap, reach, cover-behavior, pressure, film, or speed claim.

Keep the wet edge honest

Finish one natural member or strip through its planned break whenever the coating instructions require continuity. Reload at a joint, rail, corner, or other defensible break rather than abandoning a pass in the middle of the most visible run. If the film has moved beyond its permitted reworking state, stop and follow the product’s correction instructions; rolling harder over setting material is not recovery.

Inspect before the film hides the diagnosis

Use frontal and raking light.

both neighboring faces for shoulder transfer or frame contact;

the target edges for beads, ridges, misses, or overhang;

the pass for a skid, stall, wobble pattern, lap, or abrupt texture change;

joints and rail intersections for accumulated material;

the cover position and rotation;

the protected objects and floor for transfer;

the coating state against its own inspection and rework instructions.

Correct only as the coating maker permits. If matching an existing texture matters, prove the exact cover and method on a sample; frame width does not establish finish equivalence.

What goes wrong — and the bounded fix

Cleanup and closeout

Complete means the coating has reached its defined inspection state, the target meets that system’s requirements, neighboring faces are clean or properly corrected, and tools and residues are closed out. No universal finish or cure claim substitutes for that readback.

Exact chemical controls, ventilation, PPE, first aid, cleanup, and disposal remain with the current coating label and safety data sheet.

History footnote

The frame is the original paint-roller invention at work: Norman Breakey’s circa-1940 bent-handle concept carried a fabric-covered cylinder, and later cages, retainers, and dual-arm systems addressed the original architecture’s working limits.
