How to Paint Stucco, Brick, and Masonry

Job: identify the masonry, stop active deterioration and water, prepare a sound and clean field, prove one complete coating system on a test area, then coat stucco, brick, block, or other masonry to that system's own acceptance conditions.

This guide supplies no universal hours or days.

Difficulty: rolling is the easy part. The professional work is deciding whether the wall should be painted at all, refusing unsound or damp work, and keeping substrate, primer or filler if required, and finish coats inside one manufacturer's written system.

They are not four equivalent recommendations; the role table below includes one deliberate exclusion.

Everything else: access, containment, repair and cleaning equipment, plus one coating system approved for the identified substrate and exposure. This row supplies covers, not a complete coating kit.

Stop before setup: identify what the wall actually is

“Masonry” is not one substrate. Put the job in the correct lane before choosing a cover.

Stucco: distinguish cement stucco, historic lime render, a synthetic finish system, and an unknown assembly. Moving cracks, bulges, detached areas, and widespread powdering require the appropriate plaster, masonry, envelope, or conservation handoff.

Brick: identify fired brick and mortar condition, whether the wall is a drainage cavity or solid mass wall, and whether it has an existing paint, sealer, limewash, or other treatment. Soft historic brick, glazed brick, manganese- or metallic-additive brick, and brick whose manufacturer limits painting require project-specific approval. Do not block weeps or bridge designed drainage openings.

Concrete block or concrete: distinguish dense concrete, open-face CMU, split-face block, and previously filled block. Porosity, release material, laitance, repairs, moisture, and old coating affect the system.

Stone or historic composite masonry: stop ordinary paint work until the stone, mortar, existing finish, and preservation intent are identified. A film that is harmless on modern block can trap water or alter a historic surface permanently.

If identification remains uncertain, make the test diagnostic only and obtain the substrate or coating maker's ruling. Nap cannot answer a material question.

Six condition gates that must all pass

Cure and previous-repair gate

New stucco, mortar, concrete, block work, and cementitious repairs must reach the cure and surface condition required by the selected coating system. Do not borrow a cure interval from another product or from a rule of thumb. Record the installation or repair date and the exact system requirement. If either is unknown, the gate is open and coating waits.

Soundness gate

Probe representative units, joints, cracks, patches, and old coating edges. Stop when the face is spalling, mortar is sanding out, stucco sounds detached, a crack is active or structural, block faces are crumbling, or the existing coating releases with the layer below it. Paint adheres only as well as the material it touches.

Localized nonstructural defects route to a compatible repair. Structural movement, widespread displacement, corroding reinforcement, freeze-thaw loss, or falling material routes to the appropriate professional. Repaired work must satisfy its own coating-readiness requirements.

Moisture and efflorescence gate

Look for active leaks, failed flashing or coping, open wall tops, bad gutters and downspouts, grade or irrigation wetting, interior vapor drive, dark persistent dampness, blistering, and white salt bloom. Efflorescence is not merely dirt: water dissolves salts within the assembly, carries them outward, and leaves them as the water evaporates. Painting over an active bloom hides the indicator and can put the new film in the water's path.

This guide invents no moisture percentage, plastic-sheet interpretation, pH limit, or drying interval.

Contamination gate

The field must be free of whatever would separate the new system from the masonry: dirt, chalk, soot, oil, grease, biological growth, salts, incompatible cleaner residue, curing compound, form-release material, loose coating, and dust from repairs or abrasion. A water bead, a slick patch, recurring stain, or powder on a clean hand is evidence that the gate remains open.

Historic or vulnerable work follows the gentlest effective method and comparative test panels; aggressive cleaning can remove the hard fired face of brick or the surface of historic stucco. None is invented here.

Existing-coating and lead gate

Determine what is already on the wall and where it fails. A sound compatible coating may support a repaint after the selected system's preparation. Peeling to masonry, intercoat release, chalk that remains after cleaning, trapped-moisture blisters, or an unknown sealer requires diagnosis, not another coat.

If work will disturb paint on pre-1978 housing or a child-occupied facility, establish the lead-safe plan before scraping, sanding, grinding, drilling, or washing loose paint. Paid work may fall under the EPA Renovation, Repair and Painting rule, and occupational work can also fall under OSHA's construction lead standard. Lead changes containment, work methods, cleanup verification, records, and waste handling. It is not a respirator note added after ordinary preparation has begun. If age or coating history is unknown, stop and resolve the lead boundary first.

Access and weather gate

Survey height, ground, openings, overhead power, wind exposure, pedestrian routes, falling-object exposure, and runoff before staging. A pole extends reach; it does not turn unstable ground, an overreach, or an unguarded edge into safe access. If the operator cannot keep a stable body position while controlling a loaded deep-nap cover, change the access method. Commercial work follows the applicable ladder, scaffold, lift, training, and fall-protection requirements.

The selected coating system owns air and surface temperature, humidity, dew, wind, direct-sun, frost, rain, and post-application protection limits. Check the actual wall face, including shaded and sun-heated elevations, not only a weather app. If the entire application and protection window cannot remain inside the written limits, do not start that section.

Establish the exact coating system — no mix-and-match

Obtain the current label and technical data for the exact finish product and every companion product the maker requires. The system must explicitly accept the identified substrate, its existing coating or bare condition, its exposure, and the proposed application method.

The current system documents must answer:

whether this substrate should be coated;

what preparation and surface profile are required;

whether each condition requires primer, conditioner, filler, or direct application;

whether the selected cover material and nap are permitted;

permitted mixing, conditioning, or reduction;

application conditions, coat count, film control, recoat, and weather protection;

cleanup, storage, and disposal.

Do not mix a familiar primer with an unrelated topcoat, call every high-build product “elastomeric,” or alter the product unless the system authorizes it. “Exterior paint” does not mean brick-compatible, and “masonry paint” does not fit every masonry. One brick manufacturer limits its painted-brick warranty to specified breathable mineral coatings; that is not a universal endorsement.

For historic masonry, a coating may be the wrong intervention. Non-permeable paint can trap moisture and accelerate deterioration. Preservation review, retained historic finish, and vapor behavior can outrank the desire for a uniform color.

The exact cover and frame roles

For 47366, the exact 1-1/2" core supports choosing a matching 9" cage system. For 47365, 99304, and 99525, do not invent fit from nominal width; verify the cover-to-frame interface physically or from current manufacturer documentation. Seat the dry cover fully, confirm free rotation and retention, and prove pole or handle connections before loading. A cover that walks, binds, or slides is a setup failure, not an application technique problem.

Build a representative test area

Choose a discreet area that includes the real problem: unit and joint on brick, peak and pocket on stucco, open pore and dense patch on block, and an old-coating transition if one will remain. Prepare it exactly as the production field will be prepared. Use the exact cleaner, repairs, system products, cover, frame, application method, and weather limits planned for the job.

The test is not approved while wet. Let the complete sample reach the coating maker's stated evaluation point, then inspect it:

from straight on and in low-angle light;

across peaks, pore bottoms, mortar joints, repairs, and edges;

for adhesion, uniformity, trapped contamination, pinholes, holidays, sags, heavy ridges, lap sheen, damaged roller fiber, and returning efflorescence or dampness;

after any weather exposure or cure milestone the system requires.

If it fails, preserve the evidence. Do not silently change nap, pressure, direction, primer, reduction, additive, or film build.

Application sequence

Divide the wall at real breaks

Plan sections that end at corners, returns, control joints, downspouts, openings, or other natural breaks while the coating remains workable. Do not bridge a moving joint or plug a designed opening with paint.

Stage one coating system and one accepted cover

Confirm product identity and batch handling, mix only as directed, and stage only what can be applied and protected inside the weather window. Fit the verified cover to its verified frame. Condition or pre-wet a cover only if the cover and coating makers authorize it.

Cut boundaries and deep details without building a dry picture frame

Use the exact system-approved detail applicator at corners, openings, joints, deep recesses, and transitions the roller cannot physically reach. Keep detail work close enough to the field that both join within the product's workable state. A deep cover transfers coating across a face; it cannot turn a corner, seal a moving joint, or guarantee the bottom of a narrow mortar recess.

Load for the relief and let the nap remain open

Work coating evenly into the deep cover using the loading equipment accepted by the coating system. A properly chosen deep nap reaches by flexing into relief.

On the first test-proven lay, approach pronounced pores and relief from more than one angle only to reach shadowed sides and bottoms, then leave a consistent final texture. The test area and coating data control the production method.

Read the wall continuously

Fresh coating can make peaks look complete while pore bottoms remain dry. Inspect the section immediately from more than one viewpoint and again in low-angle light.

Stucco: read crater bottoms, undercut relief, cracks that were accepted as static repairs, and changes from old to new material.

Brick: read unit faces, head joints, bed joints, recessed tooling, and the lower edges of projecting units. Preserve weeps.

Block: read open pores, mortar joints, dense repair patches, and the shadow line beside each rib or split face.

The correct readback is continuous coverage at the system's required build without bridged voids, starved bottoms, ropes, runs, or flooded relief. Do not chase an isolated defect after the film has begun to set. Mark it for the product-authorized repair point.

Keep the section continuous

Join each new load into workable coating and complete the planned section at its natural break. Reload when the cover no longer releases uniformly; do not stretch a starved load across the last pores. Stop if wind, sun, temperature, humidity, dew, rain risk, or wall temperature exits the written window. A cold joint forced into the middle of a visible field is usually harder to hide than a planned stop made early.

Inspect before recoat

At the exact recoat gate, inspect adhesion, cure condition, pinholes, holidays, lap lines, sags, contamination, and any return of moisture or salt. “Dry to touch” is not automatically ready. Correct only by the method and timing allowed by the coating system. A second coat can complete an approved system and improve continuity; it cannot stabilize loose masonry, dry a wet wall, or make an incompatible first coat bond.

Failure recovery

Pinholes or open pore bottoms: the cover was starved, relief exceeded its reach, pore filling was incomplete, or the method was wrong. Do not add pressure by reflex. Reach the system's repair state, confirm the correct layer, and retest cover depth.

Holidays visible in raking light: the roller coated peaks but missed shaded sides or bottoms. If still inside the workable state, correct only by the test-proven method. If it has set, mark it and use the system's recoat or repair instruction; a random wet touch-up can flash.

Lap stripe or sheen change: the edge left its workable window or the join doubled. Correct at the authorized stage, normally to a natural break rather than a narrow stripe.

Sag or run below a pore: too much material accumulated or released at once. Catch it only while the product permits manipulation; otherwise let it cure and repair by the technical data. Do not add thinner or switch pressure by guess.

Fat roller-edge ridge: the cover was compressed, overloaded, poorly seated, or wrong for the face. Stop, resolve setup and method, and correct at the system-approved stage.

Efflorescence returns or blisters form: stop coating. Moisture remains active. Open the failure diagnostically, correct the source, remove failed material through the approved method, and re-clear the moisture gate.

Coating peels with dust, chalk, or old paint on its back: the new film bonded; the layer below did not. Preparation stopped above a weak interface.

Mortar sands out or a brick/stucco face erodes during preparation: the substrate or cleaning method is unsound. Stop and hand the wall to the mason, conservator, or substrate specialist.

Cleaning agent, container handling, storage, spill response, and disposal are product- and jurisdiction-specific. Follow labels, safety data, the lead plan, and local requirements.

Before closeout, inspect every elevation at working distance and in low-angle light, verify openings and drainage paths remain functional, and record substrate, preparation, repairs, exact system products, lot or batch data, test-area decision, weather observations, coats, recoat decisions, and unresolved conditions.

Is 1-1/4" always the right nap for stucco?

Fine stucco or tighter relief may be better served by a 3/4" candidate. The test area decides whether the cover reaches bottoms without flooding peaks; over-napping is a real failure.

Can paint stop water coming through block?

Do not treat ordinary paint as a water-source repair. Find and correct the water path, then select a protection or coating system engineered for the actual exposure. Active dampness and efflorescence keep the coating gate open.

Do all bare masonry surfaces need primer or block filler?

No universal answer is authorized. The substrate, porosity, existing condition, repairs, exposure, and exact finish system determine primer, conditioner, filler, or direct application. Use the current technical data; do not invent the layer.

How hard should I press, and which direction should I roll?

No numeric pressure or universal direction is supplied. Use the direction and application method proved by the exact system and representative test area.

When can I recoat or when is rain safe?

Only when the exact coating data and actual wall/weather conditions say so. This guide deliberately invents no recoat time, cure time, temperature, humidity, dew, or rain window.

Can I paint over efflorescence after brushing it off?

Not while it is active. Salt bloom is evidence of water movement. Correct the source, complete the cleaning handoff, let the wall reach the system's accepted moisture condition, and confirm the bloom does not recur before coating.

Can I use a nominal 9" frame with every cover here?

Do not infer fit from the aisle name. The 47366 has a verified 1-1/2" core. The other three have unresolved core or exact-frame details in their local records. Verify documentation or perform a dry physical fit before loading.

History — the young roller on very old walls

That speed does not repeal masonry physics. The National Park Service warns that inappropriate cleaning and non-permeable coatings can damage historic masonry. The roller made application fast; it did not make every old wall paintable.

Patent 2,378,900](

47365: exact identity proves 9", Lamb Pro, and 3/4" nap.

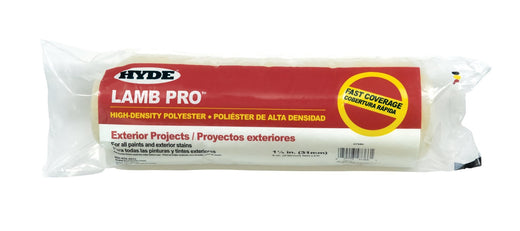

47366: exact official sources prove 9", 1-1/4" nap, 1-1/2" core, and Lamb Pro high-density-polyester family membership.

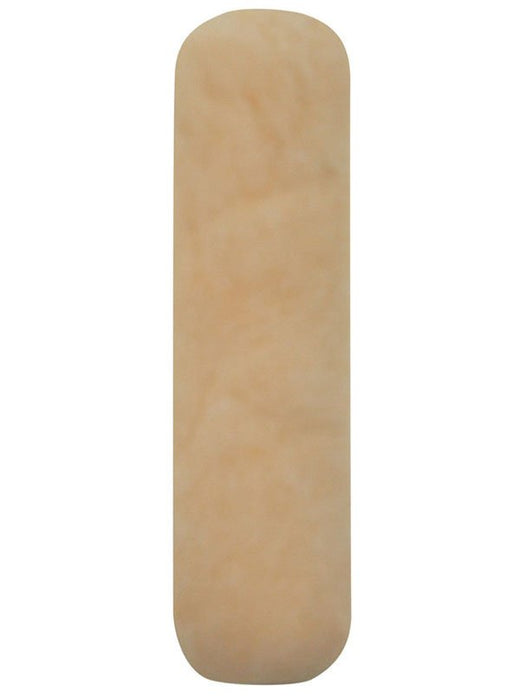

99304: exact store identity proves 3/4" pile; official family page lists it in General Purpose 9-1/2" rollers.

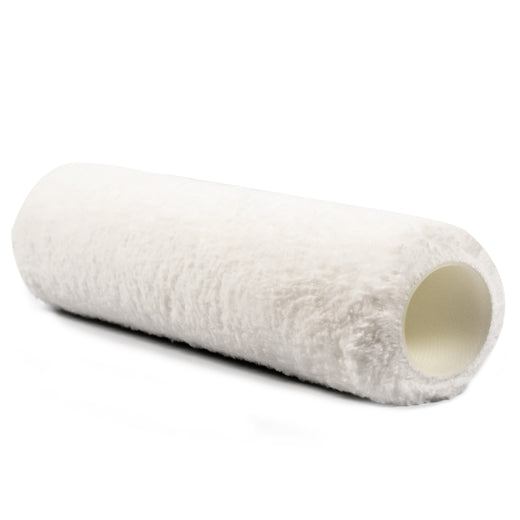

99525: exact store identity proves 3/4" pile; official family description lists 99525 as a 9-1/2" microfiber Ultra Touch cover.

Surface suitability: brick composition, stucco type, historic status, prior coating, sealer, cure, moisture, alkalinity, salts, and contamination remain site facts. The test area does not waive a failed diagnostic gate.

Access and safety: the controlling employer, site plan, SDS, EPA/OSHA requirements, and local law determine containment, exposure controls, PPE, access, fall protection, cleanup, and waste handling. This guide does not invent them.

No fifth SKU is silently added.
