How to Paint Radiators and Other Unreachable Finish Surfaces

Scope: finish-paint a sound, authorized surface that can be reached and inspected with the Hyde 45042 Window Sash Painter. This guide includes radiator faces and similarly narrow architectural finish surfaces when the problem is pad access. It does not authorize painting the wall behind a radiator, opening or moving equipment, selecting a coating, disturbing suspect paint or insulation, or shutting down and restarting a heating, electrical, plumbing, gas, or mechanical system.

Job: place the approved finish on the safely reachable parts of a radiator or another narrow architectural surface, while keeping controls, joints, openings, labels, adjacent materials, and equipment clear.

Time: no universal duration is stated.

Difficulty: precise access work after the surface and system have been released; stop when the target cannot be prepared, reached, and inspected without blind contact or equipment work.

Everything else: the current label, Technical Data Sheet, and Safety Data Sheet for the complete coating system; protection sized to the actual work; an inspection light and mirror or camera; cleaning and preparation materials authorized for the identified substrate and hazard plan; a stable loading surface or container approved for the coating; waste containers; and only the PPE selected by the controlling SDS, site hazard assessment, and applicable work rules.

The 45042 solves access. It does not decide whether a surface may be painted or whether nearby equipment is safe to approach.

This guide supplies no valve sequence, disconnect point, lockout method, waiting period, temperature number, pressure test, or restart procedure. It is not a residential recipe.

Painting cannot convert an active defect into a sound substrate.

The coating manufacturer owns compatibility and conditions. The written system must approve the substrate, existing coating, cleaner or primer, application conditions, ventilation, recoat, full cure, cleanup, and intended service. “Radiator paint” is not a specification, and the 45042 record certifies no coating.

EPA’s current RRP program and March 2026 lead-safe renovation steps are public starting points, not a project-specific plan or universal PPE set.

A dry physical rehearsal owns access. The exact tool, target, protection, and path must work together without paint. “Hard-to-reach” in Hyde’s description is an intended duty, not a promised reach, gap size, bend radius, finish result, or permission to work blind.

A thin tool is not a substitute for those decisions.

Its target is the wall, not the radiator.

It covers brush access around walls, emitters, pipes, and fixtures.

Radiator recesses are the named Hyde application; the broader boundary is similarly narrow architectural finish work, not the inside of equipment.

Use the ordinary applicator when it reaches and leaves the required finish. The 45042’s value begins when access geometry, rather than coverage rate, is the limit.

Diagnose the actual target

Lane A — a radiator surface released for coating

The equipment procedure has placed the radiator in the required work state; the surface is cold or otherwise released according to that procedure; the substrate and existing coating are identified; leaks, active corrosion, loose parts, and suspect insulation are absent from the tool path; and the coating system expressly belongs on that target and service condition.

Define the paint boundary before masking. Radiator body surfaces may be in scope. Vents, bleeders, valve stems, union faces, thermostatic heads, sensors, elements, cords, controls, labels, openings, removable-cover seams, and service interfaces are not incidental paint surfaces. Keep them clean, readable, accessible, and operable. Do not loosen or move any of them for pad clearance.

Lane B — a narrow architectural finish surface

Examples are the reverse face of fixed trim, a narrow return beside casework, or a non-equipment decorative slot where the surface is known, included in the finish schedule, and inspectable. Hyde’s official phrase “other hard-to-reach areas for finish painting” supports the access class; it does not prove that every louver, cabinet gap, penetration, grille, or appliance recess is paintable.

Decide what the apparent “surface” actually is. A dark line may be a shadow gap, ventilation opening, movement joint, drainage path, fire-rated assembly, gasket, unfinished back, or removable seam. Do not fill it because the pad fits.

Lane C — stop and change the work plan

Stop when the target is inside or behind energized equipment, across a cord or conductor, through a combustion or ventilation opening, beside damaged thermal insulation, beyond inspection, or reachable only by disconnecting, shifting, opening, or defeating a guard. Also stop for an active leak, damaged electrical part, unstable emitter, deep or joint-centered corrosion, unknown friable material, or a coating failure that cannot be prepared under the established hazard plan.

The outcome may be a recorded inaccessible area, qualified removal under another work order, or another authorized applicator. “The pad can enter” is not “the job can proceed.”

Read the exact product record—and no more

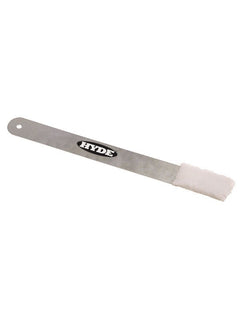

The current Hyde Window Sash Painter page establishes model 45042 as a flexible metal tool with a paint pad whose handle can be bent for hand position. Hyde names window sashes, radiators, and other hard-to-reach finish areas; its catalog repeats that scope.

pad material, dimensions, pile, replaceability, or life;

metal alloy, length, bend radius or cycles, recoverable shape, gap width, or reach;

loading, transfer, or finish performance;

coating or substrate compatibility, surface temperature, cleanup, storage, PPE, or disposal.

A specialist retailer calls the pad mohair and the handle aluminum and adds finish claims. Hyde does not. The research packet marks that material contextual and unaccepted, so this guide excludes it as product fact.

Prove access with the tool dry

Illuminate the target from both sides where possible. Use a mirror or camera only from a safe position. Record the boundary that can be prepared, coated, and inspected.

Protect the floor and adjacent non-target surfaces without taping over or hiding a vent, valve, label, cord, junction, sensor, connection, drainage path, or service opening. Do not stuff masking into an air path or equipment cavity.

With the 45042 clean and unloaded:

Establish a hand position outside the obstruction.

Use only the handle adjustability Hyde documents: bend the metal handle out of the way until the pad can meet the target without the handle, hand, or pad striking an adjacent surface.

Rehearse entry, the full working stroke, inspection, and withdrawal. A successful entry with no controlled withdrawal is a failed path.

Confirm that the pad face—not an edge, handle, or unverified part of the tool—can make stable contact.

Rehearse again with all protection installed. Masking changes the available gap.

Do not assume an angle, radius, or repeated-bending limit. If the tool will not hold its presentation, shows damage, or needs force or blind fishing, stop. Do not extend, splice, hammer, sharply crease, heat, or attach it to another handle; no such adaptation is accepted.

Prepare only under the approved surface and hazard plan

The reach pad is a finish applicator. It is not a scraper, rust brush, solvent rag, abrasive, leak detector, or cleaning wand.

Clean, abrade, repair, treat corrosion, and prime only as the coating system and hazard plan direct. No universal cleaner or dry-prep method is authorized. Keep liquids and debris out of electrical parts, controls, joints, openings, floor cavities, and insulation.

If preparation will disturb paint in covered pre-1978 housing or a child-occupied facility, determine the applicable EPA or state-program requirements first. Do not identify suspect older insulation by sight or brush, tape, compress, coat, or clean it; route it to the applicable procedure.

After preparation, inspect again. The surface must be dry, sound, and within the coating maker’s conditions. Then test the approved system and 45042 on a designated accessible area or sample. Evaluate transfer, leveling, texture, edge control, and tool condition when the coating instructions permit. The record promises no match to a brush, roller, spray, factory film, or aged finish.

Run the thin-pad workflow

Set the sequence

Coat approved recesses before visible faces so the ordinary finishing applicator can correct a minor overlap without dragging the reach tool across completed work.

Map short, inspectable strokes and approach from both sides when that reduces blind travel.

Load for control

Use a loading method compatible with the coating and tool. Because the record gives no loading or conditioning instructions, inspect current manufacturer direction. Charge evenly and remove excess on the approved loading surface.

Keep coating off the grip. If the tool drips before reaching the target, reduce the charge; do not use the obstruction to wipe off excess.

Place and draw the finish

Enter along the rehearsed path without touching an adjacent surface.

Place the pad face flat on the deepest approved point that can still be inspected.

Draw a short stroke along the surface’s axis. The tool’s advantage is planar contact in a narrow space; stabbing or repeated dabbing concentrates paint at the entry point.

Use only enough pressure to keep the face in contact. Extra pressure is not a cure for a wrong bend, poor access, depleted load, or unsuitable coating.

Overlap the next short pass while the coating system permits it. Reload before pressure is needed to extract the last paint.

Inspect undersides, recess bottoms, and withdrawal edges after each group of passes. Catch an overload only within the coating maker’s correction window.

Work from the opposite side where it creates a shorter controlled join. Do not sweep through a vent, joint, or service part to connect two passes.

Complete the accessible visible face with the authorized ordinary applicator, joining at the planned boundary under the coating’s open-time and rework instructions.

For another coat, repeat the condition, protection, path, and finish checks.

Target-specific control points

Radiator recesses and wall-facing faces

Work recesses before fronts, use short paths from both ends, and inspect low edges where excess can collect. Never bridge a vent, valve, bleeder, union, control, electrical element, label, or removable seam with paint.

No radiator material, factory finish, previous coating, or operating temperature is assumed. Those facts come from the actual emitter and coating record.

Fixed trim, returns, and decorative slots

Define the transition to ordinary applicator work. Coat the reverse face first, then finish the accessible field while a clean join remains possible. Preserve hardware, movement gaps, glazing, seals, and removable edges. A dark recess need not become a painted cavity when it is uninspectable or outside the finish schedule.

Behind a pipe or fixed obstruction

Decide whether the target is the wall or the pipe. If it is the wall, keep coating off the pipe and its insulation, joints, supports, escutcheon, labels, and penetration. If it is the pipe, this guide proceeds only after the pipe material, service, coating system, and equipment state have all been established. Do not pack an annular gap or coat a connection by default.

Louvers, grilles, and equipment-adjacent slots

Decorative slats may be finish surfaces; ventilation, combustion, drainage, electrical, guarded, and service openings are not. Never insert a wet metal-handled tool into powered or unverified equipment.

What goes wrong, what it means, and the fix

Only one edge of the pad transfers finish. The pad is not square to the target or an obstruction is canting the handle. Withdraw, clean as authorized, reset the dry presentation, and shorten the stroke. Do not press the high edge harder.

Paint ropes at the entry point. The pad is overloaded or being dabbed. Repair only while instructions allow, then reduce the load and draw shorter passes.

The handle or pad touches an adjacent surface. Stop and inspect both surfaces and every service feature nearby. A second uncontrolled contact fails that path.

The handle springs the pad away. The set geometry does not work under the coating’s drag. Rehearse again clean and dry. If stable face contact cannot be obtained within the documented bendable-handle function, change the access method.

Texture differs from the visible field. Check the test, coating batch, substrate, preparation, load, adjacent applicator, and lighting. Another bend does not guarantee a match.

A run forms where it cannot be fully inspected. Correct it only within the coating’s written window. Reduce the load and shorten the next path. If inspection remains incomplete, reduce the finish boundary.

Old coating powders, flakes, or releases during cleaning. Stop ordinary work.

Rust, dampness, a leak, damaged wiring, or suspect insulation appears. Withdraw without disturbing the condition and route it to the responsible trade or hazard plan. Paint is not the repair.

A vent, control, joint, label, or opening receives paint. Stop before the system is operated. Do not force a painted moving part or clear an opening by improvisation.

This guide supplies no live-system workaround.

The pad sheds, swells, hardens, detaches, or reacts. Stop. Preserve product and coating identifiers and resolve the undocumented compatibility with their manufacturers.

Cleanup, final inspection, and handback

Move the tool to its protected landing area before the coating sets.

Recover or dispose of coating as the label and site plan permit. Do not return worked coating unless authorized.

Clean or dispose of 45042 only under current exact-product direction and the coating maker’s instructions. Hyde does not state water, solvent, pad removal, replacement, or reuse, so this guide prescribes none.

Handle rags, chips, liquid, masking, and protection under the SDS, hazard plan, and waste rules. No generic rag, solvent, wash-water, or PPE procedure is invented.

Remove protection without brushing it across the radiator, pipe, trim, or service parts. Keep debris out of openings and joints.

Inspect under direct and raking light from the same real sightlines used at the start. Record every inaccessible area honestly.

Verify that controls, vents, bleeders, valves, unions, labels, cords, elements, openings, access seams, drainage, and ventilation remain clean and operable. Escalate contamination or damage; do not disguise it.

The coating maker owns cure and return-to-service conditions; the system procedure and responsible person own restart and verification. The painter does not infer either from “dry to the touch.”

Frequently asked questions

Is this the guide for painting the wall behind a radiator?

Does 45042 fit between every radiator section?

Rehearse the protected path dry. If the face cannot be placed and withdrawn under control, the tool does not fit that job.

Can I paint a warm or operating radiator?

This guide supplies no temperature or operating-state approval. The equipment procedure establishes the safe work state; the coating maker establishes application and return-to-service conditions. Both must release the work.

What paint should I use?

The 45042 record does not authorize any coating family. Identify the substrate, existing film, intended service, operating condition, and required finish; then use a complete written cleaner/primer/finish system that approves them.

Is the pad mohair and the handle aluminum?

Not as an accepted Hyde product fact. A retailer makes both claims, but Hyde’s official exact-model record says only “paint pad” and “flexible metal.” Mohair and aluminum remain gated pending exact-model first-party verification.

How far can I bend the handle, and how many times?

Hyde says the metal handle can be bent out of the way for a better hand position. It gives no angle, radius, cycle life, or straightening procedure.

Can I use it near an electric baseboard or appliance?

Not merely because it fits. A wet applicator on a metal handle must not enter powered or unverified equipment.

What if a deep recess remains unpainted?

An honest shadow beats a concealed defect or painted control.

History footnote — the flat pad learns to reach

The 45042 belongs to paint-pad history, not merely radiator brushes. Paul V. Imhof’s 1960 filing, granted in 1964 as US3117334A, describes a flexible-metal paint applicator carrying a compressible pad. It does not prove that Hyde copied it, that 45042 uses its named material, or that Imhof invented every sash or radiator pad.

Later patents moved the geometry toward pivoting heads and extension access. US4300258A describes a pad applicator with an optional pole connection for normally inaccessible surfaces. Painters kept separating the paint-carrying face from the hand so the face could stay flat where the wrist could not.

Hyde’s 45042 takes the compact, low-tech route. Instead of a hinge, pole, cage, or brush ferrule, the documented function is a flexible metal body that can be bent out of the way. Its history is therefore best told as an anonymous trade-pattern answer to access—not as a Hyde invention claim and not as evidence for any unstated specification.

Current primary sources

Hyde — Window Sash Painter, SKU 45042 — exact live identity, flexible-metal/paint-pad description, named applications, and bendable handle.

US3117334A and US4300258A — primary patent records for the history of flexible-metal and inaccessible-surface paint-pad geometry, not product specifications for 45042.

Pad material, dimensions, pile, attachment, replacement status, service life, and cleaning method are unstated by Hyde.

Handle alloy beyond “flexible metal,” overall dimensions, bend radius, allowable angle, bend-cycle life, and straightening/storage method are unstated.

No coating compatibility, substrate roster, safe surface temperature, loading capacity, transfer-rate, finish-quality, PPE, or cleanup claim exists for the exact model.

Retailer claims of mohair pad and aluminum handle are not accepted product facts; they must not be silently merged with Hyde’s official record.

The historical patents establish older tool patterns only; neither is asserted as 45042’s patent, maker lineage, or material specification.

Exact bidirectional graph

No roller, brush, scraper, coating, extension, or accessory is added to the union.
