Paint Clean Lines with a Pad Edger

Job: Apply a straight band of paint beside a smooth adjoining surface with a guided pad edger, then connect that band to the field coat without leaving a dry lap.

READ THE WORK

The complete Hyde job guide.

A controlled method for wall-to-ceiling lines, trim edges, and baseboards

Difficulty: Moderate. A pad edger reduces the hand skill required for long, repetitive boundaries, but it does not make surface condition, paint loading, corners, or wet-edge control automatic.

The register's union of 95000, 95001, and 95008 is a discovery lead, not proof that all three are interchangeable or even complete applicators.

Exact product roles

The line evidence supports a guided pad-edger class, but the naming is internally tense: the store calls 95000 and 95008 “trim wheel” kits, while the official exact-model description for 95008 identifies a cut-in pad for a telescopic pole. This guide therefore does not turn the word “wheel” into an unsupported mechanical specification. Inspect the actual head. If it has wheels, keep their contact surfaces clean. If it uses a fixed guide lip or plate, keep that contact face clean.

Everything else to have ready

The coating specified for the wall, ceiling, or trim, plus its label and technical instructions.

A small clean tray, pail lid, or other shallow loading surface appropriate to the coating.

A clean roller and cover for the adjacent field coat.

Clean lint-free rags.

The coating maker's specified cleanup material.

Drop protection for the floor and nearby finished surfaces.

A small brush for corners, interruptions, and correction.

Painter's tape when the surface is sound and the design demands a more controlled two-color boundary than the pad can reliably produce.

Proper access equipment when the boundary cannot be seen and controlled from a stable position. A pole-oriented tool is not a substitute for safe footing or clear sight of the line.

Decide whether a pad edger is the right method

A pad edger earns its place on a long, smooth, repetitive boundary. Its guide follows the adjoining plane while the loaded pad lays a narrow band on the surface being painted. That division of work can be faster and more repeatable than freehand brushing for an operator who has not developed a reliable cut-in stroke.

It is not automatically the cleanest option in every condition.

| Boundary condition | Best starting method | Why |

| Long, smooth wall-to-ceiling line; same plane and coating condition throughout | Pad edger | The guide has a stable reference and the pad can make repeatable passes |

| Long, smooth wall beside finished baseboard or casing | Pad edger after a dry fit and test stroke | Useful when the trim face gives the guide an uninterrupted path |

| Textured wall, textured ceiling, lumpy caulk, or visibly wandering joint | Angled sash brush | A rigid guide rides high points while the pad may bridge low points |

| Short return, tight inside corner, hardware interruption, or end of a casing | Brush | Direct hand control reaches where the guided head cannot |

| Design-critical boundary between contrasting colors on a stable, maskable surface | Tape, possibly finished with a brush | A pad follows the physical joint; it does not create a new geometrically perfect line |

| Fragile finish or surface where tape adhesion is risky, but the run is short | Paint shield plus brush | The shield masks without adhesive, but it must be lifted and wiped repeatedly |

Choose the method from the surface, not from the tool name. If the intended edge disappears into heavy texture, if the adjacent finish cannot tolerate guide contact, or if the guide cannot sit flat, use a brush or a sound masking system.

Inspect the boundary before opening paint

Clean-line work begins with the joint itself.

Follow the full route with your eyes and fingertips. Find raised caulk, torn paper, grit, dried drips, open cracks, projecting fasteners, trim joints, and changes in texture.

Confirm that the adjacent ceiling or trim finish is dry, stable, clean, and able to tolerate light guide contact. Do not drag an edger across soft paint.

Decide which physical feature is the intended line. On an irregular old wall, the actual wall-to-ceiling joint may wander. A guided tool will usually reveal that wandering rather than correct it.

Remove dust and loose material using methods appropriate to the substrate and coating system. Let any wet preparation dry as required by its instructions.

Protect the floor and nearby work. A pad edger controls the boundary; it does not contain drips from loading, turning, or carrying the tool.

Stop and repair the substrate when a defect is large enough to steer the guide or open a visible gap beneath the pad. Painting over an unstable edge preserves the defect in color.

Dry-fit the exact head

Do this with no paint on the tool.

Place the edger against the intended boundary and move it through a short representative section. Observe four things:

Does the pad face land on only the surface to be painted?

Does the guide contact only the surface that must remain clean?

Can the head pass over caulk joints, trim profiles, and minor interruptions without rocking?

Can you see both the guide contact and the fresh edge from your working position?

Then test the start, the stop, and one approach to a corner. The body of a guided head usually cannot carry coating fully into a closed inside corner or around a projecting profile. Mark those brush-only zones mentally before the production pass.

For 95008, verify the actual connection to the intended pole before loading. The official evidence supports pole-oriented use, but not a specific mount, included pole, locking method, or compatible pole family. Pull lightly on the assembled connection over a protected floor.

For 95000, inspect what the store title calls the kit. Confirm that the complete working head is present and that any pad is securely retained by the actual, visible mechanism.

Prepare the paint and loading station

Mix and condition the coating only as its label directs. Do not thin it merely to make the edger feel easier.

Pour a shallow amount onto a clean loading surface. The aim is to wet the working pad face without flooding the guide. A deep pool makes it too easy to coat the guide, the sides of the head, or the handle.

Touch only the pad face to the paint.

Spread the load across the face with short, shallow movements.

Offload excess onto the dry portion of the tray or loading surface.

Inspect the guide contact. If it has paint on it, clean it completely before approaching the boundary.

Make a short test stroke on a practice surface or an inconspicuous part of the job.

The correct load leaves a continuous film without beads at the pad edge. A starved pad chatters and leaves skips. An overloaded pad pushes paint around the guide and can print onto the protected ceiling or trim.

If the inspected tool has wheels, never roll those wheel treads through the paint. If it has a fixed guide, never dip that guide face. The clean component is determined by the actual head, not by the unresolved store naming.

Make the first wall-to-ceiling pass

At a wall-to-ceiling boundary, the pad paints the wall while the guide references the ceiling.

Begin away from a closed corner, where there is room to set the full head flat.

Set the pad onto the wall first. Bring the clean guide gently into contact with the ceiling; do not jab the loaded head directly into the joint.

Use light, even pressure. Excess force can squeeze paint toward the guide, deform the pad, or make the head rock across surface irregularities.

Move in one controlled direction through a manageable run. Watch the guide and the wet film behind the pad, not just the handle.

Stop before the pad becomes dry enough to skip. Lift the guide away from the protected surface, then remove the pad from the wall.

Inspect the protected ceiling and the guide before reloading.

Reload before the film turns thin and scratchy. Clean the guide immediately if it picks up paint. One contaminated pass can transfer paint farther down the entire boundary.

The 1954 patent record for a recognizable pad-and-roller edger describes the same durable class principles: keep the guides free of paint, use light even pressure, and make a sustained stroke.

Connect the edge to the wall field

The pad pass is only the boundary band. The wall still needs its field coat.

Work in sections that let the roller reach the freshly edged band before it loses its working wet edge. After edging a manageable section:

Load the wall roller according to the coating and cover instructions.

Roll the field close enough to overlap the inner edge of the pad band.

Blend the overlap with the roller carrying a normal, controlled load—not with a dry roller scrubbing a partially set film.

Continue the sequence of edge, then field, one manageable section at a time.

Do not edge the entire room hours ahead merely because the pad makes the boundary quickly. A dry cut-in band can remain as a different texture, thickness, or sheen after the field coat is rolled. The coating label, temperature, humidity, substrate, and film thickness control working time; this guide does not invent a universal minute count.

Edge beside trim and baseboards

At trim, baseboard, or casing, the pad paints the wall and the guide references the finished woodwork or other adjoining trim surface.

Dry-fit first. Some profiles have a narrow edge that cannot support the guide without tipping it toward the face. Caulk beads, eased edges, and proud joints can also lift the pad away from the wall.

When the fit is sound:

Start on a straight section, not directly at a casing corner.

Load more conservatively than for an open wall-to-ceiling line. Gravity and a projecting trim face make a heavy bead especially visible.

Set the pad on the wall, then settle the clean guide against the trim.

Move steadily while watching the narrow gap immediately behind the guide.

Lift away before a joint, profile change, or closed corner forces the head to rock.

Finish the missed end with the small brush.

Wipe the guide between runs even when it looks clean from the handle side. Paint can gather on the contact edge that is hidden during the stroke.

If the trim finish is soft, chalking, peeling, heavily textured, or easily marked, do not use it as a guide rail. Protect or repair it and switch to brush or masking.

Control starts, stops, and corners

Most pad-edger defects happen where a stroke begins or ends.

Set the loaded pad onto open wall, then introduce the clean guide to the boundary. Where possible, begin inside a band that will immediately be blended into the field coat. Starting with the guide pressed into the joint can squeeze a dot of paint onto the protected side.

Reduce forward motion, lift the guide clear, and then lift the pad. Do not twist the loaded head against the boundary. A twisting lift leaves a hook, blob, or double-thickness mark.

When resuming, overlap only enough to reconnect the wet film. Repeatedly working the same partially setting area can create a ridge or change the sheen.

Inside corners

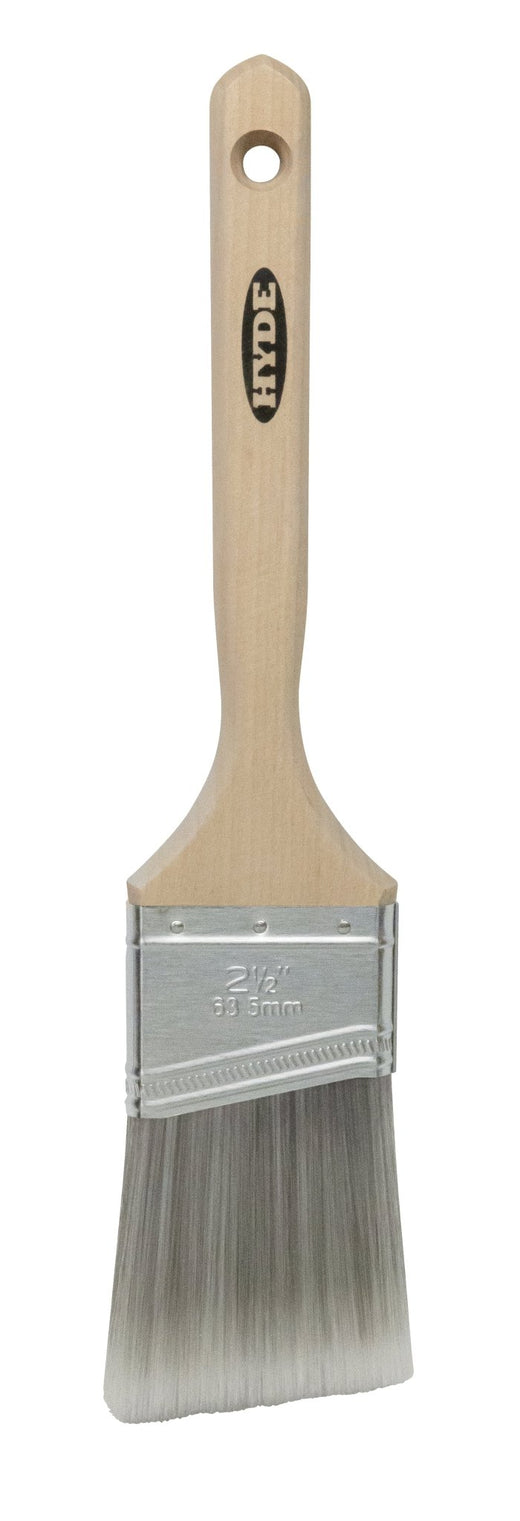

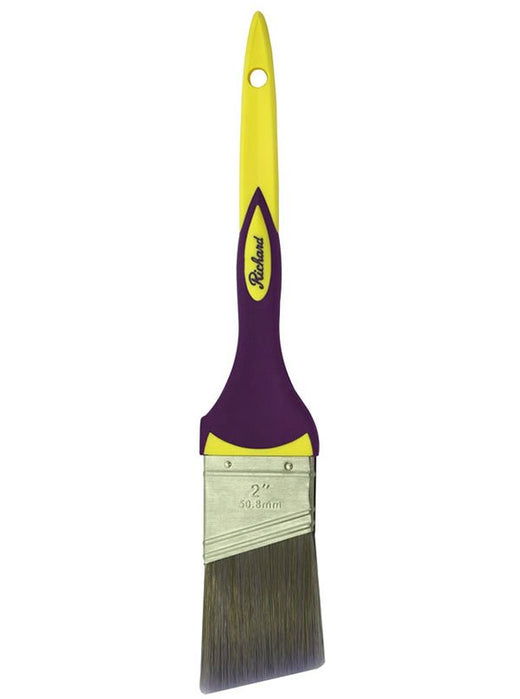

Stop while the full pad and guide are still stable. Use the angled sash brush to carry the boundary into the corner. A full guided head cannot be assumed to paint the final closed point cleanly.

When the planes receive different colors, retain brush control at the final corner point.

Outside corners and trim returns

Do not swing a loaded head around the corner. Finish one face, lift cleanly, inspect and reload, then approach the next face separately. Use a brush at the apex or return if the guide cannot remain fully supported.

Handle a two-color boundary

A two-color boundary exposes every variation in the substrate. First decide whether the physical joint itself is acceptable as the visible line.

If it is:

Paint the lighter or underlying side and let it cure as required by that coating before guide contact or masking.

Dry-fit the edger against the finished side.

Make a short test in an inconspicuous area.

Keep the guide scrupulously clean and use a conservative load.

Inspect the fresh result from normal viewing distance and close range before continuing.

If the design requires a line straighter than the physical joint, the pad edger is the wrong geometry tool. Establish the intended line with suitable tape on a sound surface, or use a skilled brush where masking is unsuitable. A guided pad follows an existing reference; it does not survey a new one.

Strong color contrast also makes a thin miss obvious. Do not respond by pressing harder. Reload, correct the isolated gap with a brush, and preserve a uniform film.

Know the texture and access limits

Texture and uneven joints

On texture, the guide rides the high points while the pad spans or misses the low points. The result may be a broken line, paint on the protected peaks, or both. Heavy orange peel, knockdown ridges, acoustic texture, rough masonry, and irregular caulk are brush territory unless a small test proves otherwise.

A second pass rarely fixes the geometry. It often enlarges the contaminated area. Switch methods as soon as the test reveals that the head cannot stay registered.

Pole-oriented access

The exact official evidence makes 95008 relevant to a telescopic-pole workflow, but that does not prove that remote edging is appropriate for every high line. Use it only when:

the actual pole connection has been verified;

the line remains clearly visible;

the head can be placed flat without uncontrolled side load;

the floor position is stable and the work area is protected; and

the operator can stop immediately to inspect a suspect transfer.

If the guide contact cannot be seen, the edge cannot be controlled. Use proper access or another method. That guide does not establish a specific 95008 pole fit.

The registered neighboring job “Reach High Ceiling Lines from the Floor with a Pole-Mounted Edger” remains a separate, unauthored queue item.

Diagnose failures before making another pass

| Symptom | Likely cause | Corrective action |

| Paint transfers onto ceiling or trim | Guide was contaminated; pad was overloaded; head rocked; protected coating was soft | Stop. Clean the guide, correct any fresh transfer using a coating-appropriate method, reduce the load, and dry-test the contact |

| Broken or dotted edge | Pad is underloaded; texture interrupts contact; head is tilted | Reload and test. If the substrate is the cause, switch to brush |

| Heavy ridge at inner edge of band | Pad is overloaded or the band was allowed to dry before rolling | Reduce load and connect each fresh section to the field while workable |

| Hook or blob at the end of a stroke | Head was twisted or stopped under pressure | Lift the guide away before lifting the pad; correct the isolated defect with a brush |

| Wavy line | Physical joint wanders; guide is riding debris or profile changes | Clean or repair the reference. If the design needs a straighter line than the joint, mask a new line |

| Pad slides, bunches, or detaches | Pad is not seated on the actual retention system, is damaged, or may be incompatible | Stop immediately. Inspect the head and package instructions; do not assume 95001 fit |

| Remote head changes angle or loosens | Unverified or insecure pole connection | Lower the tool over the protected area and correct the connection. Do not continue overhead |

| Different sheen beside the edge after drying | Cut-in band and field did not join wet, or film thickness differs | Follow the coating's recoat instructions; on the next coat, shorten the edge-to-roll interval |

Do not chase a defect while the guide is still contaminated. One correction stroke with a dirty guide multiplies the cleanup.

Clean the edger and assess the pad

Follow the coating label for water, solvent, disposal, ventilation, and fire precautions.

Before the coating hardens:

Remove excess paint from the pad by the coating maker's permitted method.

Clean the guide contact thoroughly. Rotate and inspect any actual wheels by hand only after the tool is safely off the work.

Clean durable head and handle surfaces without forcing coating into joints or retention features.

Treat or remove the pad only according to the actual package or tool instructions. This guide does not invent an attachment method.

Dry and store the tool as its instructions require.

The store title makes 95001 a plausible two-pad refill lead, but “for 9500” is not an exact compatibility statement.

Buyer and operator tests

Use these tests before treating the three registered SKUs as one system.

Test A: I need a reachable wall-to-ceiling line

Start with 95000 only after inspecting the complete working head. Choose it over 95008 when hand control and close visual inspection are more valuable than pole orientation.

Test B: I need to reach a ceiling or trim line with a pole

It is not proof of an included pole or universal pole compatibility. Verify the mount and the working view before loading. If remote control is poor, change the access method.

Test C: I need replacement pads

95001 is a candidate, not an automatic add-on. The title supports a two-pack and the truncated fit phrase “for 9500”; it does not close exact fit. Carry the tool or exact model identity to the physical package comparison.

Test D: Tape is undesirable

It is a shield, not an applicator. Place it, paint the short exposed section, lift it cleanly, and wipe it before the next placement.

Test E: I need the sharpest possible contrasting-color line

Do not buy a pad edger solely from the promise of a perfect line. On a stable, smooth surface, a carefully established tape line may be more appropriate. On texture or fragile finish, an angled sash brush may provide better control.

What the historical record actually supports

Pad edgers belong to a long effort to make boundary painting less dependent on a perfectly trained freehand stroke.

A [Frederick J. Wood Jr. patent filed in 1954]( shows a recognizable paint edger with a removable absorbent pad and two guide rollers for work such as a wall-to-ceiling boundary. Its instructions emphasize keeping the rollers free of paint, using light even pressure, and moving through a sustained stroke. The patent also cites earlier applicator art, so it is evidence that this form existed by 1954—not a defensible claim that one person invented every paint edger.

A Shur-Line patent filed in 1971 describes an “improved” edger using an absorbent pad and three guide rollers, and explicitly discusses prior paint edgers. Together, the records show iterative refinement of the pad-and-guide idea rather than a clean single-origin story.

That history explains the method's enduring bargain: a guide can reduce the hand skill needed to follow a sound boundary, but only while the guide stays clean and the surface gives it a reliable path. It does not fill the evidence gaps for the present 95000, 95001, or 95008 construction.
