How to Paint Above Head Height Without a Ladder — A Floor-Based Reach Method with a Hard Access Stop

Use this method only when the exact dry assembly can reach the entire bounded work zone from a stable level floor or landing while the operator keeps ordinary balance, a clear walking route, full view of the roller face, and control outside every electrical and overhead exclusion. If any part of that proof fails, stop and use properly selected access equipment under the site’s fall-protection plan.

Do not stretch onto toes, lean across a rail, work from a tread, stand on furniture, bridge a gap, or extend a pole until a failed route merely touches. Touch is not working reach. The pivot changes cover angle, not the operator’s center of gravity.

That 1/1 union is exhausted exactly. A cover, coating, pole, tray, floor protection, lighting, PPE, and any access equipment are necessary job inputs, but they are not additional product nodes in this application. No extension-pole model is registered here, and this guide does not invent one.

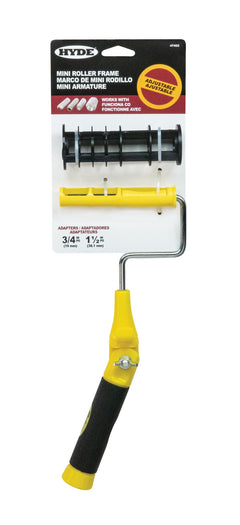

The evidence permits only this: 47402 is a 4" adjustable mini frame with 3/4" and 1-1/2" core adaptors, documented Acme-pole attachment, and an accepted catalog/video record for a toolless 180° pivot and above-head use. It provides no pole length/material, payload, stiffness, reach, torque, retention force, production rate, or fall-protection rating.

Decide whether this is a pole job before opening paint

1.1 Define a bounded target

This method is for small overhead or high-angle work: a soffit face, short upper-wall band, high patch, or stairwell strip reachable from a level landing. A mini cover is a placement tool, not a whole-ceiling or broad-wall machine.

Mark the proposed zone from the floor. Identify every cut-in, scrape, sand, caulk, repair, mask, fixture-removal, or close-inspection need. If those tasks cannot be completed safely from the floor with proven systems, roller reach does not make the job floor-complete. Route to safe access before coating hides unfinished preparation.

Reject the pole method for a target that:

continues behind an obstruction so the cover face disappears;

demands a crisp line that cannot be inspected at working distance;

includes loose coating, active moisture, unknown staining, damaged substrate, or a repair that needs hand-distance diagnosis;

sits beyond a railing, open well, tub, counter, machinery, or another barrier that induces leaning;

requires the operator to walk backward without a continuously clear floor route;

lies within an electrical or overhead exclusion that the complete assembly cannot avoid.

1.2 Prove the stance and route dry

Clear the walking lane. A valid stance is a stable, level, dry, unobstructed floor or landing; stair treads are not a continuous floor route. Sliding cloth or plastic that hides a level change is unacceptable footing.

Dry, move the shortest candidate pole through the complete stroke from every planned stance. Both feet remain ordinary; the torso may turn but not hinge over an obstacle. The operator must stop, reverse, lower, and reposition without a recovery step.

Watch the entire frame and cover. A helper may observe clearance but cannot make a blind pass controlled. If the roller disappears, the route fails.

Mark the minimum extension that completes the zone. More extension increases leverage, flex, swing, and reversal lag. Reposition on another valid stance before lengthening; stop if no valid stance completes the target.

1.3 Make the fall-prevention decision explicit

NIOSH’s hierarchy places eliminating elevation before PPE and identifies safe access systems as engineering controls. Floor-based work eliminates elevation only when its proof passes; it does not argue against proper access when hand-distance work is necessary.

The access handoff belongs to the responsible party under applicable rules. This guide selects no ladder rating, scaffold, platform, lift, anchorage, guardrail, or fall-arrest system.

2.1 Build the overhead exclusion map

Before raising a pole, locate conductors, exposed wiring, fixtures, detectors, sprinklers, grilles, pipes, fragile glazing, contents, and occupied routes. Map the full assembly’s raise/work/lower arc, not merely the paint target.

Treat a pole as conductive unless it carries an applicable insulating rating. A plastic grip, fiberglass appearance, or dry coating is not a rating. OSHA 1910.333 requires protection near overhead lines and treats unrated objects as conductive. Minimum distances are not permission to approach a line with a wet roller.

A wall switch off is not proof of an electrically safe condition. If contact with a fixture, exposed part, damaged cable, or unknown circuit is possible, stop.

Protect detectors and sprinklers only by methods authorized for the system, and restore them immediately under the site procedure. Never paint, mask, hang a drop from, or strike a sprinkler head, detector, alarm device, or energized fixture.

Read the coating label, current TDS, and SDS. The frame cannot expand coating suitability.

Keep the exact container identifiable. Do not move an unknown leftover coating into an unmarked cup, combine products because the colors look close, or improvise a thinner or cleaner.

Resolve gloss, chalk, grease, corrosion, mildew, water damage, failed paint, and adhesion before the overhead pass. Suspect lead, asbestos, mold, or another hazard stops ordinary preparation and routes to the applicable qualified process.

2.3 Select PPE from the hazard assessment

Overhead rolling creates a splash path toward the face. OSHA 1910.132 requires hazard-based PPE selection; 1910.133 covers liquid/particle eye and face hazards. The assessment, SDS, and task determine exact protection. Ordinary eyewear is not automatically splash protection.

Respiratory protection is not selected by paint odor, “low VOC,” or guesswork. Use ventilation and exposure controls required by the coating and site. A dust mask is not a universal paint-vapor control.

Exclude people and animals from the drop/swing zone. Secure protection without creating slips or trips. Ventilate without blowing dust onto wet paint or creating an ignition path.

Inspect and prove the exact 47402 assembly

3.1 Inspect the frame at hand level

Confirm the clean, dry unit is 47402. Inspect cage, axle, handle, pivot/wing-nut area, Acme socket, and adaptor. Reject bends, cracks, damaged/dirty threads, missing hardware, rough rotation, failed pivot hold, or insecure adaptor/cover seating.

Use the physical product instructions and observed engagement. Do not stack adaptors, shim a loose core, tape a cover on, or tighten the pivot with improvised leverage.

Width and core differ. The documented bare-frame and adaptor families do not make every nominal cover suitable. The exact cover must seat, rotate true, remain retained dry, and suit the material/surface.

3.2 Prove the pole connection—do not infer it

The 47402 side documents Acme attachment. That is only half of a connection. The exact pole must independently document a compatible tip or pass a physical dry engagement test under its instructions. Start by hand, square to the thread. It must engage fully and repeatably without cross-threading, binding, wobble, tape, a shim, or pliers.

Test pole extension and lock at floor level. Mark the setting, cycle the dry assembly, and confirm no movement.

3.3 Set the pivot against the real approach angle

Set the head dry at hand level. Raise the assembly to a representative part of the target and place the cover face against the surface with no coating. Adjust until the whole face lands without forcing either edge. Lower the tool for every adjustment.

The correct setting lets the whole cover face meet the surface from the proven stance at minimum extension.

Lock the pivot under the product instructions, then complete slow dry passes in both directions. If the head creeps, snaps, chatters, or requires pole pressure to stay flat, reject the setting or frame. No torque value is invented.

Prepare the zone and run one bounded proof

Complete all authorized cleaning, repair, masking, spot priming, and dry dust removal first. Protect the floor continuously from the loading station through the work zone, but preserve visible edges, steps, and obstacles. Establish a service station outside the walking lane where the assembly can be lowered, loaded, inspected, and cleaned without passing over a person.

Box or mix coating only as its instructions permit. Pour a manageable working quantity into the approved container. Keep the main container closed and identifiable. Set lighting so wet sheen can be read across the target without glare hiding misses.

Load the cover at floor level. Distribute coating evenly and remove excess according to the cover/coating system. “Light load” means enough material to transfer without a dry skid, but not enough to drip while the tool is raised, paused, or reversed. The exact amount cannot be specified generically.

Raise the tool through the cleared arc, keeping the wet head away from the operator and protected surfaces. In the least visible representative section:

land the full cover face in the middle of the target, not against a precision edge;

make one short distributing pass;

reverse slowly without snapping the pole;

overlap the next pass enough to maintain a continuous wet film under the coating instructions;

finish with controlled lay-off passes appropriate to that coating;

lower the assembly without carrying it over the face or another person.

Read the proof immediately from the floor under raking light. Check for full-face contact, edge tracks, skips, lap buildup, drips, spatter, pivot movement, cover walk, pole-lock movement, new floor contamination, changed footing, and loss of visibility. Then inspect at the coating’s required dry state. A wet sheen can hide a holiday; a dry film can reveal a ridge or texture mismatch.

If the proof changes the surface, tool, route, or operator condition in an uncontrolled way, diagnose it before continuing. Do not turn the remaining wall into the test.

Run the work as a repeatable floor loop

Divide the accepted zone into short sections reachable from one proven stance. Load, raise, place, roll, lower, and inspect. Reposition feet before redirecting the pole; do not reach the last few inches by leaning. Keep the pole at the minimum marked extension for that stance.

For an over-cabinet soffit, protect cabinet tops and fronts and verify the cover remains visible at the return. If the top face or rear edge disappears, stop at the visible face; hidden work needs another method or access.

For an upper-wall band, keep the mini roller away from the ceiling line, crown, or adjacent finish unless the boundary has already been cut and the roller can be held inside it. A pole roller is not a precision cut-in substitute.

For a stairwell strip, work only from a level floor or landing with the stair isolated and the full swing kept inside the protected zone. Do not work from treads, reach across the open well, or let the pole project into another flight. If one short section lies outside the landing proof, that section routes to proper access even if the rest does not.

Maintain the coating’s wet edge and recoat window. A small cover may be too slow for a long continuous band in fast-drying material. Reduce the section, add an authorized worker with a coordinated method, or choose another application system; do not race with an overlong pole or overloaded cover.

Between loads, check the pivot, cover seating, thread joint, pole mark, floor protection, and operator condition. Stop for fatigue, neck/shoulder pain, dizziness, visual strain, repeated spatter, or any need to “push through” loss of control.

What goes wrong—and the controlled correction

The cover only touches on one edge. The pivot angle is wrong, the pole approach changed, or the stance moved. Lower, clean if needed, reset dry, and re-prove. Do not press harder.

The pivot moves during a pass. Lower immediately. Inspect cleanliness, hardware, damage, and the physical instructions. One correctly reset dry retest may be reasonable; repeated movement rejects the frame from overhead work.

The frame-to-pole joint wobbles or loosens. Stop. Partial engagement, damage, contamination, or incompatibility is present. Clean and retry once by hand. Never tape, shim, clamp, or wrench the joint.

The pole lock creeps past its mark. Lower and remove the load. Inspect and reset under the pole instructions. Repeated creep rejects the pole for this job.

Paint drips while the tool is raised. The load, material condition, cover, or pause time is wrong. Contain the drop, reduce the load, and repeat a small proof. PPE does not make dripping acceptable.

The cover skids instead of rolling. Check seating, cage/adaptor engagement, dried paint, cover compatibility, surface condition, and load. Do not add lever pressure.

The cover walks or feels loose. Lower before it can fall. Confirm the exact core/adaptor family and physical retention. No improvised retainer.

The finish shows two edge rails. The cover is landing edge-first, overloaded, or being forced. Reset geometry, distribute the load, and feather only while the coating permits. Sand/recoat only under its repair instructions.

A dry patch flashes or has different stipple. Paint, sheen, primer state, cover fabric/nap, load, or lay-off differs from the field. Allow full cure/readback and follow the coating maker’s correction. The pivot cannot fix material or texture mismatch.

The last inches require tiptoes or a lean. The route has failed. Stop and change stance or access. Never add a box, chair, countertop, tread, or unproved pole length.

The roller disappears behind the soffit or fixture. Hidden contact is failed control. Stop at the visible boundary and route the remainder to hand-distance access.

The pole approaches a line or electrical part. Stop and lower only if that can be done without entering the hazard. Follow the site emergency/electrical procedure. There is no painting workaround inside the exclusion.

Coating lands on a detector, sprinkler, fan, grille, or fixture. Stop. Do not operate, wipe, disassemble, or repaint the device by guess. The system owner or qualified trade directs isolation, cleaning, inspection, and restoration.

The walking protection wrinkles or becomes wet. Lower the tool, contain the spill, replace or secure the protection, and restore dry visible footing before resuming.

The section cannot stay wet before the next load. The zone is too large for this cover/material/crew method. Reduce the zone or change systems; overloading is not the fix.

Cleanup, inspection, and return to service

Close the coating under its label and store or dispose of it under the manufacturer and local rules.

At the protected service station, remove the cover and adaptor by the physical product method. The record does not establish clean-hands removal or adaptor-release mechanics for 47402. Clean the cover, cage, adaptor, pivot exterior, and thread using only the coating/tool-compatible cleaner. Do not immerse a mechanism unless Hyde’s instructions permit it, and do not leave dried paint where it can change pivot hold, cage rotation, adaptor seating, or thread engagement.

Dry the parts. Cycle the clean pivot and inspect for changed play, corrosion, bends, cracks, stripped threads, or rough rotation. Clean the pole separately under its instructions, including sections exposed during extension, then dry it before collapse. Store frame, adaptors, cover, and pole so transport leverage cannot damage the joint.

Remove protection without carrying wet debris through the room. Restore authorized detector covers, alarms, ventilation, fixtures, and occupied routes under the site procedure. Read the coating after the specified cure and under more than one light direction before declaring the visual work accepted.

Decisive buyer and method tests

Is the target a bounded band or patch rather than a broad ceiling/field? If no, select the application system for the field.

Can every preparation and precision-edge task be completed under its own safe method? If no, proper access is already required.

Can the operator work only from stable level floor or landing positions? If no, stop.

Can the whole roller face remain visible through every pass? If no, stop.

Can the exact assembly stay outside all electrical and overhead exclusions while raising, working, and lowering? If no, stop.

Does the exact pole document compatible Acme fit or pass repeatable hand-thread engagement? If no, reject the pair.

Does the exact pole lock hold the marked dry route? If no, reject it.

Does the chosen cover mount securely on the documented frame/adaptor route and suit the coating/surface? If no, correct the system before work.

Does the dry pivot setting land the whole face without force? If no, change angle, stance, method, or access.

Does the shortest controlled extension complete the whole bounded zone? If no after valid repositioning, change access.

Does one loaded proof remain drip-free, controlled, and visually acceptable wet and dry? If no, diagnose before field work.

Can the repeated loop preserve footing, visibility, wet edge, and operator condition? If no, stop.

Does 47402 guarantee that I can paint without a ladder?

It documents an adjustable, pole-attachable frame. The exact job must pass the floor, reach, visibility, connection, electrical, and loaded-control proofs. Failed proof routes to proper access.

How high will it reach?

Working reach depends on the exact proven pole, operator, stance, head angle, target geometry, obstacles, and required stroke. Measure and prove it dry.

Will any extension pole fit?

No promise is supported. The frame side documents Acme attachment; the exact pole side must document compatible fit or pass the physical dry engagement test.

What angle should I set?

No universal angle. Set it dry so the full cover face meets the exact surface from the proven stance, then lock and cycle-test it before loading.

Can I paint a whole ceiling with it?

The frame can reach overhead, but a 4" mini system is normally a band, patch, and awkward-angle tool. Broad ceiling work should be routed to the appropriate field applicator and access plan.

Can I use it over a stairwell?

Only for a zone fully reachable from a stable level floor or landing, with the stair isolated, the complete swing controlled, and no leaning across a rail or open well. Work from treads or beyond the landing proof stops.

Do the adaptors extend reach?

They serve documented cover-core families. They do not lengthen the pole, increase safe reach, or supply fall protection.

Are safety glasses enough?

Not necessarily. The coating SDS and task hazard assessment decide eye/face and other PPE. Ordinary glasses are not automatically splash protection, and PPE does not correct dripping or unsafe access.

Can I work near an overhead service line if the pole looks fiberglass?

Not on appearance. If the complete assembly cannot remain outside the required boundary, stop.

What if only one small corner is out of reach?

That corner still fails the method. Reposition from another valid floor stance or use proper access for that portion. Near-complete reach is not complete proof.

Working reach and load: no pole length, ceiling-height rating, payload, stiffness, swing envelope, or maximum working force is supplied.

Adaptor mechanics: included 3/4" and 1-1/2" adaptors and their fitment families are documented; engagement, release, retention force, and stacking are not.

Cover selection: the accepted family map does not establish every cover SKU, nap, fabric, coating, texture, or retention result.

Coating system: substrate approval, preparation, ventilation, PPE, film build, working time, recoat, cleanup, disposal, and compatibility remain with the current label/TDS/SDS and site program.
