Long Leverage Pull Cuts

Job: Make controlled long pull cuts in verified sheet, backing, carpet-class, packaging, or similar material using the 42083’s offset-head leverage, with a straight trapezoid blade or a physically verified hook system selected by what must survive beneath

Time: Ten to thirty minutes for setup and witness; seconds to minutes per line according to length/material/support

Difficulty: Intermediate — the offset head reduces an awkward wrist relationship but increases available leverage, so blade lock, substrate knowledge, material tension, and follow-through matter more, not less

Everything else: exact material instructions/SDS; stable cutting table or installed-work support; straightedge/guide where appropriate; verified blade installed in the 42083; physical fitment proof if considering 42200; spare blades and rigid spent-blade container; clamps/weights that do not enter the path; layout tools; hand/eye protection selected for the exposure; knee/fall controls where work location requires them; protected tool rest; representative scrap

Long is not merely a dimension. It changes the job:

the wrist can drift;

the material can bunch;

the guide can move;

the blade can heat/load;

release can launch the hand;

a hidden layer can be scored for the whole run.

The angle head supplies leverage. The setup must decide where that leverage goes.

Define the cut species

Choose between two distinct cutting relationships.

Straight trapezoid edge: cuts by slicing/pressing through the material. Use only where the exit path and backing are permitted.

Hook-class edge: material enters an interior throat on a pull while the blade body/back can ride near the backing. Use when edge entry exists and protecting the layer beneath is the reason—but only after exact blade/host fit and the material witness prove.

Do not choose the hook merely because the cut is long. Do not use a straight point where an unseen finished layer lies directly beneath.

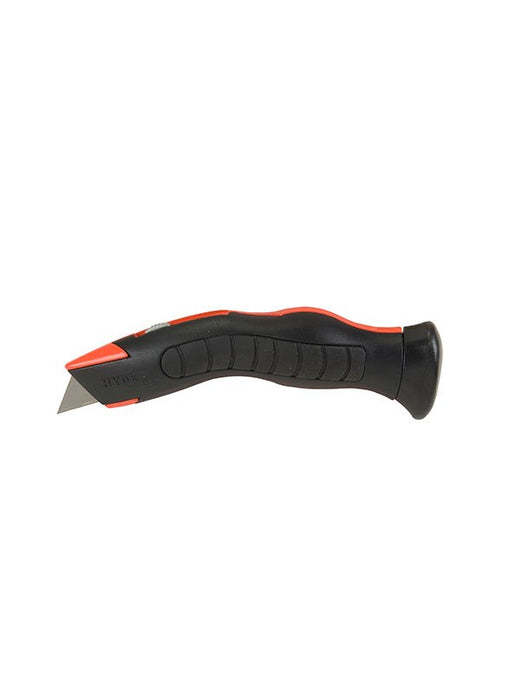

Read 42083 exactly

Accepted evidence identifies the MAXXGRIP Angled Top Slide Utility Knife with:

three lockable blade positions;

offset head for leverage;

overlap nose for blade support;

tool-free blade change;

one included carbon-steel blade.

The record does not establish:

compatible replacement SKU;

cut/material capacity;

left/right orientation;

drop/chemical rating.

The offset is an ergonomic and force-delivery feature, not a safety guarantee.

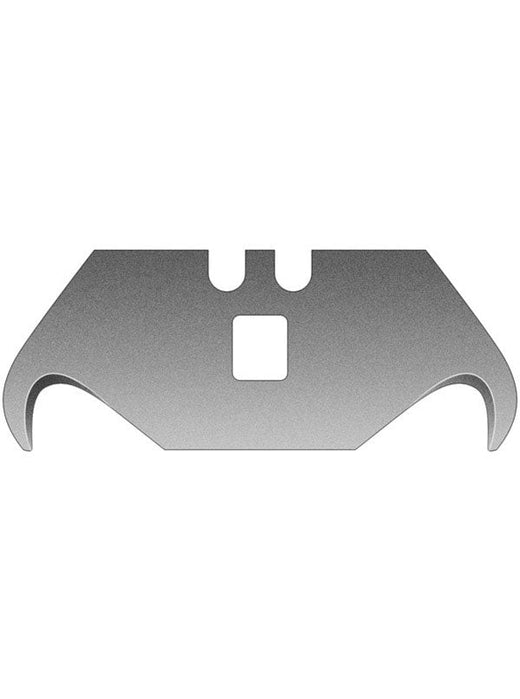

Read 42200’s evidence void

pack count beyond title identity;

exact end count/shape;

fit to 42083;

hook throat capacity;

Hook-blade function is sound trade knowledge, but physical compatibility and specifications must be inspected/proved. Do not install solely because a blade resembles a standard trapezoid pattern.

Inspect the material stack

Before layout, identify every layer:

substrate/finished surface;

contamination or abrasive surfacing.

Ask whether the cut is:

loose on a table;

over a surface that must survive;

near an edge or mid-field.

If you cannot identify what lies beneath, stop. More careful blade depth is not a substitute for knowing the assembly.

Establish old-material hazard boundaries

Older resilient flooring, backing, mastics, roofing, wraps, or other building products can carry regulated hazards.

For suspect resilient flooring/adhesive or other possible asbestos-containing material, do not cut/disturb before the required assessment. EPA’s current Protect Your Family from Exposures to Asbestos guidance says not to cut, sand, drill, or otherwise disturb suspect material.

For qualifying pre-1978 painted-surface renovation, use EPA’s Lead RRP program.

Read material SDS and site rules. This guide does not authorize demolition or abatement.

Choose straight or hook through a cross-section

Draw the cut:

starter edge/opening;

Use straight when controlled through-cut/score is approved and the far side is clear or sacrificial.

Trial hook-class geometry when:

the work edge can enter a verified throat;

the material bends/feeds appropriately;

the backing must not meet the cutting edge;

no mid-field plunge is required;

the pull path is safe.

A hook can still scratch or puncture a backing if rolled, damaged, poorly fitted, or fed the wrong stack. Never promise “cannot cut the substrate.”

Verify any 42200 conversion physically

With the knife empty and retracted:

compare blade form to the host/manual requirements;

verify slots/retainer/nose engagement;

ensure the hook clears all lock positions;

check that tool-free change closes correctly;

confirm no edge bears on the housing improperly;

test retraction/locking away from people;

use representative scrap over a witness backing;

inspect for blade shift/host damage.

If exact fit cannot be established, do not use this pair. Source a documented hook knife/system.

Prepare the 42083

housing/head/nose;

top slide and positive engagement;

tool-free change closure.

Lock the shortest exposure that completes the verified material cut. No numeric exposure is accepted.

Tug/test through the manufacturer procedure. Do not assume a visible slide position is locked.

Quarantine cracks, looseness, blade creep, jammed change system, or a damaged overlap nose.

Support the entire line

Long cuts need a continuous work plane.

stable table/floor support;

straightedge compatible with blade contact;

clamps/weights outside the handle/follow-through path;

infeed/outfeed support;

lighting down the line.

Do not bridge material between benches or let the offcut hang and steer the blade.

Where cutting installed work, protect finishes and confirm the assembly can tolerate the body/nose contact.

Lay out from durable controls

Mark both ends and intermediate checks. For patterned goods, align to the final installation datum, not the factory edge alone.

If a straightedge guides:

verify it cannot bow;

keep fingers behind a protective profile or outside the cut;

align to the correct blade offset;

clamp without distorting soft sheet;

plan how the handle clears clamps.

Do not shift the guide midway. A long line made from two uncontrolled references is two cuts.

Plan the body path and release

Before exposing the blade:

stand out of the terminal follow-through;

keep the off hand behind the line;

remove trip hazards;

decide whether to walk, reposition, or divide the cut;

identify the final release direction;

place a guarded tool rest at the end.

Do not pull directly toward the torso/thigh. Offset leverage can make a releasing edge travel farther than expected.

For floor work, do not walk backward blindly while pulling. Segment/reposition or use a method designed for the run.

Make a representative witness

Use the actual material/stack or controlled equivalent.

required number of passes.

If the straight blade scores the protected layer, change depth/method—not merely grip. If the hook drags, lifts layers, or marks the backing, reject the setup.

Record the accepted knife/blade/material/stack, not “utility knife.”

Make a straight-edge pull

For an approved straight blade:

engage the chosen lock position;

seat the overlap nose/support as the material permits;

begin from an accessible edge or approved start;

keep wrist near neutral;

pull with steady forearm/shoulder motion;

maintain the guide without side-loading;

stop/retract before repositioning;

inspect the whole line and far side.

Do not use the overlap nose as a pry point. Do not twist the blade to free a pinch.

Where the method is score-and-break rather than through-cut, use the material-specific break/back-cut procedure.

Make a verified hook pull

Only after fit and witness:

enter the throat over an accessible edge/opening;

orient the blade back toward the protected layer;

tension/support material through the approved method;

pull with the follow-through clear;

keep the hook engaged without rolling the housing;

stop before transitions/hidden reinforcement;

inspect both cut and backing.

Do not plunge a hook mid-field. Do not drag the hook across a concealed fastener or hard inclusion.

Manage drag and loading

Rising effort can mean:

blade/host movement;

wrong cut geometry.

Stop and diagnose. The 42083’s leverage can conceal a developing problem until the blade releases or breaks.

Clean only through material/tool-compatible methods. Replace/flip through the verified blade procedure; do not wipe an exposed edge toward a hand.

Divide a long run without losing alignment

When one safe body path is impossible:

establish overlapping durable layout reference;

secure the first cut;

reposition body/support;

restart from a controlled entry;

avoid recutting the protected layer;

inspect the join.

Do not reach past comfortable control just to keep the line continuous.

For finished visible edges, a guided cutting machine or trade-specific method may be more appropriate.

Handle difficult material conditions

Cold/brittle: may crack rather than sever; follow material temperature/method.

Warm/soft: may stretch, smear, or close on the blade.

Abrasive: can dull rapidly; inspect more often.

Reinforced: may deflect or catch; use its specified tool.

Adhesive-faced: can load throat/nose and contaminate backing.

No exact material list is accepted for the pair. Stop when the witness fails.

Renew or change the edge without losing the setup

The 42083 includes one accepted carbon-steel blade, but the replacement blade identity and 42200 configuration remain open. Use only a physically/manual-verified blade.

retract and lock out the hand operation;

clear the work/guide;

record straight versus hook configuration;

note exposure position and reason;

move to a protected tray;

provide a rigid spent route.

Use the accepted tool-free change mechanism through the physical knife instructions. “Tool-free” does not mean touch-free: control every cutting edge and confirm the housing/nose closes fully.

verify all three lockable positions engage as applicable;

set the shortest qualified exposure;

check for blade play/creep;

repeat the material/stack witness;

inspect the backing;

restore the line only after the system passes.

Do not assume a flipped standard blade offers a safe second edge unless the verified blade geometry supports it. Do not assume title-grade hook blades have two hooks or a five-count package during change control.

Track edge changes by material and failure mode. Rapid dulling on abrasive stock, chipping on inclusions, adhesive loading, and host creep require different fixes.

Manage repetitive strain and line length

The offset head is documented for leverage, not as an ergonomic certification.

For repeated production cuts assess:

wrist position through the whole run;

floor/kneeling posture;

change-hand or rotation feasibility;

material handling before/after.

Raise/reorient loose work rather than accepting a poor floor posture. For installed work, divide the run and reposition; do not overreach while the blade is engaged.

If the operator must pull toward the torso to use the leverage, redesign the setup. If fatigue increases force or guide drift, shorten cycles, rotate work, improve support, or use a guided power/manual cutter appropriate to the material.

Record discomfort and near misses with production results. A fast line that cannot be repeated safely is not qualified.

Protect hands and eyes

Select hand protection for cut/puncture and material handling without sacrificing knife control under OSHA’s hand-protection standard.

Use eye protection where blade damage, tensioned material, or cut fragments can fly under OSHA’s eye and face standard.

Retract/guard before walking, setting down, clearing waste, changing support, or handing off. Spent blades go into a rigid selected sharps route.

Record and improve the method

Record material/stack, knife/blade identity, physical fit proof, exposure position, guide/support, line length as job context, passes, backing result, edge changes, defects, operator/date.

Use records to identify:

recurring backing contact;

high edge consumption;

repeated guide movement;

safer tooling opportunities.

Never turn a local length/material result into a product capacity claim.

Retain one cut witness showing both the finished edge and backing whenever the process depends on substrate protection. Identify its material stack and date; discard it through document/sample control when aging, compression, adhesive transfer, or repeated handling makes the comparison unreliable.

What goes wrong (and the fix)

42200 is promised to fit 42083. Restore physical verification; Hyde-specific fit is unverified.

The cut scores the subfloor/backing. Stop, inspect, and change cut geometry/depth/system.

The hook is plunged mid-field. Create an approved starter route or use a pointed system.

The angle head is used as license for more force. Diagnose drag and support.

The blade creeps. Stop and quarantine the knife/assembly.

The offcut steers the line. Support/clear waste continuously.

The operator walks backward into a hazard. Segment/reorient the work.

Old flooring is cut before assessment. Stop and apply the asbestos/lead boundary.

A guide clamp sits in follow-through. Relocate it before cutting.

A dull loaded blade is wiped barehanded. Retract/remove through procedure and clean/change safely.

The history footnote

The trapezoid utility knife is an established twentieth-century pattern; the 42083 adds an angled soft-grip body to improve force delivery on repeated pulls. Hook geometry is older trade practice, but this exact 42200 listing has no accepted official Hyde row, so no product lineage is invented.
