How to Lay Concrete Block

This guide teaches the laying cycle without pretending to design the wall.

Time: project-dependent. Wall geometry, unit type, openings, reinforcement, grout, access, inspection points, and weather controls determine the duration; this guide does not invent a production rate.

Difficulty: skilled work. The hand motions are learnable, but a structural or exterior wall is an assembly, not a stack of blocks.

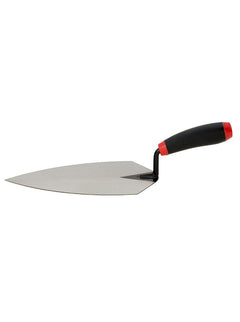

Its verified wide Philadelphia pattern holds more mortar on the blade, making it the capacity-first choice for long bed spreads and block end bedding.

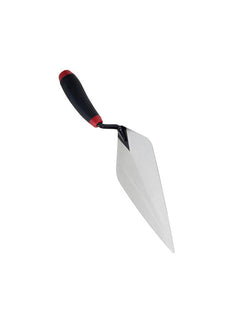

Its verified rounded heel forces mortar toward the narrow tip; it can lay block, but favors controlled placement over the 18090’s load capacity.

It does not replace the laying trowel, level, line, mixer, or grout tools.

It finishes mortar already placed; it does not fill a deficient joint.

Everything else — required but not supplied by this line: approved drawings/specification and inspections; selected units and mortar with manufacturer instructions; accepted support; layout, line, levels, straightedges, gauge, mixer, board, handling/cutting equipment, brushes, access, bracing, barriers, and weather protection; plus every specified reinforcement, connector, flashing, drainage, control-joint, grout, cleanout, and embed. This Hyde line supplies hand tools for mortar placement and concave tooling, not the wall system.

Before mortar: release the wall from the documents, not from memory

Stop at the system gate

Before staging block, identify the current approved drawings, specification, submittals, and inspections. Mark the wall dimensions and openings, bond and elevations, unit orientations, mortar and bedding method, joint finish, reinforcement and grout, movement joints, flashing/drainage, embeds, bearing, and temporary support.

The current national masonry standards are TMS 402-22, Building Code Requirements for Masonry Structures, and TMS 602-22, Specification for Masonry Structures, but the legally adopted edition and local amendments are jurisdiction-specific.

If the documents do not answer a structural or envelope question, stop and send it to the responsible designer, inspector, manufacturer, or superintendent. Do not select mortar by habit, improvise reinforcement or grout, relocate a control joint, bridge flashing, or “make the bond work” by cutting away a load-bearing feature. The answer must return as controlled project information before that part of the wall is buried.

Establish the construction safety boundary

For covered employment, OSHA requires a limited-access zone while a masonry wall is built and requires qualifying unsupported walls to remain adequately braced until permanent support is in place. Implement the current rule and site bracing plan; this guide does not design either (OSHA 29 CFR 1926.706). Keep people and stored materials outside the controlled collapse side, and protect projecting reinforcement.

Wet portland-cement products can cause burns and dermatitis. Use properly selected, fitting gloves, boots, eye/face protection, and clothing; provide immediate washing/flush capability; remove contamination promptly. Follow the mortar safety data sheet and employer hazard assessment (OSHA Portland-cement guidance, OSHA construction PPE).

Cutting, grinding, drilling, or crushing block, concrete, and mortar can create respirable crystalline silica. Use the exposure-control method required for the actual tool and task—such as the applicable OSHA Table 1 controls or an employer exposure assessment—and the respiratory protection the plan requires. “Wear a dust mask” is not a control plan (OSHA crystalline silica in construction).

Inspect the support and make the layout visible

Confirm that the support has been accepted, is clean of bond-breaking debris, and agrees with approved elevation and alignment. Do not grind, shim, bend steel, or change the bed without an accepted repair.

Transfer faces, corners, openings, intersections, control joints, and critical locations from the drawings. Dry-place approved units to expose closure conflicts and confirm the bond. Mark cells that align with dowels or receive steel or grout, then remove the units while retaining controls.

Build a gauge/story control from the project’s stated coursing, not a generic unit module. Establish corner leads or other approved controls and a taut mason’s line at the top reference edge for the active course. CMHA’s concrete-masonry construction guide describes the line as the control for straightness, height, and level and calls for leads to be checked for level, plumb, and alignment; the project documents still own the tolerance and exact geometry (CMHA TEK 03-08A, Concrete Masonry Construction).

Prepare mortar and the work zone

Stage for an uninterrupted laying cycle

Place approved units close enough for safe handling without crowding the wall or collapse zone. Separate special units by location and orientation. Stage mortar boards so the mason can load, spread, set, check, and cut squeeze-out without long carries or stepping over reinforcement.

Set out the 18090 as the primary laying trowel, the 18095 if the operator prefers its forward-loaded placement, and the 18060 for bucket corners, loading, details, and cleanup. Keep the line, levels, straightedge, brushes, and specified joint tool within reach. Inspect tools: dried mortar on a trowel disrupts release and bedding; hardened residue on a jointer prints drag marks into every finished joint.

Mix and manage mortar by its approved instructions

Do not translate a bag color, remembered “Type,” or desired softness into a substitute recipe. CMHA emphasizes that mortar bonds units, seals joints, accommodates movement, and connects reinforcement, ties, and anchors; workability alone does not establish suitability (CMHA TEK 09-01A, Mortars for Concrete Masonry).

The 18060 can scrape a pail’s wall-to-bottom corner, fold a small approved batch, load the laying trowel, and gather material from tight margins. It is not a substitute for a suitable mixer on production quantities. Keep the mortar board conditioned as the mortar instructions allow, protect the batch from contamination, and segregate mortar that fell on the ground or scaffold. Never revive material after its permitted working window or initial set.

Weather changes mixing, setting, tooling, and protection. Do not invent a hot- or cold-weather adjustment at the board.

Lay the block

Bed and prove the first course

Spread only the bedding configuration shown by the drawings and specification. CMHA notes that a foundation course commonly receives a full bed to accommodate the support, while locations around projecting reinforcement may intentionally remain open so grout can bond to the foundation. That exception is why “always full-bed the first course” is not a safe universal instruction (CMHA TEK 03-08A).

Load the 18090 with a controlled slice of mortar and place the bed over the released area. The wide Philadelphia heel is useful here because it carries more material per load. Use the point and edge to form continuous bearing where the approved detail requires it; do not leave accidental voids, and do not bury a grout path, flashing, dowel, cleanout, or drainage opening that the detail keeps clear.

Set the corner or lead unit at the established face and elevation. Lower it into the bed without plowing mortar away, then bring it to the controls with a short, deliberate seating movement. Use the level, square, line, and elevation control; adjust while the mortar remains workable. Tap only with a suitable non-damaging tool or the trowel handle where accepted—never strike the unit face with the steel blade edge. Continue the lead with the specified bond and orientation, checking each unit rather than averaging errors later.

Run the first course between controls. This course proves the substrate, opening locations, bond, reinforcement alignment, and coursing. Stop on any mismatch. Do not spend the remaining wall compensating for a first-course error.

Spread the specified bed on later courses

For hollow concrete masonry, face-shell bedding is common: mortar extends across the bedding surfaces for the full face-shell thickness so the joints are filled. Solid units require full bedding, and project conditions can call for other treatment. CMHA documents both the general face-shell method and the requirement to avoid excessive mortar protrusions into drainage cavities or cells that will be grouted (CMHA TEK 03-08A, CMHA Annotated Design and Construction Details).

With the 18090, spread continuous ribbons over required bearing surfaces only as far ahead as can remain workable. Keep the bed even enough to reach project gauge without starving a shell. Use the 18095 where forward-loaded tip control helps at returns or closures. The 18060 may feed a local low spot before setting, but does not establish a course bed.

Keep specified cells, cavities, connectors, and drainage paths clean as work rises. Remove prohibited protrusions while accessible. Do not knock hardened droppings down into a cell that will receive grout and call it clean.

Butter complete head joints

Apply mortar over the required unit-end area before setting. CMHA calls for head joints buttered in advance and filled for their full height.

The 18090 covers ends efficiently; the 18095 gives finer control at a return or special shape. Press on a coherent layer. Mortar scraped across the face afterward does not fill a hollow head joint: gaps are placement defects, not tooling defects.

Set, align, and cut the squeeze-out

Bring the unit into position without disturbing reinforcement, connectors, or the unit already laid. Lower onto the bed and make the short shove needed to close the head joint. Seat to the line and course control while the mortar is workable.

Cut squeeze-out from the faces with the laying trowel held cleanly against the plane of the wall. Return only uncontaminated, still-usable mortar to the board as allowed by the mortar instructions. Let incidental face deposits dry before brushing when the unit manufacturer and finish permit; wet wiping can spread cement paste into textured or porous faces. Follow any architectural-unit cleaning procedure from the unit manufacturer rather than improvising acid or detergent.

Repeat the cycle: bed, butter, set, align, check, cut. Advance the leads and line in controlled increments. At each course, verify the bond and the locations of openings, embeds, control joints, flashing, reinforcement, and grout cells before the next course conceals them.

Handle closures, reinforcement, and grout without freelancing

Use specified special shapes. Make closures only from approved units by the manufacturer-approved method, preserving required geometry. Apply task-specific silica controls. Reject damage per the specification; grout does not excuse a concealed break.

Place reinforcement, ties, anchors, connectors, screens, cleanouts, and bond-beam components exactly where the documents require. Keep required inspection points visible. Grout only after the prerequisites and inspection/approval sequence in the project documents have been met. A laying trowel is not a grout-consolidation tool.

Finish and hand off

Repair fresh joint defects before tooling

Inspect the open work for unfilled head joints, pinholes, gaps, shell bedding discontinuities, disturbed units, clogged cells, and mortar bridges into protected cavities. If mortar remains within its permitted working state, fill a deficient joint with fresh approved mortar and compact it before finishing. Once it has set, do not veneer over the defect; follow the accepted removal-and-repair procedure.

Tool only the specified profile, at the mortar’s working moment

If the project specifies a concave joint, wait until the mortar is thumbprint-hard: firm enough to retain a clean print without wet paste lifting. Tool head joints first, then bed joints, so the long horizontal pass removes stop marks at intersections. A correctly matched half-round compresses the mortar surface and seals it against the unit; it cannot replace missing mortar. CMHA identifies concave and V profiles as effective exterior choices because tooling compacts the mortar and directs water away (CMHA Annotated Design and Construction Details).

Use the 18170 only where one of its verified ends matches the specified joint. If the specified profile is V, flush, raked, struck, grapevine, beaded, or another finish, neither Hyde jointer substitutes.

Let tooling fins become crumbly, then brush diagonally without digging into the fresh profile. Do not wet-smear the wall. Apply the unit manufacturer’s approved cleaning method and the project’s protection/curing procedure.

Clean tools and make a verifiable handoff

Before mortar hardens, scrape and wash the 18090 or 18095, clean the 18060’s square corners, and rinse the working surface of the selected jointer. Dry the tools for storage. Keep washout out of drains, soil, and unapproved areas.

Record the wall location and extent completed; drawing/detail and specification revision used; unit and mortar batch identities where required; installed reinforcement, connectors, flashing, and embeds; cells reserved for grout; inspection status; weather protection; brace and access-zone status; defects or deviations; and the person authorized to resolve each open item. The next crew should not have to infer what is inside the wall.

What goes wrong — and the controlled fix

The course waves away from the line. The leads or line are wrong, the line is sagging, or units are crowding it. Verify the controls with the project layout and level, correct the lead while the work is still repairable, tension/support the line appropriately, and resume only after the reference is true.

The wall is plumb at one end and out at the other. The lead moved or checks were too infrequent. Do not lean later courses back; determine the extent and use the accepted correction.

The units will not reach gauge without extreme bedding changes. Substrate, unit, joint, or layout conflicts with coursing. Stop and resolve it; do not invent a tolerance or grind units.

Head joints show pinholes or hollow areas. The end was not buttered completely or the unit was set without closing the joint. Repair while mortar is fresh and permitted; after set, remove and repoint by an accepted method rather than face-smearing.

Mortar falls from the trowel or units float. Check manufacturer workability criteria; adjust or discard only as allowed. Do not improvise a recipe.

Retemper only if expressly permitted; otherwise discard.

Mortar projects into a cell intended for grout. Remove it while accessible using the specified cleanout practice.

Reinforcement, an embed, or an opening does not land in the expected cell. Stop before cutting the unit or moving the steel.

The jointer tears, smears, or drags. Recheck thumbprint condition, joint completeness, tool match, and cleanliness. Pressure cannot turn a placement defect into a sound joint.

The specified joint does not match either jointer. Use the correctly sized and shaped tool from another source. The registered Hyde set is not permission to alter the profile.

Weather changes during the work. Execute the approved plan or stop and protect. Do not invent additions, heaters, enclosures, or cure durations.

The wall or brace moves. Clear the hazard area, stop work, and escalate under the site emergency and competent-person plan. Do not push it back by hand or keep laying to “lock it in.”

Product fit: why all five models are here

The 18090 is the capacity-first spreader; the 18095 trades capacity for forward tip control. The 18060 handles mortar and details but cannot lay or align the course. The 18170 tools a specified matching concave joint; the 18182 remains a flagged wider-joint-class candidate until Hyde resolves its identity. Those distinct roles exhaust the exact five-model union.

Do all hollow blocks get face-shell bedding? Face-shell bedding is common, but the detail, specification, unit, and grout/reinforcement condition decide. Solid units and special locations can differ.

Should the first course always be fully bedded? No universal “always.” A full bed is common, but details around dowels or grout paths can require deliberate openings.

Which mortar and joint thickness should I use? Those specified for the assembly and selected units.

Philadelphia or London trowel? The 18090 Philadelphia is capacity-first; the 18095 London favors tip-forward placement.

Can the 18060 lay a short wall? It mixes an approved small batch, scrapes, loads, details, and cleans. Its rectangle does not replace a laying trowel.

Which jointer should I use? Read the specified width and profile. Use 18170 only on a matching concave joint. Treat 18182 only as a flagged wider-joint-class candidate; otherwise source the right tool.

Can tooling be omitted under paint or parge? Only if the project detail allows it. Joint treatment affects weather, bond, and appearance.

Can reinforcement, grout, or bracing be changed? Only through the controlled project process—never from this guide.

Can I work in adverse weather? Possibly, under the required material, construction, and protection procedure. Thresholds and controls come from the specification, plan, forecast, and manufacturers.

The history footnote

Philadelphia survived as the capacity pattern, its square heel holding mortar back while London’s rounded heel drives it toward the tip. Hyde keeps both because brick and block ask different things of the same motion; it did not invent either.

Every one of those five product guides names laying concrete block among its applications. No sixth Hyde model is asserted.

Trade and system sources: CMHA TEK 03-08A — Concrete Masonry Construction (typical sequence, bedding, heads, line, leads, defect checks) · CMHA Annotated Design and Construction Details (common details and joint-tooling principles; expressly subject to local/project modification) · CMHA TEK 09-01A — Mortars for Concrete Masonry (mortar’s assembly functions) · CMHA TEK 03-01C — All-Weather Concrete Masonry Construction (weather-condition framework) · The Masonry Society — TMS 402/602-22 identification and errata · OSHA 29 CFR 1926.706 (limited-access-zone and bracing requirements for covered work) · OSHA Portland-cement skin guidance · OSHA crystalline silica in construction.

None is supplied here.

18090/18095 construction conflict: Hyde sources disagree on forged versus welded construction. This guide makes no per-SKU construction claim.

18182 zero-claims gate: no accepted catalog row or live Hyde page; title-sourced sizes do not authorize an exact selection. No material, length, construction, offset, finish, or adjacent-model relationship is inherited.

Concave tooling itself applies only when that profile is specified.

Weather, mortar, and unit handling: all numeric thresholds, mixture decisions, protection durations, wetting practices, cutting methods, and cleaning chemistry remain manufacturer/specification/site-plan facts.

Code currency: TMS 402/602-22 is the current national standards edition identified by TMS at authoring; the locally adopted edition and amendments still require project verification.
