Keep a Fresh Edge on Abrasive Material

Hyde documents both as 18mm snap-off knives with eight points per blade. It documents the 42030's one-piece positive lock, built-in blade breaker, stainless-steel track, two-blade handle storage, and three included blades; it documents the 42050's stainless-steel blade holder, easy blade changing, and ratchet-wheel screw lock providing 44 pounds of holding force without blade retraction. Those boundaries remain open rather than being filled with shop folklore.

Job: keep an 18mm segmented utility-knife edge cutting cleanly when board dust, gritty facing, filled sheet, dirty corrugated, tape-and-compound residue, or another abrasive work stream rounds an edge quickly.

Time: inspect before issue and after any drop, impact, jam, blade movement, abnormal cut, or unknown-history return; renew at the first repeatable loss of cut quality. A controlled point change takes minutes. A chipped, bent, loose, contaminated, or unexplained failure is a stop-and-resolve event.

Difficulty: mechanically simple, administratively exact. Breaking off a point is easy. Distinguishing ordinary edge wear from blade, lock, material, method, or tool failure — and accounting for the detached sharp segment — is the actual skill.

The tools from this catalog:

Hyde documents eight points per blade, a retractable blade with one-piece positive lock, a built-in blade breaker, a high-impact-polystyrene body with stainless-steel blade track, storage for two blades, and three blades included.

Hyde documents eight points per blade, easy blade changing, a stainless-steel blade holder, and a ratchet-wheel screw lock providing 44 pounds of holding force without blade retraction.

Everything else the job requires: the blade maker's instructions and an employer-approved 18mm segmented blade; a lit change station; an approved breaking method for the 42050; a rigid, closable used-blade container; inspection light; representative scrap or a controlled coupon; approved cleaning materials; a quarantine route; and PPE from the employer's hazard assessment. No exact refill SKU, glove rating, cleaner, fixture, container specification, or test force is invented here.

Before you start: make the edge decision belong to the work

“Abrasive” describes the failure, not permission to cut anything

An abrasive material removes steel at the edge. The result appears as a polished or rounded point, increasing draw force, fuzzed facing, a wandering cut, repeated passes, or a temptation to extend more blade and push harder. Gypsum and cementitious dust, mineral-filled boards, gritty facings, cured compound, dirty corrugated stock, and filled polymers can produce that pattern. The list is diagnostic, not an exact-model material guarantee.

A knife suited to supported sheet may be wrong for a live cable, pressure hose, energized enclosure, moving web, machine-held stock, contaminated material, or a guarded machine zone. This guide authorizes none of those tasks.

Changing a point does not control hazardous dust. OSHA requires PPE hazard assessment under 29 CFR 1910.132, and required respirator use belongs in a worksite-specific program under 29 CFR 1910.134. “Wear a dust mask” does not replace material identification, engineering controls, exposure assessment, or a required program.

Decide which lock the job needs

Choose the knife before the edge is dull, not after force has already risen:

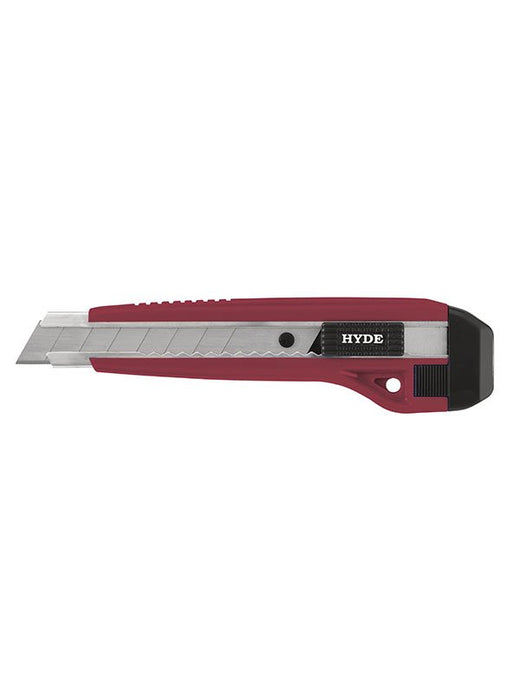

Use the 42030 when frequent point renewal, a built-in breaker, and onboard spare storage reduce the friction of changing early. Its one-piece positive lock is the quick-setting system.

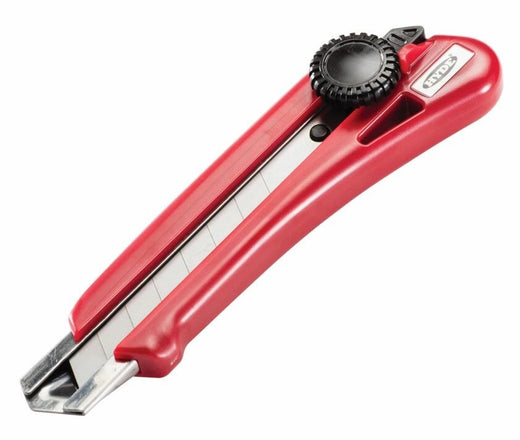

Use the 42050 when the cut loads the blade rearward and fixed exposure is the central control. Its screw lock is cataloged at 44 pounds of holding force without blade retraction. That number describes the lock claim; it is not permission to apply 44 pounds by hand, a test instruction, a maximum cut force, or proof that a damaged or half-tightened tool is safe.

Both are 18mm segmented knives with eight points per blade. Neither is self-retracting. If a facility safety program prohibits segmented blades, requires automatic retraction, or names another cutting system, that policy closes the decision. This exact-union guide does not add a safety-knife substitute to its product backlinks.

Establish a condition trigger, not a life clock

The useful trigger is repeatable change in performance under the released setup:

the edge drags where a known-good point cut cleanly;

facing fuzzes, tears, delaminates, or bunches;

the cut takes extra passes without a material or setup change;

the operator starts adding force, sawing, twisting, or overextending the blade;

the point slips out of the cut or will not track a guide;

inspection shows rounding, a roll, chip, crack, bend, corrosion, contamination, or damaged score line;

the blade creeps or the lock no longer holds the released exposure.

Do not convert one crew's experience into “snap every fifty cuts,” “replace every shift,” or “a blade lasts a week.” Material formulation, contamination, thickness, support, cut length, technique, blade manufacture, and contact with hard inclusions can change edge consumption radically.

The controlled edge-renewal routine

Stop at the first trustworthy signal

At the first repeatable drag or loss of cut quality, stop the cut. Do not finish the run by pressing harder. Higher force increases the consequence of a slip, makes a thin exposed segment flex, can push a poorly locked blade backward, and destroys evidence about whether the point simply rounded or struck something.

Move the work and knife to their safe states under the facility procedure. Retract the blade fully if the mechanism is sound and doing so does not disturb failure evidence. If the blade has shifted, the lock is damaged, a fragment may be missing, or retraction itself is abnormal, do not cycle the mechanism merely to make the tool look safe. Control access, place the whole knife in a rigid tray or guard it by the approved method, and quarantine it as found.

Record the trigger before changing anything: tool model, material, task, blade exposure, lock setting, observed cut symptom, and any strike, drop, side load, jam, or contamination event. “Dull” is not an adequate record when the point is actually chipped or the blade moved in the handle.

Clean only enough to inspect, by an approved method

Loose dust can hide cracks, score-line damage, corrosion, and lock wear. Remove it without brushing a hand along the edge, blowing it into the breathing zone, or using compressed air as a casual cleanup method. Adhesive, cured compound, coatings, or unknown residue may require process-specific controls. Use only a cleaning method approved for the exact residue, blade, stainless track or holder, lock, and polystyrene body where the 42030 is involved.

If cleaning cannot expose the edge and mechanism for inspection without changing their condition, quarantine the tool rather than cleaning away the evidence.

Inspect the whole cutting system — never only the shiny tip

Under good light, with the blade presented by an approved method and no finger tracing the edge, inspect four zones:

Working point and score line: progressive polishing or rounding; a rolled edge; chip, notch, crack-like line, missing material, bent point, damaged segmentation groove, corrosion, pitting, discoloration, or residue that prevents inspection.

Blade strip behind the point: bow, twist, kink, side scoring, multiple cracked grooves, evidence of prying, impact, heat, grinding, or unauthorized alteration. A fresh next point on a damaged strip is not a usable edge.

Lock and carrier: on the 42030, inspect the one-piece positive lock and stainless track; on the 42050, inspect the ratchet-wheel screw lock and stainless holder. Look for blade creep, incomplete engagement, looseness, jamming, stripped or damaged parts, contamination, corrosion, or a blade that does not sit consistently.

Handle and work system: cracked or deformed body, missing parts, damaged end cap or breaker, unstable support, contaminated straightedge, changed material, a hard inclusion, wrong cut path, excessive exposure, side loading, or a task outside the released method.

OSHA's general-industry hand-tool rule makes the employer responsible for the safe condition of employee-used tools, including employee-furnished tools (29 CFR 1910.242(a)). A new point does not repair a cracked handle, damaged track, unreliable lock, or uncontrolled process.

Diagnose before choosing the action

| Evidence | Leading interpretation | Controlled response |

| Even polish or rounding; no chip, crack, bend, score damage, or lock failure | Ordinary abrasive wear is plausible | Renew one point, then inspect and proof-test |

| Rolled edge or burr after side pressure | Side loading, unstable support, or wrong technique may be present | Renew only after the method and full strip pass inspection |

| Chip, crack, missing corner, broken score line, or unexplained fragment | Impact, hard inclusion, flex, or blade defect; not ordinary dulling | Stop, account for fragments, quarantine the strip, and investigate before reuse |

| Blade bowed, twisted, kinked, overheated, ground, or deeply scored | Whole-strip damage | Replace the strip; do not expose the next point |

| Blade retracts, creeps, chatters in the holder, or changes exposure | Lock, seating, contamination, blade, or tool failure | Quarantine the knife as found; do not solve it by tightening harder or selecting a sharper point |

| Residue or corrosion prevents inspection | Condition is unknown | Use the approved cleaning/release process or replace/quarantine |

| Fresh point still drags on the proof cut | Edge wear was not the only cause | Recheck material, support, cut direction, exposure, blade identity, and tool choice |

The two exact tools use segmented blades. Their normal edge-renewal action is to expose the next scored segment and remove the spent one under control.

Renew one point only when the symptom is consistent with ordinary wear, the remaining strip and next groove pass inspection, the lock and handle pass, and the breaking method is authorized.

Replace the entire blade strip when no usable point remains, the strip or a groove is damaged, identity or history is unknown, contamination or corrosion defeats inspection, or the approved procedure requires replacement.

Quarantine the blade or whole knife when a fragment is unaccounted for, the blade is chipped/cracked/bent, the lock creeps, the carrier or handle is damaged, or cause remains unresolved.

Do not rotate, flip, reverse, or reload a used strip backward to present another corner. The geometry is designed around scored snap points advancing toward the working end.

Do not sharpen, hone, grind, strop, file, heat, or re-bevel the segments. Sharpening can erase or weaken a score line, change point geometry, leave an uncontrolled burr, overheat thin steel, or obscure damage. More fundamentally, Hyde documents these as snap-off knives: the controlled renewal is the next manufactured point. This is the replaceable-edge side of Hyde's maintained-versus-fed knife history.

Break one spent point under containment

Set up the change before any sharp segment is detached:

Move to the designated, stable, well-lit station. Keep other people outside the fragment path.

Place the approved rigid, closable used-blade container at the point of generation. Do not plan to walk across the shop holding a loose point.

Put on the eye/face and hand protection selected by the employer's hazard assessment. OSHA requires appropriate eye or face protection where flying particles are a hazard (29 CFR 1910.133) and task-appropriate hand protection where hands face severe cuts, lacerations, abrasions, or punctures (29 CFR 1910.138). No glove makes contact with an exposed edge acceptable, and this guide invents no cut rating.

Confirm that the next score line is intact and that only the spent segment will be removed. Preserve as much blade inside the holder as the approved procedure permits.

On the 42030, use the documented built-in blade breaker in accordance with Hyde's or the blade maker's instructions and the employer's containment method. “Built-in” does not mean fragments may be snapped toward open space.

On the 42050, Hyde's accepted facts name no built-in breaker. Do not substitute bare fingers, a bench edge, the workpiece, the floor, a pocket, or improvised bending with another tool.

Orient the break away from the body and every other person, keep the segment controlled over or into containment, and make one deliberate break at the scored groove. Never twist repeatedly until the steel tears.

Account for exactly one detached point. If it flew, shattered, or cannot be found, stop access to the area and use the facility's missing-sharp/fragment procedure. Do not resume production while a razor-edged fragment is unaccounted for.

Close or guard the container as its workplace procedure requires. A used utility-blade point is a serious cut hazard; do not mislabel it as regulated biohazardous sharps unless the workplace's contamination conditions and rules actually make that classification applicable.

The breaker controls the point change; it does not prove the remaining blade is good. Inspect the new working point, adjacent score line, blade seating, and lock again after the break.

Replace a spent or rejected blade strip without inventing the mechanism

When the strip must be replaced, use the current Hyde/blade-maker instructions for the exact knife and the facility's controlled method.

Preserve these gates regardless of mechanism:

fully control the old strip before it leaves the holder;

keep hands out of both old- and new-edge paths;

inspect the new strip for shipping damage, corrosion, cracked grooves, contamination, or wrong identity;

seat it only in the documented orientation and engagement;

restore every cap, screw, slider, or retention part exactly as instructed;

account for the complete removed strip and place it directly in the approved container;

never combine loose new blades, used strips, and snapped points in an open drawer.

The 42030 is documented to store two blades and include three. That is supply convenience, not evidence that every loose blade found in its handle is unused, compatible, or undamaged. The 42050 is documented for easy blade changing, but “easy” does not waive the loading instructions or post-change test.

Set minimum exposure, prove the lock, and test off production

Expose only enough blade to make the released cut. More extension creates more leverage and flex without creating a sharper edge. On the 42030, positively engage its documented lock. On the 42050, set the exposure and secure the screw lock under maker instructions; do not improvise a torque value or field-test the catalog's 44-pound claim.

Without placing a hand in the blade path, verify that the mechanism holds by the approved pre-use check. Then make a controlled cut on representative scrap or a production-authorized coupon, with the same material orientation and support as the real task. The test asks:

Does the edge enter and track cleanly with normal released force?

Does the facing part rather than fuzz, tear, or bunch?

Does exposure remain fixed?

Does the blade stay straight without chatter, twist, or visible side load?

Does the cut meet the station's acceptance criterion?

One successful cut is a return-to-service check, not a service-life promise. If the fresh point fails, do not snap another one reflexively. Reassess material identity and condition, support, task method, blade identity, lock, exposure, and whether an 18mm segmented knife belongs on the operation at all.

Close the production record and return the tool deliberately

For controlled production or a shared tool crib, record at least:

date/time, station, task, and operator or accountable role;

Hyde model 42030 or 42050;

material identity, lot or work order where the plant tracks it;

as-found symptom and inspection condition;

detached segment or removed strip accounted for and contained;

lock/holder inspection result;

proof material and acceptance result;

unresolved cause, repeat-failure trend, or escalation owner;

person or role authorized to release the knife.

Store it retracted and secured under the site's method, separate from loose blades and residue.

What goes wrong — and the corrective branch

“It still cuts, but the operator has to lean on it”

That is the change signal, not a reason to continue. Stop, inspect, and renew if the evidence is ordinary rounding. Extra force hides edge wear until the knife slips, the point fractures, or the lock is overloaded.

“The new point went dull immediately”

Do not create a service-life rule from one point or consume the whole strip proving the same failure. Confirm that the new point was actually exposed, the blade is approved, the material did not change, the cut is supported, the edge is not contacting a fastener or guide, and the task is not side-loading or burying the blade. Trend repeated, controlled observations. Purchasing more points is not a process correction.

“The edge has a small chip; the next point looks fine”

Quarantine the strip and account for the missing material. A chip may mean a hard inclusion, impact, side load, damaged score line, or blade defect. Snapping past it before investigating discards the evidence and may leave a fragment in the product, work area, or machine.

“The blade retracts while cutting”

Stop using the knife. Preserve the as-found exposure and lock condition. On the 42030, inspect the positive lock and track under its maker instructions. On the 42050, inspect the screw lock, holder, seating, contamination, and blade identity. Do not repair creep by overtightening, wedging, taping, shimming, or selecting a longer exposure.

“The segment shattered or disappeared”

Freeze the area. Account for the operator, product, floor, bench, container, tool, and any nearby open equipment under the facility's missing-fragment procedure. Eye injury receives immediate site first-aid/medical response. Do not sweep blindly by hand and do not resume until the fragment disposition and product risk are resolved.

“A glove caught near the cut”

Stop and reassess the task. Hand protection must be selected for the actual cut, material, grip, snag, dexterity, and contamination hazards; “cut resistant” is not “cut proof,” and a glove can introduce entanglement risk around moving equipment. The employer's hazard assessment and machine controls own the answer. This hand-knife guide authorizes no work on moving stock or inside an operating machine.

“The blade is clean, so we put it back in the spare compartment”

Used-looking-clean is not new. Keep new blades in controlled packaging or an identified clean-storage state. Removed or unknown-history strips go to the defined used/quarantine route. The 42030's storage feature does not create history control by itself.

“We sharpen snap-off points to save blades”

These two knives renew by snapping a manufactured point and replacing the strip.

“Our rule says change every shift”

A facility may impose a conservative administrative rule for its own operation. Label it as that facility's rule, with its own evidence and revision owner. Do not present it as Hyde service life or as proof that a blade remains safe until the clock expires. Condition-triggered stops still apply immediately.

History footnote: why the edge breaks on purpose

In 1956, Yoshio Okada in Osaka turned two observations — the repeatable sections of a chocolate bar and the fresh edge produced when glass is broken — into the segmented snap-off blade. The industrial change was larger than a convenient knife: edge renewal moved from a sharpening bench into the handle. Abrasive work no longer had to wait for a stone or tolerate a progressively dull edge; the operator could expose another manufactured point during the run.

Hyde's two 18mm knives express the mature form of that system. The 42030 minimizes friction around renewal — positive slide lock, built-in breaker, onboard blades. The 42050 emphasizes retention — a screw lock with a cataloged 44-pound holding-force claim.

No exact Hyde refill-blade SKU is accepted for the 42030/42050 pair; do not add one by inference.

No exact loading/unloading sequence, breaker sequence, screw torque, pre-use proof force, inspection tolerance, cleaning chemistry, or repair method is accepted.

The 42050 has no accepted built-in-breaker claim; its breaking fixture/method remains employer- and blade-maker-controlled.

No rotation, reversal, field-sharpening, regrinding, heat treatment, or segment-reuse method is accepted.

Hyde's founding sources conflict between 1870 and 1875; “early-to-mid 1870s” is the controlled wording.

Tools this guide links back to — exact earned union: Hyde 42030 · Hyde 42050. The 42030 earns the auto-lock, built-in-breaker, and onboard-spare branch; the 42050 earns the screw-lock/44-pound-retention branch. No other Hyde SKU is added as a product backlink.
