How to Qualify Heavy Short-Stroke Cutting into Dense Stock

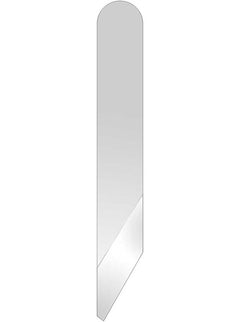

Those two bare blades are the complete Hyde product graph for this page.

Listed blade dimensions are product facts, not operating limits. Every such parameter must come from the exact qualified process.

Scope boundary: this is a controlled manual-bench workflow for qualifying and repeating an already authorized short cut in identified production stock. It is not an instruction for cutting energized, moving, tensioned, suspended, pressurized, installed, load-bearing, or otherwise uncontrolled material. It does not authorize cutting at a conveyor, roll, calender, press, mill, or other machine.

Job: qualify and repeat a plant-authorized short manual cut in identified dense stock while preserving the required line, edge condition, material identity, contamination status, and traceable process state.

Result: the exact blade and approved assembly remain secure and acceptable; the retained work satisfies the current drawing and quality plan; parent stock, workpiece, and waste retain their required identity; all fragments and deviations are accounted for; and accepted work moves only to the next named operation.

Time: no universal time is supported. Material state, cut definition, workholding, inspection, and the qualified station determine the cycle. This guide supplies no setup time, stroke rate, cycle rate, or production target.

Difficulty: advanced industrial hand cutting. The cut may be physically short, but controlling identity, support, breakthrough, tool retention, first-article approval, and abnormal conditions requires a trained operator working to a plant-issued procedure.

Both are bare blades. This row registers no handle, holder, fixture, guide, driver, gauge, or guard, and therefore proves no exact fit.

Everything else the job requires: the released material and its identity record; the current drawing or cut instruction; an employer-approved blade assembly with documented fit, seating, retention, and exposure; a validated fixture, support, guide, and sacrificial surface; authorized marking and identification materials; inspection equipment required by the quality plan; protected storage and sharps controls; and task-specific safeguards selected by the employer. These are workflow necessities, not additional Hyde backlinks.

Bind the cut to a controlled process

“Dense stock” is a job class, not a material specification

Do not choose a blade or begin layout from the job title alone. “Dense” describes how a stock may behave in this application class; it does not identify chemistry, reinforcement, layer construction, thickness, hardness, cure state, temperature, surface treatment, contamination sensitivity, or safe cutting method. Before moving the stock, the operator must be able to read back:

the exact material code, revision, lot, batch, roll, sheet, or other controlled identity;

its release status and required process state;

any recorded face, grain, lay, layer, or directional orientation;

the drawing, template, datum, keep side, waste side, and endpoint for the cut;

the required edge and dimensional acceptance criteria;

permitted contact surfaces, markers, liners, and cleaning materials;

the approved manual station, blade pattern, assembly, and method;

the required inspection and the next authorized operation.

Never fill a missing field by appearance, touch, sound, odor, color, storage location, an old sample, or yesterday’s setup. Unidentified remnants, mixed offcuts, contradictory labels, unexpected construction, or stock outside its released state go on material hold.

Admit the manual method

The process owner must explicitly permit the hand-bench cut. Confirm that the work is separated from machinery and stored energy; that the retained piece and waste can both be supported; that no hand, body part, cable, hose, finished surface, or equipment lies in the projected path; and that the result can be inspected.

If the stock is attached to or passing through equipment, use the machine-specific procedure. This page does not decide when either standard applies; the employer’s program does.

Define acceptance before trial

A line on the stock is not a complete acceptance standard. The quality plan must say how to judge location, dimensions, edge condition, face condition, layer integrity, contamination, identity, and any downstream-critical feature. It must also name who may accept a first article, who may disposition nonconforming work, and which changes trigger requalification.

Do not use either blade’s length, width, or thickness as a tolerance, trim allowance, permissible cut depth, or proxy for what the stock can withstand.

Select only from supported differences

Start with the incumbent controlled pattern

Patterns BG77M and 4546 are reorder identities.

Do not identify a loose blade from apparent size. Read the controlled package, station record, or traceable parts record. A blade with lost identity is not recovered by measuring it at the bench.

The supported comparison

The two products share a catalog-named flat grind, catalog-named HSS designation, and listed .109" thickness. The defensible differences are:

Those facts can define candidates for a controlled comparison. They do not prove kerf, radius, stiffness, leverage, penetration, allowable load, required effort, edge life, productivity, or suitability for a named stock. They also do not establish that either blade fits the station’s holder.

If neither candidate passes without exceeding the station’s authorized method, reject the manual setup rather than escalating effort.

Fit is an independent gate

Before a blade reaches this workbench, the plant record must name the exact assembly and supply:

accepted retained-end geometry and orientation;

seating datum and minimum retained engagement;

allowed exposure and how it is measured;

complete retention components and installation method;

any specified fastener value and the controlled means of applying it;

non-cutting retention proof, first-piece test, and post-test readback;

reject conditions and quarantine response.

Do not shim, tape, wedge, double, glue, drill, peen, file, grind, heat, hammer, or otherwise alter a blade or holder to create fit. Do not copy a torque, exposure, seating depth, or proof method from another pattern.

Prepare the station and the qualification piece

Clear the work and preserve identity

Perform documented line clearance. Remove previous material, labels, offcuts, residue, loose fragments, sharpening debris, and unrelated tools. Verify the current station revision, fixture, guide, support, sacrificial surface, inspection equipment, receiving container, and identity carrier.

Prepare the identity transfer before separation. If the cut creates two controlled pieces, both need the required identity and status. If only one side remains product, the waste still follows the site’s segregation rule. Never leave a cut piece on the bench to be identified later.

Use only process-approved contact and marking materials. Do not add oil, water, solvent, cleaner, powder, release agent, adhesive, heat, cold, or another treatment to change cutting behavior unless the exact process authorizes it. Easier cutting is not an acceptable result if the method changes the stock.

Inspect without inventing a maintenance standard

Using the station’s acceptance criteria, inspect the identified blade and approved assembly for damage, contamination, corrosion, a missing edge fragment, movement, altered components, or another reject condition. Keep the edge contained and never test it by drawing a finger along it.

A gradual increase in effort or a visible change in the result is a process signal, not permission to invent a blade-change interval.

Support both sides and the finish

Fixture the work by the qualified method so the retained stock and waste remain controlled through entry, progression, breakthrough, and release. Support close enough to the line to prevent uncontrolled movement under the validated method, without placing a clamp or hand in the blade path.

Plan where the edge goes if the stock yields suddenly, the blade deflects, the guide releases, or the waste separates. Never brace stock against the body, hold it in the hand, cut across the lap, cut over an unsupported gap, or plan to catch the offcut.

The employer’s hazard assessment selects the necessary safeguards and protection. OSHA 29 CFR 1910.138 requires hand protection to be selected from the task, conditions, duration, and identified hazards; OSHA 29 CFR 1910.133 addresses eye and face protection where applicable hazards are present. This guide specifies no glove rating, garment, eye-protection class, or universal PPE set.

Qualify the first article

Step 1 — read the job at the stock

Match the physical stock to the traveler and verify status, orientation, keep side, waste side, endpoint, acceptance criteria, blade model and pattern, assembly identifier, fixture, station, and instruction revision. Resolve every mismatch before the edge is exposed.

Step 2 — lay out from the authorized datum

Use only the drawing’s datum, template, stop, or approved marking method. Do not stretch, compress, fold, stack, warm, cool, pre-score, pre-drill, lubricate, or otherwise condition the material unless the released procedure requires it.

Transfer any required identity or orientation mark before separation can make it ambiguous. Confirm that marks, fixtures, and supports do not contaminate a controlled face.

Step 3 — verify the assembly in its installed state

Check blade identity, seating, retained engagement, exposure, orientation, retention components, and protected working position against the exact assembly instruction. Perform only the documented non-cutting retention check. A successful hand pull, wiggle, twist, tap, or previous cut is not substitute evidence.

Any blade movement, unexplained witness mark, damaged component, unidentified residue, altered fastener, missing part, or mismatch returns the assembly to quarantine.

Step 4 — make the trial cut under the released method

Position the stock and body exactly as the validated station instruction requires. Keep every hand and body part outside the projected edge, deflection, breakthrough, and waste-release path.

Follow the station’s specified entry, direction, stroke, speed, force limit, exposure, and pass method. None is supplied here. Keep the assembly within its authorized use; do not twist, pry, lever the opening, chop, strike the blade or holder, add a cheater, or use body weight as an unmeasured substitute for a failing method.

If the approved method uses progressive passes, return to the controlled line as instructed. Do not create a second uncontrolled track beside it. At the finish, prevent waste separation from pulling the work off datum or carrying the blade beyond the protected endpoint. Never tear the final connection apart.

Stop immediately for unexpected resistance, stock movement, closure on the blade, smearing, stretching, tearing, layer separation, exposed or unexpected reinforcement, heat, smoke, odor change, residue pickup, blade movement, edge damage, fixture movement, or a need to exceed any authorized parameter.

Step 5 — protect the edge, then inspect

Place the assembly in its approved protected position before touching the cut piece. Inspect the first article under the quality plan. The inspection may include dimensions, line, required face and orientation, the complete cut edge, layer condition, contamination, transfer, distortion, and identity—but only the current plan defines acceptance.

Inspect the blade assembly, fixture, guide, and support after the trial. Verify the required retention readback, including any specified seating or exposure check. Account for all stock and blade fragments. Record the exact model and pattern, assembly and station identifiers, material identity, process revision, observed result, deviations, and named approver.

Production begins only after the authorized approver accepts the first article. “It cut” is not approval.

Repeat the qualified loop

For each piece: verify the traveler; preserve orientation and identity; place and secure the stock at the approved datum; confirm keep, waste, endpoint, and clear path; perform the qualified cut; protect the tool; inspect; identify accepted work; and segregate nonconforming work.

Apply the quality plan’s requalification rule at every named change point. Likely candidates include a new material identity or state, blade change, pattern change, assembly change, fixture or support change, station repair, unexplained tool movement, abnormal cut, or instruction revision, but this guide does not establish the actual trigger list or interval.

Watch for drift. A change in effort, sound, cut appearance, pass behavior, residue, stock response, blade position, fixture behavior, or operator control requires a stop under the site rule. Do not compensate by pushing harder, changing the stroke, exposing more blade, adding chemistry, accepting a rougher edge, or silently changing the inspection frequency.

Accepted work receives its required liner, cover, label, tray, or other protection and moves only to the next named operation. Re-identify and protect parent stock. Same-parent origin does not authorize trim or waste to return to production.

What goes wrong—and the controlled recovery

| Observation | What it means | Required response |

| Material identity, state, orientation, or instruction is uncertain | Process admission failed | Stop and place the material on hold. Do not identify it by appearance or location. |

Nominal width and apparent seating are not compatibility. |

| Blade moves, rotates, or changes exposure | Retention failed | Stop, protect the edge, preserve witness evidence, and quarantine blade and assembly together. |

| Stock moves, buckles, stretches, smears, tears, or leaves the datum | Workholding, material state, edge, or method is not controlled | Hold the piece and repeat qualification only after the responsible owner resolves the cause. |

| The cut closes on or traps the blade | Support or stock behavior is outside the method | Maintain control and use the plant’s approved release response. Do not twist or pry. |

| Resistance or construction changes unexpectedly | Unknown layer, inclusion, reinforcement, binding, or damage may be present | Stop, preserve the condition, and return the stock to the process owner. |

| Edge quality declines or effort rises | The qualified condition has drifted | Stop at the site criterion; inspect material, setup, blade, assembly, and support. Do not invent a maintenance interval. |

| A chip, crack, or possible missing fragment appears | Product and foreign-material control are active | Stop affected work, account for the blade and exposed stock, and follow the site fragment procedure. |

| Residue accumulates on the blade or support | Material state, contact control, or cleaning trigger needs review | Use only the approved cleaning or change response away from exposed product. |

| The cut requires more force, exposure, passes, speed, or a different stroke than authorized | The manual method has failed qualification | Reject the setup and route it to process engineering. Do not expand the envelope at the bench. |

| A cut is off line or fails edge acceptance | The work is nonconforming | Preserve the as-cut evidence and await disposition. Do not “clean it up” without an authorized rework method. |

| Someone proposes cutting while the stock is on equipment | The bench scope has been crossed | Stop and use the exact machine, guarding, and hazardous-energy procedure. |

Close out and hand off

Record the material and work-order identity; instruction and quality-plan revisions; exact Hyde model and pattern; assembly, fixture, and station identifiers; first-article or requalification approval; inspections; deviations; holds; accepted and segregated quantities; parent-stock status; blade or assembly changes; fragment accounting; and next operation.

Clean the station and assembly only by the current process. Keep debris and cleaning residue away from exposed product. Do not wipe along an edge or handle a loose blade outside the approved fixture or carrier. Store the assembly edge-protected and identified. Route spent blades and sharp fragments through the facility’s controlled sharps or metal-fragment process, never an open bin, rag, pocket, or mixed drawer.

Do not repair or rework an edge until the disposition names the authorized method. Do not erase evidence from a loose assembly, damaged tool, contaminated surface, or unexpected construction before the responsible owner examines it.

The handoff is complete only when accepted work and parent stock are correctly identified, rejected work is segregated, the tool and station are in their required state, records are closed, and the receiver accepts the transfer to the next named operation.

History footnote

The replaceable mill-blade system separates the durable holder from a numbered wearing edge, which lets an industrial station preserve a pattern identity through repeated changes. Hyde’s Southbridge history belongs to the New England manufacturing belt that grew after early water-powered textile production; the National Park Service identifies Samuel Slater’s 1793 Pawtucket operation as the first successful water-powered cotton-spinning mill in the United States (NPS — Slater Mill).

Their codes remain identifiers, not hidden application claims.

Frequently asked questions

Does “dense stock” mean a particular rubber, gasket, belt, plastic, textile, or composite? No. The row names a job class, not an approved-material list. The exact material specification and qualified process decide.

Which blade cuts harder or thicker material? The held evidence does not establish that comparison. The listed dimensions cannot be converted into capacity or force claims.

What is the real difference between 62930 and 63020? Supported facts only: 62930/BG77M is listed at 3-7/8" × 9/16" × .109"; 63020/4546 at 3" × 5/8" × .109". Any performance difference must be proved by a controlled station qualification.

Use only an employer-approved assembly record naming the exact pair.

How much blade should project? The exact assembly and process instruction must provide a measured limit together with minimum retained engagement. This guide supplies no number.

How hard, fast, or long should the stroke be? Only the qualified station procedure can answer. There is no universal force, speed, stroke, angle, or pass count here.

Can a successful trial prove fit or capacity? No. It is one layer of station qualification. Identity, seating, retention, process limits, first-article inspection, post-test readback, and formal release must all pass.

What PPE is required? The employer’s hazard assessment selects it for the exact task and conditions. This guide invents no universal glove, eye, face, clothing, or footwear specification.
