How to Finish Drywall Butt Joints

This guide starts after the tape coat. It assumes the board is secure and the tape is sound, fully embedded, and ready for another coat under the tape-and-compound maker’s current instructions. It does not teach hanging board, pre-filling gaps, choosing tape, or embedding tape. A loose board edge, open gap, blister, crack, or dry-laid tape leaves this workflow and goes back to the appropriate repair or tape-coat method. Product facts come from the six linked Hyde product guides and their manufacturer sources.

Job: turn the unavoidable rise over a sound drywall butt joint into a broad, shallow, paint-ready transition that does not cast a distinct shoulder under critical light.

Time: several separate working visits: inspect and first-build, widen, finish, dry/readback, then sand and prime as the specified system requires. This guide supplies no universal working time, dry time, recoat window, or total calendar.

Difficulty: advanced hand finishing. The hard part is not spreading compound; it is accepting that a butt joint cannot be made recessed and controlling a graduated crown without piling material on its center or leaving two visible shoulders.

The exact Hyde tool union for this guide:

The blue-steel blade must be cleaned and dried after use.

Clean and dry its lacquered blue-steel blade.

Test its bow and dry it after washing until Hyde confirms the steel.

Hyde documents rivet-free construction, a tapered blade, and Hammer Head®; the striking end is incidental here, not part of the finishing method.

Everything else required: the joint compound and tape system already on the wall; the current product label, technical data sheet, and safety data sheet; clean mixing and holding equipment sized for the selected blade; clean water only where the compound maker permits it; a small clean loading knife; a rigid known-straight edge for plane checks; bright movable work light; pencil; drop and room protection; a scraper reserved for dry ridges; the sanding and dust-extraction system appropriate to the material and room; specified primer; and the eye, skin, and respiratory protection required by the compound, sanding exposure, and workplace program. The six Hyde knives do not supply tape, compound, mixing, containment, extraction, abrasive, primer, or a certified straightedge.

First, identify the seam correctly

Distinguish a butt joint from a tapered joint before adding compound

A tapered joint joins two factory-recessed long edges. The tape and compound can occupy that valley, and a wide knife can ride the shoulders while filling the center toward the board plane.

A butt joint joins square, non-recessed board ends or field-cut edges. Its tape already sits on the wall plane. Every coat over it adds height. There is no valley to fill and no stroke that makes the center literally flush with the surrounding paper. The job is to distribute the necessary rise into a graduated arc so broad and smooth that light cannot find an abrupt change.

That distinction changes the hand motion. A tapered seam is filled across its center. A butt is managed as two wings sharing a lean center. Treating a butt like a tapered seam—one loaded stripe directly over the tape—builds the exact hump the finish is supposed to hide.

Confirm that this guide’s starting assumption is true

Rake a work light nearly parallel to the wall from both directions, then inspect and touch the full tape run.

Proceed only when:

the board ends are secure and do not move under gentle pressure;

the tape is centered, bonded, and free of bubbles, blisters, wrinkles, tears, and lifted edges;

the tape coat is firm and ready for recoating under the compound maker’s directions;

no proud fastener, broken face paper, wet stain, active leak, or recurring crack interrupts the joint;

the joint has no contamination that would prevent the next coat from bonding.

Stop if the tape sounds hollow, moves, or lifts; if a crack continues beyond the seam; if the board edge moves; or if moisture is present. Cut-and-rebed, refasten, repair, or diagnose as the condition requires. A wider coat cannot stabilize a failed joint.

Read the compound system before changing it

Use a compound permitted for the existing tape coat and the intended next operation. Read the current container and technical data sheet for:

substrate and tape compatibility;

whether mixing or water addition is permitted;

working and recoat conditions;

maximum application limits;

temperature, humidity, and ventilation requirements;

sanding, priming, cleanup, and disposal directions;

required personal protective equipment.

Do not borrow a water ratio, working clock, dry-time promise, or coat schedule from another compound. “Ready-mixed,” “setting,” “all-purpose,” and “topping” are not interchangeable permissions. The maker owns the chemistry; this guide owns the hand sequence.

Inspect and prepare the first build

Establish the acceptance light before the wall gets wet

Map the room’s hardest real light: windows at the end of a long wall, sconces, grazing fixtures, doorway sightlines, and any specified critical-light condition. Turn off forgiving front light and rake the movable lamp along the joint from the direction that will expose it most severely. Mark defects with pencil, never ink.

The final readback must use these same directions. A butt joint that looks quiet under diffuse overhead light can cast a long shoulder when daylight runs along it. Critical light is not a last-minute punishment; it is the finishing gauge from the first build onward.

Knock down only dry, removable defects

Use the dedicated scraper—not one of the six finish edges—to shave dried nibs, crumbs, and lap ridges. Brush or vacuum the debris away. Do not sand by default between wet coats; that creates dust before the geometry is settled and risks cutting the shallow tape cover.

If a ridge will not shave cleanly or the material smears, pills, or rolls, it is not ready for the next operation. Let the compound reach the state its maker requires. Never force readiness with more pressure or a finer blade.

Inspect every finishing edge

Hold each selected blade under the raking light. A dried crumb, nick, rust pit, rolled corner, or set-compound bead will draw a continuous groove through the next pass. Clean both faces and the working edge.

Segregate the carbon and blue-steel blades from wet storage. Wipe the hardwood handles instead of soaking them. Keep the stainless blade clean even though rust is not its problem; stainless can drag a crumb as efficiently as carbon.

Build the graduated crown

Rehearse the two-wing map dry

Stand square to the joint and decide where the left and right passes will travel. Both passes must overlap the tape zone, but neither should dump a full load onto the center line. The outer blade edge rides sound wall and establishes the feather; the inner portion shapes the shallow rise.

Run the clean blade over the dry joint without compound. Learn where the wall is high, low, bowed, or interrupted. A butt may be structurally sound and still cross framing variation. The knife must follow the actual wall, not an imaginary perfect plane.

First-build one wing with the 02895 or 09277

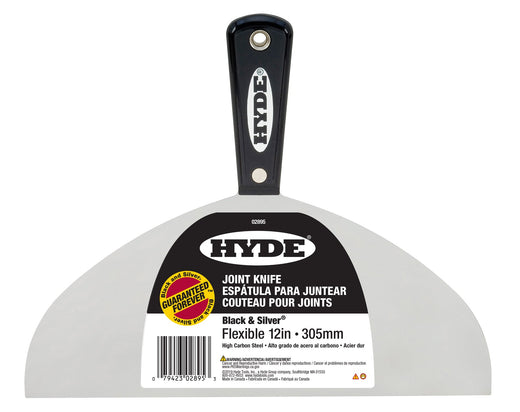

Use the 02895 when blade-in-hand feedback is the priority. Load it with the small loading knife rather than digging its full edge through the compound. Place a controlled band beside the tape, overlapping the center only enough to unite the wing with the existing coat.

Lay the compound on with modest angle, then make a cleaner shaping pass. Bias pressure toward the outer edge so that edge wipes toward zero on sound board while the inner portion leaves the material needed to begin the crown. Do not repeatedly scrub the pass. Once the edge is clean and the wing is placed, stop before the compound starts dragging.

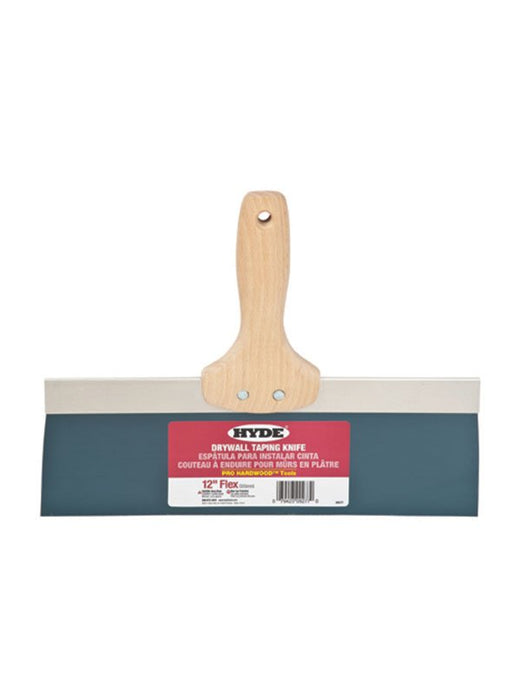

The 09277 can take this first wide seat when the hardwood-handle taping silhouette is preferred. Because its steel and back are not verified, do not promise a particular flex. Test its bow on scrap or an inconspicuous section, then use only the pressure the observed blade will support.

Build the opposite wing without stacking the center

Reload cleanly and mirror the operation on the other side. Let the second pass overlap the first enough to make one continuous graduated rise, but keep the center lean. If the blade pushes a roll of compound toward the seam, lift it away on the loading knife; do not bury that roll with another pass.

Change the direction of travel when room geometry allows and alternate which wing is worked first on later coats. This keeps one habitual hand from always leaving the same loaded shoulder.

Control the crown by reading both shoulders

Clean the blade and draw a light, nearly unloaded pass along each wing. Pressure at a blade corner feathers that side; center pressure changes the bow and can add or remove material from the crown. The manufacturer does not claim a factory crown on these blades, so “crown control” here means steering the blade’s observed bow as trade technique—not asserting a ground-in blade shape.

Stop and read:

A sharp line at an outer edge: that wing ends too abruptly. Pull the edge outward with a cleaner feather, not more mud at center.

A sharp ridge at the tape line: both wings have stacked there. Lift excess while wet; do not plan to sand down to the tape later.

A broad, low rise with no distinct shoulder: correct direction. It is not required to be dead flat across the center.

A hollow beside the tape: the blade removed too much from the inner wing. Refill that local low without thickening the entire seam.

Clean the blade on every return. One crumb under a wide edge scores both the wing and the taper to zero.

Let the first build reach the maker-defined recoat condition

Protect the joint from impact and contamination. Provide only the temperature, humidity, and air movement permitted by the compound maker. Do not aim uncontrolled heat at the seam or close the room around trapped moisture merely to accelerate the schedule.

Before recoating, verify the whole joint—not just the thin outer edge. It must be uniformly firm and must respond as the maker’s instructions describe. A test scrape that smears or rolls is a stop. The center and any localized fill can lag behind the feather; surface color alone is not a universal dry test.

Widen both sides and choose the 14" behavior

Read the dry first build before selecting the wide blade

Scrape dry nibs, vacuum or brush the debris, and re-establish the critical light. Bridge the joint with the known-straight edge. The correct first build is a gentle graduated rise. A distinct left or right shoulder tells you which wing needs more reach. A local hollow needs compound. A central ridge needs careful reduction only if enough sound cover remains; exposed or near-surface tape requires recoating, not aggressive sanding.

Choose the 14" blade by documented behavior:

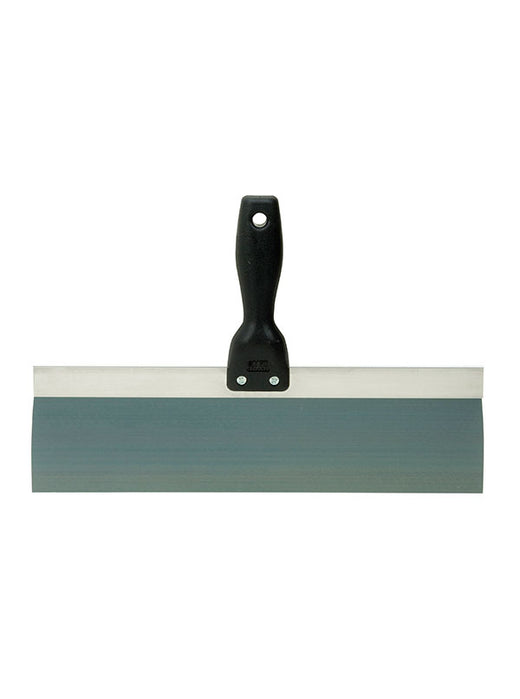

09215: take it when the lighter Value construction and angled one-piece handle matter over many broad passes; accept blue-steel drying.

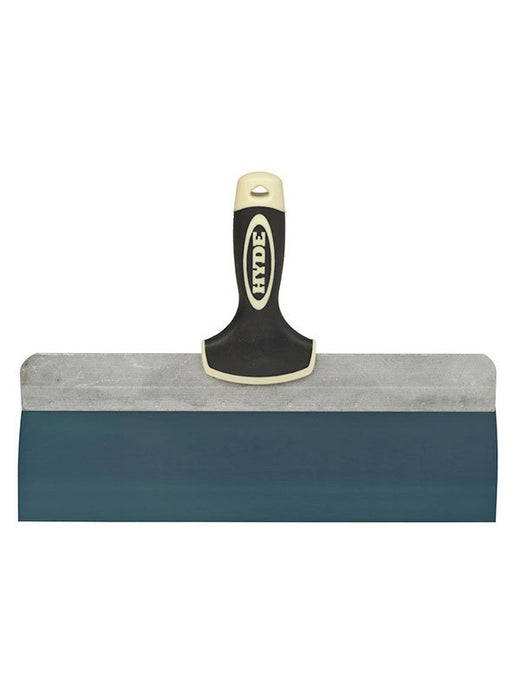

09244: take it when the documented extruded back’s additional stiffness helps carry and control the wide pass; accept blue-steel care.

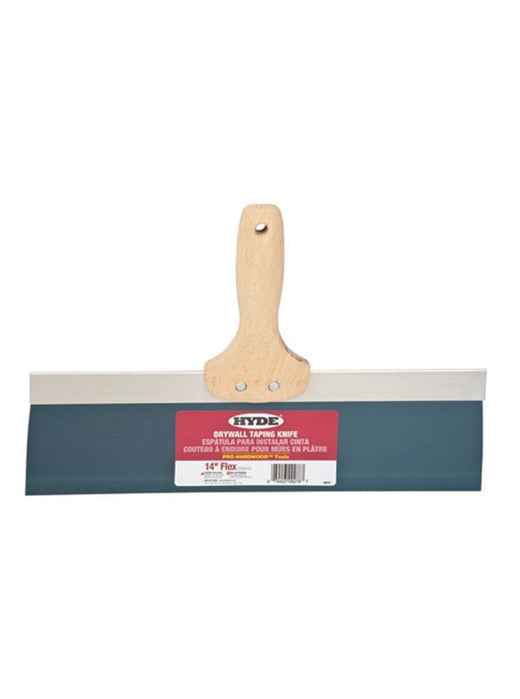

09278: take it for the grounded hardwood-handle choice only.

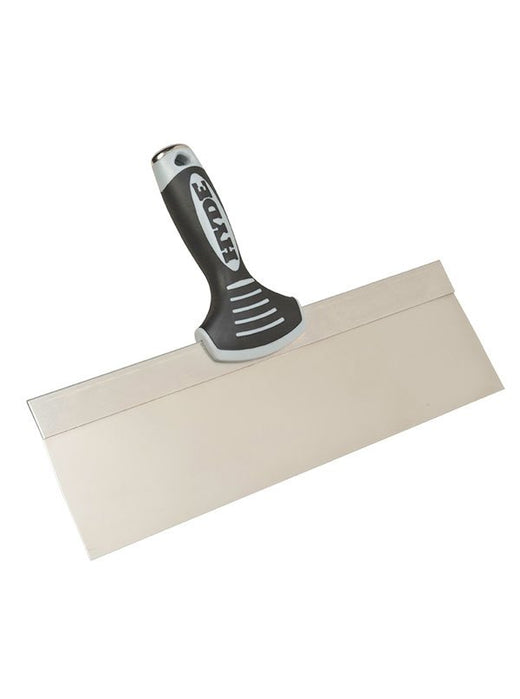

09374: take it for the documented flat-back stainless construction and limber finishing seat, with no blue-steel drying requirement.

These are choices among feel, backbone, handle, and maintenance. They are not claims that one produces a better wall automatically.

Widen the first wing with a thin, controlled pass

Apply less material than the first build needs. Land the inner part of the blade on the established crown and extend the outer portion onto clean wall beyond the earlier feather. Pull a continuous pass while biasing pressure toward the outer edge. The goal is to move the visible transition outward and make it shallower, not to raise the center.

Do not force a long blade flat. Observe its bow. A limber blade can follow the existing crown and wipe the outer edge very tight; a stiffer-backed blade can resist loading and hold the wide pass under controlled pressure. Fighting either behavior prints chatter or two corner lines.

Widen the opposite wing and reconcile the overlap

Repeat on the other side. Keep both outer edges clean and the shared center lean. When the second wing meets the first, use a clean, nearly unloaded pass only if a distinct overlap line remains. If the material has begun to drag, stop and correct after the maker-permitted recoat condition rather than polishing wet compound into torn edges.

View the joint from both ends while it is still workable. A loaded shoulder is cheaper to lift now than to discover after primer.

Use the blade as a finishing tool, not as proof of plane

The wide knife is designed to flex; it is not a certified straightedge. Clean it and use it to read pressure and local transitions, but use the separate known-straight edge for the actual geometry check. A blade that bows sympathetically over a hump can make that hump feel “flat” to the hand.

The readback target is a gradual rock across the joint without a sudden teeter at either shoulder, a hollow beside the tape, or a hard center ridge. The outer feather should disappear under fingertip and side light.

Repeat only the named correction, not the whole ritual

After the widening coat reaches the condition required for recoating, inspect again. Add a subsequent finish pass only where the readback names remaining work:

widen a shoulder that still casts a line;

fill a local low;

pull a tight finish over tool marks;

reconnect an interrupted feather around an opening or framing deviation;

correct a groove left by contamination.

Each subsequent pass should be tighter and should carry an existing edge outward, not restart a loaded stripe at center. There is no universal number of finish coats. Stop when the wall meets the specified finish and light condition, not when a folklore coat count has been reached.

Dry, sand, clean, prime, and read back

Prove the last coat is ready before abrasion

Follow the compound maker’s current sanding/readiness direction. Dry material releases the expected powder; material that smears, pills, or clogs the abrasive is not ready. Check the heavier center and local corrections as well as the feather.

Before sanding, use the straightedge and critical light to separate geometry from surface texture:

a hollow or insufficiently wide shoulder goes back to compound;

a distinct crown that cannot be reduced without threatening tape goes back to a wider coat;

a dry nib, shallow tool line, or properly built feather edge can proceed to the specified abrasive method.

Sanding subtracts. It cannot widen a narrow transition or fill a low.

Control dust as part of the finish

Use eye protection and the respiratory protection required by the material’s safety data sheet and the applicable exposure-control program. Use source extraction when the selected sanding system and work geometry permit it; isolate the work and protect occupants and contents.

Do not dry-sand unknown old texture, patching compound, or painted material merely because a vacuum is attached. Resolve lead, asbestos, and other hazardous-material questions before disturbance. Extraction reduces exposure; it does not identify a material or waive a regulated procedure.

Sand the feather edges and tool marks lightly. Do not chase the center until tape appears, dish one wing, fuzz the face paper, or polish the compound differently from the surrounding board. Stop when the named defect is gone.

Remove the dust before judging or priming

Stop sanding in the zone, then vacuum the joint, wall, ledges, trim tops, floor, tools, and travel path with filtration appropriate to the hazard. Use a clean soft brush into the vacuum for edges and recesses. Use a damp final wipe only if the primer or compound maker permits it, after bulk dust is removed, and allow the surface to reach the required condition before coating.

Run a clean-finger or clean-cloth transfer test across the crown, both feathers, and nearby board. Loose sanding powder is a bond breaker and can also fill scratches, making the raw wall look better than it is.

Run the critical-light acceptance test

Recreate the mapped real-light directions and rake the movable light along the joint from both ends. Bridge it with the known-straight edge and inspect from the normal occupied sightlines.

the tape remains fully buried and sound;

the center is a broad gradual rise, not a narrow ridge;

neither wing has an abrupt shoulder, hollow, groove, or ledge;

both feathers disappear by touch and critical light;

no loose powder, exposed paper, or abrasion damage remains.

A broad graduated arc can be correct even though a rigid straightedge reveals that material exists above the board plane. Gypsum Association finish guidance describes joint coats as graduated arcs and warns that critical lighting magnifies surface irregularities (Gypsum Association GA-214). The acceptance question is whether the arc has a distinct shadow-producing transition, not whether tape and compound have somehow ceased to have thickness.

Use primer as the proof coat

Apply the primer specified for the drywall/compound and finish-coat system under its current directions. Primer unifies color and porosity; it does not repair plane. Once the primer reaches its maker-defined inspection condition, repeat the same critical-light and sightline readback.

Classify what appears:

long shadow or shoulder: geometry; add a wider local finish coat, cure, sand, clean, and re-prime;

fine directional line: scratch or blade groove; correct locally with the least aggressive permitted method;

pinholes or local lows: fill, cure, finish, and re-prime;

raised fibers: stop abrasion, seal/repair as the substrate condition requires;

powdery or poorly bonded coating: diagnose contamination and the coating schedule before adding another coat.

Primer revealing a flaw is a useful readback. Paint is not the place to discover it.

What goes wrong — and the actual fix

“The butt looks like one thick stripe.” The seam was treated like a tapered joint and loaded down its center. Once dry, do not grind blindly toward tape; determine whether safe reduction is possible, then widen both sides until the center rise becomes gradual.

“Two parallel lines show beside the tape.” The wing overlaps or blade corners printed shoulders. Scrape only removable dry ridges, then pull tighter passes that carry each transition farther outward. Keep the blade edge clean.

“One side disappears and the other throws a shadow.” Pressure, wall plane, or pass width is asymmetric. Mark the visible shoulder under light and widen that wing only; do not bury the successful side again.

“The crown keeps growing every coat.” Each pass is reloading the center instead of extending an edge. Use a clean, lean blade; place compound outboard; reconcile the overlap with almost no load.

“The surface tears and rolls under the knife.” The prior coat is not ready, the fresh compound has been overworked, or contamination is dragging. Stop, let the system reach its required condition, remove the contaminant, and correct in a later pass.

“A groove runs the length of the joint.” A dried crumb, nick, rust pit, or rolled corner rode under the blade.

“The joint looks good head-on and fails at sunset.” The work was accepted under forgiving light. Re-run the mapped critical-light test and widen the shadow-producing wing. Do not try to sand a narrow butt joint into invisibility.

“The tape shows after sanding.” Abrasion was used to reshape geometry. Stop sanding. Recoat the damaged area with a controlled wide transition, let it reach the maker-defined condition, and restart the finish/clean/prime readback loop.

“The blue or carbon blade rusted.” It was stored wet or left dirty. Remove the blade from finish service if pitting or edge damage can print the wall. Clean and dry the 02895, 09215, and 09244 after use; treat 09277 and 09278 the same until their steels are verified. The 09374’s stainless does not excuse compound left on its edge.

“The tape bubbled after the wide coat.” The assumed foundation was not sound. More finish compound over movement is not a repair.

Three buyer tests

This is a two-silhouette workflow: feel first, broad screed second.

Test each blade and dry both conservatively.

The difference is documented steel plus backbone, not a promise that either substitutes for the inspect/build/widen/readback method.

The history footnote

Drywall’s butt joint is a consequence of the sheet, not a defect in the knife. Augustine Sackett’s paper-faced gypsum-board ancestor was patented in 1894 (National Inventors Hall of Fame); later factory-tapered long edges created a recess for the joint system, while square board ends remained outside that recess. The hand finisher’s answer was span: widen the laying-on knife until the unavoidable rise could be shaped as a long graduated arc. The wider drywall blade is younger than the Hyde works that now makes it.
