How to Detail-Clean Slots, Channels, Louvers, Tracks, Vents, and Drain Paths

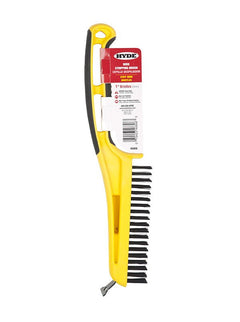

That product is a thin-profile carbon-steel stripping brush with a carbon-steel scraper, not a universal crevice duster. This guide begins by deciding whether the assembly, material, finish, residue, clearance, and debris exit path admit that tool at all. If any of those decisions fail, the correct result is another method or a qualified service handoff—not a forced fit.

Job: remove accessible dry debris, loose coating, rust, scale, or other maker-approved residue from a narrow feature while carrying the debris to a controlled exit; preserve the feature's shape, finish, drain or airflow function, and assembly order; then inspect, rinse or dry only as authorized, reassemble, and prove the feature works.

Time: a loose, removable steel grille may take minutes; a long blind channel, a track with several weep outlets, or an assembly that requires controlled isolation and reassembly takes as long as the equipment procedure requires. No universal soak, dwell, rinse, dry, or return-to-service interval is responsible here.

Difficulty: the hand motion is simple. The diagnosis is not. A narrow opening can hide a sharp edge, delicate coating, bent fin, energized conductor, bearing, gasket, sensor, flame path, drain outlet, food-contact zone, or fastener.

The one exact tool from this catalog:

Those facts make it the catalog's narrow-access cutter for compatible bare mild steel, iron, and similarly durable work. They do not prove fit in any named slot, compatibility with any coating, approval for any machine, duct, coil, food appliance, drain system, chemical, or powered use.

Everything else: the assembly or equipment maker's current cleaning/service instructions · drawing, parts diagram, or installation record · material and finish identification · lockout/tagout or other energy-control procedure where servicing exposes hazardous energy · clean inspection light and mirror or camera · non-marking vacuum nozzle with suitable filtration for the residue · catch cloth, tray, or removable collection strip · clean swabs or a smaller surface-approved nonmetallic detail brush when the 46806 is too large or too aggressive · plastic or wood probe only where the maker permits one · clean white wipes · labeled containers for removed fasteners and parts · the exact cleaner, rinse, protectant, lubricant, coating, and PPE named by the maker and current label, when wet work is authorized · magnification, gauges, airflow, drainage, electrical, or functional test equipment required by the acceptance procedure.

What this store tool does not replace: a fin comb, coil-cleaning system, duct-cleaning equipment, drain snake, bore brush, pipe brush, file card, ESD-safe electronics tool, food-equipment sanitation program, lockout device, HEPA vacuum, corrosion-removal power tool, coating-repair system, or qualified HVAC, electrical, electronic, appliance, or food-service technician.

Before the brush leaves the bench: diagnose five things

Map the geometry and the assembly

Name the feature precisely. “A narrow place” is not enough.

An open slot has a visible exit. Debris can be worked from the interior toward that exit and captured.

A blind slot or pocket ends inside the part. Brushing toward the closed end packs residue into the place least accessible for inspection.

A channel may be open at one end, both ends, or neither. It may also contain a gasket, wheel, cable, seal, fastener, or drain hole that makes the apparent channel only part of an assembly.

A track is a working surface. Sliding doors, windows, guards, dampers, drawers, and machine ways may depend on a shaped running land, wheel, glide, seal, or lubricant. Removing dirt without preserving that system is not a successful cleaning.

A louver is a series of inclined blades. Each blade has two faces, a leading edge, a trailing edge, two ends, attachment points, and a throat between adjacent blades. Dirt often collects at the lower edge and blade ends, while the blades themselves may be thin enough to bend.

A vent, grille, or register can be a removable cosmetic cover, an airflow-control device, a fire/smoke damper component, an outdoor weather louver, an electronic enclosure opening, or the visible end of an HVAC system.

A drain or weep path is not merely a dirty groove. It has an inlet, a fall or capillary break, one or more outlets, and often baffles intended to shed water while excluding insects or wind-driven rain. The cleaning must preserve that path and prove discharge.

A finned field is not automatically a slot array. Thin heat-exchanger fins, radiator fins, electronic heat-sink fins, and robust cast or fabricated steel fins tolerate radically different contact.

Photograph the assembly before removal. Record blade angle, track orientation, fastener location, gaskets, spacers, springs, clips, drain covers, and which face is upstream or down. Move adjustable louvers, dampers, or sliders only through the maker's approved operation and only after the energy boundary is established. Never use the scraper nose as a pry bar to “open access.”

Establish the debris exit path before disturbing residue

Every stroke needs a destination. Choose it while the residue is still where you found it.

For an open feature, place the vacuum nozzle, catch tray, or collection cloth at the exit, not behind the brush hand. Work from the far interior toward that capture point. For a vertical assembly, normally work from top to bottom while keeping the lower exits and drain mouths open; otherwise the first cleaned row becomes the bin for every row above it.

For a blind feature, vacuum at the mouth first. Use strokes that return to the mouth. Do not drive a long brush to the bottom and then scrub in place. If the brush cannot turn the loosened debris toward the opening, the geometry requires a smaller suction tool, swab, removable part, flush method, or professional process.

For an airflow opening, prevent loosened material from entering the equipment or occupied air path. Remove the grille or louver for off-equipment cleaning when the maker permits it. If it cannot be removed and the downstream side cannot be protected and inspected, stop. “The fan will blow it out later” is contamination, not collection.

For a drain channel, uncover and clean the outlet before driving anything toward it. Capture dry chips rather than sending rust, paint, sealant, or wire into plumbing, condensate tubing, a storm path, wall cavity, or ground. A proven exit is visible and controlled; a hole that merely accepts debris is not.

Identify the parent material and every finish

The 46806 contains carbon steel at both working ends. That creates a narrow material lane.

Compatible candidate surfaces: verified bare mild steel or iron, and only where light scratching, coating removal, or rust cutting is part of the intended result.

Hard refusals without a different authorized method:

stainless steel — carbon wire and scraper can embed free iron that later rusts;

aluminum or magnesium — the tool can scratch the soft metal and leave iron contamination;

copper, brass, zinc, galvanized, plated, polished, or decorative metal — carbon steel can cut or contaminate the working finish;

paint, powder coat, anodize, conversion coat, enamel, lacquer, clear coat, or intentional patina that must remain;

plastic, rubber, composite, glass, ceramic, wood, sealant, and fabric;

electrical contacts, connector plate, bearing lands, sealing faces, precision ways, sensors, and optical surfaces.

Do not identify material by color or magnetism alone. Stainless can be magnetic; plated steel can look like stainless; clear anodize can look like bare aluminum; paint can hide either. Use the drawing, maker's parts list, marking, known installation specification, or responsible owner. Unknown material or finish means dry capture and a nonmetallic test method first, not carbon wire by optimism.

Even on steel, decide whether the visible coating is dirt or design. Black oxide, phosphate, zinc, electrocoat, paint, powder coat, corrosion inhibitor, dry-film lubricant, and baked-on appliance finishes can be functional. A bright stripe cut through them is damage.

Diagnose the residue by behavior, not color

Loose dust, lint, hair, insect debris, chips, and grit should be vacuumed or lifted dry. A wire brush adds abrasion without solving the primary job.

Loose rust scale, flaking paint, and brittle crust on verified bare or intentionally stripped mild steel are the 46806's honest work. The scraper can break a raised holdout where the substrate and geometry admit it; the bristle tips then carry the remainder toward capture.

Surface rust on a thin or load-bearing member may be evidence of section loss. Cleaning reveals the condition; it does not restore metal. Deep pitting, swelling seams, perforation, delamination, or a louver weakened at its attachment needs repair or replacement assessment.

Oil, grease, wax, adhesive, sealant, cooking residue, or soft process film is usually a chemistry problem before it is a wire problem. Dry carbon wire can smear it into corners and drains. Use only the maker-approved cleaner and method.

Hard mineral scale, efflorescence, or corrosion product may reflect a water path that remains active. Removing the visible deposit without fixing moisture is cosmetic.

Biological growth, musty residue, droppings, or unknown hazardous dust can require containment, disinfection, respiratory protection, or professional remediation. Do not dry-brush it into air.

Conductive filings, carbon dust, or metallic debris in equipment require an equipment-specific contamination process. A shedding conductive wire brush is generally the wrong introduction.

Food residue or grease inside commercial food equipment belongs to the equipment's clean-and-sanitize procedure. A retail wire brush does not define the sanitation method.

If the deposit is unknown, stop before wetting, blowing, heating, or brushing. The facility or equipment owner identifies it and supplies the decontamination route.

Decide whether the component stays installed

Remove a cover, grille, track insert, drain screen, or louver panel for bench cleaning when the maker permits removal and the part can be returned correctly. Off-equipment cleaning usually gives the best capture, lets both faces be inspected, and prevents debris from entering machinery or cavities.

Keep it installed only when:

the procedure allows in-place cleaning;

hazardous energy is controlled;

both the working path and the debris exit can be seen or proven;

the brush cannot contact a hidden sensitive surface;

runoff or debris can be captured;

the part will not flex, rack, or detach under the stroke; and

the final inspection and functional test are possible.

If a grille must be removed from energized equipment, a damper is part of a life-safety system, a track carries a guarded machine component, or access exposes blades, belts, springs, hot surfaces, pressure, refrigerant, or stored mechanical energy, cleaning has become service. Use the qualified procedure.

The fit test: narrow reach is not forced fit

The verified brush area is 1/2 inch wide, but that number is not a promise that the tool fits every 1/2-inch opening. The block, bristle spread, scraper nose, angle of entry, curve, fasteners, and changes in width all matter. The feature needs clearance for entry, controlled stroke, and withdrawal with debris.

Run the fit test before applying force:

Clean and inspect the brush. Reject loose tufts, severely bent wire, embedded chips, rust contamination inappropriate to the job, a damaged scraper, or unknown prior use.

Present the brush square to the opening with no pressure. The scraper nose must not be the first part wedged into a finished edge.

Confirm that the block enters without spreading the slot, flexing a louver, scraping the two arrises, or trapping the bristles.

Move only a short test stroke toward the planned exit. Watch the surrounding feature, not just the handle.

If the bristles hook, the block binds, the assembly moves, or the brush emerges carrying finish rather than residue, the fit failed.

Inspect the dry test area under raking light. Wetness and shadow can hide scratches.

Do not “make it fit” by twisting, levering, pounding, thinning the handle, cutting the block, bending the scraper, or driving the brush with another tool. A forced brush acts as a wedge. In a track it can flare the lips; in a louver it can change blade angle; in a drain it can pack a plug; around fins it can fold a whole row.

If the opening is too narrow, changes direction, contains a blind corner, or cannot pass loosened debris back out, choose a smaller surface-approved brush, swab, nozzle, removable-part method, or manufacturer service tool. The fact that the 46806 is Hyde's thinnest stripping block does not make it the smallest possible cleaning tool.

The dry-capture workflow

Isolate the work and protect the exit

Shut down equipment and control energy under the applicable manual and workplace procedure. OSHA's Control of Hazardous Energy overview explains why ordinary “off” controls are insufficient during servicing: electrical, mechanical, hydraulic, pneumatic, chemical, and thermal energy must be isolated or rendered safe, and isolation must be verified.

Remove nearby product, food, clean parts, fabrics, electronics, and finished objects. Cover sensitive openings without blocking an emergency vent or creating a hazard. Set the catch at the debris exit. Use a vacuum and filter appropriate to the identified residue; a household vacuum is not automatically suitable for lead, silica, combustible metal dust, mold, hot debris, or hazardous process contamination.

Wear impact-rated eye protection with side protection. Wire can shed and narrow channels can send loosened fragments back along the stroke. Add gloves, clothing, respiratory protection, hearing protection, or chemical splash protection only as the task assessment, residue, and product instructions require. Fixture a removed part; do not hold a sharp louver or channel in the off hand while brushing toward it.

Remove everything that does not need cutting

Vacuum loose debris from the mouth, ledges, and accessible surfaces. Use a clean white wipe or swab where permitted to learn whether the film is dry, oily, or powdery. Pick up large loose flakes with a non-damaging tool if the maker allows it.

Do not begin with compressed air. It commonly drives debris farther into tracks, bearings, ducts, connectors, and blind pockets, and it can aerosolize hazardous material. Use controlled air only when the exact equipment procedure names it, specifies pressure and cleanliness, and supplies containment.

Set the stroke direction from the dead end to the exit

Align the long axis of the brush with the long axis of the feature. Begin at the farthest point from the chosen exit and pull or push toward capture. Short overlapping strokes should each move debris in the same net direction. Do not scrub back and forth equally over a blind pocket; half the strokes drive the work backward.

On a through-channel, choose one exit and work the whole run toward it. On a long channel, divide it into reachable sections that overlap, but keep the direction consistent. On a vertical field, finish and capture one upper section before moving downward.

Use moderate pressure and the bristle tips. Carbon wire cuts at its ends. Heavy pressure folds the wire sideways, turns the brush into a burnisher, increases shedding, and transfers side load into the louver or channel wall. If the tips stop cutting, determine whether the residue needs the scraper, approved chemistry, a different tool, or repair. More body weight is not the diagnosis.

Keep the vacuum nozzle close enough to catch release but far enough that it does not pull the brush into a surface, strike a louver, or ingest liquid for which it is not rated. Stop periodically and empty the feature, rather than building a rolling plug in front of the brush.

Use the scraper nose only at a proven steel holdout

The 46806 scraper is carbon steel. Use it only when:

the parent surface is verified bare or intentionally stripped mild steel or iron;

a raised deposit has a distinct edge;

the tool can be held at a low, controlled angle;

the scraper can move toward the debris exit;

there is room behind the work for the hand to stop; and

a test shows that the nose lifts residue without gouging the working surface.

Take thin bites. Lift the holdout, withdraw and capture it, then return to the bristle pass. Do not scrape a thin louver unsupported, pry at an attachment, dig inside a drain hole, shave a gasket land, or lever against the opposite wall of a channel. The scraper is a residue lifter, not a chisel, punch, reamer, or alignment tool.

Vacuum, inspect, and repeat only where the result improves

After each section, withdraw the brush in the exit direction and vacuum the loosened material. Inspect the channel bottom, both walls, arrises, blade ends, attachments, and outlet under raking light.

Stop the cycle when:

no more loose material reaches capture;

additional brushing only brightens or scratches the parent surface;

bristles begin to polish a hard deposit without cutting it;

the coating or parent metal comes off with the debris;

the feature flexes or changes shape;

residue is migrating deeper or beyond inspection;

a hidden defect, crack, pit, perforation, failed seal, or loose fastener is exposed; or

the brush begins to shed.

Cleaning to an arbitrary shine wastes finish and can erase evidence needed for repair. The acceptance condition is a clear, undamaged, inspectable path—not maximum brightness.

Geometry-specific field cards

Louvers and slatted grilles

Determine whether the blades are robust steel, thin sheet, aluminum, plastic, painted, coated, adjustable, or removable. The 46806 is only a candidate on robust compatible steel where rust or failed coating is meant to be removed. Dusty painted registers, aluminum shutters, vinyl blinds, appliance grilles, and delicate architectural louvers need a softer method.

Support a removable steel panel on a padded fixture so the frame, not the blade edges, carries the load. Work one throat at a time, parallel to the blade. Move from the blade's deeper end toward the accessible edge and capture there. Clean the upper face, lower face, leading edge, trailing edge, and blade ends separately rather than forcing the block between two blades and sawing both faces at once.

Do not drag the scraper across a blade edge, use one louver as leverage against the next, or try to “straighten while cleaning.” A blade that is already bent, loose, cracked, or rubbing the frame needs repair assessment. After cleaning, compare blade angles down the field and operate adjustable louvers through their approved range before return to service.

Door, window, guard, and sliding tracks

Expose the full travel only under the maker's procedure. Vacuum the accessible run first. Identify wheels, glides, seals, brushes, pile weatherstrip, anti-lift blocks, drain slots, fasteners, and lubricant. Work debris toward an open end or removable catch point.

The 46806 belongs only on a verified compatible steel rust/strip zone that can tolerate cutting. It does not belong on aluminum window tracks, plated appliance rails, polymer glides, stainless machine tracks, bearings, or painted/powder-coated guard channels.

Never brush grit into a roller pocket or beneath a seal. Do not remove lubricant unless the service instruction tells you what to restore. At the handoff, clean the running surfaces with the approved method, restore only the specified lubricant, re-seat seals and stops, and move the component through its entire permitted travel. Binding after cleaning is a failed handoff, not “new tightness.”

Vents, registers, intake grilles, and equipment openings

First decide whether the visible part is removable and cosmetic or part of equipment airflow control. Remove and clean it away from the opening when authorized. Cover or protect the downstream opening without running the equipment and without defeating a required vent.

Use dry vacuuming and a soft surface-approved tool for ordinary dust. A carbon stripping brush is justified only for robust bare or intentionally stripped steel corrosion work. Keep wire and chips out of the air path. Count or inspect for shed filaments before reinstalling.

Electronic enclosures, chargers, fans, motors, power supplies, control cabinets, and appliance internals are outside the casual path. No Hyde evidence gives the 46806 insulation, ESD properties, electrical rating, electronics compatibility, or permission to brush through a vent.

Fabricated slots, T-slots, angle, channel, and steel recesses

Remove the work from the machine when possible. Map through-holes, blind ends, coolant ports, lubrication passages, datum surfaces, and threaded holes. Fixture it so debris moves outward.

Use the brush along the slot, not crosswise over its lips. Keep the scraper off precision faces, bearing lands, sealing surfaces, machine ways, and dimensions that are inspected. If rust or coating loss changes fit, the part needs inspection before reuse. A brush removes material; it is not a gauge, deburring tool, or re-machining process.

Do not use the 46806 in a powered spindle or on moving work. Its record contains no arbor, retention system, guard interface, maximum RPM, or powered-use rating.

Weep holes, drain channels, condensate paths, and weather-louver drains

Find the inlet and every outlet. Remove screens or covers only as directed. Vacuum loose debris from the channel and clean outlet mouths separately. Work toward the outlet only when the released material can be caught before it enters an inaccessible tube, wall, roof, soil, storm drain, condensate pump, or sanitary system.

Do not use the scraper to enlarge a hole, puncture a membrane, lift flashing, or remove sealant whose geometry creates the water path. Do not send paint chips, rust scale, cleaner, or wire fragments down the drain.

Where the maker authorizes a water proof test, use its volume, route, and acceptance method. Observe that water enters where intended, follows the channel, exits every designed outlet, and does not appear inside the assembly. Slow or diverted flow after dry cleaning routes to an approved drain-cleaning method, disassembly, or repair—not harder wire brushing.

Fins and heat-transfer surfaces

Treat “fins” as a stop-and-identify word. Most HVAC evaporator/condenser coils, hydronic convectors, electronic heat sinks, and appliance heat exchangers use thin aluminum, copper, coated metal, or closely spaced formed fins. The 46806's stiff carbon wire and scraper can fold them, strip coating, contaminate nonferrous metal, and change airflow.

Use it only if the maker identifies the feature as robust compatible steel, permits wire brushing, and supplies an inspection criterion. Otherwise use the exact fin comb, vacuum, coil cleaner, wash method, or qualified service route. Never insert the brush into a running fan or across an unseen coil.

Dry capture is the default because liquid turns dust into slurry and gives it new places to travel. Wet cleaning begins only after the assembly maker and cleaner maker agree on all of these:

parent material, finish, seals, adhesives, plastics, wiring, insulation, and nearby components tolerate the chemistry;

the cleaner is approved for the identified residue;

application amount and method keep liquid out of forbidden cavities;

ventilation, ignition control, PPE, first aid, and waste handling are established;

the brush fill is compatible with the chemistry;

the rinse or no-rinse instruction is known;

complete drainage and drying can be verified; and

the next coating, lubricant, sealant, electrical test, sanitation step, or return-to-service condition is defined.

Use one cleaner system at a time. Never mix bleach, ammonia, acid, alkali, solvent, degreaser, disinfectant, or household “booster.” Do not invent dilution, temperature, dwell, agitation time, neutralization, rinse count, or dry time. Those are product facts from the current label, Technical Data Sheet, Safety Data Sheet, and equipment procedure.

Apply the smallest controlled amount by the authorized method. Do not spray into a slot merely because a brush cannot reach its bottom. Keep the exit under capture. If the cleaner softens the brush handle, loosens wire, attacks the finish, creates unexpected color, swells a seal, or disappears into an uninspectable cavity, stop and follow the product's recovery direction.

After agitation, remove spent solution in the specified direction. A rinse is not successful until residue and rinse have left the feature rather than collecting behind a louver, under a track insert, in a blind pocket, or inside equipment. Dry by the approved method. Carbon steel rusts when stored wet, and a wet bare-steel channel may flash-rust before the next finish. Coordinate cleaning with the maker-authorized dry/protect/recoat step; this guide states no universal window.

This page does not compress that job into “add stripper.”

Hard boundaries: equipment, HVAC, electronics, and food service

Energized, automatic, or stored-energy equipment

Never brush through a guard, vent, track, slot, or louver while equipment is energized, moving, hot, pressurized, charging, or capable of automatic start. The wire and scraper conduct electricity. The long handle is not insulation. No electrical, arc-flash, ESD, intrinsic-safety, hazardous-location, lockout, or hot-surface rating exists in the 46806 evidence.

Workplace service follows the site's machine-specific hazardous-energy procedure, including isolation, control of stored energy, and verification.

HVAC and air-handling systems

A removable, unconnected painted register may be ordinary room hardware; the interior of an HVAC system is not. Coils, dampers, fire/smoke devices, insulation, filters, humidifiers, drain pans, blowers, sensors, duct liner, and microbial contamination need system knowledge and often qualified service.

EPA states that mold remediation involving HVAC systems should be performed by professionals experienced with those systems and that a mold-contaminated system should not be operated in a way that spreads contamination (EPA — Mold Course, HVAC remediation). EPA also warns that wet or moldy insulated duct material may require removal and replacement rather than cleaning (EPA — Should You Have the Air Ducts in Your Home Cleaned?).

Therefore: do not send dry debris downstream, do not wire-brush coils or aluminum fins, do not wet internal duct liner, do not disturb suspected mold into occupied air, and do not adjust or clean a fire/smoke damper outside its inspection/service program. Remove a maker-approved grille for separate cleaning or hand off the system.

Electronic and electrical enclosures

Do not insert the 46806 through ventilation slots in computers, drives, chargers, power supplies, switchgear, appliances, telecom cabinets, battery enclosures, or control panels. De-energization alone does not make the method suitable: carbon wire can shed conductive filaments, erase plating, damage conformal coat, bridge pins, contaminate fans, and destroy ESD-sensitive components.

Qualified service uses the equipment maker's cleaning tools, ESD controls, residue limits, and inspection. A dusty exterior vent normally receives an external vacuum/soft-brush method with the equipment safely isolated; internal residue is a service question.

Food-service and food-contact equipment

Commercial slicers, ovens, fryers, refrigerators, proofers, beverage dispensers, ice machines, exhaust hoods, and prep equipment contain narrow tracks, louvers, drains, and air passages. They also contain food-contact surfaces, non-food-contact surfaces, removable guards, seals, heating elements, refrigeration components, electrical parts, and sanitation controls.

The FDA 2022 Food Code requires equipment food-contact surfaces to be clean to sight and touch and sanitized before use after cleaning; it also assigns enclosed components such as ice makers, beverage lines, and oil systems to manufacturer-specified or soil-preventing cleaning frequencies.

Do not introduce a carbon-wire hand brush into a food-contact or product zone unless the equipment maker and establishment sanitation procedure explicitly allow it. Wire shedding, rust, retained cleaner, and finish damage are foreign-material and sanitation failures. Remove food and packaging, isolate equipment, follow the maker's disassembly order, control parts, use the approved chemistry and tool, rinse and sanitize as required, inspect for every filament, air-dry or dry as directed, reassemble, and obtain the establishment's pre-operational release. A “clean-looking” slot is not a sanitary release.

Rinse, dry, inspect, protect, reassemble, and prove

Remove the cleaning system from the feature

Vacuum the final dry debris and inspect the catch. Account for large flakes and any shed wire. For wet work, extract and rinse exactly as the cleaner and equipment instructions require. Keep dirty and clean wipes, rinse, trays, and tools separate.

Clean the 46806 only by a method compatible with its carbon wire, scraper, handle, and the residue.

Inspect the feature dry and in raking light

Inspect after drying because wet surfaces hide scratches, coating loss, haze, and remaining residue.

slot or channel walls are not spread, scored, or packed;

louver blades remain straight, parallel, secure, and at the recorded angle;

track lands, wheels, glides, seals, and stops are undamaged and clear;

every drain inlet and outlet is open and the intended path is continuous;

no wire, chip, lint, cleaner film, standing liquid, or loose coating remains;

bare steel has no unacceptable pitting, perforation, thinning, crack, or attachment loss;

finish boundaries remain intact where finish was meant to stay;

no debris entered equipment, duct, bearing, connector, product zone, or cavity;

removed gaskets, clips, shims, fasteners, covers, and guards are present and serviceable.

If the finish was unintentionally breached, stop. Do not hide the damage with general oil or touch-up paint. The owner or maker decides corrosion protection and finish repair.

Restore only what the assembly specifies

Apply only the named corrosion inhibitor, lubricant, coating, sealant, or protectant, in the location and amount the procedure gives. A drain path often needs to remain clean and uncoated; a track lubricant may attract grit if over-applied; a food zone may forbid the shop oil used elsewhere; a coating may need a defined surface profile and dry condition.

No generic primer, oil, silicone, dielectric grease, sanitizer, or sealer is prescribed here. Cleaning creates a prepared decision point; it does not supply universal finish chemistry.

Reassemble from the record

Return every blade, grille, insert, drain cover, gasket, clip, spacer, fastener, guard, and terminal cover to its recorded location and orientation. Replace one-time-use, corroded, bent, cracked, or stripped parts under the maker's rules. Start fasteners by hand where appropriate and use the specified sequence and torque.

Do not defeat a gasket to “improve drainage,” omit a screen to “improve airflow,” bend a louver to “open the throat,” or leave a guard off for easier future cleaning. Those changes alter the assembly.

Run the acceptance test

The final test follows the feature:

slot/channel: visible end-to-end clearance or the maker's gauge/probe passes without forcing;

louver: blades remain aligned and an adjustable field travels fully without rubbing;

track: the panel, door, guard, or carriage moves through its complete permitted range, seats, latches, and does not bind;

vent/grille: cover is secure, airflow direction and control position are restored, and no debris is released at startup;

drain/weep path: maker-authorized proof reaches every intended outlet with no interior leak or backup;

equipment: guards, covers, interlocks, sensors, grounding, seals, and service clearances pass the maker's restart check;

food equipment: the responsible person completes the sanitation and pre-operational inspection before food or clean utensils return.

Record the component, residue, tool and fill, cleaner if any, protection restored, defects found, parts replaced, test performed, result, and person/date where the work system requires traceability.

What goes wrong — and the correct recovery

“The brush enters but will not stroke.” Entry clearance is not working clearance. Withdraw without twisting, inspect the edges, and use a smaller tool or remove the part. Do not convert the block into a wedge.

“Debris disappeared, but nothing reached the vacuum.” It went deeper. Stop brushing. Open the downstream or blind area under the service procedure and extract it; do not add air or liquid blindly.

“The bristles keep folding over.” Pressure is too high, the deposit needs prior scraping/approved chemistry, or the brush is spent. Let the tips work. Replace a laid-over or shedding brush.

“The scraper is polishing a hard spot.” The material may be parent metal, a functional coating, mineral scale, or a deposit needing another process. Identify it rather than increasing angle and cutting a groove.

“A louver row no longer lines up.” The blade bent or its attachment moved. Stop the batch, compare with the pre-work record, and route to repair. Do not bend it back by eye if airflow, weather, safety, or appearance depends on the geometry.

“The track is cleaner but now binds.” Debris remains under a wheel or seal; a lip was spread; a glide was scratched; lubricant was removed or wrongly restored; a stop or insert is misassembled. Isolate and diagnose. More brushing usually worsens it.

“The drain takes water but the assembly leaks inside.” The path, flashing, gasket, sealant, slope, or outlet is damaged or misassembled. Stop the test and repair the assembly. Flow into a hole is not proof of correct drainage.

“Orange freckles appeared on stainless or aluminum.” Carbon wire or scraper contaminated the surface. Quarantine and route to the maker's decontamination/refinishing process. The prevention was keeping the 46806 off that material.

“The painted or powder-coated edge has bright scratches.” The tool breached the finish. Document and obtain finish disposition; switching to a soft brush cannot restore the coating.

“Wet residue keeps returning from a seam.” Cleaner or rinse entered a blind overlap, porous material, insulation, or cavity. Keep the assembly out of service and open/dry it under the maker's procedure. Surface wiping is not proof of internal dryness.

“The vent smells musty after the grille is clean.” The source is downstream or moisture remains. For HVAC, stop operation where contamination could spread and use experienced remediation/service. Do not chase odor with more wire or fragrance.

“A wire filament is missing.” Stop and inspect the work, catch, brush, and surrounding zone. In electronics, food equipment, bearings, drains, or airflow paths, treat the missing conductive sharp fragment as a controlled foreign-material defect.

“The residue is greasy, so I added a cleaner.” If the cleaner was not authorized, stop, contain it, ventilate and use PPE as its label directs, and obtain the maker's compatibility/recovery instruction. Do not add a second chemistry.

“The grille is part of a running system, but I can reach it from outside.” Reach is not isolation. Shut down and follow the system procedure; unexpected fan start, hot surface, electrical energy, or suction can turn a hand cleaning into an injury.

“The component is clean, but corrosion has eaten through an edge.” Cleaning succeeded diagnostically and exposed a failed part. Replace or repair by engineering/maker disposition. Coating over section loss is not restoration.

Buyer tests — should the 46806 leave the peg?

Buyer A: rust and failed coating inside a removable heavy-gauge mild-steel louver

Yes, conditionally. The material is verified compatible, coating removal is intended, the panel can be fixtured, the brush fits without forcing, and debris can be captured. Use the scraper on raised holdouts and the bristles parallel to each throat. Inspect blade alignment and recoat under the finish system.

Buyer B: ordinary dust in a painted household register

No. Vacuum and use a soft surface-approved tool. Carbon wire adds scratching, coating breach, shed-wire, and downstream-debris risk without solving a cutting problem.

Buyer C: aluminum shutter, anodized grille, stainless vent, or plated track

No. Carbon fill and scraper are disqualified by material and finish. Use the maker-approved nonmetallic or dedicated compatible method; do not accept a hidden contamination defect because the brush happened to fit.

Buyer D: a narrow steel channel whose opening is slightly smaller than the brush block

No. Hyde's thin profile is access, not permission to force. A smaller documented tool, removable component, or alternate cleaning method is the purchase.

Buyer E: a sliding-window or door track with lint, sand, and weep holes

Usually no. Most such tracks are aluminum, coated, polymer-lined, or seal-dependent, and loose grit should be vacuumed. The 46806 enters only for a separately verified bare mild-steel rust zone after the geometry and exit test. Clean and prove the weep path with the window/door maker's method.

Buyer F: an HVAC supply grille with visible mold behind it

No. Do not dry-brush contamination into the system. Shut down as the responsible procedure requires and use qualified HVAC/mold assessment and remediation. The 46806 is not HVAC remediation equipment.

Buyer G: bent aluminum coil fins or a dusty electronic heat sink

No. The tool can bend fins, contaminate nonferrous metal, shed conductive wire, and damage electronics. Use the equipment maker's fin/coil/electronics method and qualified service boundary.

Buyer H: a robust bare-steel machine slot with dry rust, equipment isolated and part removed

Potentially yes. Confirm that the slot is not a precision way, sealing face, bearing land, lubrication passage, datum, or inspected dimension. Fixture the part, work from the blind end to capture, use the tips lightly, and inspect rather than polishing.

Buyer I: grease in a commercial food slicer guard channel

A carbon wire brush may be expressly unsuitable even if the guard is steel.

Maybe for accessible compatible steel, never as a drain snake. Remove and capture chips toward an exposed outlet, keep the scraper off flashing/sealant, then prove the path only by the maker's authorized water test. If debris has entered a hidden tube or wall cavity, use the service method.

History — cleaners learned the louver's geometry before they learned speed

The louver-cleaning problem left a clear patent trail even though neither the louver nor the hand scratch brush has a defensible single inventor here. In 1960, Joseph Curatolo filed a cleaning implement whose sponge ribs and grooves were inclined to match louver blades and spaced so each rib entered between adjacent slats. [U.S. Patent 3,065,483]( was granted in 1962. Its important idea was not a chemical or motor; it was geometry: the cleaner had to meet the blade angle and clean opposing faces without removing the louver.

A generation later, inventors moved capture to the tool. [U.S. Patent 4,787,118]( filed in 1987, describes a vacuum brush for slatted structures such as Venetian blinds. That is the modern step this guide preserves: loosened material is not “gone” until the process captures it.

Hyde's 46806 belongs to the harder, industrial side of the same story. It does not wipe several delicate slats at once. It narrows a carbon-wire stripping block and puts a scraper at its nose so a worker can reach rust and failed coating inside a compatible steel slot. The historical thread is therefore not “one tool cleans all louvers.” It is the opposite: slatted and channeled work rewards tools shaped to the geometry, and every gain in reach creates a matching duty to control what the tool touches and where the debris exits.

No claim is made that Curatolo invented louver cleaning, that the 1987 patent invented vacuum capture, or that Hyde invented the thin stripping brush. The patents anchor documented geometry-specific cleaning designs; the Brushes line document carries the older anonymous wire-brush lineage.

Hyde official 46806 page — exact product title and description supporting 1/2-inch by 5-1/4-inch brush area, 1-inch stiff carbon bristles, thin profile, long handle, overmold grip, and carbon scraper nose.

OSHA — Control of Hazardous Energy — isolation, stored energy, verification, and trained-workplace boundary for servicing.

EPA — Mold Course, HVAC remediation and EPA — Should You Have the Air Ducts in Your Home Cleaned? — experienced-professional HVAC mold boundary, contamination-spread control, and wet/moldy insulated-duct disposition.

[U.S. Patent 3,065,483 — Cleaners for louvers and shutters or the like]( and [U.S. Patent 4,787,118 — Vacuum brush device for cleaning Venetian blinds]( — documented geometry-matched and capture-coupled louver-cleaning history.

Physical no-force fit and exit-path proof are mandatory.

Equipment compatibility is not claimed: no HVAC, appliance, vehicle, machine, window, door, shutter, drain, electrical, electronic, food-service, fire/smoke-damper, or hazardous-location approval is in the 46806 record.

Chemistry is not claimed: no cleaner, solvent, acid, alkali, disinfectant, sanitizer, degreaser, stripper, concentration, temperature, dwell, rinse, neutralization, disposal, or dry interval is supplied by the brush evidence.

Carbon-wire consequences stay load-bearing: the wire and scraper can rust, shed, scratch, and introduce free iron.

No universal airflow, drainage, sanitation, torque, lubricant, coating, rinse-volume, drying, or return-to-service test is invented. The assembly procedure owns each.

History is bounded: the two patents document particular louver-cleaning designs, not the first louver, first louver cleaner, first vacuum capture, or origin of Hyde 46806. No unsupported invention claim is made.

Commerce is excluded: price, inventory, lifecycle, replacement status, package availability, and current sellability are not stated. They render from live commerce or remain unresolved.

Graph handoff

It does not widen the union with a mini brush or a softer-fill sibling merely because one might be a better physical choice. Where 46806 fails the geometry, material, finish, equipment, chemistry, or sanitation gate, the honest graph result is a different job/tool route or a qualified-service handoff.
