Cut Outlet and Switch-Box Openings in Drywall

This guide does not add another product to the row, teach live-electrical work, or state price or availability.

Time: site-dependent. One fixed, positively located box is a short cut; documenting utilities, transferring several boxes, correcting a doubtful location, and completing the readback take longer than the sawing.

Difficulty: the cut is simple. The risk is what the saw cannot see: wiring, piping, a misplaced mark, an unsupported sheet edge, or a box that moves when the blade touches it.

Everything else: the actual box or its manufacturer-approved template; tape measure and pencil; site drawings, framing photographs, and durable reference marks; a suitable voltage detector/test instrument used according to its instructions and the site electrical-safety procedure; a work light; a stable support surface; a locking or retracting utility knife for paper burrs only; dust collection or local ventilation; drop protection; eye protection; work gloves appropriate for handling board; and respiratory protection selected from the drywall product safety data and the employer or site exposure-control plan.

The boundary before the method

This is drywall work beside an electrical system, not electrical work. The procedure begins only after the affected circuit has been de-energized, protected against re-energization, and verified according to the site procedure. It does not instruct anyone to remove or install a device, open energized equipment, rearrange conductors, repair cable, select electrical PPE, or work live. A device still installed in the box, exposed energized parts, uncertain circuit identity, damaged insulation, or doubt about the verification method is a stop condition for a qualified electrician.

Locate utilities before a blade enters the wall. A box tells you that cable is present; it does not tell you where the cable approaches, what crosses the next bay, or whether water, gas, communications, or other services share the area. Review the open framing, photographs, drawings, visible routes, and site markings. OSHA's construction rule requires the employer to determine whether exposed or concealed energized circuits are positioned where a person or tool could contact them before work begins, and ESFI separately warns that cutting or drilling into walls can penetrate wiring or water pipe (OSHA 29 CFR 1926.416 · ESFI — DIY Electrical Safety). If the route cannot be established well enough to control blade entry, do not make a blind plunge.

De-energize, prevent re-energization, and verify — every affected box. The authorized person operates the correct disconnect or breaker and applies the site's lockout, tag, guard, or equivalent control. Verify the tester on a known source before use, check the box and every relevant conductor using the instrument and method appropriate to the installation, then prove the tester again afterward. A non-contact indication can help screen an area, but this guide does not treat one indication as permission to touch conductors. If the tester result is inconsistent, the circuit cannot be identified, or the person is not competent to verify the condition, the cutting work stops.

Have the electrical side leave a cut-ready box. The box must be fixed, open, and clear enough that the drywall cutter does not handle wiring. Conductors and cable must be secured and protected by the electrician or other authorized person so the planned penetration and saw path cannot reach them. The cutter confirms the empty working space visually before the sheet covers it. “I think the wires are at the back” is not a readback.

Control the board and its dust. Clear trip hazards, light both faces of the work when possible, support the sheet so it cannot flex into the blade, and keep every hand outside the projected point and tooth path. Wear eye protection; gypsum chips and paper fibers leave the kerf in both directions. Capture dust close to the cut or ventilate it away from the breathing zone, consult the board's safety data, and use properly selected and fitted respiratory protection when the control plan requires it. NIOSH identifies drywall cutting as a potential construction-dust exposure and emphasizes that respirator selection and fit matter; a loose nuisance mask is not a dust-control plan (NIOSH — Respirators for Dust in Construction · NIOSH Pocket Guide — Gypsum).

Choose the method before marking

Cut before hanging when control beats speed. Pre-cut on a stable support when the sheet carries several boxes, the box is near an edge, the work is overhead, the location must be transferred from framing, the box is not rigid enough to serve as a saw guide, or the cavity cannot be observed after the sheet goes up. The supported sheet makes the face visible, keeps the edge from breaking away, and lets the operator stop after each side to inspect the kerf.

Cut in place only when every prerequisite is positive. The box must be rigidly secured independent of the sheet, its location must be recorded, its interior and approach path must be confirmed clear, and the circuit must remain de-energized and verified. The advantage is real: the fixed box can guide the perimeter, eliminating a measurement transfer. The limit is equally real: an old-work box that depends on the finished wall for support cannot guide a cut in a sheet that is not yet there, and a loose box will simply move away from the saw.

Do not split the difference. Pressing a sheet hard against a box to crush or dent an outline into the back can fracture the core or crease the face paper. Hanging a sheet almost in place and reaching blindly for the box combines the weakest parts of both methods. Either transfer a controlled layout to a supported sheet, or meet every condition for the fixed-box template method.

Locate and lay out the opening

Record the box before it disappears. Photograph the open framing square-on; mark a durable horizontal reference on the floor or adjacent board; and record the box from two stable surfaces that the sheet will also touch. Do not assume every single-gang, multi-gang, low-voltage, raised, or specialty box shares one rough-opening dimension.

Measure from matching registration edges. Choose the sheet edge that will meet the corner or neighboring sheet and the edge that will meet the course above or below. Measure the near side, far side, top, and bottom of the box from those wall references, then reproduce each number from the matching sheet edge. Mark on the face in the same orientation in which the sheet will hang. Write “TOP,” “ROOM SIDE,” and an arrow toward the reference corner when a flip or rotation could mirror the layout.

Hyde verifies that the 2" blade width equals the size of a standard outlet box, so its two edges can strike the two sides of that common box in one placement. The actual box still wins: compare the drawn rectangle to the installed hardware or approved template before cutting, especially for gang and specialty boxes. Mark a large X inside the waste.

Because the print is on the back, transfer its corners or sides to the face before sawing, then square and recheck the rectangle. The print locates; it does not waive the orientation and utility checks.

Run the layout readback before making waste. Call or compare the four offsets from the wall to the sheet; confirm face versus back, top versus bottom, reference end, gang count, and which side of every line is waste. Hold the actual box, template, or non-energized cover component over the marks when available. A second person should be able to reconstruct the opening from the recorded references without guessing. If the four checks do not agree, erase and relayout rather than averaging the error.

Cut before hanging — the supported-sheet method

Back the work and clear the exit side. Lay the sheet face up on stable supports with open space beneath the waste and support close enough around the rectangle that the keep side cannot bounce. Confirm again that no cord, tool, hand, or support lies where the point will emerge. Position dust capture beside, not behind, the point path.

Give the utility knife its narrow job. A sharp locking or retracting utility knife may score the face paper at a line, pare a paper burr, or shave a tiny high spot after the main cut. It is not a cavity probe, not a substitute for a voltage check, and not the tool to stab through an enclosed box footprint. Keep its free hand out of the line of cut, retract it immediately after use, and send long sheet-sizing work to the separate score-and-snap method.

Start inside the waste with the 09016. Put the point far enough inside the marked rectangle that the starter damage remains in the plug. Support the board beside the opening with the other hand clear of the point. Use a controlled push or palm strike to admit only the amount of blade needed to begin sawing; Hyde's verified sharp point is designed to penetrate drywall without a drilled starter hole. If the back face or cavity is not positively clear, stop — the saw's ability to plunge is not permission to plunge blind.

Saw one side at a time and support beside the kerf. Bring the teeth to the waste side of the line, use smooth strokes, and let the double-ground teeth work on both push and pull. Keep the blade aligned rather than levering it sideways. Move the support hand as the cut advances, always outside the projected point and tooth path. Slow down at corners, stop at the intersection, withdraw, rotate, and start the next leg from the waste; uncontrolled overrun spends the cover margin before fit begins.

Put any relief behind the face, not beyond the line. A slight waste-side back-bevel can give the hidden edge clearance while preserving the face-paper line. The purpose is a slip fit, not a funnel. Keep the face opening true to the actual box and make any correction in small, visible increments.

Lift out the plug without tearing the keep side. Support the plug as the final leg closes so its weight does not peel face paper past the corner. Remove loose gypsum and paper from the edge with vacuum capture; do not blow dust into the room or toward the box. Keep the opening slightly conservative until the first fit test identifies a real contact point.

Cut in place — the fixed box as the template

Reconfirm the box immediately before covering it. Verify the same circuit control and tester status; visually confirm the protected conductor position and empty box interior; compare the box to the floor, adjacent-sheet, or framing-photo reference; and confirm that the box will not move under hand pressure. If anyone changes the circuit state or enters the electrical scope, the cutting authorization expires and must be re-established.

Hold the sheet without committing the perimeter. Register the sheet in its final position and secure it only enough to remain stable, using fastening locations already confirmed clear of utilities and away from the cutout area. Do not force the sheet against the box and do not complete fastening around the opening before the plug is out and the board has seated.

Enter at a confirmed clear point inside the footprint. Use the recorded center and box outline; do not search the wall with the saw. Control penetration so the point enters the known empty part of the box rather than driving toward its back or sides. Saw outward slowly until the teeth make unmistakable contact with the box edge. If the contact does not occur where the record predicts, withdraw and investigate — do not sweep the cavity with the blade.

Let the box guide; do not make it absorb the cut. Follow the fixed box perimeter with short, controlled strokes, keeping the blade on the waste side and angled slightly toward the box interior when a modest back-bevel is needed. The rim is a location guide, not a saw stop: avoid cutting, gouging, or levering against the box, and never continue through a different material by feel. Support the face beside the kerf and catch the plug as the final side releases.

Stop on any utility indication. Unexpected resistance, metallic contact, movement inside the box, a visible nick, a tripped protective device, a tester indication, or uncertainty about what the point touched ends the cut. Leave the circuit de-energized, do not tape-and-bury damage, and have the electrical or appropriate utility trade inspect and repair before the wall closes.

Fit, clean, and read back the result

Offer the sheet without persuasion. A correct opening slips over the box and lets the board lie flat against its intended support. If it binds, pull it away and find the actual witness mark. Remove only that high spot with a controlled saw stroke or utility-knife pare on the supported sheet, then try again. Forcing the board makes the box rim punch through the face paper and converts a small fit correction into a finish repair.

Read back the cut against the box, not against optimism. Inspect all four sides and every corner. Confirm that the box remains square, fixed, undamaged, and fully accessible; the sheet is flat; the face paper is intact; the opening does not expose an unintended cavity; and the intended cover component can conceal the cut without being used to hide a structural miss.

Read back the utility condition before closing. With the circuit still controlled, the authorized electrical person confirms that conductors, cable sheath, clamps, grounding/bonding provisions, and box are not damaged or displaced and that no gypsum plug or tool remains inside. The drywall cutter does not make this determination by tugging wires. Any uncertainty keeps the wall open.

Remove dust without redistributing it. Vacuum the opening, box exterior, floor, and sheet with equipment suitable for fine construction dust or use another approved capture method. Do not use compressed air or a dry sweep that puts the dust back into the breathing zone. Clean eye and respiratory PPE according to its instructions and wash before eating or drinking.

Record the handoff. Photograph the finished opening with the box visible, note the circuit-control state and any correction, and hand the location/readback record to the wall and electrical leads. Device installation, wiring, energization, and cover installation remain outside this guide. The next drywall task is fastening the sheet to the approved plan without disturbing the verified opening.

What goes wrong (and the fix)

The circuit cannot be positively de-energized or the tester disagrees with itself. Do not cut. Preserve the current state, keep hands and tools out of the box, and have a qualified electrician identify and verify the circuit. A deadline does not convert uncertainty into de-energization.

The box location vanished behind the sheet. Return to the framing photograph and the two stable reference marks. Reconstruct the rectangle and compare it to the adjacent work; do not jab around until something feels hollow.

The opening is mirrored or shifted. The face/back or reference end changed between measuring and marking. Stop before widening the wrong hole. Locate the true box from the original references, cut only after a fresh readback, and route the miss to the approved drywall-repair and electrical inspection process.

The opening binds. The layout is conservative, a corner was not fully released, or the hidden edge lacks relief. Find the single witness point, support the sheet, remove a small amount from the waste side, and refit. Do not push the sheet home.

Face paper blows out at a corner. The sheet flexed, the plug fell before the last leg finished, the blade was levered, or the cut was made from the back. Support beside the kerf and under the plug, finish from the face, and repair torn paper under the approved finishing system before concealment.

The box moves while template-cutting. Stop. It is not an in-place guide. Remove the sheet, have the box secured or change to a supported pre-cut method, then re-establish the electrical-safety checks.

The saw contacts cable, conduit, pipe, or an unknown hard object. Stop immediately and keep the affected utility in its safe controlled state. Do not probe, energize, pressurize, tape, or cover the damage; the responsible qualified trade inspects it.

The opening is larger than the cover field or installation allowance. A larger cover is not an automatic repair.

The utility knife keeps wandering or reaching into the cavity. It is doing the jab saw's job. Retract it, support the sheet, and reserve it for visible paper scoring and minute edge cleanup.

Dust obscures the line or fills the box. Stop cutting, improve local capture and lighting, clean the area, and reassess PPE under the exposure-control plan. Seeing the line and the box interior is part of cut control.

Tool distinctions — what each purchase changes

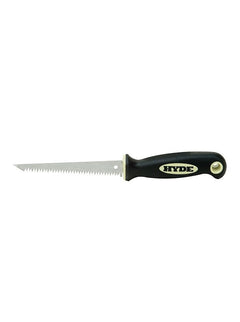

09016 jab saw: buys the cut. Its verified sharp point starts in drywall without a pilot hole; its high-carbon-steel teeth are double-ground to cut in both directions. Choose it when the rectangle is already located and the need is a controlled cornered opening. It does not establish box position.

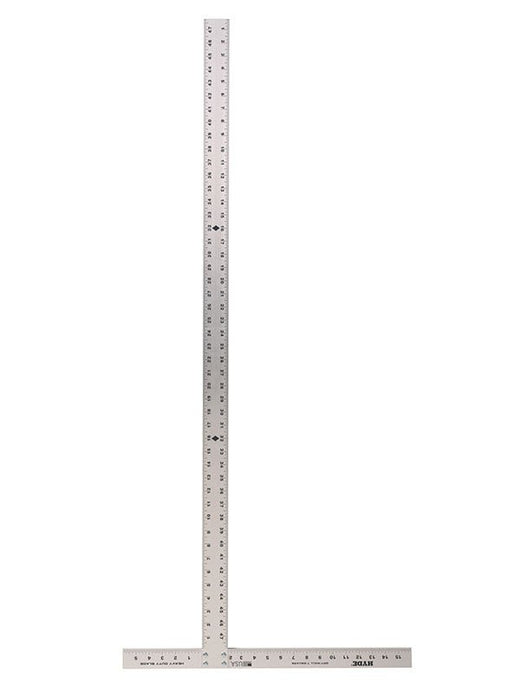

09034 T-square: buys repeatable layout from a sheet edge. Its verified 2" blade carries Hyde's standard-outlet-box-width claim and can strike the two common box sides in one placement. Choose it when location must be transferred or several openings must stay square to the same sheet reference. It does not cut.

Neither substitutes for the other.

Utility knife: a generic companion for visible face-paper scoring and tiny fit corrections.

Spiral cut-out tool: a production alternative outside this union. It is fast, but speed does not relax the same de-energization, utility-location, support, dust-control, and readback obligations.

Buyer tests (counter-clerk form)

“The sheet is on a bench, the box dimensions are transferred, and I only need to make the rectangle.” → 09016. Recheck the actual box or template before cutting.

“I have the saw, but my openings keep landing off the box.” → 09034 addresses the missing layout discipline; it references the sheet edge and carries the verified standard-box-width blade claim.

“I am hanging a room with repeated outlet and switch locations.” → the exact pair. Use 09034 to keep the transferred layouts square and 09016 to cut each supported opening.

“The fixed box is already behind the sheet and all electrical prerequisites are documented.” → 09016 can follow the box as the template; keep the 09034 for the location record and any pre-cut openings.

“The circuit may still be live, the box contains a device, or I do not know where the cable runs.” → neither tool yet. The next purchase is not the answer; qualified electrical/utility clearance is.

“I need a clean round opening for a light or vent.” → neither member is the complete method.

The history footnote (because these pages should be worth reading)

The two tools meet here from older trades. The jab saw follows the narrow pad-saw or keyhole-saw form used to start and steer interior cuts where a broad saw could not turn; drywall added a core soft enough for the point to make its own entry. The drywall T-square follows the drafting-board T-square: a fixed head rides a known edge so the blade can carry a perpendicular line. Drywall resized that anonymous layout form to the sheet and, in Hyde's version, made the blade itself do double duty as the width reference for a standard outlet box.

Utility knives, testers, dust controls, templates, and production cut-out tools are generic supporting equipment, not additional product edges.

09016 dimensional boundary: 6" is the only accepted blade dimension used. Blade thickness, tooth count, tooth set, safe penetration depth, and sharpening life are not claimed; none is invented here.

09034 dimensional boundary: the 2" blade width and Hyde's “width equals size of standard outlet box” statement are accepted.

No invented tolerance: this guide supplies no universal edge gap, cover-plate overhang, bevel angle, box-setback allowance, or code dimension.

Trade-method layer: cut-before versus fixed-box cut-in-place, light transfer marking, waste-side back-bevel, support beside the kerf, and box-template riding are authored trade method, not represented as Hyde model claims.

Electrical verification: the exact detector, test method, lockout control, PPE, and qualified-person boundary depend on the installation and site program. This guide intentionally does not turn a drywall procedure into electrical instruction.

Dust/PPE: board composition and exposure controls vary.
