How to Cut Leather to Pattern

Hyde establishes the three blade identities and dimensions below; the cutting workflow is authored leather-bench knowledge. No accepted source establishes a maximum leather thickness, weight, temper, ply count, cut length, minimum radius, or production rate for any of these knives. This guide therefore states none. Test the actual hide and move to a different cutting method whenever the blade deflects, the cut needs unsafe force, or the project specification requires another process.

Job: transfer a pattern accurately to leather and cut the piece cleanly while preserving the pattern’s edge, notch, orientation, and matched-piece relationships.

Layout usually determines both accuracy and yield; do not turn an unknown hide into a promised per-piece rate.

Difficulty: careful layout plus controlled knife work. Straight cuts are learned quickly. Curves, inside corners, matched pairs, and clean starts and stops require scrap practice with the same leather.

The exact tools from this catalog:

The lighter, shorter square point in this union; use it for ordinary edge-started pattern cuts and straight or gently changing lines where its blade stays true without force.

Same listed width as the #3, with more length and a heavier gauge; choose it when the #3 visibly deflects during a test cut and the #4 tracks the guide more cleanly. Those documented dimensions are a selection axis, not a material-capacity rating.

Everything else: the finished pattern or a verified working copy; the project’s seam, fold, stitch, turn, and matching instructions; a dedicated dense cutting surface that will accept a through-cut without damaging the edge; safe pattern weights or clamps; a cork-backed metal straightedge for straight runs; a scratch awl, silver marking pen, or other mark that is proven removable or hidden on the actual leather; dividers if the pattern requires transferred offsets; low raking light; a fine stone and strop suitable for maintained high-carbon cutlery steel; clean scrap from the same hide for test cuts; and a blade-safe sheath, rack, or covered storage position when the knife is not in hand.

Before the knife moves: read the hide and prove the pattern

Freeze the pattern, not your assumptions

Confirm that it is the intended size and revision, that any tiled paper pattern printed at full scale, and that its test square measures correctly. Identify every mark before layout:

cut line versus stitch, fold, turn, or trim line;

piece name and quantity;

mirror pair versus two identical faces;

face-up / face-down instruction;

orientation or least-stretch arrow;

match points, notches, holes, slots, and interior cutouts;

any edge that must remain straight, square, paired, or continuous into another piece.

Do not silently add or remove an allowance. If the pattern includes a seam or fold allowance, cut the registered outside line. If it does not, the maker’s specification decides what gets added; this guide supplies no universal allowance because leather constructions do not share one.

Make a durable working pattern when repeatability matters. A soft paper edge can be shaved narrower by the knife, and each piece then becomes a copy of the previous error. Card, pattern board, acrylic, or another stable template preserves the intended boundary. If the master pattern is irreplaceable, trace a working copy and cut against the copy.

Learn the hide’s two different “directions”

Leather has a grain side and a flesh side; that is not the same thing as woven fabric grain.

The grain side is the outside face of the hide. It carries the visible surface, finish, color, and natural markings.

The flesh side is the underside. It is usually the safer place for layout marks, provided the mark cannot bleed through, contaminate adhesive, or remain visible at an exposed edge.

A hide also has directional stretch and local firmness created by its place on the animal, tannage, finish, and previous processing. There is no single universal “grain arrow” that substitutes for testing the actual hide.

Gently flex and pull a small margin in both directions before placing load-bearing or matched pieces. Orient pieces that must resist stretch consistently with the project’s requirement and the actual least-stretch direction you observe. Keep visible paired parts oriented together so sheen, texture, printed grain, nap-like finish, and natural markings read as a pair. If the material is embossed or mechanically grained, follow the pattern’s appearance direction as well as the hide’s stretch behavior.

Never promise that “backbone to belly,” “head to tail,” or any other rule alone determines the correct orientation for every leather. Record the direction selected on the pattern and repeat it across all related pieces.

Inspect first; defects belong in the layout decision

Open the hide under broad light, grain side up, and identify scars, holes, loose areas, wrinkles, brands, finish variation, thin margins, and any mark the finished piece cannot accept. Then inspect the flesh side for damage the face conceals. Decide deliberately which characteristics are:

excluded from every piece;

acceptable only in hidden allowances or waste;

acceptable as visible natural character;

useful as a matched feature across a pair.

Mark exclusions outside the piece boundary. Do not discover a hole after cutting three sides around it. For a finished pair, place both pieces before cutting either one; a technically sound left part and technically sound right part can still fail as a pair if their color, sheen, texture, or direction disagree.

Nest for truth before yield

Place the largest, most constrained, mirrored, or appearance-critical pieces first. Then fit smaller pieces into the remaining sound areas. Leave enough separation to cut each edge without the knife or holding hand entering the neighboring piece. Keep a true straight edge aligned where the pattern demands one; do not rotate a piece merely to fill a gap if the rotation violates stretch, appearance, or pairing.

Pattern yield is a planning result, not a product specification. This guide therefore does not assign one. Photograph or sketch a high-value layout before marking so a bumped pattern can be restored.

Mark without moving the pattern

Weight or clamp the pattern outside the knife path. A hand used as a pattern weight eventually becomes a hand inside the knife path.

Mark on the flesh side when construction permits. Test chalk, silver pen, scratch awl, or any other marker on scrap first: the line must be visible enough to follow and either removable or fully hidden in the finished construction. Trace with the marking tool upright against the pattern; tilting it changes the offset. Mark all notches, drill points, match points, and interior features while the pattern is registered, but distinguish features to be cut now from features made later with punches or dedicated tools.

For an exact edge cut directly against a rigid template, verify that the template is intended as a cutting template and cannot be damaged by the blade. Otherwise trace it, remove it, and cut the line. Do not let the knife become the instrument that edits the master.

Set the cutting station and choose the knife

Support the entire cut

Put the leather flat on a clean, dedicated cutting surface. The support must be dense enough that the leather does not sink away from the edge, and sacrificial enough that a through-cut does not strike the bench, metal, glass, or stone. Those hard surfaces are appropriate in other leather operations, but a knife driven through leather into them rolls or chips an edge.

Brush grit, metal fragments, hardened adhesive, and offcuts away before every new piece. A small particle under the leather can emboss the grain face or lift the cut line. Support the complete piece; an unsupported tail pulls on the cut, and a hide hanging over the bench edge changes the line as its weight shifts.

Stand or sit so the planned stroke can finish on the board without crossing your torso, thigh, off hand, clamp, or pattern weight. Rotate the leather or walk around the bench between cuts. Do not twist your body to preserve one uninterrupted stroke.

Make PPE and hand position specific to the hazard

The primary hazards are the edge, the point on the English pattern, and the run-out when leather releases.

Keep the off hand behind or beside the active edge, never beyond the line where the knife will exit.

A well-fitting cut-resistant glove on the holding hand can reduce injury severity where shop policy or the work calls for it; it does not make a hand a safe clamp. Do not put bulky material on the knife hand if it weakens grip or control.

Use a stable apron or clothing that cannot catch the handle. Keep loose sleeves, cords, and jewelry away from the stroke.

Use eye protection when sharpening creates loose abrasive or when shop rules require it. Keep stone slurry and honing compound off the leather.

No person holds the far end of a piece while another person cuts toward them.

The square end of 50200 or 50350 reduces unwanted puncture at the nose; it does not make the exposed long edge safe. The authored working point of 55500 creates the opposite condition: it is chosen because it can pierce, so everything beneath and beyond it must be treated as reachable.

Prove edge, line, and knife on scrap

Use scrap from the same hide, supported the same way. Make one straight test and one representative curve if the pattern contains both.

A ready edge enters cleanly, follows the intended line without visible deflection, and leaves a cut face rather than a torn or compressed wake. If the knife needs rising force, stop. Strop or hone it, lower the cutting angle, improve support, or change method. Do not translate resistance into a claimed leather limit: Hyde supplies no maximum capacity for this row.

Choose within the exact union by observed behavior and required geometry:

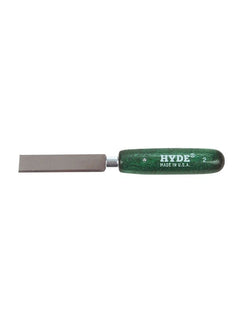

50200: the ordinary square-point draw knife of the union; the documented .058" blade gives the lighter of the two square-point choices.

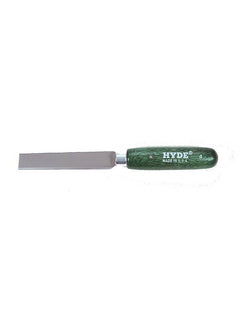

50350: the same square-ended straight-cut logic with a documented .065" blade and slightly more length; use it when the test cut shows the #3 deflecting and the #4 tracking better.

Use another suitable hand tool, die, clicker press, powered cutter, or specialist process selected for the actual material and production requirement.

Cut the pattern

Cut long straight runs with a square point

For a straight edge that begins at the leather’s border, use 50200 or 50350 against a cork-backed metal straightedge:

Align the straightedge on the retained side of the line so an accidental drift moves into waste, not the finished piece.

Clamp it or place the holding hand well behind the cutting edge. Do not hook fingertips over the ruler’s cutting side.

Set the long edge low enough to slice rather than chop. Keep the square nose lightly presented toward the board.

Draw in a smooth sliding stroke, letting a length of edge pass through the leather rather than pushing one point straight down.

If one pass does not sever cleanly, repeat in the same track with controlled pressure. Do not lever, saw wildly, or force the blade sideways.

Let the stroke end in waste on the cutting surface. Lift the knife before repositioning.

Do not steer the square-point blade by bending it against the ruler. The straightedge sets the line; the edge makes the cut. Visible flex is feedback to reduce force, restore sharpness, improve support, or test the other documented gauge—not permission to bow the knife until it complies.

Cut broad outside curves as a sequence of controlled tangents

A square point can follow a broad, edge-started curve when the contact is kept short and the leather, not the wrist, is repositioned:

Trace the curve clearly and identify the waste side.

Start at an open edge. Use short sliding cuts, each tangent to the marked curve.

Rotate the leather between strokes so the active segment stays comfortably in front of the cutting shoulder.

Keep each new stroke overlapping the last so no uncut bridge remains.

Leave the line visible until the final light pass. Trying to land on the finished curve with one heavy sweep invites a flat, an undercut, or an overshoot.

Use this method only while the square-point edge tracks without being twisted.

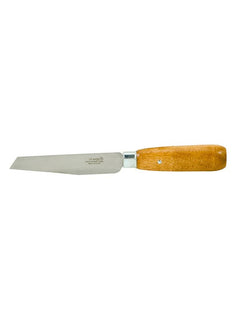

Follow scribed curves with the English shoe knife

For a curve whose geometry needs a leading point:

Put the waste on the side toward which a small correction can safely move.

Start from an outside edge when possible. Set the tip on the line, then lower the blade so the edge behind the point does the slicing.

Advance in short draw cuts. Let the point lead on the mark while the edge follows; do not pivot on a buried tip.

Rotate the work frequently. A comfortable cut made after rotation is more accurate than a heroic cut made across the body.

On a convex outside curve, keep the retained edge supported and make relief cuts in the waste if waste tension begins pulling the piece off line.

On a concave inside curve, shorten the stroke further and clear waste as it releases. Do not twist the blade sideways to force a radius.

The point locates the cut; it is not a pry tool. Twisting a point inside leather damages the point and widens the line.

Make inside corners as two cuts that meet

Do not swing a knife around a sharp inside corner. That rounds the geometry and drives the point beyond the corner.

Withdraw the blade. Rotate the work and cut the second leg to meet the first. If the pattern specifies a punched relief or radius, use the specified punch or method before cutting the legs; this guide does not replace that construction detail with a universal corner treatment.

Inspect from the flesh side and grain side. A corner that appears closed on top can retain an uncut bridge below. Sever the bridge with a controlled point cut from the waste side, never by tearing the piece free.

Start an interior cut without turning it into a stab

Only begin inside the panel when the pattern actually calls for an interior opening and the support beneath is sacrificial.

As soon as the edge enters, lower the blade into a slicing draw. For slots and cutouts, make each boundary line to its endpoint, meet corners as separate cuts, and lift the waste only after all boundaries are severed. If the feature is round, very small, or dimensioned for a punch, use the specified punch; a pointed knife is not automatically the accurate tool for every interior feature.

Make matched and mirrored pieces as a controlled set

Before releasing the pattern, transfer every match point and identify the part on the flesh side. For mirrored parts:

flip the pattern or follow its face-up / face-down instruction;

preserve the selected direction and appearance relationship;

keep both pieces in the approved hide zones;

cut and inspect the pair before using the remaining space for other parts.

Separate waste without pulling the edge out of shape

After each perimeter is complete, lift the piece gently. If it remains attached, lay it back down and find the uncut bridge. Cut the bridge from the waste side with the piece fully supported. Never tear the part free: tearing stretches corners, leaves fiber tails, and can run past the cut line into good material.

Keep paired parts together and label them immediately. Preserve useful offcuts for test stitching, adhesive tests, edge finishing, sharpening checks, and future repairs; discard narrow knife-catching strips before they clutter the cutting field.

Inspect the cut before the pattern comes off

Read four things: line, edge, marks, relationship

Line: the cut follows the registered boundary without flats, hooks, or overshoots.

Cut edge: the face is clean and square enough for the specified construction; no torn fiber bridge remains.

Features: notches, match points, corner geometry, and interior features are present and distinguishable.

Relationship: mirrored or matched pieces agree in geometry, direction, and intended appearance.

Do not “correct” an error by trimming the entire piece smaller until it looks smooth. Determine whether the project allows local truing, whether the mating part must change, or whether the panel must be recut. A smooth wrong shape is still wrong.

Tool care: keep the pattern knife a cutting tool

Clean, sharpen, and store the maintained edge

The line document establishes these heritage knives as hardened high-carbon steel tools with hardwood handles, riveted blades, and nickel-plated ferrules. Their ownership model is maintenance, not disposable replacement.

Wipe leather dust, finish residue, wax, oil, and marking medium from the blade after the session. Use only a cleaner known safe for the tool and the leather operation; do not soak the hardwood handle.

Dry the steel immediately after damp or cased-leather work. Apply a light protective film appropriate to the shop and remove it before the next cut if it could stain or interfere with bonding.

Strop when the cut begins to drag or polish fibers instead of severing them. Use a stone when stropping no longer restores the edge.

Preserve the established bevel; do not grind a new geometry merely to make the knife feel “more aggressive.”

Inspect the handle, rivets, ferrule, blade seating, edge, and point before use. Remove a loose, cracked, bent, chipped, or otherwise unsafe knife from service.

Store the knife in a sheath or fixed rack that covers the edge and prevents tools from striking it.

Sharpen away from the laid-out hide. Abrasive grit, slurry, steel filings, and honing compound can mark leather or contaminate a bond.

What goes wrong — diagnosis before more force

The cut wanders away from a straightedge. The guide moved, the blade deflected, the edge is dull, or sideways pressure is steering it. Clamp the guide, strop, lower the cutting angle, and retest. Compare 50200 and 50350 by observed tracking; do not infer a hidden leather-capacity number.

The leather bunches ahead of the knife. The edge is pushing rather than slicing, the support is dragging, or the piece is not held flat. Restore the edge, use a lower sliding draw, clean the board, and hold the leather behind the path without stretching it.

The cut edge is fuzzy or torn. Stop before taking another piece. Strop or hone, test on same-hide scrap, and use progressive passes rather than one forced pass.

The straight line has a hook at the end. The stroke ran out of comfortable reach and the wrist turned. Shorten the run, reposition the body or leather, and finish into waste.

A curve has flats. Tangent strokes were too long or did not overlap. Shorten them, rotate the work more often, and leave the final line for a light truing pass.

An inside curve is undercut. The blade was twisted to force the turn.

The inside corner is rounded or overshot. The knife was swept around the corner. Cut each leg separately to the same endpoint.

The point makes an oversized interior start. Too much vertical force or twisting after penetration. Establish the opening with the least controlled penetration, lower into a slice, and never pivot on the buried point.

The two halves of a pair look different. Layout ignored direction, sheen, texture, or hide zone. The fix is upstream: place both before cutting either, and record orientation on the pattern.

A visible mark remains on the finished face. The marking method was not tested or the wrong face was marked. Stop and test removal on scrap; move future layout marks to a hidden flesh-side or allowance location permitted by the construction.

The edge has a nick at one spot in every cut. The blade struck grit, metal, glass, stone, or a damaged cutting board. Remove the contamination, repair the edge, and replace or resurface the board as appropriate.

The handle shifts or ferrule is loose. Remove the knife from service. Do not tighten the assembly through improvised hammering or continue because the blade itself looks sharp.

The job requires escalating force. Stop. Sharpness, support, technique, actual material, and method all need review.

Honest boundaries

These three knives are a hand-cutting set, not a claim that hand cutting is always the correct production process.

Skiving changes thickness; it is a different operation with the 55170 or 55190 and its own guides.

Round holes and repeatable small openings usually belong to the specified punch or die.

Repeated production shapes may belong to a clicker die and press; a digital knife or other controlled cutting system may be the appropriate process for repeatability or volume.

If the test cut is unsafe, distorted, or uncontrolled, changing methods is successful job selection—not failure with a hand knife.

The history footnote — why two end shapes survived the shoe factory

Hand pattern cutting remained part of the work even as New England shoemaking mechanized around it. Lyman Reed Blake patented a sole-sewing machine in 1858; Gordon McKay acquired and improved the system, and the McKay stitcher helped turn Massachusetts shoemaking into factory production (Massachusetts Historical Society — The McKay Stitcher, DPLA — Gordon McKay and the Massachusetts shoe industry, Britannica — Lyman Reed Blake). Machines accelerated assembly, but components still had to be selected, oriented, and cut to shape.

That is the bench Hyde entered in Southbridge, Massachusetts in the early-to-mid 1870s: a maker asking shoe and textile factories which knife the work required, then producing industrial hand knives to those patterns (Hyde Tools — Our Story, Hyde IBS — History, Hyde Tools — 150th Anniversary). The two end geometries in this exact union explain why traditional patterns survived beside one another. Neither pattern has a documented named inventor in the Hyde packet. They are anonymous trade forms, preserved because the work still asks both questions.

55500 length conflict: catalog extraction “4-2/8"” versus Shopify/title and line-doc “4-3/8"”; confirm with Hyde.

None may be inferred from blade dimensions.

Construction altitude: hardened high-carbon steel, hardwood handles, riveted blades, and nickel-plated ferrules are family-level catalog construction applied to these family members; preserve family attribution unless exact-model claims are separately bound.

Sheath fit: 56500/56505 are listed for straight blades up to 6", but exact retention and profile fit for these three models are not established here. Verify before recommending a sheath.

History: Hyde founding remains “early-to-mid 1870s” because Hyde sources conflict on an exact year; neither knife pattern has a documented named inventor.
