How to Cut In and Roll Behind Radiators, Toilets, and Appliances

Scope: diagnose, protect, cut in, and roll only the safely reachable wall behind an in-place radiator, toilet, or appliance, or behind one already removed by the responsible trade. This is not a shutdown, disconnection, lifting, venting, shutoff, removal, reconnection, commissioning, or service-test guide. It does not authorize coating the obstruction itself.

Job: join a controlled cut-in boundary to a mini-roller field behind a radiator, toilet, or appliance without contacting the fixture, its connections, the floor, or excluded wall areas.

Time: there is no universal duration. Access release, preparation, the coating manufacturer’s written application and recoat requirements, drying or cure, inspection, and any responsible-trade return-to-service work control the schedule.

Difficulty: moderate placement work only after the equipment and coating gates are closed; high-consequence conditions belong to qualified service personnel, not the painter.

Everything else: the coating system’s current label, Technical Data Sheet, and Safety Data Sheet; a cut-in applicator authorized for that system; the maker-approved loading container; protection suited to the real floor and fixture; an inspection light plus a mirror or camera; preparation materials authorized for the substrate and hazard plan; waste containers; and only the PPE required by the controlling SDS, site assessment, and applicable rules.

Diagnose access and service state before choosing a roller

A narrow or long recorded frame may fit where a standard wall tool does not. It cannot establish that an obstruction is safe. Resolve the access lane first.

Lane A — leave the obstruction in place

“It feels cool” or “the switch looks off” is not a release.

Do not let the cover, frame, handle, protection, body, clothing, or cleaning material contact controls, valves, vents, bleeders, unions, pipes, cords, plugs, hoses, connectors, drains, fasteners, anti-tip hardware, labels, openings, or hot surfaces. If the released wall cannot be reached inside that boundary, record the inaccessible shadow and stop.

Lane B — obstruction removed or moved by its responsible trade

Painting begins only after the trade has released a stable, properly controlled work area and identified protected parts. The painter does not disconnect, lift, tip, slide, vent, drain, shut off, reconnect, energize, light, pressurize, leak-test, function-test, or commission equipment.

Lane C — no safe access

Leave the obstruction in place and exclude the unreachable wall. A documented shadow is an honest result.

Apply the stop rules to the actual obstruction

Radiators and heating equipment

Do not turn a valve, open a vent or bleeder, remove a cover, loosen a union, move a pipe, or infer that one control has isolated the system.

This guide owns the broader cut-in-to-roller decision across three obstruction families.

Treat the toilet as connected plumbing and fragile ceramic, not as movable furniture. Stop for rocking, cracking, leakage, dampness at the supply or base, corroded or loose hardware, a strained connection, an unstable seat or tank, or an unknown service condition. Do not turn the supply, disconnect the line, unfasten the bowl or tank, break a seal, lift the fixture, or attempt a return-to-service test.

The paint boundary excludes the bowl, tank, seat, lid, supply, valve, fasteners, base seam, wall penetration, and floor junction.

Assume an appliance may involve electrical energy and may also involve gas, water, drain, refrigerant, ventilation, heat, restraint, or anti-tip requirements. Stop for a damaged or taut cord, hose, vent, or connector; a gas odor; moisture; corrosion; heat; unexpected cycling; an unverified restraint; an unstable appliance; or any need to move it.

The U.S. Consumer Product Safety Commission warns that moving an appliance even slightly can cause an old flexible gas connector to fail and says a professional service provider should inspect it. Its range guidance treats the anti-tip bracket as a safety device. Those warnings rule out “pull it forward.” The wall stays excluded unless the appliance remains undisturbed in a released, inspectable path or the responsible trade creates access.

For workplace servicing, hazardous-energy control belongs to the employer’s program and qualified personnel.

Release the wall and coating system

The target is the wall substrate and its authorized coating layers. It is not “everything the roller can touch.” Before protection or loading:

Identify the substrate, existing coating, contamination, exposed repair, and any primer already present.

Inspect with direct light and a mirror or camera. Stop for active moisture, leak evidence, grease or residue whose source is unresolved, soft or crumbling material, biological growth, loose finish, rust migration, or damage outside the approved preparation plan.

Establish the disturbance-hazard plan. In pre-1978 housing or where coating history is unknown, do not scrape, sand, drill, or otherwise disturb paint as though the hidden location were exempt. The current EPA Renovation, Repair and Painting program and lead-safe renovation steps are the public starting points; covered work may require a certified firm and renovator.

Obtain the exact coating system’s current label, Technical Data Sheet, and Safety Data Sheet.

Make a representative test on the actual prepared substrate. Confirm adhesion, appearance, texture relationship, and the visible transition after the coating has reached the evaluation state named by its manufacturer.

None of the four product records proves compatibility with a coating, substrate, cleaner, primer, finish, heat exposure, or texture. Do not infer a nap choice, film build, schedule, or cleanup chemistry from a store title.

Here, the distinctive problem is joining that controlled boundary to a narrow roller field while the obstruction remains outside every stroke.

Protect the fixture, service features, and floor

Cover the floor from the loading station through the complete entry, working, withdrawal, and cleanup path. It must remain stable underfoot, resist the expected wet material, and allow a spill to be seen and contained rather than migrate underneath.

Protect the obstruction with material that cannot scratch, transfer dye, shed, or enter an opening. Keep controls, vents, openings, labels, seams, drain paths, sensors, and connections visible. Never load a pipe, valve, connector, tank, cover, or door with protection.

Create a drop guard at the floor and lower edge of the obstruction, but do not wedge it into a service joint. Place a separate clean shield between the wet applicator and any nearby fixture surface when the shield itself can be held without entering the tool path. Protection is not clearance: the roller must still stop before it touches the shield.

Mark three finish boundaries:

the deepest safely reachable wall point;

the cut-in edge around corners, baseboard, penetrations, and excluded hardware;

the visible transition where the narrow field must join the normal wall field.

Do not fill, caulk, tape over, or paint across an unexplained seam. A seam can serve movement, service, drainage, ventilation, fire protection, restraint, or inspection.

Assign honest roles to the exact four products

Product selection is conditional on the released cavity, the coating system, and a dry test. Recorded dimensions describe products; they do not promise usable reach or clearance.

94016 — narrower recorded supplied assembly

Its narrower recorded width may make it the first assembly to dry-test in a confined wall field. That is a selection hypothesis, not a clearance claim. No source establishes how far it reaches behind a particular obstruction, what angle it can take, what coating it accepts, or what finish it leaves.

94003 — wider and longer recorded supplied assembly

The 94003 store record identifies a 6″-wide woven roller, 15/32″ pile, on a 24″-long metal frame. The official page lists 94003, while exact geometry comes from the store title. Use only the recorded supplied assembly.

Compared with the 94016’s recorded dimensions, it offers a wider cover and longer frame to evaluate. Neither trait is automatically better: the wider assembly may fail a cavity that accepts the narrower one, and the longer frame may create a handle conflict or reduce control. Do not translate “24″” into a promised working reach.

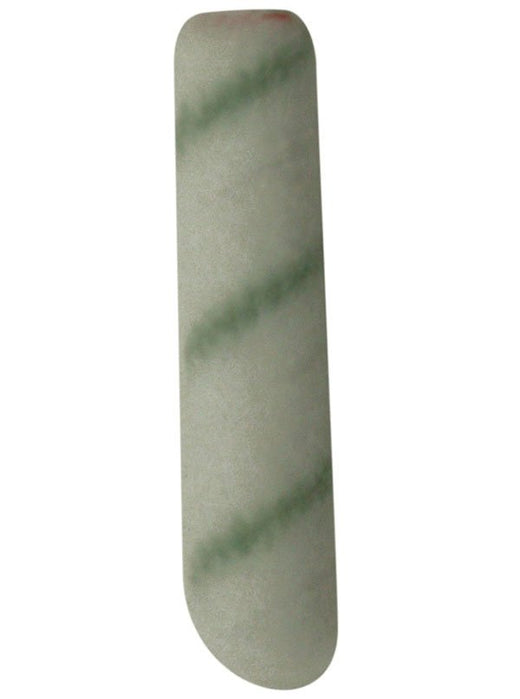

The 94017 store title identifies a 4″ woven roller cover with 15/32″ pile. Its research packet has no accepted external claim, no proved frame roster, and no established application or coating compatibility. It remains a conditional cover lead only.

Do not call it a 94016 replacement or infer that it belongs on any long frame. Use it only if the exact pairing is established by manufacturer information or an accepted controlled dry fit.

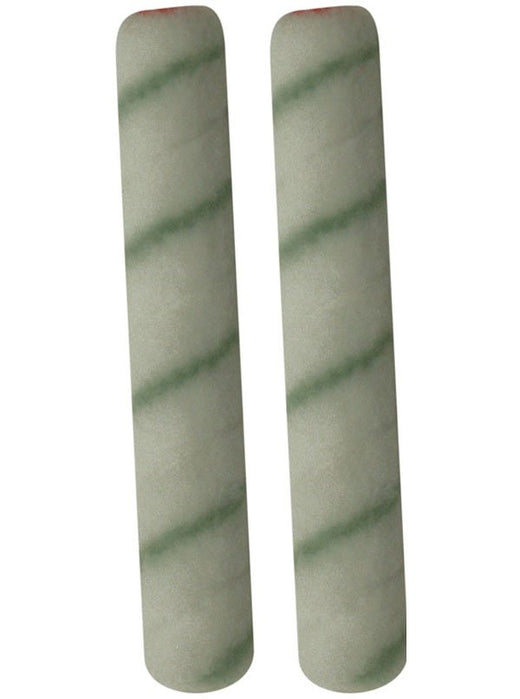

94033 — pack record with conflicting family detail

Do not state that 94033 fits 94003, that pack membership proves identical construction, or that it suits the coating. Its exact fit and role require independent proof.

Pass visibility and stopped-clearance checks

Assemble only a supplied unit or an independently proven cover-and-frame pair. Install all floor, fixture, and hand-path protection. Keep paint out of the rehearsal.

From stable footing, rehearse entry, initial contact, the complete intended stroke, every direction change, and withdrawal. At the start, end, and reversal of each movement, deliberately stop and verify clearance from the obstruction, service parts, floor, wall returns, and protection. This is the stopped-clearance check. It is qualitative and location-specific; this guide supplies no clearance number, bend, angle, pressure, or reach.

The cover face must reach the wall without the frame or handle contacting anything. The operator must not lean on the fixture or unstable protection. Every coated area and transition must be inspectable. A camera can reveal a shadow; it does not justify a blind stroke.

Reject the setup if the assembly binds, wobbles, walks off its intended line, sheds a component, forces the hand into a hazard, touches protection, or cannot be withdrawn cleanly. Rehearse a narrower or otherwise authorized setup, change the reachable boundary, or move the job to the trade-created-access lane.

Cut in, roll, and read back

Mix, condition, and load the coating only as its written system directs. Keep the loading station outside the cavity on protected, stable flooring.

Establish the cut-in boundary

Cut the reachable perimeter around wall returns, baseboard, penetrations, and the exclusion zone without touching the obstruction. Keep the band only as broad as needed to give the roller an inspectable join. Do not paint a valve, pipe, cord, hose, fastener, seam, gasket, bracket, vent, or floor junction merely to make the edge look continuous.

Use a controlled load that stays on the applicator during entry and withdrawal. “More paint because access is difficult” invites a run where recovery is hardest. If the cut-in band cannot be placed and inspected, shrink the approved field and record the shadow.

Roll the released field

Charge the cover according to the coating system, then remove uncontrolled excess at the loading surface. Enter without touching protection. Place the cover on the deepest approved and visible wall section, using only enough qualitative contact to maintain an even rotating transfer. Work in controlled overlapping passes toward the accessible edge and into the still-workable cut-in band when the coating’s instructions permit.

Do not lever the handle against an obstruction, scrub a dry cover, force the frame around a connection, or chase a hidden edge beyond the rehearsed stop. Approach from another released side only after a separate dry rehearsal. The aim is a continuous field, not a claim that every geometric shadow has been reached.

For a radiator, keep the wall-only target and use the radiator-only sibling for its detailed in-place sequence. For a toilet, use only rehearsed wall lanes without loading the tank, bowl, supply, valve, or base. For an in-place appliance, coat only the wall reachable without contact. Trade-created access does not remove connection or return-to-service boundaries.

Read back before declaring the field complete

Inspect from the working angle and the room’s actual sightlines. Use raking light plus a mirror or camera for the deepest included field. Check while correction is allowed and at the specified evaluation state.

Look for a holiday, dry patch, lap ridge, heavy shoulder at the cut-in join, drip, sag, contact mark, debris, texture discontinuity, or coating on excluded hardware. Separate three findings: acceptable hidden shadow outside scope, reachable miss inside scope, and equipment or substrate defect requiring escalation. A shadow is not a holiday when it was expressly excluded before painting.

Recover without making the defect larger

Holiday or thin area: confirm that it is inside the released field. Re-enter only through the rehearsed path and only within the coating system’s allowed correction or recoat window. Do not dab blindly past the stop.

Heavy cut-in shoulder or lap line: use the coating manufacturer’s permitted method and timing to redistribute or recoat the transition. Do not invent a thinning, sanding, or solvent step.

Drip or sag: protect the area below, keep the obstruction untouched, and correct only by the written coating procedure. If the defect is beyond inspectable reach, stop and plan authorized access rather than reaching farther with an improvised tool.

Contact with protection: stop. Assume the tool path has failed. Contain wet material under the coating and site plan, replace contaminated protection as authorized, and repeat the dry rehearsal before resuming.

Do not wipe a control, connector, finish, cord, hose, valve, vent, label, or sensor with an unapproved cleaner.

Unexpected heat, cycling, odor, sound, movement, moisture, or pressure evidence: withdraw only through the established safe path if that can be done without contact, secure the work area, and escalate. Do not diagnose by operating controls.

Cleanup and return to service

The coating label, TDS, and SDS—not the roller fiber name—control tool cleanup, spill response, waste, ventilation, and PPE. Clean or discard the cover and frame only as their established construction and the coating system allow; the present records do not establish a universal cleaning method or reuse life.

Remove wet tools before removing protection. Inspect the wall and every excluded surface. Fold protection inward so residue cannot cross the floor or touch the obstruction. Leave controls, labels, vents, seams, connections, restraints, and inspection points visible. Do not remove trade-applied tags, locks, caps, barriers, or service controls.

The painting handback states:

the exact wall field coated and any documented shadow;

the coating system used and its relevant cure or return-to-service requirement;

whether any fixture or service feature was contacted;

any leak, damage, movement, odor, heat, or other condition observed;

the status of protection and the room access boundary.

If a responsible trade moved or removed the obstruction, that trade decides when and how to reconnect, reposition, restrain, energize, pressurize, vent, light, leak-test, function-test, or commission it. The painter does none of those steps.

Frequently asked questions

Should I always use the longest frame?

Recorded length is not working reach, and a longer frame can create a new handle conflict. Pass the full dry path, visibility, control, and stopped-clearance checks with the actual assembly.

Does 94017 fit 94016, or does 94033 fit 94003?

The reviewed records do not prove either pairing. Similar nominal widths do not establish core, retention, rotation, or frame compatibility.

Can I pull an appliance forward just enough to paint?

Not under this guide. Appliance movement can load electrical, gas, water, drain, vent, refrigerant, or restraint systems.

Can I shut off a radiator or toilet myself?

Should I caulk the dark line behind the obstruction?

Not by default. First determine whether it is a crack in the coating substrate or a functional service, movement, drainage, ventilation, fire, restraint, or inspection joint.

How do I match the visible wall texture?

Use a representative system test under the actual coating and lighting. The recorded pile in a product title does not guarantee texture, film build, or appearance.

Who tests the appliance, radiator, or toilet afterward?

The painter reports the coating handback and does not reconnect, pressurize, energize, leak-test, operate, or commission the obstruction.
