How to Coat Corner Bead on Outside Drywall Corners

Starting assumption — verify it before opening compound: the installed corner bead or other outside-corner reinforcement is known, compatible with the selected panel/joint-treatment system, sound, straight, continuously supported, correctly attached or bonded, and released by its maker for coating. This guide does not select, cut, fasten, crimp, embed, align, straighten, replace, or structurally repair bead.

Job: coat both faces of a sound, installed outside drywall corner by using the reinforcement's intended nose or profile and the adjacent panel face as the screed references; fill the field between them, strike it clean, feather progressively onto the wall, preserve the profile, inspect each maker-required dry or set condition, correct only the defect actually found, and hand a clean accepted surface to the specified primer system.

Starting condition: the reinforcement and its installation are complete and accepted; any adhesive, embed coat, paper facing, fastener treatment, or prior compound has reached the exact maker-defined condition for the next coat; the panels are secure, clean, dry, and in a stable plane; the profile is straight and undamaged; legacy materials have been cleared for the planned disturbance; and the selected compound is approved for this reinforcement, panel, assembly, coat position, and finish.

Time: one inspection-and-coating loop repeated only as the exact reinforcement, compound, panel, assembly, and decoration system requires. Their current instructions control working time, set or dry state, recoat condition, sanding condition, environmental limits, and primer readiness. This guide states no universal wait, “overnight” rule, coat count, application thickness, finished feather width, or production rate.

Difficulty: moderate hand skill with a high diagnostic burden. Filling a sound corner is learnable. The real craft is keeping compound off a nose that must remain the screed, maintaining two different planes without rolling the profile, distinguishing a high from a low after drying, and stopping when the apparent finish defect is actually failed installation or movement.

The exact three-tool union

| Model | Evidence-supported Hyde product truth | Honest role in this job | Refusal carried into this guide |

The exact union can be used as:

01840 then one 10-inch knife: the ordinary progression when a controlled first fill needs a later wider feather;

01840 → 09100 → 09213: a phase-specialist sequence when the bead-side pass benefits from offset hand clearance and the outer face still needs a conventional backed feather;

09100 as the primary corner knife: when the existing field is already built enough that the task is a controlled fine-finish pass against the profile;

09213 as the later face knife: when the profile-side work is already correct and the remaining task is tying a dry shoulder into open wall.

No evidence proves that every corner requires all three, that either 10-inch knife leaves an inherently better finish, or that equal nominal width makes the two tools interchangeable. Their supported distinction is geometry and construction: 09100 is the offset stainless corner-and-edge member; 09213 is the conventional backed blue-steel flat-feather member.

Everything else the job may require: the reinforcement maker's current installation and finishing instructions; the panel and joint-treatment instructions; the exact approved joint compound and its current label, Technical Data Sheet, and Safety Data Sheet; clean mixing equipment where required; a clean mud pan, hawk, or maker-permitted carrying method; permitted clean water only if the material instructions authorize adjustment; raking work light; a true straightedge or other system-approved profile reader; protection for floors, trim, contents, air returns, and the already finished opposite face; stable access equipment; approved between-coat scraper or abrasive only where the system permits it; source capture and cleanup suited to the material and site; eye, skin, clothing, ventilation, and respiratory controls selected from the current SDS and exposure plan; and the specified drywall primer and decorative finish.

Name the corner before touching it

1.1 Confirm the geometry

Sight the full run from both ends and inspect its intersections.

Continue only when all of these are true:

the corner is convex and projects into the room;

its intended finished form is a straight, standard square outside-corner profile;

the maker's system uses compound over one or both legs or facings;

the nose or profile provides a permitted reference for the finishing stroke;

both wall faces are accessible to a flat hand knife;

and the selected knife can travel without a casing, sill, cabinet, ceiling return, pipe, or reveal forcing it off the intended plane.

Route elsewhere when the reinforcement is:

bullnose, chamfered, splayed, offset, radiused, flexible, or otherwise non-square;

a tear-away, reveal, shadow-line, movement, control, expansion, or architectural trim;

part of a proprietary fire, smoke, sound, shaft-wall, abuse-resistant, wet-area, or impact system whose finishing detail is unknown;

or a profile on which the working edge rocks, bridges, catches a shoulder, or contacts a decorative feature the maker says to preserve.

“Corner bead” is a family name, not a universal finishing instruction. Bare metal, paper-faced metal, vinyl, composite, tape-on, bullnose, and architectural trims may use different attachment, nose, coat, and correction rules. The reinforcement maker—not the silhouette of the corner—decides which method applies.

1.2 Separate this flat-knife method from the folded-tool method

This row owns the knife-and-screed method: fill and strike one face at a time with a joint, offset, or taping knife while the installed profile and adjacent panel act as references.

Do not silently add that separate model to this row's union, and do not assume a folded tool is compatible merely because the profile looks square. Choose the method under the reinforcement system and the actual access geometry.

1.3 Identify the coat stage

Under raking light, decide what is actually on the corner:

Installed reinforcement with no permitted coating yet: stop until the attachment, bond, embed, or cure operation is complete and accepted under its own instructions.

Sound reinforcement released for first fill: proceed to the first-fill loop.

Sound dry first coat: inspect and prepare it, then choose the correct later pass.

Partly finished corner with an outer shoulder: map the shoulder and feather it; do not automatically add material at the nose.

Painted corner receiving cosmetic rework: identify whether the fault is coating, compound geometry, bead movement, impact damage, corrosion, moisture, or a failed bond before abrasion.

Damaged or moving corner: stop. The finishing loop begins again only after authorized repair and a new soundness inspection.

A fresh coat is not a substitute for installation acceptance.

Let each maker control the question it owns

2.1 The reinforcement maker controls the profile

Obtain the exact reinforcement instructions and resolve:

approved panel, fastener, adhesive, tape, compound, and accessory combinations;

required attachment, embed, bond, support, and cure or dry condition;

whether the nose remains exposed as the screed, receives compound, carries paper facing, or has another intended treatment;

which parts of the legs or facings receive each coat;

the required coat sequence;

whether both faces may be worked during one visit;

permitted tool contact and correction;

and the required condition before primer.

The nose deserves special attention. Some systems use it as the final projecting reference. Others cover or treat it differently. Do not copy the bare-metal-bead habit onto a paper-faced, vinyl, composite, or proprietary profile.

whether the installed reinforcement belongs in the exact panel and assembly;

whether substitutions are allowed;

required finish level and decoration;

any fire, smoke, sound, impact, moisture, shaft-wall, abuse-resistant, control-joint, or proprietary limitations;

and who decides when maker instructions or project documents conflict.

A smooth sample does not certify a rated assembly. If the detail is unknown, obtain the listed or specified system before coating.

2.3 The compound maker controls the material and the clock

Read the exact compound label and current technical data before mixing or loading. They decide:

approved substrates, reinforcement types, and coat positions;

compatibility with the material already on the corner and with the specified primer;

ready-mixed versus setting-type preparation;

permitted remixing or water addition;

working, set, dry, recoat, scraping, sanding, damp-smoothing, and priming conditions;

application-depth and environmental limits;

cleanup, storage, and disposal;

and protection required by the Safety Data Sheet.

Do not transfer a water ratio, batch size, working time, coat thickness, dry time, sanding grit, or recoat rule from another pail, bag, manufacturer, room, or remembered job. Drying-type and setting-type compounds do not earn the next operation by the same mechanism.

It is not permission to apply a USG detail or schedule to another manufacturer's materials.

2.4 The primer and finish maker control the handoff

Before coating, know what the completed surface must receive.

required drywall primer or sealer;

moisture and surface-readiness limits;

compatibility with the compound and reinforcement;

required finish level and inspection lighting;

and whether paint sheen, texture, wallcovering, or critical lighting demands a wider or whole-surface treatment.

“Ready for primer” is an acceptance condition, not a time estimate.

Prove the installed corner is sound

3.1 Sight the nose from both ends

Place the eye near one end of the run and sight along the profile. Reverse direction and repeat. Use raking light across each face.

a nose that wanders, twists, bows, flattens, or changes projection;

impact dents, cuts, burrs, crushed sections, or corrosion;

a bulged, hollow, wrinkled, or released paper facing;

fastener heads or attachment points standing outside the permitted plane;

a leg that bridges rather than sits as designed;

compound packed onto a nose intended to remain a clean screed;

stop marks where an earlier repair changed the profile;

or panel faces that change plane beside the reinforcement.

Do not “straighten” the line by burying it. Compound can graduate a sound fixed transition. It cannot make a bent or misinstalled profile straight.

3.2 Press-test without trying to repair

Press lightly beside the nose and along both legs or facings. Compare one face with the other.

no clicking, rocking, pumping, or separation;

no relative movement between reinforcement and panel;

no loose fastener or hollow bond;

no bubble or lifted facing;

no board movement beside the corner;

no crack that opens under pressure.

any attachment moves;

the nose changes position;

a leg or facing clicks, lifts, or sounds hollow;

the panel edge flexes independently;

a crack opens or returns with building movement;

a fastener spins, backs out, or stands proud;

or the condition cannot be classified.

The three exact-union knives spread and shape compound. They do not set reinforcement, correct fasteners, restore board support, or repair a failed bond. Model 01840 has no documented Hammer Head®; neither 09100 nor 09213 is a striking or installation tool.

3.3 Reject water, contamination, and corrosion

Stop on active moisture, softened board, mold, wet staining, rust migration, chalking compound, oil, wax, soap, smoke residue, paste, or other bond-breaking contamination. Correct the source and use the system-approved remediation and preparation before returning.

Do not coat over corrosion on the theory that compound will isolate it. The reinforcement maker decides whether the affected profile may be cleaned, treated, or must be replaced.

3.4 Make the legacy-material decision before making dust

Existing outside corners may carry old paint, old patching compounds, and prior repairs. Calendar age alone does not identify them.

When paint disturbance in pre-1978 housing or covered child-occupied facilities falls within regulated renovation work, use the applicable EPA Renovation, Repair and Painting program. A fresh coat does not make lead dust harmless.

16 CFR Part 1304 records the federal historical consumer-product boundary for patching compounds containing intentionally added respirable free-form asbestos. It does not identify an unknown existing material or clear it for dry abrasion. Survey, test, or obtain qualified direction when the material history and planned disturbance require it.

Current drywall dust still needs control. NIOSH's Control of Drywall Sanding Dust Exposures documents the exposure and the value of engineering controls. Follow the exact compound SDS and site plan. Use source capture and containment where required; do not dry sweep or blow dust through an occupied space.

Choose the knife by phase and obstruction

4.1 Use 01840 for controlled first placement

Choose 01840 when the job needs:

a modest first fill placed into the field between the sound profile and wall;

direct blade-in-hand pressure feedback close to the nose;

short work at ceilings, floors, returns, and intersections;

controlled loading from a pan or board;

or a narrow correction on a later coat.

Its maker-supported six-inch flexible stainless joint-knife construction explains the role. It does not prove a universal first-coat width or a model-specific compatibility with every bead.

Buyer test: “I need one rust-resistant joint knife to place the first corner fill and do nearby drywall detail work.” Choose 01840. Do not choose it because you need a striking cap, stiff ridge scraper, or broad final feather; those are outside its supported identity.

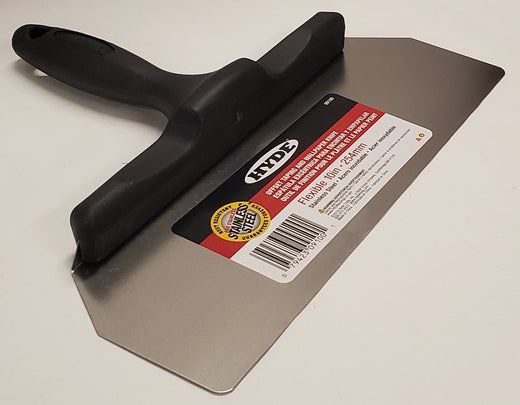

4.2 Use 09100 where hand clearance decides the pass

Choose 09100 when:

the blade must ride the profile-and-wall plane while the adjacent finished or wet face would foul a straight grip;

a return, soffit, casing, or other obstruction makes a normal hand position lift the edge;

the pass is close to the profile and maintaining a low flat blade angle matters;

or the maker-supported cornerbead/fine-finish role is the exact purchase reason.

The offset handle is evidence-backed. It lifts the hand away from the blade plane and is the concrete distinction from 09213. Use that geometry; do not invent a stiffness rank, a universal wrist-strain outcome, or compatibility with every reinforcement.

Buyer test: “My flat 10-inch knife makes my hand touch the adjacent face, so I cock the blade and leave a ridge.” Choose 09100 for the bead-side pass. If the work is an unobstructed flat-wall feather, the offset does not automatically improve it.

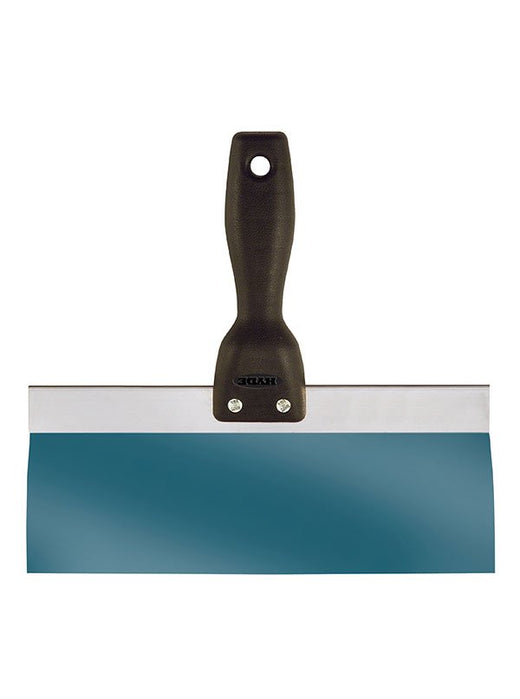

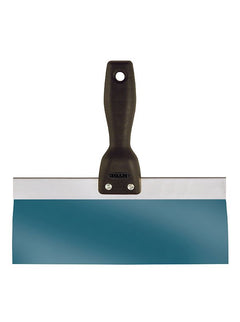

4.3 Use 09213 for the later flat-wall feather

Choose 09213 when:

the profile-side field is established and the remaining job is tying its outer shoulder into open wall;

a conventional backed 10-inch edge can land on the coated field and sound panel together;

the supported Value Series™ construction and family weight claim are relevant to repeated pulls;

and the crew accepts the cleaning-and-drying discipline of a blue-steel working blade.

Hyde's retained product facts establish the exact variant, steel, back, handle, and smooth/even compound-laying role. They do not prove that 09213 fits or installs a bead, carries a particular compound volume, makes a fixed-width feather, or outperforms a stainless sibling.

Buyer test: “The bead-side coat is correct; I need a backed blade to widen and soften the shoulder on open wall.” Choose 09213. Do not choose it to embed tape, strike a fastener, scrape a cured ridge, or stay wet in the wash bucket.

4.4 Inspect whichever blade enters the finish

Clean both faces and hold the working edge against strong light. Reject or correct before coating:

cured compound on the edge or corners;

a nick that will draw a groove;

a rolled or bent corner that will print a rail;

rust, oil, cleaner, or another contaminant;

a loose handle or back;

a permanent distortion that lies about the wall;

or dried material trapped where the blade, back, or offset meets the handle.

Clean and dry 09213 after wet work because its working blade is blue steel. Clean 01840 and 09100 promptly even though their supported blade material is stainless. Stainless removes the blue-steel rust ritual; it does not make cured compound harmless.

4.5 Run a representative control sample when the system is new

Use the same reinforcement, panel, compound sequence, selected knife, environment, primer, and decoration expectation. Include the actual corner geometry.

the selected compound bonds to the approved reinforcement system;

the profile remains undamaged;

the first fill can be struck without exposing or burying a protected nose;

the selected 10-inch knife can land flat without catching the adjacent face;

the dry shoulder can be feathered under the acceptance light;

correction does not expose a facing or abrade the profile;

and the primer/finish sample does not reveal a hard ridge, hollow, or suction boundary.

A sample can reject a method. It cannot authorize an unlisted system or create a Hyde product claim.

Prepare the work without changing the profile

5.1 Protect the room and the opposite face

Protect floors, trim, fixtures, contents, openings, and air returns under the site plan. Arrange access so the operator can move the full length of the corner without leaning into the other wet face, snagging the profile with a pan, or changing grip mid-stroke.

If the reinforcement or compound system requires one face to reach a stated condition before the other is coated, plan that sequence now. If both faces may be worked in one visit, still treat each as its own plane. Permission to coat both sides does not permit wrapping a flat blade around the nose.

5.2 Read the existing plane under raking light

Light the first face low across the wall, then reverse the light. Mark only with a non-bleeding method permitted by the decoration system.

isolated nibs and dried crumbs;

a proud line at the nose;

a hollow between nose and wall;

an outer shoulder from the prior coat;

pinholes, scratches, drag marks, and restarts;

a high center caused by overfill;

changes at ends, cross-joints, returns, and openings;

and any place the profile changes projection.

Classify every shadow before acting:

high requires permitted subtraction or rework;

low requires compatible fill;

profile damage returns upstream;

bond failure returns upstream;

movement returns upstream;

contamination or moisture requires cause correction;

finish texture may belong to the primer or decoration plan rather than another thick coat.

5.3 Remove only permitted proud defects

When the compound maker permits dry-blade correction, hold a clean suitable edge nearly flat and lightly slice isolated nibs, crumbs, and sharp lap marks. Keep the action on compound.

the surface smears, rolls, pills, or releases damp material;

force or levering is required;

a facing, panel paper, fastener, or reinforcement appears;

the working edge catches the nose;

the profile changes under pressure;

or the high is broad enough that light nib removal cannot restore the intended plane.

Do not turn 01840's flexible edge, 09100's stainless plate, or 09213's blue-steel finish edge into a chisel.

5.4 Clean the surface and condition the compound

Remove loose residue by the method permitted for the surface and material. Do not leave dust, wash water, soap, solvent, or a polishing film under the next coat.

Prepare only clean, workable compound. Mix, remix, or add water only as the current product instructions allow. Keep cured crumbs, wash water, rust, and correction debris out of the fresh batch. If a setting material begins to tighten, follow its disposal and cleanup directions; do not restore it with an improvised recipe.

Place the first fill with 01840

6.1 Establish the two screed references

On the face being coated, identify:

the reinforcement's intended nose or profile reference; and

the sound panel face beyond the leg or facing.

The field between them is what receives compound. The blade must not teeter on a proud fastener, dried ridge, loose paper edge, or bent profile. Resolve those conditions before loading.

Do not assume the goal is to bury the nose. Follow the reinforcement instructions. Where the nose remains the screed, keep it clean enough to remain a true reference throughout the coat.

6.2 Load a controlled bead

Use the clean pan or carrying surface to place a modest, continuous load across the useful part of 01840. The required amount comes from the actual hollow, reinforcement instructions, compound application limits, and field trial—not from a universal scoop or thickness.

Reject the load when:

dried crumbs are present;

both blade corners carry hard lumps;

material hangs on the back and can fall into the pass;

the compound slumps, rolls, tears, or sheds partially set pieces;

or the batch has left the state its maker permits for application.

6.3 Lay material into the field before trying to feather it

Start with the blade at the angle and pressure needed to transfer compound, not to wipe it off immediately. Place material into low areas between the profile and wall. Work in a section that can be laid, struck, and tied in while the selected material remains workable.

At ceilings, floors, and returns, use shorter strokes and deliberate releases. Do not accelerate through an endpoint and hook the blade corner over the nose.

The first pass is placement. Trying to make it final while the hollow is still starved produces repeated dry pulls, dragged compound, and a scraped-bare center.

6.4 Strike from the profile to the wall

After the field is filled, clean the working edge. Set one controlled part of the edge on the permitted profile reference and the other on sound wall. Draw the blade along the run with enough pressure to level the field, not enough to flex around a high or strip the approved base.

Watch both ends of the edge:

the profile-side corner must not climb over, gouge, polish, or bury the nose;

the wall-side corner must not plow a hard rail into sound panel;

the middle should remove excess while leaving low areas filled;

and the release must happen while the blade is moving so it does not stamp a stop.

If the blade rocks, clicks, or repeatedly loses one reference, stop. More pressure will not correct bad geometry.

6.5 Feather the outer edge while the material is workable

Clean the blade. Bias pressure toward the wall-side edge and make a light finishing pull that reduces the outer shoulder to the thinnest continuous transition the system permits. Do not keep working the profile-side field merely because the outer edge needs one more pass.

Leave a controlled wet coat, not a polished dry scrape. Repeated passes after the material begins to tighten pull bond, make chatter, trap crumbs, and create a harder correction later.

6.6 Protect the nose before leaving the section

Inspect the nose/profile immediately under raking light.

Remove only fresh accidental smear by the method and tool contact its maker permits.

Do not scrape a paper-facing edge or expose bare reinforcement.

Do not polish a metal nose as if it were a decorative surface.

Do not round the profile with compound.

Do not leave a hardened bead of material perched where the next coat must ride.

Then inspect the outer feather, restarts, and endpoints. Tie in defects while the compound remains in its permitted working state. Once it leaves that state, stop touching it.

6.7 Coat the second face under the system sequence

Use the exact reinforcement and compound instructions:

If one face must reach a defined condition first: protect the completed face, wait for that condition, prepare only as allowed, then run the other face as a new plane.

If both faces may be worked in one visit: keep the first face protected and treat the second independently. Do not roll a flat knife around the corner or use the wet first face as a hand rest.

At the three-plane endpoint where two faces meet a ceiling or soffit, shorten the stroke. The apex is detail work, not a place for one sweeping diagonal pull.

Use 09100 for the profile-side fine-finish pass

7.1 Reinspect before the offset knife enters

The prior coat must reach the maker-defined condition for recoating. Under raking light, confirm:

the profile remains straight and stable;

the prior field is bonded;

no nose smear or hard ledge will hold the blade off plane;

the outer shoulder is mapped;

and the offset handle has a clear travel path.

If the dry coat is high against the nose, placing more material there is not the correction. Prepare or rework under the system instructions.

7.2 Load for the mapped low, not for the whole blade

Pick up only enough clean compound to fill the remaining approved low field. Keep both corners clean. A heavy uninterrupted band across the whole plate encourages squeeze-out over the profile and a hard outer rail.

7.3 Let the offset solve the clearance problem

Place the stainless edge on the same permitted profile-and-wall references. Hold the offset handle in its natural clearance position so the hand stays away from the adjacent face. Keep the blade flat; do not cock it merely because the handle looks unfamiliar.

Draw one committed pass:

maintain contact with both references;

use travel rather than repeated stationary pressure;

keep the profile-side corner clean;

keep the wall-side edge from leading;

release while moving;

and wipe the blade before the return stroke.

The 09100 earns its place when that raised hand position allows the plate to stay flat. If there is no obstruction and the offset makes control worse for the operator, do not use feature copy as a command. Choose the exact-union phase that matches the actual geometry.

7.4 Strike, inspect, and stop

Make a clean strike to remove excess, then a lighter edge-biased feather only where the mapped shoulder needs it. Inspect the wet result from both light directions.

Stop working when:

the material begins to drag or roll;

the blade edge accumulates crumbs;

the profile-side field is filled and the outer shoulder is continuous;

further passes merely change sheen;

or the operator is correcting each new mark with another mark.

Fine finish is often the decision to leave a correct wet pass alone.

Feather the later coat with 09213

8.1 Use it only after the profile-side field is established

The 09213 is not the first tool to discover a loose nose or fill an unknown deep hollow. Bring it in when:

the reinforcement is still sound;

the earlier coat is ready;

the bead-side field no longer needs bulk placement;

and the remaining visible transition is the outer shoulder onto open wall.

8.2 Load a lean continuous band

Condition the compound only as its maker permits. Load enough to maintain a continuous later coat over the mapped shoulder without hard lumps at either corner.

Keep the back clean. Material on the reverse face drops into the next pass. Keep the blue-steel edge free of rust and cured compound.

8.3 Land the backed edge across the transition

Place the blade so part of its edge references the established corner field and part reaches sound panel beyond the previous shoulder. The exact landing position comes from the actual dry geometry and system requirements; this guide supplies no fixed feather width.

Make the first pull to lay material. Make the next clean pull to strike it. Bias final pressure toward the wall-side edge to soften that boundary without digging the center hollow.

The two blade ends are readers:

if the profile-side end rides a sound established field and the wall-side end rides sound panel, the middle can level the transition;

if one end floats, the blade is bridging a low;

if it rocks, something is high;

if one corner plows, the edge is tilted or damaged;

if the whole blade chatters, the compound state, edge cleanliness, pressure, or substrate needs correction.

8.4 Tie in starts, stops, and cross-joints

Shorten the work section at ceilings, floors, openings, and intersecting seams. Feather into the still-workable edge of the previous section. Release while moving.

Do not make one uninterrupted production pull through a cross-joint or patch whose geometry changes. Finish each transition under its own guide and blend only after both shapes are understood.

8.5 Decide whether another coat is actually required

After the maker-required set or dry state, another coat is justified only when the readback identifies a compatible low, shoulder, pinhole field, or other defect that the system permits another coat to correct.

Do not add a coat because:

a generic schedule says every corner receives the same number;

wet compound looked translucent;

a wider band feels more professional;

the nose is still visible even though its maker intends it to remain the screed;

or sanding a high seems less appealing than diagnosing it.

The exact system and actual dry geometry control the sequence.

Dry/readback loop — inspect before sanding

9.1 Let chemistry finish

Protect the corner from impact, dust, rapid unapproved heating, freezing, excess moisture, and contact during the compound's required set or dry interval.

Do not infer readiness from:

surface color alone;

a hard skin over a damp fill;

the neighboring corner;

a remembered clock;

or the fact that a setting compound has become firm.

Use the actual maker-defined condition for the next operation.

9.2 Read the profile first

Sight down the nose from both ends.

Pass only when:

the intended line remains straight and continuous;

the profile has not been rounded, flattened, nicked, or buried contrary to its system;

both faces meet it consistently;

no crack or movement has appeared;

and no facing or reinforcement has been exposed by coating or correction.

If the line moved, the defect is not a feather problem.

9.3 Rake each face from both directions

Move the light close enough to throw shadows across the surface. Read one face, reverse the light, and read it again. Repeat on the other face.

high ridges and nibs;

a hard outer shoulder;

pinholes and craters;

restarts and stop marks;

drag lines from a dirty edge;

a halo at the profile;

and intersections that change shape.

Do not diagnose by touch alone. A smooth surface can still be geometrically high, and a visible tonal change can be sound geometry waiting for primer.

9.4 Use the clean edge as a reader

Place a clean, undamaged edge from the intended profile reference toward the wall without forcing it.

Stable contact with a shallow continuous transition: normal finish geometry.

Rocking on a narrow ridge: high; another coat over it broadens the defect.

Daylight over a hollow: low; use the approved fill correction.

One end floating: asymmetric field or panel-plane change; map the actual low.

Click or movement: stop; finish work has exposed an installation problem.

The goal is not a mathematical plane guaranteed by a hand knife. It is the continuous, system-compliant transition required for the specified decoration and acceptance light.

9.5 Classify before correcting

| Dry finding | Correct response | Wrong response |

| Isolated compound nib | Remove only when and how the maker permits; clean before recoating | Gouge with a flexible finish edge |

| Broad high or hard ridge | Diagnose overfill and use the approved reduction/rework method | Add compound over the center |

| Low field between sound references | Apply a compatible controlled fill within the product limits | Sand the surrounding board lower |

| Hard outer shoulder | Feather the shoulder with a clean later pass or permitted correction | Bury the nose under a wider heavy coat |

| Pinholes | Correct under the material instructions with clean workable compound | Whip air into a contaminated batch |

| Drag line | Clean/repair or replace the damaged edge, then correct the groove | Keep pulling the same nicked blade |

| Crack, click, or movement | Stop and return to assembly/reinforcement diagnosis | Bridge it cosmetically |

| Exposed facing, metal, vinyl, or panel paper | Stop removal and follow the system repair | Sand until the color looks even |

| Stain, rust, dampness, or mold | Correct the source and use the approved treatment | Seal it blindly with joint compound |

Sand or damp-smooth without erasing the corner

10.1 Sand only when the system permits it

Use the exact compound and reinforcement instructions to decide whether dry sanding, damp smoothing, scraping, or another correction is allowed and when.

Set up dust capture and protection before abrasion. Follow the compound SDS and the site hazard plan. Do not use compressed air or dry sweeping to redistribute fine dust.

10.2 Protect the nose and profile

Work only the compound defect. Keep the abrasive or correction edge off:

a metal, vinyl, or composite nose;

panel face paper;

a reveal or sacrificial strip;

and any finished profile feature.

Do not use the nose as an abrasive rail. Repeated passes across it round the silhouette, remove protective coatings or facing, and can expose the reinforcement just where the eye reads it most.

At the outer feather, use the least correction that removes the proud transition without fuzzing panel paper. If the boundary remains low, stop sanding and return to compatible fill.

10.3 Reinspect after dust removal

Remove dust by the system-approved method. Rake both faces again, reverse the light, sight the profile, and repeat the clean-edge reading.

Correction passes only when:

the profile is intact;

no crack or movement is present;

both faces transition continuously;

no ridge, hollow, or drag line exceeds the agreed acceptance standard;

compound, facing, and panel paper remain sound;

and the surface is clean enough for the specified primer.

Do not prime over loose sanding dust to make the inspection disappear.

Primer handoff and tool care

11.1 Hand off a documented accepted condition

Before primer, confirm:

the reinforcement and compound have reached their required primer-ready condition;

the profile remains straight, clean, and treated as its maker requires;

both feathered faces pass the agreed raking-light inspection;

no active moisture, corrosion, stain source, crack, movement, or contamination remains;

dust has been removed by the approved method;

exposed paper, metal, vinyl, or composite conditions have been resolved under the system;

and the specified primer is compatible with the panel, compound, reinforcement, and final decoration.

Record or communicate any system-specific primer requirement, dry-state requirement, protected profile, unresolved flag, and acceptance lighting. The painter should not have to reverse-engineer the corner system from its appearance.

11.2 Prime under the decoration system

Use the specified drywall primer or sealer and follow its current surface, environmental, application, recoat, and finish instructions. Joint compound, panel paper, and some reinforcement surfaces can absorb differently; the primer system manages that transition.

Primer is not a geometric correction. A hard shoulder, hollow, exposed edge, or moving crack remains a defect after it changes color.

11.3 Clean the exact-union tools

01840: remove compound before it cures, wash, inspect the flexible stainless edge and corners, dry for storage, and protect the straight working edge. Its plain butt remains a non-striking surface.

09100: clean both faces and the offset-handle junction before compound hardens; inspect the long stainless edge; store without bending the plate or loading the offset.

09213: clean compound from the blade and aluminum back, then dry the blue-steel working blade promptly. Do not leave it wet because the back is non-rusting.

Collect compound waste, wash water, sanding residue, and contaminated material under the current label, SDS, site, and local disposal requirements. Do not return partially set scrap to fresh compound.

What goes wrong — and the fix

“The bead line looks crooked after coating.”

Sight the clean profile itself. If the nose is bent, misaligned, loose, or changes projection, stop. Coating cannot straighten it. If the profile is sound but the compound shoulder wanders, map the high/low under raking light and correct only the finish geometry.

“The knife keeps clicking or rocking.”

One of the two screed references is not sound: proud fastener, dried ridge, bent profile, debris, changed panel plane, or a damaged blade. Clean and diagnose. More pressure teaches the blade to follow the defect.

“Compound keeps covering the nose.”

The load is too heavy at the profile-side corner, the blade is tilted, the edge is riding over rather than beside the intended reference, or the system actually requires another nose treatment. Stop, consult the reinforcement instructions, clean fresh accidental material only as permitted, and reset the load and angle.

“The outside edge leaves a hard rail.”

The wall-side blade corner is leading, overloaded, dirty, or stopping in place. Clean the edge, reduce the corner load, bias pressure toward the feather edge, and release while moving. On a dry rail, use only the permitted correction before recoating.

“The middle stays hollow after I pull.”

The pass was wiped too tight, the load did not reach the low, the blade bridged from profile to wall, or the application exceeded the material's permitted fill behavior. Map the low and place compatible material into it before striking. Do not sand the references lower.

“The second side scars the first.”

The sequence or hand clearance is wrong. Protect the completed face and follow any one-side-then-dry requirement. Where the system permits both sides in one visit, use short independent strokes. The 09100 earns its role when its offset keeps the hand clear; it does not permit the blade to sweep around the nose.

“The 09100 still leaves a ridge.”

The offset solves clearance, not every defect. Check whether the plate is being cocked, a corner is damaged, compound has tightened, the profile is high, or the operator is applying uneven pressure. If there is no clearance problem, use the exact-union phase that better matches the open-wall work.

“The 09213 scratches every pass.”

Clean the blue-steel edge and inspect for a dried crumb, rust pit, nick, or bent corner.

“The dry coat looks good straight on but bad from the side.”

Straight-on light hides shoulders. Rake both directions, sight the profile, and read high versus low with a clean edge. Correct geometry, not sheen.

“Sanding exposed shiny metal, colored plastic, or paper facing.”

Stop sanding. The correction has reached the reinforcement system. Follow its repair and primer instructions. Do not enlarge the exposure trying to blend its color away.

“A crack returned at the corner.”

Treat recurrence as movement, failed attachment, failed bond, impact, moisture, or an assembly problem until proven otherwise. Another cosmetic coat is not a diagnostic test.

“The blue-steel blade rusted although the back did not.”

The 09213's non-rusting aluminum back is not a claim that its blue-steel working blade can stay wet. Clean the corrosion only if the edge can be restored without changing its finish geometry; otherwise remove it from finish duty. Dry the blade after future wash-up.

Buyer decision tests — choose from the exact union

First controlled fill, starts/stops, detail access, rust-resistant joint-knife role: choose 01840.

The adjacent face fouls the hand and a flat profile-side pass is the problem: choose 09100.

The bead-side field is established and the remaining job is a conventional backed feather onto open wall: choose 09213.

Need to set, fasten, crimp, straighten, or repair bead: choose none of these; return to the reinforcement system.

Need to strike a fastener with the knife butt: choose none of these for that action. The 01840 is explicitly the plain-butt model; the other two are not striking tools.

Need a knife that can be stored wet without blue-steel care: 01840 and 09100 have supported stainless blades, but still require cleaning; 09213's working blade must be dried.

Need one guaranteed “best finish” knife: the evidence does not supply that ranking. Choose by phase, clearance, construction, maintenance, and the actual corner.

The defensible purchase question is not “six or ten inches?” It is: am I placing the first controlled fill, maintaining a flat bead-side pass with hand clearance, or widening the outer feather on open wall?

Short history footnote

Outside-corner finishing became a distinct drywall operation when a vulnerable plaster or board arris gained a manufactured reinforcement that could serve as both protection and a screed. The metal-bead system belongs to the same postwar transition that turned gypsum board and the taper's coat sequence into ordinary American wall construction. Hyde's contribution at this row's grain is not a claim to have invented corner bead: it is the survival of three hand-tool geometries around the same corner—an in-line joint knife for placement, an offset plate for clearance, and a backed taping knife for the wider wall feather.

Verify them before customer-facing expansion.

Maker-supported product distinctions retained:

01840: exact 6-inch / 152 mm flexible stainless joint-knife identity, full-tang hollow-ground construction, nylon handle, plain butt;

09100: exact 10-inch × 3-3/4-inch stainless offset knife, polypropylene handle, cornerbead/fine-finish maker use, awkward-angle clearance claim;

09213: exact 10-inch Value Series™ blue-steel taping knife, non-rusting aluminum back, one-piece angled polypropylene handle, family 23%-lighter claim, smooth/even compound-laying role.

Refusals retained: no structural installation or repair; no universal bead compatibility; no invented finished feather width, compound thickness, water ratio, working time, dry time, recoat window, sanding grit, coat count, primer time, price, inventory, delivery, or availability; no factory-crown claim; no claim that equal nominal width makes 09100 and 09213 interchangeable; no finish-quality ranking unsupported by comparative evidence.

Confirm the exact installed reinforcement and its maker instructions for nose treatment, compatible compounds, coat sequence, correction, sanding, and primer; “sound compatible bead” is a starting assumption, not a universal Hyde fitment claim.

Corner-bead invention, patent, first-use date, and universal material-history claims remain unresolved to primary sources and are withheld.
