How to Choose and Set Up a Roller Frame

Job: diagnose the coating work, select an evidence-supported roller-frame candidate, prove every component identity and compatibility join, inspect it unassembled, and set it up only under current instructions that name the exact system.

Time: selection takes as long as the identity and instruction checks require. Do not reserve “a few minutes” for setup until the exact frame, cover, coating, optional pole, and current procedures are in hand.

Difficulty: the physical parts may look simple. The hard part is refusing to convert nominal width, a bundled offer, prior use, or a feature claim into a mounting procedure.

Bring before selection: coating label, TDS, and SDS; exact substrate and finish requirement; measured width and access envelope; frame and cover packaging; manufacturer compatibility and setup instructions; optional pole identity and connection specification; a protected inspection surface; required PPE; and a readback record.

Begin with the job, not the frame

A frame cannot be chosen correctly from width alone. Record five inputs before comparing products.

Job and finish

Name the surface, its condition, the coating system, and the required appearance. Separate open wall field from trim, a narrow return, a confined recess, a door, a cabinet panel, masonry, floor coating, or overhead work. “Paint a room” is not yet a frame requirement.

Read the coating maker’s applicator specification for permitted cover material, pile or nap, preparation, application, and restrictions. Preserve its scope. If it does not permit a roller, stop; no frame repairs that mismatch.

Working width

Measure the usable surface band, including clearance needed to approach and withdraw without striking adjacent work. A nominal cover width is only the first selection axis. It does not establish core identity, frame fit, loading clearance, or suitability for the finish.

Describe approach separately from painted width: obstructions, standoff, visibility, stable position, and electrical, access-equipment, overhead, occupied-area, or equipment boundaries.

The 94003 and 94016 titles state frame lengths but prove no safe-reach application, offset, stiffness, bend geometry, load, or technique.

Cover system

Identify the exact cover required by coating and finish, then find the maker’s explicit frame-fit bridge. It must name or unambiguously specify the cover system and frame interface. Width, pile, family, or appearance does not close the join.

Hand or pole operation

Decide whether the work can be completed from a stable position by hand. If a pole is proposed, it creates a second compatibility join and a separate control problem. 47412 has an accepted frame-side Acme threaded handle for use with paint poles claim. That establishes the feature on 47412; it does not prove any particular pole, engagement procedure, reach, lock, load, or safe operating geometry.

What the five records actually differentiate

Use this table as a candidate screen, not as an assembly instruction.

Do not fill unresolved cells from product guides that extend beyond accepted facts.

The useful pairwise decisions

Build the exact compatibility chain

There are up to four joins:

coating → cover: the coating maker permits the exact cover material/pile/model or a specification the cover maker expressly satisfies;

frame → pole, if used: both sides establish the connection standard and the exact instructions establish engagement and inspection;

Record source, title, date/revision, models, and exact scope for every join.

For 47412, the official offer identity establishes the included Woven Ultra 3/8-inch-nap cover as part of the exact sold set. The walk-off, even-pressure, clean-hands, bucket-hook, and Acme claims describe outcomes or features. They do not disclose the required actuation.

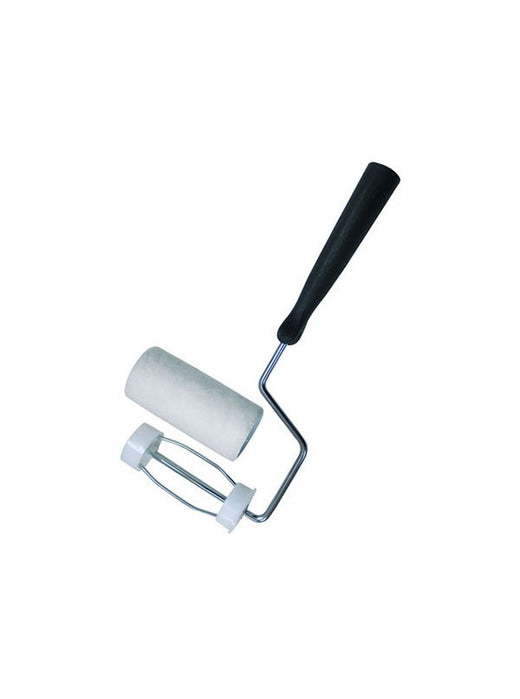

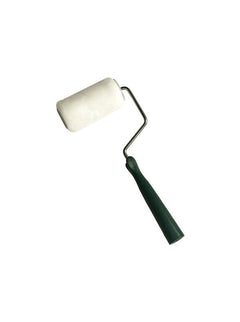

For 94012 and 94014, the store titles name cover-and-frame configurations while the accepted manufacturer record supplies family membership. That is insufficient to infer how the parts arrive, whether they are intended to be separated, how a replacement joins, or what acceptance condition proves seating.

For 94003 and 94016, official family inclusion and store titles do not establish a core, spindle, frame-end, or retention interface. The 94003 width conflict must be resolved before even the width join closes.

Prior use, shelf adjacency, shared brand, nominal dimensions, or a physical trial are not positive proof.

Inspect unassembled and preserve identity

Perform this check dry, clean, unpowered, unloaded, and on a protected surface. Do not attach a cover or pole yet.

If either identity is missing, unreadable, or inconsistent, quarantine it.

Compare the parts as found with current manufacturer images or diagrams only for visible completeness. Do not name an unlabeled piece’s function from appearance.

Look for cracks, separation, corrosion, dried coating, contamination, deformation, sharp damage, loose material, altered surfaces, or missing visible parts.

Inspect any named handle connection without inserting a pole. It must be clean and visibly undamaged; this observation does not certify thread form or engagement.

Photograph identification and condition.

Do not alter or actuate an unidentified mechanism. Visible inspection can reject; it cannot prove hidden condition, fit, retention, rotation, or serviceability.

The stopped dry-fit gate

A “dry fit” here is not permission to discover a mechanism. It is a controlled stop point under exact manufacturer instructions.

Before any contact between components, obtain a current instruction that:

identifies the exact frame and compatible cover or exact interface class;

identifies every required adapter or part;

describes the mounting action in operational terms;

defines the intended final position or acceptance observation;

states any inspection, adjustment, force, direction, or prohibition needed to perform the action safely.

If that instruction exists, follow it literally on clean, dry components and stop at the first mismatch, unexpected resistance, interference, damage, incomplete condition, or undefined step.

If it does not exist, do not slide, push, flex, twist, snap, thread, spread, bend, tap, spin, pull, or otherwise try the parts together.

Absence of a visible problem is never fit passed. Observation may preserve a defined rejection; it may not create a positive bridge.

It is deliberately stricter than older local advice that treated generic slide-seat-spin, hand-thread, reverse-stroke, or physical store trials as compatibility proof.

Exact setup: execute the source, not this page

When—and only when—the complete compatibility chain and exact current instructions exist, create a setup card:

frame maker, model, and condition;

instruction title, revision/date, and source;

exact named parts;

each manufacturer action in order;

each stop condition and acceptance criterion;

operator, time, and observed result.

Perform only recorded actions. Do not supplement ambiguity with a neighboring-model video, family page, custom, or intuition. If a step is missing, use the maker’s safe state; if none is specified, contain and quarantine without further actuation.

The guide still completes selection diagnosis and identifies the exact evidence needed to unblock a future setup.

That ruling is preserved exactly.

Do not infer flex, twist, strike, pry, pull, foot, bucket-rim, bend, arm movement, or another release action from the claim, contextual media, or appearance. Removal remains a separate exact-instruction gate.

Controlled commissioning and readback

It cannot be used to obtain that status.

Confirm that the exact coating instructions permit the assembled applicator and define any cover preparation, loading, test area, PPE, ventilation, and cleanup controls.

Confirm stable access and a contained, representative test surface. Do not commission overhead, over people, near energized equipment, on a ladder, or on finished work merely to see what happens.

Inspect the manufacturer-defined final setup condition before material is introduced.

Prepare and load only by the exact coating, cover, tray, and frame instructions. This guide supplies no universal pre-wet, de-lint, immersion, pass count, fill line, pressure, speed, or cover-loading recipe.

Apply the smallest manufacturer-authorized representative trial. Observe the criteria those instructions name. Also record, without assigning an invented cause, unexpected movement, binding, nonrotation, wobble, interference, leakage, frame movement, pole-joint movement, visible damage, or finish nonconformance.

Stop immediately on a rejected criterion or unexpected mechanical behavior. Preserve the setup as found when safe, identify the components, and quarantine the system.

A good-looking patch alone does not prove mechanical compatibility.

Failure decisions

94003 remains here for width. |

| Cover and frame share a nominal width | No compatibility result. Obtain the explicit fit bridge. |

| Cover will not turn, shifts, rubs, or appears untrue | Stop and preserve the observation.

| Frame or part is visibly bent, cracked, altered, loose, or contaminated | Quarantine; follow exact service/replacement instructions.

| Pole joint starts but specification or procedure is absent | No join. A frame-side Acme claim alone does not prove the pair. |

Do not push, shim, bend, or restrain it. |

Obtain exact current manufacturer instructions. |

Cleaning, closeout, and storage

Cleaning is another exact-system join. Read the coating label/TDS/SDS and the frame and cover instructions together. Do not assume water, soap, solvent, immersion, scraping, spinning, pressure washing, disassembly, or a particular waste route.

Preserve labels and matched parts. Store only in the orientation, environment, and assembled/disassembled condition the maker specifies. Do not hang by an unverified joint, load a bar under other tools, leave residue in a connection, or compress a cover merely because no damage is immediately visible.

Which frame should I choose for a normal wall?

47412 is the union’s documented 9-inch bundle, but that does not make its supplied cover correct for every wall or coating, nor does it supply the missing setup procedure.

Is 94012 for smooth work and 94014 for walls?

The store identities distinguish 1/4-inch and 3/8-inch pile. Let the coating and cover makers select the exact applicator for the substrate and finish.

Is 94003 a 6-inch or 4-inch roller?

Can I choose 94003 instead of 94016 for farther reach?

Their store titles state 24-inch and 16-inch metal frames, respectively. No accepted exact-model evidence authorizes a reach technique, working offset, safe access configuration, bend, stiffness, or load. Length identity alone does not answer the job.

Can any 9-inch cover go on 47412?

No exact replacement-cover roster is accepted here. The supplied Woven Ultra 3/8-inch cover is part of the documented bundle. Nominal 9-inch width does not prove another cover’s interface or setup.

How do I put the cover on?

Follow current manufacturer instructions naming the exact cover-frame system.

Can I spin a dry cover to see whether it fits?

Only as a step in an exact manufacturer procedure that defines how to assemble first and what the result means.

How do I use 47412’s clean-hands removal?

The outcome claim is documented; the actuation is not. Do not experiment or infer a release motion.

Does 47412 fit an extension pole?

47412 has an accepted Acme-threaded-handle claim for paint poles. Prove the exact pole side and follow exact joint instructions. The claim does not authorize a particular pole, thread-engagement method, reach, or working load.

Can I bend a frame or arm to adjust it?

No bend action is authorized by this guide. Follow exact current manufacturer instructions or stop.

When is setup complete?

Only when every required compatibility join is documented, the exact maker procedure passes its stated criteria, and controlled coating-system commissioning passes its stated criteria. Otherwise record the precise block or rejection.

History without mechanism folklore

That history proves no current cage, frame end, retention feature, Flexi-Frame action, mini architecture, or assembly method. History remains context unless a current exact instruction makes the join.
