Trim Mold-Joint Flash from a Tire

Time: Minutes per released tire after qualification; one to three hours to map and prove a new tire/mold/joint condition

Difficulty: Advanced — a continuous ridge invites overlong strokes, and abnormal mold mismatch can resemble removable flash while requiring process escalation

Everything else: released cured tire; tire/mold/cavity finish specification; indexed tire stand; raking and diffuse task lighting; approved/rejected joint samples; zone and stop map; hand/eye protection selected for cutting and tire handling; guarded tool rests; trim containment; controlled edge-maintenance route; defect tags, process escalation, and production record

Flash is the thin excess squeezed or flowed into a mold joint. It follows a boundary; that continuity is helpful for finding it and dangerous for cutting it.

The sound rule is:

trace the joint first → qualify short segments → keep the V on the ridge → stop at every geometry/condition change → inspect the entire parent surface.

Confirm that the ridge is authorized flash

Before cutting, match the observed line to the tire/mold specification.

narrow removable parting flash;

designed seam or feature;

mold mismatch/step;

split, crack, or open joint;

repair/retread boundary;

excess hiding a void;

displaced lettering/marking edge.

If the parent surfaces do not meet correctly across the ridge, hold the tire. A knife can remove excess but cannot correct mold alignment, cure, bond, or structure.

Do not use another tire’s “clean” appearance as the definition.

Receive the tire after controlled release

Verify identity, cure/retread release, traceability, safe handling state, and required upstream inspection.

Keep knives outside active presses, molds, inflators, powered conveyors, and other equipment hazard zones. OSHA’s machine-guarding standard and control of hazardous energy standard support that boundary.

No cure temperature, pressure, cooling time, or safe handling value is established by these knife records.

If the tire is still changing shape/softness at the authorized handoff, follow the process—not an improvised wait.

Conduct a full joint-line survey

Mount the tire and rotate it once without a knife.

start/reference mark;

tread, shoulder, and sidewall portions;

where ridge height/width changes;

intersections with grooves, sipes, lettering, codes, or repairs;

mold/cavity identifiers;

abnormal steps or gaps;

zones intentionally left;

points requiring another method.

Break the circumference into named segments. One continuous visual line is rarely one continuous safe stroke.

Photograph or preserve abnormal sections before authorized trimming where the quality system requires.

Read the exact knife records

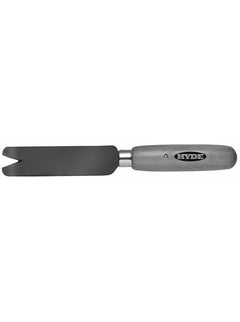

The 66060 Straight V-Trim Knife 213 is accepted at 4 × 1 × .065 inches.

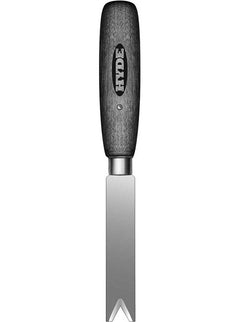

The 66330 Straight V-Trim Knife 3787A is 3-15/16 × 11/16 × .065 inches.

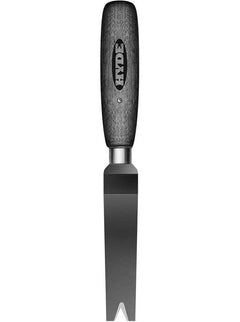

The 66090 Offset V-Trim Knife H222 is 3-1/2 × 3/4 × .065 inches and carries the accepted catalog statement assigning it to large molding excess on plastic/rubber goods.

Keep 66060’s accepted pattern as 213, not invented H213.

Choose the pattern for the segment

Begin with the plant’s controlled pattern where one exists.

For an authorized comparative trial:

broad, accessible, relatively flat/gentle joint → 66060 lead;

tighter access where narrower blade body helps physically → 66330 lead;

convex/long pull where a straight handle collides with the tire → 66090 lead.

Those are geometry leads, not manufacturer performance claims.

Test each candidate on the same representative released condition. Record parent-surface marks, ridge remainder, number of passes, visibility, hand clearance, and repeatability.

Do not choose the wider blade simply to cover more line; the V—not the outer width—does the cutting.

Build the segmented joint map

Define start/stop landmarks that an operator can see:

tread block edge;

For each segment record:

maximum visible stroke extent as a landmark, not an invented dimension;

required inspection view;

next segment orientation.

Do not let a station card say “run around circumference.” It invites blind continuation through every transition.

Support and index the tire

Use a stand that prevents rolling/tipping and permits controlled rotation.

local joint near a neutral wrist height;

pull path into clear space;

support hand behind a positive boundary;

light across the ridge;

knife rests away from tire movement;

trim collection below the work;

visible pass/hold status.

Rotate the tire between segments. Do not walk a live blade around it or brace it between knees.

If rotation is powered, prevent unexpected movement during knife contact through the machine procedure.

Inspect the chosen V

Confirm model/pattern, handle/ferrule/rivet integrity, notch symmetry, clean root, straight flanks, and absence of chips/bends/corrosion/unauthorized grind.

A continuous ridge magnifies small asymmetry: one V wall can repeatedly bite the same parent side.

Quarantine a knife that:

pulls off line on a scrap witness;

needs twist to engage;

carries hardened contamination inside the V;

has a loose handle;

shows a changed notch root.

Do not correct it at the tire with higher pressure.

Qualify the first short segment

On matching approved scrap/held work:

Mark both parent surfaces beside the ridge.

Seat the V over only the proud flash.

Align both flanks with the local tire tangent.

Plan the release/follow-through.

Pull a short visible distance.

stop before geometry changes.

inspect ridge and both parent sides under raking light.

compare with the limit sample.

The flash should feed into the V. If it folds, tears, smears, or lifts sound rubber, stop and diagnose condition/edge/presentation.

Do not start by digging the notch point under the ridge.

Control tension in a continuous strip

A long flash ribbon can remain attached ahead of the cut and alter force.

Do not wrap the strip around fingers or pull it to “help” the knife. Let removed material fall into containment, or interrupt it through an approved safe method outside the cutting path.

Watch for the strip:

lifting the ridge ahead;

hiding the next transition;

snagging a groove/letter;

pulling the knife sideways;

recoiling at release.

If the ribbon controls the knife instead of the knife controlling the ribbon, shorten the segment.

Keep the V tangent through curvature

On a convex tire, tangent changes continuously.

Use the stand rotation and short stroke to maintain presentation.

Do not roll the handle inward to keep cutting after knuckles collide. That levers one V wall into the tire.

At shoulder transitions, stop, reorient, and qualify a new segment. Do not drag the tread angle onto the sidewall.

Cross tread detail safely

A parting line may intersect blocks, grooves, sipes, ribs, shoulder elements, and molded wear features.

At each interruption:

stop before support disappears;

lift/park the knife;

inspect the feature;

resume only at a proved entry.

Do not bridge a groove or pull the V through a sipe. Do not trim a design edge to make the parting line look continuous.

Where no safe support exists, use an authorized alternate method or leave/hold according to the specification.

Protect sidewall markings

Map codes, branding, traceability, regulatory marks, service information, and repair identifiers.

Finish flash to the approved endpoint before characters. Do not skim a raised character, alter a digit, or blend its border.

Sidewall texture shows light tracks readily. Inspect from multiple raking directions.

If the parting line crosses a required mark, obtain a specific controlled method. The knife register alone does not resolve it.

Recognize mold/process evidence

Hold and escalate:

step/mismatch across the joint;

flash width/height changing sharply by zone;

recurring tear or void;

open crack beneath flash;

abnormal joint at the same cavity location;

repeated excessive force;

residue that does not match normal cured compound.

Trend by mold/cavity and tire family.

Do not turn a process-control signal into a trimming-rate target. Removing more rubber faster can make the data disappear while the condition worsens.

Run the controlled circumference

For each released tire:

verify identity/status;

complete no-knife survey;

set the start index;

trim the first mapped segment;

park the knife;

inspect both sides;

index to the next segment;

change pattern only where the card requires;

collect ribbon safely;

complete full rotation;

inspect all joints and markings;

route pass/hold to final inspection.

Never keep the knife in hand while moving the tire through a difficult stand adjustment.

Separate rework from first-pass work

Record every second pass and why it occurred:

A second pass is not free. It increases the chance of parent-surface contact.

Establish any rework limit through the tire quality system; this guide supplies no number. If compliant removal cannot be achieved, hold rather than deepening indefinitely.

Treat joint intersections as their own operations

Mold joints can meet other joints or terminate at complex features. A cross, Y, step, corner, or seam-to-letter intersection concentrates extra material and removes the continuous guide the V used on the approach.

At every intersection:

stop the normal segment early;

clean loose ribbon from the view;

inspect parent surfaces from both directions;

identify which ridge, if any, is authorized for removal;

select a short proved direction or alternate method;

make one controlled capture;

inspect before opening the next branch.

Never pull through the center and hope the V chooses the correct branch. Never use the outer blade edge to shave the knot left at the junction.

Keep an intersection map for the first tire/mold qualification. If the same junction repeatedly carries a thick node, tear, step, or void, report it as process evidence. A different visual result at every cure cycle is not a hand-skill challenge; it is variation to understand.

Verify the finish around the entire ridge, not only on it

Inspection must cover three bands:

the former ridge/root;

parent surface on side A;

parent surface on side B.

Raking light from one direction can hide a mark on the opposite side. Rotate the light/tire and compare texture, gloss, and profile. Where the joint sits on tread detail, inspect the edges of adjacent blocks and sipes; where it sits on sidewall, inspect molded characters and the broad smooth field.

Record which side a recurring mark favors. A one-sided pattern may indicate asymmetric notch condition, handle roll, stand position, or an actual mold step. This evidence is more useful than writing “flash difficult” in a shift note.

If a completed ridge is smooth but one parent band is hollowed, the cut fails. Flush appearance at the center cannot compensate for material removed beside it.

Maintain without changing the pattern

No exact Hyde source provides V-notch angle, abrasive, honing direction, allowable material removal, or service interval.

Clean and inspect before maintenance. Route internal V work to a qualified process that preserves both walls and root.

widen the notch for heavy flash;

grind one side to correct tracking;

use an uncontrolled powered wheel;

bend an offset blade;

treat a pattern code as a sharpening dimension.

After any service, qualify first-piece work again.

Protect the operator and close the shift

Select hand protection for cutting, puncture, tire handling, and residual heat while retaining control under OSHA’s hand-protection standard. Use eye protection for potential fragments/edge damage under OSHA’s eye and face standard.

protect/count knives;

clean trim/ribbons;

record pattern/edge status;

identify held tires;

communicate abnormal joint trends;

leave the current segment map visible.

Retain the start index through the entire inspection. Without it, a note such as “mark at three o’clock” becomes meaningless once the tire is moved. Reference stable molded/traceability landmarks only where the process permits, and never cut or obscure the landmark. If the tire changes stands, transfer orientation explicitly before continuing. This keeps a repeated mark tied to mold position, tool stroke, and cavity evidence instead of becoming an untraceable cosmetic complaint. Record the reference in the traveler before releasing the stand.

What goes wrong (and the fix)

The ridge is a mold step, not flash. Hold and escalate; trimming cannot align surfaces.

One pull is taken around the circumference. Restore segment stops and inspection.

The ribbon is pulled by hand. Release it and shorten the controlled cut.

A V wall tracks into the sidewall. Stop, inspect the knife/presentation, and hold affected tires.

The offset is used to lever through heavy excess. Re-establish tangent or choose another controlled method.

A groove is bridged. Stop before it and restart only at a supported entry.

A required mark is skimmed. Hold the tire and restore exclusion mapping.

Repeated rework is hidden in cycle time. Record it and investigate edge/incoming process.

66060 is renamed H213. Preserve the official 213 record.

A notch is widened by shop grinding. Quarantine the modified pattern.
