Tape Inside Corners with a Banjo

Job: Deliver and place compound-loaded paper tape into drywall inside angles with the Hyde 09077 Soft-Grip Banjo Taper

Time: One to several hours for a room, plus compound preparation, setup, immediate washout, and normal coat schedules

Everything else: compatible paper drywall tape and taping compound; approved mixer and clean water; pan; appropriate joint and corner knives/tools; measuring and cutting method; corner-access equipment; drop protection; washout station; compound label/safety data; PPE and old-wall controls where applicable

The banjo’s flat-seam stroke is continuous: stick the tape and walk. Inside corners break that rhythm. Each angle needs a measured length, a deliberate fold on the paper’s factory centerline, careful placement into two planes, and controlled embedding before the compound loses workability.

The 09077 still contributes its strongest value: it meters the bed coat onto the tape before the strip reaches the angle. That can remove the difficult act of buttering compound evenly into a deep corner. It does not remove the knife work that seats the tape.

Confirm the corner belongs to paper tape

Identify the assembly and selected joint system. This guide assumes an ordinary drywall inside angle assigned to paper tape and compatible compound.

outside corners that require bead or another specified reinforcement;

control/movement joints;

gaps or unsupported edges beyond the joint system;

loose board, fastening failure, water damage, or active movement;

dissimilar-material joints assigned to sealant or another system;

self-adhesive mesh, which is placed dry and should not travel through compound.

Do not select tape by what fits the banjo. Select it from the wall specification.

Release the room for taping

Confirm board fastening, prefill, corner geometry, temperature, humidity, ventilation, and access meet the compound/tape requirements.

Remove only loose gypsum and paper. Fill gaps and damaged edges through the approved joint method before tape delivery.

If the angle is part of an existing pre-1978 painted repair, disturbance can trigger EPA’s lead Renovation, Repair and Painting requirements. Resolve assessment and containment before scraping or sanding old paint.

Protect floors and finished work. Establish lighting down the angle so a wandering fold is visible.

Map corner types and working order

Walk the room and list:

full-height vertical inside corners;

short soffit and bulkhead returns;

intersections where three planes meet;

damaged or irregular angles needing hand treatment.

Group continuous, accessible angles for the banjo. Mark short, obstructed, or highly irregular pieces for hand delivery if the banjo’s setup and wet-strip handling add more work than they remove.

Plan an order that keeps placed tape close to the embedding operator. Do not pull a room’s worth of wet lengths and stack them.

Establish safe access

Choose ladders, platforms, scaffolds, or lifts through the site access plan. OSHA’s construction ladder standard is the federal baseline where it applies.

Keep both feet/body inside the access system’s working position. Reposition rather than leaning with a loaded strip.

Stage pan, knife, measured tape, and banjo so no one climbs while carrying an uncontrolled wet ribbon. Keep the floor route free of compound and tape scraps.

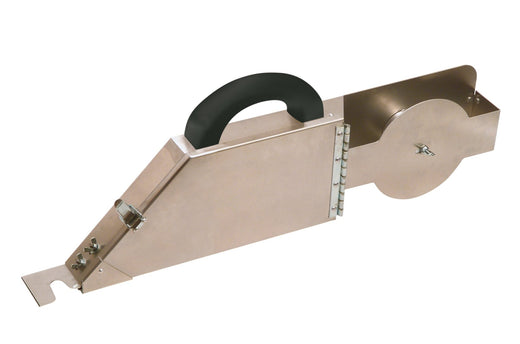

Verify the exact 09077

The accepted Hyde identity is Soft-Grip Banjo Taper, model 09077. Its supported features are:

lightweight, well-balanced construction;

quick-load design, with the physical mechanism unverified;

2-quart easy-fill compound compartment;

wing-nut-adjusted mud-flow dam;

roll compartment for up to 500 feet of standard drywall tape;

adjustable side strap designed for right-handed use only.

“MAXXGRIP PRO” and “Quick Load” as marks appear only in the store title. Do not promote them to manufacturer branding.

No body material, weight, or wet-versus-dry banjo architecture is claimed.

Inspect the tool before compound

Check the body, strap, roll and compound compartments, dam adjustment, tape path, controls, and visible retention points through the manufacturer instructions.

loose or damaged components;

dried compound in the path;

sharp damage that can cut tape;

a control that binds or will not hold;

an improvised strap or altered mechanism;

Turn both wing-nut adjustments deliberately and keep them balanced as the tool design requires. Do not force a stop or infer an adjustment range.

Prepare compound for the banjo

Use compound authorized for the tape coat and the 09077. Follow its water, mixing, rest, working-time, and safety instructions.

At banjo grain, the batch must:

flow through the dam;

coat tape continuously;

avoid entrained air;

retain enough body for an adequate bed after embedding.

No numeric consistency or compatible-compound list is claimed by Hyde. Tune the actual batch on test tape.

Prepare only what can be placed, embedded, and cleaned inside its working window.

Load the paper roll

Confirm paper tape identity and condition. Keep it dry, straight, clean, and protected from grit.

Load through the verified quick-load procedure. The record does not show whether that mechanism is a latch, gate, or cassette, so follow the tool in hand.

Thread the tape through the manufacturer path without twists. Leave enough clean lead for the test pull.

The up-to-500-foot claim is capacity, not a requirement to carry the largest roll on every corner job.

Load a working amount of compound

Fill the 2-quart compartment through the authorized method. For corner work, use a working amount suited to access and sequence rather than treating maximum capacity as a target.

Close and secure the tool as instructed. Wipe exterior spills before the strap/handle is gripped.

The strap is designed for right-handed use. Whether it removes or reverses is unverified; do not improvise a left-hand conversion.

Tune on a test ribbon

Pull a representative length over protected scrap. Read the compound coat across the tape:

full width covered;

no dry bands or windows;

no uncontrolled sheets of excess;

repeatable coating over several feet.

Adjust the wing-nut dam in small equal changes and test again. A dry stripe can reflect a tight dam, stiff batch, lump, or falling material head. Excess can reflect an open dam or loose batch. Diagnose rather than turning blindly.

Embed a test piece in a mock angle where the finish consequence is high.

Measure the first corner

Measure the clear length without jamming tape into intersecting planes. Allow the end condition required by the taping method.

Mark or memorize orientation. Wall-to-ceiling pieces and vertical pieces can pick up dirt or fold on themselves if allowed to trail.

Do not pre-cut an entire room unless the workflow keeps the pieces dry. The banjo supplies wet tape after payout, and wet lengths should move directly to placement.

Pull one wet length

Pull at steady tension so the tape receives an even coat. Support the emerging ribbon without squeezing compound off or allowing it to touch floor, clothing, ladder, or itself.

Stop at the measured length. Tear or cut through the verified tool/job method. No cutter or tear-edge geometry is claimed on the 09077; do not invent one.

Carry the strip with the compound side controlled and the factory center crease visible.

Crease along the factory fold

Fold the pre-mudded paper deliberately along its manufactured centerline. Start at one end and maintain the same direction to avoid a corkscrew.

Do not pinch so hard that all bed compound is squeezed away from the fold. Do not create a new off-center crease.

Wet paper is less forgiving of repeated unfolding. If the fold wanders badly, replace the strip rather than forcing a crooked ridge into the angle.

Place into the bare angle

Because the banjo tape carries its bed coat, place it into the prepared unbuttered angle unless the specified system says otherwise.

Align the factory fold with the corner apex. Lightly tack the tape from the center or one controlled end through the approved method.

Keep each face flat without stretching. Watch that end clearance remains correct and the strip does not bridge over a low section.

If the tape will not contact both faces, stop and inspect the corner geometry or compound coat.

Seat the fold first

Use the approved corner or joint tool to establish the fold at the apex without cutting the paper.

Work deliberately so compound remains beneath the fold. A dry apex becomes a blister or split line; a flooded apex pushes the tape away and creates a rounded corner.

Do not drag the entire strip downward while trying to correct one local offset. Lift and reset only within the tape/compound working method.

Embed one face under control

Hold the fold centered while wiping one face from the center toward the ends or through the specified sequence. Use enough pressure to remove excess and air while retaining a continuous bed.

Keep the knife/tool edge away from the paper fold. A hard strike into the apex can cut or polish the tape.

Collect squeeze-out in the pan. Do not spread contaminated material down the second face.

Embed the second face

Stabilize the first face and wipe the second. Check that the fold remains in the apex rather than being pulled toward the second tool stroke.

At intersections, finish the end without building a thick wet knot. Follow the joint system’s overlap order; this guide does not invent one for every three-plane condition.

Inspect both faces for bubbles, dry areas, wrinkles, lifted ends, and excess.

Keep the delivery lead short

The 09077 can pull wet tape faster than one person can place and embed corner lengths. Establish a maximum number of pieces ahead based on the compound and room conditions.

With two workers, one can pull/measure while the other places/embeds, but roles must stay synchronized. Wet strips should not wait on a board, ladder, or floor.

If placement falls behind, stop the banjo and protect/clean it under the break procedure. Do not sacrifice embedment to preserve payout rhythm.

Handle vertical corners

Work from the access position that keeps the full length controlled. For long vertical strips, prevent the lower end from touching the floor or folding.

Align the crease before committing both faces. Gravity can elongate a wet ribbon if it is pulled rather than supported.

Inspect from across the room; a fold can look centered at arm’s length yet wave down the full height.

Handle wall-to-ceiling angles

Use access that keeps shoulders and wrist in a controlled range. Pull a working amount of compound into the banjo rather than loading by capacity.

Place and embed in manageable runs. Watch the horizontal fold in raking light along the ceiling.

Do not use the banjo or wet strip as a reason to overreach. Reposition access at every required interval.

Decide when the pan is better

Switch to hand delivery when:

the angle is shorter than the setup needed to manage the wet strip;

several obstructions interrupt the run;

the corner is irregular or damaged;

access cannot safely accommodate the loaded tool;

the operator cannot control the right-hand strap geometry;

the compound/tape system is not verified for the banjo;

pace cannot keep wet tape inside its placement window.

A hybrid room is not an inconsistency. It is the correct use of two delivery methods.

Inspect before later coats

After the tape coat reaches the specified state, inspect:

fold centered and straight;

both faces bonded;

no blisters or wrinkles;

no dry stripe;

ends and intersections secure;

no excessive compound ridge;

no cut paper.

Correct defects through the tape-and-finish method before hiding them under fill coats.

Later coats belong to the complete corner-finishing system, not the banjo.

Clean immediately

At breaks, protect tape and empty/clean the compound path as the tool instructions require. At shift end, remove the roll before exposing paper to wash water.

Wash the 2-quart compartment, dam, path, and exterior to bare serviceable surfaces using only authorized cleaner/tools. Keep compound solids out of drains except through an approved route.

Claims are silent on materials and care. Immediate washout is Tier-1 maintenance doctrine, not a Hyde service-life promise.

Record the corner operation

Record tape and compound, 09077 identity, dam witness, working load, corner types, method exceptions, defects/corrections, washout, and observed operator fit.

Do not convert local pull pace, footage, or compound setting into a product specification.

Store the clean dry tool with the tape path and strap protected.

Retain the accepted corner witness so the next compound batch begins from observable evidence rather than memory.

What goes wrong (and the fix)

Wet tape twists before placement. The length was unsupported or folded off-center. Replace it and control one piece at a time.

The apex blisters. The fold was starved, bridged, contaminated, or not seated. Correct under the tape system before later coats.

One face pulls the fold off center. Stabilize the crease and embed the faces sequentially with lighter control.

Corners wait while the banjo keeps pulling. Stop delivery; shorten the lead or add a synchronized embedding operator.

Compound sheets off the tape. Recheck mix and dam on a test ribbon.

A left-handed strap workaround is promised. Remove the promise; right-hand design is claimed, reversibility is not.

Mesh tape is loaded. Stop. Self-adhesive mesh belongs to dry placement.

Dried material remains in the dam. Reclean before storage; hardened residue changes the next coat.

An old painted corner is sanded without assessment. Stop and invoke the applicable lead process.

The history footnote

Inside-corner paper tape predates the hand-held banjo, and the banjo simply mechanizes how its bed coat arrives. No accepted source identifies the banjo’s inventor or first corner application, so this guide keeps the trade pattern anonymous.

Exact tools, verification, and backlink footer

The guide preserves the right-hand-only strap claim.
