How to Spread and Smooth Compound on a Patch

Its complete accepted manufacturer record is unusually narrow: Hyde calls it a “Multiuse smoothing tool for spreading drywall compound and shaping inside corners” and states “Three smoothing edges: 4", 6" and 10".” The record does not state the tool material, flex, silhouette, edge arrangement, handle, chemical resistance, striking capability, patch-system compatibility, compound formulation, or what the name’s “5-Way” enumerates. This guide teaches the trade sequence without manufacturing any of those missing facts.

Job: take a sound, prepared local patch through compound application, strike-off, widening, feathering, dry inspection, correction, and primer so the repair no longer reads as a hard-edged island under raking light.

Active spreading is brief; drying or setting owns the calendar. Use every mix, working, recoat, sand, prime, and finish interval printed by the current manufacturers. This guide supplies no substitute clock.

Difficulty: approachable hand finishing, with one demanding lesson: a patch disappears by becoming wider and thinner, not by becoming thicker.

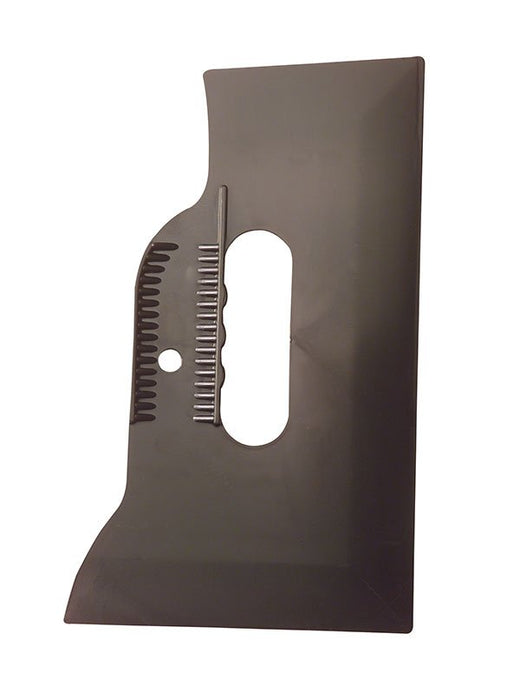

Hyde verifies three smoothing-edge spans, 4", 6", and 10", and the functions of spreading drywall compound and shaping inside corners.

Everything else: a patch or repair already made sound by its own approved system; compatible drywall compound; the measuring and mixing equipment required by that compound; a clean pan, board, or container if its directions call for one; clean water only when and as the compound maker permits; a bright movable work light; a true straightedge; approved sanding or damp-smoothing equipment; dust capture and PPE selected from the compound label and SDS; compatible drywall or repair primer; and separate preparation tools where the patch still needs cutting, scraping, fastening, reinforcing, sealing, or leveling. The 09510 is documented as a smoothing tool, not as the entire repair kit.

“Patch” describes the repair zone, not one universal product. It may be a filled depression, a reinforced opening, a cut-in piece of board, a taped local seam, or another repair that its manufacturer and the wall system allow. Those systems do not share one preparation or coating schedule.

Inspect before mixing:

Press lightly around the repair. Nothing should move, click, flex independently, or open at an edge.

Confirm that every required fastener, reinforcement, tape, backing, seal coat, or patch carrier is present and cured or set to its maker’s requirement.

Remove only the dust, loose material, projections, contamination, and gloss that the patch, compound, substrate, and coating directions require.

Stabilize torn or fuzzy drywall face paper with the approved sealer before putting water-bearing compound over it. Do not bury moving paper and call it reinforcement.

Resolve active moisture, staining, mold, corrosion, structural movement, and crumbling substrate before finish work.

Confirm that the patch does not stand so proud that finishing it would require an unreasonable mound. A high repair is corrected at the repair layer; smoothing compound is not camouflage for bad geometry.

If the patch system does not authorize the planned compound or the receiving surface, stop. The Hyde claim says drywall compound; it does not certify every patch plate, tape, fabric, plaster, masonry, wood filler, exterior repair, wet-area assembly, fire-rated assembly, or proprietary panel system.

This guide is for a prepared drywall-repair workflow because that is the material class named in Hyde’s function claim. Even within drywall work, the receiving field may include:

bare paper-faced gypsum board;

a cured prior compound coat;

sound painted wall surrounding the repair;

sealed damaged face paper;

an approved patch carrier or reinforcement;

a transition among several of those surfaces.

Each can absorb water and finish differently. The compound, panel, patch, existing coating, primer, and assembly instructions decide whether the union is allowed and what preparation it requires. Do not infer “works on plaster” from “drywall compound,” do not infer “works on every drywall patch” from a store taxonomy, and do not treat an accepted compound on bare board as automatically accepted over glossy paint, an unknown stain, exposed brown paper, mesh, metal, fabric, or another repair material.

Rated, smoke, acoustic, shaft-wall, ceiling, wet-area, exterior, abuse-resistant, mold-resistant, and other proprietary assemblies keep their listed treatment. A hand smoother never broadens an assembly listing.

Read the current label, technical data sheet, and safety data sheet for:

permitted substrates and patch systems;

ready-mixed versus powder or setting-type preparation;

whether mixing is required, permitted, or prohibited;

water allowance and addition sequence;

batch size, working time, set or dry condition, and disposal point;

maximum fill or coat thickness;

environmental limits and ventilation;

sanding or damp-smoothing method;

required eye, skin, clothing, and respiratory protection;

recoat, primer, and finish compatibility.

No water ratio, film thickness, working time, dry time, recoat time, temperature, grit, primer, or PPE formula transfers safely from one compound to another. If the current container and current technical directions disagree, stop and resolve the current manufacturer instruction before mixing.

Diagnose the patch before choosing an edge

Read the repair in raking light

Hold a bright light close to the wall so the beam travels across the surface. Inspect from at least two directions, then bridge the repair with a true straightedge and sweep a flat hand across it.

Sound and low: the patch is stable but has a depression. It needs fill before it needs feather.

Sound and nearly flush: it needs only a thin coat and a widening feather.

Sound but crowned: the center stands high and the straightedge rocks over it. Correct the high repair by the method its system permits before adding compound.

Hard shoulder: the center is acceptable but the existing coat ends abruptly. This is a perimeter-blending problem; add width, not center thickness.

Loose, hollow, cracked, or moving: stop. Return to patch construction or substrate diagnosis.

Geometrically flat but visibly different: the problem may be texture, porosity, stain, sheen, or color—not compound shape. Do not make a smooth window larger by coating it again without diagnosing the finish.

Drywall finishing does not usually make a reinforced patch literally disappear into one mathematical plane. It distributes the repair’s necessary thickness into a broad, shallow transition. The eye forgives a gradual arc; it finds a short ledge immediately.

Decide whether this is a flat patch or a patch terminating at an inside corner

Hyde verifies both spreading drywall compound and shaping inside corners, but it does not describe the 09510’s corner geometry or method. The safe application boundary is:

On a flat patch, spread, strike, and feather the repair field.

Where a local patch reaches an inside corner, preserve a clean crease and finish each receiving plane deliberately.

Do not convert the corner claim into permission to tape, embed, or finish a room-length corner run.

Do not infer a fold, notch, profile, preset angle, conforming wing, or off-angle capability from the word “shaping.”

Do not use the 09510 as an outside-corner tool; Hyde claims no outside-corner function for it.

Room-length taped corners belong to the dedicated inside-corner tools or the knife-one-plane-at-a-time method. Off-angle corners belong to a tool whose conformance is actually documented. A patch touching a corner is still a patch; an entire corner is a different job.

Select the 4", 6", or 10" edge without inventing a factory sequence

Hyde verifies that the 09510 has three smoothing edges. The progression below is authored trade interpretation: start with control near the repair, then place each later working edge beyond the preceding shoulder.

Choose by the surface that needs control

4" edge — local placement and first control. Use the narrowest documented span when compound must be placed over the repair itself, when the patch sits near trim or another obstruction, or when a wider edge would bridge the low area instead of filling it. Four inches concentrates hand control and limits how much sound wall is disturbed.

6" edge — build past the first shoulder. Use the middle span when the first application is sound but its edge still reads. It carries the coat beyond the local field while remaining controllable around patch-scale geometry.

10" edge — broad feather. Use the widest documented span when the repair is ready for a thin transition whose working corners can land beyond the previous coat. Ten inches does not authorize a thick coat; its value is reach, so the perimeter can fall toward zero over more wall.

The three spans are not a promise that every repair needs three coats, nor that every coat must be made with a different edge. A tiny, nearly flush repair may need only one suitable pass. A deep or shrinking repair may need repeated fill coats before widening. A patch next to trim may never admit the 10" span. The patch geometry and compound directions decide; the edge follows.

Inspect the exact working edge before every load

The tool material is unresolved, so care remains material-neutral:

Sight along the selected edge under strong light.

Remove compound residue by a method compatible with the tool and the compound.

Reject an edge carrying a nick, curl, dried crumb, embedded grit, or visible distortion that would print into the coat.

Confirm that the tool is intact and controllable in its observed physical form.

Keep all three smoothing edges from striking other tools in storage.

Do not file, grind, heat, bend, solvent-soak, or otherwise recondition the 09510 based on an assumed metal or plastic construction.

Mix only by the compound maker’s method

Prepare the station before the material clock starts

Set out the inspected 09510, required mixing and transfer tools, clean vessel or board, patch-system materials, light, straightedge, cleanup method, PPE, and waste container first. Protect adjacent finished surfaces as required. Establish ventilation and dust containment before work, not after the room becomes contaminated.

Keep dried compound chips out of fresh material. One hard crumb at the edge can score a complete pass and force another coat.

Mix—or deliberately do not mix—according to the current instructions

If the compound is supplied ready for use and prohibits dilution, use it as directed.

If limited remixing or water addition is allowed, use the named tool, sequence, amount, and endpoint.

If it is a setting powder, use the prescribed water, powder, addition order, vessel, mixing method, rest or induction, remix, and working window.

Mix only an amount that can be placed within the stated working period.

Never revive setting compound after it begins to harden.

Never add water by feel to make a poor stroke easier until dirty tools, expired material, wrong temperature, wrong substrate, and an elapsed working window have been ruled out.

The correct working consistency is the one the compound maker defines for the approved use. This guide does not convert “creamy,” “workable,” or any food comparison into a measurable recipe.

Make one witness pass off the wall when the directions permit

Draw a short sample on the clean pan, board, or approved test surface. The material should transfer and release in the manner the compound maker describes, without foreign particles or obvious unmixed zones. A witness pass checks the prepared material and the clean edge; it does not prove substrate compatibility or cure.

Reject material that is contaminated, outside its working window, or behaving contrary to its directions. Do not apply a questionable batch to the patch to see what happens.

Apply the patch coat: load, spread, press, strike, feather

Load the selected smoothing edge cleanly

Transfer a modest ribbon of compound to the working zone of the selected edge in the manner its visible geometry safely allows. Because Hyde does not document the tool’s silhouette or loading mechanism, this guide asserts no pan hook, handle angle, reservoir, blade face, or hidden channel.

The trade objective is simple:

enough material to wet and fill the diagnosed zone;

little enough that the first pass does not create a mound;

working corners kept as clean as practical so they do not lay parallel ridges;

remaining compound protected from dust and dirty-tool return.

Never return scraped wall material to the clean supply.

Spread compound onto the repair, not indiscriminately around it

Set the selected edge onto sound receiving surface and move across the repair in a controlled pass. The initial spread delivers material:

On a low center, direct material into the depression.

On a nearly flush field, place only enough to cover the repair and its immediate shoulder.

On a patch carrier or reinforcement, follow that system’s direction for pressure, direction, coverage, and permissible compound.

Near an inside corner, work one plane at a time unless an exact manufacturer direction for this tool and system says otherwise; preserve the crease rather than rounding it with surplus material.

Do not scrape, cut, pry, or use force intended to correct the substrate. A smoothing pass begins only after the patch is ready to receive it.

Press only enough to establish contact and fill the allowed void

Pressure has two different jobs:

In the repair zone, it drives approved compound into a shallow depression or around approved reinforcement as the patch system requires.

At the perimeter, it meters the film thinner toward sound wall.

Pressure does not make an incompatible compound bond, stabilize a moving patch, force wet material through an unauthorized carrier, or compensate for a coat thicker than the compound allows. If the patch moves under the pass, stop immediately and return to construction.

Keep the tool under control and hands clear of working edges. The material, edge, flex, and grip are not documented, so do not assume the pressure capacity of a steel joint knife or the harmlessness of a soft plastic spreader.

Strike off the excess while the material remains workable

Here strike means *strike off*: screed or wipe surplus compound away. It does not mean hitting the tool. The 09510 has no documented hammer head, striking butt, impact rating, or prying role.

Clean the selected edge, then make a continuous controlled pass across the wet coat:

remove the surplus that sits above the intended repair arc;

keep the center filled rather than scooping it hollow;

carry each pass beyond its own start and stop marks;

reduce pressure while the tool is still moving before lifting away;

clean the edge as soon as a ribbon or crumb begins tracking.

Do not stop the full edge on the wall and lift straight away; that stamps a ridge. Do not chase a nearly correct coat until the center becomes hollow. If the material begins tearing, rolling, or skinning, stop and follow its working-window direction.

Feather the perimeter with differential pressure

Once the repair field is filled and struck, clean the tool and use the 6" or 10" edge when the geometry admits it. Begin inside the wet or cured coat field, travel across the shoulder, and finish on sound surrounding surface.

Bias pressure toward the outboard portion of the working edge—the side traveling over the old wall—while allowing the inboard portion over the repair to float. Let pressure fall continuously as the pass leaves the compound. This creates a gradient:

adequate material over the repair;

less material at the shoulder;

a film approaching zero at the outer edge.

Work the perimeter in deliberate sectors rather than repeatedly polishing the center. For a four-sided patch, address top, right, bottom, and left as separate transitions. Overlap enough to avoid gaps, but do not add four accidental coats to the center.

The last pass should be longer, cleaner, and lighter than the pass before it. A wide edge cannot rescue a thick load; it only spreads the error farther.

Shape a patch termination at an inside corner conservatively

Where a patch reaches an inside angle:

Confirm that the corner itself is sound and that any tape or reinforcement is already installed and ready under its own system.

Place compound only where the repair requires it.

Keep the crease visible and free of a heavy rope of compound.

Work one face, then inspect the partner face before touching it.

Draw each finish pass away from the crease so the far part of the edge does not trench the opposite wet plane.

Remove wet accumulation before it hardens into a sanding problem.

This is class-grain corner discipline, not a claim about an undisclosed 09510 profile. If the observed tool cannot reach or shape the patch safely without assuming a fold, point, or notch, use the exact corner method authorized for the repair rather than improvising with the 09510.

Stop while the wet coat still has one coherent shape

Use raking light to catch gross ridges, stop marks, bare voids, or obvious hollows while the local section remains workable. Do not demand final proof from wet sheen; moisture can hide a hollow and exaggerate a harmless reflection.

Correct only what can be corrected cleanly inside the material’s working window. When the coat is coherent, hands off. Another wet pass is not automatically another improvement.

Dry, inspect, then choose sand or recoat

Let the compound reach its required condition

Follow the current compound instructions for set, dry, recoat, sand, and decoration. These are not interchangeable states:

firm is not necessarily dry;

surface pale is not necessarily dry through the coat;

set is not necessarily ready to sand;

ready to recoat is not necessarily ready to prime.

Do not trap moisture under another coat. Do not use heat, fans, added hardener, extra water, or environmental changes outside the manufacturer’s direction to force the schedule.

Inspect the dry coat from more than one direction

Remove loose surface dust only by the approved method, then use the same raking light, straightedge, and flat-hand test used before the coat.

Low center or shrink dish: add compound. Sanding cannot fill absence.

Hard ridge or nib: remove only what stands proud by the approved dry method.

Broad gentle crown with no abrupt edge: often the correct repair geometry; continue only if raking light still reads it.

Visible shoulder: widen with the next useful span, usually moving from local control toward the 6" or 10" edge.

Tracks repeating the working edge: stop and inspect that edge for a nick, crumb, or distortion before recoating.

Crack, lifted reinforcement, hollow, or movement: return to patch-system diagnosis. More finish compound is not a repair.

Brown paper swelling, stain return, or dampness: stop and resolve/seal the underlying condition under the correct system.

Sand only a fully ready coat, and control the dust

Use only the abrasive, grit, damp method, block, sander, and dust control the compound and wall system permit.

High = subtract carefully.

Low = add another coat.

A shoulder = widen and feather.

A sound, smooth transition = stop sanding.

Sand the coat, not the reinforcement, patch carrier, drywall paper, or surrounding paint. Keep a rigid backing where plane correction is required and a conforming fine face only where the perimeter needs blending. Stop if the abrasive smears, pills, or rolls the compound; the coat is not in the required condition.

Drywall sanding dust is not harmless nuisance powder. Use the compound SDS and site hazard assessment to select containment, local extraction, eye protection, protective clothing, cleanup, and respiratory protection. A simple dust mask is not a universal answer, and a household vacuum without appropriate fine-dust/HEPA control can redistribute the finest fraction.

If feathering disturbs existing paint in a pre-1978 building, apply the lead-testing and lead-safe-work boundary before abrasion; paid work in covered housing and child-occupied facilities may fall under the EPA Renovation, Repair and Painting program (EPA — RRP Program). Old existing patching compounds and textures can also present asbestos uncertainty; CPSC’s ban on asbestos-containing consumer patching compounds took effect in the late 1970s, so test or obtain competent assessment before disturbing suspect legacy material rather than assuming the new compound makes the perimeter safe (CPSC — Asbestos in Consumer Patching Compounds).

Recoat only the defect that remains

Fill a low zone without reloading the already-correct center.

Carry a hard shoulder wider with a thinner pass.

Use the next useful documented edge span only when its working corners can land beyond the old transition.

Correct one side of an asymmetrical patch instead of building a ceremonial halo around all four sides.

Let every correction reach its required set or dry condition before another inspection.

If a correct 10" feather still leaves the patch visible because the repair itself is too proud, the wall is under severe critical light, or the finish requires a broader arc, stop asking the 09510 to become an undocumented production knife. Correct the patch construction or hand the finish to an appropriately documented wider tool and method.

Clean the 09510 before compound cures on its working edges

Follow the compound’s cleanup direction and use only a method compatible with the tool’s verified or manufacturer-confirmed material. Because the 09510 material is unresolved:

do not assume solvent compatibility;

do not assume it may soak;

do not assume it can be scraped with metal;

do not assume it is rustproof;

do not assume it tolerates heat;

do not assume an edge can be resharpened or reformed.

Remove residue while it is still cleanable by the authorized method, dry the tool, inspect all working edges, and store it so none bears against harder objects. Do not return contaminated wash water or cured debris to fresh compound or a drain contrary to product and local disposal directions.

Prime: the handoff from geometry to decoration

Remove all sanding residue

Use the vacuuming, brushing, or barely damp wiping method the compound and coating system allow. Dust temporarily fills scratches and lows; a dusty patch can look finished until primer binds the powder into a visible defect—or fails to bind to the wall at all.

Let any damp-cleaned surface reach the required dry condition, then inspect again under raking light. Add to lows; subtract from highs. Do not use primer as body filler.

Prime the complete worked zone

Bare compound, drywall paper, sealed paper, patch material, sanded paint, and untouched paint absorb finish differently. A geometrically smooth patch can still flash as a dull or shiny island unless primer unifies the worked zone.

Apply the primer class required by the compound, patch, substrate condition, stain condition, and finish-coat manufacturers. Cover the compound and every place preparation or sanding altered the surrounding surface. Let it dry by its own direction, inspect the uniform surface under raking light, and correct visible geometry before topcoat.

Primer solves porosity and supports adhesion; it does not flatten a ridge, fill a hollow, stabilize a moving patch, stop active moisture, or make an incompatible compound compatible. On aged or higher-sheen paint, a full wall-plane repaint to a natural break may be the only honest way to avoid a touch-up halo after the patch geometry is correct.

What goes wrong — diagnose the stage, then correct it

The tool leaves parallel tracks on every pass. A dried crumb, nick, curl, or distorted working edge is printing its shape. Stop, clean and inspect the exact edge, and recoat only after the tool can make a clean witness pass. Do not sand the whole patch repeatedly while reusing the damaged edge.

The compound rolls or tears instead of smoothing. The material may be outside its working window, mixed contrary to direction, too dry at the receiving surface, contaminated, or dragged by a dirty edge. Stop and diagnose from the current label and station. Water is not a universal reset.

The center becomes hollow while the outer wall grows wider. Too many strike-off passes scooped the repair while trying to polish the perimeter. Let it reach the required condition, refill the low center locally, then feather without repeatedly crossing it.

A ridge appears where every stroke ends. The full edge stopped before lift-off. While the material remains workable, clean the tool and make a longer, lighter pass through the mark, letting pressure fall before the tool leaves the wall. After dry, remove only the ridge and recoat if required.

The patch looks like a low mound. The coat was built thick and narrow. Do not add more over the center. Correct a high repair as its system allows, then widen the transition with thin passes.

The outline appears in evening side light. The perimeter is too abrupt, even if it feels smooth under overhead light. Inspect the dry coat, widen only the visible shoulders, and test again with the lamp at the room’s real window angle.

The patch is flat but shows as a dull or shiny island. That is flashing or finish mismatch, not necessarily bad compound geometry. Prime the complete worked zone; if aged color or sheen will not touch up, repaint to a natural break.

The repair cracks around its edge. The patch or substrate is moving, reinforcement is deficient, the system is incompatible, or moisture remains active. A wider coat cannot stabilize motion.

Reinforcement or patch material appears while sanding. Stop sanding. Follow the patch system’s repair/recoat direction. Abrasion cannot restore reinforcement already exposed or damaged.

Drywall face paper fuzzes or swells. The coat or sanding reached unprotected paper, or torn paper was not stabilized.

The wet coat blisters over painted wall. The receiving coating may be dirty, glossy, weak, water-sensitive, or incompatible; damaged face paper may be swelling underneath. Remove only failed material under the applicable hazard controls and resolve the substrate before recoating.

A 10" pass makes the repair worse. Width was added before the center was correct, the patch sits too close to an obstruction, or the edge is being asked to bridge rather than feather. Return to the 4" or 6" span for controlled correction, or use the documented tool required by the actual geometry.

The inside-corner line rounds over. Excess compound accumulated in the crease or both wet planes were worked indiscriminately. Remove wet excess while authorized, preserve the line one plane at a time, and use a dedicated corner method if the repair exceeds local patch shaping.

Compound cures on the tool. Cleanup began after the allowed window. Follow the compound maker’s cured-material direction and the tool maker’s material-safe care; do not improvise solvent, heat, scraping, or grinding on an unresolved tool material.

The worker develops eye, skin, breathing, or sensitization symptoms. Stop exposure, leave the work area as appropriate, and follow the current SDS first-aid and medical instructions. Do not treat odor or the absence of odor as an exposure meter.

Buyer tests — when the singleton is the right answer

“I want one documented tool for local drywall-compound spreading at three spans.” → 09510 is the exact match. Hyde verifies 4", 6", and 10" smoothing edges on one named tool.

“I need to fill locally, build past the shoulder, then feather wider without carrying a knife roll.” → 09510 fits that authored patch workflow, with one caveat: 4" → 6" → 10" is trade interpretation, not a Hyde-mandated coat schedule.

“My patch terminates at an inside corner.” → 09510 has a verified inside-corner-shaping function at patch grain. It does not inherit taped-corner-run, preset-angle, off-angle, or outside-corner claims.

“I need a known stainless, polypropylene, rubber, or chemically rated edge.” → do not choose from this record.

“I need a production drywall knife with documented flex, handle, pan workflow, and replacement system.” → choose a product whose record verifies those properties. None is established for 09510.

“I need to cut out damage, scrape ridges, drive fasteners, embed an entire taped corner, sand, or strike a tool with a hammer.” → 09510 is not the documented tool. It is a smoother; those are separate operations.

“I need proof that it works with this exact patch plate, mesh, fabric, plaster, wood filler, exterior compound, or rated assembly.” → the record supplies none. Resolve compatibility from every system maker before purchase or use.

“I want to know all five ways before buying.” → no accepted source enumerates them.

Exact false-neighbor calls

09510 vs a 4"–6" flexible putty or joint knife: 09510 uniquely carries three documented smoothing-edge spans on one tool. A documented knife may instead provide known material, flex, handle, and pan technique. One-object span versus verified knife mechanics is the real decision.

09510 vs a dedicated inside-corner finisher: 09510 spreads compound on a patch and claims local inside-corner shaping. A dedicated folded corner tool is selected for a corner run and has its own verified angle, wings, or material. Patch widths are not corner-run geometry.

09510 vs a conforming wipe-down tool: the 09510’s verified distinction is 4"/6"/10" smoothing edges; no conforming material or off-angle fit is claimed. Choose the wipe-down tool when conformity is the documented need.

09510 vs a sanding tool: the 09510 adds and smooths wet compound. A sander subtracts cured compound and controls dust. Neither operation becomes the other because both occur on one patch.

The buyer test is intentionally conservative because this is a singleton. There is no second product sharing both its observed job and three-edge claim in the frozen register. The useful comparison is therefore not a fictional sibling; it is whether the job needs the 09510’s documented spans or a different mechanism with different verified properties.

The history footnote — the patch is a consequence of the panel wall

The hand motion in this guide is older than drywall: place a wet mineral paste, strike off the surplus, then widen the edge until the repair merges with its field. What is comparatively young is the paper-faced panel patch.

Augustine Sackett’s [U.S. Patent 520,123]( issued in 1894, described an interior wall covering built from layers of plaster and paper that could be fastened as boards. Once walls arrived as panels, every fastener, meeting edge, cutout, and accidental hole created a finish problem that could be solved with compound rather than a full plastering campaign.

That panel system explains the edge progression more honestly than a marketing slogan does. A local repair needs one scale to place material, another to move beyond the first shoulder, and a wider one to distribute the remaining rise until light stops finding it. Hyde’s 09510 packages three verified spans—4", 6", and 10"—inside that modern patch economy.

The 2024 Hyde catalog proves the model and its documented functions in that catalog; it does not prove the origin of the pattern or the current lifecycle of the exact SKU.

Manufacturer and safety/history sources

EPA — Renovation, Repair and Painting Program

CPSC — Asbestos in Consumer Patching Compounds

[U.S. Patent 520,123 — Augustine Sackett wall covering](

Lifecycle unresolved: the exact model is present in the 2024 catalog, but no exact hydetools.com product page resolved in the frozen official-web pass. No current availability, replacement, replenishment, or price claim is made.

“Five ways” unresolved: Hyde verifies three edge spans and two broad functions but does not enumerate five ways. This guide does not convert that coincidence into a manufacturer claim.

Material unresolved: no accepted source states metal, steel, stainless steel, plastic, polypropylene, rubber, composite, coating, chemical resistance, rust behavior, or edge-maintenance method for 09510.

Silhouette and mechanism unresolved: product art exists in the official catalog packet, but no accepted text describes the arrangement of the three edges, handle, fold, notch, profile, reservoir, loading face, flex, angle, or corner-shaping mechanism. No such feature is inferred from the image.

Compatibility unresolved: no patch plate, tape, mesh, fabric, panel, compound brand/formulation, plaster, masonry, wood, exterior, wet-area, rated assembly, primer, coating, or cleanup chemical is bound to 09510. Every system union remains manufacturer-controlled.

No compound recipe or clock: ratios, water additions, batch size, thickness, working time, set/dry/recoat/sand/prime schedule, environment, PPE, disposal, and finish remain current label/TDS/SDS-controlled.

No impact or removal role: “strike off” in this guide means screed wet excess. It does not authorize hammer striking, scraping, prying, cutting, shaving cured material, or substrate preparation.

Corner scope stays local: the accepted phrase “shaping inside corners” does not establish taped-corner embedding, whole-run finishing, outside-corner use, off-angle conformity, or a dedicated corner-tool geometry.

History unresolved at the exact pattern: panel-wall history is sourced; no inventor, first maker, first date, patent, or Hyde-origin claim for the multi-edge smoothing tool is made.

Every linked method keeps its own job boundary.
