How to Spread Flooring Adhesive Along Walls and Into Corners

The union is a discovery set, not an endorsement set. The exact flooring, adhesive, and substrate instructions control the approved notch, coverage or transfer requirement, open and working time, rolling or placement method, perimeter treatment, cleaner, and release clock. This guide does not create a universal corner technique or performance promise.

Job: continue a qualified flooring-adhesive installation from its open field to straight wall lines, inside corners, base-molding runs, cabinets, alcoves, and other confined perimeter zones while preserving the same approved bed and installation conditions.

Time: the edge pass is part of each adhesive section, not a separate timed project. Its workable duration is whatever remains inside the exact adhesive’s open and working windows under actual temperature, humidity, airflow, and substrate porosity. Do not use a generic “minutes per wall” estimate.

Difficulty: moderate hand work, high system discipline. Reaching the boundary is easy; delivering the same approved amount at the boundary, without spreading outside the flooring layout or overrunning the adhesive window, is where failures start.

Carry both; choose neither. The offset feature makes it an edge-format candidate, but only the exact adhesive and flooring system can admit one of its printed meters.

Hyde does not say that the taper substitutes for the 19041’s offset along base molding, nor does it establish a covering-specific edge method, coverage result, or speed advantage.

It cannot be matched to an adhesive TDS until exact Hyde evidence supplies the missing meter and duty.

Everything else: the exact flooring and adhesive, with current installation instructions, Technical Data Sheet (TDS), and Safety Data Sheet (SDS) · exact substrate or approved underlayment instructions · primer or moisture-mitigation system where specified · the field trowel already approved for the installation, if different · pail, scoop, or margin tool used only as its maker permits · straightedge, tape, pencil, and layout marks · the covering-specific roller, hand roller, weighted roller, beating block, or other placement equipment the system requires · clean cloths and the exact cleaner named by the adhesive maker · PPE from the SDS · suitable temporary edge protection or weights only where the flooring maker specifies them. Base, trim, transition pieces, cove systems, seam treatments, moisture testing, substrate repair, and hazardous-material work are separate system components, not supplied by this three-tool union.

Write down five fields before opening adhesive: flooring exact product · adhesive exact product/revision · substrate exact material and preparation · approved trowel/notch · perimeter detail. The perimeter detail means the flooring maker’s actual instruction: full-spread to a cut line, perimeter-bond zone, expansion gap, seam or transition edge, flash-coved turn, removable trim, fixed base, or another listed condition. If any field is unknown, the edge pass is not qualified.

The reason is practical. A tool shape can improve access, but it cannot decide what belongs under the covering. Armstrong Flooring’s current Adhesives FAQ explains that the recommended notch controls deposited adhesive; too large can cause show-through, bleeding, swelling, or buckling, while too small can fail to hold the flooring. The same source defines open and working time as different controls affected by temperature, humidity, and subfloor porosity. Armstrong’s broader F-5061 Installation Guide separates substrate, adhesive/notch, fitting, seam, and installation-system instructions. Those pages demonstrate the hierarchy; they do not approve an Armstrong system—or any other brand—for a project whose exact documents have not been read.

Apply these gates:

Flooring and adhesive must name each other as compatible. Sheet vinyl, VCT, linoleum, rubber flooring, carpet, and glue-down wood are not interchangeable “flooring.” A general-flooring Hyde duty does not authorize every one, and a vinyl Hyde duty does not authorize every vinyl construction.

The substrate must be accepted and ready. Concrete, approved underlayment, plywood, existing resilient flooring, metal, and nonporous surfaces change preparation and adhesive behavior. Moisture, alkalinity, porosity, contamination, flatness, and temperature criteria belong to the exact system. An edge tool cannot correct a rejected substrate.

The notch must match character-for-character. Profile and every printed number matter. “Close,” “fine,” “U,” “V,” or “the one used in the field” is not enough.

The perimeter construction must be known before spreading. Do not assume adhesive goes under fixed base, into an expansion space, across a movement joint, onto a wall face, or beyond a transition. Do not assume a covering that needs full spread in the field wants a different bed at the boundary.

Old-floor hazards are resolved before prep. Suspect old resilient flooring, backing, or adhesive is not a surface to sand, scrape, drill, or “clean up” casually. EPA says not to sand or try to level asbestos flooring or backing and recommends installing over it when possible; damaged or suspect material belongs with a qualified asbestos professional (EPA — Protect Your Family from Exposures to Asbestos). Follow law, the new system’s overlay eligibility, and professional findings before the adhesive stage.

Before spreading: prove the boundary and stage the handoff

Read the documents together. Put the flooring installation instructions, adhesive TDS/SDS, substrate/underlayment instructions, and perimeter-detail drawing at the work area. Record the approved notch, substrate preparation, environmental range, spread method, open-time cue, working-time limit, transfer or coverage check, placement/rolling requirement, cleanup method, and cure/release restrictions. The strictest compatible instruction controls. A contradiction is a stop, not an invitation to average the documents.

Inspect the entire edge zone in good light. Confirm the substrate is sound, clean, flat, dry, and otherwise accepted all the way to the termination line. Vacuum dust and debris by the approved method. Remove only trim the project is authorized to remove. Correct proud fasteners, holes, cracks, patch ridges, paint, old adhesive, moisture conditions, or weak underlayment using the exact substrate system; never use a thicker adhesive bed as floor patch.

Mark where adhesive stops. Transfer the finished layout, seam, transition, toe-kick, cabinet, pipe, and wall limits to the substrate without contaminating it. Preserve specified expansion, movement, and sealant spaces. In a perimeter-bond system, mark the manufacturer’s zone; in a full-spread system, mark the complete bond area. The queue’s phrase “last six inches” describes the access problem, not a universal six-inch adhesive band.

Dry-fit the covering and edge pieces first. Complete the covering-specific fitting, relief cuts, scribing, or plank/tile layout before adhesive blocks access. Confirm the material lies or seats as its maker requires and that the edge can be placed without dragging through an expired spread. This guide begins only after that parent installation is qualified.

Choose the candidate by exact meter first, format second. If the exact adhesive calls for one of the 19041’s printed strings and the flooring is inside its documented vinyl duty, its documented offset can serve corners and base-molding lines. If it calls for the 19066’s exact U-notch and the covering fits its documented general-flooring duty, its tapered rounded ends can serve documented confined-area access.

Inspect the working edge. Clean, straight, undamaged notches are part of the meter. Dried adhesive, wear, chips, bent corners, rust scale, or a distorted blade removes the tool from metering duty until the maker’s maintenance path restores it—or replacement does. Do not use the sound half of a damaged edge and call the bed uniform.

Rehearse the sequence without adhesive. Decide where each small section starts and stops, how the covering will enter it, where the roller or placement tool can reach, and where the pail and clean tools will sit. The edge pass must be placed and consolidated inside the exact working window. If a cabinet or fixed obstacle prevents the specified rolling or placement method, resolve that with the flooring manufacturer before spreading.

Spread, place, and verify

Condition and handle the adhesive exactly as directed. Verify product, lot, shelf life, storage/freeze history, temperature, and required acclimation. Mix only if and exactly as instructed. Do not add water, solvent, cement, or another adhesive to change flow at a corner. Keep the container covered between sections and follow SDS ventilation, ignition, skin, and eye precautions.

Start with a small, representative edge test. Use the flat side to key in adhesive only when the exact system directs it; then use the approved notched edge at the specified angle and method. Spread a section small enough to place and consolidate before its working limit.

Carry the approved bed to the marked boundary. Keep the same authorized meter, angle, ridge orientation, and section discipline used in the field. The documented tool feature supplies access only: the 19041’s official claim is that its 5° offset fits corners and along base molding; the 19066’s is that its tapered rounded corners fit confined areas. Neither claim authorizes levering the blade against trim, changing angle to force reach, freehanding extra adhesive into the junction, or using a special pivot/stroke not stated by the installation system. Where the tool cannot maintain the approved bed, stop and obtain the manufacturer’s approved detail or tool.

Do not contaminate the termination. Keep adhesive out of expansion spaces, movement joints, wall faces, finished base, transition channels, seams awaiting separate treatment, pipe sleeves, and areas the layout excludes. Remove fresh stray adhesive using the exact approved cleaner and method; do not spread it thinner and hide it under trim.

Honor the open-time cue. Start the adhesive’s clock when the section is spread. Follow the exact visual, tactile, or elapsed-time cue stated by its maker. “Dry to touch,” “wet set,” “semi-wet,” and “pressure-sensitive” are different instructions, not synonyms. Conditions at a cold exterior wall, nonporous threshold, warm sunlit edge, or highly absorbent patch can make the boundary behave differently from the field. If the section skins, dries, or passes its working window, remove and replace it only by the maker’s allowed method; do not wet, re-comb, or cap it with fresh adhesive unless explicitly authorized.

Place the covering by its own method. Fold, roll, set, or lower it into the edge section without trapping air or scraping the bed away. Keep pattern, seam, joint, expansion, and wall clearances intact. Use only the flooring maker’s prescribed placement movement. This guide does not invent a corner press, hand-bedding motion, or extra weight.

Consolidate with the specified equipment. Roll, hand-roll, press, or otherwise embed on the exact schedule and in the direction the flooring system gives. Reach the edge with the approved accessory where the main roller cannot, but do not substitute hand pressure for a required weighted roller or invent a heavier load. Re-roll only when instructed.

Verify the result while correction is still allowed. Use the exact system’s lift, transfer, coverage, ridge-collapse, edge-contact, or visual check. If a representative lift is permitted, inspect both substrate and covering. A generic percentage is not supplied here: resilient-flooring requirements differ by product and adhesive, and tile mortar’s 80/95% doctrine must not be imported into this job. If the check fails, remove the affected fresh section and correct the proven cause before proceeding.

Repeat without changing the meter. Continue in sections around the perimeter, keeping the field-to-edge handoff inside a live adhesive boundary. Do not switch from one 19041 notch set to the other mid-installation, or from field meter to edge meter, unless the exact system expressly specifies those different zones.

Close transitions, seams, and trim only when released. Apply seam treatment, cove base, shoe molding, transition metals, sealant, or other finish strictly on its own system clock. Do not drive fasteners through a prohibited zone, pinch a required expansion gap, or use trim to force down an edge whose bond check failed.

Protect and release the floor on the slowest clock. Restrict traffic, rolling loads, furniture, water, heat, cleaning, and service until the adhesive, flooring, seam, transition, and substrate system all release them. Edge tack is not cure proof, and base installation is not evidence that the floor is ready.

What goes wrong — and the controlled response

The registered tool does not match the adhesive’s notch. Do not choose the nearest-looking member. Obtain the exact specified meter.

A wall line or corner is starved. The tool lost its specified angle, the spread stopped short, the covering scraped adhesive away, the notch is damaged, or the section passed its window. Do not inject a blind quantity under an unverified edge.

Adhesive squeezes onto base, into joints, or beyond the termination. Stop. Confirm the correct notch, angle, spread limit, open-time state, and placement method. Clean while fresh with the exact maker-approved cleaner. A larger deposit is not “extra insurance.”

Ridges remain intact or transfer is poor. The adhesive may have skinned, the substrate may be nonporous or out of condition, consolidation may be inadequate, or the tool/method may be wrong. Remove the affected work while the technical support path still allows correction; document product, lot, substrate, notch, conditions, and elapsed time.

Ridges or trowel marks telegraph through the finished covering. The meter may be too large, the tool angle wrong, adhesive excessive, substrate irregular, or rolling/placement inadequate. Do not promise a cure-through fix. Protect the area and obtain the flooring/adhesive maker’s repair ruling; replacement may be the honest outcome.

The edge lifts after apparent cure. Treat it as a system failure, not proof that “corners need more glue.” Check substrate moisture/contamination, adhesive compatibility, open/working time, deposit, consolidation, traffic, expansion, and perimeter detail. Repair only under a written approved method.

The tool cannot physically reach while preserving the meter. Stop. The correct response may be approved trim removal, a different exact-meter format, a covering-specific sequence change, or installer escalation. Tilting harder, freehand smearing, or borrowing a random smaller spreader changes the bed.

The edge stays wet or soft much longer than the field. A nonporous boundary, excess adhesive, low temperature, moisture, or trapped system may be delaying cure. Keep the area out of service and call the adhesive maker; do not seal, heat, or load it to force a result.

Cleanup, storage, and disposal

Clean adhesive from the flooring face, trim, substrate exclusions, hands, and tools while it is fresh, using only the exact TDS/SDS method. Water cleanup on one adhesive does not authorize water on another; a solvent listed for dried residue does not prove compatibility with a floor finish, polypropylene handle, plastic accessory, painted base, or skin. Ventilate and remove ignition sources where the SDS requires it. Never pour adhesive solids, solvent, or contaminated wash water into a drain.

For 19041 and 19066, remove residue before it hardens in the notches, clean without bending or nicking the meter, dry the hardened-and-tempered steel fully, and store so no edge bears the tool’s weight. Reinspect before reuse. For verification-gated 19031, the same basic preservation does not validate its missing specification. Dispose of adhesive, wipes, solvent, and unrecoverable tools under the SDS and local rules. Reseal and store remaining adhesive only within its label’s temperature, shelf-life, and container instructions.

Does every flooring job need a separate corner trowel? No. First the exact adhesive chooses the meter. An offset or tapered format is useful only if it carries that exact approved meter and documented duty. The approved field tool may remain the correct tool if it can maintain the bed at the boundary.

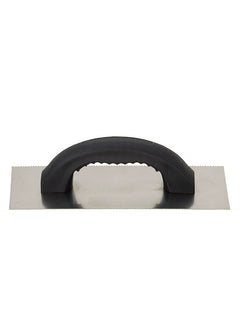

What is the difference between 19041 and 19066 at the edge? Hyde documents different features. The 19041 has a 5° offset that fits corners and along base molding and is associated with vinyl duty; 19066 has tapered rounded corners that fit confined areas, an exact U-notch, and general-flooring duty. Neither feature overrides the exact flooring system.

Can I use 19031 because its title says offset V-notch? Not for a numeric or material-specific selection.

How wide should the perimeter adhesive band be? Whatever the exact flooring installation specifies. “Last six inches” is a job-grain description of the access zone, not a universal dimension. Full-spread, perimeter-bond, expansion, cove, seam, and transition systems have different boundaries.

How long should I wait before placing the flooring? Follow the exact adhesive’s open-time cue and working-time limit under actual conditions. A remembered number is unsafe because substrate porosity, temperature, humidity, airflow, deposit, and adhesive chemistry change the window.

Should I add more adhesive at a corner so it will not lift? No generic rule supports that. Excess can delay drying, squeeze out, or telegraph; too little can starve the bond. Deliver and verify the exact approved bed.

Can I switch to the other edge of the 19041 in a tight spot? Not merely for convenience. Its two printed notch sets deliver different beds. Switch only if the exact system explicitly specifies the second meter for a separately defined zone; otherwise keep one approved meter continuous.

What coverage percentage should I see? Use the exact flooring/adhesive requirement and its stated inspection method. This guide supplies no universal percentage and does not import tile-mortar coverage numbers into resilient-flooring work.

Installation-system controls: Armstrong Flooring Adhesives FAQ · Armstrong Flooring F-5061 Installation Guide · EPA asbestos flooring guidance. These support the explicitly attributed hierarchy and hazard boundary; they do not approve an unspecified flooring/adhesive combination.
