Shield Stained Trim and Built-Ins While Painting Walls

Job: Brush or mini-roll wall coating to stained, clear-coated, waxed, or prefinished trim without relying on adhesive at the immediate line

Difficulty: Advanced — the protected finish can be more valuable and less repairable than the wall

Everything else: specified wall coating; compatible angular brush and optional mini roller; finish-safe fixed protection; coating-approved cleaner, primer, PPE, ventilation, ignition, and waste controls; clean compatible wipes; cutting pot; inspection light; safe access; documentation materials

“Stained trim” is not one surface. It may carry oil varnish, lacquer, shellac, polyurethane, conversion coating, wax, maintenance oil, factory finish, or an unknown repair. Adhesive can lift, haze, or leave residue on some of those. A metal blade can scratch, burnish, or print paint onto them. The method begins by comparing those risks at the actual finish.

The 10- and 15-inch curved spring-aluminum shields specialize in paint protection on modestly irregular lines. The 11-1/2- and 24-1/2-inch stainless guides specialize in true straight spans and reaching into corners. None gives universal finish compatibility.

Inventory the protected work

door and window casing, jambs, stops, stools, aprons, and sills;

baseboard, shoe, cap, rails, and paneling;

bookcases, cabinets, mantels, beams, columns, and countertops;

hardware, glazing, seals, vents, outlets, and lighting;

finish changes, repairs, worn edges, and previous paint.

Photograph damage and variation. Identify loose coating, wax buildup, silicone contamination, open joints, and soft or uncured finish. Obtain finish records when available.

Clarify the intended wall boundary. A shadow line, reveal, caulk joint, or scribed cabinet edge can require a different seat. Do not let the shield establish an arbitrary paint line on the millwork face.

Test finish contact and adhesive separately

In an inconspicuous area, test the proposed clean dry blade with light working pressure. Inspect under raking light for:

gloss change or burnishing;

contamination from the tool.

Independently test any proposed tape or fixed protection according to its maker: dwell, pressure, temperature, removal, residue, and finish effect.

Do not conclude that blade contact is safe merely because tape failed, or that tape is safe because a blade marked. If neither passes, revise the sequence or use a qualified noncontact cut-in method.

Qualify the wall coating against the finish

The new wall coating or its cleaner can attack the trim even when the blade causes no dry damage. Build a witness on a representative finish sample or hidden area under responsible approval.

Verify cleanup before production. “Wipe it while wet” is not a method for an unknown clear coat. Water can haze some surfaces; solvent can dissolve others; friction can burnish.

The safest plan prevents contact. The repair method is contingency, not permission to work carelessly.

Route common finish conditions conservatively

Factory-prefinished cabinetry: obtain the maker’s care and touch-up requirements; do not assume field varnish methods apply.

Waxed or oiled wood: both adhesive and water/solvent contact may be problematic; identify maintenance product and test.

Shellac, lacquer, or unknown clear coat: solvent sensitivity can be high and cannot be diagnosed from appearance alone.

Old varnish or polyurethane: a sound film may tolerate dry contact but still scratch from grit or lose gloss under pressure.

Painted trim beside new wall paint: the color boundary may be repairable, yet cure and sheen differences remain important.

These categories are risk prompts, not compatibility declarations. If the exact finish cannot be identified, use the least invasive witness approved by the responsible party.

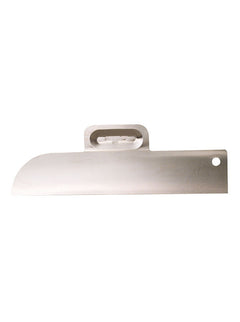

Choose 45000 for cabinet-scale detail

Model 45000 is a 10-inch aluminum paint shield with curved spring-aluminum construction and offset handle. Use it at:

short casing returns;

shelves and cabinet stiles;

stools, aprons, and narrow rails;

interruptions where a long tool collides.

The offset handle keeps knuckles away from wet wall.

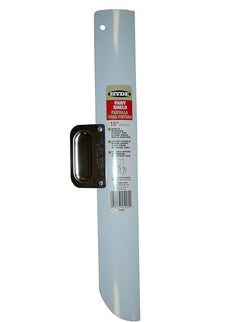

Choose 45005 for open casing and base runs

Model 45005 carries the same supported construction at 15 inches. Use it on:

long casing legs;

baseboard and cap;

uninterrupted built-in edges;

wall panels with consistent line.

Step down before the 15-inch blade bridges a hollow or strikes a shelf. Length saves placements only where full contact and clean removal remain easy.

Choose the stainless Mini Guide for die corners

Model 45805 is the 11-1/2-inch Mini Guide. The supported stainless blade extends beyond its high-impact styrene handle to reach into corners.

Use it where:

a blade end must reach the last inch beside a shelf or casing;

the line is short and true;

hard straightedge behavior is desired;

an offset handle would arrive before the edge.

Stainless is harder than the curved aluminum shield behavior and can be less forgiving on a delicate clear finish. The dry witness controls.

Choose the Super Guide only for long true spans

Model 45810 provides the same family construction at 24-1/2 inches. Use it on a long, planar top, base, or panel line only when both ends and the center seat visibly.

Its span can reduce placements but increases contact area, loaded edge, and collision path. It is seldom the right choice inside a compartmented built-in.

Hyde’s “Smoothing/Trim Tools” identity and retailer-described multi-trade uses do not establish finish safety, flatness, or coating compatibility.

Fixed-protect the field

A blade protects the immediate line. Mask or cover the broad millwork face, shelves, hardware, glazing, countertops, floors, and contents using systems qualified for those finishes.

Where adhesive cannot touch the finish, create mechanically supported protection that does not shift, abrade, block ventilation, or create a falling hazard.

Remove or isolate hardware only under the appropriate process. Do not coat hinges, locks, electrical devices, detectors, or ventilation openings.

Prepare the wall without damaging woodwork

Follow the wall coating for cleaning, repair, primer, and preparation. Control sanding dust and moisture. Older paint can contain lead; use required lead-safe containment.

Do not sand across the finish boundary. Use a guarded preparation method and change tools near trim. Repair open wall-to-trim joints only under the finish and design specification; indiscriminate caulk can trap movement or change the intended reveal.

Stage coating away from shelves and finished horizontal surfaces.

Build the visible-line witness

Seat the selected tool with the protected face over the trim and its working edge at the exact wall boundary. Use only enough pressure for contact.

Load the brush modestly and establish the wall band. Approach the blade with bristles and film on the wall side. Avoid flooding the junction.

Lift directly from the finish.

trim face and edge;

Let the witness reach its specified inspection state. A wet clear finish can hide a mark until light changes.

Work casing as four separate conditions

Treat left leg, head, right leg, and sill/apron region independently. At each change:

lift the blade;

wipe all faces and the working edge;

change tool length or orientation;

dry-seat the next condition;

Do not rotate a loaded vertical shield across the casing head. At mitered corners, overlap only while the protected finish stays covered.

Use the Mini Guide where its projecting blade can reach the die corner. Finish complex moulding with a controlled brush method when no flat seat exists.

Work built-ins compartment by compartment

Empty and protect shelves. Begin at upper compartments so drips and debris do not cross completed lower work.

Each stile, rail, shelf underside, back, and wall return is a separate placement map. Use 45000 or 45805 for most compartment geometry. Reserve longer tools for true open outer edges.

Keep a clean landing station outside the cabinetry. Never set a wet shield on a shelf. Watch the tool’s far end as it enters and leaves an opening.

If the wall brush cannot work without touching a cabinet projection, use a smaller applicator or fixed-mask the detail. Do not lever the shield against woodwork to create room.

Work base and long trim

On long straight base, 45005 can provide conforming hand-shield contact. On a true long rail or panel, 45810 may reduce joints.

Protect the floor separately. Manage the hose or tools so they do not drag along the finish. Work in sections consistent with the wall coating’s open time.

At outlets, radiators, and pipes, stop and re-stage. Metal tools are not electrical protection.

Wipe every high-consequence placement

Stain and clear coats reveal a straight wall-color print immediately. Wipe after every seat until the witness supports no longer interval—and remain conservative on high-value finishes.

Keep the protected-face wipe separate. Dirty gloves, a contaminated landing rack, or a loaded corner can transfer paint even when the working edge looks clean.

Use only verified compatible cleaning material. Do not soak aluminum, stainless assemblies, or high-impact styrene handles. Follow fire-safe waste practices for oil and solvent material.

Respond to a finish-contact event

If paint, cleaner, grit, or the blade contacts finished millwork unexpectedly:

stop the wall application;

preserve ventilation and protect the area;

remove the tool without spreading contamination;

identify coating and finish state;

consult the authorized cleanup/repair method;

document location, time, material, and attempted response;

inspect adjacent compartments and prior placements.

Do not rub harder because the mark remains. Do not try a progression of solvents. Each additional experiment can enlarge a small event.

Quarantine the responsible shield, wipe, glove, or protection until the contamination chain is understood. Re-witness the corrected method before returning to visible work.

If the finish is high-value, historic, factory warrantied, or unknown, involve the responsible finisher or conservator. A wall painter should not turn a protection event into unauthorized refinishing.

Coordinate occupancy and other trades

Built-ins invite people to set tools, plans, and materials on their horizontal surfaces. Establish a protected exclusion around completed millwork and label wet wall zones without attaching unverified adhesive to the finish.

Schedule electrical, cabinetry, flooring, glazing, and finish touch-up so nobody removes protection or operates doors while wall paint remains vulnerable. A cabinet door opened through a wet boundary can defeat an otherwise clean shield job.

At daily handoff, record:

compartments and casing faces completed;

protection that must remain;

coating cure and ventilation state;

tools quarantined for contamination;

finish-contact events and responsible review;

hardware or services not yet restored.

Inspect protection after anyone re-enters. A moved drop, shelf cover, or door changes the risk map. Do not resume simply because the blade edge itself stayed clean.

Release built-ins for contents only under both the wall coating cure requirement and the millwork owner’s protection method. Avoid trapping coating vapor or moisture by closing cabinetry too early.

Where movable doors, drawers, or panels meet the wall boundary, decide whether they remain installed, are opened in a controlled position, or are removed by authorized personnel. Record hinge and hardware positions before movement. Protect every newly exposed face.

Do not use the shield to hold a door open or keep a drawer from closing. Mechanical loads can bend the edge and damage the furniture. Use the responsible restraint method outside the paint line.

Inspect the restraint before every shift.

Integrate the wall field

Roll or brush the field into the boundary band within the coating’s technique. Avoid an overbuilt picture frame beside trim.

Do not use the shield to repair a film defect after the boundary has begun to set. Follow recoat and touch-up instructions.

Maintain ventilation and protection until the coating reaches its required state. Hand application reduces fog relative to spray but still produces drips, splatter, vapor, and waste.

Inspect before removing protection

Use normal and raking light. Inspect the entire millwork face, hardware, shelves, floor, blade-placement joints, and wall film.

straight color transfer = loaded edge;

scratch/burnish = contact incompatibility or contamination;

seep at gap = seat failure;

residue/pull = fixed-protection compatibility;

heavy wall band = application film;

distant dot = room protection failure.

Use finish-authorized repair only. Keep field protection while corrections remain active.

What goes wrong (and the fix)

Tape lifts finish but the shield also burnishes it. Neither method passed. Revise sequence or use a qualified noncontact cut-in.

A straight wall-color stripe appears on stain. The edge printed. Stop, follow the exact finish repair, and clean every seat.

The Super Guide leaks at the center. The trim/wall line is not true over its span. Use Mini or curved shield.

The curved shield ends leak. Pressure is excessive or contact changes. Shorten the span and re-witness.

A shelf gets color although its edge stayed clean. Broad-field protection failed. Correct it before proceeding.

Clear coat loses gloss beneath stainless. Contact is too hard or finish too soft. Stop using that guide on the surface.

Wall paint ridges beside casing. Brush load is excessive.

The tool cannot reach behind a projection. Do not force it. Fixed-mask or use a smaller qualified applicator.

A dirty glove marks every new placement. Reset the full handling chain, not only the blade.

The history footnote

Protecting finished wood while painting adjacent plaster or wallboard predates adhesive masking; painters used brushes and held straightedges. Modern curved shields and blade-past-handle guides refine that practice at different geometries. No exact inventor or product-origin date is supported, so this guide does not invent one.

Exact tools, verification, and backlink footer

The complete triple-duty guide wording remains retailer-level, not attributed to Hyde.
