Shape and Fit Drywall Board

Job: True raw drywall-board edges and openings so a repair piece or small board section fits without force, crushed corners, or compound-sized gaps

Time: Minutes for one edge; one to several hours when measurement, cutout layout, repeated fitting, and board installation are included

Difficulty: Intermediate — the rasp stroke is simple, but preserving face dimensions, hidden services, paper integrity, and old-wall controls takes judgment

Everything else: board of verified type and thickness; tape, square, straightedge, pencil; approved scoring/cutting tools; stable cutting support; backing/fastening materials for the repair design; vacuum and brush; eye and respiratory protection chosen from the exposure assessment; lead/asbestos controls for existing walls; work light; replacement instructions for the rasp in hand

Score-and-snap produces a cut, not necessarily the finished edge the opening needs. The face score may be straight while the gypsum core breaks just proud of it, leaving crumbs and high points under otherwise tidy paper. If that edge is forced into an opening, the piece bows, a corner crushes, or the existing wall breaks back. If it is cut too short, no rasp can restore the missing board.

The fitting discipline is therefore asymmetric: leave a small recoverable margin, remove only the points that prevent seating, and check often. Model 09985 is a pocket-size 6-inch drywall rasp claimed for shaping and fitting board and for smoothing drywall, soft metals, and rough wood. Model 09986 is the renewal edge Hyde co-lists on the same official rasp page. One is the working tool; one is inert until installed in it.

Confirm that board fitting is the right repair

Use board when the damage belongs to cut-and-replace:

the hole is larger than a surface bridge can honestly span;

the surrounding board is crushed, soft, delaminated, or missing;

a sound perimeter must be created;

access was opened deliberately and is now approved for closure;

the assembly specification requires a fitted insert.

Do not cut out sound wall merely because the rasp is available. Class 1 fills and Class 2 surface patches require no board fitting.

Resolve active leaks, fastening failure, structural movement, electrical/plumbing work, insulation, fire/sound requirements, and other assembly issues before fabricating the closure.

Identify the board and required assembly

Do not infer fire rating, moisture resistance, abuse resistance, backing, screw pattern, or joint system from color alone. A repair piece must restore the specified assembly, not merely fill its silhouette.

Record framing or backing locations and the closure design. The 09985 shapes an edge; it does not decide how the piece is supported.

Control hidden services and old-wall hazards

Before cutting an existing wall or ceiling, establish the location and status of wiring, pipe, duct, controls, and other concealed systems through the authorized process. De-energize or isolate services where required. Do not drive a blade blindly into a cavity.

Existing paint, joint treatment, texture, and patching compound can carry regulated hazards. EPA’s lead RRP program is the federal starting point for qualifying pre-1978 painted-surface disturbance, and EPA’s asbestos regulatory history records the CPSC’s 1977 ban on asbestos in wall patching compounds. Installed material can predate the ban.

Establish assessment, containment, worker/occupant protection, cleaning, and waste controls before cutting or rasping old edges.

Protect the work area and board

Support the board flat on a stable surface with the cut line clear of obstructions. Protect finished faces from grit and moisture. Control offcuts so a snapped piece cannot fall onto feet or finished work.

Set extraction close to the rasping point without creating a snag or pulling loose paper. Provide lighting across the edge.

Wear eye protection, especially overhead. Use respiratory control based on the board and dust assessment. OSHA’s drywall and joint-compound silica interpretation explains why ordinary drywall work and prolonged very dusty work can require different exposure decisions.

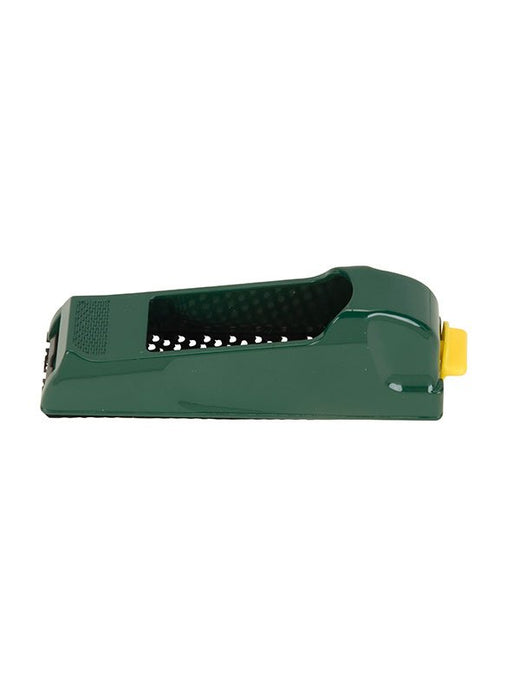

Inspect 09985 before use

Confirm model identity and the claimed 6-inch pocket rasp configuration.

handle/body integrity;

exposed sharp or broken areas;

contamination that could mark the board;

cutting behavior on scrap.

Do not improvise a repair or tightening procedure for an unknown mechanism.

If the edge is loose or the body damaged, quarantine the rasp.

Establish the reference line

For a repair insert, make the opening first through the approved repair plan, then measure it at several points. Openings are often not square even when they appear rectangular.

Transfer dimensions to the new board with orientation marked. Identify which face is the finished face and which edge can tolerate a slight back relief if the fitting method allows it.

Use a square or template. A pencil line is a cut target, not decoration: keep it visible through the first fitting cycle so the rasp has a trustworthy limit.

For irregular openings, consider making a cardboard pattern. Do not force a rectangle into a trapezoid and ask compound to hide the mismatch.

Cut with a recoverable margin

Score and cut through the board maker’s method and the approved tool. Make the initial cut slightly proud of the final fit where rasping access exists.

“Slightly proud” is a trade strategy, not a manufacturer dimension. The amount depends on board, opening, cut quality, and finish. It should be small enough to rasp deliberately, never an excuse for a wildly inaccurate cut.

Support narrow legs around cutouts. A slender board strip can break during snapping or rasping if left cantilevered.

Read the snapped edge

Place the piece flat and inspect the core.

proud gypsum ridges;

torn or folded face paper;

portions already on the line;

low excursions that no rasp can fill.

Trim only loose paper through the approved cutting method. Do not peel sound face paper away from the core.

If the cut wandered inside the required face dimension for a meaningful distance, re-cut the piece. Trying to compensate with a wide finish joint converts a fabrication error into permanent finish risk.

Hold the rasp to preserve square

Grip the 09985 securely and place its cutting face on the raw edge. Keep the tool aligned with the edge plane and generally square to the finished face unless a deliberate back relief is part of the fit.

Use long controlled strokes over the high area. Let the teeth cut. Excess pressure encourages the tool to rock, crush the core, tear paper, and round an edge that should remain straight.

Work from sound paper toward vulnerable corners where possible so the stroke does not blow the corner outward. Do not rasp across the painted show face.

Remove high points, not the whole edge

The rasp is not a planer that must touch every inch equally. If only three high spots prevent fit, address those spots and blend their transitions.

Check the pencil line after every few strokes. Stop short of it until the fit confirms more is needed. Use a square or straightedge to verify the edge has not become hollow or crowned.

Clear dust regularly. Packed teeth slide instead of cutting and can imitate a dull blade. Use a brush or approved cleaning action that keeps fingers away from the teeth; do not strike the tool against a finished surface.

Dry-fit without force

Offer the piece to the opening in its final orientation. Support it so one corner cannot drop into the cavity or crush against the existing wall.

a polished or dusty mark identifies a high spot;

rocking suggests opposing high points;

a gap that changes when the piece is shifted may reflect an out-of-square opening;

a corner that enters while the opposite hangs up can signal taper rather than overall excess.

Do not hammer, kick, bow, or screw a too-large piece into position. Withdraw it and mark the exact interference.

Sneak up on the final fit

Rasp the marked contact, clean the edge, and offer the piece again. Repeat until the insert seats through ordinary hand positioning with the joint gap allowed by the repair system.

The accepted product record supplies no gap tolerance, so follow the board/joint specification. The trade objective is consistent, supported clearance—not zero gap achieved by crushing paper and not a moat filled with compound.

Keep the finished face dimensions intact. When a slight back bevel is useful, remove material from the back side deliberately while preserving the face line. That is Tier-1 technique, not a 09985 claim.

True the existing opening only when authorized

The rasp can ease a high raw drywall edge in the opening as well as the new piece. First confirm the old edge is sound, hazard-cleared, and free of hidden-service risk.

Use minimal strokes. Existing board is harder to support and easier to break back into the cavity. Do not rasp plaster—the 09985 claims name drywall, soft metal, and rough wood, not plaster.

If the opening edge keeps crumbling, stop. The sound perimeter has not been reached, and continuing to rasp only makes an unstable hole larger.

Use the claimed side scopes narrowly

The 09985 is also claimed to smooth soft metals and rough wood. At this job’s grain, that can mean easing a burr on light-gauge trim or removing a splinter from backing before board seats.

Use the correct metal or woodworking tool when the shaping operation is more than a small smoothing assist.

Clean contamination before returning the rasp to gypsum.

Diagnose a tired edge

Three operating signs matter:

pressure has crept upward for the same cut;

clean teeth slide or polish instead of biting;

face paper tears where a controlled stroke used to shear cleanly.

Rule out packing first. If the clean rasp still requires force or produces damaged edges, the cutting component is no longer serving the fit.

No service-life number is claimed. Change by condition, not calendar, board count, or an invented square-foot interval.

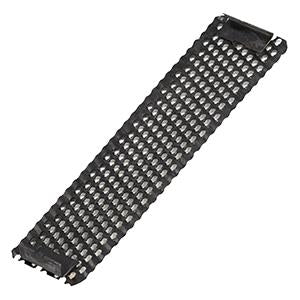

Qualify 09986 honestly

Model 09986 is named “Drywall Rasp Replacement Blades” and is co-listed by Hyde on the 09985 rasp’s own official page. That is the grounded fitment.

The record does not establish:

blades per package;

attachment or release method;

fitment to any other rasp.

Do not transfer the rasp’s 6-inch overall measure to the blade. Do not call retailer “scraper blade” wording a Hyde fact.

Confirm the physical package identity before service.

Change the blade only through verified instructions

Remove the tool from the fitting area and control the sharp component. Follow the actual 09985 instructions or manufacturer-authorized service method.

Do not guess whether the mechanism slides, screws, clips, or levers. Do not pry at a retained blade, drill the body, or substitute a different edge. Wear hand/eye protection appropriate to the verified procedure.

Keep the removed component separate and mark it unserviceable. Dispose of or recycle it through the applicable sharp-metal route.

Run a post-change witness

Before returning to the fitted piece, test the serviced rasp on matching scrap.

smooth controlled cutting;

no contact between unintended parts;

straight, square edge production;

no abnormal movement.

Stop if the blade shifts, chatters, binds, or damages the board. Re-check identity and procedure rather than compensating with grip or pressure.

Complete the fitting handoff

Clean the opening and piece. Confirm the insert’s orientation, face plane, backing contact, clearances, and service-access requirements.

Hand the piece to the fastening and joint-treatment operation under the assembly specification. The rasp does not determine screw spacing, backing layout, tape type, compound, or coat schedule.

Record any gap or damaged area routed for correction. A well-fitted piece should reduce finish burden, not conceal a compromised edge.

Clean and store the rasp system

Remove gypsum dust with the approved dry method. Keep the tool and spare blades dry, protected from impact and contamination, and clearly identified.

The blade steel and plating are unverified. Conservative dry care is appropriate without asserting a material. Do not oil a cutting surface that will immediately touch porous gypsum unless the manufacturer requires it; contamination can enter the joint.

Store spare 09986 stock in its packaging until needed. Do not write an assumed package count into inventory.

Inspect the installed plane

After the piece is fastened, verify it did not bow, crush, or shift. Look for a consistent joint and stable support.

If screws pull a corner inward or expose a large gap, stop before tape. Determine whether fit, backing, fastening, or board condition failed.

Later, inspect the finished repair in raking light. Board fit is upstream of tape and compound: a proud insert or variable moat often reappears as a rectangular ghost even after skilled finishing.

What goes wrong (and the fix)

The piece breaks while being forced into place. It was not fitted. Re-cut if damaged and return to marked rasp cycles.

The rasp slides but does not cut. Clean packed gypsum first; if pressure creep persists, qualify and install 09986 through verified instructions.

The edge rounds over. The tool rocked or pressure was excessive. Re-establish square before the face dimension disappears.

The face paper tears backward. Reverse or shorten the stroke, support the corner, and assess blade condition.

A gap grows with every fit. The wrong edge or side is being removed. Reorient against the reference marks.

The old wall crumbles under the rasp. Stop; the opening has not reached sound material and needs reclassification.

A replacement blade is forced into an assumed mechanism. Stop and obtain the manufacturer-authorized change method.

Dust from an old painted edge is generated without assessment. Stop disturbance, contain, and invoke the lead/asbestos plan.

A fresh blade removes too much. Reset to light pressure and use scrap to relearn the cutting rate.

The history footnote

The rasp is an ancient toothed-surface idea adapted to a modern gypsum board. Replaceable blades add the durable-body/sacrificial-edge pattern familiar across twentieth-century hand tools.
