How to Set Large-Format Tile, Quarry Tile, and Bonded Pavers

Job: bond large-format ceramic or porcelain tile, quarry tile, or mortar-set pavers to a prepared floor or wall using a manufacturer-approved tile assembly.

Time: substrate correction and layout often take longer than setting. Mortar, grout, sealant, traffic, immersion, and freeze protection each have separate release clocks; none becomes “overnight” here.

Difficulty: advanced. Large units amplify flatness and handling errors; quarry tile adds service and joint decisions; exterior bonded pavers add drainage, weather, movement, and freeze/thaw. Use a qualified installer and project-specific detail for facades, occupied-space decks, pools, vehicle loads, suspended structures, and gauged panels.

Even with the duty match, the mortar TDS and a lift check must admit the meter.

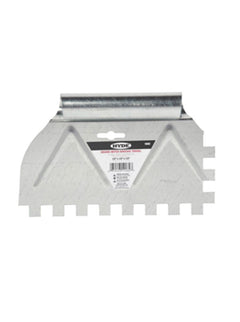

Its listing title mentions a two-sided Value Series format and a square-notch dimension, but those are store-title-only and are not specifications in this guide. Do not select it, describe its geometry as verified, or infer bed thickness, coverage, material, or performance. Confirm a current official Hyde source and then separately confirm that the exact setting-material TDS permits the verified geometry.

Everything else: current covering instructions · exact setting-material TDS/SDS · specified substrate, preparation, membrane, drainage, and mortar-bed components · straightedge, level/laser, layout tools · approved cutting and handling equipment · mixing drill/paddle, pails, measured water · spacers and admitted lippage controls · approved grout and movement-joint sealant · cleaning supplies and PPE.

First decision: which of the three jobs are you actually doing?

The row groups three coverings under one verified Hyde duty; it does not make them one assembly.

Large-format ceramic or porcelain tile: record the exact series, dimensions, thickness, back pattern, warpage tolerance, edge, floor/wall permission, service rating, and handling method. Industry documents commonly apply enhanced flatness rules when one edge reaches 15", while some manufacturers use another definition. The exact product instruction controls. Gauged porcelain panels require their maker’s handling, cutting, mortar, troweling, installer, and movement-joint method.

Quarry tile: qualify the exact quarry-tile product rather than treating the name as a size. Quarry tile may be installed in kitchens, entries, wet workrooms, or other hard-use areas, but the project’s chemical exposure, thermal cycling, cleaning regimen, slip requirement, grout, joint width, and service load must be designed together. A smaller quarry tile does not inherit a large-format method merely because both appear in Hyde’s duty line.

Pavers: determine whether the specified system is direct-bonded with mortar. Dry-laid interlocking pavers over aggregate, sand-set units, pedestal-supported pavers, and traditional thick mortar-bed assemblies are different methods; a notched adhesive trowel is not their system. Continue here only when the paver and assembly designer approve direct bonding to the named substrate with the named mortar.

Now classify the exposure: interior dry · interior wet · exterior horizontal · exterior vertical · freeze/thaw · submerged · radiant heat · residential foot traffic · commercial or rolling load · vehicle load. “Patio,” “shower,” and “restaurant” are not specifications. The exact assembly must accept every applicable condition.

Build the written system before opening a bag

Write one line containing: covering exact product and lot · location/exposure · substrate · preparation/primer · membrane or drainage layer · mortar and TDS revision · trowel profile · required coverage · grout/joint width · movement-joint detail · cure/load/exposure dates. Stop if any field is unknown or if two instructions conflict.

The mortar must explicitly admit the covering, substrate, location, bond-coat range, and exposure. Product classes are not approvals. LATICRETE’s current MULTIMAX LITE record, for example, lists ceramic, porcelain, stone, quarry tile, pavers, and brick for interior/exterior use, plus a floor buildup limit and accepted substrates. MAPEI’s Ultraflex LHT has its own location and thickness permissions.

Mortar is not a leveling plan. For tile with at least one edge 15" long, LATICRETE’s current TDS 193, Installation of Large Format Tile reproduces a maximum substrate variation of 1/8" in 10' and 1/16" in 24", measured from high points, for the cited thin-bed large-format condition. Do not bridge structural movement, tile an unstable surface, or bury low spots in extra setting mortar.

Exterior horizontal work adds drainage. Substrate and waterproofing planes need the specified positive slope without birdbaths; tile cannot repair reverse pitch. Confirm flashing, drains, penetrations, freeze/thaw suitability, and the detail for the structure below.

The notch and coverage gate

The verified 19070 is a candidate meter, not the specification writer. Compare its printed 1/4" × 3/8" × 1/4" square-notch character-for-character with the exact mortar’s table or written technical recommendation. Then prove the result by lifting units. A duty match cannot override a TDS that requires a slant, U, loop, or other ridge-collapse geometry.

It recommends a ridge-collapse-promoting geometry when applying a thicker amount. That is an exact-product instruction, not a universal ban. It also demonstrates why the unverified 19082 title cannot become a recommendation: even a future geometry verification would not prove compatibility or coverage.

Coverage is contact after embedding, not the percentage of floor that looked gray before the tile landed. ProLite’s current TDS requires at least 80% mortar coverage in dry areas and 95% in wet areas and exteriors, with all tile edges supported, within that product’s stated continuous embedded-thickness range. Do not paste these example numbers onto a different system if its instructions require something else.

“Back-butter everything large” is useful trade shorthand but not a complete specification. The controlled method is flat back-troweling: use the flat side to force mortar into the clean tile back and fill its permitted recesses without creating an unmetered second bed. Some exact systems require back-troweling all units above a stated size; some require a notched-back method for panels; some tile backs or moisture-sensitive materials need a different chemistry. Follow the exact instruction. The proof remains the lifted unit.

Prepare and lay out the assembly

Inspect the structure and substrate. Verify load capacity, deflection requirement, cure age, moisture condition, bondability, flatness, slope, soundness, and allowed cracks/joints. Remove dust, laitance, oil, curing compound, weak coatings, sealers, and residues by the approved method. Do not grind, scarify, or dry-cut unknown old material until silica, lead, and asbestos risks are assessed.

Install preparation layers as systems. Prime, patch, level, form a mortar bed, install backer board, or place waterproofing/uncoupling/crack isolation exactly as each manufacturer directs. Observe layer-specific cure and flood-test requirements. A crack-isolation membrane does not repair vertical displacement or a structurally active joint.

Read movement before layout. Honor building, structural, cold, control, and existing movement joints in the tilework. Plan perimeter and field movement accommodation from the project detail and TCNA EJ171; do not fill those locations with mortar or hard grout. TCNA’s placement guidance explains that movement joints relieve differential expansion and that frequency depends on exposure and site conditions, especially moisture, sunlight, and exterior temperature range.

Dry-lay the covering. Establish balanced cuts, datum lines, joint widths, pattern, directional markings, transitions, drains, and changes of plane. Check the actual units from multiple cartons for dimensional variation and warpage. A running bond can intensify lippage when tile centers meet neighboring ends; use only a pattern the tile maker permits.

Stage handling and cuts. Large units may require two people, suction frames, tables, rails, or panel equipment. Confirm that a lifting device is rated for the surface and weight. Make cuts with equipment approved for the exact ceramic, porcelain, quarry, or paver body.

Mix, spread, set, and prove

For a powder mortar, use potable water and the bag’s exact ratio, paddle, drill speed, mix time, slake, and remix instruction; never retemper unless the TDS permits it. For premixed, activated, or multi-part material, follow its different exact preparation. Wear the SDS-required PPE; dry powder can contain respirable crystalline silica, and wet cement can cause alkaline burns.

Run a small qualification panel. Before committing the room or deck, set enough units to represent the tile back, substrate, mortar consistency, trowel, installer angle, and weather. On quarry tile, include representative units and joint spacing. On pavers, include the most textured backs and the exposed edge condition.

Key mortar into the substrate. With the trowel’s flat side, press a tight coat firmly into the prepared surface. This is a bond coat, not a leveling layer. Immediately add mortar while that coat is fresh.

Comb with the admitted meter. If the exact system admits the 19070, hold it at the mortar maker’s instructed angle and comb uniform, straight, parallel ridges. Do not swirl. Spread only what can be covered inside the real open time under current temperature, sun, wind, humidity, and substrate porosity.

Prepare the back exactly. Clean dust or release residue using the tile maker’s method. Flat back-trowel or notched-back-trowel when the exact instruction requires it, fully filling deep permissible back patterns. Do not spot-bond corners and center; isolated mortar pads leave unsupported edges and voids.

Place and collapse the ridges. Set the unit while the mortar is wet and tacky. Move it perpendicular to the ridge direction using the stroke and distance the system instructs, then bring it to the control line without scraping the substrate bare. Use a beating block or mallet only when permitted. A lippage-control clip can hold neighboring faces; it cannot flatten a bad substrate, remove tile warpage, or replace mortar contact.

Lift and read the first unit. Remove it while fresh. Inspect both surfaces for transfer, ridge collapse, edge and corner support, void distribution, and embedded thickness. Measure against the exact coverage requirement. For a large unit, inspect more than an easy corner. If contact fails, stop and correct the cause: wrong profile, inconsistent angle, insufficient back-troweling, warped or dirty back, substrate out of plane, mortar too stiff/slack, spread too large, or skinning. Do not proceed on the theory that later tiles will improve.

Repeat coverage checks. Lift again when the unit size/back changes, a new mortar batch starts, weather shifts, the substrate changes, or a different installer takes the trowel. On exterior, wet, commercial, paver, and quarry work, the cost of a void is high enough to make documented checks routine.

Keep joints open and clean. Maintain the tile maker’s and project’s joint width; quarry tile dimensional variation may require a different joint than rectified porcelain. Remove squeeze-up while fresh to the grout maker’s required depth. Keep all planned movement joints completely free of mortar, grout, clips, and debris.

Protect the green installation. Barricade the work from foot traffic, carts, vibration, rain, wash water, heat, direct sun, and freezing for the exact period. Do not assume a rapid mortar’s grout time is its heavy-load, immersion, or freeze-exposure time.

Grout and seal movement joints on separate paths. Grout only after the mortar’s release time and with a grout approved for the covering, joint width, chemical/thermal exposure, and service. Use the specified flexible sealant and backer configuration at movement joints and changes of plane.

Release service by exact milestone. Record dates for grout, light traffic, general traffic, heavy/rolling/vehicle load, water, cleaning chemicals, exterior weather, and immersion. These are demonstrations of product-specific clocks, not numbers to transfer to another installation.

Branch checks before the crew leaves

Large-format ceramic or porcelain: verify documented flatness, orientation, movement joints, edge/corner support, lippage, and handling damage. For gauged panels, retain the maker’s required coverage record and installer qualification. Do not walk the field to remove clips before traffic is permitted.

Quarry tile: verify joint plan, service, cleaning chemistry, and grout. Commercial or industrial work may add thermal shock, washdown, rolling loads, cove-base, drainage, and chemical-resistance requirements. “Quarry tile” alone approves none.

Bonded pavers: verify drainage, edge support, exterior/freeze-thaw permission, movement, transitions, and load class. Pedestrian permission is not a vehicle rating. Sand-set, pedestal, or designed thick-bed work follows its own system.

What goes wrong — and the controlled response

The lifted unit shows intact ridges or bare corners. Coverage failure. Remove the fresh work and correct meter, angle, ridge direction, back treatment, flatness, mortar condition, or open-time control. Do not inject grout at the edge or fill the visible void only.

Mortar rises through every joint and the units swim. Excess delivery, excessive movement, a low substrate, or an unapproved meter. Pull the test unit, confirm embedded thickness and coverage, and reselect under the mortar TDS. More mortar is not more bond.

A 19082 title dimension appears to “match” another bag’s table. Stop. The Hyde model still has no accepted specification, and equal printed dimensions would not establish material, edge accuracy, handle/format, duty, or mortar compatibility. Use a verified tool or obtain official Hyde verification first.

Ridges skin before placement. The spread is too large or conditions shortened open time. Follow the exact mortar remedy—commonly removal and fresh application once the material is no longer tacky. Do not add water, smear fresh mortar over a dry film, or assume back-buttering repairs a dead substrate interface.

Lippage increases across the field. Stop before the mortar hardens. Check substrate plane, tile warpage/orientation, pattern, mortar support, and control lines. Clips can mask force during cure; they cannot make a nonconforming plane or warped unit sound.

Tiles sound hollow after cure. Sound alone is not a measured coverage test, but widespread edge hollowness, movement, cracks, or impact failure demands investigation. Review lift-check records and remove representative units if necessary. Do not declare the assembly acceptable from tap tone alone.

Quarry joints stain, erode, or crack under cleaning. The grout or movement design may not match chemicals, heat, washdown, or service. Remove the area from service and diagnose the complete assembly; stronger cleaner or surface sealer does not repair incompatible grout.

Exterior pavers delaminate, effloresce, or spall after winter. Investigate drainage/slope, trapped water, voids, freeze protection during cure, covering suitability, mortar/grout exposure approval, and movement. Rebonding one loose corner without correcting water and system causes repeats the failure.

A crack follows a substrate joint or the field tents. A structural/control/movement joint was bridged or movement accommodation was insufficient. Mortar and grout are not structural repairs. Protect the area and obtain a project-specific movement/structural diagnosis.

The installation was loaded or exposed early. Remove load, traffic, water, chemicals, rain, or freeze exposure immediately. Contact the setting-material manufacturer with product, lot, conditions, elapsed time, covering, substrate, notch, and exposure. Calendar time already spent does not prove the interrupted cure is acceptable.

Cleanup, tool control, and safety

Clean the 19070 with the method allowed by the setting-material TDS while mortar is fresh. Cement mortar cures by hydration; once hardened in the square notches it changes the meter and mechanical removal can damage the edge.

Control silica during powder handling, substrate correction, and cutting with the SDS method, extraction/ventilation, and required respiratory protection. Wet cement is alkaline; wear required skin and eye protection and wash exposure promptly. Plan lifts for heavy units and secure wall tile until support removal is permitted. Cutting, scaffolding, fall protection, structural design, and chemical-service qualification sit outside this Hyde union.

Does Hyde’s 19070 duty mean it is always the right trowel for large tile, quarry tile, or pavers? No. It means Hyde verifies the tool for those uses. The exact mortar, covering, substrate, and exposure must admit the printed 1/4" × 3/8" × 1/4" square profile, and a lifted unit must prove required coverage.

This guide reproduces the profile exactly and does not assign unverified geometry.

Can I use the 19082 for an even heavier bed? Not from current evidence. It has no accepted official claims. Its format and dimension are store-title-only, and no bed, application, coverage, or performance can be inferred. Even a verified dimension would still need acceptance by the exact mortar TDS.

Do all large tiles need back-buttering? Follow the exact system. Large/deep-backed units commonly require flat back-troweling or another named back method to reach contact, but the tile and mortar instructions define the method. Lift a unit and verify; the label “large” does not replace proof.

Higher project, stone, panel, commercial, or manufacturer requirements control.

Can setting mortar flatten the floor while I tile? No. Bring the substrate within the exact flatness and slope requirement before setting. The mortar’s permitted embedded range supports and bonds an already qualified plane; it does not authorize filling arbitrary depressions.

Is a bonded paver patio the same as a sand-set paver patio? No. This guide covers direct-bonded tile/paver assemblies only. Sand-set, aggregate-base, pedestal, and thick-bed systems have different preparation, drainage, edge restraint, bedding, and tooling.

When can the finished floor take traffic or water? When every applicable mortar, grout, membrane, sealant, and assembly instruction releases that exact exposure. Grout time, light traffic, heavy traffic, vehicle load, rain, freezing, cleaning, and immersion are separate milestones.

Why the meter cannot choose the assembly

Notched edges became essential when twentieth-century thin-bed mortars made bond-coat quantity repeatable; LATICRETE dates its 4237 latex additive to 1956. Modern tile bodies, membranes, mortars, movement, and cure conditions now travel as one instruction set. Hyde’s 19070 can meter an admitted mortar; it cannot certify that system.

No other Hyde model is linked, implied, or admitted by this guide.
