How to Set Drywall Nails with a Painter's Multi-Tool

Those six products, and no others, receive product backlinks here.

It does not turn a pocket prep tool into a universal drywall hammer.

Fail-closed rule: a Hyde product page can establish that a HammerHead is marketed for setting drywall nails. It does not, by itself, establish an approved panel, backing, nail, location, spacing, penetration, strike energy, face geometry, recess, correction, inspection, finish material, or protective-equipment system. If any of those is unresolved, stop before striking.

Job: set an already-authorized drywall nail with a registered HammerHead-equipped painter's multi-tool, preserve the panel facing and core, verify the attachment and surface condition, and route installation or finishing work to the system that owns it.

Time: no universal rate is stated.

A head below the wall plane is not automatically an accepted fastener.

The exact Hyde tools linked to this job:

Everything else: the exact panel and assembly documents; identified framing or backing; the approved fastener in its labeled package; any required panel support; stable access equipment; a raking work light; a clean straight blade for plane readback; a pencil or removable defect marker; the correction tool and replacement fastener authorized by the system; and the protective equipment selected by the current site hazard assessment, product instructions, and applicable rules.

First decide whether this is actually the HammerHead job

Three jobs can present the same round metal head. They are not interchangeable.

A bounded, authorized nail-setting task

The panel system is known, the backing is identified, the nail is approved and traceable, its location is already established, and the responsible instructions permit the selected tool and method. This is the only branch in which the controlled workflow below may proceed.

“Bounded” does not mean “small enough that rules stop mattering.” It means the work has a finite, known fastener set and does not require this page to invent the wall design. A repair insert, a permitted tack, or an isolated authorized nail may qualify only if the actual project documents say so. The product name cannot make that decision.

New-board installation

A sheet or course that still needs its fastening layout is an installation job. This page must not be used as a shortcut around its planning or schedule.

A proud nail in a finished wall

That is diagnosis and repair, not fresh installation. A recurring pop can report movement, missed support, or a fastening problem. Simply striking it back and hiding it can preserve the cause.

A screw head

The registered feature is a drywall-nail setting feature. A screw is driven or corrected with its authorized driver and method. Hammering it neither restores thread engagement nor proves the panel is tight.

The minimum packet answers five questions.

What panel is this? Read the current instructions for the exact gypsum product. Paper-faced wallboard, veneer-plaster base, glass-mat panel, moisture- or abuse-resistant product, backing panel, and specialty systems can require different head conditions and attachment methods. The word “drywall” is not a transferable specification.

What assembly is this? Determine whether it is ordinary work or a tested fire-, sound-, impact-, moisture-, shaft-, shear-, or other listed assembly. The listing can bind every attachment decision. Extra or substituted fasteners are not automatically safer.

What is behind the panel at this point? Establish approved backing by plans, open-work observation, verified layout, or the site's accepted locating process. Never “find” backing by exploratory hammering.

Do not infer shank, head, coating, length, corrosion class, substrate compatibility, or condition from appearance or from a loose nail in a pouch.

What tool and finish condition are authorized? The panel or assembly instructions may require a drywall hammer with a particular face behavior. The current CGC/USG handbook, for example, directs installers to use a crowned drywall-hammer head, form a shallow uniform dimple, keep the paper unbroken and the core uncrushed, and never use a nail set.

That last conflict controls the job. The accepted Hyde feature evidence establishes a marketed nail-setting use for five registered tools and a narrower board/dimple use for the all-metal tool. The panel-system source establishes what an accepted set must look like and may establish a dedicated hammer requirement. Because the product sources do not disclose face crown, texture, diameter, material hardness, mass, or permissible strike energy, this guide cannot certify equivalence. Otherwise use the system-authorized drywall hammer.

Concealed electrical, plumbing, and utility stop

A fastener location is not cleared merely because a stud is expected there. If wiring, pipe, duct, membrane, blocking, protection hardware, or another concealed service could occupy the drive path and the location is not verified under the project controls, stop. Do not state or borrow a universal clearance, nail length, or protection-plate rule here. The approved drawings, inspection, trade coordination, code, and exact assembly details decide whether the point is safe.

Tool-condition stop

Inspect the actual HammerHead and the complete tool. Reject a loose, cracked, chipped, mushroomed, burred, contaminated, or otherwise damaged striking surface; a failed handle or body; or a configuration that cannot contact the nail squarely. Do not grind, crown, texture, harden, or reshape a HammerHead to imitate a drywall hammer. That creates an untested striking tool and destroys the source-backed product boundary.

Set up for a controlled strike

Complete the site hazard assessment. This guide does not assign a universal PPE kit. OSHA requires appropriate eye or face protection where flying particles or objects create a hazard; the site assessment and applicable rules select the actual protection. Panel dust, overhead work, noise, access, and the selected materials may add controls under their own instructions.

Control the swing and opposite-side zone. Keep hands, helpers, finished surfaces, tools, cords, and other work outside the strike and rebound path. Confirm that no worker is exposed on the opposite face.

Provide independent panel support. The hammer hand must not be the only thing holding a loose or overhead panel. Use the support method approved for the operation, then bring the panel into firm contact with known backing at the fastener point.

Light the surface from the side. Raking light makes a proud rim, tilted head, torn paper, or growing crater readable before it is coated.

If the answer is unknown, the job is not ready to start.

The user's grip and swing must follow current exact-product instructions and the site's safe-work method. This guide therefore does not invent “two taps,” “prep force,” or any other transferable strike recipe.

The closed loop: support → present → strike → stop → read → disposition

Phase A — support and present

Confirm the mark. The point must already be authorized by the installation or repair plan. A pencil mark proves only that someone made a mark; it does not prove backing or clearance.

The current CGC/USG guidance makes firm panel-to-framing contact part of the nailing operation.

Present the approved nail on its required drive line. Do not angle it to chase presumed support. Do not substitute another nail because it starts more easily.

Stabilize without placing fingers in the impact path. Follow the site's approved starting method. If the fastener cannot be started while controlling both panel and hands, change the support or use the system-authorized installation tool.

Stop here if the panel moves away from support, the nail will not stand as required, the location is uncertain, or the HammerHead cannot approach the head squarely.

Phase B — drive under observation

Bring the verified striking surface squarely onto the nail head. An edge strike can bend the fastener, scar the head, glance toward the hand, or punch one side of the head through the facing.

Use only the force and sequence authorized for the exact tool and wall system. The product pages prove the feature, not its energy envelope. If no usable instruction exists, stop and use the approved drywall hammer.

Watch the panel, paper, and nail together. The desired motion is the fastener advancing while the panel remains tight and the surface stays intact. A jumping sheet, changing resistance, bent nail, torn paper, growing crack, or unexpected hard stop is a diagnosis signal—not a request for a harder blow.

Separate holding from finish formation. Do not keep striking merely because a larger crater looks easier to fill. The accepted head condition comes from the current panel/assembly instructions.

Phase C — stop at the accepted surface condition

Other systems may differ; transfer no value blindly.

Stop as soon as the permitted condition is reached. A deeper head is not proof of greater holding value.

Do not use the multi-tool's blade, point, gouger, or another object to deepen the recess. The manufacturer source authorizes a HammerHead function; it does not authorize improvised nail-set use. The current CGC/USG handbook expressly says never to use a nail set in its gypsum-panel method.

Phase D — read back before moving on

Rake the head with light. Look for a proud edge, tilt, ragged paper, a punched ring, radial cracks, exposed core, or asymmetrical crater.

Bridge with a clean straight blade. Cross the head from more than one direction without cutting the paper. A click or rock reports a proud or tilted head. A blade that crosses cleanly proves only surface plane, not backing engagement.

Read the facing. Continuous paper matters. A smooth-looking depression with cut, loose, fuzzed, or detached paper is not accepted merely because compound can cover it.

Read panel contact. Use the system's permitted check. Movement, clicking, rebound, or a changing crater indicates unresolved support or fastening.

Read the fastener. Bent, loose, springing, damaged, unexpectedly resistant, or unexpectedly resistance-free conditions fail closed.

“Covered” is not a disposition.

Phase E — correct and re-read

Correct the cause, not the appearance. A proud but otherwise sound nail, a missed support, a bent fastener, torn paper, crushed core, loose panel, wrong fastener, or concealed obstruction are different failures. Use only the correction the panel/assembly/fastener documents authorize.

Never invent a companion-fastener location. Adding a screw or nail may be a valid repair in some systems, but its type and position are design facts.

Repeat every readback after correction. A replacement or supplemental fastener must pass the same plane, facing, contact, fastener, and inspection checks. Do not bury the original reject until the system permits it.

The finite production loop is:

Anything less is a prepared attempt, not a proven fastening result.

What goes wrong — and the fail-closed response

The HammerHead is marketed for drywall nails, but the panel instructions say “crowned drywall hammer.” That is an unresolved tool/system match. The product feature does not override the panel manufacturer.

The all-metal tool says “setting board and dimpling nail holes,” not “setting drywall nails.” Preserve the narrower exact-model wording.

The head remains proud. Do not hide it with compound and do not escalate force blindly.

The paper tears or the core crushes. Stop striking. A deeper crater is damage, not a better dimple. Mark it and follow the panel/assembly correction method before finishing.

The nail bends or skates. Remove hands from the path, stop, and diagnose presentation, fastener condition, tool contact, backing, and obstruction. Do not straighten it in place by hitting from the side.

The nail drives with no expected resistance. Treat support as unproved. Do not add compound or another blind fastener. Resolve backing and utility conditions through the accepted site process.

The nail meets an unexpected hard stop. Do not strike harder. The cause could be wrong backing, a protection element, a service, a knot, or another obstruction; this page cannot identify it from feel.

The board moves when pressed after setting. The attachment loop is open.

A screw was mistaken for a nail. Stop hammering. Route to the correct driver and screw-system instructions.

The surface is ready, but finishing material is unknown. Leave it uncoated. This guide supplies no compound type, mixing ratio, coat count, dry time, sanding grit, primer, or paint specification.

Cleanup and handoff

Remove metal fragments, rejected fasteners, and gypsum debris using the site's approved collection method. Keep identifiable fasteners with their packaging or disposition; do not return a dropped, bent, contaminated, or rejected nail to an approved supply. Clean the Hyde tool only by its current care instructions.

Before the next trade arrives, provide a count or marked map of accepted heads, corrected heads, and held conditions as the project requires. Preserve any required pre-finish inspection.

Can any HammerHead multi-tool replace a drywall hammer?

No universal replacement is proved. Five registered Hyde products have accepted source evidence that expressly names setting drywall nails; the all-metal product uses narrower board-and-dimple wording. A current CGC/USG panel method calls for a crowned drywall hammer.

Why link all six tools if one has different wording?

A backlink is not an endorsement of unsupported capacity.

How deep should the nail be?

Use the current exact panel/assembly instructions. This guide deliberately supplies no transferable depth.

Can I set a pop in an old wall with this method?

Use the popped-nail guide. Existing-wall repair requires diagnosis and may require a different correction. A fresh-nail workflow does not explain why an old fastener moved.

Can I hammer a drywall screw flush?

The linked manufacturer feature is for nails, and a screw's holding mechanism is its threaded engagement. Use the authorized driver and screw-system correction.

What compound should cover the dimple?

The exact panel and joint-treatment system decides. This page invents no repair-material or coating specification. Follow the fastener-coating sibling guide and current material labels only after the attachment is accepted.

What PPE do I need?

The current hazard assessment, tool and product instructions, site rules, and applicable law decide. OSHA's construction rule requires appropriate eye or face protection when flying-particle or flying-object hazards exist. That does not authorize this page to guess the rest of the PPE system.

Can I strike near an outlet if I know the stud is there?

Not on that fact alone. A presumed stud does not clear concealed wiring, plumbing, plates, or other services. Use the project's accepted mapping, inspection, and clearance process; stop if the path remains uncertain.

History footnote — why a painter's pocket tool grew a striking cap

USG traces modern paper-faced wallboard from Augustine Sackett's nineteenth-century board to the Sheetrock® name in 1917, after which fast panel construction displaced much wet plaster work. Nails were natural early fasteners for a material designed to go up quickly on framing. That created a recurring painter's problem: round heads to set or repair before a flat finish could begin.

The painter's multi-tool is a later, anonymous American trade pattern. Hyde's HammerHead addition makes sense in that history: the pocket scraper already opens the can, cleans the roller, opens cracks, and spreads small repairs, so a striking cap lets the same in-hand tool address an authorized nail without a walk for another tool. That history explains the convenience. It does not establish a wall-system approval.

Evidence and conflict register

Current primary product sources, live-read 2026-07-23:

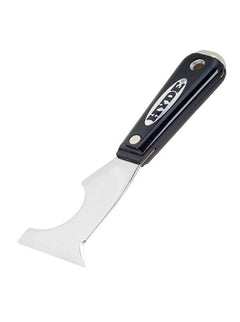

Hyde — Black & Silver® stainless 6-in-1: exact model and exact drywall-nail-setting claim for 01870.

Hyde — Black & Silver® carbon multi-tools: 6-in-1 variant and nail-setting claim for 02980.

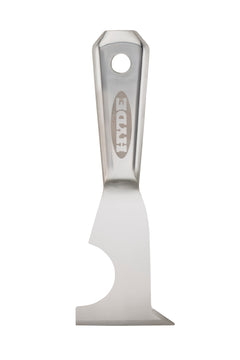

Hyde — Full-metal™ stainless 6-in-1: exact model 06780; “setting of boards and dimpling of nail holes” plus light-hammering wording, not silently rewritten as an unlimited drywall-nail claim.

Current workflow and safety sources:

USG — History: company-primary timeline for Sackett Board acquisition and the 1917 Sheetrock® milestone.

Open conflicts and withheld claims:

This application does not adopt that expansion.
