How to Scrape Round and Convex Profiles

No other Hyde model belongs to this application edge.

The same page separately describes a 3-inch stiff stainless-steel scraper blade.

Job: determine whether the verified concaved scraping-blade feature on Hyde 06988 is suitable for one identified round or convex workpiece, remove only the coating or residue authorized by that workpiece's repair specification, and read back the profile before it passes to the next finish step.

Time: no universal rate is defensible. A short, accessible profile with a documented coating system and an accepted sample may be brief; identification, access, multiple layers, a damaged profile, or an unresolved hazard can make the correct result a stop rather than a scrape.

Difficulty: the work requires both judgment and hand control. The operator has to prove identity, qualify a test area, keep the curved working feature centered and stable, advance around the profile without cutting its shape, and recognize the removal endpoint without converting the words “concaved scraping blade” into an invented specification.

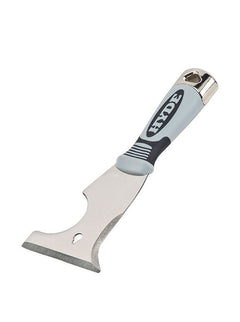

The exact Hyde tool linked to this job:

Hyde's current page identifies an 8-in-1 type and names the concaved scraping blade as an additional feature. This is the sole product backlink. The linked guide is useful for locating the broader authored record, but its unsupported exact curve, contact coverage, named-profile compatibility, one-pass performance, and material-care statements remain quarantined by the gate above.

Everything else: current instructions or packaging for the physical tool; coating, finish, and substrate records; stable access and revealing light; an approved witness location; a non-damaging means of recording the pre-work condition; controls selected by the actual hazard assessment; and the materials specified by the coating or substrate system.

Define the acceptance condition before making contact

“Scraped” is not an acceptance condition. Write down what has to remain and what is allowed to leave.

Identify the profile. Record the component, location, accessible length, transitions, joints, fittings, and adjacent surfaces. “Round” and “convex” do not establish a constant radius, substrate, or tool match.

Identify the layer targeted for removal. Use the project's records, labels, specifications, or qualified assessment. Do not infer coating chemistry, age, adhesion, thickness, or hazard from color, gloss, hardness, or location.

Name the preservation target. It may be an intact base layer, an original profile, a dimension, a smoothness class, an edge, a marked transition, or another documented condition. If nobody can state what must remain, nobody can judge whether the scraper is succeeding.

Set the stop condition. Examples are evidence of substrate contact, profile change, unstable adjacent finish, tool slip, unidentified lower layer, unexpected debris, or loss of controlled access. These are inspection conditions, not invented force or angle values.

Assign the next step. This guide ends at an inspected removal surface. It does not select the repair or finish system.

Record consistent photographs, location, finish documents, endpoint, witness area, and the person authorized to disposition surprises. That prevents “keep going until it looks clean” from becoming the hidden specification.

Resolve the product claim without enlarging it

The current first-party page supports a narrow chain:

06988 exact variant → 8-in-1 type → additional feature named “Concaved scraping blade.”

Keep three other statements separate:

The page's 3-inch stiff stainless-steel claim describes a scraper blade on the shared Pro Stainless family page. It does not say that the concaved feature itself is 3 inches wide.

The page's stainless-steel construction language does not separately identify the secondary feature's material or chemical compatibility.

The word “concaved” does not supply a radius, profile family, bevel, direction, load, or no-mar promise.

Inspect the physical product against current Hyde instructions or packaging. Identify the manufacturer-designated concaved scraping feature; do not nominate a notch, corner, cut-out, nail puller, or other opening by appearance. If current manufacturer material does not identify it, stop and ask Hyde for exact-model instruction.

Inspect for damage, alteration, or contamination. This guide supplies no sharpening, bending, grinding, dressing, or repair procedure. A changed feature is removed from service until competent disposition.

Clear the coating, hazard, and access gates

Scraping changes the surface and creates debris. The work plan has to control the actual coating and site.

Coating and substrate gate

Confirm the target layer and substrate from records or qualified assessment, then obtain that system's current removal requirements. If identity remains unknown, the job is not ready. A test does not identify a coating or prove compatibility.

Regulated-paint gate

The U.S. Environmental Protection Agency lists scraping paint as an activity that disturbs painted surfaces. This guide does not declare that the workpiece contains lead. Determine applicability before disturbance; where rules apply, the authorized plan controls the work.

Personal-protection and cleanup gate

There is no universal personal-protective-equipment list or cleanup recipe. The identified material, method, access, and site rules control selection. Do not force the work into a generic kit.

Access gate

Establish a stable position from which the operator can see the working feature, the debris leaving it, and the next transition without overreach. Secure a loose workpiece so it cannot roll under the tool; on an installed profile, move the staging or the operator's stance instead of reaching around the far side. The hand holding the tool must be able to stop immediately without the body falling into the cut.

Protect adjacent arrises, reveals, flat trim, joints, and fittings before the witness pass. Use a guard or masking system compatible with the adjacent finish, and terminate the pass before that protection rather than treating tape as a blade stop. Treat each access change as a new setup.

Use physical verification only as a rejection screen

Physical verification answers one bounded question: is this actual tool a controlled candidate for this actual workpiece under this actual approved removal system?

It cannot establish a product radius, validate the linked guide, or create customer-facing compatibility language.

Choose and qualify the witness location. Use a representative sample or inconspicuous area only when the finish owner and specification permit it. It must include the same profile, coating stack, access, and nearby boundaries as the production area. A hidden area is not automatically expendable.

Stabilize the control system. Secure a loose workpiece against rolling, or plant the operator so a stopped hand does not become an uncontrolled body movement. Keep the off hand and all supports outside the scraping path.

Protect the neighboring geometry. Guard adjacent arrises, reveals, flats, fittings, and finish transitions. Plan the pass to finish in open space before the guard; never run the curved feature blindly into a corner.

Orient the curved working feature. Once the manufacturer-identified concaved feature is known, present its hollow toward the convex crown. Center the feature over the visible high point so the intended scraping lip—not a corner, spine, notch, or neighboring function—meets the target layer. Align the travel with the length of the profile rather than twisting around its circumference during one pass.

Start with a short, low-input pass. Use only enough hand input to keep the feature seated and learn how the target layer releases. A useful first pass is deliberately short: it should show whether the edge tracks, whether target debris appears, and whether the retained surface remains unchanged.

Inspect the debris and witness. Target-coating chips, flakes, curls, or powder should agree with the identified layer and approved method. Stop on substrate fibers, fresh wood color, metal filings, base-coat color, soft smears, mixed layers, or any debris that does not match the plan.

Escalate only within control. If the target layer does not release, make at most a small qualitative increase after rechecking seating, tool condition, and layer identity. Stop before the handle has to be clenched, the workpiece rolls, the tool flexes or rocks, the edge chatters, or the operator needs momentum. More force is not the cure for a poor match.

Rotate or reposition progressively. After one narrow visible band passes inspection, reset the tool and stance for the neighboring band. Work around the profile in increments; do not roll the wrist through the whole curve or let a successful first contact authorize the hidden side.

Record the disposition. Accept only the local orientation, input, pass length, debris pattern, and endpoint that the witness actually proved.

If the witness fails, do not reverse direction repeatedly, bear down, sharpen the feature, or add chemistry to make it work. Route to a documented tool and method.

The controlled removal workflow

Phase A — establish the section

Mark the start, stop, and preserved boundaries for one manageable section.

Confirm revealing light, stable access, containment, and evidence coverage. Set protection at every adjacent arris, reveal, flat, joint, fitting, and finish transition.

Recheck for changes that were hidden before staging: repairs, joints, differing layers, corrosion, deformation, moisture, loose finish, or an interrupted profile.

Keep adjacent systems out of the working path. Establish where every pass will start and lift away; do not use the secondary feature to explore behind trim, under fittings, or into joints.

Phase B — control each pass

Present the concaved working feature toward the convex crown and center it in the locally accepted orientation. Confirm that no adjacent tool edge is bearing on the work.

Make a short pass along the profile with the lightest hand input that keeps the accepted seating stable and produces the witness-approved release. Keep the wrist quiet and let the body or staging supply the travel; do not hook the tool around the profile mid-pass.

Lift cleanly while the feature is still in the accepted band. Stop before an end, shoulder, reveal, fitting, flat, or untested radius change rather than steering through it.

Clear the view by the approved debris-control method and read what came off. Separate target debris from any evidence of substrate or retained-layer removal. Do not let packed residue become a bearing surface that changes the working contact.

Inspect the freshly exposed strip in revealing light. If it meets the endpoint and the profile is unchanged, overlap into the neighboring band only enough to avoid a ridge, then rotate or reposition for the next visible segment.

Inspect the feature and workpiece frequently. A changed edge, burr, embedded particle, loosened part, unexplained mark, chatter line, facet, or flat is a stop.

Phase C — negotiate changes as new conditions

At a radius change, shoulder, flat, end, joint, or fitting, stop and repeat the contact survey for the new condition.

If the target layer changes color, texture, adhesion, thickness, or debris form, do not diagnose it by scraping farther. Preserve the boundary and obtain a material disposition.

If the retained surface becomes visible, compare it with the prewritten endpoint. Do not continue to make it brighter, smoother, or more uniform unless the repair specification requires that result.

If release slows, first clear residue and recheck seating. A modest increase is acceptable only while the tool stays settled and the target layer alone continues to leave. Chatter, rocking, sudden slip, tool flex, workpiece movement, mixed debris, or a need for momentum ends the pass.

Stop on lines, facets, flats, edge marks, or another shape change. The job is profile preservation, not simply removal.

Phase D — close the section

Remove loose debris by the approved method, then inspect both along the profile and around its visible circumference under the same revealing light used for the witness.

Sight from both ends where access permits. Look for proud residue, missed side bands, repeated scrape lines, flats, facets, bright substrate, undercut arrises, damaged reveals, and boundary nicks. Use the specified surface criterion—not shine or bare appearance—to decide whether the finish is ready.

Account for the full section and every transition. Progressive bands should meet without a ridge, but do not erase a harmless witness line by over-scraping the retained surface.

Mark accepted, repair-required, unresolved-layer, tool-rejected, or specialist-review areas directly on the work map.

Photograph the completed section and any exceptions before cleanup or later preparation changes the evidence.

The repeatable loop is:

qualify witness → orient and stabilize → make a short pass → read the debris → inspect the finish → rotate or reposition → record disposition

Readback: prove the work without claiming more than was observed

Readback has four parts.

Layer readback: the target layer reaches the documented endpoint. Unresolved residue is marked, not silently accepted.

Profile readback: the retained form meets its preservation criterion under consistent raking light or the approved measuring method. Inspect along the length and around every worked band for a continuous profile without new flats, facets, ridges, gouges, or bright substrate. This guide supplies no tolerance.

Boundary readback: arrises, reveals, ends, joints, fittings, adjacent finishes, and transitions are intact or separately dispositioned.

Tool readback: the feature remains acceptable under current Hyde instructions. Any change that could alter contact removes it from production.

Do not convert a successful readback into language such as “full contact,” “perfect fit,” “one-pass removal,” “safe on,” or “compatible with.” The readback proves only the recorded local result under the recorded process.

Cleanup and handoff

Cleanup is part of the removal system, but its method cannot be authored without knowing the removed material and site.

Keep the waste stream identified. Affected items stay in the route assigned by the hazard and waste plan. Do not mix unknown debris with a known stream.

Close the work area by its approved method. The exact coating, hazard determination, owner requirements, and jurisdiction control collection, cleaning, verification, transport, and disposal. This guide does not prescribe water, solvent, compressed air, brushing, vacuuming, or any other universal method.

Clean the tool only under compatible instructions. Hyde's stainless and durability language is not a cleanup procedure or chemical-compatibility chart.

Inspect after cleaning. Residue, damage, altered geometry, looseness, or corrosion gets recorded and dispositioned before storage or reuse.

Hand off the surface. Provide the work map, identity, endpoint, witness result, accepted sections, exceptions, repair needs, hazard/waste record, and date/person. Do not overcoat unresolved boundaries.

What goes wrong — and the disciplined response

The feature contacts at one point but rocks elsewhere. Reject that local fit. A successful approach at one location did not establish a compatible path.

An adjacent edge touches first. Stop; the unverified edge has become the working edge.

The coating releases, but the surface beneath scores or changes shape. Stop at once, preserve the witness, and route the damage and removal method for review. Easy release is not success when the profile fails.

The layer behaves unexpectedly. Contain it under the plan and pause for identification. Appearance does not authorize diagnosis.

More hand input seems necessary. Clear packed debris, recenter the feature, shorten the pass, and recheck layer identity and tool condition. A small increase is legitimate only while seating stays stable and the expected target debris continues. Stop before clenched grip, flex, rocking, workpiece movement, or momentum becomes necessary.

The scraper chatters, skips, or slips. Stop. Do not chase chatter with force. Shorten the pass, restore stable access, clear residue, and repeat the witness orientation; if the tool still will not track under low controlled input, reject the match.

A radius or shape change appears mid-run. End the accepted section. Treat the new geometry as a new fit decision.

The tool accumulates residue. Use only the approved clearing method.

The result looks patchy. Compare against the endpoint, not aesthetic impulse; diagnose before removing more.

The work is finished but no one can state what was removed. The evidence loop is open. Preserve the area and resolve identity before cleanup or overcoating erases the record.

| Claim or decision used here | Current primary evidence | Boundary preserved |

| The Pro Stainless page offers an 8-in-1 type and names “Concaved scraping blade” as an additional feature | Hyde Tools — Pro Stainless™ Stainless Steel Multi-Tools | Supports the feature name; does not supply its geometry, material, fit, technique, compatibility, safety, or care |

| The shared page separately describes a 3-inch stiff stainless-steel scraper blade | Hyde Tools — Pro Stainless™ Stainless Steel Multi-Tools | Does not prove that the secondary concaved feature is 3 inches wide or establish its material |

| Scraping paint is an activity EPA identifies as disturbing a painted surface | [U.S. EPA — activities deemed a disturbance of painted surfaces]( | Triggers an applicability decision; does not declare that this workpiece contains lead or prescribe this job's controls |

| Curved scraping features for rounded painted surfaces appear in the historical patent record | [U.S. Patent 5,095,573 — Scraper Tool]( | Historical context for a different Warner design; supplies no Hyde 06988 geometry, technique, compatibility, or lineage |

A short history of curved scraping features

Curved scraping is not a new problem, but a historical solution is not a specification for this tool. A useful primary record is U.S. Patent 5,095,573, filed by David R. Henke and Douglas B. Its separate scraper design expressly describes curved blade portions for painted rounded surfaces and gives those parts their own detailed geometry.

That specificity is the lesson. The patent can document that toolmakers were engineering dedicated curved-surface scraping features by the late twentieth century. It cannot establish who first invented the pattern, show that Hyde copied it, or fill any blank in the 06988 record.

Frequently asked questions

Is 06988 proven to fit every round or convex profile?

A successful witness is only a bounded process acceptance.

Which part of 06988 is the concaved scraping blade?

Use current Hyde instructions or exact-model packaging to identify it. Do not infer the working feature from the silhouette or from another multi-tool.

Is the concaved feature stainless steel?

The current page describes the Pro Stainless family and separately names a 3-inch stiff stainless-steel scraper blade, but it does not separately state the secondary feature's material. This guide does not bridge that gap.

What direction, angle, or force should I use?

No universal numeric setting is supported. As qualitative trade technique, face the manufacturer-identified concaved feature toward the convex crown, center it so the intended lip leads along the profile, and begin with a short pass under light input. Rotate or reposition between bands instead of twisting around the curve mid-pass. Increase only slightly while the expected target debris releases and the tool remains settled; stop on chatter, rocking, flex, slip, workpiece movement, mixed debris, or substrate exposure. Current manufacturer and finish-system instructions override this general technique.

Can I use it on a specific coating or substrate?

No universal compatibility is established. Identify both, obtain current removal requirements, and reject a witness that fails its endpoint.

Does a good physical fit prove product compatibility?

It permits a local work decision under recorded conditions.

What personal protective equipment or cleanup method does this guide require?

It prescribes neither universally. The identified coating, site hazard assessment, current instructions, and applicable rules control protection, containment, cleaning, verification, and waste.

When is the job complete?
