How to Sand Contours, Profiles, and Eased Edges

Merged job: three queue angles — foam-supported detail sanding with the 5" disc system, vacuum-sponge work on bullnose and curved trim, and hand-sponge work on profiles and eased edges — resolved as one method. The register's SKU union was treated as a lead list, not an endorsement. This guide includes only the members whose documented shape, grit, or system role survives the line-doc and packet check.

Job: remove defects, refine scratches, or scuff a coating on a shaped surface without flattening the curves, deepening the hollows, or rounding the edges that were meant to stay crisp.

Difficulty: shape control. Flat sanding is an exercise in keeping a plane; contour sanding is an exercise in deciding which parts are not planes and loading each one separately.

Everything else: a low-angle work light, pencil, soft brush or suitable vacuum, clean water and bucket only for the damp method, drop cloth, masking materials, the coating or filler manufacturer's instructions, and a known sample area on which a changed shape or scratch will not matter.

Before sanding: diagnose the shape, not just the material

Name the geometry before choosing the abrasive support. Most “detail sanding” is one of five different jobs:

A single convex radius: drywall bullnose, a round-over on trim, or the outside of a rounded patch. The risk is faceting — cutting a series of tiny flats where one continuous arc belonged.

A compound molding: casing or crown with flats, beads, coves, fillets, and sharp arrises in one section. Each element is a separate sanding zone. Treating the whole molding as one surface erases the boundaries that make the profile readable.

An eased edge: a deliberately small radius breaking an otherwise crisp edge. The risk is enlargement — turning a light ease into a visible round-over.

Curved trim: an arch, bowed casing, circular window part, or other member whose profile may be constant while its run curves. There are two directions to preserve: along the molding's section and along the curve of the run.

A rounded repair edge: compound or filler tapering into an existing curved surface. The repair has a center, a feather, and a surrounding finish; those zones do not want the same pressure.

A crisp arris is not a contour to “follow.” It is a boundary to protect. If the design depends on a sharp meeting of two planes, keep conforming foam off that line and sand the adjacent planes separately.

Separate a surface defect from a shape defect. A nib, scratch, light filler ridge, or sanding mark can be removed. A cove filled too full, a bead sanded flat, or an eased edge made uneven is missing geometry; more sanding only makes the error larger. Re-form a bad profile with filler, a profile scraper, or a purpose-shaped backing before returning to finish sanding. Sanding subtracts.

Identify the substrate and the film on it. Bare wood has grain; MDF has vulnerable edges; plaster and joint compound are water-sensitive and much softer than paint; an intact coating may need only an adhesion scuff; a failing coating needs removal and repair before finish sanding. Do not use “trim” as a material specification. Test the actual surface.

Decide what must survive. Mark or mask the arrises, quirks, shadow lines, and end stops that define the profile. A pencil line laid lightly on the high point of a bullnose or along an eased edge is a useful witness: if one short area loses the line before the rest, pressure is uneven. Do not rely on tape alone to preserve a sharp edge; abrasive can roll over tape, and the tape itself can hide a small flat. The hand still has to stop at the boundary.

Light the surface from the side and read it with both eye and hand. Raking light shows flats on a radius as alternating bright and dark bands. Fingertips detect a ridge inside a cove that light misses. On molding, sight down the run as well as across the section: a profile can look correct in cross-section and still wave along its length.

Let the least aggressive useful abrasive make the first test. Start on an inconspicuous part with the finest support and grit likely to cut the defect. If it cuts at a working pace, stay there. If it only polishes the high spots while the defect remains, step coarser one decision at a time. The correct starting grit is set by defect depth, substrate hardness, coating system, and required finish — there is no honest universal sequence for every bullnose, piece of crown, and filled patch.

Choose the support before the grit

The support decides what shape the abrasive will make. Grit decides how fast it makes it.

| Shape or condition | Honest tool choice | Why |

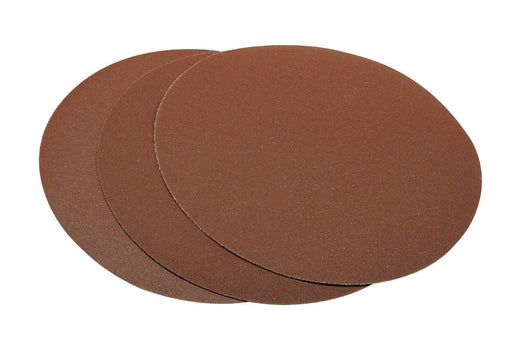

The exact disc identities are 100, 120, 150, and 180 grit in 5-packs.

Two exclusions matter.

Set up a repeatable contour pass

Clean and stabilize first. Remove loose coating, dust, wax, and residue that would load the abrasive or hide the surface. Let filler and compound cure fully. If a patch smears, pills, or rolls instead of producing a clean powder during a dry test, it is not ready for dry sanding. If old finish is lifting, sanding the stable margin while leaving loose film beside it is not preparation; resolve the adhesion failure first.

Break a compound profile into named zones. On casing or crown, the zones might be: broad face, upper bead, narrow fillet, cove, lower bead, and each arris between them. Finish one zone along the run before moving to the next. This prevents the common mistake of rubbing diagonally across the whole section and gradually turning distinct elements into one soft wave.

Make a pressure map with your hand. On foam, the abrasive cuts where the foam is compressed:

For a convex crown or bullnose, spread pressure across the fingertips and roll that pressure gradually around the arc. Do not park on the apex.

For a cove, place pressure behind only the portion of foam touching the hollow. If the support bridges from lip to lip, it is too broad or too stiff for that cove.

For a bead, drape the foam over the bead and move pressure from one flank, across the crown, to the other. Do not grind only the exposed crown.

For an eased edge, use barely enough pressure to maintain contact and keep the support centered on the existing ease. The goal is an even scratch on the radius already present, not a larger radius.

For a rounded patch edge, keep the highest pressure inside the new material and let it die toward the old finish. The surrounding coating is the stop line, not extra sanding room.

Use a witness pass before committing. Make one short, light pass and brush or extract the dust. The scratch should appear across the intended element, not only on one tangent line. If only the crown is scratched, the support is bridging or the pressure is too local. If the arris is scratched, the support is rolling beyond its zone.

The sanding method, shape by shape

Bullnose and single radii

Travel along the radius, then roll around it. On a drywall bullnose, the long stroke follows the corner vertically or horizontally; between strokes, move the hand's pressure a little farther around the arc. Overlap the pressure zones so no narrow band is worked twice while its neighbor is untouched. A series of fixed-angle strokes creates facets. Moving contact preserves roundness.

Keep the ends from becoming smaller than the middle. Hands naturally slow at an end stop, and every pause removes more material. Run past the working zone when the design allows; where a stop blocks the pass, unload before the stop and restart from the other direction. Compare the witness line and reflected light at both ends after every stage.

Repair a bullnose in layers, not by chasing one hard spot. A filled ding on a rounded corner should be brought close to shape during filling. Sand the repaired crown and both flanks as one connected arc, but keep the highest pressure over the new fill. If the repair remains low, stop and refill. Cutting the original bullnose down to meet a hollow repair is the wrong direction.

Casing, crown, beads, coves, and quirks

Sand the flats as flats and the curves as curves. Complete the broad molding face with a flat-supported method before touching its beads and coves. Then switch to foam for the shaped elements. This tool change is not inefficiency; it is how the molding retains a flat face next to a round bead instead of becoming uniformly soft.

Follow the molding's length. On bare wood, make the finishing passes with the grain so cross-grain scratches do not announce themselves through stain or clear finish. On painted wood, MDF, plaster, or compound, follow the longest line of the profile: lengthwise scratches are easier to refine uniformly and do not scallop the section. Across-the-profile rubbing is reserved for diagnosing a stubborn high spot, not for the finish pass.

Work coves from the bottom outward. Establish clean contact in the deepest reachable part, then roll pressure up each flank in separate passes. If the abrasive only touches the lips, stop; more pressure will round the lips before it reaches the bottom. Change to a support that actually fits the hollow. Never sharpen a cove by grinding the two bordering arrises thinner.

Protect beads and arrises by ending the stroke, not by hoping the foam knows. A bead's crown gets moving, distributed contact. Its bordering arrises get none. As the hand approaches a sharp line, unload until the abrasive is merely touching, then lift. If the arris needs its own scuff, address each adjoining face separately with a flat support.

Eased edges

Preserve the existing amount of ease. An eased edge is often only a small break in the corner. Use the finest useful grit, very light centered pressure, and long passes. Check the edge in reflected light: the highlight should stay the same width along the run. A highlight that widens at one point means the radius is growing there. Stop and blend the transition over a longer distance; do not keep sanding the wide spot.

Do not use the ease as a handrail. Fingers naturally wrap an edge and squeeze, doubling pressure at the corners. Hold the support from above or behind so the hand guides rather than clamps. On repeated pieces, use the same grip, pass length, and number of inspection cycles on each — not a universal pass count, but a repeatable shop method that exposes drift.

Curved trim and arched work

Respect two curves at once. An arched casing has a cross-sectional profile and a curved run. Keep the abrasive aligned with the local tangent of the arch while pressure follows the cross-section. Short overlapping strokes around the arch work better than one long chord-like stroke, which cuts across the run and flattens the inside of the curve.

Blend joints without erasing the profile. At a miter or scarf, mark the high side, sand the proud joint locally, then immediately lengthen the pass onto both pieces. A tight local scrub makes a dip around the joint even if it removes the ridge. If the profiles do not actually align, sanding is not the cure; reset or refill the joint.

Rounded patch edges

Foam enters at the shoulder and halo, where compound thins onto paint. On a curved wall or bullnose, there is no flat plane to state, so the conforming support owns the whole geometry — but the same pressure gradient applies: most over new fill, least over old coating.

Feather outward and stop when the edge disappears. Begin inside the repaired area and let each stroke leave the patch at diminishing pressure. Check by fingertip and raking light. Once the edge is gone, further halo sanding does not improve the repair; it burns through or burnishes the surrounding coating and creates a ring that primer and sheen will expose.

Grit progression without a fabricated universal

Choose by the surface's present condition, not the finish you hope to reach. The 5" disc ladder gives four exact choices:

It is not a default first grit.

These are roles, not a command to run all four. Starting too coarse erases profile. Starting too fine can polish high spots while leaving the defect below them.

Advance only when the current scratch is uniform and the defect is gone. Brush, wipe, or extract between stages and inspect under the low light. The next grit is there to refine the scratch, not to finish the shaping the earlier stage failed to complete. If deep lines survive after the finer pass, go back one stage rather than pressing harder.

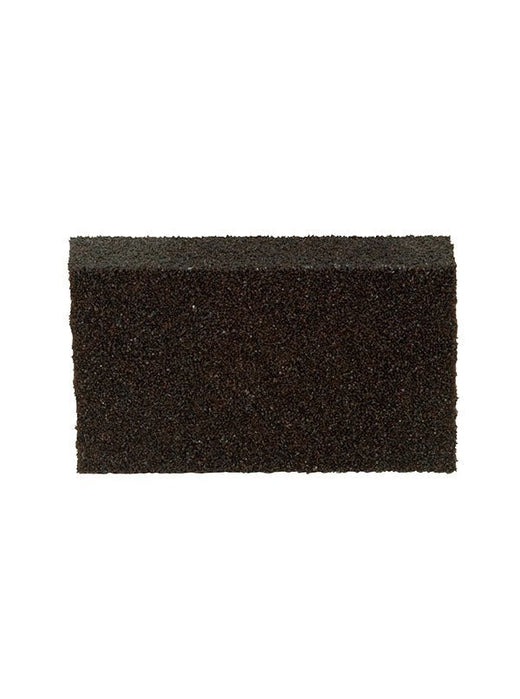

Keep word grits as words. The 45350 is fine/medium; the 45360 is medium/coarse. Identify the two surfaces on the physical block by feel and a hidden-area scratch test.

Let the coating system overrule the general ladder. Stain, clear finish, enamel, primer, filler, and repair compound can specify their own preparation grit and recoat procedure. Follow the material manufacturer's current instructions when they name a grit or prohibit wet sanding. This guide supplies geometry control; it does not replace a coating specification.

Dry, damp, and vacuum-extracted boundaries

Use dry sanding when shape has to be cut. Dry abrasive reveals the high spots and removes material cleanly. Keep that system dry.

Damp means dipped in clean water and wrung until it no longer drips. A few light strokes soften and redistribute compound while the sponge captures slurry; rinse before the face smears. This is excellent for the last blend on a rounded drywall patch and poor for truing a ridge. Water can swell raw wood grain, damage unsealed MDF edges, soften some fillers, and undermine coatings; do not transfer the drywall method to another substrate without its manufacturer's approval.

Run the vacuum before contact, keep the short hose relaxed, and watch suction.

Know what “dust-free” does not settle. Hyde's family claim is “up to 99%”; NIOSH independently measured vacuum-sanding controls reducing drywall-dust exposure by 80–97% (NIOSH 99-113). Both are conditional reductions, not zero exposure. Filter condition, seal, hose routing, abrasive contact, and technique all matter.

After sanding: inspect, clean, and hand the profile to the finish

Inspect dry. Damp compound and damp wood change color and hide scratch. Let a damp-worked surface dry fully, then rake light across the profile from both directions and sight along the run. A continuous highlight on a radius, distinct shadow lines at coves and beads, and arrises that remain straight are the acceptance tests.

Remove all residue without altering the scratch. Vacuum or soft-brush dry dust; use the 45390's absorbent face to lift slurry during its own damp workflow, then finish with clean water and a well-wrung wipe where the substrate permits it. Do not leave compound slurry in a cove or sanding dust seated in a repaint scuff; primer and finish adhere to the residue instead of the surface.

Prime repairs and exposed substrate as the coating system requires. Bare drywall compound must be primed before finish paint or its porosity flashes. Exposed wood, MDF, metal, plaster, and existing coatings each have different primer and sealing requirements; use the specified system. A scuff on a sound coating may hand directly to the next compatible coat after cleaning, while sand-through, bare spots, stains, and sealed repairs usually change that handoff. The manufacturer's instructions decide.

Make the first coating pass another inspection. Primer unifies color and reveals facets, filled coves, scratch bands, and burn-throughs that dust disguised. If primer reveals a shape defect, let the specified system cure, repair the geometry, and repeat the appropriate local sequence. Do not bury a bad profile under additional finish and call it texture.

What goes wrong — and the recovery

“The bullnose looks polygonal in side light.” Fixed-angle pressure cut tangent flats. Stop using the flat presentation. Mark the full arc, switch to a more conforming support, and blend with rolling pressure over a longer run at a finer useful grit. If the radius has been materially reduced, refill and re-form it; sanding cannot put the curve back.

“The bead is disappearing.” The crown received every stroke while its flanks received none. Re-zone pressure across both flanks and crown.

“The cove is smooth at the lips but rough in the bottom.” The support is bridging. Do not press harder — that rounds the lips. Change to a narrower or more compliant presentation that actually contacts the hollow, then work bottom and flanks separately.

“The eased edge is getting rounder at the ends.” The hand is pausing or squeezing at each stop. Unload before the end, work from both directions, and compare the reflected highlight along the full run. On repeated pieces, standardize the inspection rhythm.

“A crisp arris has gone soft.” Conforming foam crossed a boundary it should have stopped at. If the loss is slight, sand the two adjacent planes separately to re-establish a clean meeting. If the edge is visibly rounded, add material and re-form it; more contour sanding makes it worse.

“The profile has deep scratches after the finish pass.” The earlier grit was not fully refined, or loose grit/dried slurry stayed under the finer abrasive. Clean the surface and tool, return to the last grit that cuts the deepest surviving scratch, then advance only after the scratch is uniform.

“The sponge smears instead of cutting.” In damp work it is overloaded or too wet; rinse, wring harder, and take fewer strokes. In dry work the substrate may not be cured, or the abrasive may be loaded. Stop and diagnose instead of adding pressure.

“The repaired edge shows as a ring after paint.” The halo was over-sanded, burnished, cut through, or left unprimed. Feather only the actual ledge, restore the required primer across the repair and worked halo, and match the final coating texture.

“The vacuum sponge is throwing dust.” Check suction, hose and adapter joints, filter loading, and full sponge contact. “Up to 99%” depends on the system working; a clogged filter or leaking connection is not a technique problem you solve by pressing harder.

Safety boundaries that actually belong on this job

Drywall and filler dust: NIOSH found drywall sanders exposed to as much as ten times the applicable total-dust limit in the work it studied, and vacuum controls reduced exposure 80–97% (NIOSH 99-113). Use extraction where practical, isolate the work, and use suitable respiratory protection for sustained dry sanding. A single profiled repair does not justify pretending the dust is harmless.

Pre-1978 paint: sanding through an existing coating on old casing, crown, or bullnose can create lead dust.

Unknown old texture or patching material: some historic textured coatings and patching compounds have contained asbestos. Do not learn what an unidentified old layer is by sanding it airborne; stop for competent material identification where age and appearance make that concern real (EPA — Learn About Asbestos).

The history footnote: contour sanding arrived by refinement, not one invention

Sandpaper began as abrasive on a sheet, which made the user's fingers or a rigid block responsible for every shape. Flexible cellular foam changed the support. The patent record shows the idea developing in steps rather than appearing as one named invention: a 1974 patent joined polyurethane foam, an abrasive face, and a separate wiping function in one hand sponge (US3857133); later sanding-sponge patents cite early-1990s shaped hand-sanding tools with angled and curved working edges and contour-specific supports (US6227959, US6524175). What they document is the design problem this job still solves: make the abrasive support conform enough to reach a profile without letting that conformity erase the profile.

The present tool set carries three descendants of that idea: grit fused directly to a washable block, a replaceable round disc on a soft foam hand pad, and a sponge connected to vacuum extraction. The physics stayed constant. A rigid face defines a plane; a conforming face follows a shape; the craft is knowing which one the work is supposed to be.

Exact tool backlinks and neighboring jobs

Technique, history, and safety: NIOSH 99-113 · EPA RRP · EPA asbestos overview · US3857133 · US6227959 · US6524175.
