Replace the Pads on a Pad Edger

A gated identification, inspection, cleanup, and service-handoff procedure

Difficulty: Moderate. The physical work may be small; the hard part is refusing a plausible-looking refill when the exact fit and attachment method are not established.

This guide does not choose a cleaner or personal protective equipment for an unknown coating.

Start with the identity gate, not the old pad

Record all three identities before opening a refill or disturbing the installed pad:

the model marked on the tool, head, package, or retained instructions;

the complete model and fit wording on the replacement package; and

the model of the application tool actually in hand, not the model remembered from an order or copied from a product title.

The current evidence does not close that join automatically.

There is one positive service route:

Exact packaging may supply part of the identity join, but fit wording alone does not invent the service actuation.

Direct observation is a rejection gate only. A visible mismatch, obstruction, damage, or conflict can reject a proposed pad or system. Apparent geometric agreement, an intact as-found assembly, or a dry non-damaging comparison cannot positively establish fit, release motion, attachment orientation, installation actuation, or service authorization.

“It looks about right,” a family resemblance, the shared word *edger*, the incomplete phrase “for 9500,” or a successful dry comparison does not pass.

Decide whether the pad is worn or merely loaded

Do not replace on a calendar. No current exact source establishes a service-life interval for these pads.

First ask whether the pad has completed a coating job and is still wet or contaminated. Do not use an unapproved liquid to discover whether the pad will recover. Do not infer that a pad is washable from another edger, another paint, or general shop practice.

A replacement case is observable when one or more of these remains true:

the working face is torn, shedding, permanently folded, or visibly missing material;

the edge that establishes the paint boundary is damaged or no longer holds its original continuous shape;

the pad has shifted, bunched, or detached from its carrier;

cured contamination remains after the permitted cleanup process and makes the working face visibly uneven;

the pad no longer remains stationary during the dry verification that its current instructions permit; or

the exact manufacturer instruction says to replace it for the observed condition.

A cleaning or reinspection case, not yet a replacement case, is a pad that is paint-loaded but remains securely located and returns to a uniform, usable condition after the exact coating/tool-prescribed cleanup. “Uniform” here is an observation against the pad's own undamaged areas or a verified unused exact replacement, not a claim about undocumented fiber softness, thickness, or chemistry.

If the head, guide components, carrier, or mount is cracked, bent, seized, or unable to retain its existing pad, changing only the consumable does not repair the tool. Quarantine the head for exact-model service guidance.

Prepare a controlled, dry maintenance station

Finish the coating operation and move the tool away from open paint. Follow the coating maker's instructions for stabilizing or cleaning the loaded pad before handling it. Let the assembly reach the maintenance state required by the tool and coating instructions.

At the bench:

Protect the surface so a dropped head or released part is not damaged.

Illuminate the pad perimeter, backing, guide side, and every visible retaining feature.

Photograph the complete head from the working face, back, guide edge, and each side.

Photograph all model marks and the refill package wording.

Photograph how the old pad sits as found. This record preserves an observation; it does not prove that the observed orientation is correct or authorize reproducing it.

Keep the replacement sealed until the identity gate has been reviewed. If opening is necessary for comparison, preserve every label and insert.

Do not begin while the head is overhead, attached to an unstable pole, or held in one hand. If the exact instructions require detaching or retaining a pole, follow them; this guide does not invent a pole-release motion.

Inspect the attachment without attempting removal

Look, do not probe.

Trace the visible boundary between pad, backing, carrier, and head without moving any part. Record any feature that the current exact instructions name as a release or retainer. Geometry alone does not name a feature, establish its function, or authorize operating it, even when one travel path appears visually obvious.

the pad-to-head boundary cannot be seen;

a surface might be bonded, but no exact instruction identifies it as bonded or explains release;

an apparent fastener, catch, slot, backing, or retainer has an unknown role;

the pad is held by dried coating and the permitted cleanup process has not freed the visible boundary;

the existing pad or carrier is torn, distorted, cracked, or otherwise damaged; or

the proposed action would require prying, twisting, peeling, cutting, heating, solvent, or force to “see what gives.”

Do not add or remove adhesive, loosen a possible fastener, bend a possible catch, or choose a working-edge orientation by analogy. None of those constructions is established for this union.

There is no generic removal script in this guide.

Use only its stated release points, movement, orientation, installation method, retention check, and return-to-service rule. If the physical head differs from the illustration or wording, stop; the instruction may belong to another revision.

Route B — observation-only rejection and handoff

record the exact tool, head, refill, packaging, and instruction identifiers;

photograph the assembly from all accessible sides without operating any feature;

reject a proposed refill for any visible identifier, outline, backing, opening, notch, channel, tab, recess, stop, keyed-feature, clearance, or damage conflict;

complete only cleanup explicitly permitted by the coating and exact tool instructions; and

Do not operate a visible retainer, move the pad, or use a dry test to discover the mechanism. A clean visual match is not a pass; it only means this rejection inspection found no visible conflict.

Use comparison only to reject incompatibility

Compare only surfaces and identifiers already visible without disturbing the installed pad. In either case, the proposed 95001 pad may be rejected for a mismatch; a complete apparent match cannot create a positive fit or installation authorization.

Check, side by side:

every printed or molded identifier;

overall outline and the position of the working edge;

the backing's shape and thickness where those affect seating;

every opening, notch, channel, tab, recess, stop, or keyed feature actually present;

the location and form of every surface that engages the head;

clearance around the actual guide components; and

whether the replacement can occupy the same as-found position without covering, loading, or obstructing another component.

Any mismatch is a fail, including a feature present on one pad but absent on the other. Do not trim, punch, sand, stretch, compress, shim, re-drill, re-bond, or transfer a backing to make the refill fit. Observable comparison cannot establish it.

Inspect accessible head surfaces at the same time. Use only the permitted cleanup method. Do not scrape or dissolve unknown retention surfaces. If an actual guide component is visibly displaced, obstructed, or damaged, or if the carrier is damaged, stop; a new pad must not be used to conceal a head fault.

Installation remains model-specific

Under Route A, the authorized service provider follows the current instruction for the exact model, revision, and refill, including any named orientation, engagement sequence, confirmation mark, replacement-only component, and retention verification. Do not supplement it with generic edger advice.

Under Route B, do not install. As-found photographs, keyed-looking features, a non-damaging dry comparison, and the way an already-separated pad appears to align cannot establish:

that 95001 fits 95000 or 95008;

which face or edge is the attachment datum;

the correct working orientation;

which feature is a release or retainer;

the permitted engagement sequence or actuation; or

when the assembly may return to service.

Dry observation is a rejection check, not proof of fit

A dry observation may reveal a reason to reject an assembly; it cannot validate an otherwise unauthorized removal or installation.

Static inspection

Without actuating the tool, compare an assembly serviced under Route A to the exact instructions. Any gap, buckle, loose edge, displaced guide component, unexplained part, identifier conflict, or departure from the instruction is a fail.

Movement and functional checks

Perform a retention movement, unloaded practice stroke, pole-mounted check, or other actuation only when the current exact model-specific manufacturer instruction calls for that check and states how to perform it. Follow only that method. Stop on any unexpected resistance, lift, creep, rattle, bow, position change, interference, rocking, noise, or incomplete engagement. Do not increase force to quantify or overcome the failure.

Reject: any conflict or failure observed during an authorized check.

Never use paint to “bed in” an uncertain refill.

What goes wrong, and the safe recovery

| Symptom | What it means | Recovery |

| Package says only “for 9500” | Fit remains unresolved for this exact head | Obtain current exact model-specific confirmation and change instructions; do not install by title or observation |

| Old pad will not release | Mechanism, contamination, or revision is not understood | Stop; use current exact instructions or manufacturer support. No forced motion |

| New and old backings differ | Refill is wrong, revised, or incompletely identified | Quarantine the refill; do not modify either part |

| Pad sits proud, buckled, or off-center | Engagement is incomplete or fit is wrong | Fail the static check; do not improvise a retainer |

| Pad moves in a manufacturer-authorized dry check | Retention failed | Stop and follow the exact instruction's failure/handoff path; do not improvise removal |

| Guide component contacts the new pad | Geometry or orientation is wrong | Stop; do not cut clearance into the pad |

| Head is damaged after removal | The problem was not only the consumable | Quarantine the head and seek exact-model service direction |

| Old pad is unusable and new fit is unproved | The tool cannot be returned to service safely | Bag and label the separated parts; keep the model/package record together; do not assemble speculatively |

Cleanup, closeout, and storage

Coating label / technical data / safety data: compatible cleanup material, handling controls, ventilation, disposal, and what to do with coating-contaminated pads.

Current exact tool/refill instructions: whether the pad is cleanable, when it is removable, which surfaces may be cleaned, and how the assembled tool is stored.

This guide: preserve identity, avoid damage, and do not introduce an unapproved chemical or motion.

For every disposition, retain or photograph the refill label with the tool model. A Route-A service record may also record the manufacturer-directed verification result.

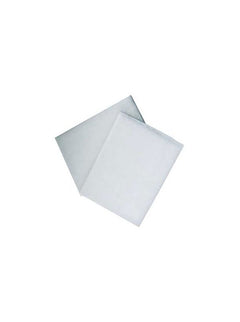

Does 95001 fit 95000?

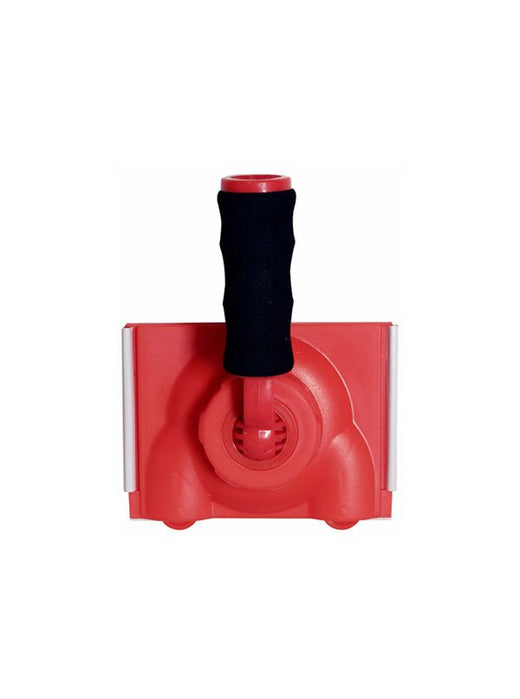

Does the same 95001 pad fit 95008?

No current source reviewed here says so. The exact 95008 manufacturer page does not name 95001, and the refill page does not name 95008.

Can I copy the removal motion from another pad edger?

A historical patent or neighboring product can explain the tool class but cannot establish this head's attachment, release, or orientation.

What if the old pad is glued on or held by a fastener?

Do not decide that from appearance alone. If the exact current instruction identifies adhesive or a fastener, follow it. Otherwise stop; this guide does not authorize peeling, dissolving, loosening, tightening, or substituting anything.

How much force should installation take?

No force value is established. Follow only the exact current model-specific manufacturer's stated installation actuation. Do not infer a movement or force from geometry, the old pad, or trial insertion. Unexpected resistance is a stop signal; no forced motion.

Can I clean a paint-loaded pad instead of replacing it?

Only as the coating and exact tool instructions permit. If permitted cleanup restores a uniform working face and secure retention, replacement may be unnecessary. This guide does not choose water, solvent, soap, or another cleaner.

How long should a pad last?

No exact service interval is established. Replace by manufacturer direction or observed condition, not hours, rooms, or calendar time.

Can I test the replacement with paint?

Paint obscures movement, complicates reversal, and turns a fit question into a cleanup problem.

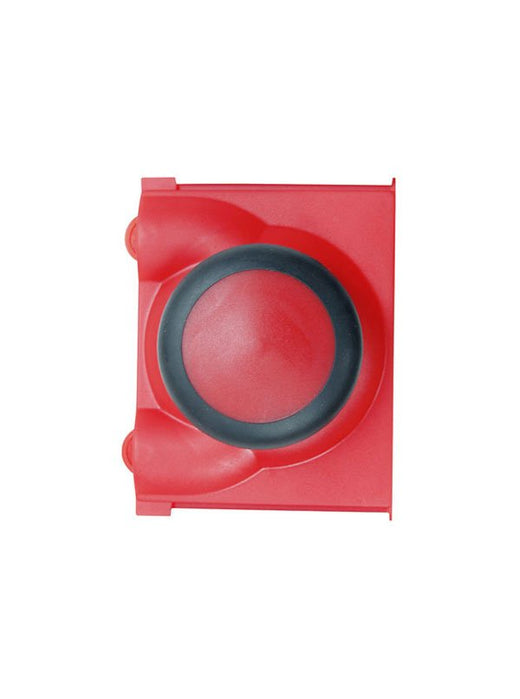

Why does the current 95000 evidence disagree?

The history footnote

That distinction is the maintenance lesson. Replaceable consumables are old; standardized interchangeability is not implied. Observation may reject incompatibility; it cannot create the binding or service method.

Sources, conflict gate, and exact graph handoff

Exact product backlinks and graph roles:

The reverse application edge is exactly 95000 95001 95008. No 95504 edge, cross-brand edge, attachment claim, release motion, pad interchangeability, service-life claim, cleaner, personal protective equipment, adhesive, fastener, or orientation claim is created here.
