Replace a Single Cracked Tile

Job: Remove one failed ceramic tile without transmitting demolition force into adjacent pieces, correct the local cause, and set a sound replacement aligned with the existing field

Time: One to three working days across diagnosis, protected removal, substrate repair, setting, cure, grouting, and return to service; hands-on time is usually a fraction of the elapsed system time

Difficulty: Advanced — the opening is small, but every tool stroke occurs beside finished tile that must survive

Everything else: verified matching replacement tile; current setting-material, grout, and sealant instructions; eye and hand protection; drop protection and containment; painter’s tape; small hammer and suitable center punch/chisel; vacuum with appropriate filtration; spray bottle if the dust-control method permits damp work; scraper appropriate to the substrate; straightedge; notched trowel; margin tool; spacers or layout gauges matching the existing field; grout float; sponges; movement-joint materials where specified

A cracked tile is evidence, not a diagnosis. Impact, an unsupported pocket, substrate movement, a bridged movement joint, a structural crack, moisture damage, excessive deflection, or a bad cut can all break one piece. Replacing the visible casualty without reading the failure can deliver a beautiful repeat crack.

Decide whether a one-tile repair is honest

Map the crack before touching it.

Does it stop within one tile, or continue through grout and neighboring pieces?

Is there a hollow sound, rocking, or loose grout around the casualty?

Is the tile at a doorway, control joint, substrate seam, penetration, change of plane, or known slab crack?

Is water entering the assembly?

Did a dropped object create a local impact crater?

Are multiple tiles tenting, debonding, or cracking on the same line?

A single impact crack with stable neighbors is the best candidate. A repeating straight crack across several pieces points below the finish. Movement, water, deflection, or bond failure must be designed or repaired before a new tile goes in.

Do not promise that a cosmetic insert will repair waterproofing. In a shower or other wet assembly, removal can expose or damage a membrane. Identify the assembly and obtain its repair method before demolition.

Secure the replacement and the appearance decision

Use attic stock from the original lot where possible.

nominal and actual dimensions;

shade, caliber, pattern, and orientation;

surface finish and texture;

grout color and joint width;

An old field may have faded, worn, or accumulated a finish the spare has not. Dry-place the replacement over the casualty and inspect it under the room’s actual light. If no exact match exists, choose deliberately: closest single-piece match, a planned accent, a donor tile from an inconspicuous location, or a wider repair.

Do not begin demolition assuming a near-enough tile will disappear after grout.

Establish the material and hazard boundary

Tile fragments produce sharp glaze splinters. Use eye protection during scoring, breaking, nipping, and cleanup; OSHA’s eye and face protection rule addresses protection from flying particles in construction work.

Cutting cured cement grout, mortar, or cementitious backer can create respirable crystalline silica. Evaluate the work under OSHA’s construction silica standard, use the applicable exposure-control method, and capture dust rather than dry sweeping it through the room. A short hand-saw pass is lower energy than powered grinding; it is not permission to ignore the material.

Where the assembly or adhesive is old or unknown, stop before disturbing suspect material. EPA’s Asbestos in the Home guidance identifies some older flooring, cement sheet, and adhesives among materials that may contain asbestos and warns that damage can release fibers. Have suspect material evaluated through the appropriate professional route.

Protect fixtures and drains from chips. Establish a tool and debris path that never requires walking fragments across finished flooring.

Protect the survivors

Clean the tile so fractures and grout boundaries are visible. Tape the faces and arrises of adjacent tiles without covering the joint you must cut.

Protect tubs, countertops, finished floors, and plumbing fixtures with a rigid impact layer plus containment. A blanket stops scratches; it does not reliably stop a falling chisel or sharp ceramic shard.

Shut off and protect nearby electrical devices if the work approaches them. Do not introduce water into energized equipment.

Isolate the tile by removing its grout perimeter

The first demolition tool is the 19402, not the hammer.

Start in the center of a grout run where the blade can establish a groove. Use short, controlled strokes centered in the joint. Let abrasion cut; excess pressure makes the saw wander into a glazed arris.

Open the full perimeter:

Cut the long, accessible joint runs first.

Approach corners with shorter strokes.

Vacuum or otherwise capture debris frequently so the groove stays visible.

Continue to the depth needed to break mechanical connection with the surrounding grout without cutting into concealed components.

Treat movement-joint sealant separately through its specified removal method.

The goal is isolation, not maximum excavation. Neighboring grout left connected can transmit a blow and chip the next tile.

Inspect the physical saw and follow its package.

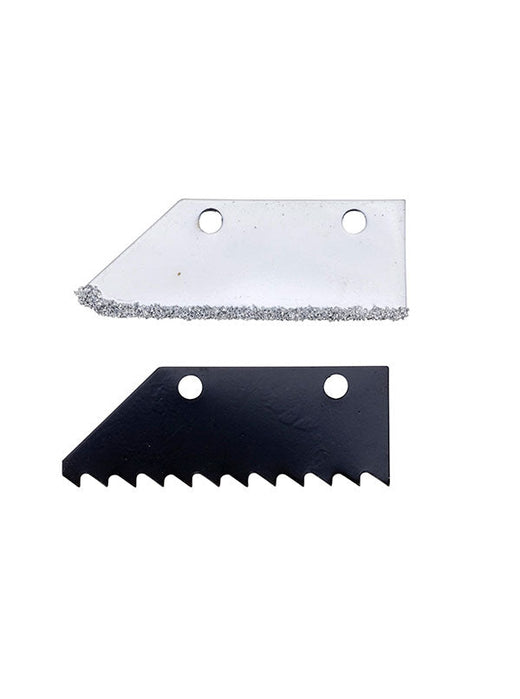

Read the 19403 as a consumable, not extra force

Watch the cut, not the clock. A consumable has reached its practical end when:

cutting pace declines at the same stroke and pressure;

pressure begins creeping upward;

the saw skates instead of holding the groove;

debris clears poorly;

the operator cannot control the blade near a visible edge.

Replace or reconfigure only according to the verified physical product instructions. A fresh cutting surface is cheaper than a chipped survivor. If a new blade still will not cut, diagnose material—such as resinous grout—or technique rather than leaning harder.

Score the casualty so it collapses inward

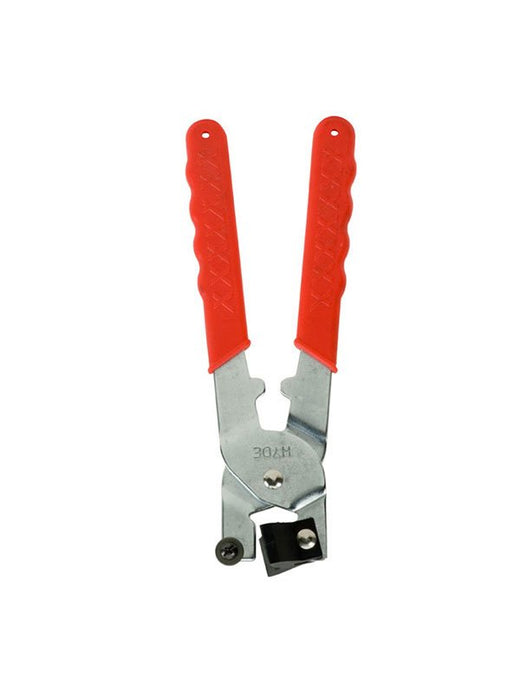

Use the 19410 to score an X or a controlled break pattern across the face of glazed ceramic, staying away from the survivor edges. The carbide wheel and built-in breaker bar are the only accepted configuration facts for this tool.

For demolition, the score is not a finish cut. It gives the casualty’s first fractures a route toward the center. Do not attempt to snap the installed tile over the breaker bar.

Keep the scoring wheel away from cement and grout. Those abrasives belong to other tools and can consume a fine tile wheel.

Use an appropriate specialist method and protect the surrounding field.

Open a center crater

Put the first impact well inside the tile, never at an edge or corner. Use controlled taps to create a small center void. The objective is to remove support from the middle so every later fragment can move inward.

Work from the crater toward the perimeter:

remove small pieces;

direct the chisel toward the empty center;

reduce force as you approach the boundary;

keep the tool off adjacent tile;

vacuum fragments often;

stop if a survivor moves, rings differently, or begins to chip.

Do not pry outward against neighboring arrises. The casualty should implode into its own footprint.

Release the last perimeter fragments

At the final band, lower the angle and take smaller bites. Separate mortar from the back of the fragment rather than driving the fragment sideways.

Use the 19400 only where its ceramic-nipping geometry can safely reduce a loose or lifted fragment. Hyde verifies the 19400 as forged steel with 5/8-inch-wide offset carbide jaws, a return spring, 8-inch overall length, and capacity for tile up to 1/2 inch thick.

Take fractional bites from an already accessible edge. Do not insert the nipper under bonded tile as a pry bar. Do not infer porcelain, glass, or stone capability from the ceramic claim.

Inspect what the casualty was hiding

After fragments are out, stop demolition and read the bed:

full, well-bonded mortar with a local impact fracture;

clean tile-back release;

mortar separated from the substrate;

obvious void or perimeter-only contact;

wet, soft, cracked, or delaminated substrate;

membrane or heat-system exposure;

a structural crack crossing the opening;

plumbing or fastener evidence.

Photograph before cleaning.

If the substrate is unsound, enlarge the repair only through the assembly’s approved detail. If a crack continues beyond the opening, stop and design the treatment. If waterproofing is damaged, repair and test it through its system before resetting tile.

Clear the bed without deepening the problem

Remove residual mortar to the plane required for replacement tile plus fresh setting material. Keep the substrate, membrane, heat cable, and adjacent tile bond intact.

This is precision scraping, not a reason to grind blindly. Use the least aggressive method that exposes a sound plane. Control silica dust under the project plan; never dry sweep.

Check the available depth with the replacement tile. Account for its actual thickness and the mortar layer needed by the selected system. Do not solve a high tile by starving mortar, or a low tile by leaving loose rubble underneath.

Make and prove any replacement cut

For a straight ceramic cut, measure the opening at both ends, subtract the existing joint allowances, and mark the face. The 19410 workflow is:

Support the tile glaze-up.

Set a straightedge.

Make one firm, continuous score from edge to edge.

Center the score over the built-in breaker.

Press evenly and decisively.

Do not retrace a weak score.

For a small hidden notch or edge curve in ceramic, use the 19400. Start in the waste and nibble toward the line with small bites. The broken edge belongs under trim, an escutcheon, or a movement-joint finish—not exposed in a focal field.

Porcelain, stone, glass, large-format material, narrow slivers, and visible complex cuts may require a rail cutter, wet saw, diamond tooling, or a fabricator. This store sells neither a wet saw nor a rail cutter. Rent or source the right machine.

Dry-place the finished piece. Confirm plane, joint width, pattern, orientation, edge cover, and perimeter accommodation before mixing.

Use a setting material approved for the tile, substrate, exposure, and repair size. Follow its current instructions for surface preparation, mixing, working time, trowel, coverage, environmental conditions, and cure.

Comb mortar consistently and key material where required. On a repair, the opening is too small to assume coverage from feel; lift the tile during a dry practice or early setting check if the system permits, then correct technique.

Set the tile to the control plane of its neighbors without forcing mortar out of the bed. Match joint centerlines rather than chasing every irregular old edge. Keep movement joints open.

Clean squeeze-out to preserve grout depth. Do not wash water into an uncured bed.

Hold, cure, grout, and finish

Use the existing joint geometry as the visual reference, but follow the selected mortar and grout systems. Prevent the replacement from drifting while the bed advances.

Do not grout on a universal clock. When the setting system reaches its grout-ready condition:

remove temporary spacers;

verify joint depth and cleanliness;

protect movement joints;

mix and install compatible grout;

clean without eroding the fresh joint;

install flexible sealant where the assembly specifies it;

observe cure and return-to-service limits.

The new grout may not match an aged field immediately. Judge after the stated cure and cleaning sequence, not while it is wet.

Close the diagnostic loop

Record the original crack pattern, substrate finding, repair detail, replacement identity, cut method, setting and grout systems, cure dates, and any unresolved movement or moisture concern.

Reinspect after return to service. A repeat crack is not evidence that the replacement tile was “bad”; it is evidence the underlying cause remains active.

What goes wrong (and the fix)

The neighboring tile chips during the first blow. The perimeter was not fully isolated or the first impact landed too near the edge. Stop, reassess the repair boundary, and restart inward.

The grout saw keeps climbing onto glaze. Reduce pressure, clear the groove, renew the consumable if appropriate, and use short centered strokes.

Dust fills the room. Stop; restore the project’s silica controls and capture debris at source. Do not dry sweep.

The replacement sits high. Remove it while workable and correct bed plane, tile thickness, and mortar—not by hammering the face.

The snapped cut wanders. Use one continuous score on fresh glaze, support correctly, and move to a rail cutter or wet saw when the material/format exceeds the hand tool.

A nipped edge remains visible. Recut with the appropriate method or redesign the cover. Nipping is a hidden-edge technique.

A crack crosses the exposed substrate. Stop the cosmetic cycle and design the crack/movement treatment.

A wet-area membrane is damaged. Do not set over it. Repair and test through the membrane system.

New grout powders or changes color. Follow the grout maker’s diagnosis; do not smear another surface coat over the joint.

The history footnote

The straight-cut part of this repair belongs to the glass-cutter lineage: a wheel scores a brittle glazed face, then bending concentrates fracture at that flaw. Nipping and grout abrasion complete the repair because a one-tile rescue needs both controlled breakage and controlled removal. No product-invention claim is made for Hyde.
