How to Remove and Reinstall Switch Plates and Outlet Covers

Those two products, and no others, receive product backlinks here.

Fail-closed rule: a Hyde page can establish that a tool stores screwdriver bits. It cannot establish that a circuit is safe, a bit fits a particular screw, a cover belongs on a particular device, a screw is the cover screw, or a torque is correct.

Job: remove intact switch plates and receptacle covers for wall preparation or painting; keep the electrical installation clean and undisturbed; reinstall each correct cover after the coating is ready; and complete a documented de-energize-to-re-energize loop.

Time: no universal duration. Circuit identification and verification, painted-in hardware, coating dry time, damaged devices, suspect hazardous material, specialty covers, and inspection decide the schedule.

Difficulty: the screw is usually simple. Knowing which screw it is, proving the device is de-energized, and returning the listed cover system without damage are the skilled parts.

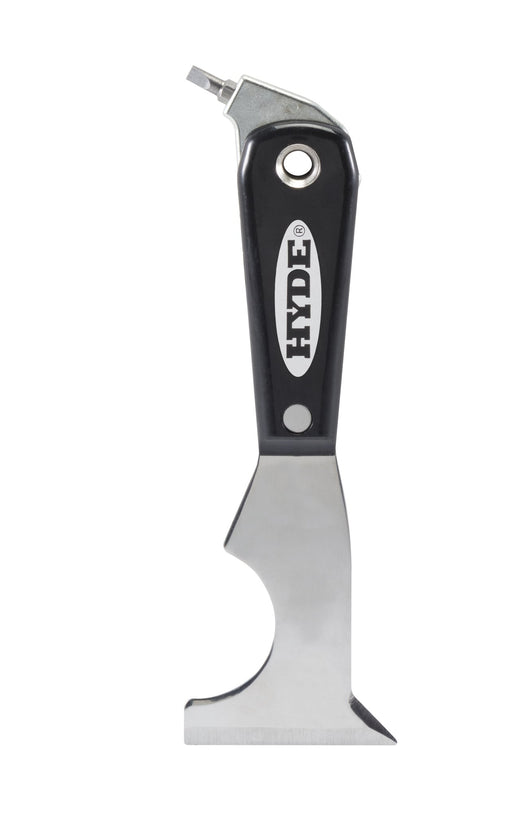

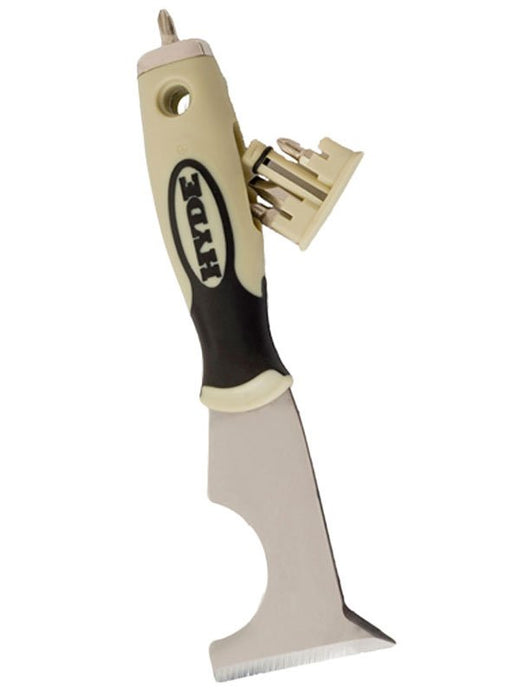

The exact Hyde tools linked to this job:

Everything else: exact assembly instructions; adopted electrical code and AHJ; circuit directory and controlled disconnect; required lock/tag and test equipment; qualified person where required; approved nonconductive masking; labeled hardware containers; raking light; coating label/data sheet; and hazard-plan cleanup controls.

First classify what is on the wall

Do not begin by choosing a bit. Begin by identifying the assembly.

Record the location. Log room, wall, circuit if known, gang count, and device arrangement; photograph it square-on. A toggle-plus-decorator plate is not interchangeable with a two-toggle plate because their borders look alike.

Identify the cover type. Common families include toggle, duplex receptacle, decorator/Decora-style, combination, blank, data/communications, device-mounted, box-mounted, screwless snap-on, gasketed, weather-resistant, and while-in-use covers. Leviton's current wallplate guidance emphasizes that configurations and materials differ and that outdoor devices require location-specific protection. A generic indoor plate is not a substitute for a wet- or damp-location cover.

Identify what each visible screw does. It may retain the plate, secure the device yoke, assemble a screwless system, clamp a gasket, retain a hinge, or belong to the device. Only positively identified cover hardware is in scope.

Inspect without touching. A cracked, scorched, hot, buzzing, loose, discolored, wet, corroded, improvised, displaced, non-seating, or painted-over assembly goes to the responsible electrical person.

Keep the plate-only boundary. Loosening the device, reaching behind it, correcting box depth, changing a gasket, bonding metal, replacing hardware, or identifying conductors ends this job.

Leviton notes that wallplates are required to protect people from exposed areas of installed devices and must be selected with care. NFPA's current NEC development material likewise states that a receptacle faceplate must completely cover the opening and seat against the mounting surface. A plate that only looks decorative is performing an enclosure function.

The safe sequence is not “switch off, screw out.” The wall switch is a control, not the disconnecting means for the branch circuit.

OSHA 1910.333 requires de-energization before work on or near live parts absent a narrow demonstrated exception; ordinary controls are not the sole disconnect. When unknown, use a qualified electrician.

Identify the correct circuit. Do not trust a handwritten panel legend without verification. Establish which disconnect controls every device in the work set, including multi-wire, shared, back-fed, alternate-source, or misidentified conditions that the qualified electrical procedure must address.

De-energize and prevent re-energization. Operate the correct breaker, fuse disconnect, or other approved isolating means. Warn affected people. A note taped to the wall switch does not control the panel.

Verify controls, then test. OSHA requires a qualified person to verify the equipment cannot restart and use test equipment to confirm de-energization, including possible backfeed or induced voltage. Tester method, PPE, contact points, and qualification remain electrical-safety facts.

Record the state. Capture circuit/disconnect, lock/tag, verifier where required, instrument, result, and time. A circuit change, defeated control, unexpected tester result, or new device expires verification.

No live-work branch is provided. OSHA's narrow energized-work exceptions and qualified-person controls do not make decorative cover removal an energized painting task. Without verified de-energization, leave the plate installed and keep coating, tools, cleaners, and hands away.

Stop for lead, asbestos, or a painted-in plate before breaking the film

A plate often sits on the oldest intact paint on the wall. Breaking that sealed edge is substrate disturbance.

Lead boundary. Before breaking paint in pre-1978 housing or child-occupied facilities, determine current EPA RRP and stricter state requirements. EPA warns that renovation disturbance creates hazardous lead dust and chips. A painted-in plate is not a dry-scraping job.

Asbestos boundary. EPA says suspect material cannot be cleared by sight and recommends trained, accredited sampling before disturbance. Stop at suspect texture, patch, insulation, board, or crumbling material; do not score, sand, pry, vacuum, or self-sample it.

Coating boundary. Read the exact coating data sheet for preparation, ventilation, ignition control, dry/recoat time, and cleanup. A plate sealed by ordinary, hazard-cleared coating may be released only by the coating-approved method that does not drive a blade toward the device opening. If the film cannot be separated without contacting the device, disturbing suspect material, or using unapproved force, leave it for the responsible trade.

Electrical control remains in force. Material clearance does not establish electrical safety, and de-energization does not authorize hazardous-material disturbance.

Select the driver without inventing geometry

Inspect the screw. Paint-filled, stripped, corroded, security, tamper-resistant, one-way, or unfamiliar hardware is a stop.

Inspect the bit away from the wall. Reject damage, looseness, contamination, or uncertain size; confirm exact retention in the handle.

Prove fit. The bit must seat fully and remain aligned without rocking or incorrect bottoming. “Slotted,” “Phillips,” age, or color does not prove compatibility.

Keep the Hyde blade out of the opening. These steel painter's tools are not voltage-rated insulated drivers. Position the body so a slip cannot send metal through a switch, receptacle slot, or gap.

Use another authorized driver when it is the better fit. Exact union means the graph links only 01970 and 06920; it does not require either tool to turn every cover screw. A screwless system may need no driver. A specialty cover may require its supplied tool. Honest routing is part of the application.

Remove, protect, and label one assembly at a time

Support the plate before final release. Hold its edges and turn the identified screw in alignment. Stop if the device moves, another component turns, the plate cracks, or resistance changes unexpectedly.

Capture the hardware. Place the plate and its original identified screws in a location-labeled container. Do not thread loose hardware into the device for storage, drop screws into the box, mix screws among rooms, or substitute a longer screw because one disappeared.

Lift straight away. Do not rotate a metal plate across the device face or use the painter's-tool blade as a pry bar. For a screwless assembly, follow the exact manufacturer's release points and sequence; hidden clips and adapter plates are not standardized.

Perform a no-touch visual read. From outside the box, stop for damaged insulation, looseness, displaced gasket, missing bonding means, scorch, moisture, debris, cracked yoke, broken ears, missing hardware, or incomplete coverage. Do not push wires, tighten the device, or enter the box.

Install approved temporary protection. Use a compatible nonconductive mask without inserting material, putting adhesive on internals, or moving the device. A removed metal plate is not a loose mask.

NFPA material addressing integrity of electrical equipment identifies paint, plaster, cleaners, abrasives, and corrosive residues as contaminants that must not damage internal electrical parts. Keep liquid, dust, filler, sanding debris, and coating out of the device and box.

Prepare and coat the wall without using the device as a paint edge

Prepare only the cleared wall. Follow the hazard plan; do not contact the electrical assembly or pull/blow debris through its opening.

Keep coatings on the finish surface. Cut in to the protected perimeter with a controlled brush. Do not paint the device, its yoke, openings, terminals, gaskets, adapter, screws, or the inside of the box. Do not flood the opening to avoid a brush mark.

Maintain electrical control while the plate is absent. A missing wallplate leaves the installation incomplete. Do not re-energize the circuit so someone can “use the room while it dries.” Keep the work area controlled against access.

Wait for the coating's release condition. Sherwin-Williams says plates return only after paint is dry. Use the exact label for environment and film build; the finish must not imprint, tear, bridge, or bond under the plate.

Remove masking cleanly. A pulled film, suspect substrate, adhesive, or contamination requires the manufacturer's correction. Leviton warns against liquid or atomized cleaner entering electrical components.

Reinstall the exact compatible cover

Reconcile identity. Match label, photo, gang count, opening, mounting method, material, orientation, gasket/adapter, and original hardware. A replacement must be listed and identified for the device and location; larger outside dimensions do not cure incompatibility.

Resolve metal and specialty covers electrically. Metal faceplates, powered/illuminated covers, gasketed plates, weather covers, smart controls, and assemblies with integral accessories can carry grounding, bonding, listing, sealing, or connection requirements. This guide does not infer those requirements.

Seat without force. With electrical control preserved, the plate must align, cover the opening, and seat without bowing, pinching, rocking, debris, or device movement.

Start only the original identified cover screws. Start by hand where the assembly permits, keeping threads aligned. If a screw will not start freely, withdraw it. Do not cross-thread, force, shorten, lengthen, replace, lubricate, or chase threads under this guide.

Use the positively fitted bit under control. Keep axial pressure on the screw head and the Hyde tool's steel blade clear of every device opening. Stop immediately if the bit cams out, plate twists, screw head damages, device moves, or the assembly behaves differently from its instructions.

Use a calibrated tool when exact instructions state torque. Hyde's tools are not torque-indicating. Otherwise follow the exact seating criterion without inventing a number.

Read back fit. Confirm the plate completely covers the opening, seats evenly, does not crack or bow, does not bind the switch or receptacle, and leaves no exposed live-part path or unintended gap. Confirm that operating parts move normally without touching the cover. A larger plate concealing a broken wall edge is not automatically code-compliant repair.

Close the production loop before re-energizing

Account for everything. Count components, masks, tools, and debris; confirm nothing remains inside an opening.

Complete visual/test inspection. OSHA's workplace sequence requires a qualified person to verify temporary items are removed before re-energizing, warn affected employees, and confirm everyone is clear. Other settings follow adopted code and competent electrical procedure.

Record who released the control and when.

Re-energize and perform the authorized functional readback. The responsible person checks the intended switch or receptacle operation and observes for heat, arcing, odor, buzzing, trip, loose movement, binding, or abnormal indication. This guide supplies no meter, load, polarity, GFCI/AFCI, or receptacle test protocol; those belong to the installation and qualified electrical scope.

Disposition every location. Mark it accepted, corrected-and-retested, or held with a named owner and reason. A plate that looks straight but lacks circuit, compatibility, torque, or electrical readback evidence is not accepted.

The finite loop is:

identify → de-energize/control → qualified verification → hazard clearance → remove/label → protect → prepare/coat → coating-ready readback → compatible reinstall under exact instructions → visual/test inspection → controlled re-energization → functional readback

What goes wrong — and the fail-closed response

The breaker label is wrong or multiple circuits appear. Keep control and have a qualified person identify every source; never test by touch or blind cycling.

No 06920 bit fits cleanly. Counts and driver families are proved, not sizes. Use the correctly sized driver, never the “closest” bit.

The plate is painted in. Never pry with the multi-tool.

The device moves with the screw. The plate-only scope has exposed a defect or wrong screw; keep control and route to qualified correction.

The plate is cracked, scorched, hot, or distorted. Do not reinstall it.

A screw falls into the box. Do not reach, shake, energize, or fish with the blade; qualified electrical retrieval and inspection are required.

The plate rocks or a jumbo plate would hide damage. Establish support, coverage, finish-system, and AHJ acceptance first.

A Hyde handle is not a torque wrench.

The plate prints or sticks. Under continued electrical control, follow coating instructions for repair and more dry/cure time; never tighten into soft film.

Collect debris under the coating and hazard procedure; never dry-sweep or blow suspect dust or spray devices. Segregate and label damaged or unknown components.

The handoff record should contain:

location ID, circuit/disconnect ID, before and after photographs;

circuit-control method, lock/tag identity, qualified verifier where required, test instrument and verification time/result;

plate and device manufacturer/model or other positive identity, gang/configuration, material, location rating, mounting system, and compatibility instruction;

exact screw identity/provenance, selected driver/bit, fit result, and manufacturer torque or seating instruction;

substrate hazard decision, lead/asbestos clearance or hold, and the person/record establishing it;

coating product, data-sheet revision, finish time, conditions, and dry/reinstall acceptance;

removed/reinstalled/held counts, defects found, correction owner, pre-energization inspection, restoration time, and post-restoration result.

Preserve unresolved conditions as holds.

Can I remove a wallplate without turning off the breaker?

No energized method is provided. Workplace verification is a qualified-person test under OSHA 1910.333.

Which Hyde tool should I use?

The union is 01970 and 06920. Hyde confirms two slotted and two Phillips bits for the 06920 family variant but no sizes.

Are all wallplate screws the same?

No universal geometry, thread, material, length, head, or torque is authorized here. Conventional, screwless, gasketed, weather, device-mounted, box-mounted, combination, and accessory plates differ. Preserve identified original hardware and follow the exact assembly instructions.

How tight should the screws be?

Use the exact manufacturer instruction. Do not import a number from another plate. Product-specific values exist—proof that the requirement is system-specific—and the Hyde tools are not torque-indicating. Stop if the plate cracks, bows, binds, or moves the device.

Can I replace a standard plate with a jumbo plate to hide a bad opening?

Only after cover/device fit, coverage, support, listing, location, finish-system, code, and AHJ requirements are satisfied. A larger border cannot legitimize an unsafe opening.

Can I paint the plate or the switch to match the wall?

Not unless the exact manufacturer permits a specified method. Paint can obstruct operation or markings, contaminate parts, bridge components, and conceal damage. This guide coats the wall, not electrical equipment.

What if I find crumbly material or old texture behind the plate?

Stop disturbing it. EPA says asbestos cannot be ruled out by sight and recommends trained, accredited sampling when suspect material will be disturbed. Pre-1978 painted surfaces also require a lead/RRP decision.

The history footnote

No defensible primary-source inventor or first-wallplate date was established. The sourced milestone is NFPA's first National Electrical Code in 1897, part of the move from exposed apparatus toward guarded installations. Modern toggle, duplex, decorator, combination, data, gasketed, and weather plates carry that safety logic by closing each device opening. The Hyde tools tell the painter's side: the driver joined the already-carried multi-tool because a proper room repaint exposes the plate edge and closes it again.

06920 exact identity and bit sizes: Hyde's current shared page renders base SKU 06992 with 6-in-1 and 10-in-1 variants and confirms two slotted/two Phillips bits, but does not expose the 10-in-1's model key or sizes in page text. Reconcile the current variant to model 06920 against the official catalog and verify sizes before exact-model ingest.

Product-guide safety gap: both product guides describe removing/reinstalling covers without carrying the de-energization, qualified verification, coating contamination, compatibility, torque, and re-energization loop required by current sources.

No product-authorized torque: neither Hyde guide supplies torque or makes the tool torque-indicating. Do not infer torque from hand feel or import Leviton's 3 in-lb gasketed-plate value into another assembly.

Current Hyde source is headed Pro Project™ and renders the 10-in-1 as a variant under SKU 06992.
