How to Paint the Wall Behind a Radiator

The roller guide begins only after four separate decisions have been made. A long handle changes where a cover can be placed. It does not make any of these decisions.

This page supplies no shutdown sequence, isolation point, test method, waiting period, or safe temperature. Do not loosen a valve, union, vent, bleeder, cover, wire, bracket, or pipe to create access.

Lead and other disturbance hazards belong to the applicable regulator and site plan. For pre-1978 housing or an unknown coating history, do not begin scraping, sanding, drilling, or other paint disturbance by treating the hidden location as an exemption. The current EPA Renovation, Repair and Painting program and its lead-safe renovation steps are the public starting points; covered paid work may require a certified firm and renovator. This guide does not create a lead-safe work plan or prescribe containment, PPE, cleanup, or disposal.

Substrate and coating compatibility belong to the coating manufacturer. Identify the wall substrate, the existing film, any exposed repair or primer, and the proposed finish. The current written system must authorize that sequence and state preparation, application conditions, ventilation, recoat, cleanup, cure, and return-to-service requirements. None of the four product records proves that any paint is compatible with any wall or heating environment.

Access belongs to a dry physical rehearsal. The actual radiator, brackets, pipes, wall, frame, and mounted cover must be tested together without paint. If the operator cannot see or otherwise inspect the cover path, keep the radiator untouched and leave the inaccessible shadow for a separately authorized access plan.

Proceed only when all four lanes say yes.

Define the finish boundary before protecting anything

Stand where the room will actually be used: at the doorway, at normal seated positions, and along the principal walking path. Use a light from the side of the radiator to identify which wall strips are visible through, above, below, or beside it. Mark the reachable transition points on the visible wall with removable tape where the coating system permits.

The target is the wall, not “everything behind the radiator.” Keep the radiator body, pipes, valve or control hardware, vent or bleeder, electrical parts, labels, floor, baseboard, and wall penetrations outside the paint boundary. This guide does not decide whether any seam should be caulked; a gap may be a movement, service, drainage, ventilation, or fire-rated boundary.

Inspect the wall with the light and mirror before cleaning. Stop and route the condition if you see active dampness, a leak, loose equipment, damaged wiring, suspect insulation in the tool path, unstable wall material, or failed coating that cannot be prepared under the established hazard plan. A roller can place finish on a sound released surface. It cannot diagnose or repair the reason a hidden surface is failing.

The honest completion standard has three parts:

every intended and safely reachable wall strip is coated;

the hidden-to-visible transition has no ridge, heavy shoulder line, or missed halo visible from the room’s real sightlines;

the radiator and every protected service part remain clean, visible, and operable.

It is acceptable for an unreachable deep shadow to remain outside the job. It is not acceptable to hide an uninspected defect behind the phrase “nobody will see it.”

Choose from the exact four-model union

Select only after mounting or inspecting the exact cover and rehearsing the cavity. Width, outside diameter, frame hardware, handle path, and hand clearance all matter. A handle number by itself does not settle the geometry.

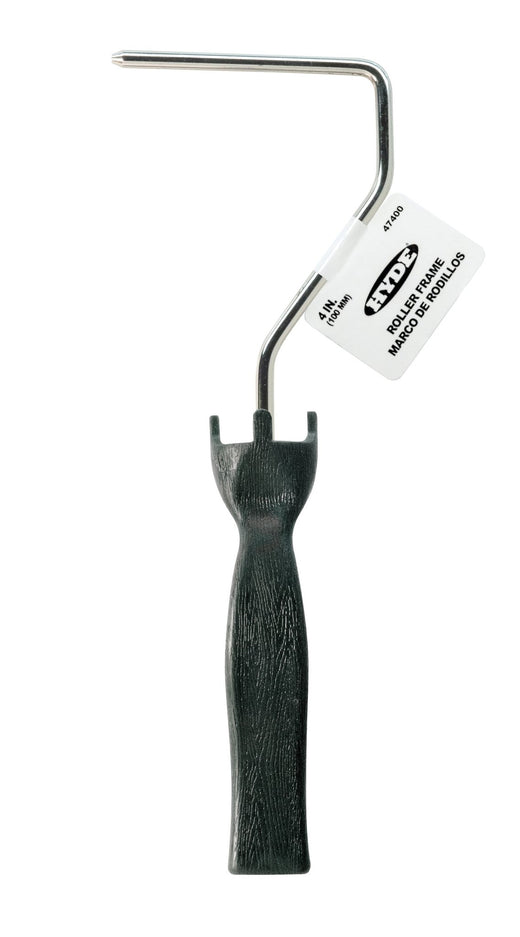

47400 — documented slim frame, unverified cover roster

Its uncaged architecture is the reason it enters this decision: when the mounted cover can enter but cage hardware cannot, this is the registered slim-frame candidate.

Before the job, use a cover maker’s explicit frame statement or a physical slide-seat-spin check of the exact dry pair. The cover must mount without force, seat fully, stay retained through the rehearsed stroke, and spin without binding or wobble. If that proof is absent, the 47400 is not ready for use.

Its 10″ handle is documented. Whether that length keeps a hand clear of this radiator is not. The dry rehearsal decides.

92011 — documented 4″ cage and 16″ handle, unverified cover fit

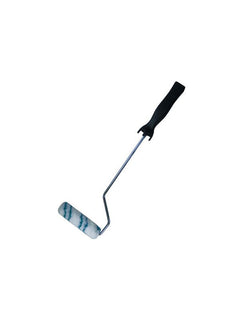

94016 — supplied 4″ cover-and-frame assembly

The cover and frame are the recorded assembly, so this guide does not substitute another cover or claim that the frame accepts one. The 4″ width and 16″ frame length make it a dry-test candidate when the cavity accepts that complete assembly.

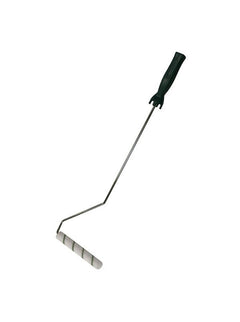

94003 — supplied 6″ cover-and-frame assembly

It is the widest and longest recorded assembly in this four-model union. Those dimensions may reduce its ability to enter or turn in a narrow cavity even when its handle extends farther; only the dry path settles that trade.

Use the supplied assembly as recorded. Do not claim that a 94033 or any other cover is a replacement here merely because a sibling guide describes related dimensions. Do not promise that 15/32″ pile matches the existing wall finish. Match is established by a representative test under the actual coating and lighting, not by a fraction in a title.

The decisive dry test

For each viable candidate:

Mount the exact proven cover, or inspect the supplied 94016/94003 assembly.

With no paint present, move the assembly through the planned entry and full stroke.

Confirm that the cover face can contact the wall without the frame, handle, or cover striking the radiator, pipes, brackets, controls, wall return, or floor.

Confirm that the operator can keep stable footing, retain the tool, and inspect the result.

Withdraw the assembly without scraping the radiator or dislodging the cover.

Reject any assembly that needs force, blind fishing, radiator movement, an unproven adaptor, an assumed frame/cover pairing, or a reach beyond the demonstrated stroke. If none passes, the in-place roller method is not the method for this radiator.

Clean, prepare, and protect the released wall

Follow the established lead or ordinary hazard plan and the coating system’s instructions. The sequence below organizes the job; it does not replace those controls.

Remove loose room dust by the authorized method. Work from the room side and avoid contacting suspect paint or insulation. Do not use the finish roller as a cleaning tool.

Clean the wall with the approved cleaner and method. Heating equipment can collect dust on nearby walls, but no universal cleaner or wetting method is safe for every wall. Prevent liquid from reaching electrical parts, joints, floor cavities, or equipment openings.

Complete only authorized preparation. Repair, abrasion, priming, drying, and inspection follow the substrate/coating system and the disturbance plan. If a defect cannot be reached and inspected through the gap, stop; do not spread repair material blindly.

Protect the full blind drop zone. Place floor protection beneath the entire intended stroke, extending beyond both radiator ends. Add a removable, non-damaging shield between the wall work and radiator only if the dry rehearsal proves it can be installed and removed without contacting service parts or suspect material.

Keep all operating and service features exposed. Protection must not load, operate, tape over, or conceal controls, valves, vents, bleeders, labels, cords, junctions, openings, or connections.

Stage the inspection tools. Put the light and mirror or camera where they can be used without carrying them across wet paint. Establish a clean landing area for the roller between passes.

Repeat the entire dry stroke with protection installed. A shield changes the gap. If the chosen assembly no longer moves freely, revise the protection or fail the method—never force a loaded cover through.

Run the complete painting workflow

Make a representative test first

Use the actual approved coating, substrate preparation, and chosen cover on an accessible representative area designated by the coating plan. Check application, coverage, surface texture, and the hidden-to-visible transition under the room’s real light. Let the system reach the evaluation point required by its instructions before treating the result as a match. No model in the union guarantees finish parity with the existing field.

Load for control

Condition the cover only as its manufacturer directs. Transfer coating to a stable container that accepts the exact cover width. Load the cover evenly, then remove obvious excess by rolling on the container’s loading surface. The goal is a wet but controlled cover that can enter the cavity without releasing a drop.

The 47400’s uncaged cover is controlled by a light hand and a slow start; if the cover flexes, chatters, skids, or fails to turn in the dry or wet trial, stop rather than increasing pressure.

Coat the deepest approved strip first

Enter through the rehearsed path with the cover clear of the radiator.

Place the face on the highest or deepest approved point that can still be inspected.

Start the cover turning slowly before committing to the stroke.

Work top to bottom where the geometry permits, in short overlapping vertical passes. This keeps any excess moving into an area that has not yet been finished and makes the stroke readable from the handle.

Reload before the cover must be pressed to release paint. Frequent controlled loads are preferable to forcing a depleted or overloaded cover.

Work from both radiator ends when that produces shorter, inspectable paths. Do not force one long blind pass through a center section simply to avoid changing sides.

Keep the cover shoulders inside the protected wall zone. If an edge contacts the radiator, withdraw immediately and inspect both surfaces before continuing.

Join hidden and visible work while the system permits

Bring each hidden pass to the marked transition without depositing a heavy shoulder. Coat the adjacent visible wall with the applicator selected for that field, joining according to the coating maker’s open-time and rework instructions. This guide supplies no universal wet-edge duration.

Inspect from the doorway and other real sightlines, then use the mirror or camera behind the radiator. Correct misses, ridges, runs, or contamination only while the coating instructions allow correction. Do not scrub a film that has begun to set.

For additional coats, repeat the inspection, protection, dry-path, loading, and placement checks. Observe the written recoat interval and preparation requirements.

What goes wrong, what it means, and the fix

The dry assembly enters but the loaded one strikes the radiator. The load or protection changed the effective geometry. Withdraw, clean any contact under the approved method, reduce to a controlled load, and rehearse again. A second strike fails that assembly.

The cover will not mount on 47400 or 92011. Width is not fit. Do not hammer, trim, tape, shim, heat, or improvise the pairing. Obtain maker evidence or use a different proven assembly.

The 47400 cover skids or chatters. Begin more slowly and reduce load and pressure. Persistent failure means the uncaged system does not work with that proven cover and stroke; choose another dry-tested method.

The cover walks, wobbles, or begins to come off. Withdraw before it is lost behind the radiator. Reseat only if the exact pairing is proven and undamaged. Repeated movement fails the pair.

Only one edge transfers coating. The cover face is not square to the wall, or an obstruction is canting the frame. Do not press harder on the high edge.

Paint appears on the radiator or a service part. Stop immediately. Do not wipe paint into a vent, joint, control, label, or opening.

A run forms where the mirror cannot fully inspect it. Withdraw excess only if the coating instructions still allow it. On the next pass, reduce the load and shorten the stroke. If inspection remains incomplete, reduce the finish boundary.

The hidden strip differs from the visible wall. Do not promise that another registered roller fixes it. Confirm paint batch, existing film, preparation, applicator texture, lighting, and coat count through a new representative test.

The handle reaches but the operator cannot control withdrawal. The method fails.

Do not roll it down.

This guide supplies no live-equipment workaround.

Cleanup, inspection, and return

Move the roller to the protected landing area before the coating skins.

Recover or dispose of coating only as its label and the site plan allow. Do not return worked material to the original container unless the manufacturer permits it.

Remove a cover from 47400 or 92011 only by the proven physical method for that exact pair. The product records do not document a universal release method. Keep the supplied 94016 or 94003 assembly together unless its current manufacturer instructions direct otherwise.

Clean or dispose of the cover, frame, loading container, and tools using the coating maker’s specified method. Water and solvent cleanup are not interchangeable, and this guide prescribes neither.

Remove shields and floor protection inward, without brushing them against the radiator. Handle chips, dust, liquid, and disposable protection under the established lead or ordinary waste plan.

Inspect the wall under the same sightlines and raking light used at the start. Record any unreachable shadow as outside scope rather than silently claiming full hidden-wall coverage.

Inspect the radiator, floor, baseboard, controls, connections, labels, and openings for contamination or displaced protection. Escalate any equipment contact or damage; do not disguise it.

Store the cleaned roller assembly so its frame is not bent and its cover is not left creating an unintended contact point, following the maker’s instructions.

The painter owns neither by default.

Am I painting the radiator in this guide?

The object being coated is the wall behind it. Painting radiator metal, pipes, covers, or fixtures is a separate job with different substrate, coating, equipment, and service boundaries.

Should I remove the radiator for a better result?

This guide does not authorize movement or disconnection. If in-place access fails, route removal and reinstatement to the responsible qualified trade and equipment procedure.

Which of the four tools reaches farthest?

The store records 10″ for the 47400 handle, 16″ for the 92011 handle, 16″ for the 94016 frame, and 24″ for the 94003 frame. Those numbers do not establish usable reach behind a particular radiator. The exact dry stroke decides.

Does any 4″ cover fit the 47400 or 92011?

Can I put the 92011 on an extension pole?

Will the 94016 or 94003 match my wall’s roller texture?

Not by specification alone. Their store records state woven 15/32″ pile, but the actual finish depends on the coating, substrate, preparation, load, technique, existing field, and lighting. Prove the match on a representative test.

How hot can the radiator be?

No number is supplied here.

What PPE should I wear?

Use only the PPE selected by the controlling SDS, site hazard assessment, lead or other disturbance plan, and applicable work rules. The four product records do not supply a job-specific PPE set, and this guide does not invent one.

When is “leave the shadow” the right answer?

When the wall area is outside real sightlines and cannot be reached, prepared, coated, and inspected without violating an equipment, hazard, surface, or access boundary. Record the exclusion. “Shadow” is a bounded finish decision, not permission to ignore damage.

History footnote

Canadian heritage reporting credits Norman Breakey with developing an early paint roller in Toronto around 1940; the parent line document keeps the fuller history and its source cautions.

47400 exact cover-SKU roster and detailed retention geometry are undocumented; no cover is named or cross-fitted here.

92011 cover-fit roster and pole threading are undocumented; no cover or pole pairing is asserted.

94003 exact width, pile, frame length, and frame material require the same physical-product readback; no replacement-cover fit is asserted.

Woven-family identity does not prove a finish match, coating compatibility, load, durability, or cleanup method for either exact assembly.

No product dimension is translated into promised usable reach. Every radiator requires a protected dry-path test.

Radiator isolation, shutdown, safe work state, temperature, movement, and return-to-service remain outside this guide.

The origin date and inventor of the long-reach radiator roller pattern remain unverified; history stays at “pattern” altitude.
