Identify The Adapter

Exact identity retained by the Hyde Store

One exact selling record survives:

The UPC is internally consistent with the model token: its final six digits are 950504, model 95050 followed by the UPC check digit. That is a useful identity cross-check, not a technical specification.

Those are runtime commerce facts.

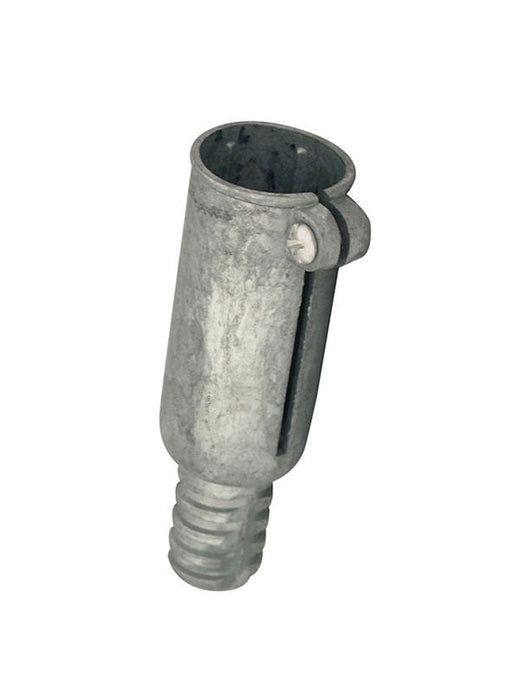

Exact image observations

a hollow cylindrical socket;

a longitudinal split in the socket wall;

two side lugs bridged by a cross fastener near the socket mouth; and

a coarse external male thread at the opposite end.

The safe visual noun is therefore an aluminum, split-socket, clamp-style, male-threaded extension-pole fitting. The image is sufficient to reject the old generated classification of 95050 as a complete telescoping pole. It is not sufficient to say what pole enters the socket or what tool receives the thread.

The reviewed line decision

Extension Pole Adaptors — Mount Refill Or Accessory

That singleton decision is the right buyer grain. A fitting cannot inherit pole length, lock, material, thread, or application claims merely because its catalog number is adjacent to a pole.

What the external research did and did not find

The retained research packet searched model 95050, SKU H-95050, the exact product title, and the known aliases through:

Those lanes produced no exact external product sheet, manual, catalog row, distributor specification, relevant video, official image, or replacement relationship. Fresh exact searches for 95050, H-95050, and 066395950504 likewise returned the Hyde listing and mirrors of its listing, not an independent specification source.

Evidence conflicts that must remain visible

Conflict 1 — pole prose versus the photographed object

It tells an operator to use two hands, inspect locks and tubes, set length, make long passes, and collapse the pole. Those instructions describe a complete adjustable pole. The exact product image shows a small fitting with no pole body or lock.

Disposition: refuse the generated pole technique. This job identifies an accessory fitting only.

Conflict 2 — four-member authoring group versus reviewed singleton

The earlier extension-poles line document kept 95050 alongside three complete poles for research and routing. The later reviewed classifier explicitly repartitioned the mechanically incompatible member into a one-product adapter line.

Disposition: use 95051, 95059, and 95060 only as investigation leads. Do not call them compatible siblings.

Conflict 3 — Hyde’s no-replacement copy versus manufacturer silence

Conflict 4 — visual similarity versus model-bound fit

But catalog-number adjacency and a small image cannot establish tube diameter, socket depth, fastener path, pole revision, thread identity, or the official part relationship.

Disposition: “Was 95050 the end fitting for some revision of 95051?” is a good support question and a prohibited product claim until answered.

Step 1 — establish provenance before measuring

Do this work on a clear bench with the part removed from every pole and tool. Never begin identification while the part is overhead, under load, near energized conductors, or connected to any pressurized system.

Start with the records surrounding the part:

original bag, box, bin label, invoice, purchase order, or receipt;

handwritten stockroom labels, keeping the label with the object rather than rewriting it;

photographs showing how and where the part was found;

the make/model of any pole or tool stored with it; and

the owner’s account of whether the part was installed, spare, broken, or merely co-located.

Rank the identity evidence:

A photograph alone cannot move a part above “strong visual candidate.” Similar clamp-on tips exist across makers and generations.

Step 2 — make a complete image record

Before cleaning, repair, or dry-fitting, photograph:

full profile from the fastener side;

full profile from the opposite side;

straight into the socket;

straight onto the male-thread end;

fastener head, nut, washer, and both lugs;

longitudinal split from mouth to its termination;

any stamp, casting mark, residue line, wear band, or tool mark; and

any damage described in Step 4.

Place a rigid scale in the same plane as the feature. A ruler behind the part introduces perspective error precisely where fractions of an inch or millimeters decide whether a tube or thread matches.

Keep the unedited originals. Cropped and sharpened copies can help a support case, but the original file is the evidence that preserves scale, surrounding marks, and image metadata.

Step 3 — measure both interfaces, not just the obvious diameter

Use calipers and a thread-pitch gauge if available. Record the instrument and units. Do not round a metric observation into a familiar fractional inch or vice versa.

Socket-side measurement sheet

inside diameter at the mouth;

inside diameter deeper in the bore;

usable insertion depth;

outside diameter at the mouth and body;

longitudinal-slot width relaxed;

available slot closure before the lugs or fastener bottom;

any taper, internal shoulder, stop, step, key, flat, rib, pin hole, or fastener passage through the bore;

position of those features measured from the mouth; and

visible residue or wear line showing a prior insertion depth.

The tube outside diameter is not the entire fit. A part may require a shoulder, a through-hole, a keyed orientation, a particular wall thickness, or a specific insertion depth to survive leverage.

Thread-side measurement sheet

major diameter across the crests;

pitch using the matching gauge leaf;

thread length containing full crests;

thread form observed under magnification;

end chamfer and unthreaded shoulder;

evidence of taper versus parallel diameter; and

crest damage, flattening, galling, or prior cross-threading.

Do not label a coarse thread “Acme,” “standard roller,” “broom thread,” NPT, UNC, or metric from appearance. Record geometry first; assign a standard only when the measurements and a documented standard agree.

Fastener measurement sheet

screw/bolt major diameter and pitch;

head and drive style;

washer count and position;

whether the fastener crosses only the lugs or also passes through the socket bore;

remaining clamping travel; and

any manufacturer mark or property marking.

The product image shows a fastener installed. It does not establish package contents, original fastener specification, tightening torque, or permission to substitute another bolt.

Step 4 — inspect condition before considering fit

Clean only enough to expose the part. Preserve markings, residue lines, and fastener arrangement until photographed.

Reject or quarantine the candidate if it has:

a crack running from the slot or either fastener lug;

a distorted, oval, crushed, or visibly spread socket;

a slot that has been widened, pinched closed, or propagated beyond its original end;

flattened, torn, crossed, galled, or impact-damaged male threads;

a missing, bent, substituted, badly corroded, or partly stripped fastener;

a drilled, ground, shimmed, hammered, welded, or otherwise modified body;

a bore whose corrosion or hardened residue prevents inspection;

looseness between elements that appear intended to be one body; or

deformation that keeps the socket and male thread from sharing one axis.

Do not “restore” an unidentified adapter by chasing the male thread with a die, drilling the bore, closing the split in a vise, grinding the lugs, or replacing the fastener by eye. Each operation can erase the clues needed to identify it and create a false fit that fails under leverage.

Step 5 — name both proposed mating objects

An adapter has two relationships. Identification is incomplete until both are explicit:

Host side: the exact pole or tube proposed to enter the socket.

Tool side: the exact frame, sander, brush, head, or other object proposed to receive the external thread.

Record manufacturer, model, SKU if known, tube outside diameter, tube construction, receiving-thread specification, and the source for each value.

If either object remains “unknown,” stop before dry-fit. A tube that slides into the socket and a tool that begins to thread are not enough. The unmeasured missing facts are exactly how a plausible adapter damages a pole, loosens overhead, or cross-threads a tool.

Step 6 — route the evidence package before physical testing

Hyde SKU H-95050;

the exact Hyde image link;

the complete socket/thread/fastener measurements;

the exact proposed pole model and its tube measurements;

the exact proposed tool model and its documented receiving thread; and

the narrow questions below.

Ask for answers at model and revision grain:

What is the official product name and function of 95050?

Which exact pole models and revisions accept it?

What host-tube diameter, insertion depth, indexing, and retention method are required?

What male thread form, diameter, and pitch does it provide?

What original fastener and installation torque are specified?

Which tools/applications and loads were approved?

Was the fastener included in the selling unit?

Are original instructions or a catalog page available?

A loose unidentified fitting that merely looks the same is not a reference standard.

Step 7 — non-destructive bench comparison

Proceed only when the proposed host and tool are identified, the measured interfaces agree, and the candidate passed the condition inspection.

Host-side dry comparison

Clean loose debris without altering the metal.

Align the known host tube with the socket.

Confirm diameter, bore features, shoulder/stop, and any hole or key before insertion.

Insert by hand only; do not hammer, pry the slot, or pull the lugs apart.

Stop if the tube binds before the documented/reference insertion depth, rocks in the bore, or requires a shim.

Do not tighten beyond finger contact without an exact torque or an intact reference procedure.

No tape wrap, improvised sleeve, split spreading, bore grinding, redrilling, thread locker, or substitute fastener belongs in an identity test. A modified assembly is a new unverified design.

Tool-side thread comparison

Compare measured form, diameter, and pitch before mating.

Clean both threads.

Hold the axes square.

Start by hand without a wrench.

Stop at rocking, crest-only contact, early resistance, or any need to “work it through.”

One partial turn is not a match. Several coarse standards can begin to engage before damaging each other. Never use a wrench to make an uncertain thread finish.

Floor-level retention screen

Only after identity, dimensions, thread, fastener, and condition have all been resolved may an intact assembly receive a low-level unloaded hand screen:

keep it below waist height;

keep people and finished surfaces out of the fall path;

apply a gentle axial pull;

apply a gentle hand twist; and

watch for socket slip, lug movement, thread rock, fastener rotation, cracking, or permanent deformation.

This screen can reject an assembly. It cannot establish load capacity, overhead approval, fatigue life, or professional-use suitability. Field use requires model-bound instructions, an exact reference disposition, or a qualified person’s written assessment of the actual system.

Buyer tests — the counter decision

This is the strongest buyer case. Confirm the UPC/model, compare the complete geometry, measure both interfaces and the fastener, and inspect condition. Remaining or used stock still needs a model-bound fit and condition decision.

Do not route by brand. Its retained Hyde image shows a visibly different yellow-ended architecture. There is no 95050 relationship in the evidence.

“I need a universal or Acme roller-frame adapter.”

Do not buy by the visible coarse thread. No standard, diameter, or pitch is documented for 95050. Select a current adapter whose host and tool interfaces are explicitly specified.

“I need a pole-sander fitting.”

Same refusal. Tool-side claims that a sander accepts Acme poles do not establish that the 95050 provides Acme threads or fits the intended host pole.

“I need a spray-pole, pressure-washer, or hose fitting.”

Wrong route. Nothing exact to 95050 supports pressure service, seals, hoses, or spray equipment. The broad legacy taxonomy label Extension Poles & Spray Wands is discovery context, not pressure compatibility.

“The tube diameter looks right.”

Diameter alone does not clear the socket. Insertion depth, shoulder, indexing, retention path, clamping travel, tube wall, and fastener specification remain open. Do not clamp an unidentified tube.

“A roller frame turns onto the thread.”

Beginning to turn is not proof. Measure form, diameter, and pitch. Reject crest-only or partial engagement before it becomes cross-thread damage.

“Is there a current replacement?”

“Can I use a used one overhead if it passes the hand test?”

The hand screen rejects obvious movement; it does not establish rated overhead service, unknown installation torque, or fatigue life.

Safety boundary

This identification workflow stays on the bench. It authorizes no field application.

Aluminum conducts electricity. If a future model-bound decision places 95050 in a pole assembly, the entire conductive assembly must be controlled around energized conductors. OSHA 29 CFR 1910.333(c)(3) requires ordinary unqualified-person clearance from overhead lines and measures the hazard with conductive objects a person may contact. That category boundary does not prove fit or make the 95050 safe for a particular pole.

Never test this unknown part:

near power lines, fixtures, or exposed conductors;

with a loaded roller, sander, brush, or head;

in a pressurized spray or washing system;

above a person, vehicle, glass, or finished surface;

with improvised shims, substitute fasteners, thread sealant, or modified interfaces; or

by applying service load to discover whether it holds.

History — what survives and what does not

That absence makes this a parts-history problem rather than a story to embellish. The object and number survived; the application relationship did not. The historically useful recovery is an original price list, parts drawing, catalog row, or support record that reconnects the socket to a pole generation and the male thread to a tool system. Until then, no invention date, original application, or “classic standard” story is authorable.

Completion record for this job

The identification job is complete only when the record contains:

identity confidence: confirmed / strong visual / pattern only / rejected;

eight-view image set with scale;

complete socket measurements;

complete male-thread measurements;

complete fastener measurements;

exact proposed host pole;

exact proposed mating tool;

source for both interfaces;

manufacturer/reference response;

dry-comparison result, if authorized;

residual unknowns; and
